6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73004U)

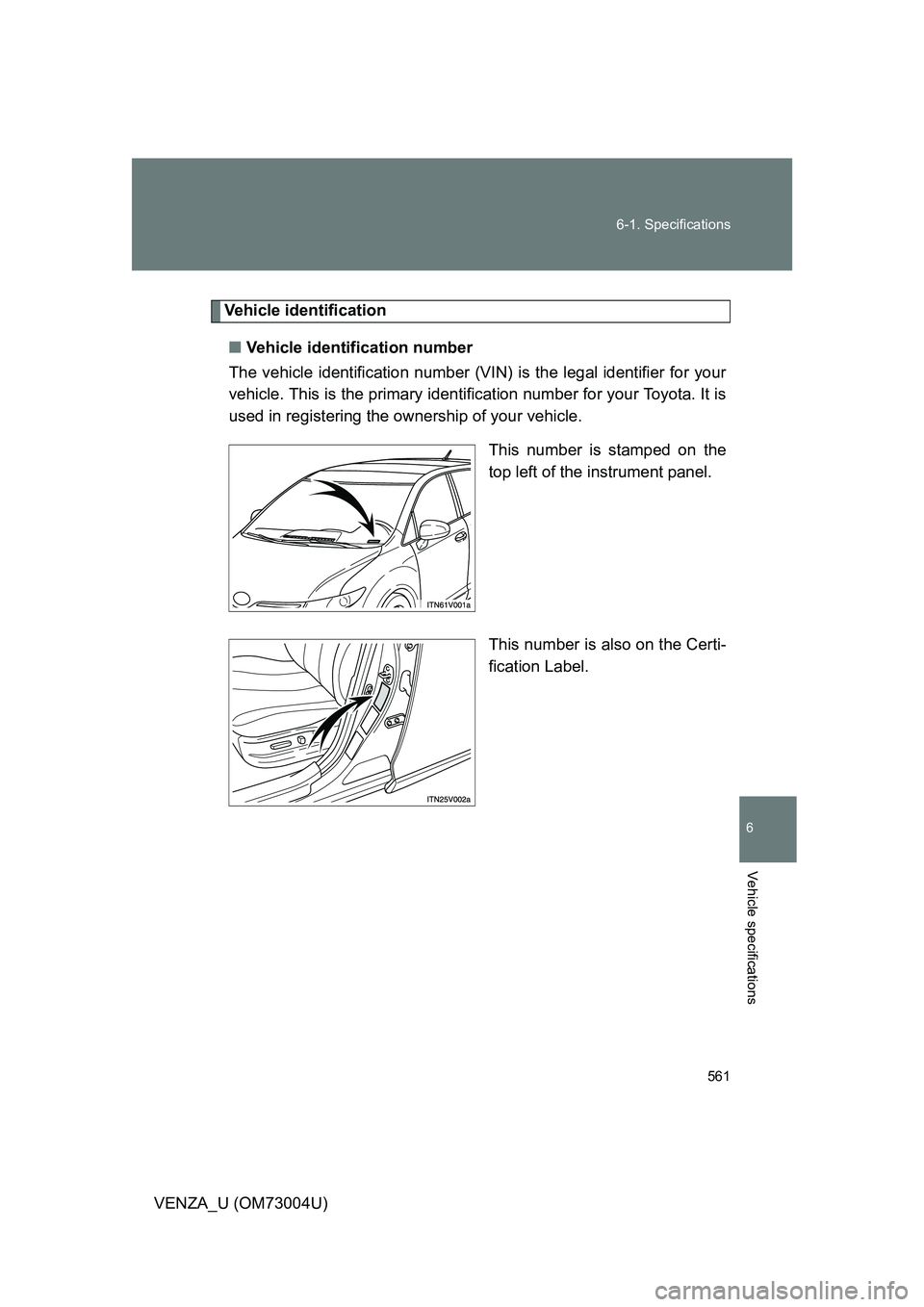

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

562 6-1. Specifications
VENZA_U (OM73004U)■

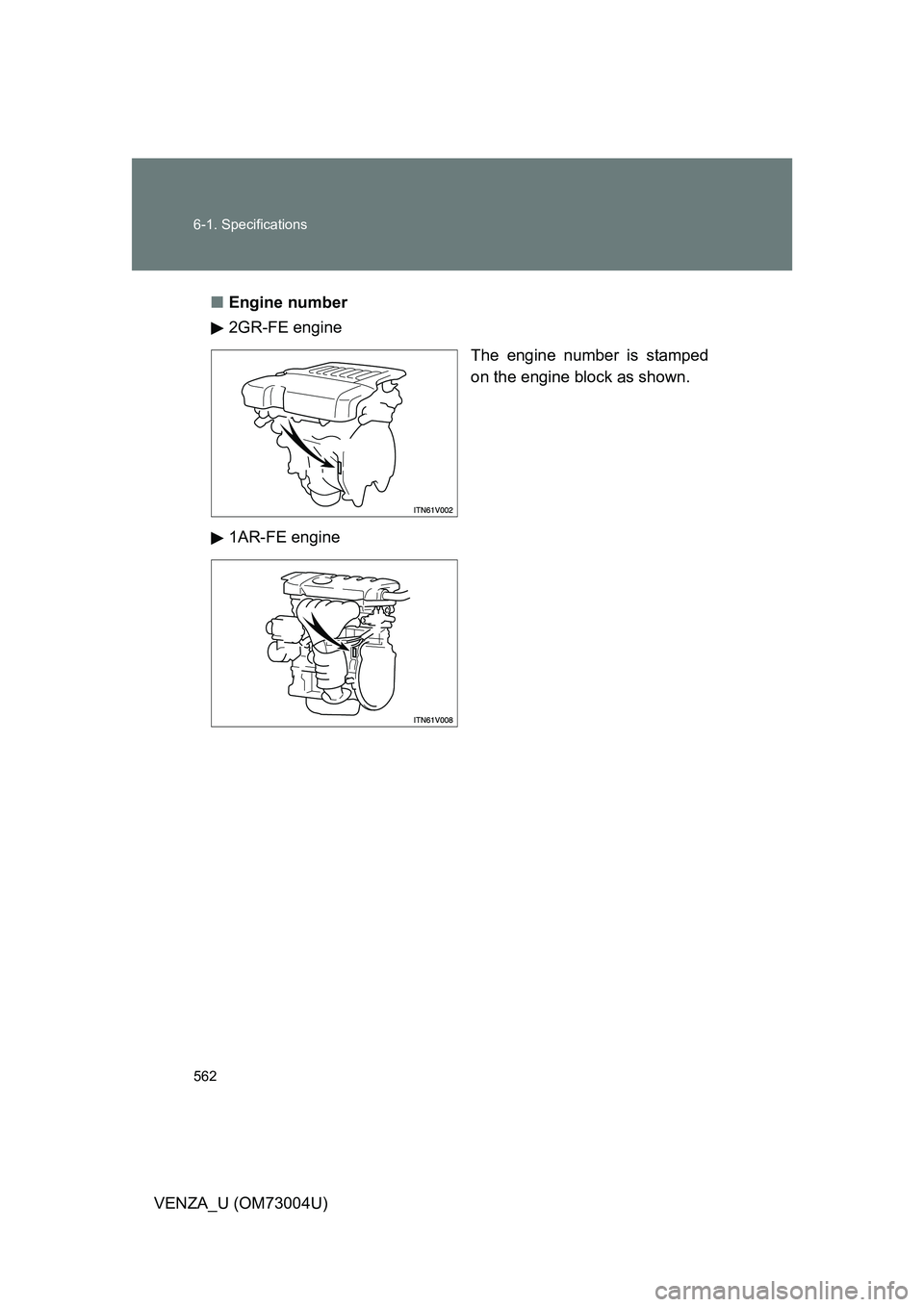

Engine number
2GR-FE engine
The engine number is stamped
on the engine block as shown.
1AR-FE engine

563
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73004U)

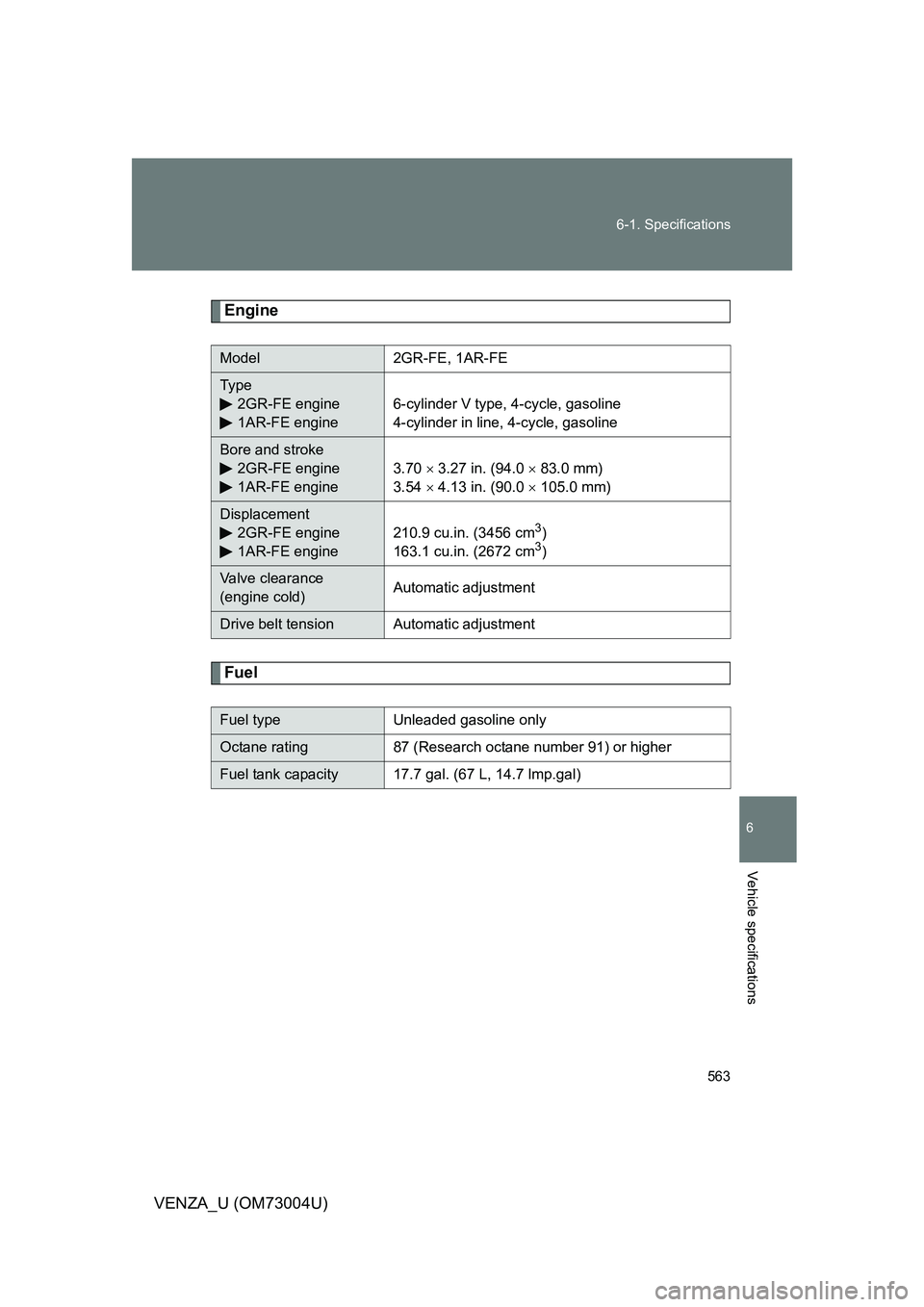

Engine
Fuel
Model2GR-FE, 1AR-FE
Ty p e
2GR-FE engine
1AR-FE engine
6-cylinder V type, 4-cycle, gasoline
4-cylinder in line, 4-cycle, gasoline
Bore and stroke2GR-FE engine
1AR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3.54  4.13 in. (90.0  105.0 mm)
Displacement
2GR-FE engine
1AR-FE engine
210.9 cu.in. (3456 cm3)
163.1 cu.in. (2672 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity17.7 gal. (67 L, 14.7 lmp.gal)

564 6-1. Specifications
VENZA_U (OM73004U)
Lubrication system
Oil capacity
Drain and refill
(reference)
2GR-FE engineWith filter: 6.4 qt. (6.1 L, 5.4 lmp.qt.)
Without filter: 6.0 qt. (5.7 L, 5.0 lmp.qt.)
1AR-FE engineWith filter: 4.7 qt. (4.4 L, 3.9 lmp.qt.)
Without filter: 4.2 qt. (4.0 L, 3.5 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the grade and viscosity
shown below.
2GR-FE engine
1AR-FE engine
Outside temperature
Outside temperature

565
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73004U)
Oil viscosity:
●
The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil visc osity when the oil is as its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Cooling system
Capacity
2GR-FE engineWith towing package: 10.7 qt. (10.1 L, 8.9 lmp.qt.)
Without towing package: 10.4 qt. (9.8 L, 8.6 lmp.qt.)
1AR-FE engine7.3 qt. (6.9 L, 6.1 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

566 6-1. Specifications
VENZA_U (OM73004U)

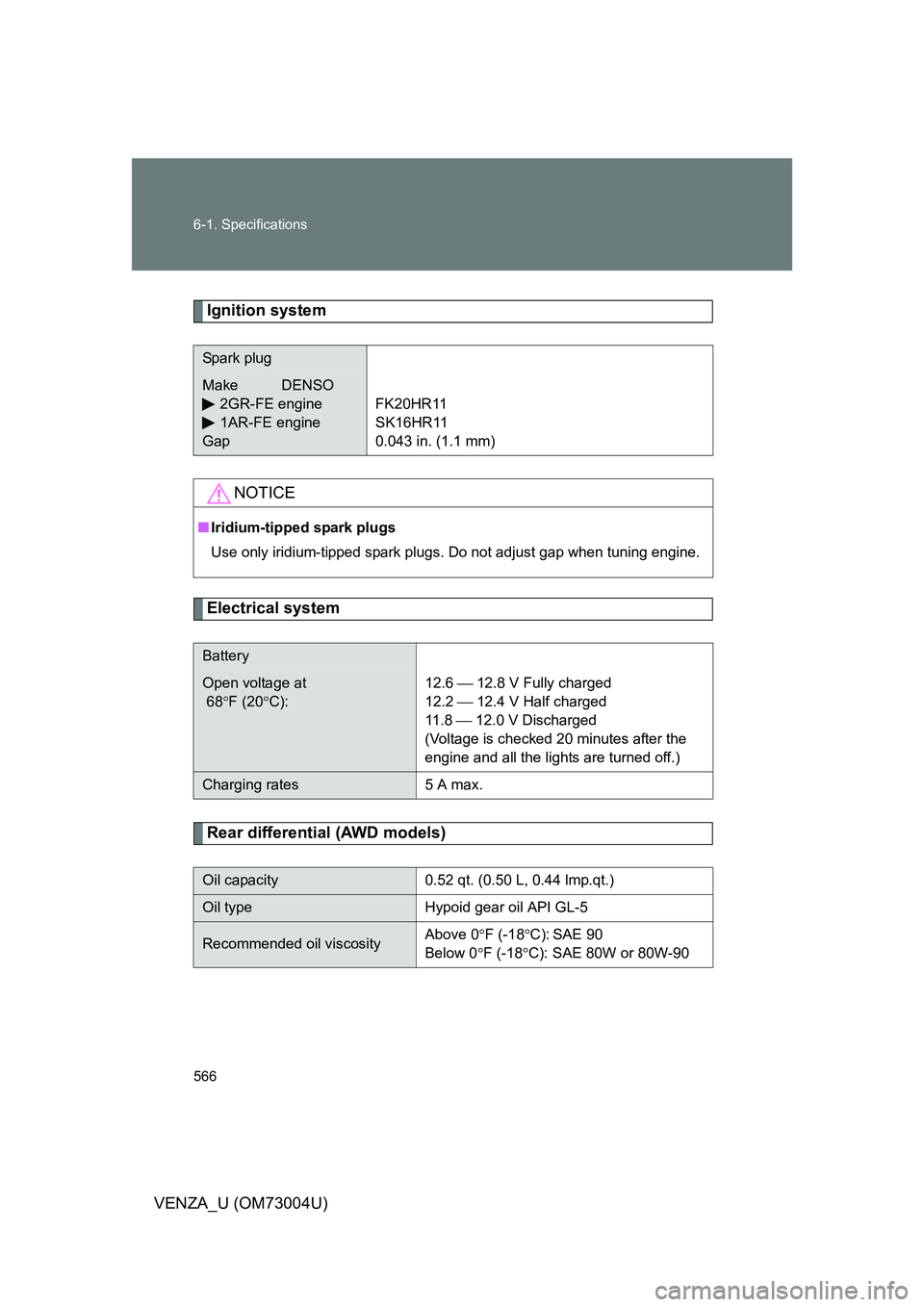

Ignition system
Electrical system
Rear differential (AWD models)
Spark plug
Make DENSO2GR-FE engine
1AR-FE engine
Gap
FK20HR11
SK16HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity0.52 qt. (0.50 L, 0.44 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90

567
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73004U)

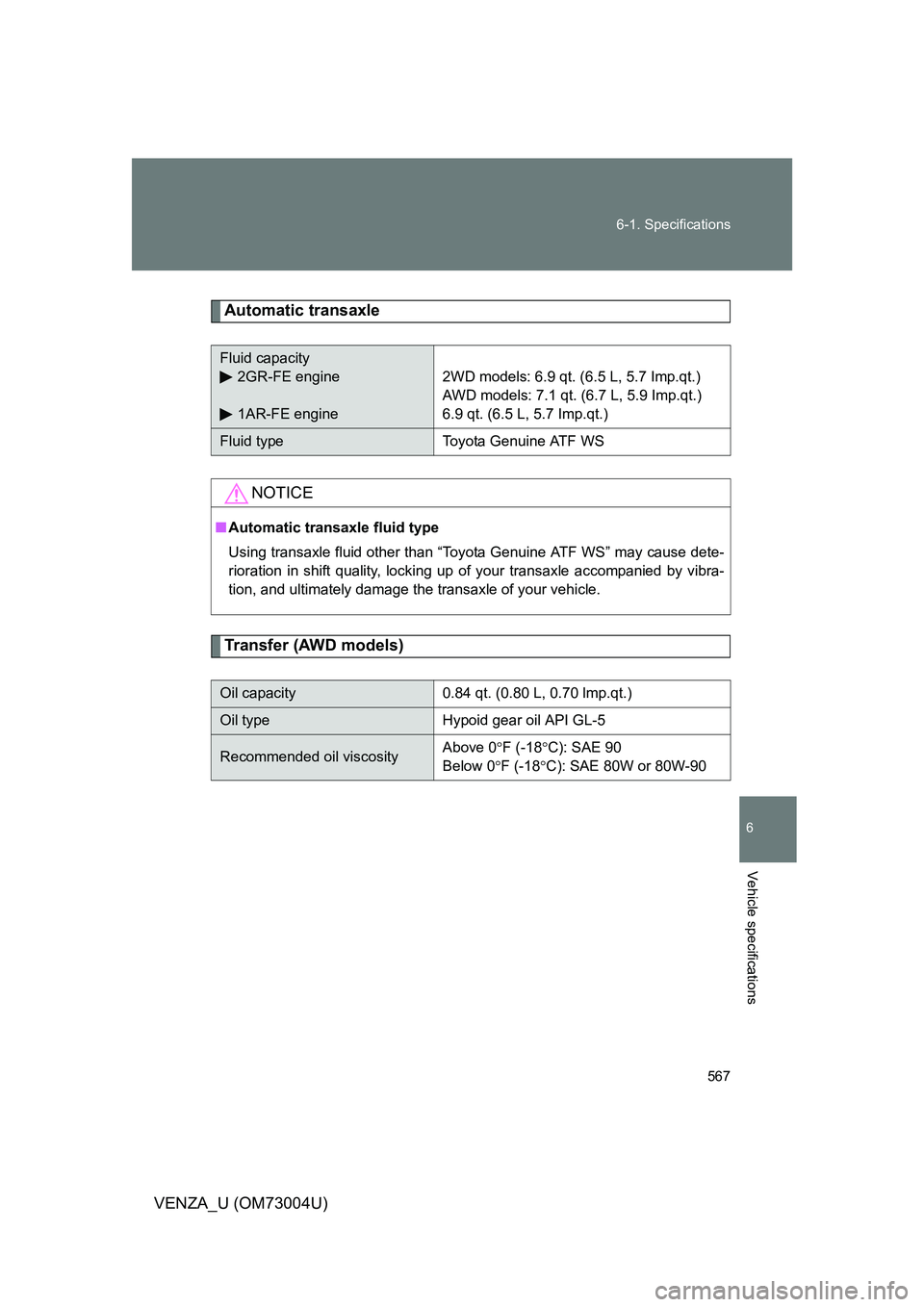

Automatic transaxle
Transfer (AWD models)
Fluid capacity
2GR-FE engine
1AR-FE engine
2WD models: 6.9 qt. (6.5 L, 5.7 Imp.qt.)
AWD models: 7.1 qt. (6.7 L, 5.9 Imp.qt.)
6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transaxle fluid type
Using transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of your transaxle accompanied by vibra-
tion, and ultimately damage the transaxle of your vehicle.
Oil capacity0.84 qt. (0.80 L, 0.70 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90

568 6-1. Specifications
VENZA_U (OM73004U)

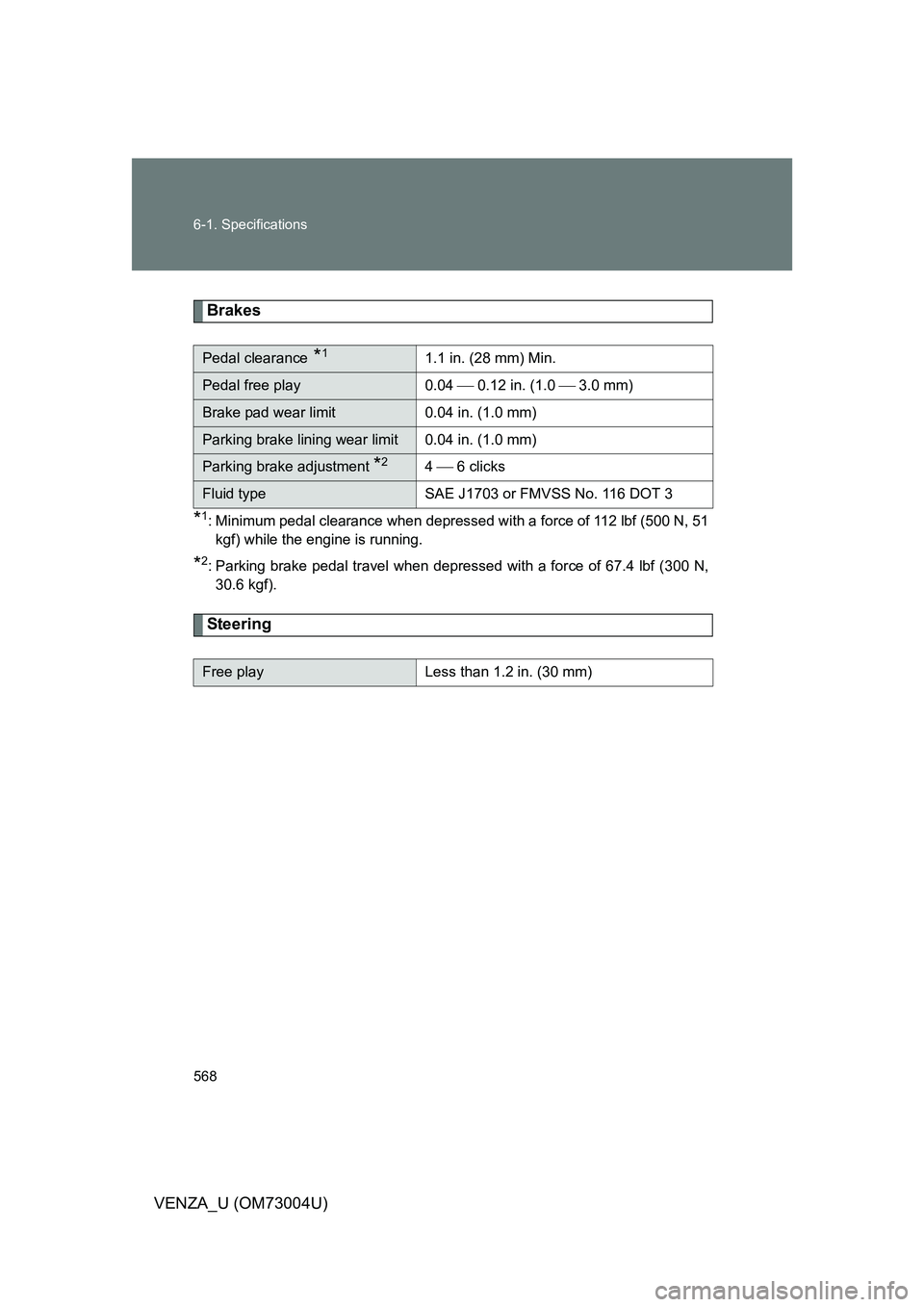

Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Steering
Pedal clearance *11.1 in. (28 mm) Min.
Pedal free play0.04  0.12 in. (1.0  3.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment *24  6 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)

569
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73004U)

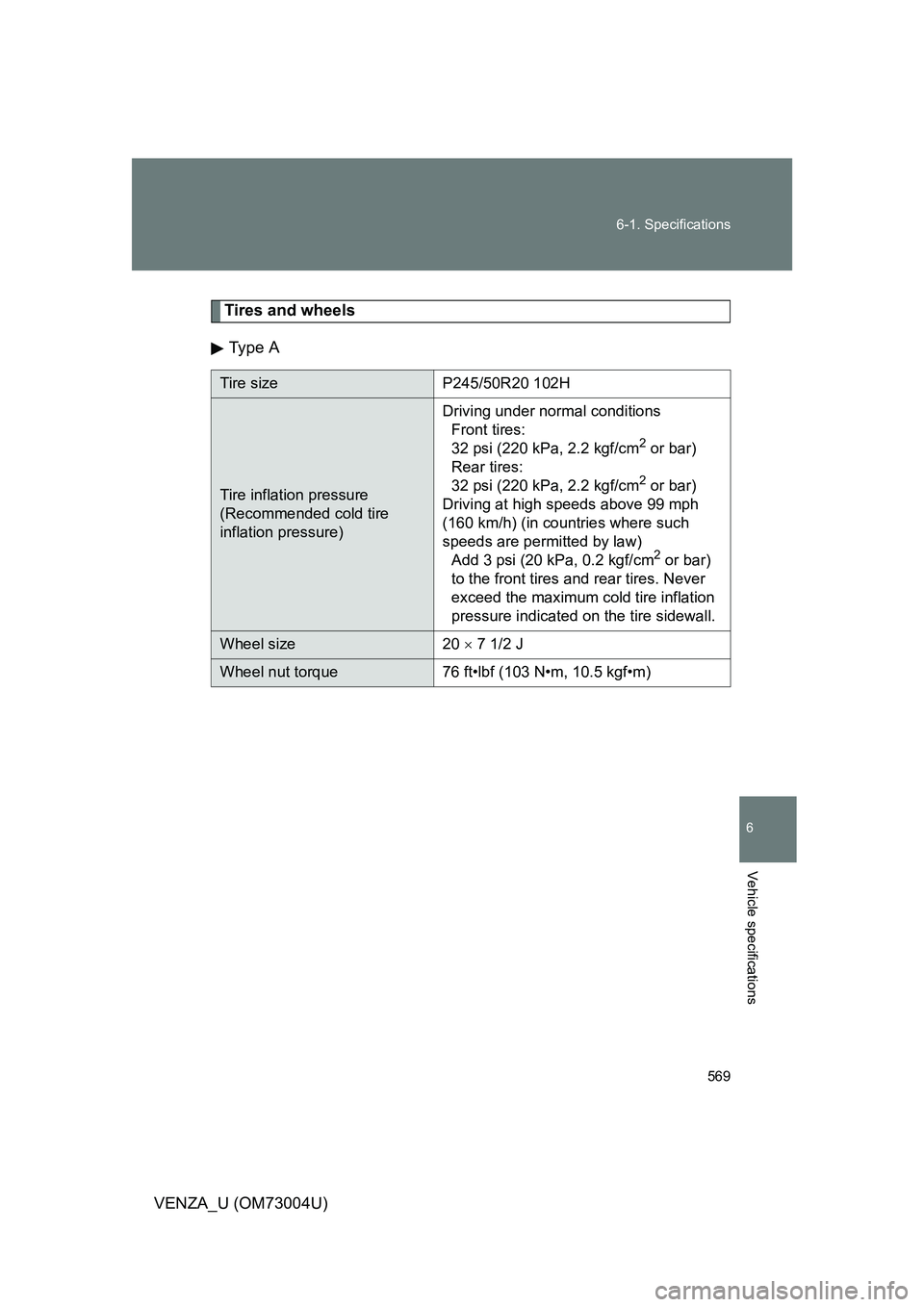

Tires and wheels
Type A
Tire sizeP245/50R20 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size20  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

570 6-1. Specifications

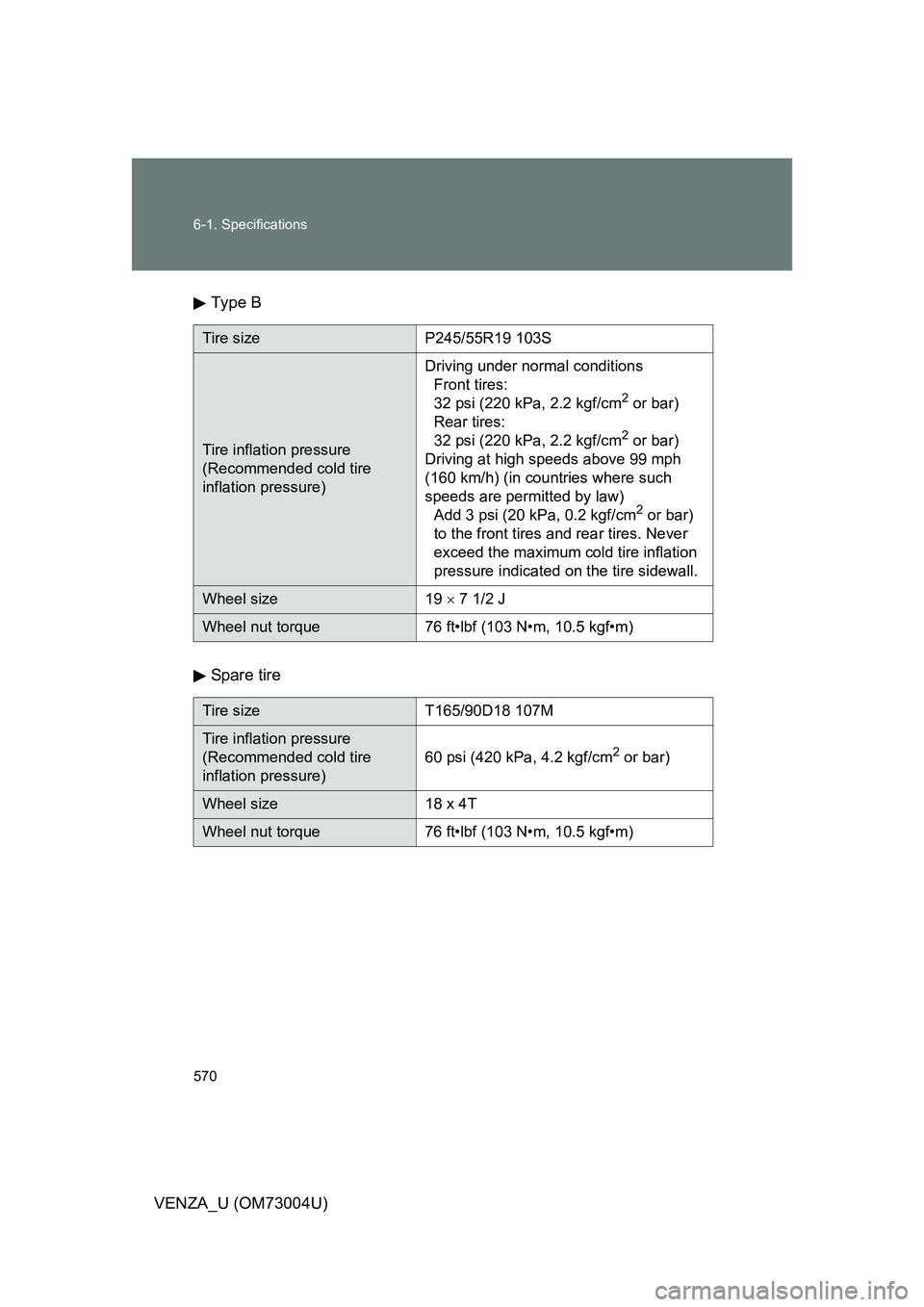

VENZA_U (OM73004U)Type B
Spare tire
Tire sizeP245/55R19 103S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT165/90D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18 x 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
