1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73004U)

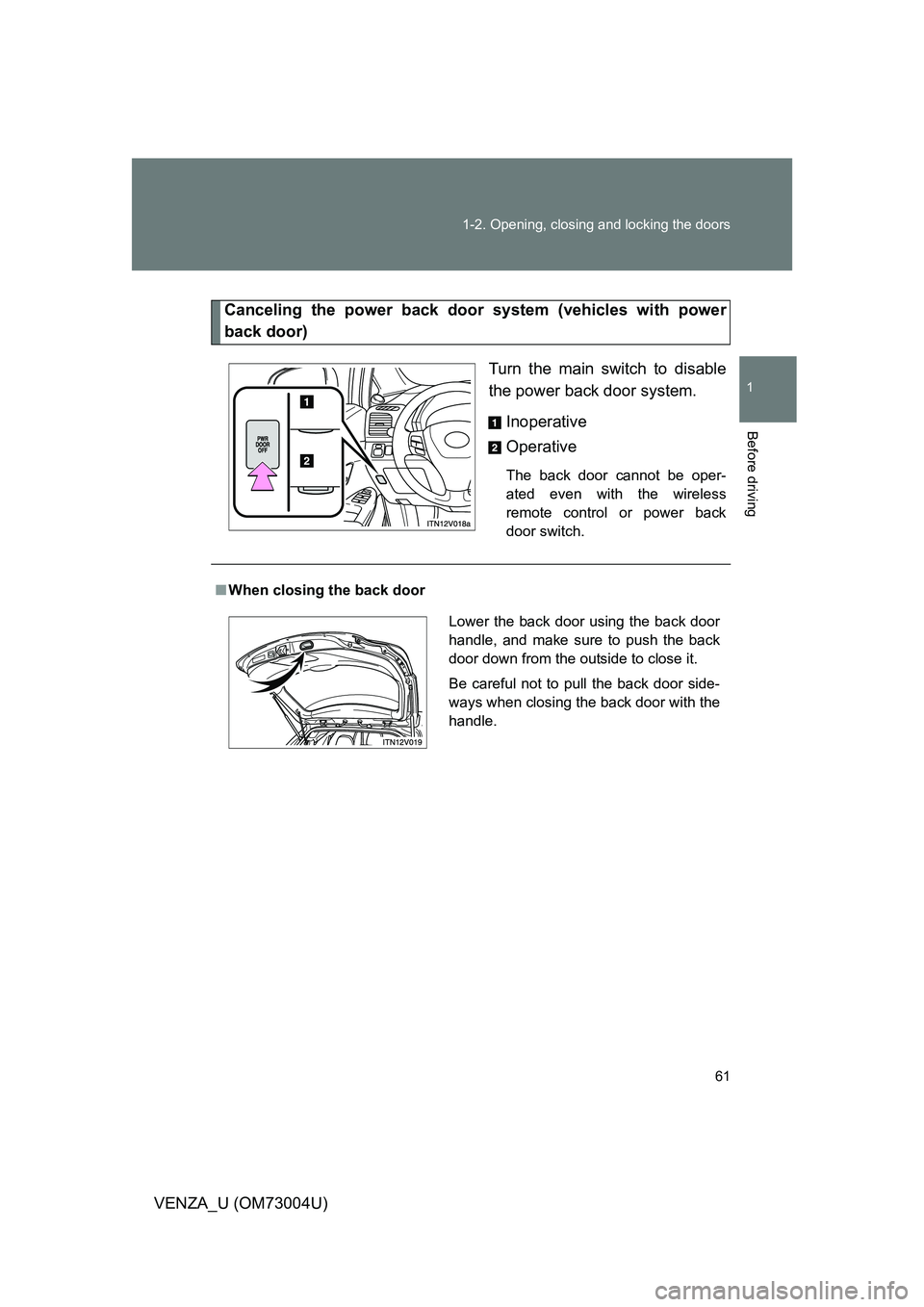

Canceling the power back door
system (vehicles with power
back door)
Turn the main switch to disable
the power back door system.Inoperative
Operative
The back door cannot be oper-
ated even with the wireless
remote control or power back
door switch.
■When closing the back door
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Be careful not to pull the back door side-
ways when closing the back door with the
handle.

62 1-2. Opening, closing and locking the doors
VENZA_U (OM73004U)

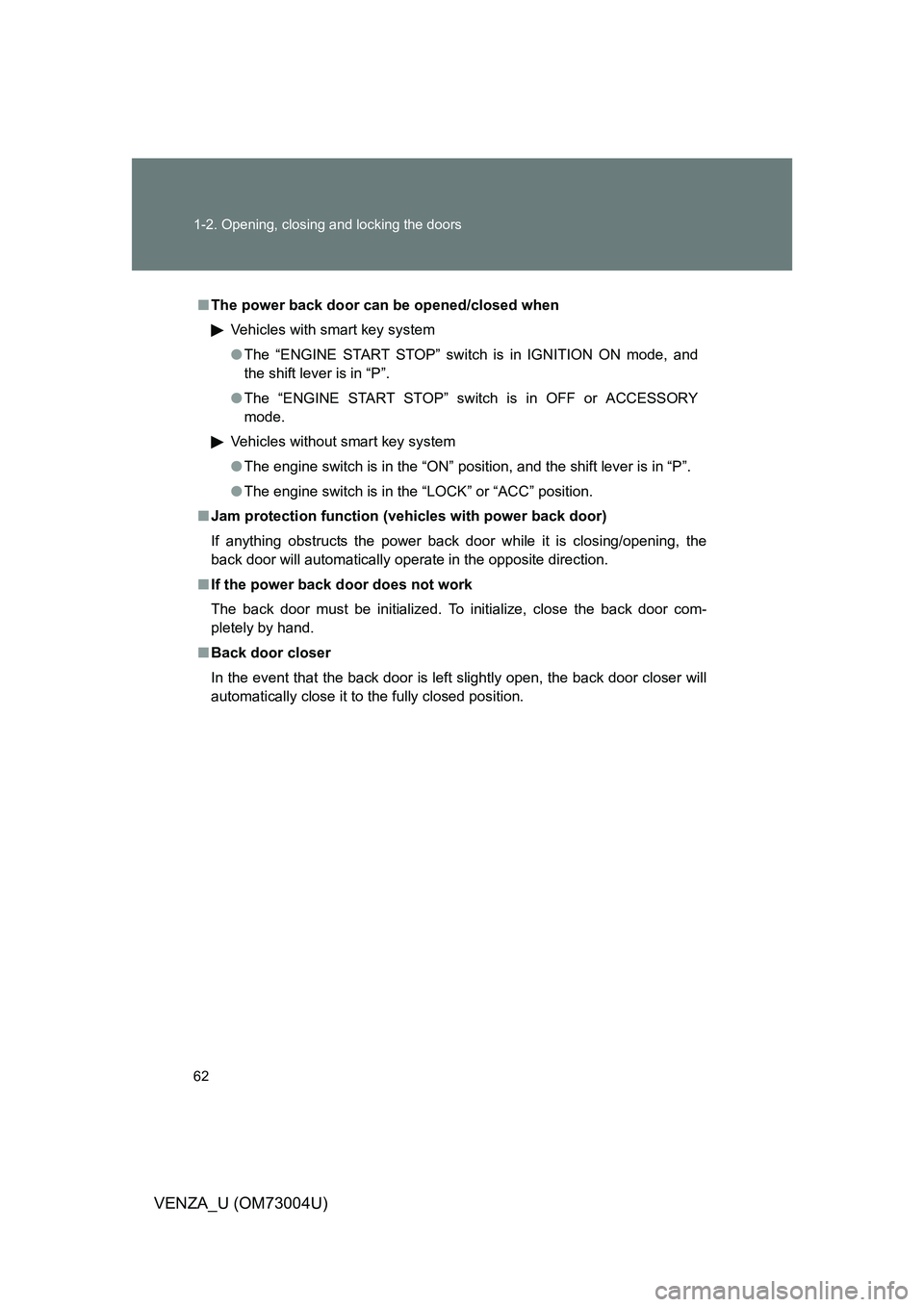

■The power back door can be opened/closed when
Vehicles with smart key system
● The “ENGINE START STOP” switch is in IGNITION ON mode, and
the shift lever is in “P”.
● The “ENGINE START STOP” switch is in OFF or ACCESSORY
mode.
Vehicles without smart key system
● The engine switch is in the “ON” position, and the shift lever is in “P”.
● The engine switch is in the “LOCK” or “ACC” position.
■ Jam protection function (vehicles with power back door)
If anything obstructs the power back door while it is closing/opening, the
back door will automatically operate in the opposite direction.
■ If the power back door does not work
The back door must be initialized. To initialize, close the back door com-
pletely by hand.
■ Back door closer
In the event that the back door is left slightly open, the back door closer will
automatically close it to the fully closed position.

63
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73004U)

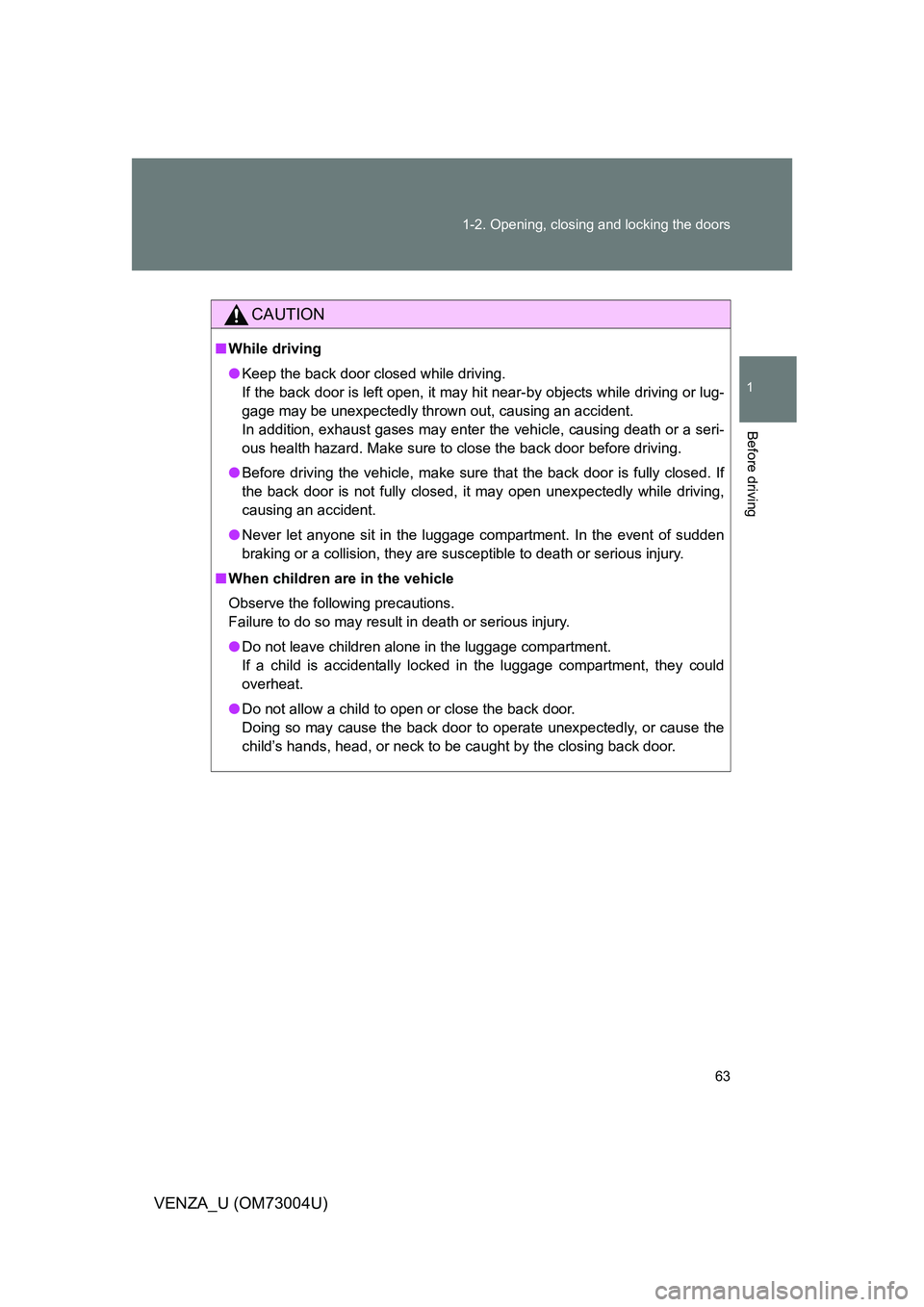

CAUTION
■
While driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
overheat.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

64 1-2. Opening, closing and locking the doors
VENZA_U (OM73004U)
CAUTION

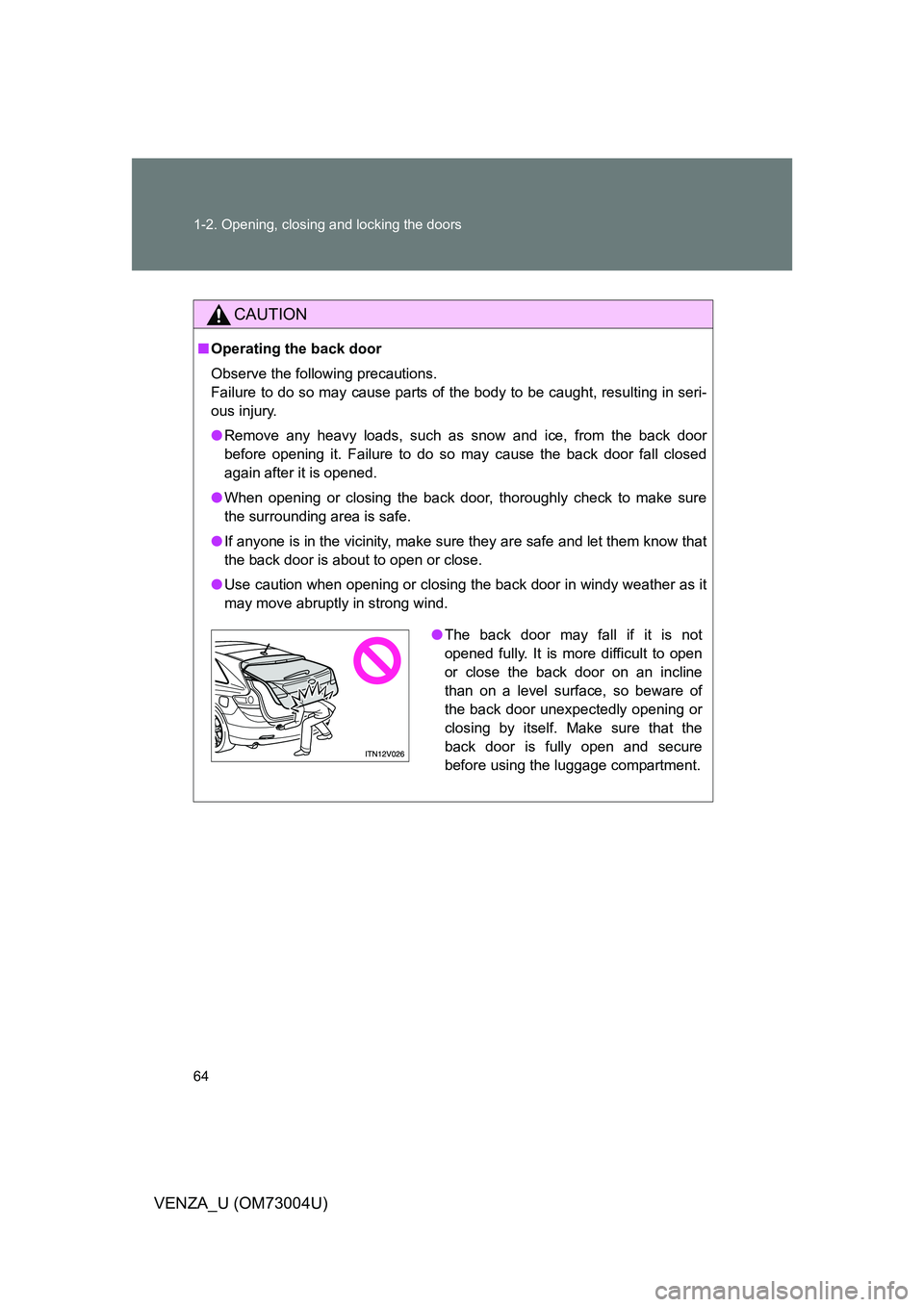

■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door fall closed
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may fall if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.

65
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73004U)
CAUTION
●

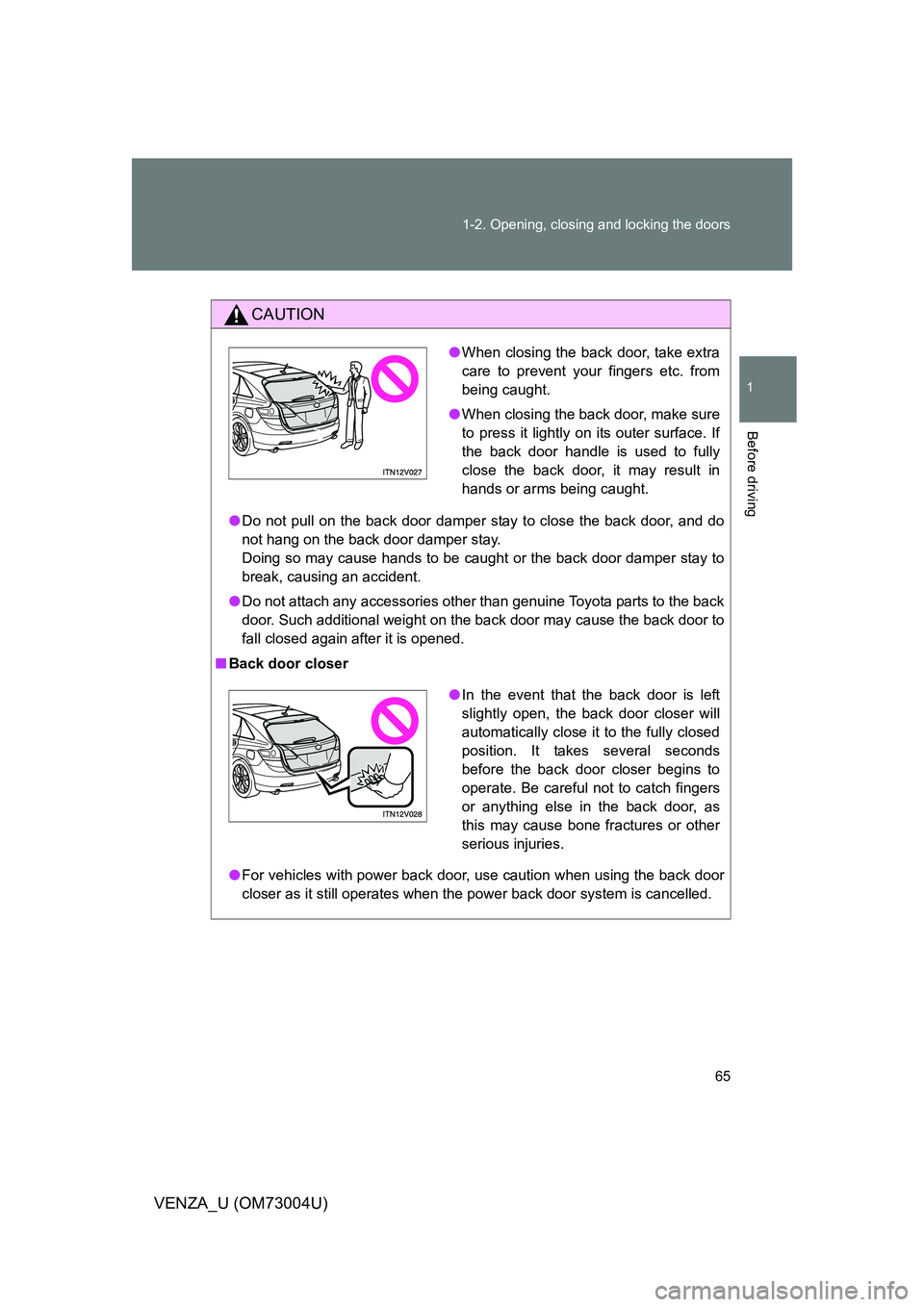

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● Do not attach any accessories other than genuine Toyota parts to the back
door. Such additional weight on the back door may cause the back door to
fall closed again after it is opened.
■ Back door closer
● For vehicles with power back door, use caution when using the back door
closer as it still operates when the power back door system is cancelled.
●When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
●In the event that the back door is left
slightly open, the back door closer will
automatically close it to the fully closed
position. It takes several seconds
before the back door closer begins to
operate. Be careful not to catch fingers
or anything else in the back door, as
this may cause bone fractures or other
serious injuries.

66 1-2. Opening, closing and locking the doors
VENZA_U (OM73004U)
CAUTION

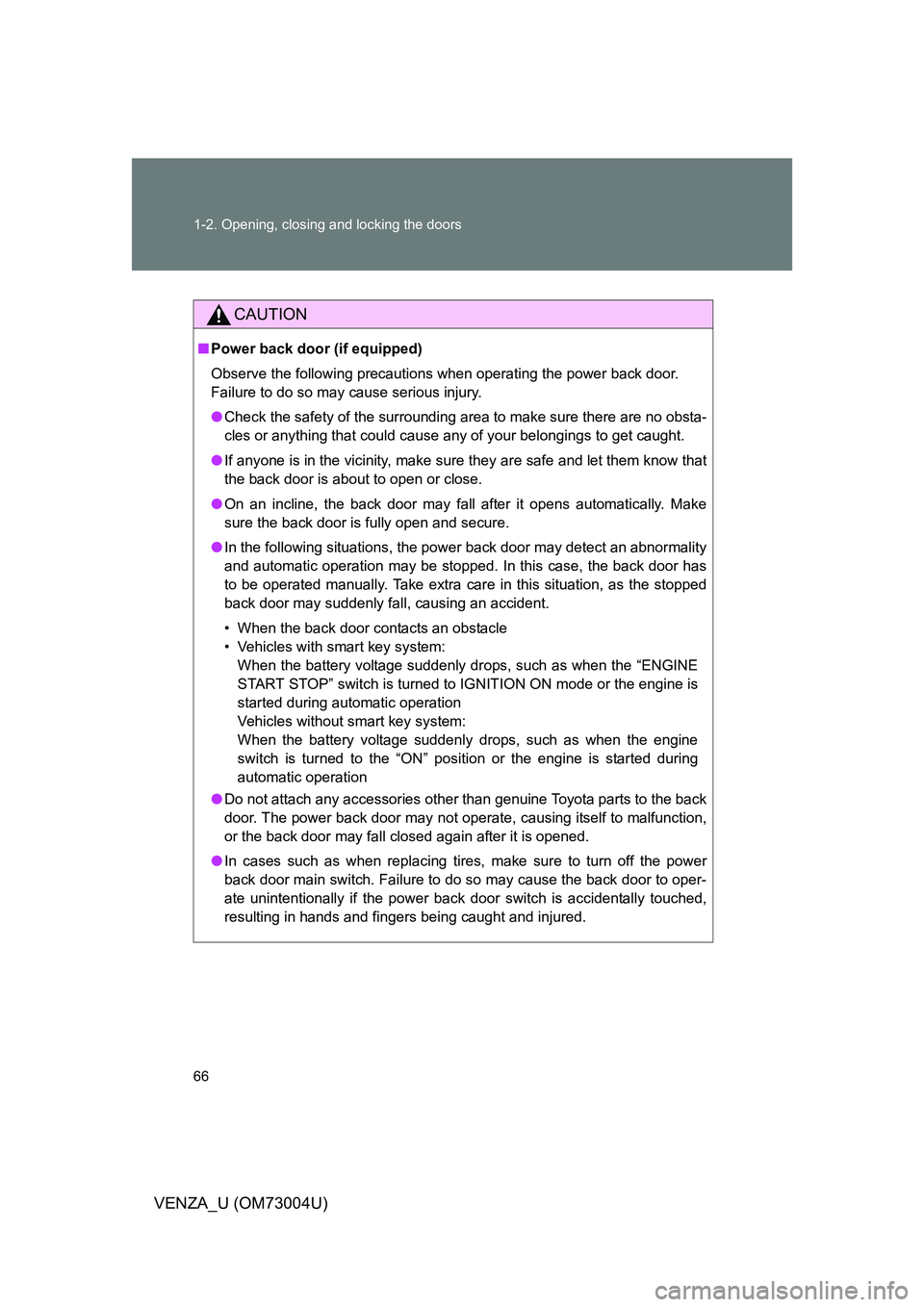

■Power back door (if equipped)
Observe the following precautions when operating the power back door.
Failure to do so may cause serious injury.
● Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● On an incline, the back door may fall after it opens automatically. Make
sure the back door is fully open and secure.
● In the following situations, the power back door may detect an abnormali\
ty
and automatic operation may be stopped. In this case, the back door has
to be operated manually. Take extra care in this situation, as the stopped
back door may suddenly fall, causing an accident.
• When the back door contacts an obstacle
• Vehicles with smart key system:
When the battery voltage suddenly drops, such as when the “ENGINE
START STOP” switch is turned to IGNITION ON mode or the engine is
started during automatic operation
Vehicles without smart key system:
When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position or the engine is started during
automatic operation
● Do not attach any accessories other than genuine Toyota parts to the back
door. The power back door may not operate, causing itself to malfunction,
or the back door may fall closed again after it is opened.
● In cases such as when replacing tires, make sure to turn off the power
back door main switch. Failure to do so may cause the back door to oper-
ate unintentionally if the power back door switch is accidentally touched,
resulting in hands and fingers being caught and injured.

67
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73004U)
CAUTION
■

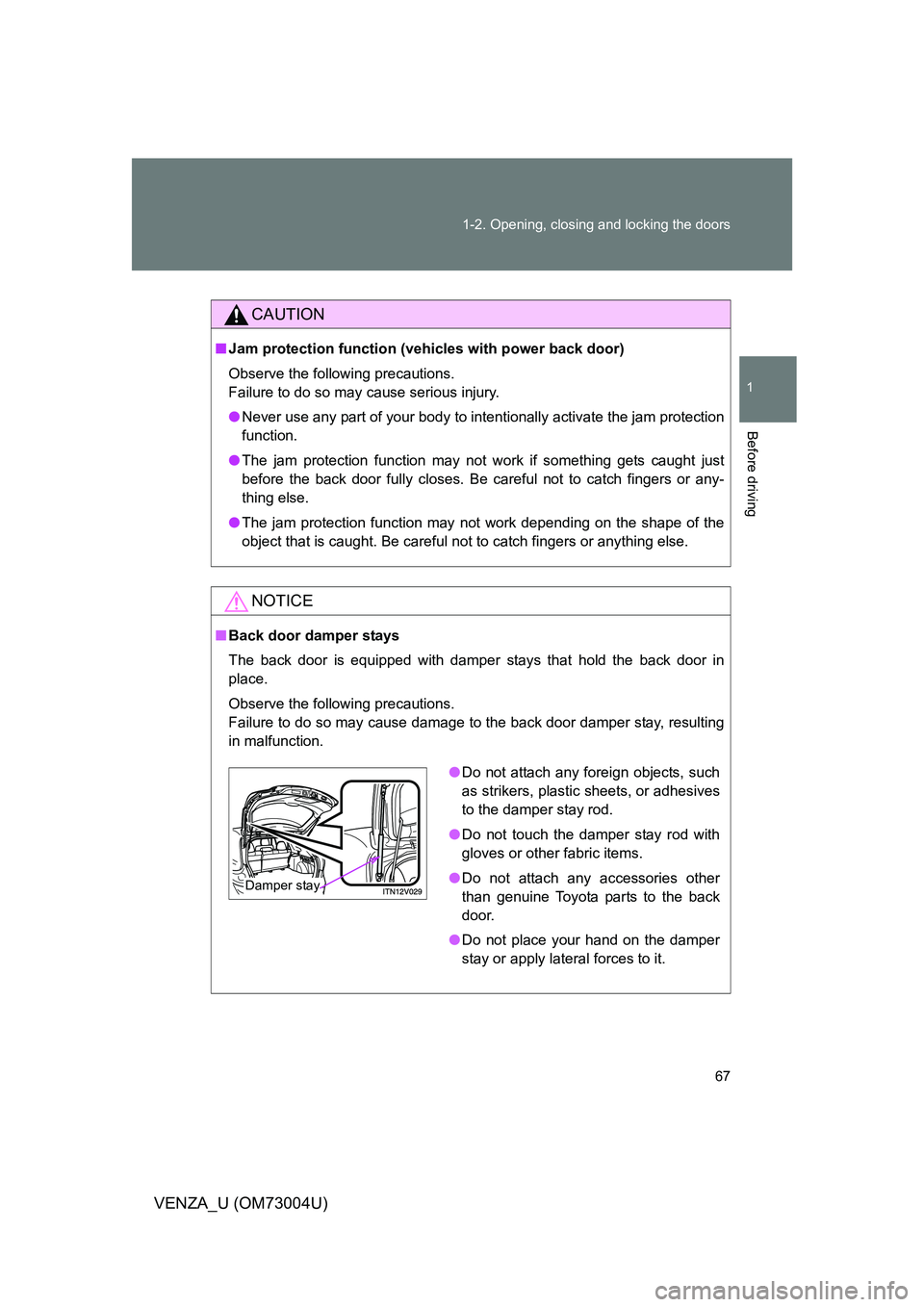

Jam protection function (vehicles with power back door)
Observe the following precautions.
Failure to do so may cause serious injury.
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the back door fully closes. Be careful not to catch fingers or any-
thing else.
● The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as strikers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

68 1-2. Opening, closing and locking the doors
VENZA_U (OM73004U)

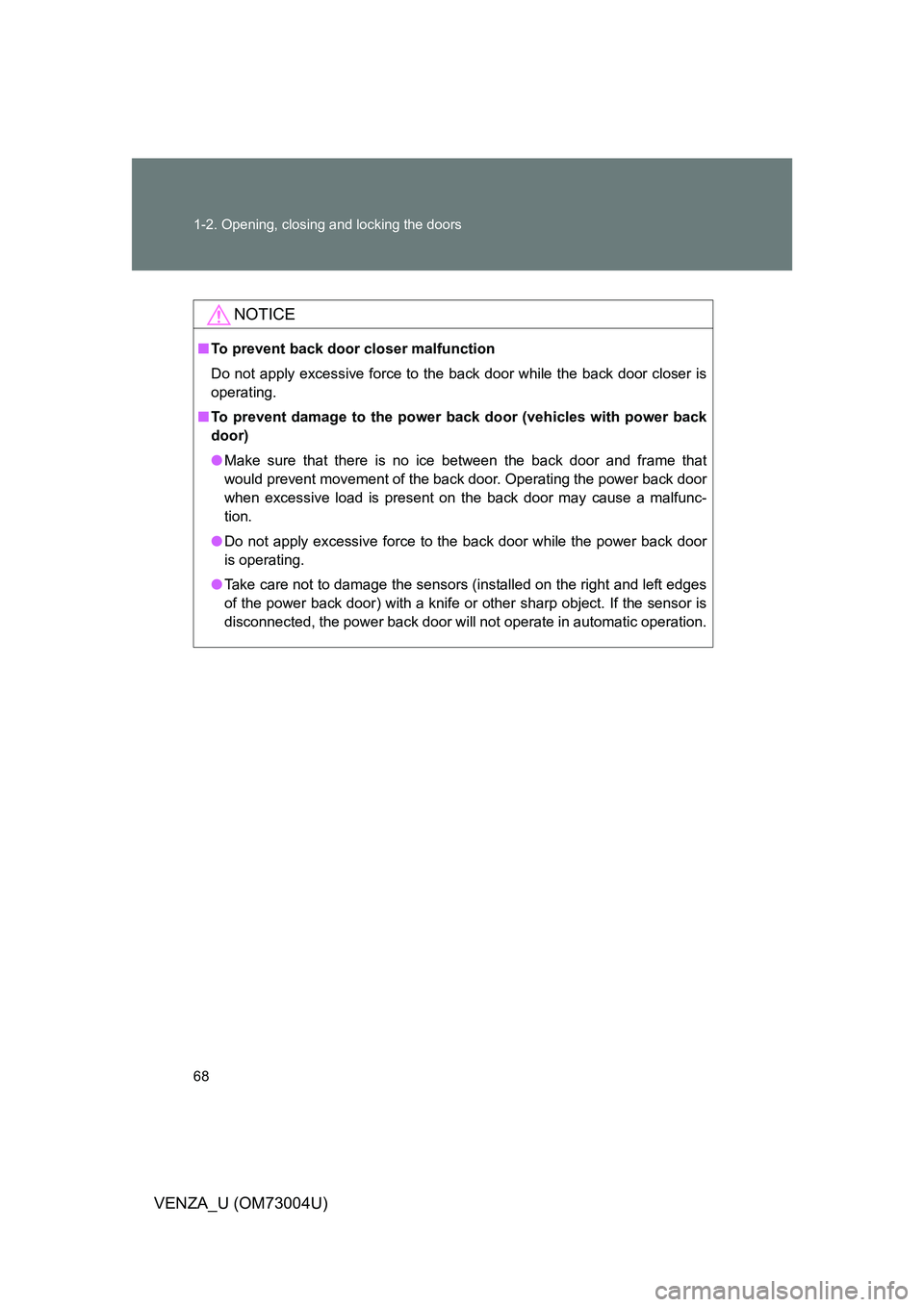

NOTICE
■To prevent back door closer malfunction
Do not apply excessive force to the back door while the back door closer is
operating.
■ To prevent damage to the power back door (vehicles with power back
door)
● Make sure that there is no ice between the back door and frame that
would prevent movement of the back door. Operating the power back door
when excessive load is present on the back door may cause a malfunc-
tion.
● Do not apply excessive force to the back door while the power back door
is operating.
● Take care not to damage the sensors (installed on the right and left edges
of the power back door) with a knife or other sharp object. If the sensor is
disconnected, the power back door will not operate in automatic operation.

69
1
Before driving
VENZA_U (OM73004U)
1-3. Adjustable components (seats, mirrors, steering wheel)

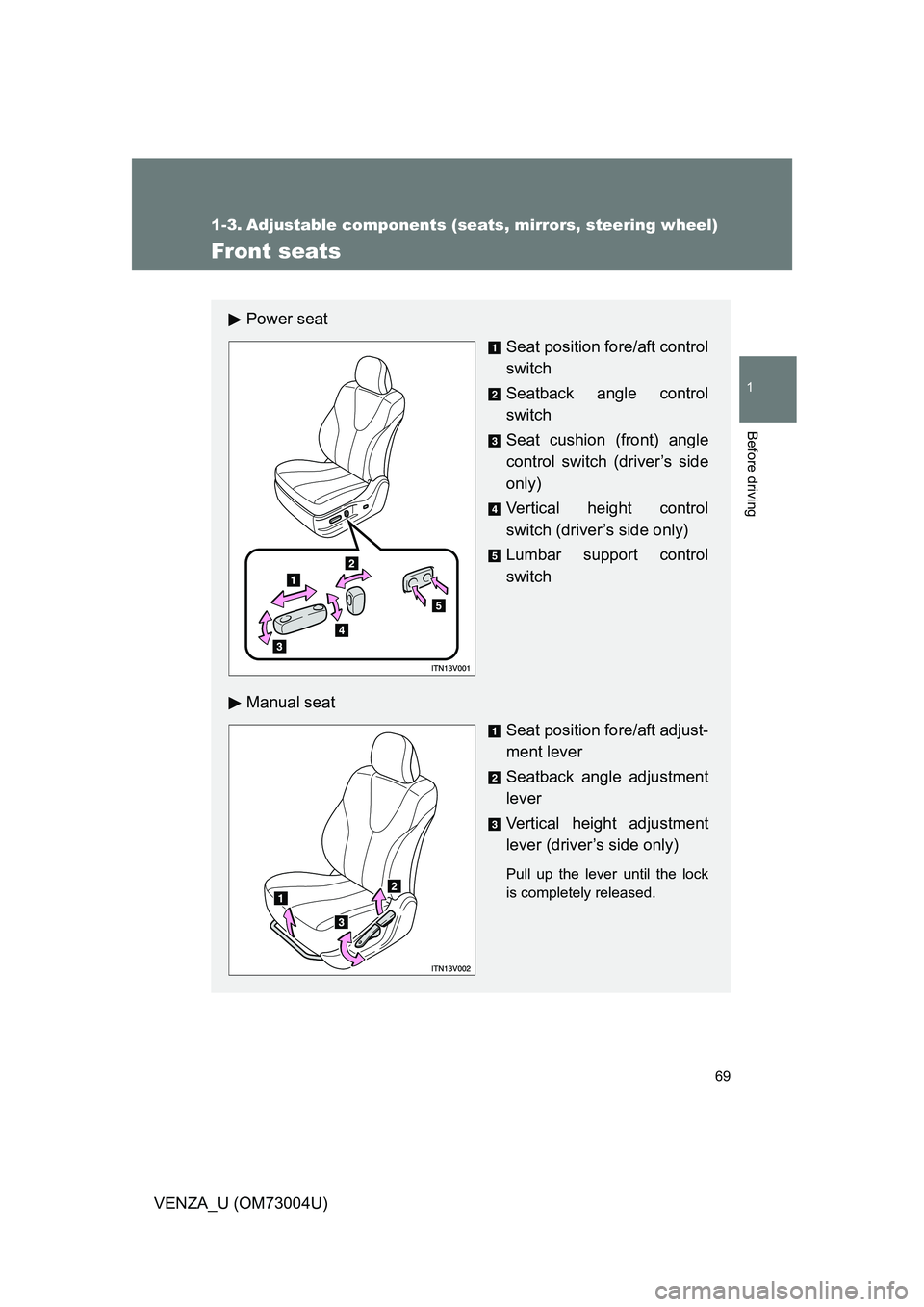

Front seats
Power seat
Seat position fore/aft control
switch
Seatback angle control
switch
Seat cushion (front) angle
control switch (driver’s side
only)
Vertical height control
switch (driver’s side only)
Lumbar support control
switch
Manual seat Seat position fore/aft adjust-
ment lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Pull up the lever until the lock
is completely released.

70 1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_U (OM73004U)
Active head restraints

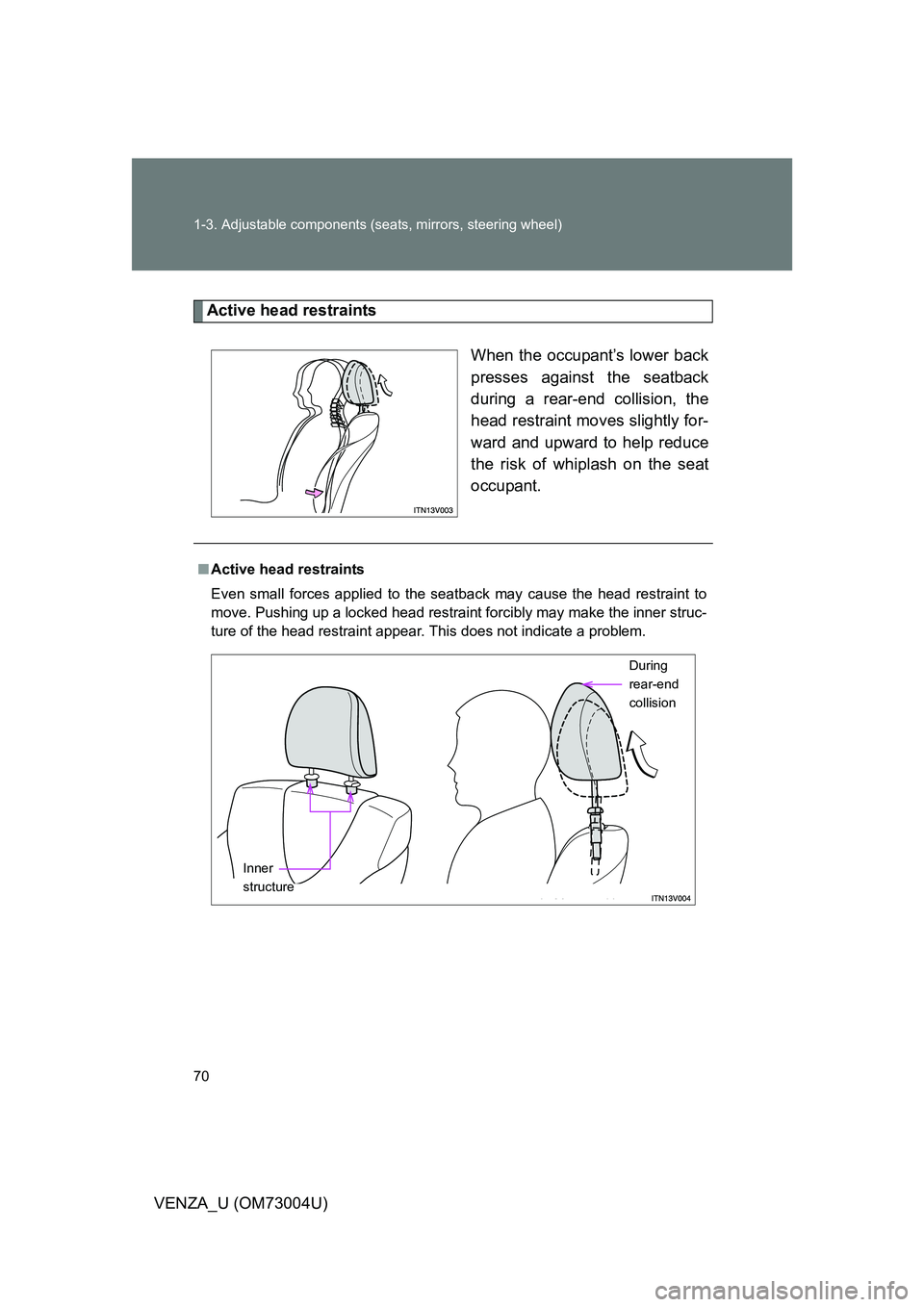

When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may make the inner struc-
ture of the head restraint appear. This does not indicate a problem.
During
rear-end
collision
Inner
structure
