421
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73007U)Select the name to be registered by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press the talk switch and say the desired name.
b. Select “Record Name” by using , and say the desired name.
Select “Confirm” by using a voice command or .
In , selecting “Set Speed Dial (Speed Dial)” instead of “Con-
firm” registers the newly added phone number as speed dial.
Setting speed dials Select “Set Speed Dial (Speed Dial)” by using a voice com-
mand or .
STEP3
STEP4
STEP3
STEP1

422 3-5. Using the hands-free system (for cellular phone)
VENZA_U (OM73007U)Select the data to be registered as a speed dial by either of
the following methods:
a. Press the talk switch, sa
y desired number, and select
“Confirm” by using a voice command or .
b. Press the talk switch, a nd say “List names”. While the
desired name is being read aloud, press the talk switch,
and select “Confirm” by using a voice command or
.
c. Select the desired data by using .
Select the desired preset butt on, and register the data into
speed dial by either of the following methods:
a. Press the desired preset button, and select “Confirm” by
using a voice command or .
b. Press and hold the desired preset button.
STEP2
STEP3

423
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73007U)
Changing a registered name
Select “Change Name” by using a voice command or .
Select the name to be changed by either of the following
methods.
a. Press the talk switch, say desired name, and select “Con-
firm” by using a voice command or .
b. Press the talk switch, a nd say “List names”. While the
desired name is being read aloud, press the talk switch,
and select “Confirm” by using a voice command or
.
c. Select the desired name by using .
Select “Record Name” with or the talk switch.
Say a new name, and select “Con firm” by using a voice com-
mand or .
STEP1
STEP2
STEP3
STEP4

424 3-5. Using the hands-free system (for cellular phone)
VENZA_U (OM73007U)
Deleting registered dataSelect “Delete Entry” by using a voice command or
.
Select the data to be deleted by either of the following meth-
ods, and select “Confirm” by using a voice command or
:
a. Press the talk switch, and say the name of the desired phone number to be deleted.
b. Press the talk switch, say “List phones”. While the name of
the desired phone number is being read aloud, press the
talk switch.
STEP1
STEP2

425
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73007U)
Deleting speed dials
Select “Delete Speed Dial” by using a voice command or
.
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” by using a voice command or
.
Listing the registered dataSelecting “List names” by using a vo ice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the talk switch while the desired data is being read aloud
selects the data, and the followi ng function will be available.
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

426
VENZA_U (OM73007U)

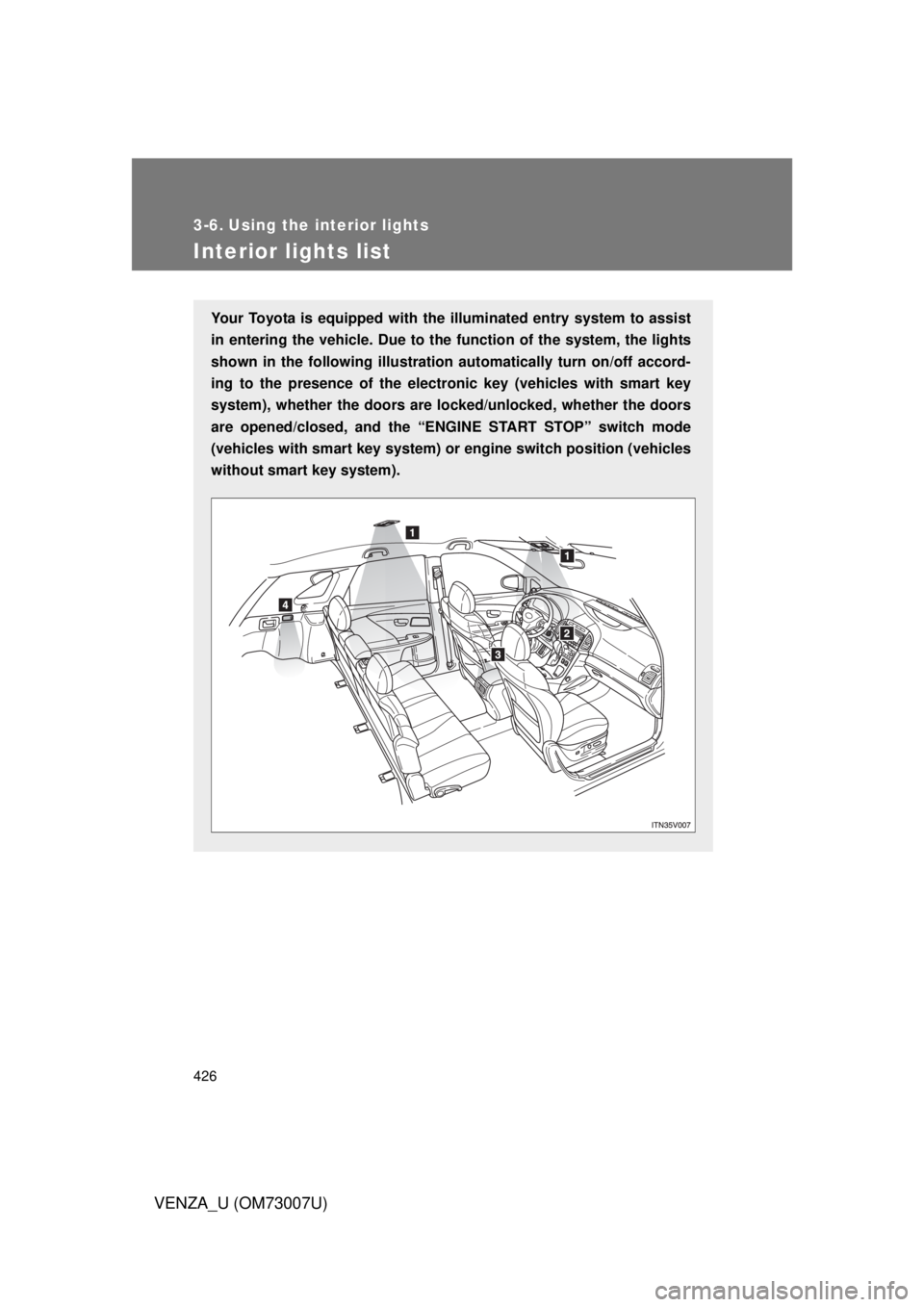

3-6. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Due to th e function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electro nic key (vehicles with smart key
system), whether the doors are lo cked/unlocked, whether the doors
are opened/closed, and the “EN GINE START STOP” switch mode
(vehicles with smart key system) or engine switch position (vehicles
without smart key system).

427
3-6. Using the interior lights
3
Interior features
VENZA_U (OM73007U)
Personal/interior light main switch
“OFF”
The personal/interior lights can
be individually turned on or off.
Door position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed.
On
The personal/interior lights can-
not be individually turned off.
Personal/interior lights
“ENGINE START STOP” switch light (vehicles with smart key
system) or engine switch light (vehicles without smart key sys-
tem)
Door courtesy lights
Luggage compartment light
Personal/interior light main switch

428 3-6. Using the interior lights
VENZA_U (OM73007U)
Personal/interior lightsFront On/off
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
RearOn/off
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
Luggage compartment light
Door position
Off
Personal/interior lights and luggage compartment light

429
3-6. Using the interior lights
3
Interior features
VENZA_U (OM73007U)
■
Adjusting the rear person al/interior lights angle
■ To prevent the battery from being discharged
Vehicles with smart key system
If the personal/interior lights and “ENGINE START STOP” switch light
remain on when the door is not fully closed and the personal/interior li\
ght
main switch is in door position, the lights will go off automatically after 20
minutes.
Vehicles without smart key system
If the personal/interior lights and engine switch light remain on when the
door is not fully closed and the personal/interior light main switch is in
door position, the lights will go off automatically after 20 minutes.
■ Customization that can be configured at Toyota dealer or by the TFT
type multi-information display
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 634)
Push the edge of the light lens.

430
VENZA_U (OM73007U)

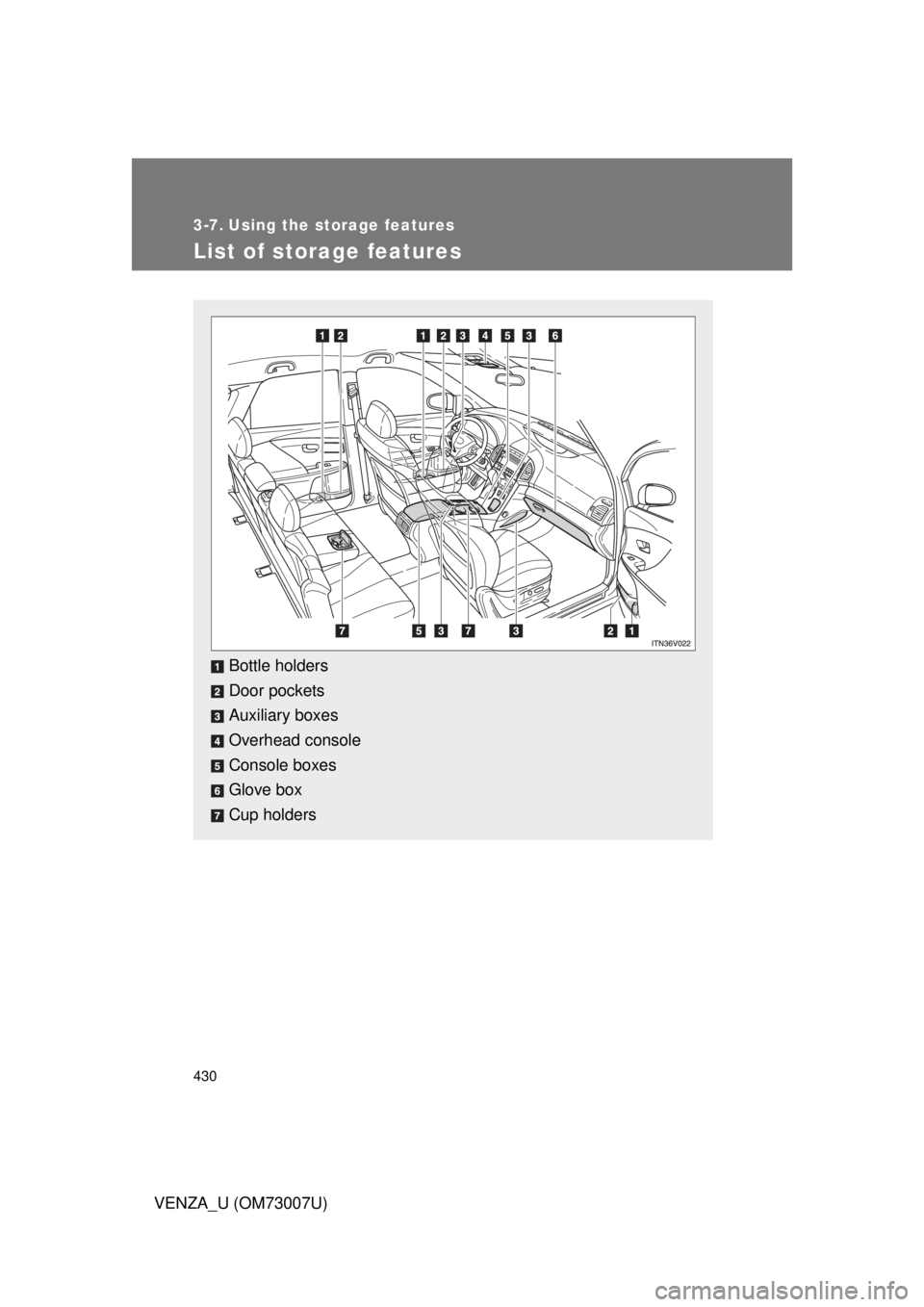

3-7. Using the storage features
List of storage features
Bottle holders
Door pockets
Auxiliary boxes
Overhead console
Console boxes
Glove box
Cup holders
