TOYOTA VENZA 2010 Owners Manual (in English)

441
3
Interior features
VENZA_U (OM73007U)
3-8. Other interior features

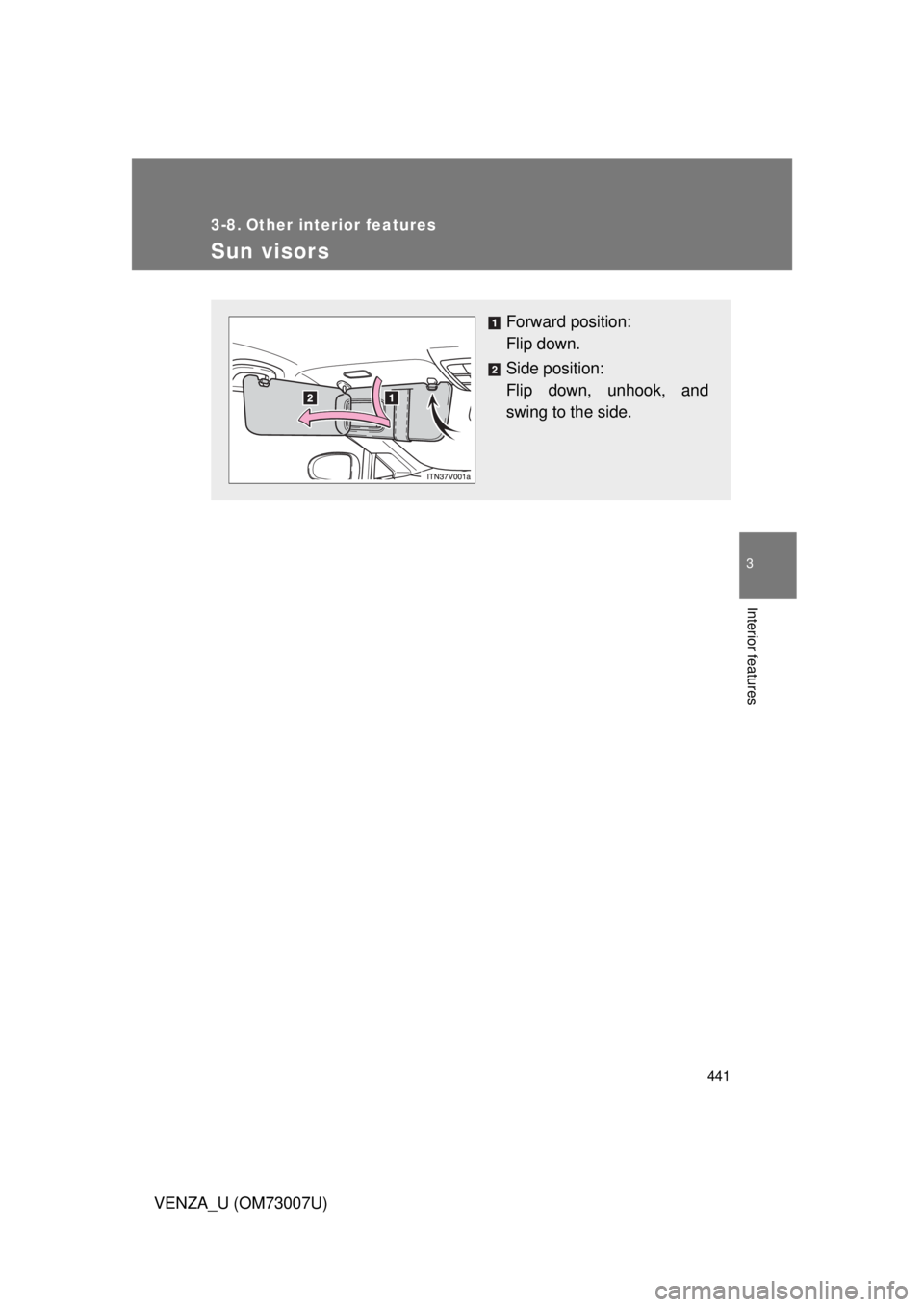

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

442
3-8. Other interior features
VENZA_U (OM73007U)

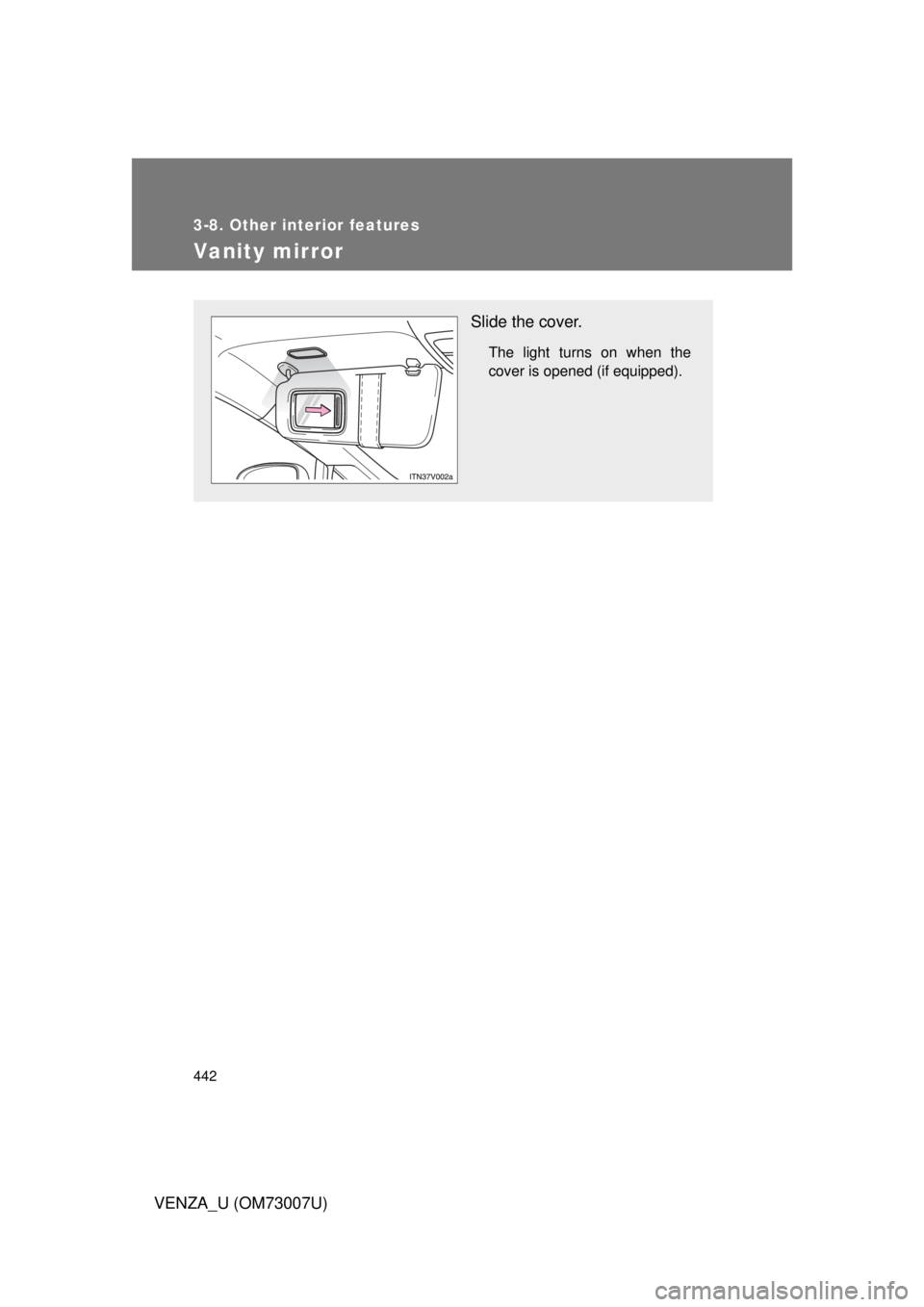

Vanity mirror
Slide the cover.
The light turns on when the
cover is opened (if equipped).

443
3-8. Other interior features
3
Interior features
VENZA_U (OM73007U)

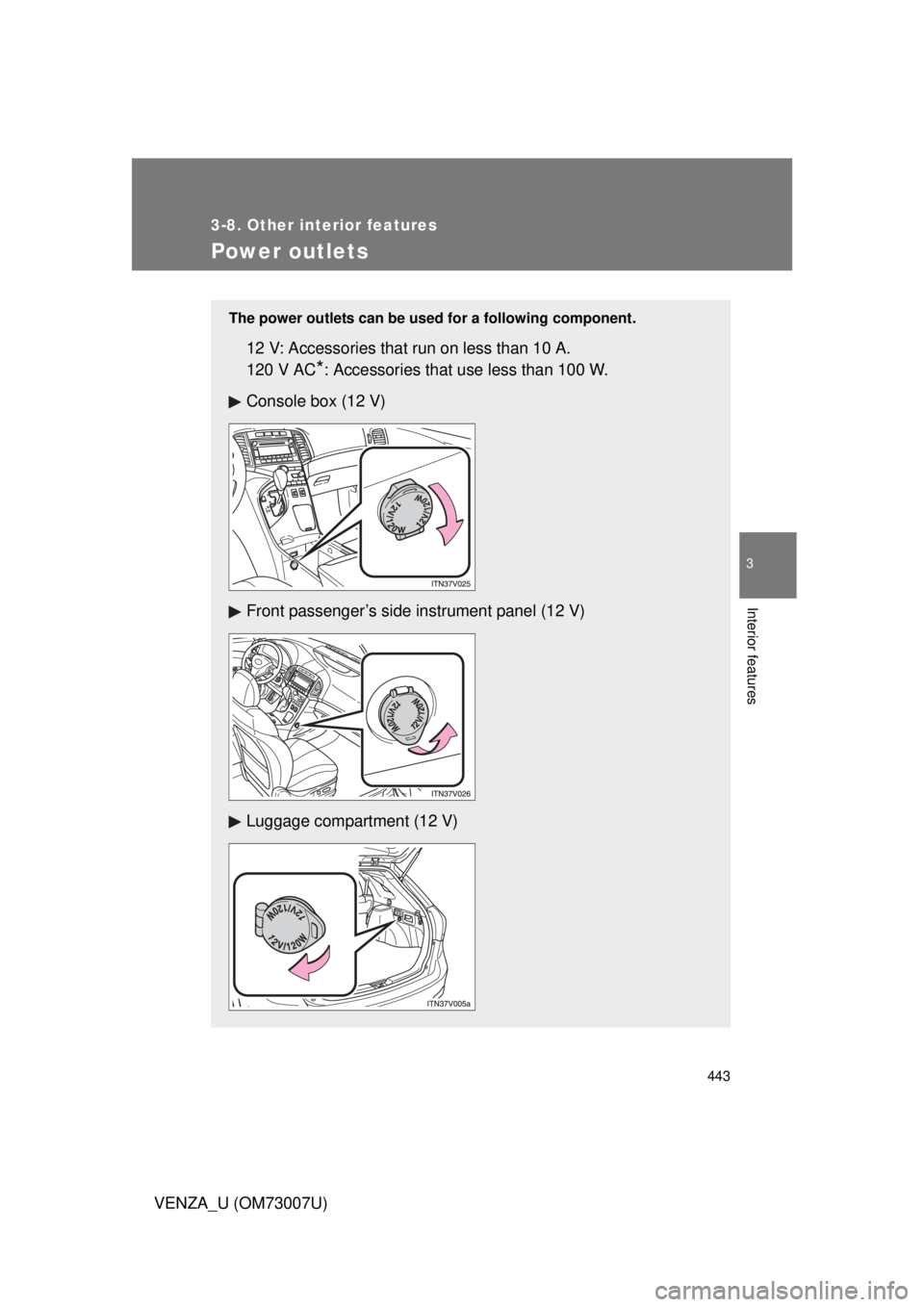

Power outlets
The power outlets can be used for a following component.
12 V: Accessories that run on less than 10 A.
120 V AC
*: Accessories that use less than 100 W.
Console box (12 V)
Front passenger’s side instrument panel (12 V)
Luggage compartment (12 V)

444 3-8. Other interior features
VENZA_U (OM73007U)
■The power outlets can be used when
Vehicles with smart key system
12 V: The “ENGINE START STOP” switch is in ACCESSORY or IGNI- TION ON mode.
120 V: The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
12 V: The engine switch is in the “ACC” or “ON” position.
120 V: The engine switch is in the “ON” position.
■ Radio noise (120 V AC)
The use of certain electrical appliances may cause radio noise interference.
Luggage compartment (120 V AC)*
*
: Vehicles with rear seat entertainment system

445
3-8. Other interior features
3
Interior features
VENZA_U (OM73007U)
NOTICE
■
To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V: Do not use an accessory that uses more than 12 V/10 A.
120 V: Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power con-
sumption is under 100 W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

446
3-8. Other interior features
VENZA_U (OM73007U)
Seat heaters
: If equipped
■The seat heaters can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the dial
upward, the warmer the seat
becomes.

447
3-8. Other interior features
3
Interior features
VENZA_U (OM73007U)
CAUTION
■
Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

448
3-8. Other interior features
VENZA_U (OM73007U)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Front
Lift the lever up and slide the
armrest.
Rear Pull the armrest down for use.

449
3-8. Other interior features
3
Interior features
VENZA_U (OM73007U)
Floor mats
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehic le. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.
● Check that the floor mat is securely
fixed in the right place with all the pro-
vided retaining hooks (clips). Be espe-
cially careful to perform this check after
cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

450
3-8. Other interior features
VENZA_U (OM73007U)

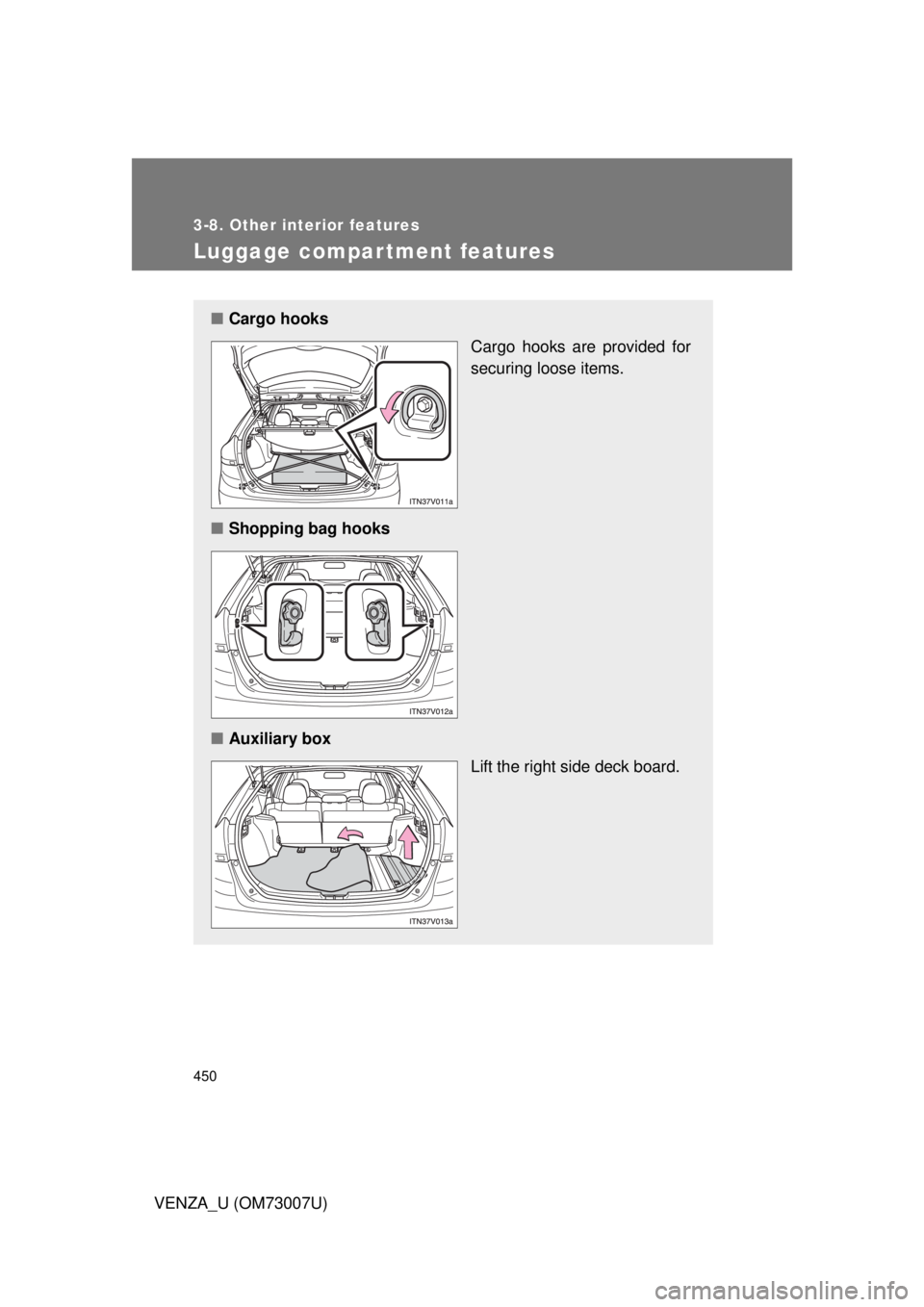

Luggage compartment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the right side deck board.
