TOYOTA VENZA 2010 Owners Manual (in English)

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
CAUTION
■
When working near the electric cooling fan or radiator grille
Vehicles with smart key system
Be sure the “ENGINE START STOP” switch is off. With the “ENGINE
START STOP” switch in IGNITION ON mode, the electric cooling fan may
automatically start to run if the air conditioning is on and/or if the coolant
temperature is high. ( P. 495)
Vehicles without smart key system
Be sure the engine switch is in the “LOCK” position. With the engine
switch in the “ON” position, the electric cooling fan may automati\
cally
start to run if the air conditioning is on and/or if the coolant temperature is
high. ( P. 495)
■ When working on or under the vehicle
Do not get under the vehicle with just the jack supporting it.
Always use automotive jack stands or other solid supports.
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also a backfire could cause a fire in the engine compart-
ment.

482
4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)

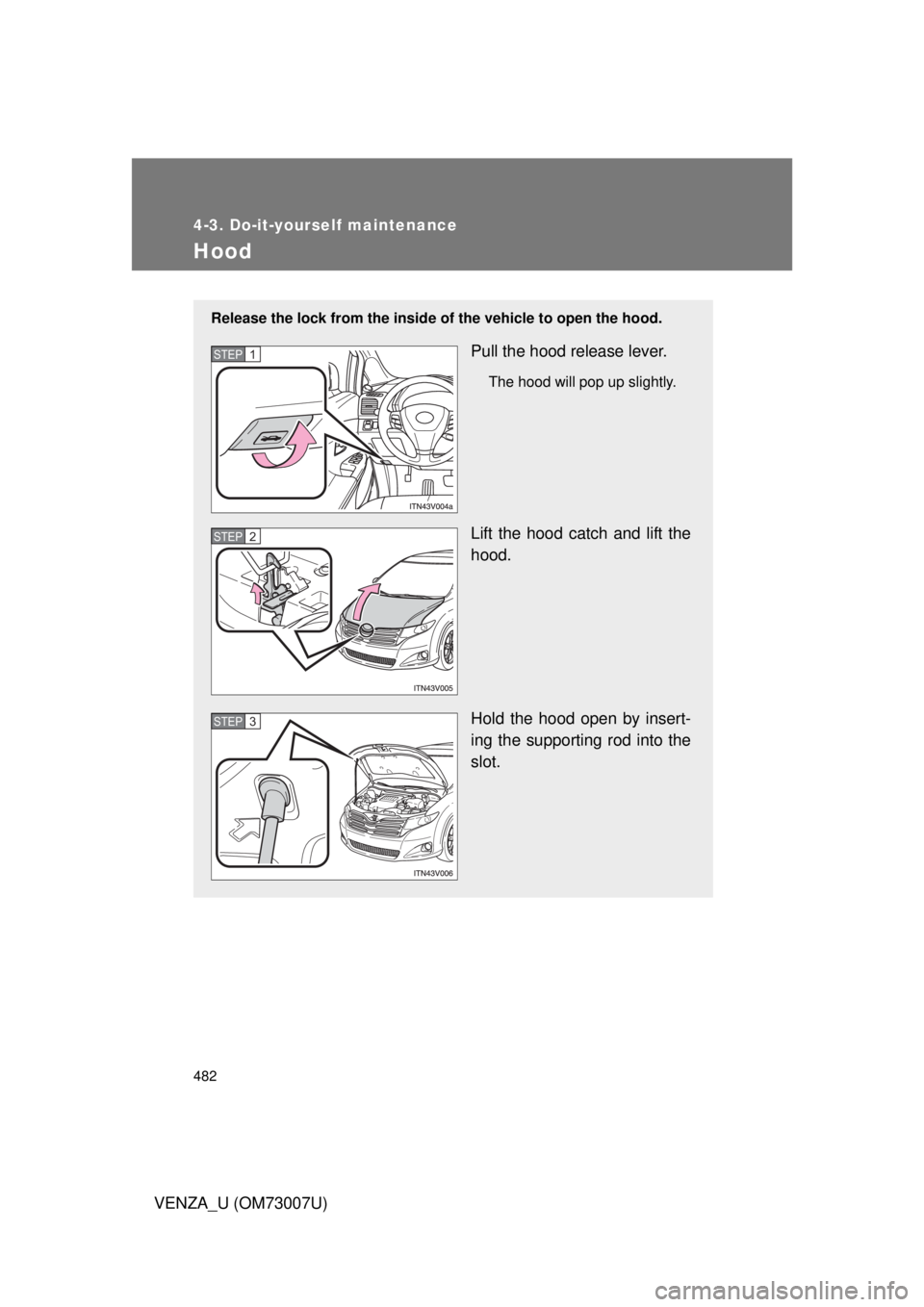

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
CAUTION
■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

484
4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)

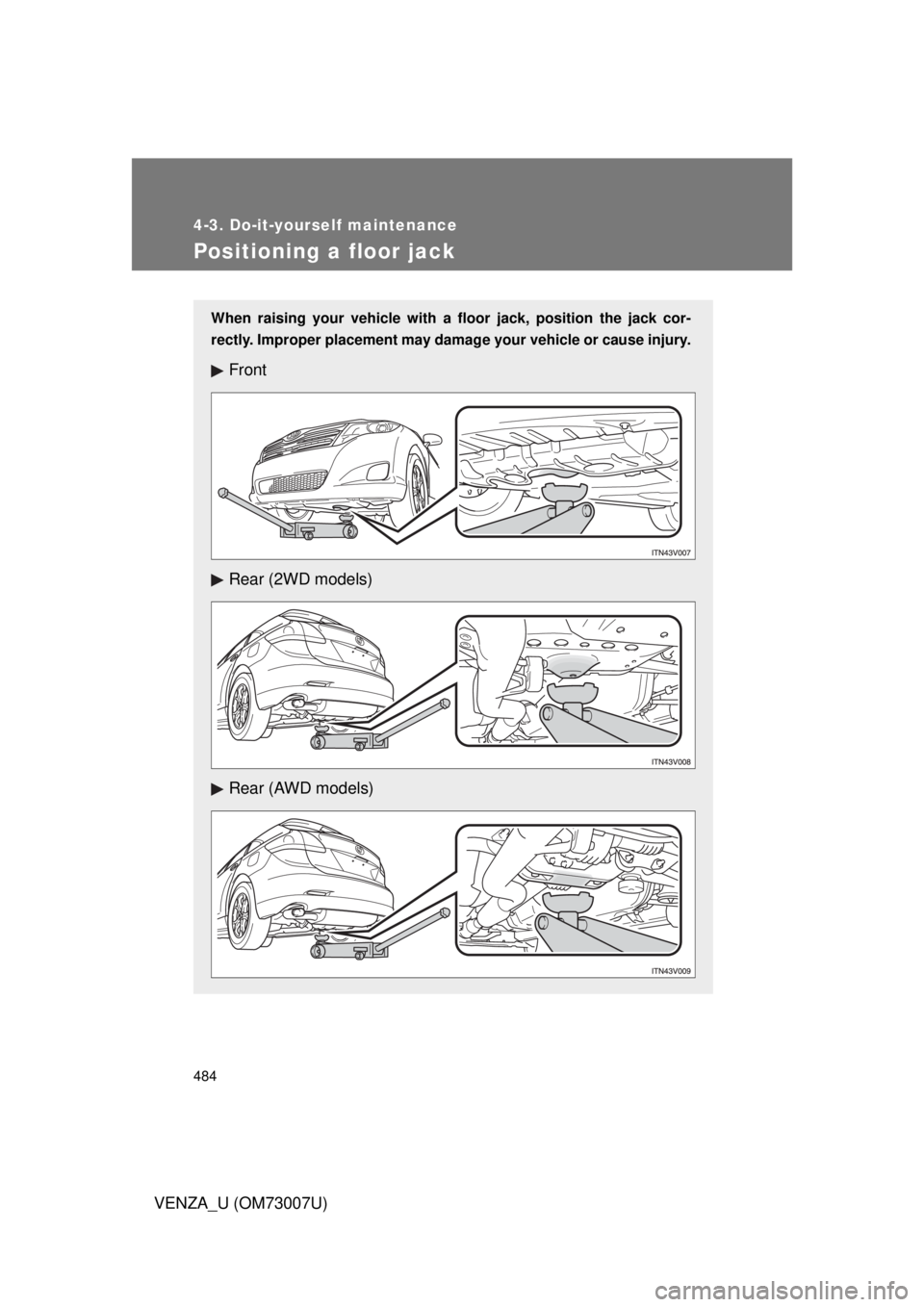

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear (2WD models)
Rear (AWD models)

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or\
seri-
ous injury.
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use automotive jack stands or a solid, flat, level surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P”.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

486
4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)

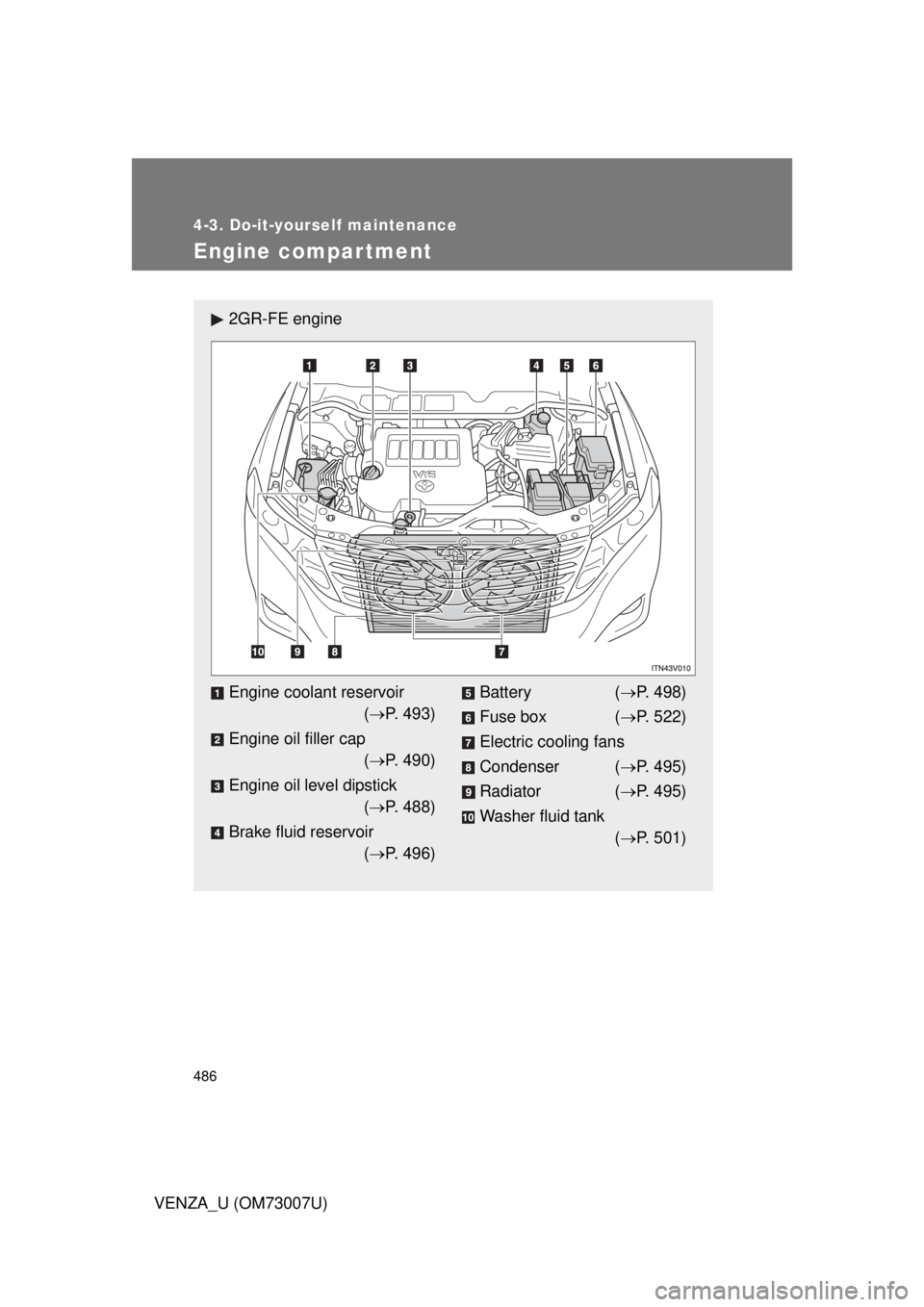

Engine compar tment
2GR-FE engine
Engine coolant reservoir( P. 493)
Engine oil filler cap ( P. 490)
Engine oil level dipstick ( P. 488)
Brake fluid reservoir ( P. 496)Battery ( P. 498)
Fuse box ( P. 522)
Electric cooling fans
Condenser ( P. 495)
Radiator ( P. 495)
Washer fluid tank ( P. 501)

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)

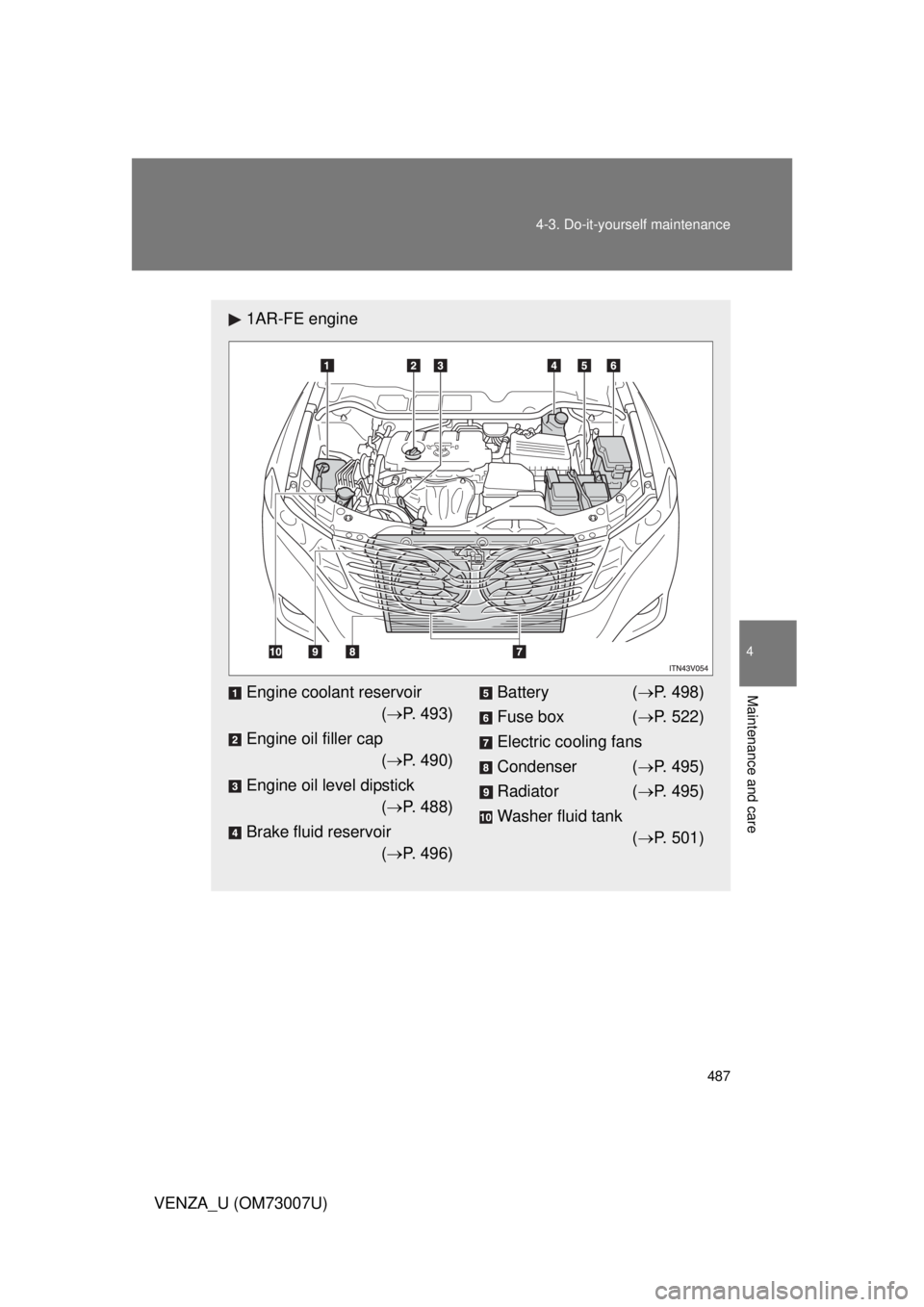

1AR-FE engine
Engine coolant reservoir
( P. 493)
Engine oil filler cap ( P. 490)
Engine oil level dipstick ( P. 488)
Brake fluid reservoir ( P. 496)Battery ( P. 498)
Fuse box ( P. 522)
Electric cooling fans
Condenser ( P. 495)
Radiator ( P. 495)
Washer fluid tank ( P. 501)

488 4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)

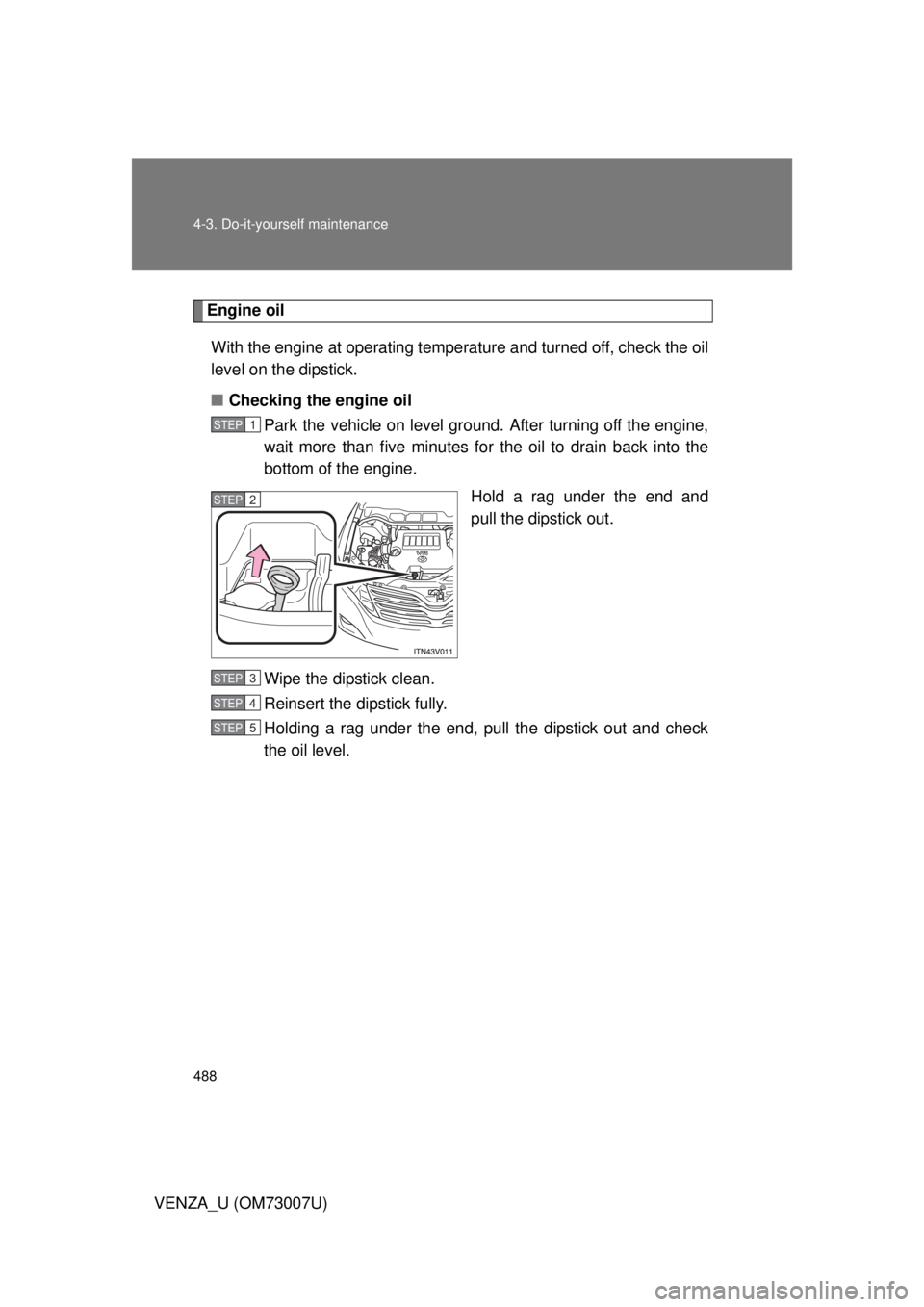

Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait more than five minutes for the oil to drain back into the
bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)

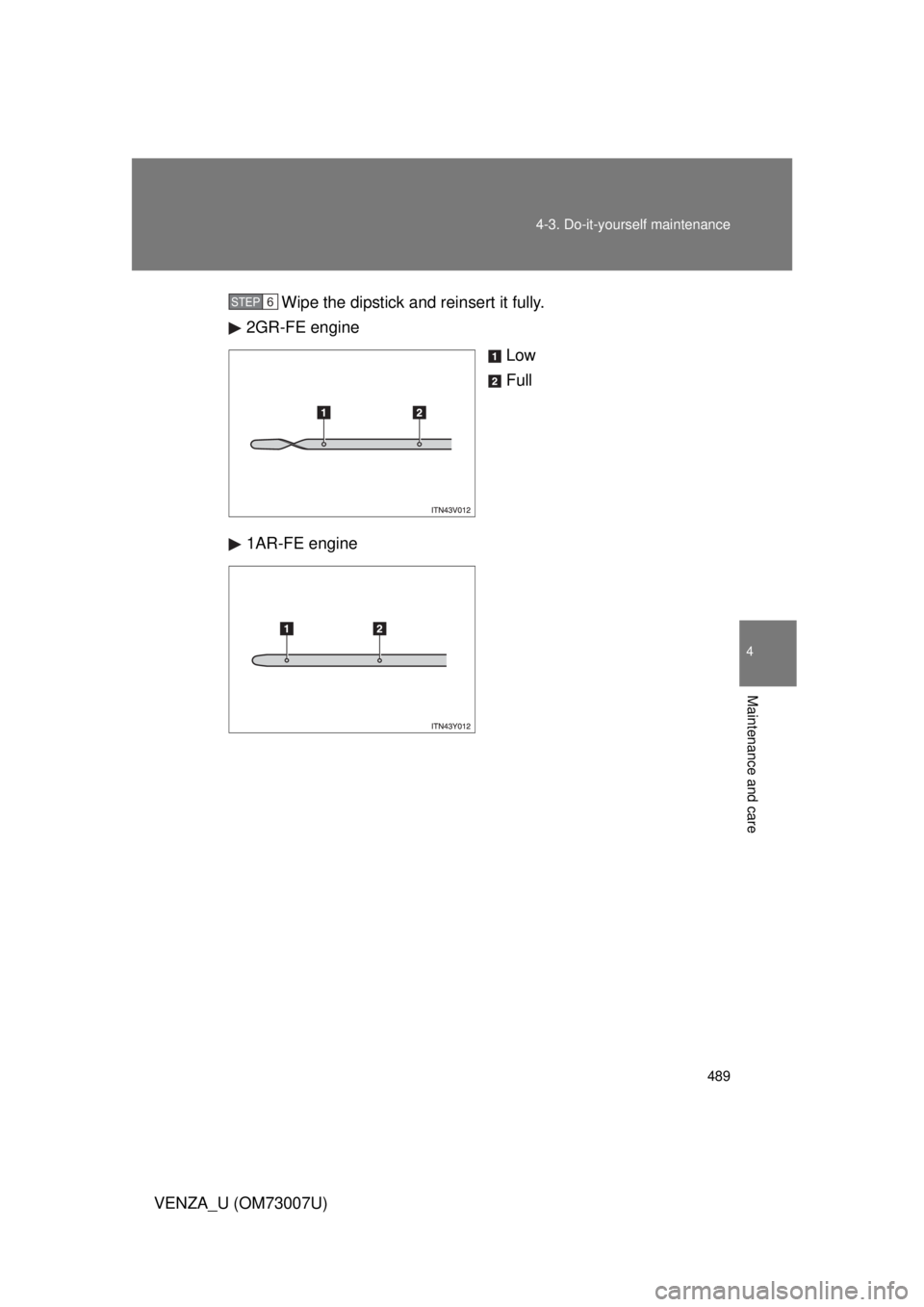

Wipe the dipstick and reinsert it fully.
2GR-FE engine
Low
Full
1AR-FE engine
STEP6

490 4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)■

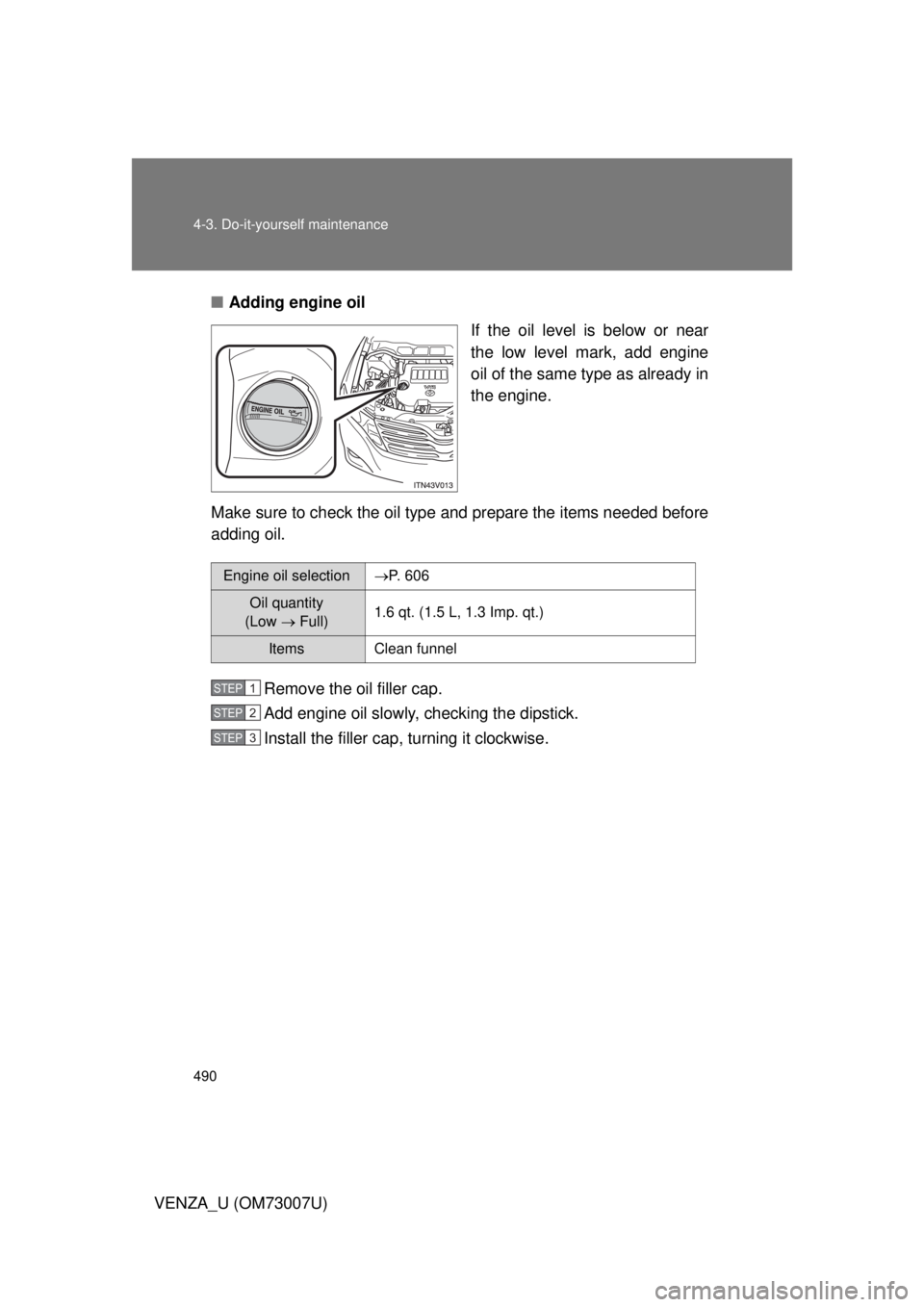

Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
Engine oil selectionP. 606
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
