201
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73012U)
■
Automatic headlight leveling system (Vehicles with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ If the indicator flashes... (Veh icles with discharge headlights)
It may indicate a malfunction in the system. Contact your Toyota dealer.
■ Customization that can be configured at Toyota dealer or by the TFT
type multi-information display
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 640)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

202
2-3. Operating the lights and wipers
VENZA_U (OM73012U)

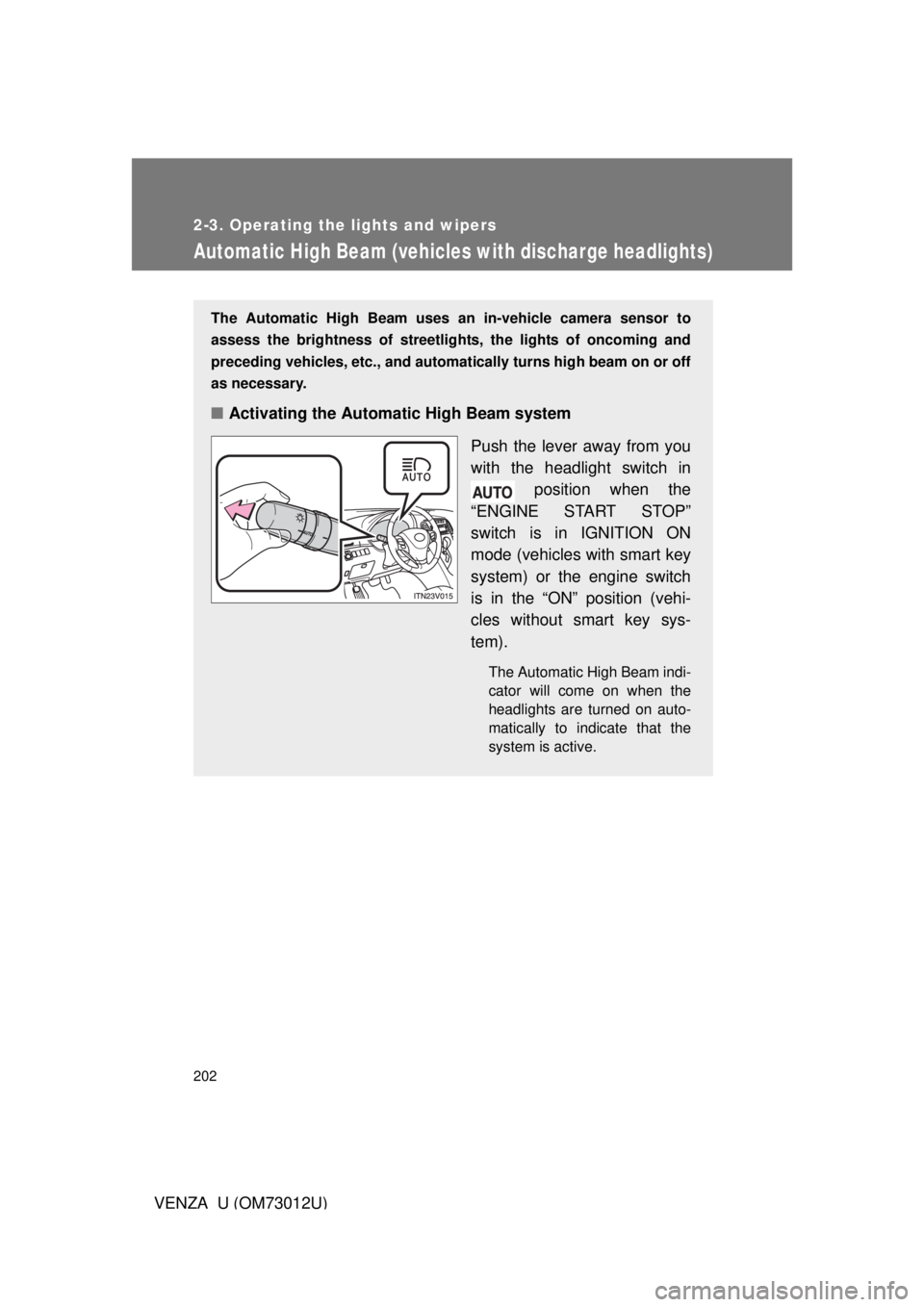

Automatic High Beam (vehicles with discharge headlights)
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetligh ts, the lights of oncoming and
preceding vehicles, etc., and automatically turns high beam on or off
as necessary.
■ Activating the Automatic High Beam system
Push the lever away from you
with the headlight switch in position when the
“ENGINE START STOP”
switch is in IGNITION ON
mode (vehicles with smart key
system) or the engine switch
is in the “ON” position (vehi-
cles without smart key sys-
tem).
The Automatic High Beam indi-
cator will come on when the
headlights are turned on auto-
matically to indicate that the
system is active.

203
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73012U)
■

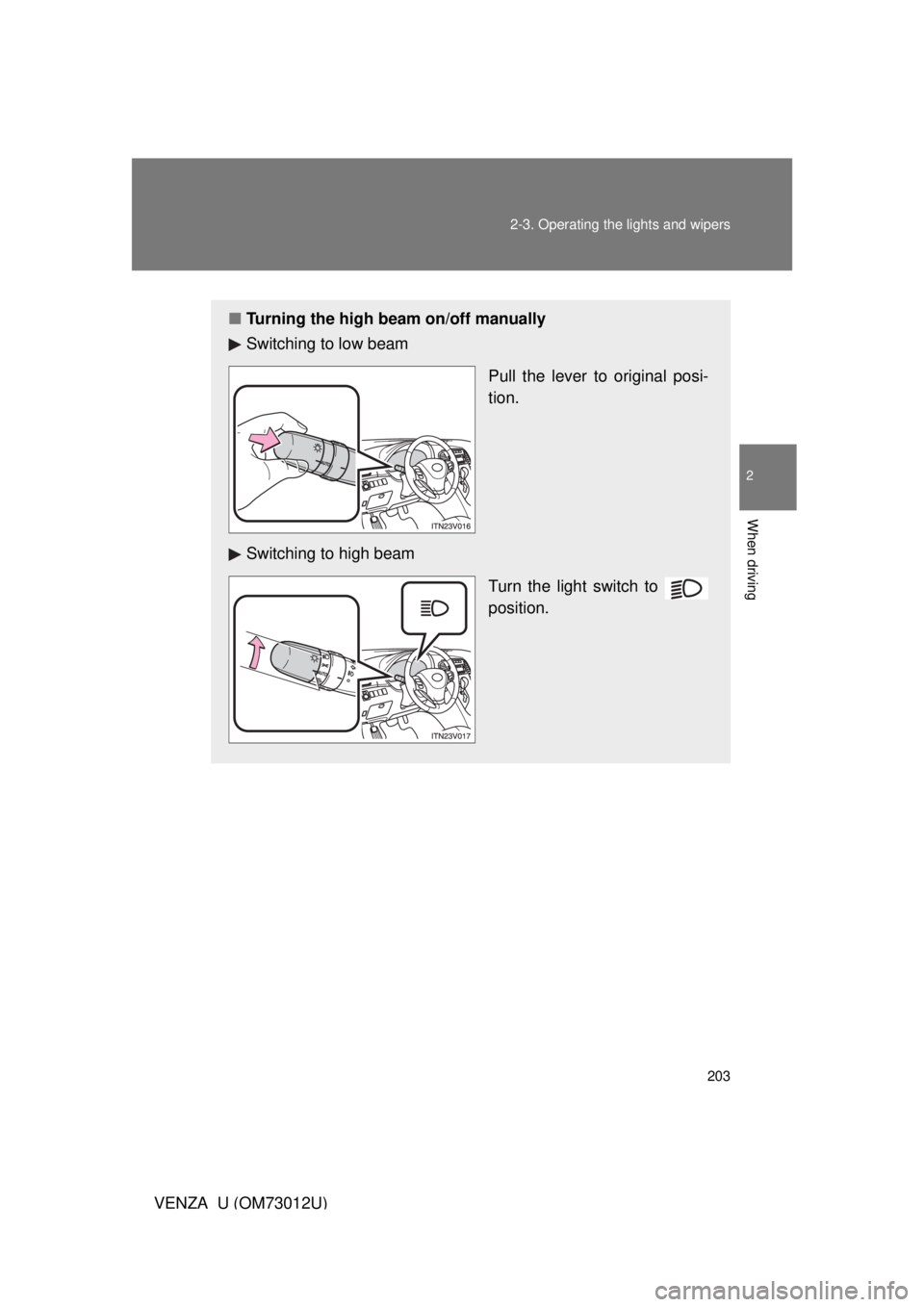

Turning the high beam on/off manually
Switching to low beam
Pull the lever to original posi-
tion.
Switching to high beam Turn the light switch to
position.

204 2-3. Operating the lights and wipers
VENZA_U (OM73012U)

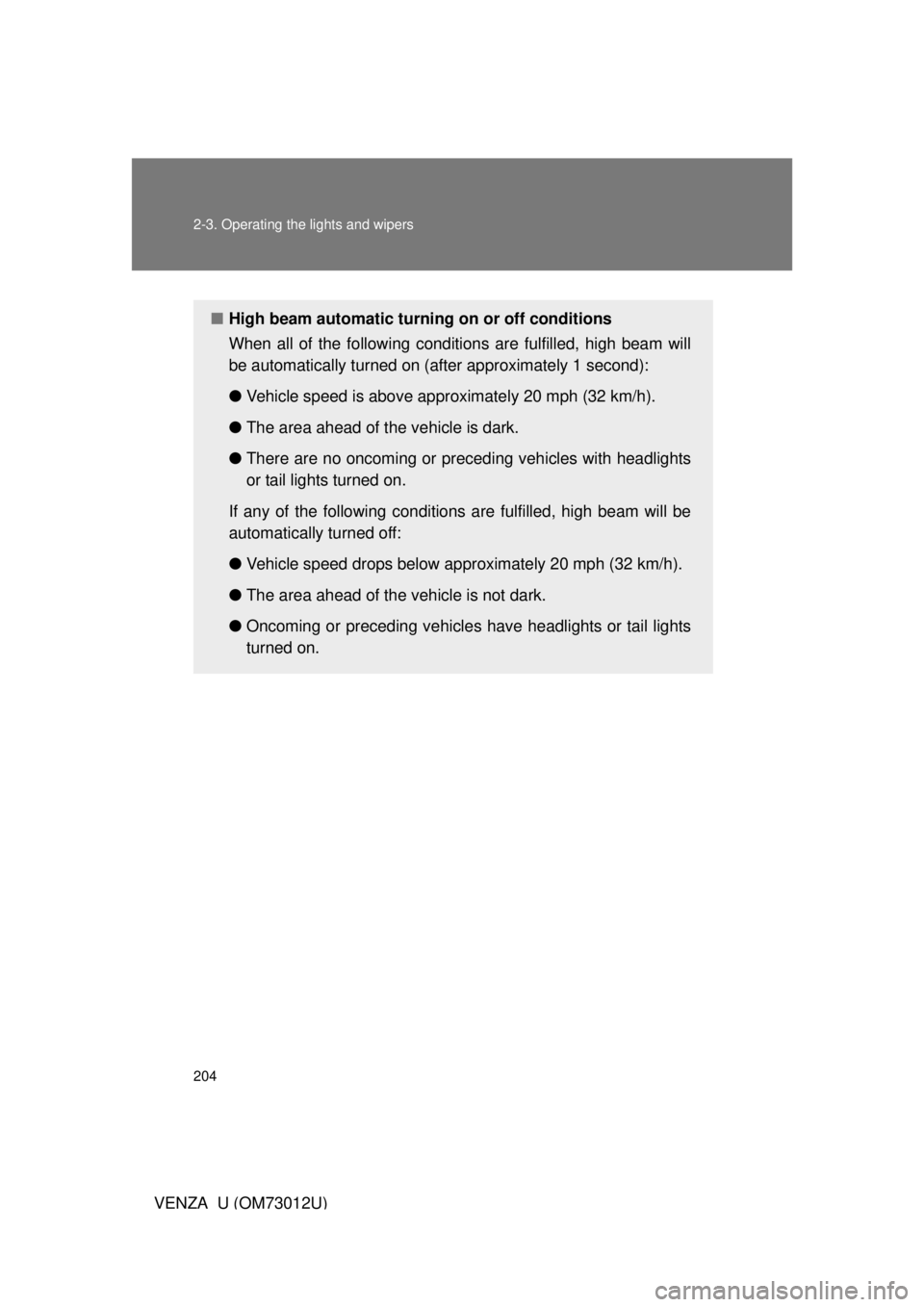

■High beam automatic turning on or off conditions
When all of the following conditions are fulfilled, high beam will
be automatically turned on (after approximately 1 second):
●Vehicle speed is above approximately 20 mph (32 km/h).
● The area ahead of t he vehicle is dark.
● There are no oncoming or precedi ng vehicles with headlights
or tail lights turned on.
If any of the following conditions are fulfilled, high beam will be
automatically turned off:
● Vehicle speed drops below approximately 20 mph (32 km/h).
● The area ahead of the vehicle is not dark.
● Oncoming or preceding vehicles have headlights or tail lights
turned on.

205
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73012U)
■
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if nec-
essary.
■ Camera sensor detection information
● High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve.
• When the vehicle is cut in front of by another.
● High beam may be turned off if an oncoming vehicle that is using fog
lights without using the headlights is detected.
● Houselights, streetlights, red traffic signals, and illuminated billboards or
signs may cause the high beam to turn off.
● The following factors may affect the amount of time taken to turn high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and
preceding vehicles
• Road conditions (wetness, ice, snow etc.)
• The number of passengers and amount of baggage
● High beam may be turned on or off when unexpected by the driver.

206 2-3. Operating the lights and wipers
VENZA_U (OM73012U)
●In the situations below, the system may not be able to correctly detect the
surrounding brightness levels, and may flash or expose nearby pedestri-
ans to the high beam. Therefore, you should consider turning the high
beam on or off manually rather than relying on the Automatic High Beam
system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or ca mera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and darkness
• When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks etc.)
• When frequently and repeatedly taking curves or driving on a winding road
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The Automatic High Beam indicator is flashing.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or distress to other drivers or pedestrians nearby.

207
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73012U)
■
If the Automatic High Beam indicator flashes...
It may indicate a malfunction in the system. Contact your Toyota dealer.
■ Customization that can be configured at Toyota dealer or by the TFT
type multi-information display
The Automatic High Beam can be turned off.
(Customizable features P. 640)
■ Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold the “AUTO” button on the inside rear
view mirror for 15 to 20 seconds, and release. The indicator light on the
inside rear view mirror will flash to indicate that the sensitivity has been low-
ered.
Vehicles with smart key system:
When the “ENGINE START STOP” switch is turned off, the sensitivity will be
returned to its normal level.
Vehicles without smart key system:
When the engine switch is turned to the “LOCK” position, the sensitivity will
be returned to its normal level.

208 2-3. Operating the lights and wipers
VENZA_U (OM73012U)
NOTICE
■Camera sensor
● Do not touch the camera sensor.
● Do not subject the inside rear view mirr or or the camera sensor to a strong
impact.
● Do not disassemble the camera sensor.
● Do not spill liquid onto the inside rear view mirror or the camera sensor.
● Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
● Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflected in the windshield for streetlights,
the headlights of other vehicles, etc.
● Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
● Do not overload the vehicle.
● Do not modify the vehicle.
● Do not replace windshield with a non-genuine windshield.
Contact your Toyota dealer.
Observe the following to ensure that the
Automatic High Beam functions correctly.

209
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73012U)
Fog light switch
: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Off
On

210
2-3. Operating the lights and wipers
VENZA_U (OM73012U)

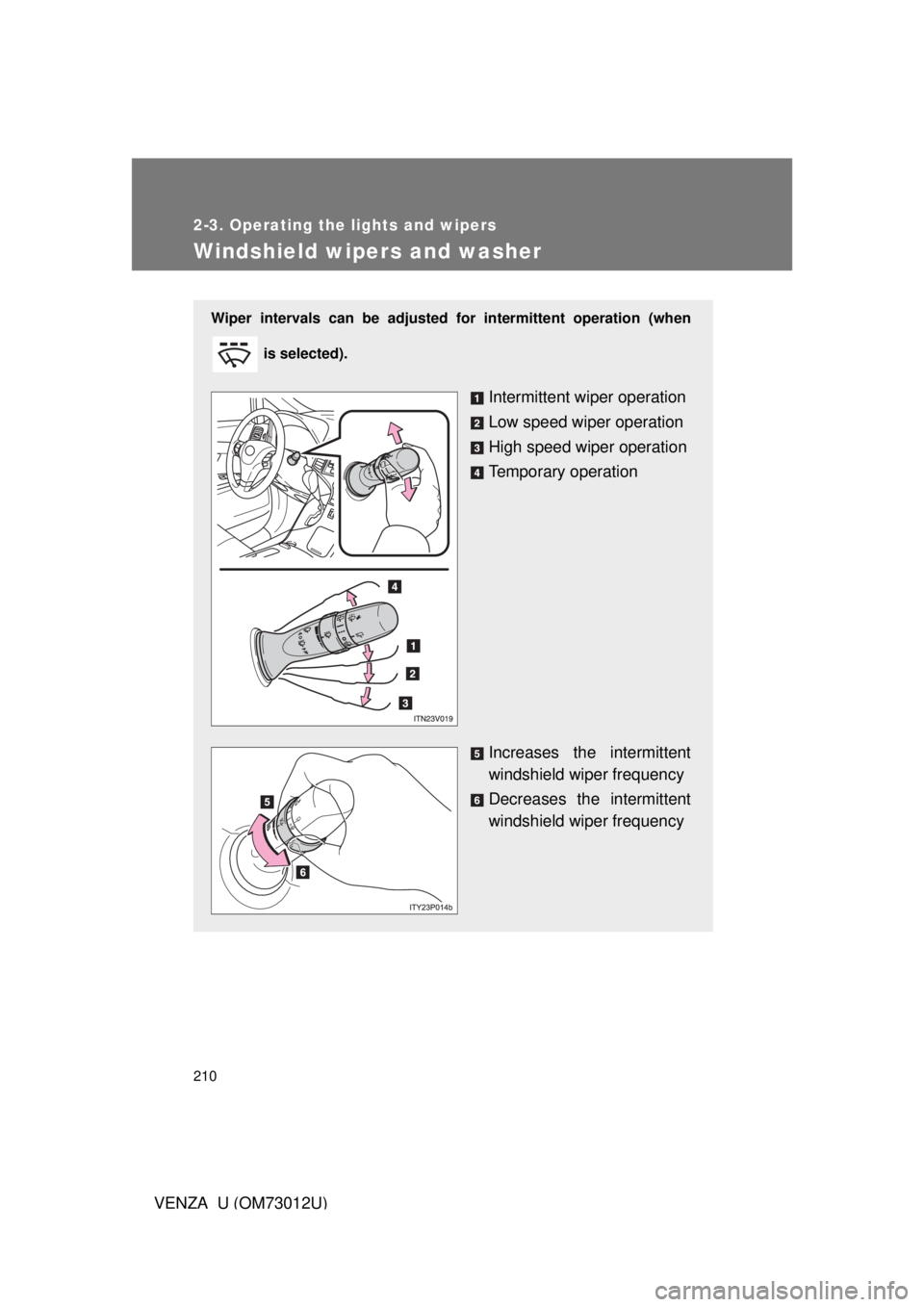

Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
