Page 541 of 680
541
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
■
Front turn signal/parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
Page 542 of 680
542 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)■
Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
Page 543 of 680
543
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
■
Rear turn signal lights, stop/ta il and rear side marker lights
Left side
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Right sideOpen the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
lights
Rear turn signal light
STEP1
STEP1
STEP2
Page 544 of 680
544 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)Remove the light bulb.
Stop/tail and rear side marker
lights
Rear turn signal light
■ Tail and back-up lights
Open the back door and remove
the trim board.
Turn the bulb base counterclock-
wise.
Back-up light
Tail light
Remove the light bulb. Back-up light
Tail light
STEP3
STEP1
STEP2
STEP3
Page 545 of 680
545
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
■
License plate light
Open the back door and remove
the trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3
Page 546 of 680
546 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlight low beams (discharge bulb)
● High mounted stoplight
■Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The high mounted stoplight consists of a number of LEDs. If any LEDs burn
out, take your vehicle to your Toyota dealer to have the light replaced.
■ High-intensity discharge (HID) headlights (if equipped)
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.
Page 547 of 680

547
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
CAUTION
■
Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ High-intensity discharge (H ID) headlights (if equipped)
● Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in death or serious injury by electric
shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
Page 548 of 680
548 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)
Page 549 of 680

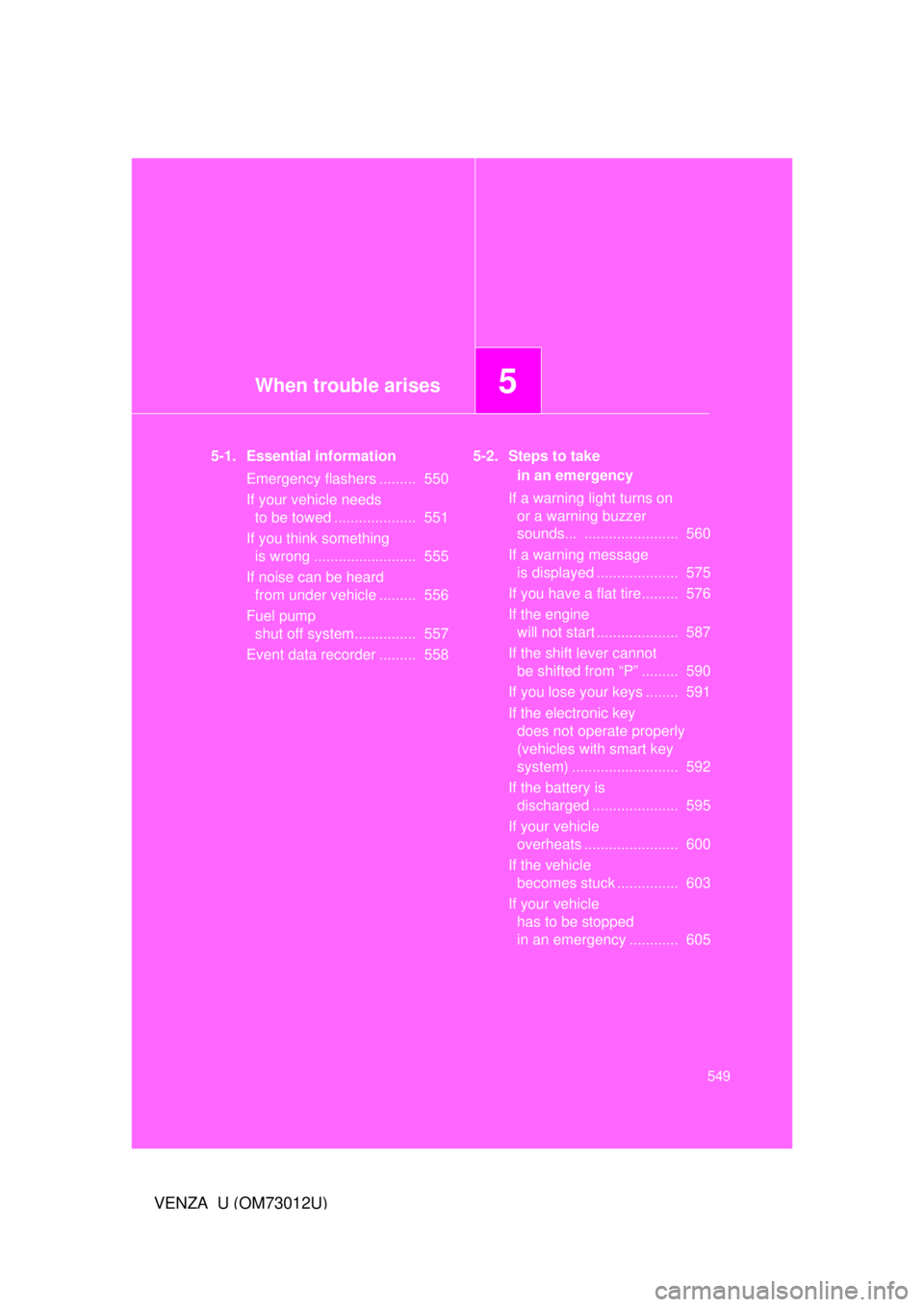

When trouble arises5
549
VENZA_U (OM73012U)
5-1. Essential informationEmergency flashers ......... 550
If your vehicle needs to be towed .................... 551
If you think something is wrong ......................... 555
If noise can be heard from under vehicle ......... 556
Fuel pump shut off system............... 557
Event data recorder ......... 558 5-2. Steps to take
in an emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 560
If a warning message is displayed .................... 575
If you have a flat tire......... 576
If the engine will not start .................... 587
If the shift lever cannot be shifted from “P” ......... 590
If you lose your keys ........ 591
If the electronic key does not operate properly
(vehicles with smart key
system) .......................... 592
If the battery is discharged ..................... 595
If your vehicle overheats ....................... 600
If the vehicle becomes stuck ............... 603
If your vehicle has to be stopped
in an emergency ............ 605
Page 550 of 680
550
VENZA_U (OM73012U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
