Page 521 of 680

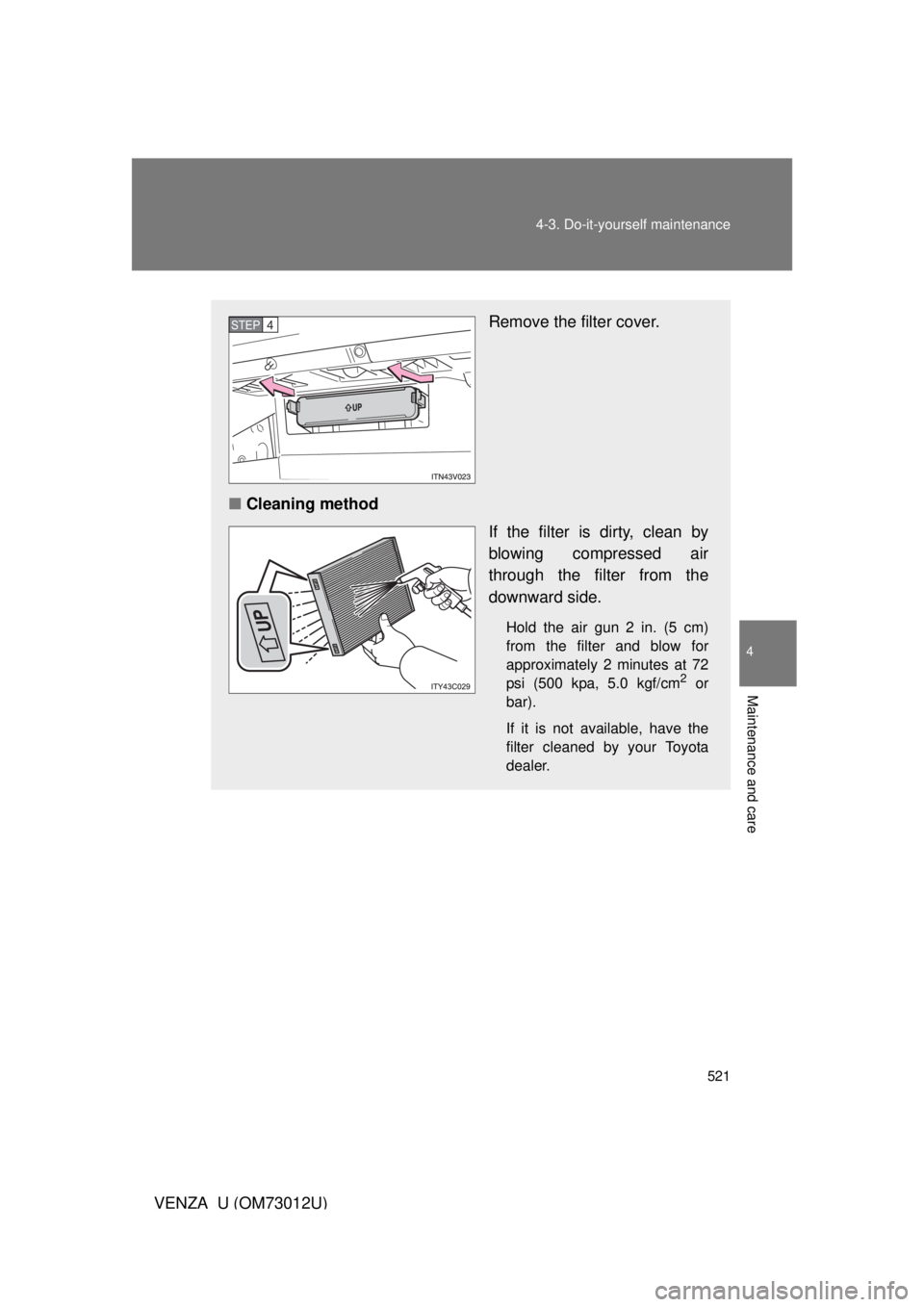

521
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
Remove the filter cover.
■ Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at 72
psi (500 kpa, 5.0 kgf/cm
2 or
bar).
If it is not available, have the
filter cleaned by your Toyota
dealer.
STEP4
Page 522 of 680

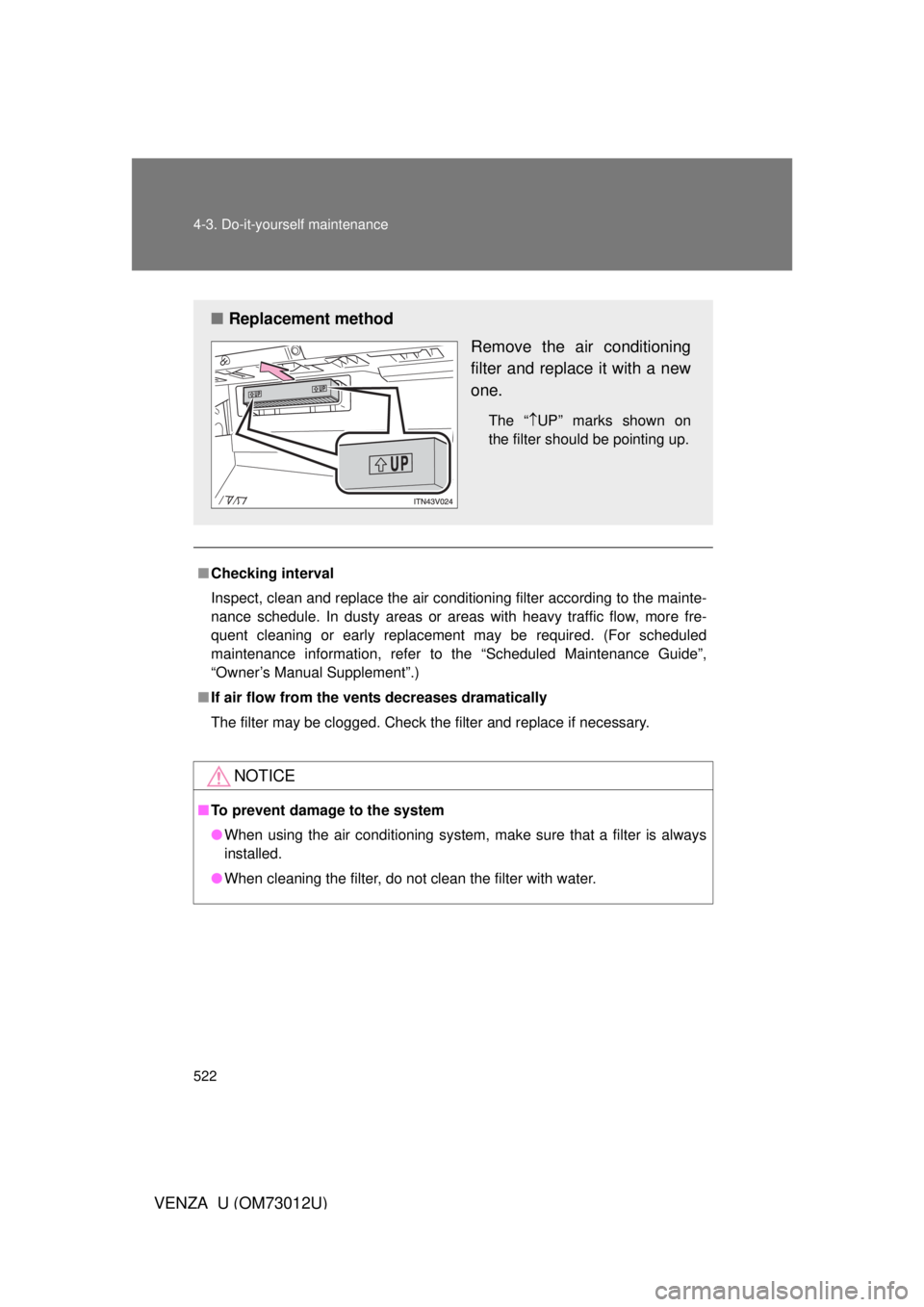

522 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)
■Checking interval
Inspect, clean and replace the air conditioning filter according to the mainte-
nance schedule. In dusty areas or areas with heavy traffic flow, more fre-
quent cleaning or early replacement may be required. (For scheduled
maintenance information, refer to the “Scheduled Maintenance Guide”,
“Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
● When using the air conditioning system, make sure that a filter is always
installed.
● When cleaning the filter, do not clean the filter with water.
■ Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The “UP” marks shown on
the filter should be pointing up.
Page 523 of 680

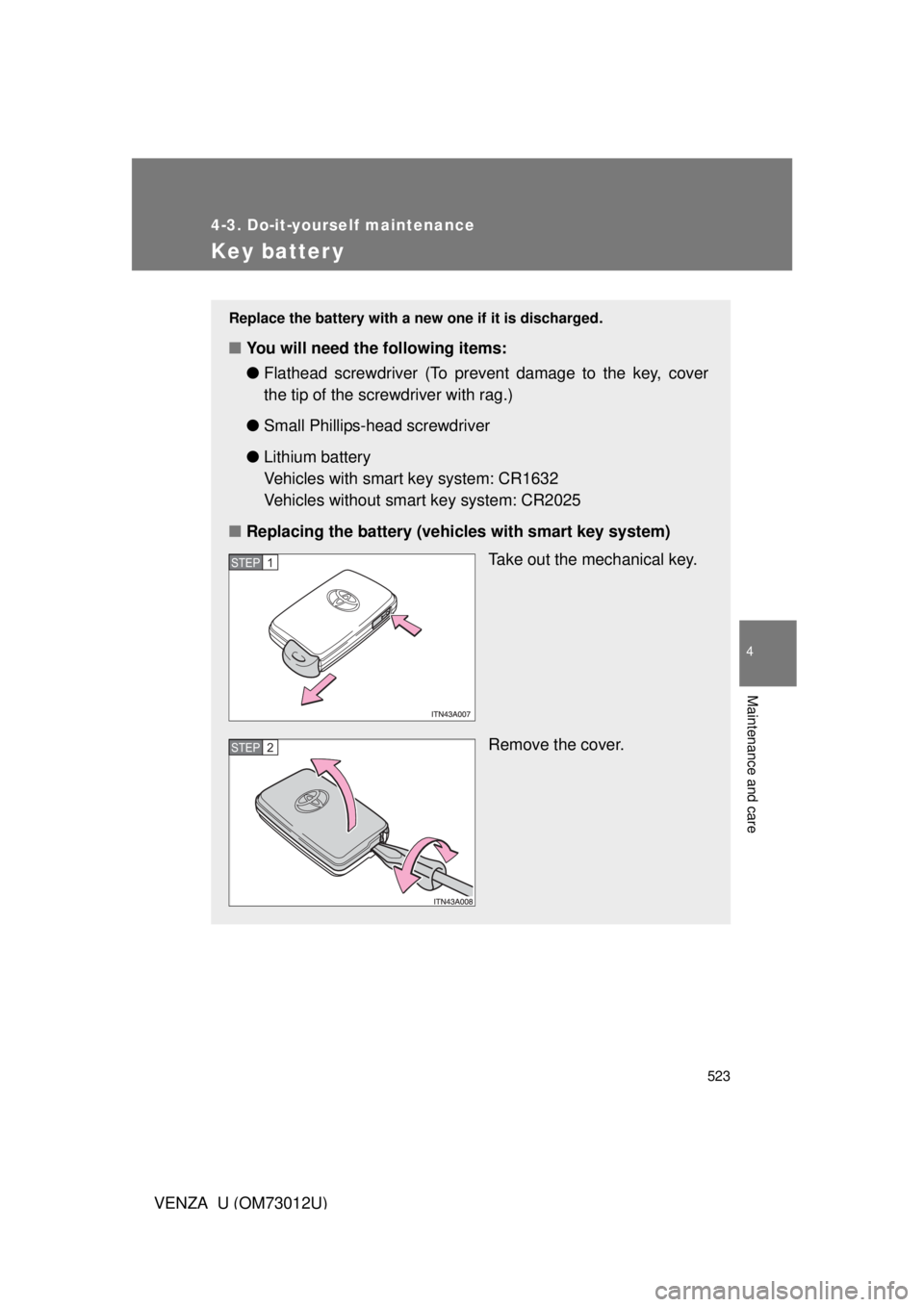

523
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
Key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
● Small Phillips-hea d screwdriver
● Lithium battery
Vehicles with smart key system: CR1632
Vehicles without smar t key system: CR2025
■ Replacing the battery (vehicles with smart key system)
Take out the mechanical key.
Remove the cover.
STEP1
STEP2
Page 524 of 680

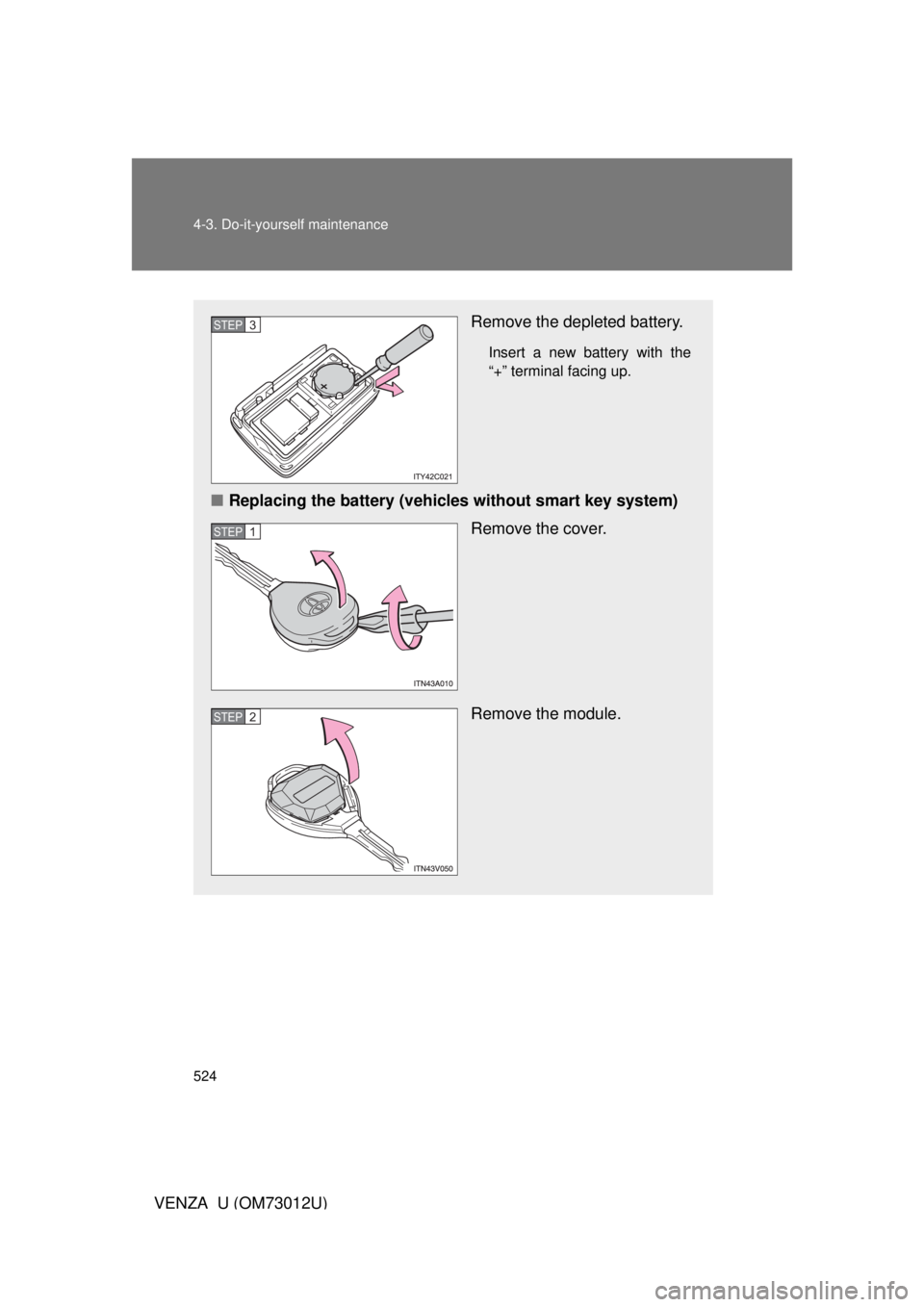

524 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
■Replacing the battery (vehicles without smart key system)
Remove the cover.
Remove the module.
STEP3
STEP1
STEP2
Page 525 of 680

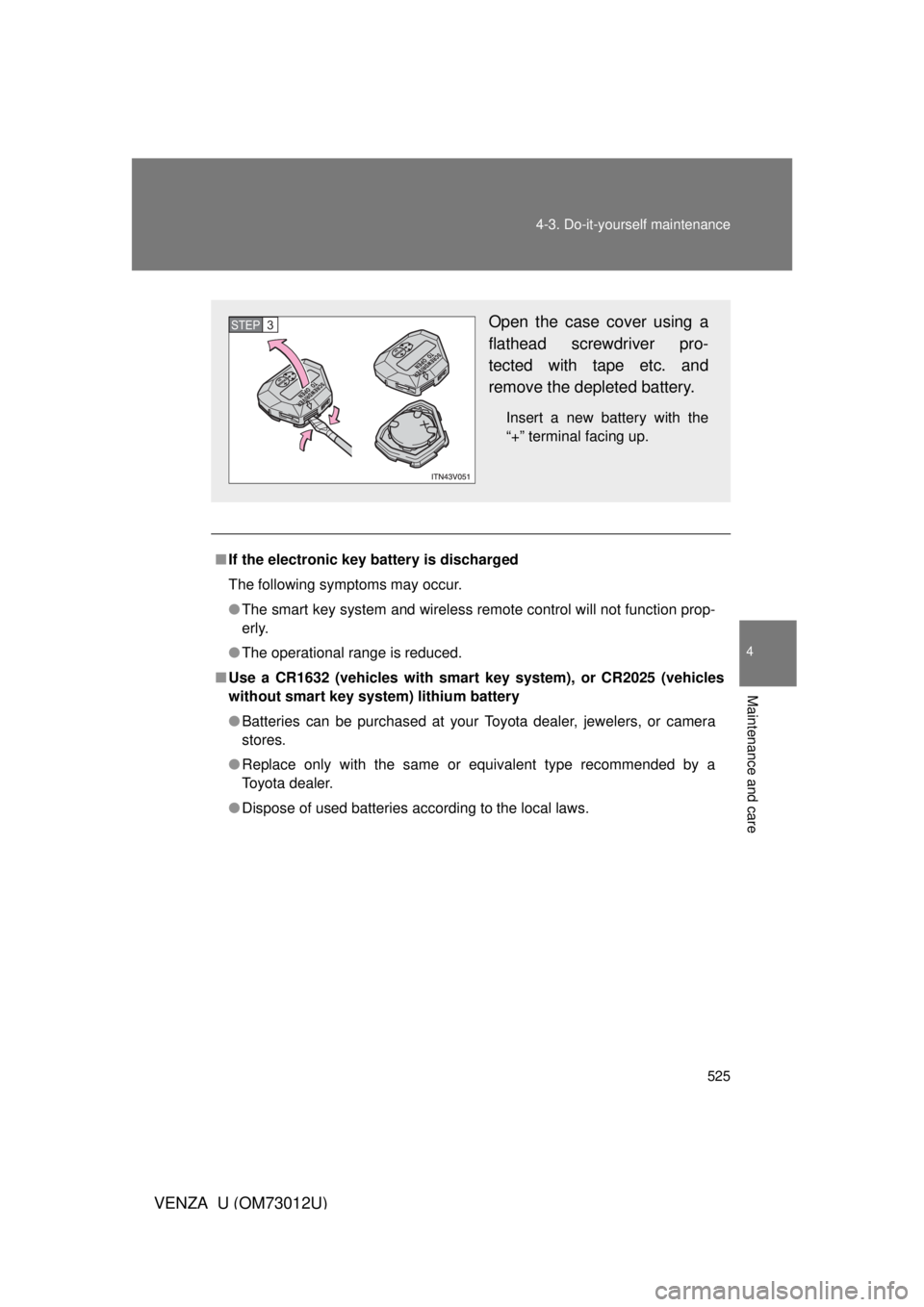

525
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
■
If the electronic key battery is discharged
The following symptoms may occur.
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR1632 (vehicles with smar t key system), or CR2025 (vehicles
without smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a
Toyota dealer.
● Dispose of used batteries according to the local laws.
Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3
Page 526 of 680
526 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child
they can cause choking. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.
Page 527 of 680

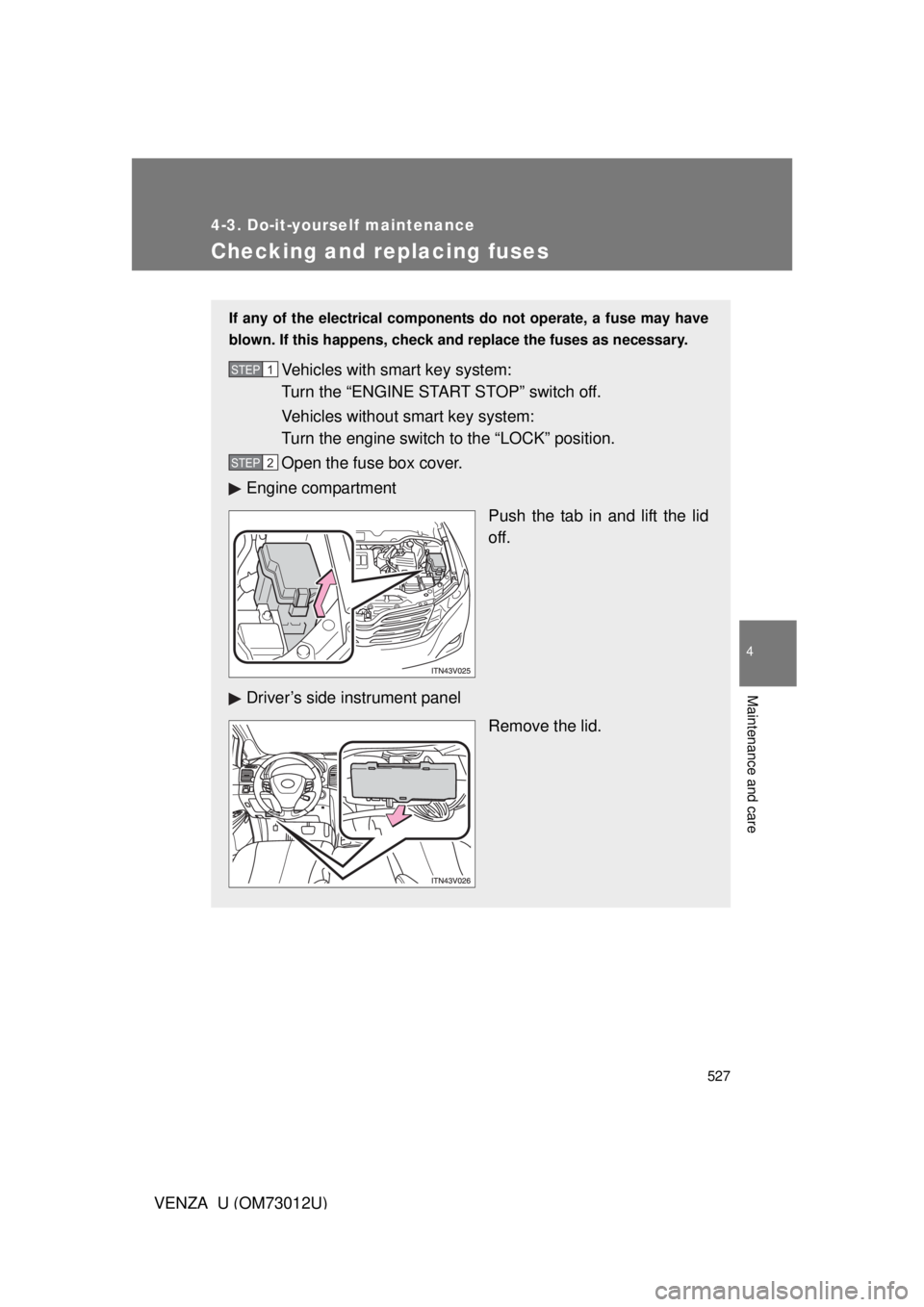

527
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles with smart key system:
Turn the “ENGINE START STOP” switch off.
Vehicles without smart key system:
Turn the engine switch to the “LOCK” position.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
Page 528 of 680
528 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)

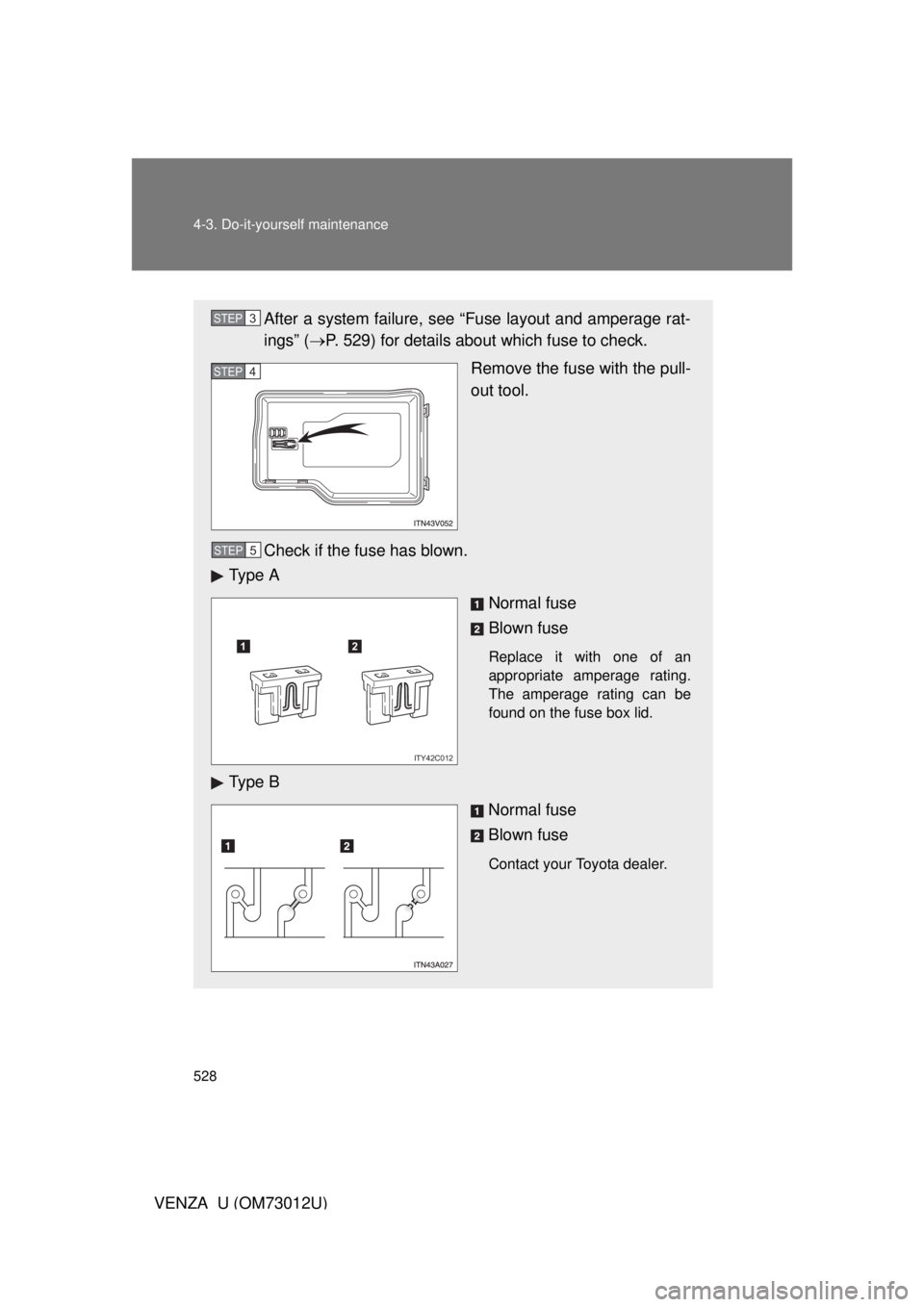

After a system failure, see “Fuse layout and amperage rat-
ings” (P. 529) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Contact your Toyota dealer.
STEP3
STEP4
STEP5
12
ITY42C012
Page 529 of 680

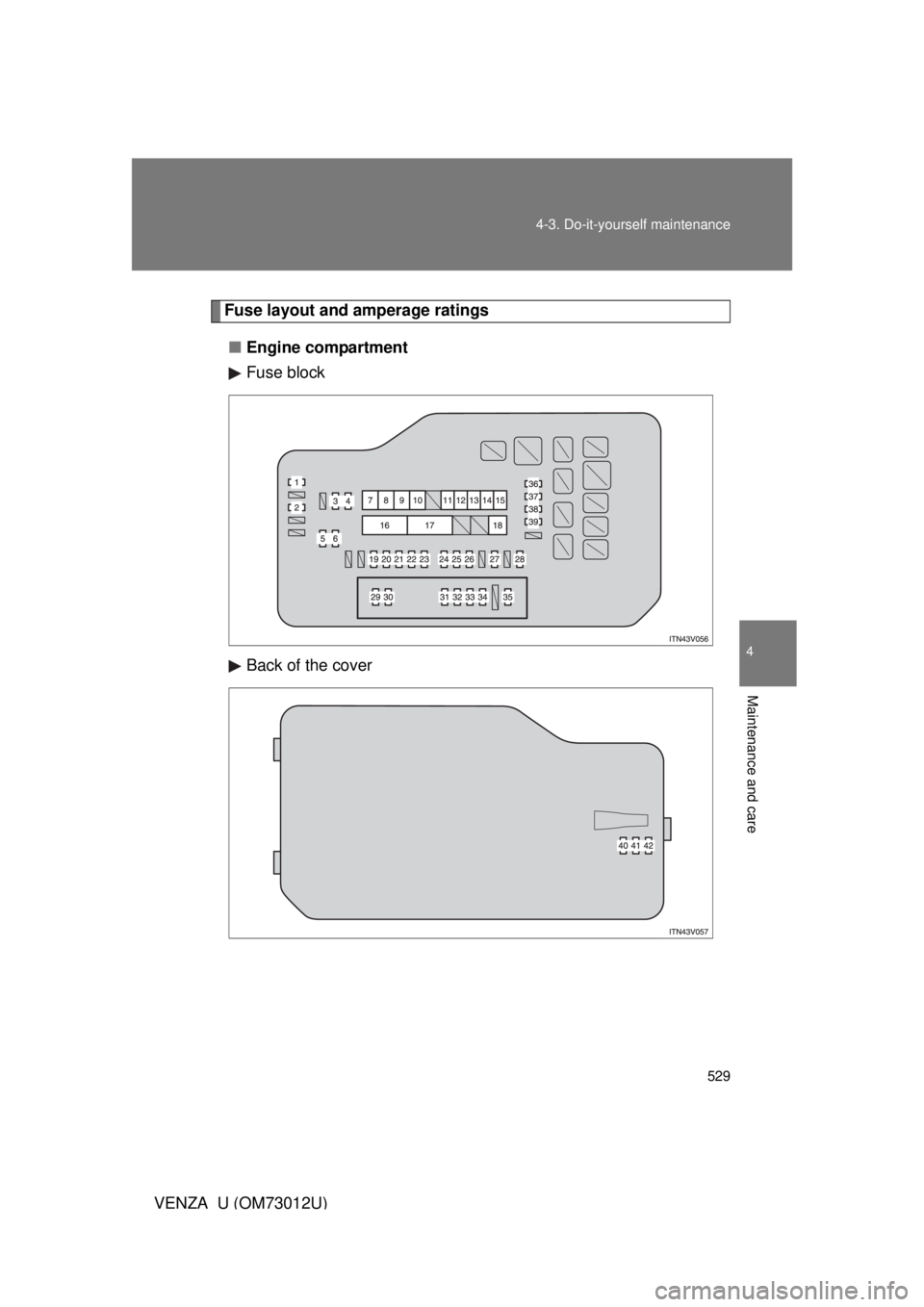

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73012U)
Fuse layout and amperage ratings
■ Engine compartment
Fuse block
Back of the cover
Page 530 of 680

530 4-3. Do-it-yourself maintenance
VENZA_U (OM73012U)

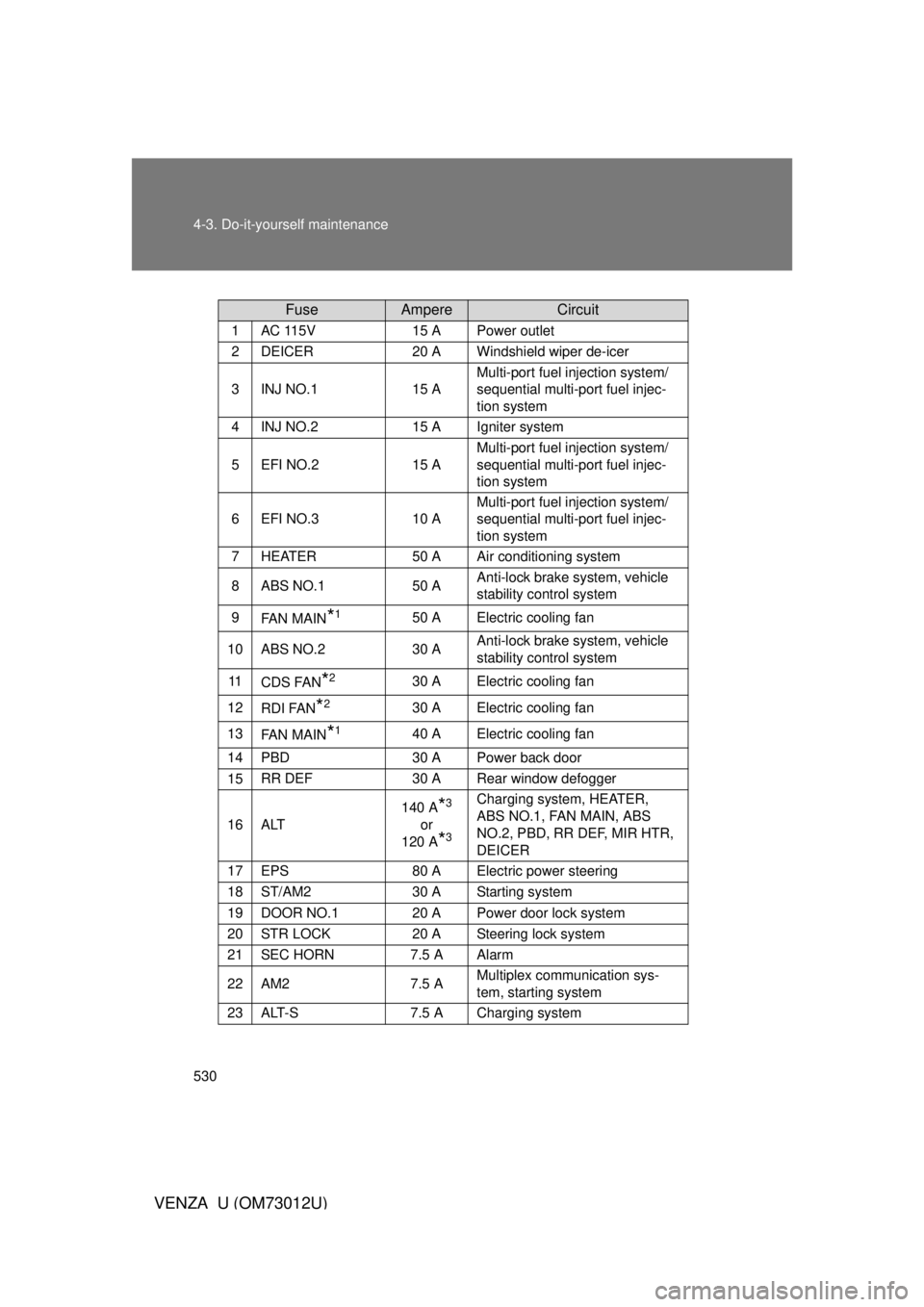

FuseAmpereCircuit
1AC 115V15 APower outlet
2DEICER20 AWindshield wiper de-icer
3INJ NO.115 A
Multi-port fuel injection system/
sequential multi-port fuel injec-
tion system
4INJ NO.215 AIgniter system
5EFI NO.215 A
Multi-port fuel injection system/
sequential multi-port fuel injec-
tion system
6EFI NO.310 A
Multi-port fuel injection system/
sequential multi-port fuel injec-
tion system
7HEATER50 AAir conditioning system
8ABS NO.150 AAnti-lock brake system, vehicle
stability control system
9FA N M A I N*150 AElectric cooling fan
10ABS NO.230 AAnti-lock brake system, vehicle
stability control system
11CDS FAN*230 AElectric cooling fan
12RDI FAN*230 AElectric cooling fan
13FA N M A I N*140 AElectric cooling fan
14PBD30 APower back door
15RR DEF30 ARear window defogger
16ALT
140 A*3
or
120 A
*3
Charging system, HEATER,
ABS NO.1, FAN MAIN, ABS
NO.2, PBD, RR DEF, MIR HTR,
DEICER
17EPS80 AElectric power steering
18ST/AM230 AStarting system
19DOOR NO.120 APower door lock system
20STR LOCK20 ASteering lock system
21SEC HORN7.5 AAlarm
22AM27.5 AMultiplex communication sys-
tem, starting system
23ALT-S7.5 ACharging system
