TOYOTA VENZA 2014 Accessories, Audio & Navigation (in English)

11
1. NAVIGATION OPERATION
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
*: Press and hold the “POWER/VOLUME” knob for 3 seconds or more to turn off the screen and
restart the navigation system. Do this when the vehicle-mounted device response is extremely
slow.

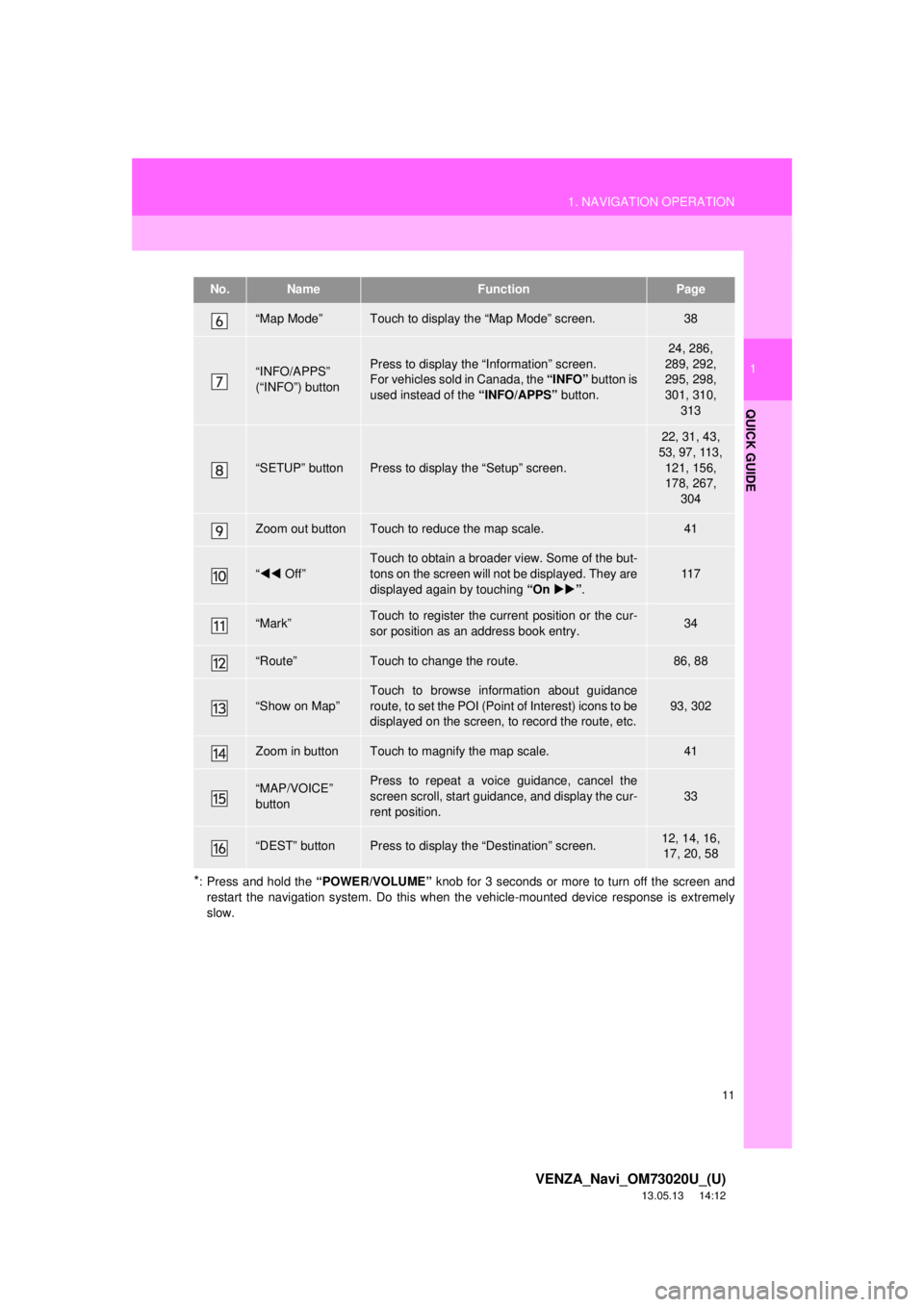

“Map Mode”Touch to display the “Map Mode” screen.38
“INFO/APPS”
(“INFO”) buttonPress to display the “Information” screen.
For vehicles sold in Canada, the “INFO” button is
used instead of the “INFO/APPS” button.
24, 286,
289, 292,
295, 298,
301, 310,
313
“SETUP” buttonPress to display the “Setup” screen.
22, 31, 43,
53, 97, 113,
121, 156,
178, 267,
304
Zoom out buttonTouch to reduce the map scale.41
“Off”
Touch to obtain a broader view. Some of the but-
tons on the screen will not be displayed. They are
displayed again by touching “On”.
11 7
“Mark”Touch to register the current position or the cur-
sor position as an address book entry.34
“Route”Touch to change the route.86, 88
“Show on Map”Touch to browse information about guidance
route, to set the POI (Point of Interest) icons to be
displayed on the screen, to record the route, etc.93, 302
Zoom in buttonTouch to magnify the map scale.41
“MAP/VOICE”
buttonPress to repeat a voice guidance, cancel the
screen scroll, start guidance, and display the cur-
rent position.
33
“DEST” buttonPress to display the “Destination” screen.12, 14, 16,
17, 20, 58
No.NameFunctionPage

12
1. NAVIGATION OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
2. REGISTERING HOME
Press the “DEST” button.
Touch “Go Home”.
If a home address has not been regis-
tered, it can be registered by touching
“Go Home”.
Touch “Yes”.There are 4 different methods to
search your home. (See “DESTI-
NATION SEARCH” on page 58.)
Touch “Enter”.
The “Edit Home” screen is displayed.
1
2
3
4
5

13
1. NAVIGATION OPERATION
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
Touch “OK”.
Registration of home is complete.
Home can also be registered by touch-
ing “Navigation” on the “Setup” screen.
(See “REGISTERING HOME” on page
98.)
The name, location, phone number and
icon can be changed. (See “EDITING
HOME” on page 99.)
The registered points can be used on
the “Destination” screen. (See “DESTI-
NATION SEARCH BY HOME” on page
59.)
6

14
1. NAVIGATION OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
3. REGISTERING PRESET DESTINATIONS
Press the “DEST” button.
Touch one of the preset destina-
tion buttons.
A preset destination can be set to any
preset destination button that has not
yet been set.
Touch “Yes”.There are 4 different methods to
search preset destinations. (See
“DESTINATION SEARCH” on
page 58.)
Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
1
2
3
4
5

15
1. NAVIGATION OPERATION
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
Touch “OK”.
Registration of preset destinations is
complete.
Preset destinations can also be regis-
tered by touching “Navigation” on the
“Setup” screen. (See “REGISTERING
PRESET DESTINATIONS” on page
100.)
The name, location, phone number and
icon can be changed. (See “EDITING
PRESET DESTINATIONS” on page
101.)
The registered points can be used on
the “Destination” screen. (See “DESTI-
NATION SEARCH BY PRESET DESTI-
NATIONS” on page 59.)
6

16
1. NAVIGATION OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
4. OPERATION FLOW: GUIDING THE ROUTE
Press the “DEST” button.
There are 10 different methods to
search destinations. (See “DES-
TINATION SEARCH” on page 58.)
Page 1
Page 2Touch “Go to ”.
The navigation system performs a
search for the route.
Touch “OK”, then start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 75.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3
4

17
1. NAVIGATION OPERATION
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
5. SETTING HOME AS THE DESTINATION
Press the “DEST” button.
Touch “Go Home”.
“Go Home” can be used if your home
address has been registered. (To regis-
ter home, see “REGISTERING HOME”
on page 98.)
Your home address is set as the desti-
nation. The navigation system performs
a search for the route.
Touch “OK”, then start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 75.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3

18
VENZA_Navi_OM73020U_(U)
13.05.13 14:12

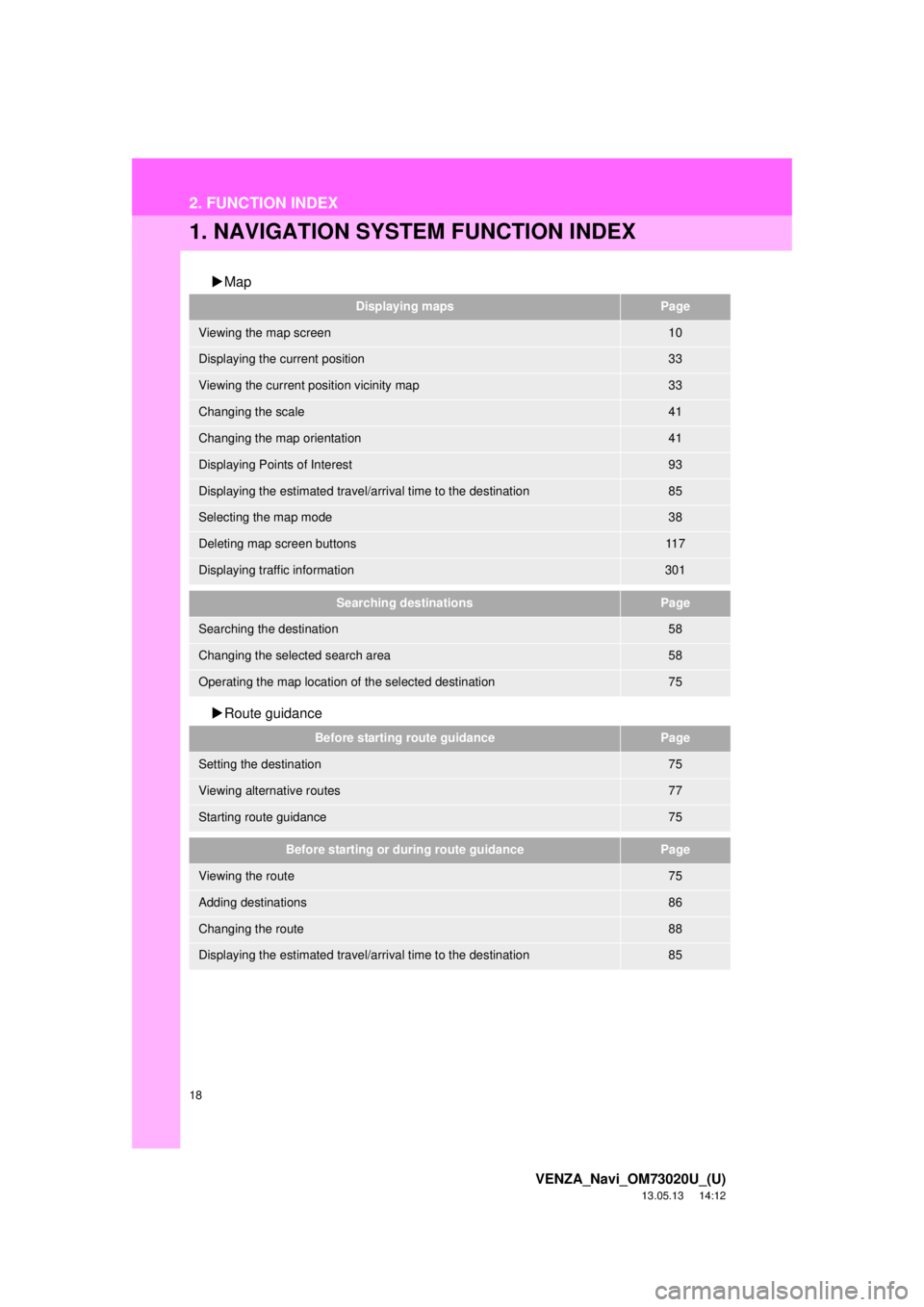

2. FUNCTION INDEX
1. NAVIGATION SYSTEM FUNCTION INDEX
Map
Route guidance
Displaying mapsPage
Viewing the map screen10
Displaying the current position33
Viewing the current position vicinity map33
Changing the scale41
Changing the map orientation41
Displaying Points of Interest93
Displaying the estimated travel/arrival time to the destination85
Selecting the map mode38
Deleting map screen buttons11 7
Displaying traffic information301
Searching destinationsPage
Searching the destination58
Changing the selected search area58
Operating the map location of the selected destination75
Before starting route guidancePage
Setting the destination75
Viewing alternative routes77
Starting route guidance75
Before starting or during route guidancePage
Viewing the route75
Adding destinations86
Changing the route88
Displaying the estimated travel/arrival time to the destination85

19
2. FUNCTION INDEX
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
Useful functions
During route guidancePage
Pausing route guidance92
Adjusting route guidance volume54
Deleting the destination87
Displaying the entire route map89
Address bookPage
Registering address book entries102
Marking icons on the map104
InformationPage
Displaying vehicle maintenance121
Hands-free system (for cellular phone)Page
Initiating Bluetooth®132
Making a call on a Bluetooth® phone142
Receiving a call on the Bluetooth® phone149
Voice command systemPage
Operating the system with your voice270

20
VENZA_Navi_OM73020U_(U)
13.05.13 14:12

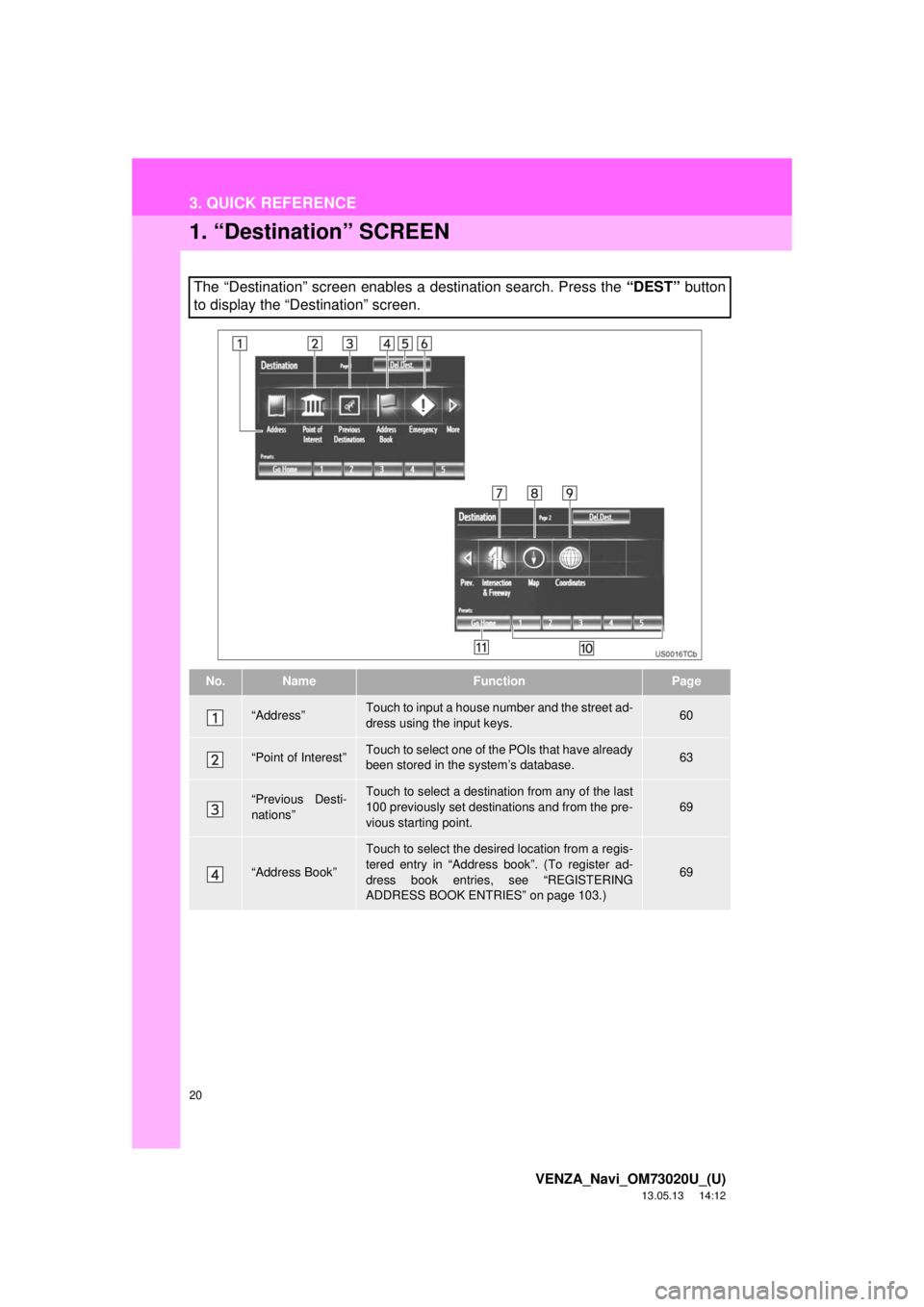

3. QUICK REFERENCE
1. “Destination” SCREEN
The “Destination” screen enables a destination search. Press the “DEST” button
to display the “Destination” screen.
No.NameFunctionPage
“Address”Touch to input a house number and the street ad-
dress using the input keys.60
“Point of Interest”Touch to select one of the POIs that have already
been stored in the system’s database.63
“Previous Desti-
nations”Touch to select a destination from any of the last
100 previously set destinations and from the pre-
vious starting point.69
“Address Book”
Touch to select the desired location from a regis-
tered entry in “Address book”. (To register ad-
dress book entries, see “REGISTERING
ADDRESS BOOK ENTRIES” on page 103.)
69
