TOYOTA VENZA 2014 Accessories, Audio & Navigation (in English)

21
3. QUICK REFERENCE
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12

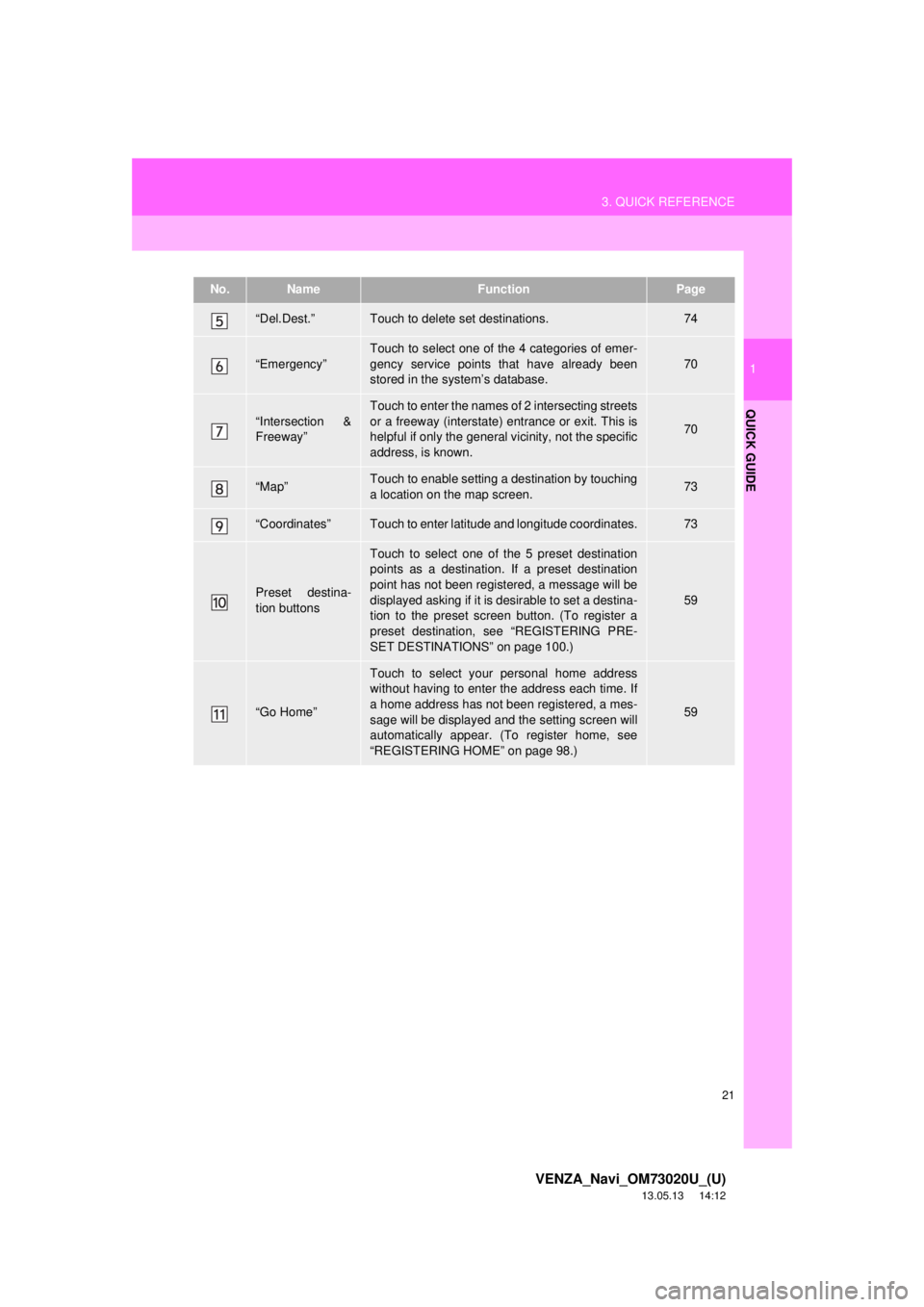

“Del.Dest.”Touch to delete set destinations.74
“Emergency”
Touch to select one of the 4 categories of emer-
gency service points that have already been
stored in the system’s database.
70
“Intersection &
Freeway”
Touch to enter the names of 2 intersecting streets
or a freeway (interstate) entrance or exit. This is
helpful if only the general vicinity, not the specific
address, is known.
70
“Map”Touch to enable setting a destination by touching
a location on the map screen.73
“Coordinates”Touch to enter latitude and longitude coordinates.73
Preset destina-
tion buttons
Touch to select one of the 5 preset destination
points as a destination. If a preset destination
point has not been registered, a message will be
displayed asking if it is desirable to set a destina-
tion to the preset screen button. (To register a
preset destination, see “REGISTERING PRE-
SET DESTINATIONS” on page 100.)
59
“Go Home”
Touch to select your personal home address
without having to enter the address each time. If
a home address has not been registered, a mes-
sage will be displayed and the setting screen will
automatically appear. (To register home, see
“REGISTERING HOME” on page 98.)
59
No.NameFunctionPage

22
3. QUICK REFERENCE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
2. “Setup” SCREEN
The items shown on the “Setup” screen can be set. Press the “SETUP” button to
display the “Setup” screen.

23
3. QUICK REFERENCE
1
QUICK GUIDE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12

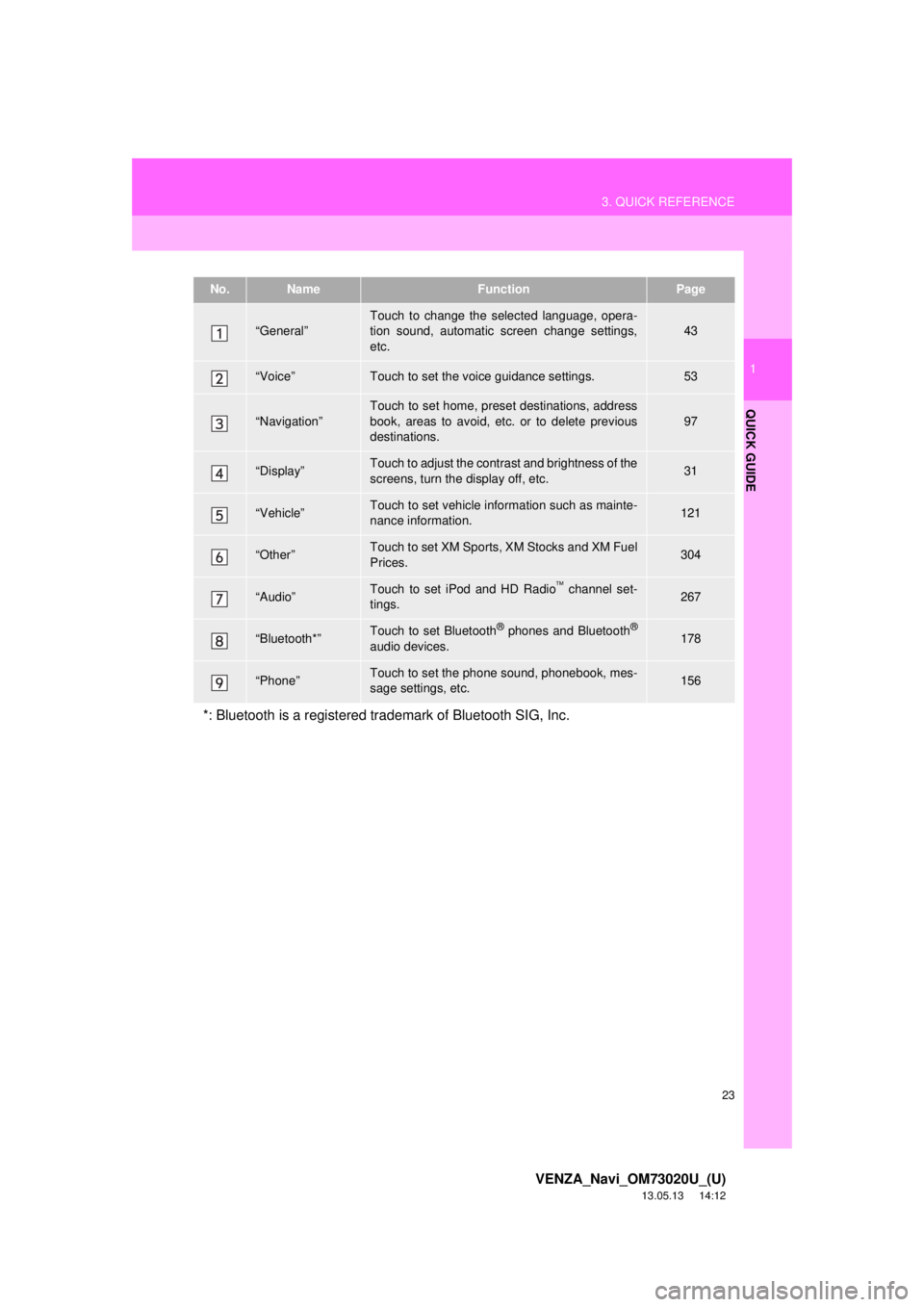

No.NameFunctionPage
“General”Touch to change the selected language, opera-
tion sound, automatic screen change settings,
etc.43
“Voice”Touch to set the voice guidance settings.53
“Navigation”
Touch to set home, preset destinations, address
book, areas to avoid, etc. or to delete previous
destinations.
97
“Display”Touch to adjust the contrast and brightness of the
screens, turn the display off, etc.31
“Vehicle”Touch to set vehicle information such as mainte-
nance information.121
“Other”Touch to set XM Sports, XM Stocks and XM Fuel
Prices.304
“Audio”Touch to set iPod and HD Radio channel set-
tings.267
“Bluetooth*”Touch to set Bluetooth® phones and Bluetooth®
audio devices.178
“Phone”Touch to set the phone sound, phonebook, mes-
sage settings, etc.156
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

24
3. QUICK REFERENCE
VENZA_Navi_OM73020U_(U)
13.05.13 14:12

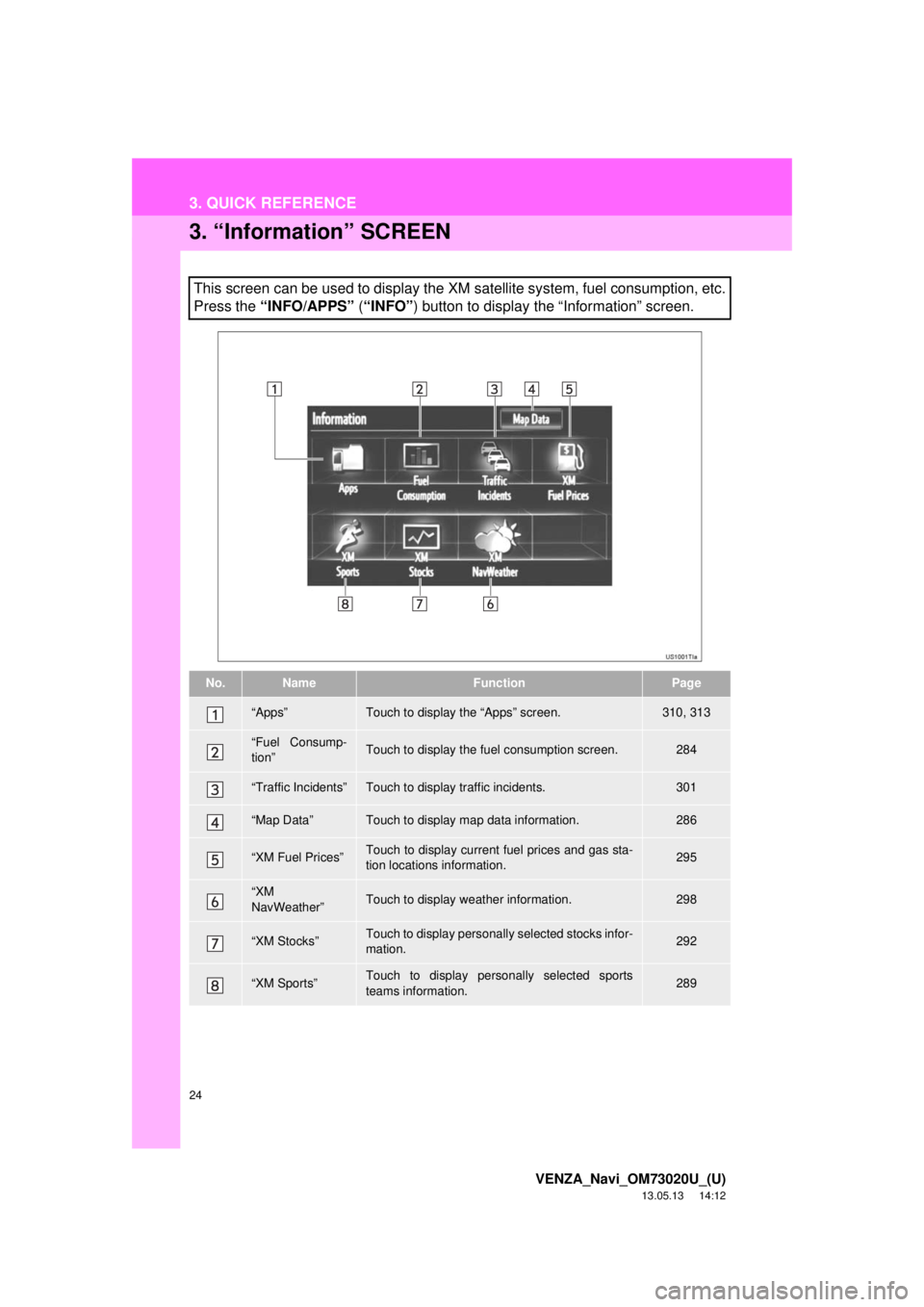

3. “Information” SCREEN
This screen can be used to display the XM satellite system, fuel consumption, etc.
Press the “INFO/APPS” (“INFO”) button to display the “Information” screen.
No.NameFunctionPage
“Apps”Touch to display the “Apps” screen.310, 313
“Fuel Consump-
tion”Touch to display the fuel consumption screen.284
“Traffic Incidents”Touch to display traffic incidents.301
“Map Data”Touch to display map data information.286
“XM Fuel Prices”Touch to display current fuel prices and gas sta-
tion locations information.295
“XM
NavWeather”Touch to display weather information.298
“XM Stocks”Touch to display personally selected stocks infor-
mation.292
“XM Sports”Touch to display personally selected sports
teams information.289

1
2
3
4
5
6
7
8
9
2
25
VENZA_Navi_OM73020U_(U)
13.05.09 20:08

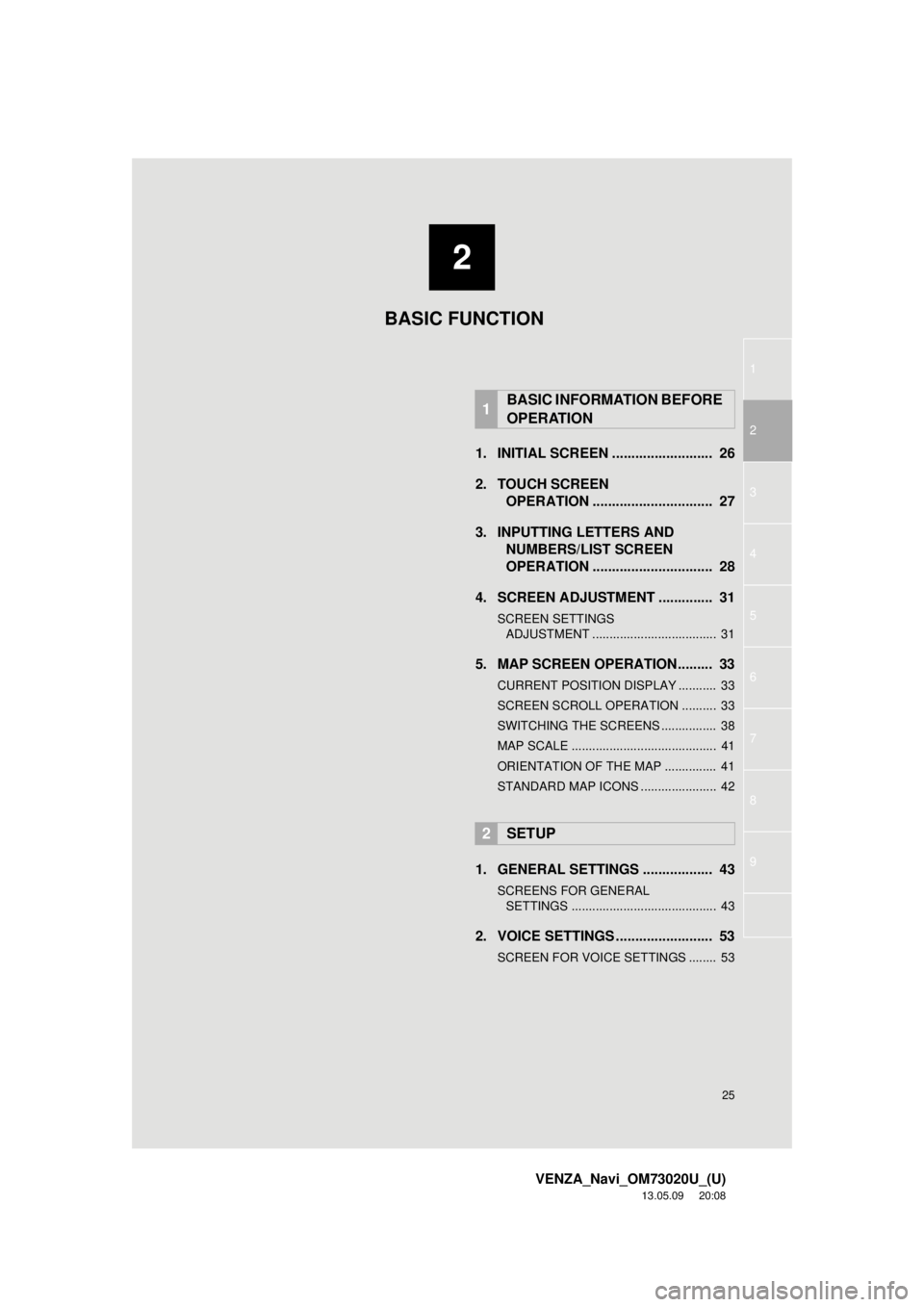

1. INITIAL SCREEN .......................... 26
2. TOUCH SCREEN
OPERATION ............................... 27
3. INPUTTING LETTERS AND
NUMBERS/LIST SCREEN
OPERATION ............................... 28
4. SCREEN ADJUSTMENT .............. 31
SCREEN SETTINGS
ADJUSTMENT .................................... 31
5. MAP SCREEN OPERATION......... 33
CURRENT POSITION DISPLAY ........... 33
SCREEN SCROLL OPERATION .......... 33
SWITCHING THE SCREENS ................ 38
MAP SCALE .......................................... 41
ORIENTATION OF THE MAP ............... 41
STANDARD MAP ICONS ...................... 42
1. GENERAL SETTINGS .................. 43
SCREENS FOR GENERAL
SETTINGS .......................................... 43
2. VOICE SETTINGS ......................... 53
SCREEN FOR VOICE SETTINGS ........ 53
1BASIC INFORMATION BEFORE
OPERATION
2SETUP
BASIC FUNCTION

26
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode, the initial screen will be dis-
played and the system will begin oper-
ating. (Vehicles with a smart key
system)
When the engine switch is in the “ACC”
or “ON” position, the initial screen will
be displayed and the system will begin
operating. (Vehicles without a smart
key system)
After a few seconds, the “CAUTION”
screen will be displayed.
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. (If a button other than the “MAP/
VOICE” button is pressed, the function’s
corresponding screen will be displayed.)
Images shown on the initial screen can
be changed to suit individual prefer-
ences. (See page 48.)
CAUTION
●When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
When the navigation system is turned
on in a screen other than the map
screen, the “CAUTION” screen will be
displayed when the screen is changed
to the map screen for the first time after
it has been turned on.
MAINTENANCE INFORMATION
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the navigation
system is turned on.
This screen goes off if the screen is not
operated for several seconds.
To prevent this screen from being dis-
played again, touch “Do Not Display
This Message Again”.
To register maintenance information,
see “MAINTENANCE” on page 121.

27
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
2. TOUCH SCREEN OPERATION
This system is operated mainly by the
buttons on the screen. (Referred to as
screen buttons in this manual.)
When a screen button is touched, a
beep sounds. (To set the beep sound,
see page 43.)
NOTICE
●To prevent damaging the screen, lightly
touch the screen buttons with your finger
pad.
●Do not operate or rub the screen with a
ballpoint pen, a mechanical pencil, fin-
ger nail, a pointy and/or hard object
because this will damage the screen.
●Do not use objects other than your finger
to touch the screen.
●When wiping the touch screen, it is
advisable to wipe with a soft and dry
cloth wrapped around the finger. Do not
use chemical cleaners to clean the
touch screen, as they may damage the
touch screen. Also, be careful not to
apply excessive force on the screen.
INFORMATION
●If the system does not respond to touch-
ing a screen button, move your finger
away from the screen and then touch it
again.
●Dimmed screen buttons cannot be oper-
ated.
●To operate the touch screen, press
touch screen buttons properly with finger
pad.
●When dew condensation occurs inside
the touch screen, it is sometimes difficult
to operate the display properly. In such
case, please leave the screen
untouched and do not operate the touch
screen until dew condensation disap-
pears.
●The displayed image may become
darker and moving images may be
slightly distorted when the screen is
cold.
●In extremely cold conditions, the map
may not be displayed and the data input
by a user may be deleted. Also, the
screen buttons may be harder than
usual to depress.
●When the screen is viewed through
polarized sunglasses, a rainbow pattern
may appear on the screen due to optical
characteristics of the screen. If this is
disturbing, please operate the screen
without polarized sunglasses.

28
1. BASIC INFORMATION BEFORE OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
3. INPUTTING LETTERS AND NUMBERS/LIST SCREEN OPERATION
1Touch “A-Z” to display the alphabet
keys.
2Touch the keys directly to enter letters
or numbers.
: Touch to erase one character.
Touch and hold to continue erasing char-
acters.
On certain letter entry screens, letters can
be entered in upper or lower case.
1Touch “Other” to display symbol keys.
2Touch the symbol keys directly to enter
symbols.
: Touch to erase one symbol. Touch
and hold to continue erasing symbols.
When searching for an address or
name, or entering data, letters and
numbers can be input via the screen.
Keyboard layout can be changed. (See
page 47.)
TO INPUT LETTERS AND
NUMBERS
IconFunction
Touch to enter in lower case.
Touch to enter in upper case.
TO INPUT SYMBOLS

29
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
1Touch “OK” to search for an address
or a name.
Matching items from the database are
listed even if the entered address or name
is incomplete.
The list will be displayed automatically if
the maximum number of characters is
entered or the number of matching items
is 5 or less.
TO DISPLAY THE LIST
INFORMATION
●The number of matching items is shown
on the right side of the screen. If the
number of matching items is more than
999, the system displays “” on the
screen.
LIST SCREEN OPERATION
When a list is displayed, use the appro-
priate screen button to scroll through
the list.
IconFunction
Touch to skip to the next or previ-
ous page.
Touch and hold or to scroll
through the displayed list.
This indicates the displayed
screen’s position.
If appears to the right of an
item name, the complete name is
too long to display.
Touch to scroll to the end of the
name.
Touch to move to the begin-
ning of the name.

30
1. BASIC INFORMATION BEFORE OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
1Touch “Sort”.
2Touch the desired sorting criteria.
SORTING
The order of a list displayed on the
screen can be rearranged.Screen buttonFunction
“Distance”Touch to sort in order of
distance from the current
position.
“Date”Touch to sort in order of
date.
“Category”Touch to sort in order of
category.
“Icon”Touch to sort in order of
icon.
“Name”Touch to sort in order of
name.
“Brand”
Touch to sort in order of
brand name. (XM func-
tions)
“Price”Touch to sort in order of
price. (XM functions)
