TOYOTA VENZA 2014 Accessories, Audio & Navigation (in English)

128-8673b
21 of 48
- 11 -
Fold Flat Feature1. To use the headphones, place one ear piece in each hand,
rotate the ear pieces 90 degrees to the fully open position.
2. For storage, rotate both of the ear pieces 90 degrees to the
fold fl at position.
To Operate the HeadphonesHeadphones are intended for use by rear seat passengers only
and will not operate in the front seats. When sitting in front of
the passenger side monitor, move the channel select switch to
the “1” position. When sitting in front of the driver side monitor,
move the channel select switch to the “2” position.
1. Press the Power button on the right hand earpiece to turn
the headphones ON. The power indicator will illuminate red.
2. Adjust the volume level with the volume control on the
right-hand ear piece to its lowest setting before putting the
headphones on your head.
3. Press the Power button again to turn the headphones OFF.
Note: The IR transmitter must be in the ON mode. Turn
the IR transmitter ON using the Remote Control or
the touch screen. See “Remote Control Functional
Description, Item 18” on page 8 or refer to the “IRT
(Infrared Transmitter)” section on page 28.
Figure 4. Fold Flat Feature

128-8673b
22 of 48
- 12 -
OPERATION INSTRUCTIONS
Controls and Indicators Functional Descriptions 1. POWER/MENU Button - Press this button to turn the monitor
on. When the monitor is on, press this button again to
display the Main Menu. Press and hold the button to turn
the monitor off .
2. DVD disc insertion slot - Insert a disc with the label towards
the viewer.
3. EJECT Button - Press this button to eject the disc.
4. Power Indicator LED - Illuminates red when power is
available to the unit, extinguishes when the unit is on.
5. IR Sensor/IR Transmitter LEDs - This area transmits audio to
the wireless headphone. This area also allows the remote
control to operate the unit.
6. LCD Screen & Touch Screen - Touch the screen to access
system menu or control functions.
7. AUX Audio/Video Input Jacks - The unit will accept an audio
or video input through the 3 RCA jacks (Yellow - Video, Red
- Right Audio, White - Left Audio) located on the side of the
unit.
8. AUX Jack Cover.
Figure 5. Monitor Controls and Indicators
2
3 1
4
6
5
7
8

128-8673b
23 of 48
- 13 -
Main Menu / Source SelectionWhen the monitor is on, press the POWER/MENU button or
touch the screen to display the Main Menu. The Main Menu
allows a user to access available input sources or the System
Setup Menu.
Driver Side Sources
DVD - Touch DVD to view the internal DVD player.
M1 - Touch M1 to view the source that is selected on the
passenger side monitor.
AUX - Touch AUX to view the source that is connected to
the A/V input on the side of the unit.
Setup - Touch SETUP to access the System Setup Menu.Passenger Side Sources
DVD - Touch DVD to view the internal DVD player.
M2 - Touch M2 to view the source that is selected on the
driver side monitor.
AUX - Touch AUX to view the source that is connected to
the A/V input on the side of the unit.
Setup - Touch SETUP to access the System Setup Menu.

128-8673b
24 of 48
- 14 -
DVD BasicsTo get the optimum use out of your Seat Top DVD System,
please read this section completely.
Region Coding
Both the DVD player and DVDs are coded by region. These
region codes must match in order for the disc to play. If the
codes don’t match, the disc won’t play. This system is set to
Region 1 (USA) and will not play discs that have a region code
diff erent from Region 1. The system will display “Wrong Region”.
Types of Discs Your System Will Play
• DVD disc* - DVD discs which contain video.
• Audio discs - Audio CDs contain musical or sound content
only.
• MP3 discs - A disc that contains audio fi les (for example, a
CD-R with downloaded MP3 fi les).
* This system is capable of playing most recordable DVD
formats. However, due to the variety of disc manufacturers and
software, playback cannot be guaranteed for every disc.Disc Compatibility
Before a disc is loaded, make sure that it is compatible with the
player. Insert the disc with the label facing the viewer.
Note: The following discs cannot be played with this player:
• MiniDisc
• Laserdisc
• CD-I, CD-ROM, DVD-ROM, Super Audio CD (SACD),
DVD Audio
• Blue-Ray Disc™

128-8673b
25 of 48
- 15 -
LOADING AND PLAYING DVD DISCSTo Load and Play a Disc1. Apply power to the Seat Top DVD Rear Seat Entertainment
System by placing the vehicle in the ACC or ON mode using
the power (ignition) switch.
2. Press the Power button to turn the unit ON, select DVD
mode and insert the disc (label towards viewer) into the disc
insertion slot.
3. When the disc displays the DVD menu, touch “Play” or “Play
Movie” on the touch screen or press PLAY on the Remote
Control.
4. If touching “Play” on the touch screen does not start the
movie playing, touch a corner on the touch screen to bring
up the DVD Navigation Menu screen.
DVD Navigation MenuWhen the DVD root menu is displayed, a user can touch a
corner on the touch screen to bring up the DVD Navigation
Menu screen.
Touch the
,
,
, or
icons to navigate the DVD root
menu. Touch the
icon to close the menu and return to the
DVD video.

128-8673b
26 of 48
- 16 -
DVD Control MenuWhen a DVD video disc is playing, touch the LCD screen to
access the DVD Control Menu.
Note: This menu is not available during the preview section of
the DVD.
Volume Icon
Touch this icon to access the volume menu. Play/Pause Icon
Touch this icon to pause playback. Touch this icon again to
resume normal playback. Scan Backward Icon
Touch this icon to search in a backward direction. Touch
repeatedly to change the search speed from 2, 4, 8, and 16
times the normal speed.
Scan Forward Icon
Touch this icon to search in a forward direction. Touch
repeatedly to change the search speed from 2, 4, 8, and 16
times the normal speed. Previous Icon
Touch this icon to return to the previous chapter. Next Icon
Touch this icon to skip to the next chapter. Stop Icon
Touch this icon to stop DVD disc play. Settings Icon
Touch this icon to access the DVD Settings and Adjustments
Menu. Home Icon
Touch this icon to access the System Main Menu.

128-8673b
27 of 48
- 17 -
Volume MenuTouch the volume icon on the DVD Control Menu to access the
Volume Control Menu.
Mute Icon
Touch this icon to mute audio to the headphones. Touch the
icon again to restore audio.
Return Icon
Touch this icon to close the volume menu. Home Icon
Touch this icon to access the Main Menu.

128-8673b
28 of 48
- 18 -

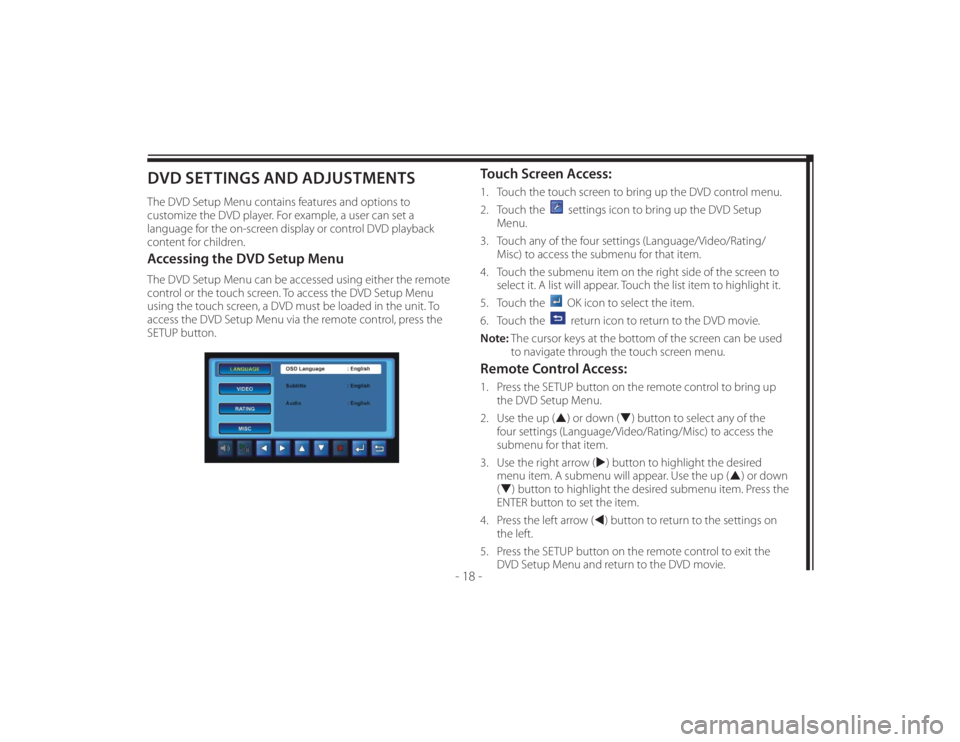

DVD SETTINGS AND ADJUSTMENTSThe DVD Setup Menu contains features and options to
customize the DVD player. For example, a user can set a
language for the on-screen display or control DVD playback
content for children.Accessing the DVD Setup MenuThe DVD Setup Menu can be accessed using either the remote
control or the touch screen. To access the DVD Setup Menu
using the touch screen, a DVD must be loaded in the unit. To
access the DVD Setup Menu via the remote control, press the
SETUP button.
Touch Screen Access:1. Touch the touch screen to bring up the DVD control menu.
2. Touch the
settings icon to bring up the DVD Setup
Menu.
3. Touch any of the four settings (Language/Video/Rating/
Misc) to access the submenu for that item.
4. Touch the submenu item on the right side of the screen to
select it. A list will appear. Touch the list item to highlight it.
5. Touch the OK icon to select the item.
6. Touch the return icon to return to the DVD movie.
Note: The cursor keys at the bottom of the screen can be used
to navigate through the touch screen menu.
Remote Control Access:1. Press the SETUP button on the remote control to bring up
the DVD Setup Menu.
2. Use the up () or down () button to select any of the
four settings (Language/Video/Rating/Misc) to access the
submenu for that item.
3. Use the right arrow () button to highlight the desired
menu item. A submenu will appear. Use the up () or down
() button to highlight the desired submenu item. Press the
ENTER button to set the item.
4. Press the left arrow () button to return to the settings on
the left.
5. Press the SETUP button on the remote control to exit the
DVD Setup Menu and return to the DVD movie.

128-8673b
29 of 48
- 19 -

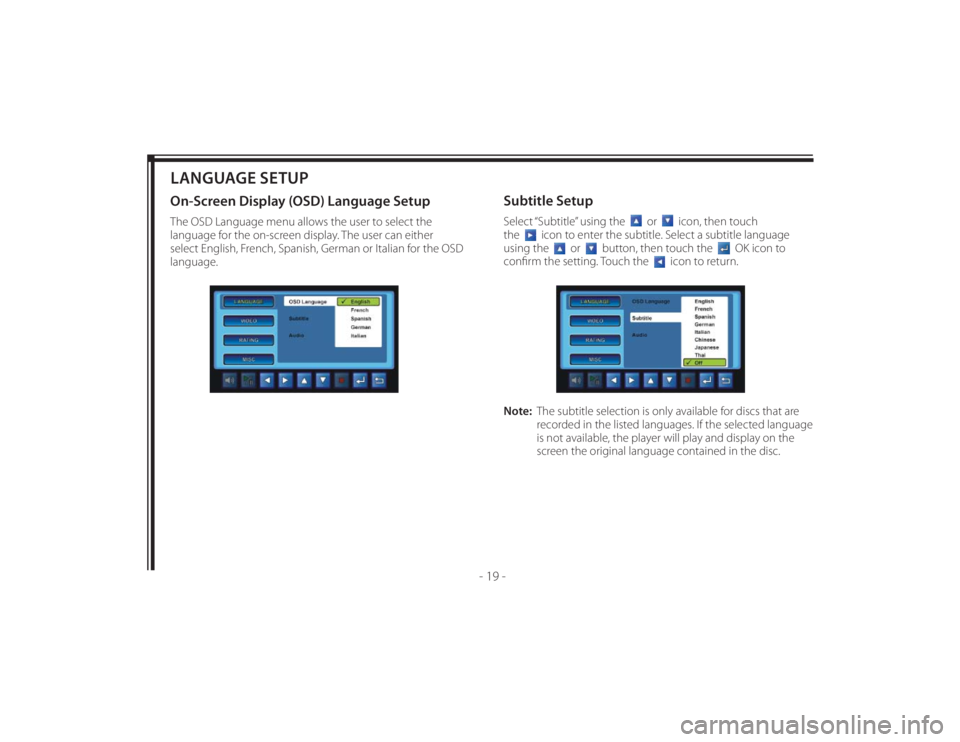

LANGUAGE SETUPOn-Screen Display (OSD) Language SetupThe OSD Language menu allows the user to select the
language for the on-screen display. The user can either
select English, French, Spanish, German or Italian for the OSD
language.
Subtitle SetupSelect “Subtitle” using the
or
icon, then touch
the
icon to enter the subtitle. Select a subtitle language
using the
or
button, then touch the
OK icon to
confi rm the setting. Touch the
icon to return.
Note: The subtitle selection is only available for discs that are
recorded in the listed languages. If the selected language
is not available, the player will play and display on the
screen the original language contained in the disc.

128-8673b
30 of 48
- 20 -

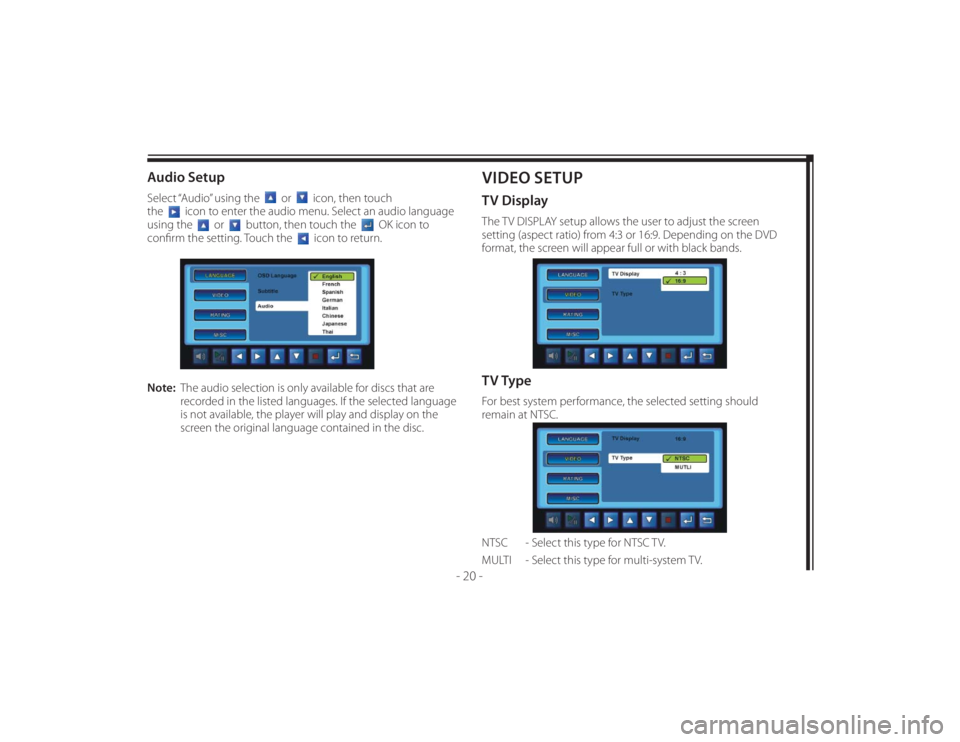

Audio SetupSelect “Audio” using the
or
icon, then touch
the
icon to enter the audio menu. Select an audio language
using the
or
button, then touch the
OK icon to
confi rm the setting. Touch the
icon to return.
Note: The audio selection is only available for discs that are
recorded in the listed languages. If the selected language
is not available, the player will play and display on the
screen the original language contained in the disc.
VIDEO SETUPTV DisplayThe TV DISPLAY setup allows the user to adjust the screen
setting (aspect ratio) from 4:3 or 16:9. Depending on the DVD
format, the screen will appear full or with black bands.TV TypeFor best system performance, the selected setting should
remain at NTSC.
NTSC - Select this type for NTSC TV.
MULTI - Select this type for multi-system TV.
