SETUP
1. SETUP OPERATION
7. VEHICLE SETTINGS∗

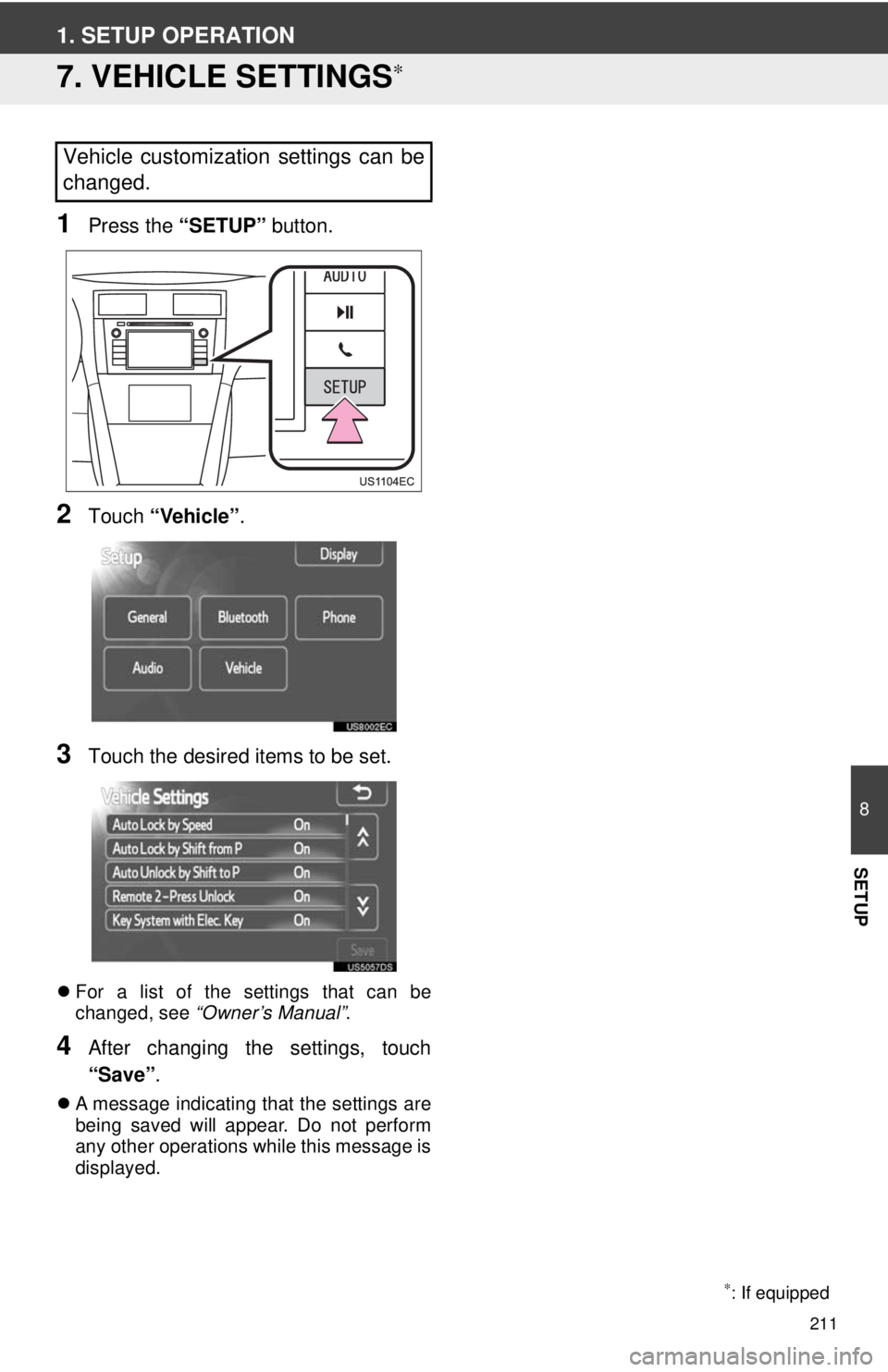

1Press the “SETUP” button.
2Touch “Vehicle”.
3Touch the desired items to be set.
For a list of the settings that can be
changed, see “Owner’s Manual” .
4After changing the settings, touch
“Save”.
A message indicating that the settings are
being saved will appear. Do not perform
any other operations while this message is
displayed.
Vehicle customization settings can be
changed.
∗: If equipped

212
1. SETUP OPERATION

9
213
1
2
3
4
5
6
7
8
9
1. REAR VIEW MONITOR SYSTEM OPERATION. ............. 214
REAR VIEW MONITOR GUIDE
LINES ................................................ 215
AREA DISPLAYED ON SCREEN........ 216
THE REAR VIEW MONITOR SYSTEM CAMERA ........................................... 216
2. DRIVING PRECAUTIONS (WITH REAR VIEW MONITOR
GUIDE LINES)........................... 218
1REAR VIEW MONITOR
SYSTEM
REAR VIEW MONITOR SYSTEM

214
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM OPERATION
1To display the rear view image on the
screen, the shift lever is in the “R” posi-
tion when the engine switch is in the
“ON” position.
If you move the shift lever out of the “R”
position, the screen returns to the previ-
ous screen.
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up.
The image is displayed in reverse on
the screen. This allows the image to
appear in the same manner as that of
the rear view mirror.CAUTION
●Never depend on the rear view monitor
system entirely when backing up.
Always make sure your intended path is
clear.
Use caution, just as you would when
backing up any vehicle.
● Never back up while looking only at the
screen. The image on the screen is dif-
ferent from actual conditions. Depicted
distances between objects and flat sur-
faces will differ from the actual dis-
tances. If you back up while looking only
at the screen, you may hit a vehicle, a
person or an object. When backing up,
be sure to check behind and all around
the vehicle visually and with mirrors
before proceeding.
● Do not use the system when the back
door, trunk or tailgate is not completely
closed.
● Use your own eyes to confirm the vehi-
cle’s surroundings, as the displayed
image may become faint or dark, and
moving images will be distorted, or not
entirely visible when the outside tem-
perature is low. When backing up, be
sure to check behind and all around the
vehicle visually and with mirror before
proceeding.
● Do not use the system in the following
cases:
• On icy or slick road surfaces, or in
snow.
• When using tire chains or emergency tires.
• On an uneven road, such as a slope.
 With rear view monitor guide lines (If
equipped)
● Always check the vehicle surrounding
area, because the guide lines are ancil-
lary lines.
● The guide lines are ancillary lines and
do not change even if the steering wheel
is turned.

215
1. REAR VIEW MONITOR SYSTEM
9
REAR VIEW MONITOR SYSTEM
Guidelines shown differ from those shown
on the actual screen.
Vehicle width exten sion guide lines
(blue)
 These lines indicate the estimated vehicle
width extension.
Distance guide line (blue)
 This line indicates a position on the
ground about 3 ft. (1 m) behind on the
ground of the rear bumper of the vehicle.
Distance guide line (red)
 This line indicates a position on the
ground about 1.5 ft. (0.5 m) behind on the
ground of the rear bumper of the vehicle.
Vehicle center gu ide lines (blue)
 These lines indicate the estimated vehicle
center on the ground.
NOTICE
● If the back of the vehicle is hit, the posi-
tion and mounting angle of the camera
may change. Be sure to have the cam-
era’s position and mounting angle
checked at your Toyota dealer.
● As the camera has a water proof con-
struction, do not detach, disassemble or
modify it. This may cause incorrect oper-
ation.
● If the temperature changes rapidly, such
as when hot water is poured on the vehi-
cle in cold weather, the system may not
operate normally.
● Do not strongly rub the camera lens. If
the camera lens is scratched, it can not
transmit a clear image.
● Do not allow organic solvent, car wax,
window cleaner or glass coat to adhere
to the camera. If this happens, wipe it off
as soon as possible.
● If the tire size is changed, the area dis-
played on the screen may change.
● When washing the vehicle, do not apply
intensive bursts of water to the camera
or camera area. Doing so may result in
the camera malfunctioning.
INFORMATION
●If the camera lens becomes dirty, it can-
not transmit a clear image. If water drop-
lets, snow, or mud adhere to the lens,
rinse with water and wipe with a soft
cloth. If the lens is extremely dirty, wash
it with a mild cleanser and rinse.

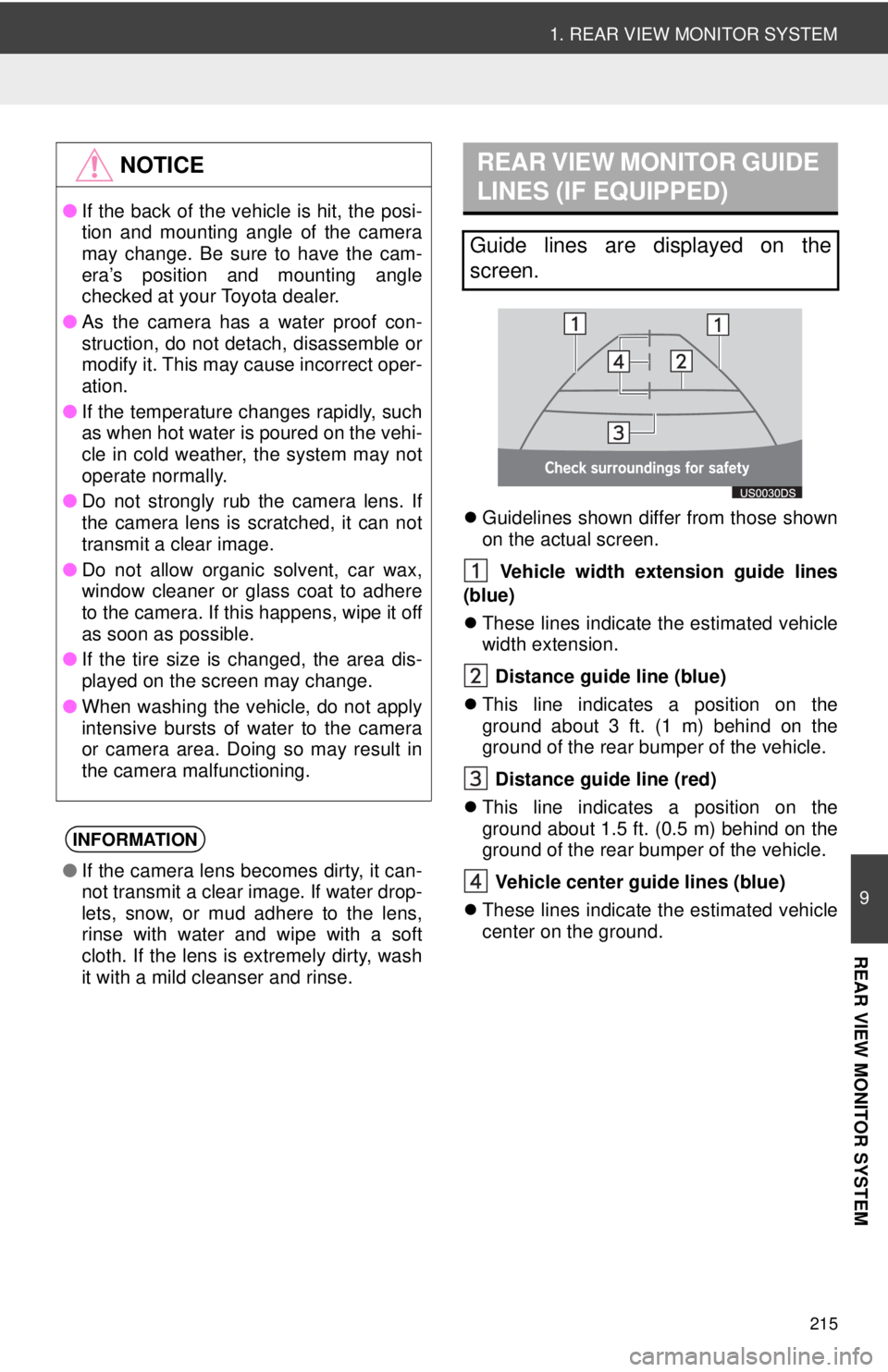

REAR VIEW MONITOR GUIDE
LINES (IF EQUIPPED)
Guide lines are displayed on the
screen.

216
1. REAR VIEW MONITOR SYSTEM
The actual camera location may differ
depending on the vehicle. For details, see
the Pictorial index of “Owner’s Manual”.

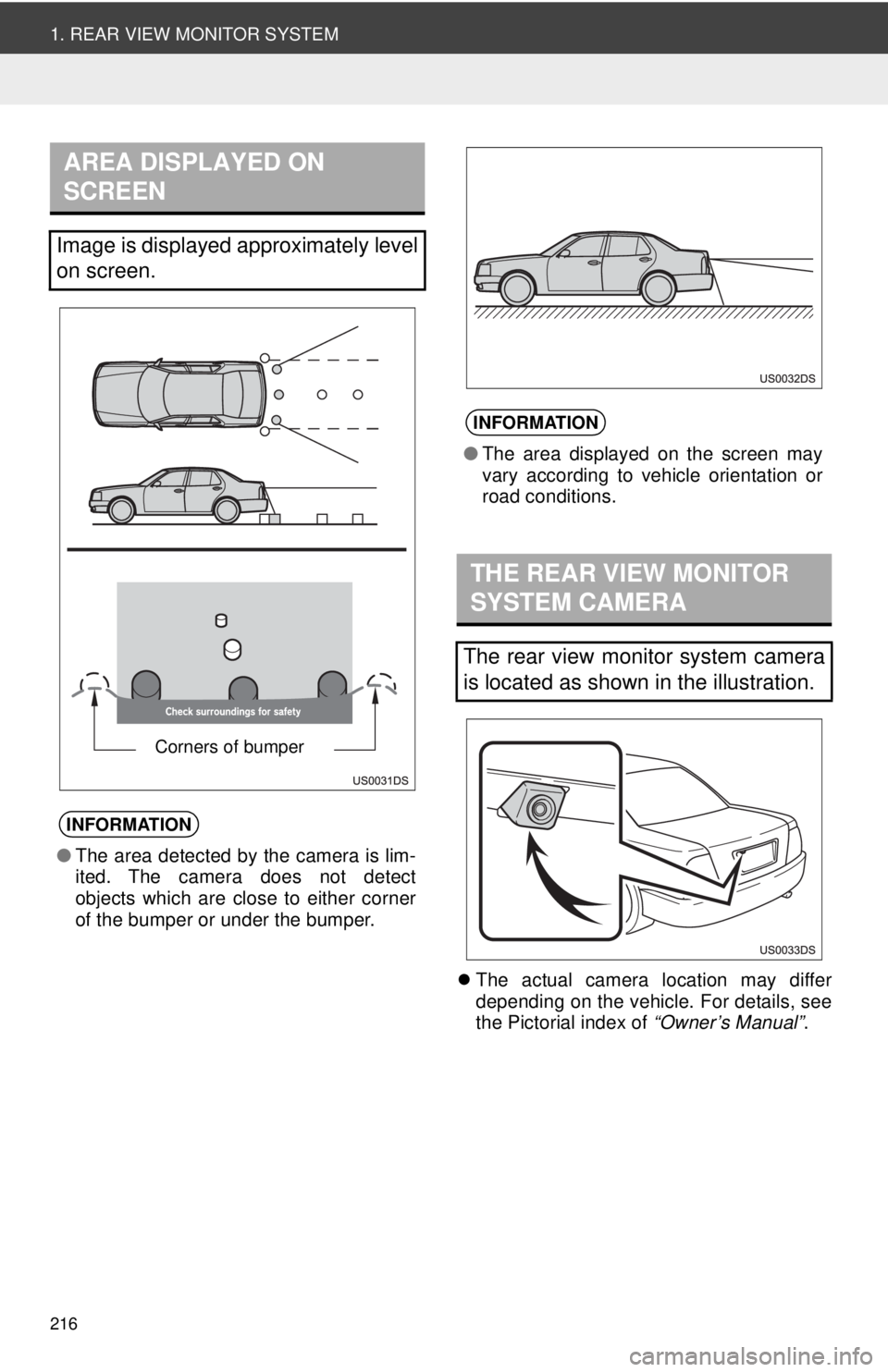

AREA DISPLAYED ON
SCREEN
Image is displayed approximately level
on screen.
INFORMATION
●The area detected by the camera is lim-
ited. The camera does not detect
objects which are close to either corner
of the bumper or under the bumper.
Corners of bumper
INFORMATION
●The area displayed on the screen may
vary according to vehicle orientation or
road conditions.
THE REAR VIEW MONITOR
SYSTEM CAMERA
The rear view monitor system camera
is located as shown in the illustration.

217
1. REAR VIEW MONITOR SYSTEM
9
REAR VIEW MONITOR SYSTEM
On some models
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up by
the camera, the smear effect* peculiar to
the camera may occur.
*: Smear effect ⎯ A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when transmit-
ted by the camera, the light source ap-
pears to have a vertical streak above and
below it.INFORMATION
● The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
● In the following cases, it may become
difficult to see the images on the screen,
even when the system is functioning.
• In the dark (for example, at night)
• When the temperature near the lens
is high or low
• When water droplets are adhering to the camera, or when humidity is high
(for example, when it rains)
• When foreign matter (for example, snow or mud) is adhering to the cam-
era
• When the camera has scratches or dirt on it
• When the sun or the beam of head- lights is shining directly into the cam-
era lens
● When the camera is used under fluores-
cent lights, sodium lights, or mercury
lights etc., the lights and the illuminated
areas may appear to flicker.

218
1. REAR VIEW MONITOR SYSTEM
2. DRIVING PRECAUTIONS (WITH REAR VIEW MONITOR GUIDE LINES)

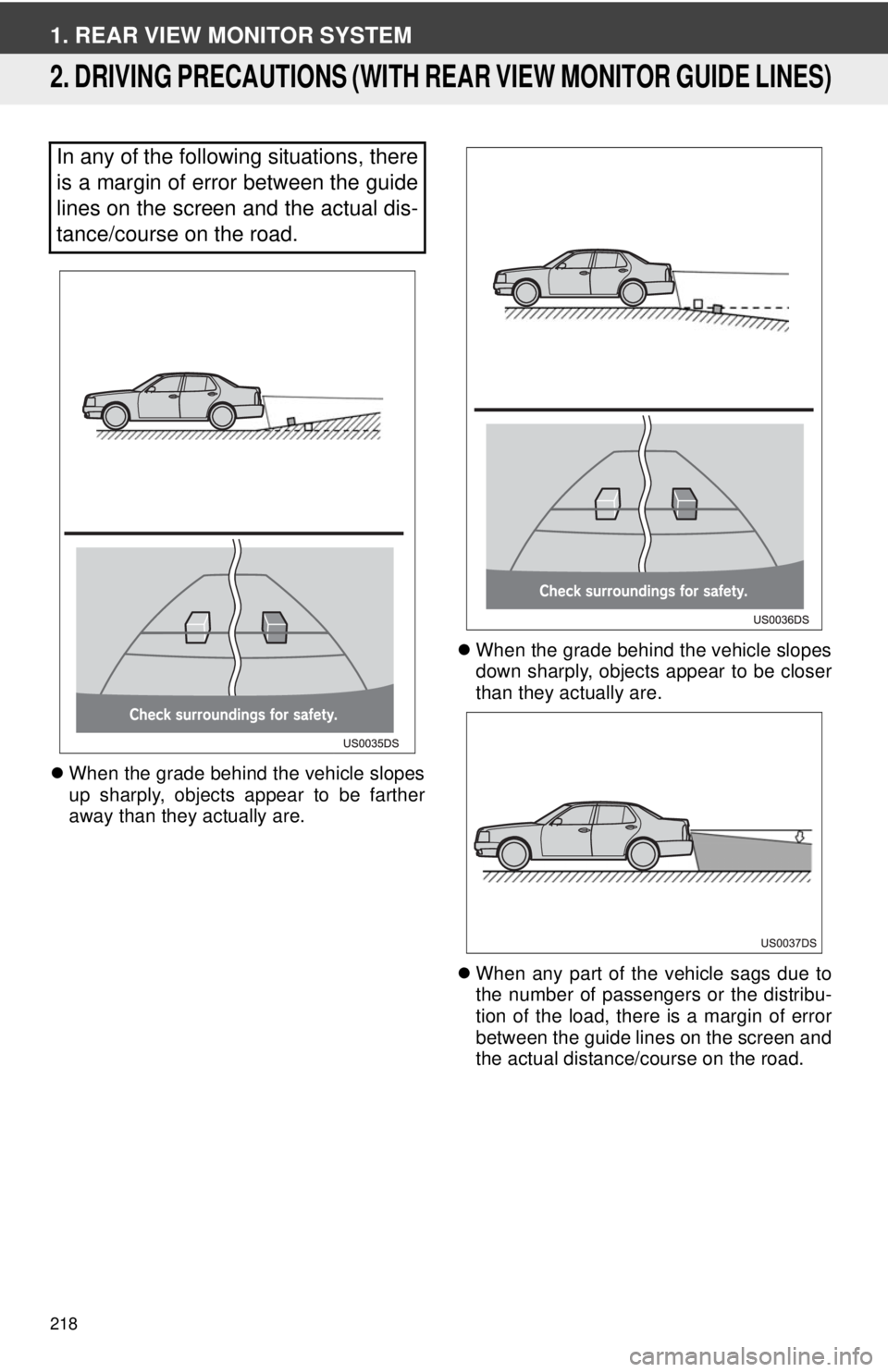

When the grade behind the vehicle slopes
up sharply, objects appear to be farther
away than they actually are. 
When the grade behind the vehicle slopes
down sharply, objects appear to be closer
than they actually are.
 When any part of the vehicle sags due to
the number of passengers or the distribu-
tion of the load, there is a margin of error
between the guide lines on the screen and
the actual distance/course on the road.
In any of the following situations, there
is a margin of error between the guide
lines on the screen and the actual dis-
tance/course on the road.

219
1. REAR VIEW MONITOR SYSTEM
9
REAR VIEW MONITOR SYSTEM

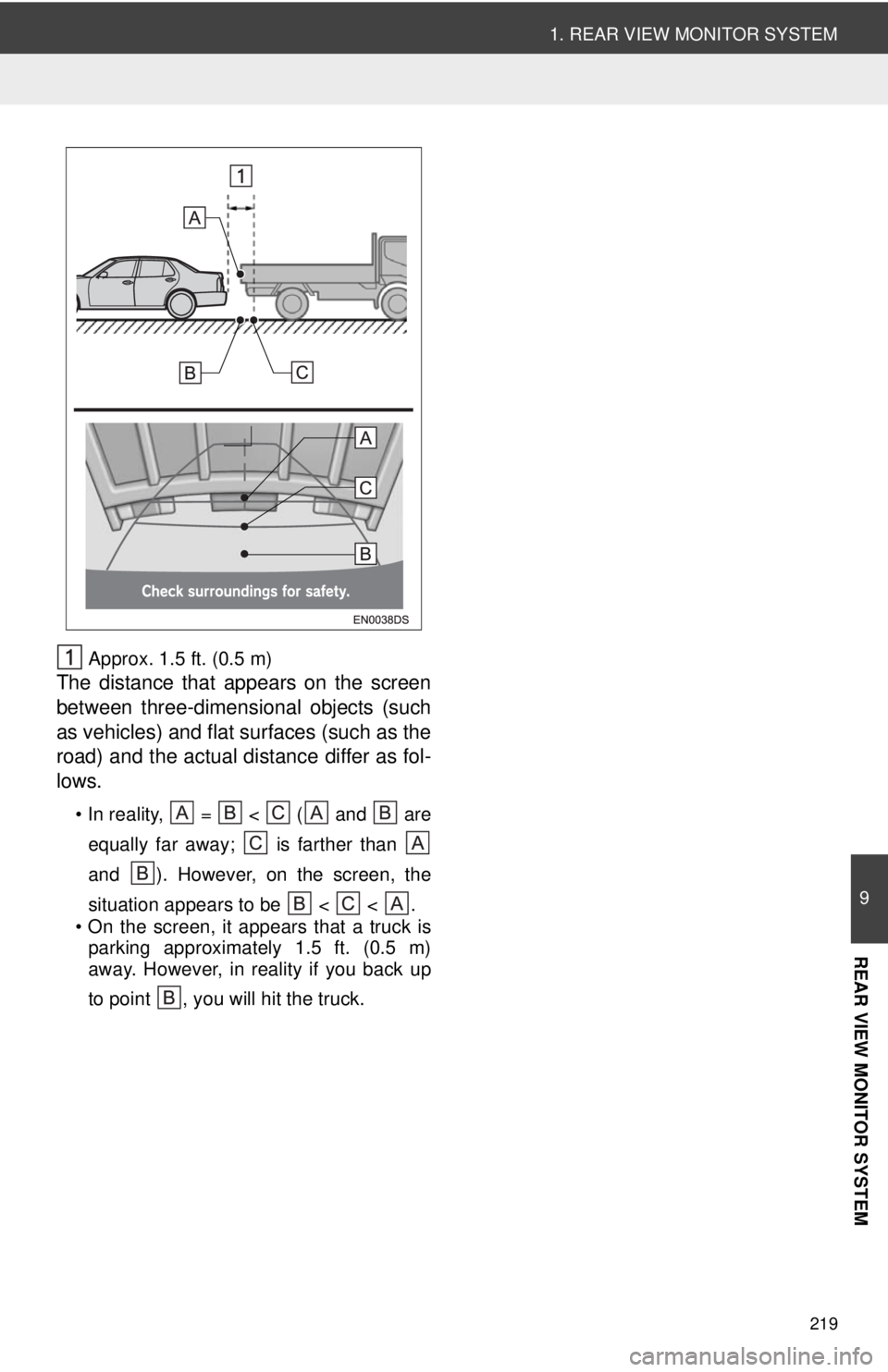

Approx. 1.5 ft. (0.5 m)
The distance that appears on the screen
between three-dimensional objects (such
as vehicles) and flat surfaces (such as the
road) and the actual distance differ as fol-
lows.
• In reality, = < ( and areequally far away; is farther than
and ). However, on the screen, the
situation appears to be < < .
• On the screen, it appears that a truck is parking approximately 1.5 ft. (0.5 m)
away. However, in reality if you back up
to point , you will hit the truck.

220
