6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73019U_(U)

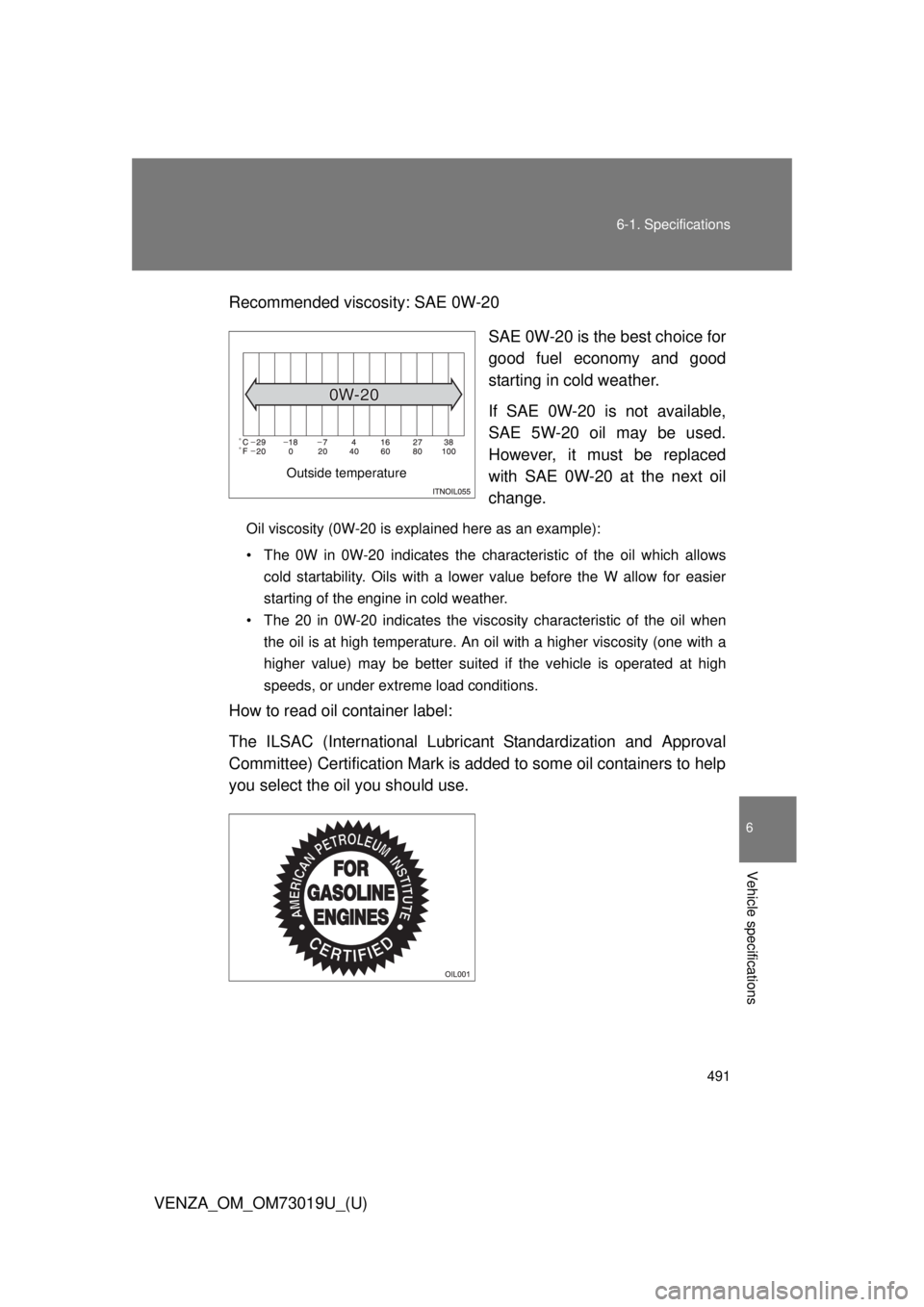

Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubric ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Outside temperature

492 6-1. Specifications
VENZA_OM_OM73019U_(U)

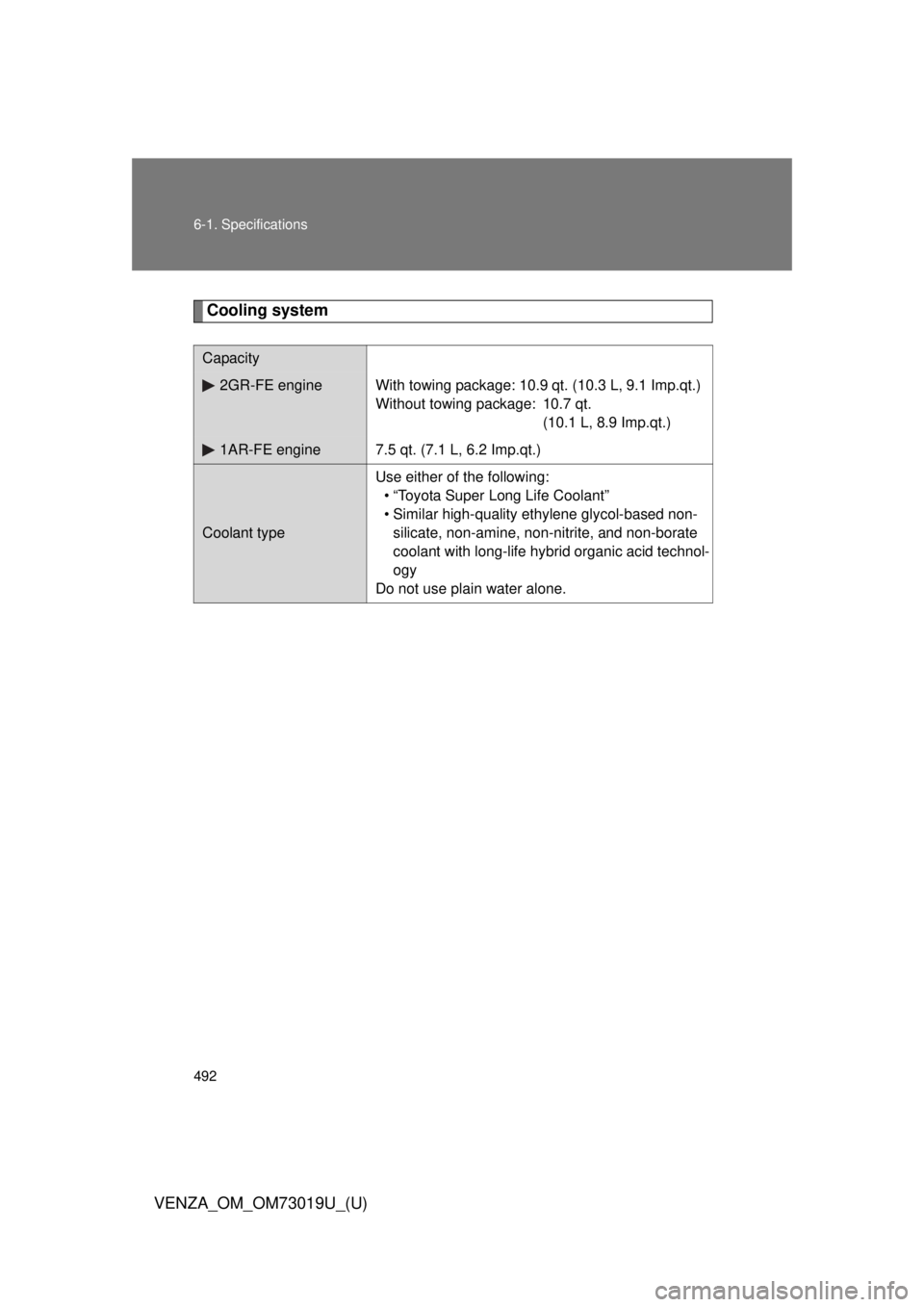

Cooling system
Capacity
2GR-FE engineWith towing package: 10.9 qt. (10.3 L, 9.1 Imp.qt.)
Without towing package: 10.7 qt. (10.1 L, 8.9 Imp.qt.)
1AR-FE engine7.5 qt. (7.1 L, 6.2 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non- silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

493
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73019U_(U)

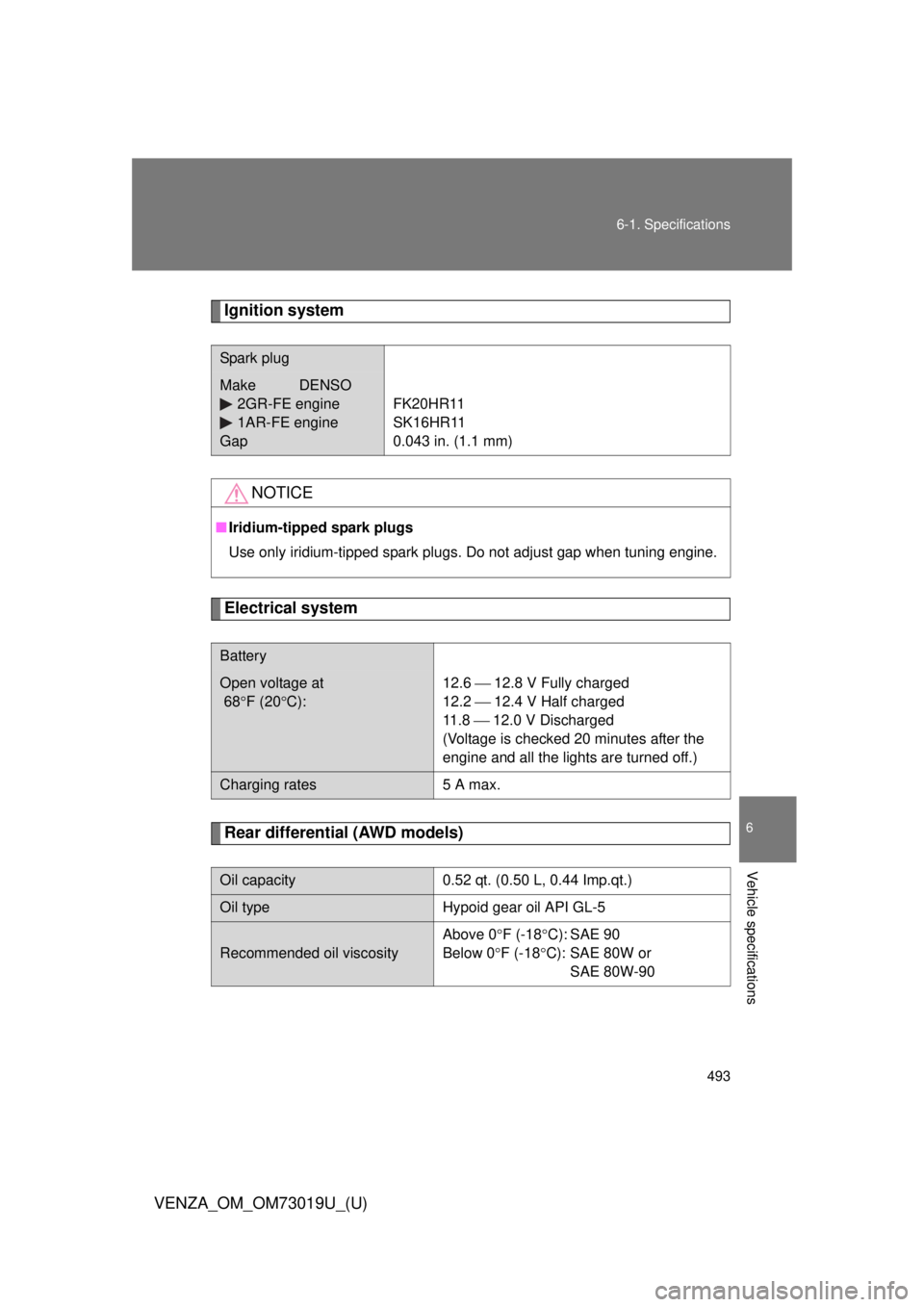

Ignition system
Electrical system
Rear differential (AWD models)
Spark plug
Make DENSO
2GR-FE engine
1AR-FE engine
Gap
FK20HR11
SK16HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity0.52 qt. (0.50 L, 0.44 Imp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or
SAE 80W-90

494 6-1. Specifications
VENZA_OM_OM73019U_(U)

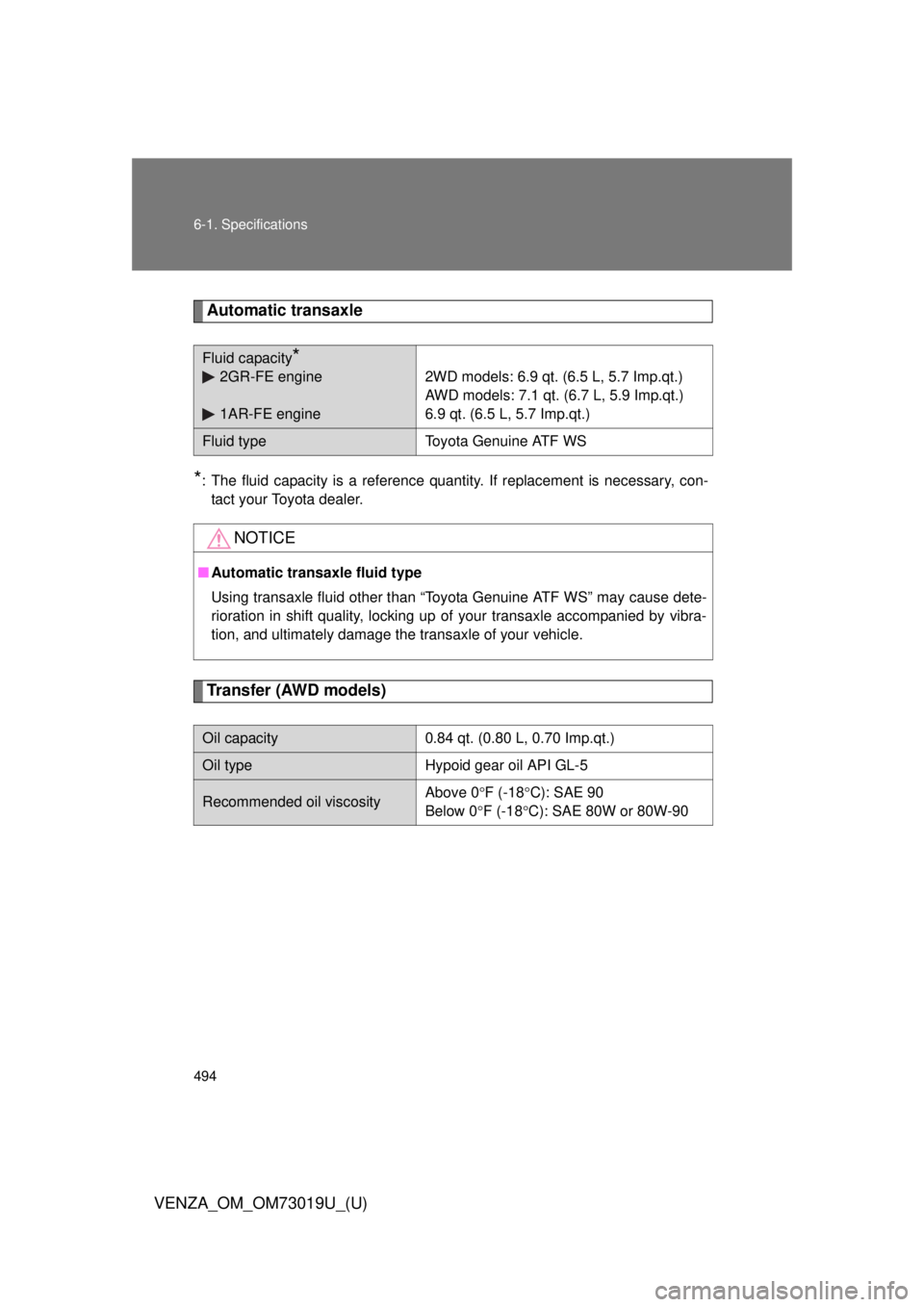

Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Toyota dealer.
Transfer (AWD models)
Fluid capacity*
2GR-FE engine
1AR-FE engine2WD models: 6.9 qt. (6.5 L, 5.7 Imp.qt.)
AWD models: 7.1 qt. (6.7 L, 5.9 Imp.qt.)
6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transaxle fluid type
Using transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of your transaxle accompanied by vibra-
tion, and ultimately damage the transaxle of your vehicle.
Oil capacity0.84 qt. (0.80 L, 0.70 Imp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90

495
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73019U_(U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Steering
Pedal clearance*11.1 in. (28 mm) Min.
Pedal free play0.04  0.12 in. (1.0  3.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment*24  6 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)

496 6-1. Specifications
VENZA_OM_OM73019U_(U)

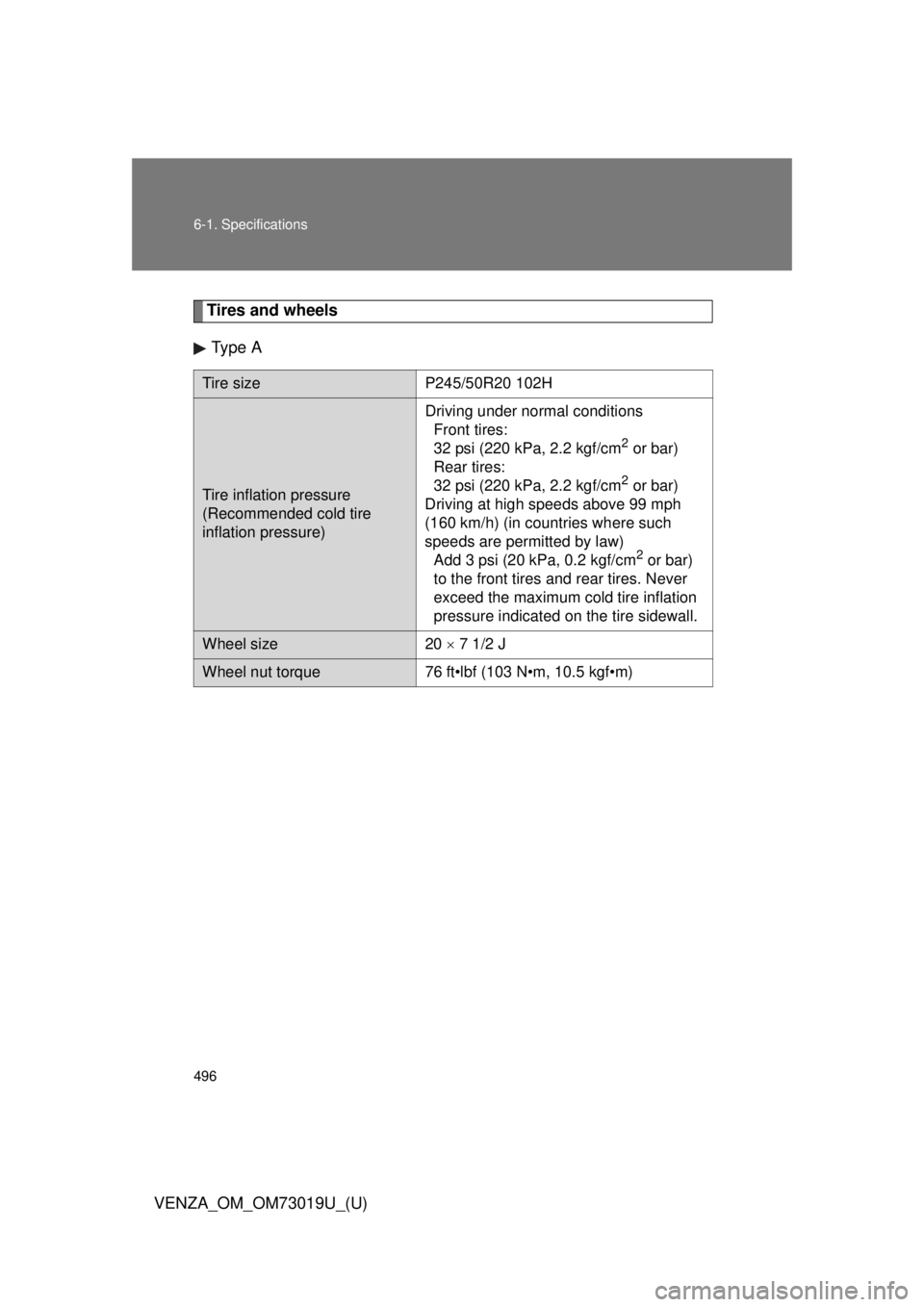

Tires and wheelsType A
Tire sizeP245/50R20 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size20  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

497
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73019U_(U)

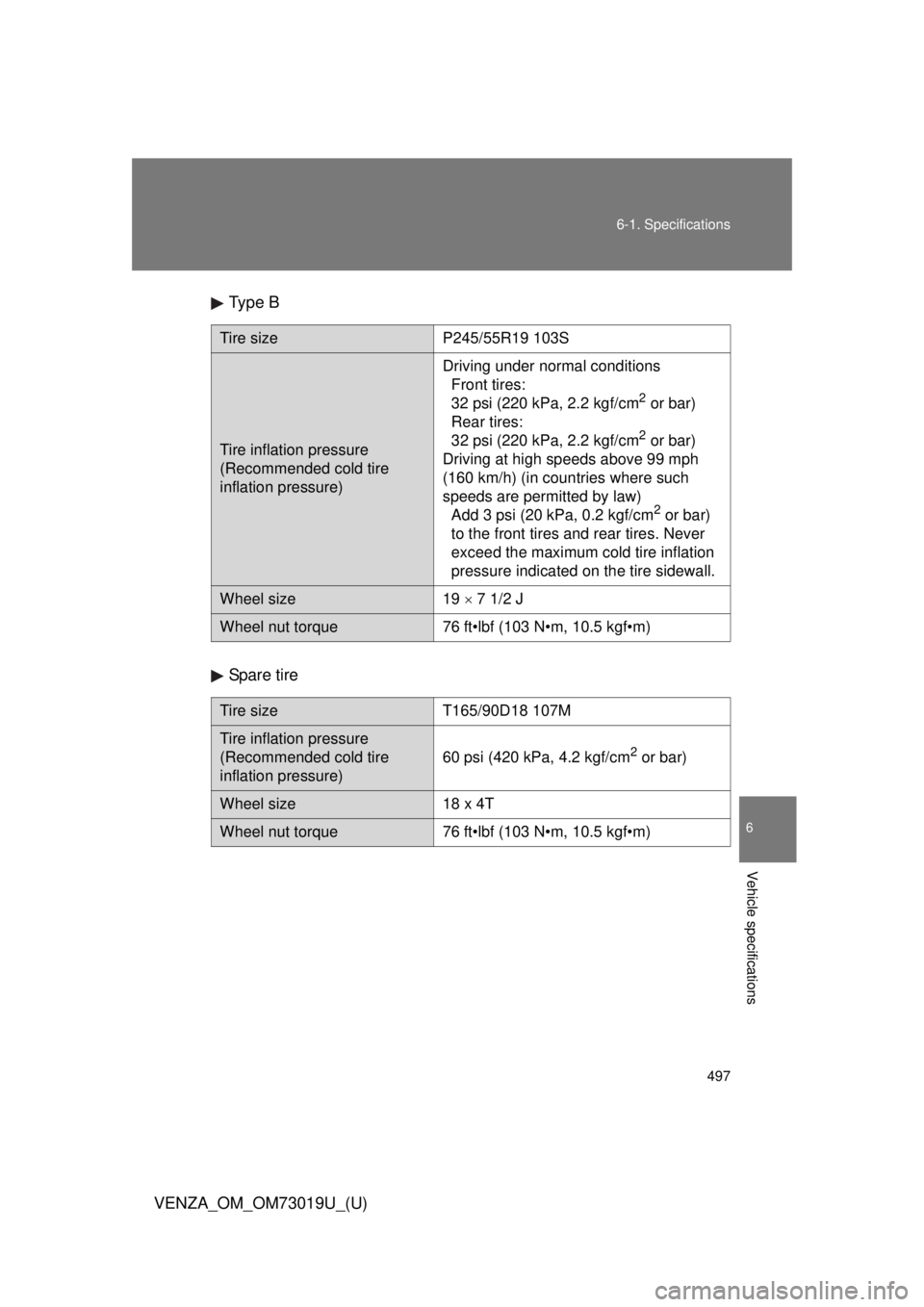

Type B
Spare tire
Tire sizeP245/55R19 103S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT165/90D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18 x 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

498 6-1. Specifications
VENZA_OM_OM73019U_(U)

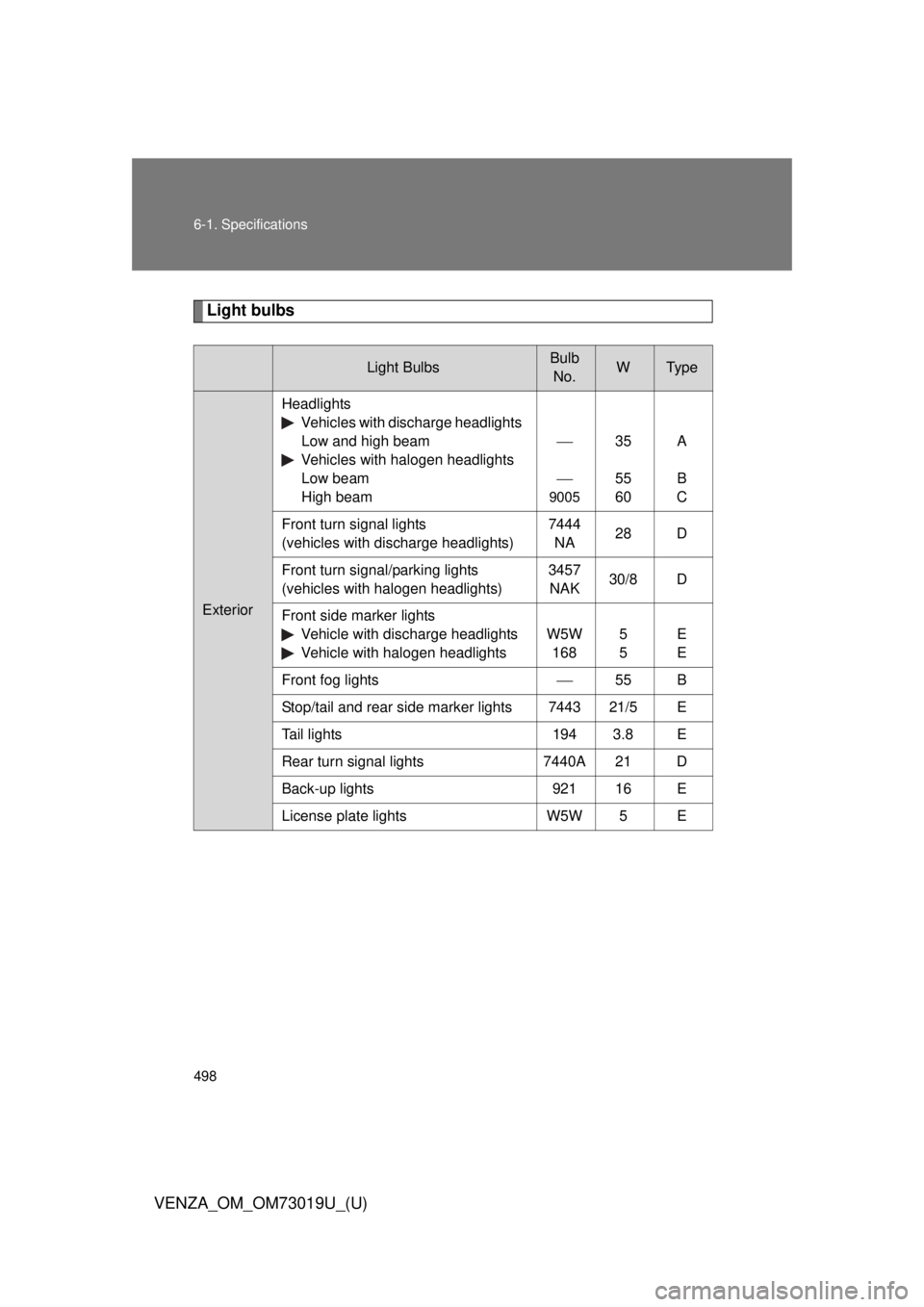

Light bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights Vehicles with discharge headlights Low and high beam
Vehicles with halogen headlights Low beam
High beam


9005
35
55
60A
B
C
Front turn signal lights
(vehicles with discharge headlights)7444 NA28D
Front turn signal/parking lights
(vehicles with halogen headlights)3457 NAK30/8D
Front side marker lights Vehicle with discharge headlights
Vehicle with halogen headlights
W5W1685
5E
E
Front fog lights55B
Stop/tail and rear side marker lights744321/5E
Tail lights1943.8E
Rear turn signal lights7440A21D
Back-up lights92116E
License plate lightsW5W5E

499
6-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73019U_(U)

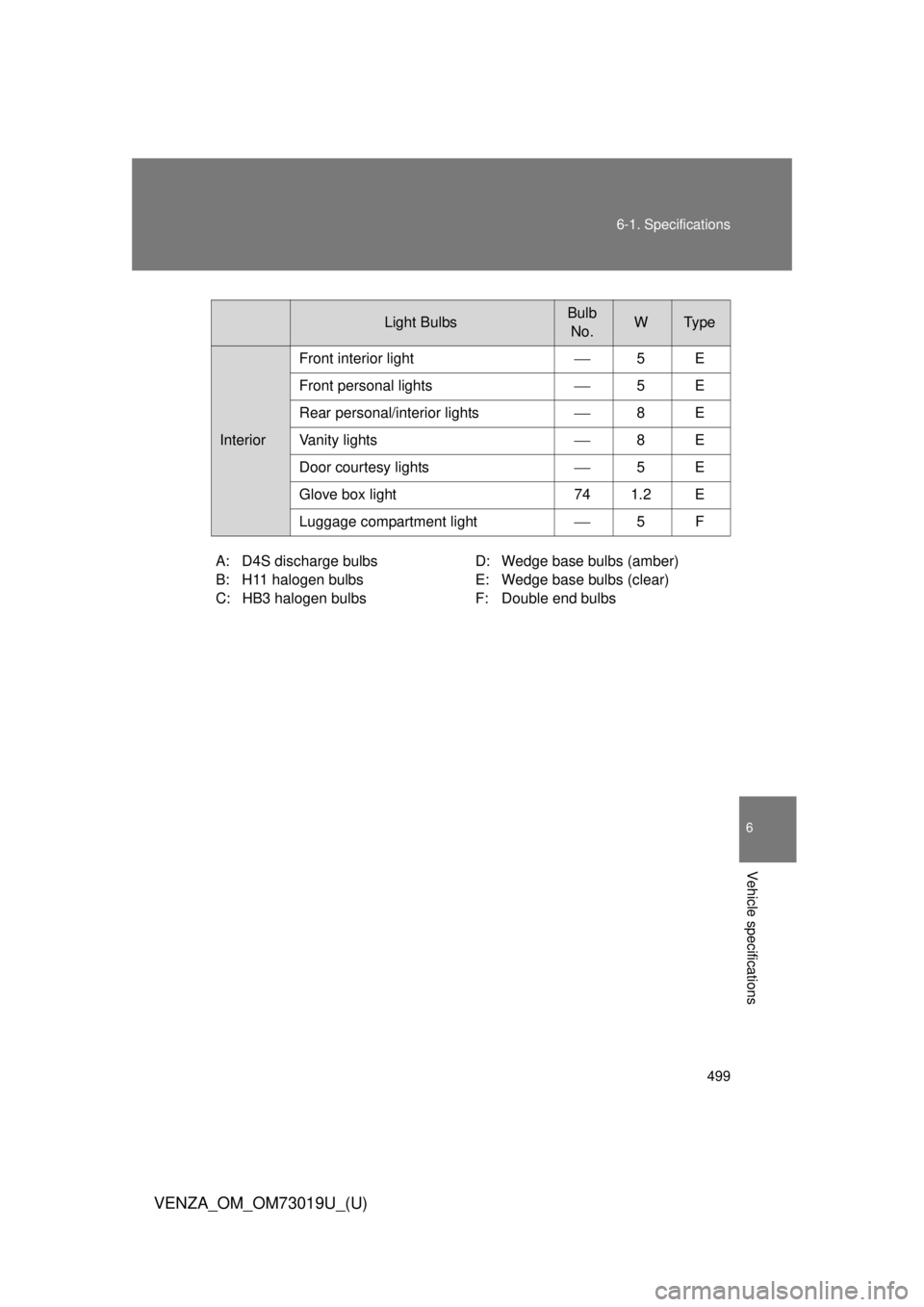

Light BulbsBulb
No.WTy p e
Interior
Front interior light5E
Front personal lights5E
Rear personal/interior lights8E
Vanity lights8E
Door courtesy lights5E
Glove box light741.2E
Luggage compartment light5F
A: D4S discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs

500
6-1. Specifications
VENZA_OM_OM73019U_(U)

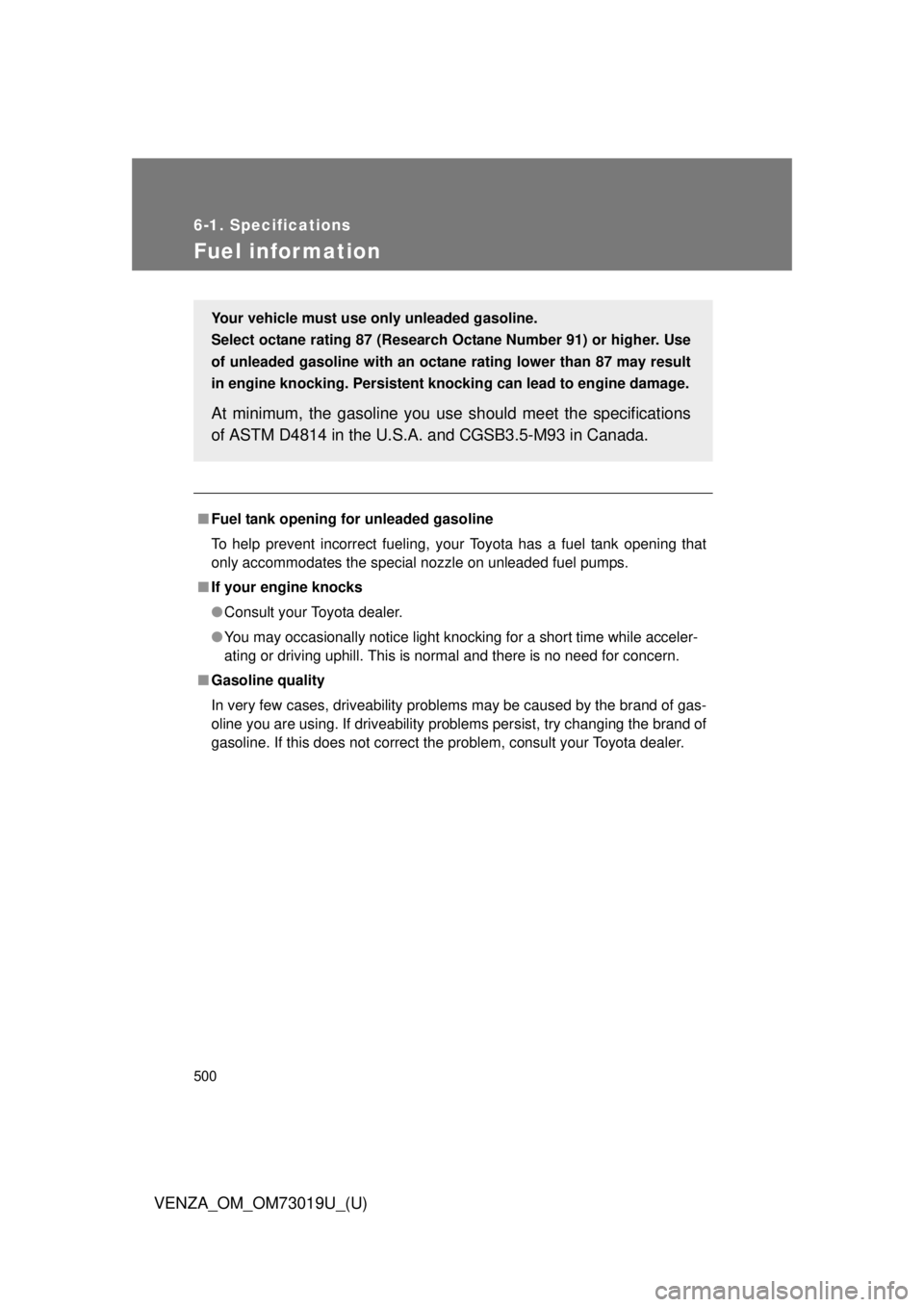

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
Your vehicle must use only unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
