TOYOTA VENZA 2015 Owners Manual (in English)

221
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73023U_(U)
■
If the Automatic High Beam indicator flashes...
It may indicate a malfunction in the system. Contact your Toyota dealer.
■ Customization
The Automatic High Beam can be turned off.
(Customizable features P. 645)
■ Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold the “AUTO” button on the inside rear
view mirror for 15 to 20 seconds, and release. The indicator light on the
inside rear view mirror will flash to indicate that the sensitivity has been low-
ered.
Vehicles with smart key system:
When the “ENGINE START STOP” switch is turned off, the sensitivity will be
returned to its normal level.
Vehicles without smart key system:
When the engine switch is turned to the “LOCK” position, the sensitivity will
be returned to its normal level.

222 2-3. Operating the lights and wipers
VENZA_OM_OM73023U_(U)
NOTICE
■Camera sensor
●Do not touch the camera sensor.
● Do not subject the inside rear view mirr or or the camera sensor to a strong
impact.
● Do not disassemble the camera sensor.
● Do not spill liquid onto the inside rear view mirror or the camera sensor.
● Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
● Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflected in the windshield for streetlights,
the headlights of other vehicles, etc.
● Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
● Do not overload the vehicle.
● Do not modify the vehicle.
● Do not replace windshield with a non-genuine windshield.
Contact your Toyota dealer.
Observe the following to ensure that the
Automatic High Beam functions correctly.

223
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73023U_(U)
Fog light switch
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Ty p e A
Off
On

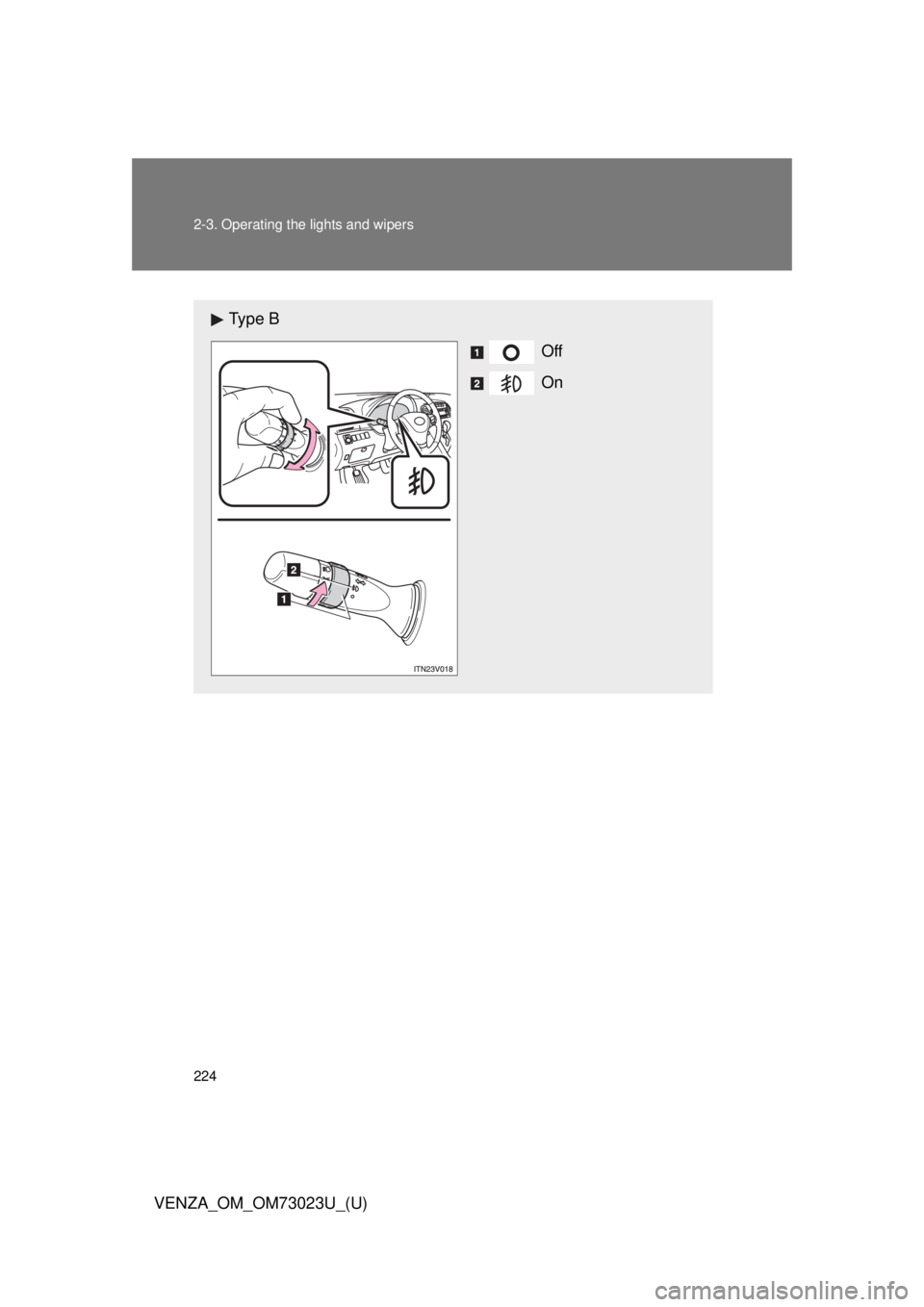

224 2-3. Operating the lights and wipers
VENZA_OM_OM73023U_(U)
Ty p e BOff
On

225
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73023U_(U)

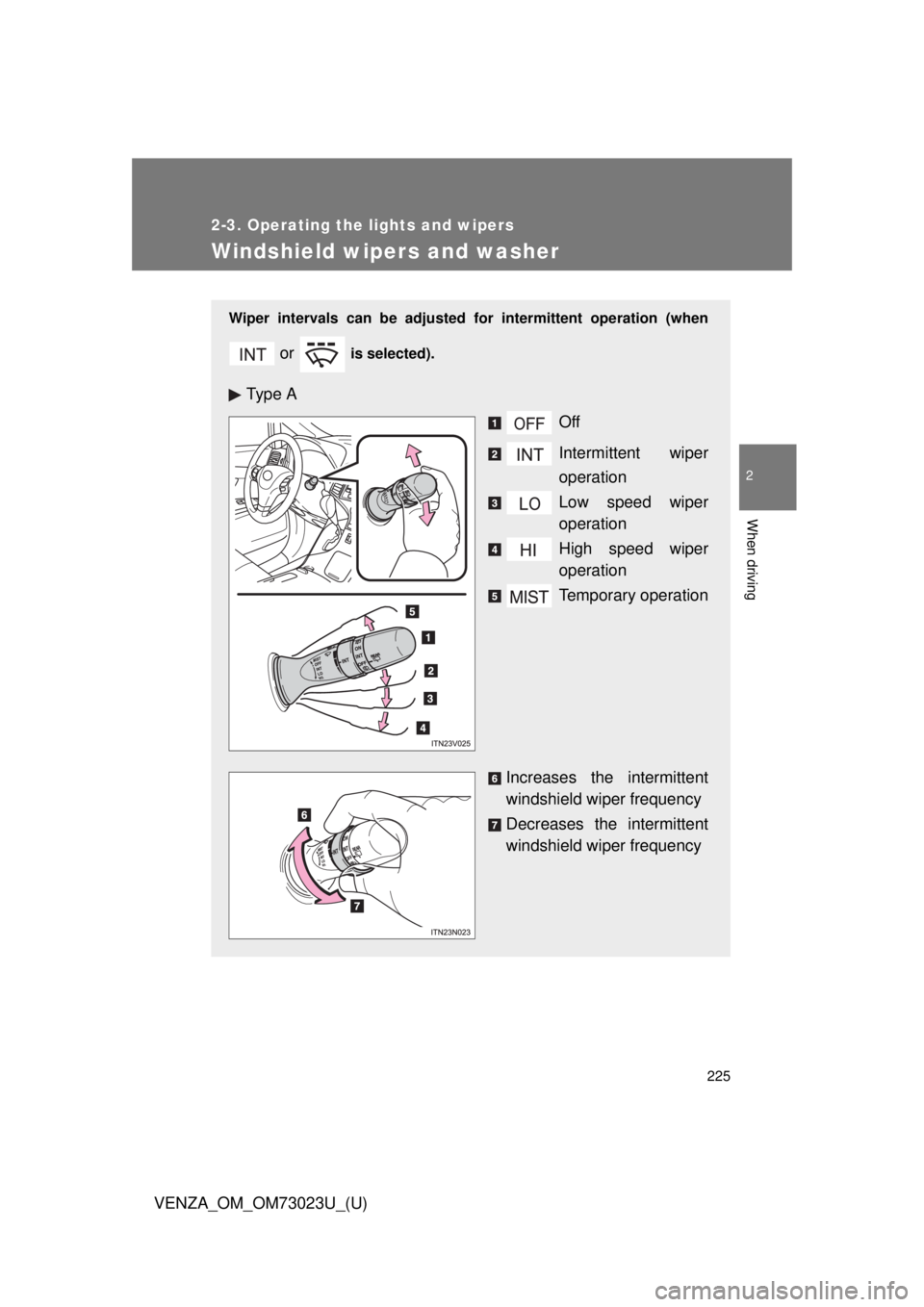

Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when
or is selected).
Ty p e A
Off
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

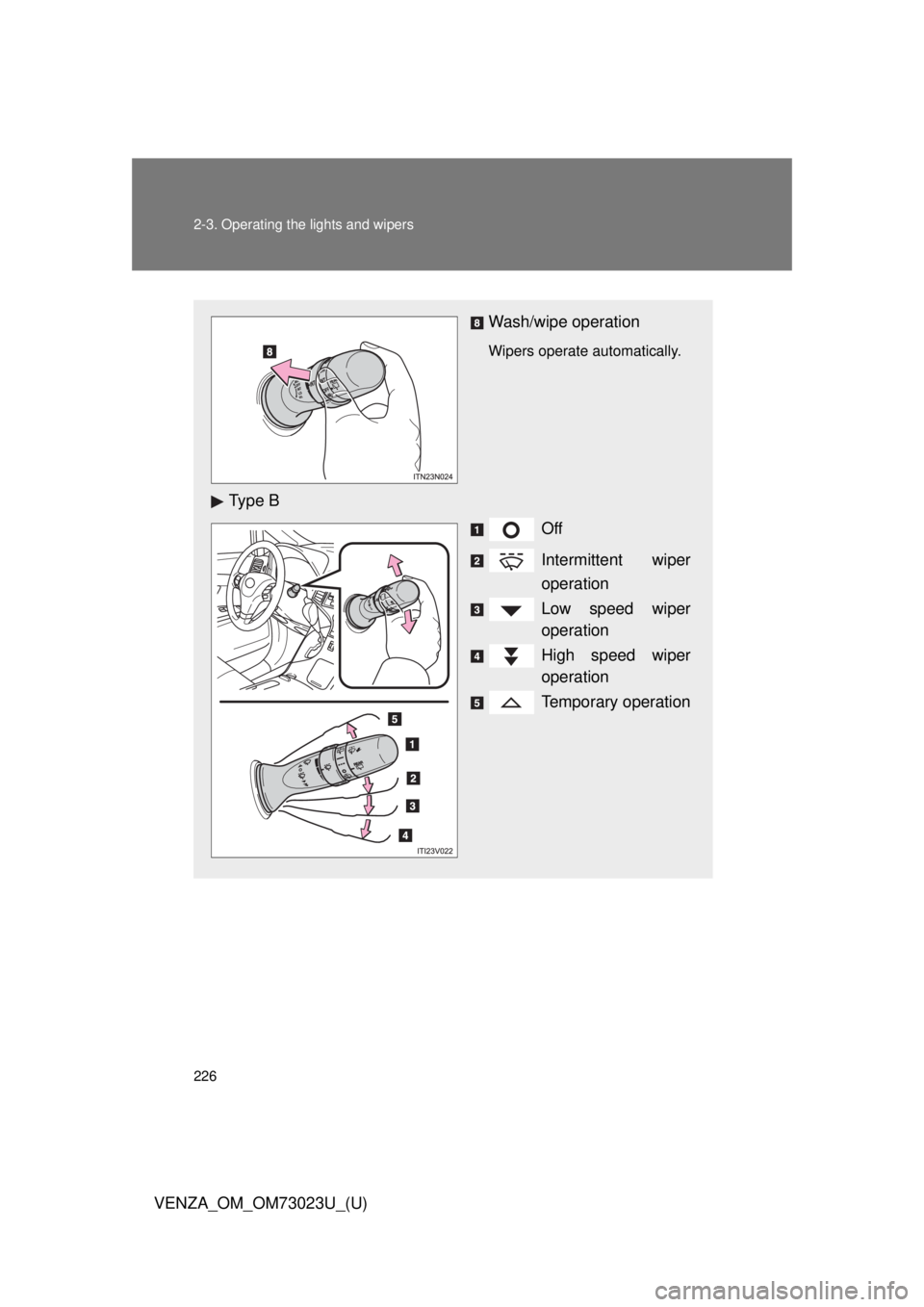

226 2-3. Operating the lights and wipers
VENZA_OM_OM73023U_(U)
Wash/wipe operation
Wipers operate automatically.
Ty p e BOff
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

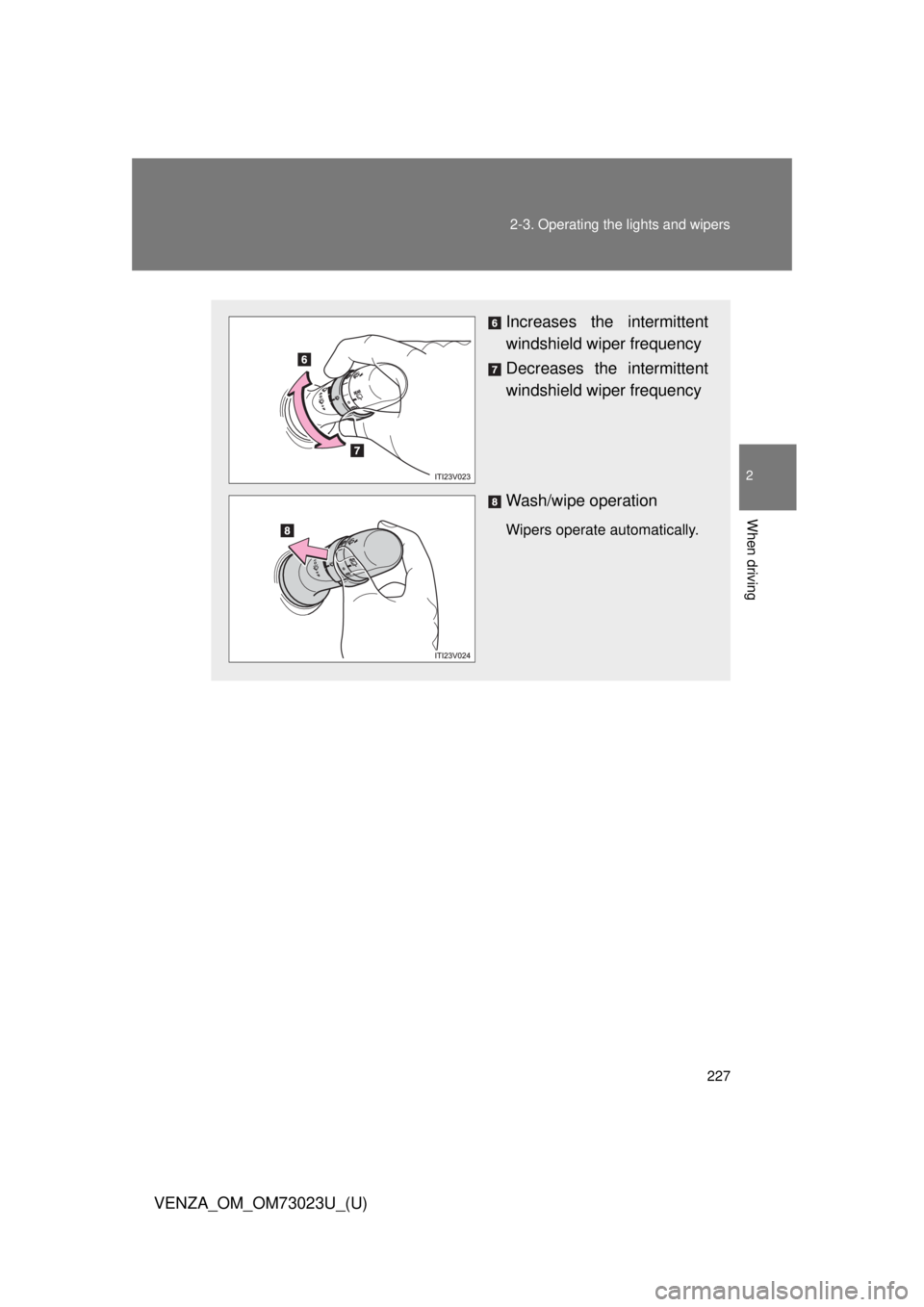

227
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73023U_(U)
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Wash/wipe operation
Wipers operate automatically.

228 2-3. Operating the lights and wipers
VENZA_OM_OM73023U_(U)
■The windshield wiper and washer can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
CAUTION
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

229
2-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73023U_(U)

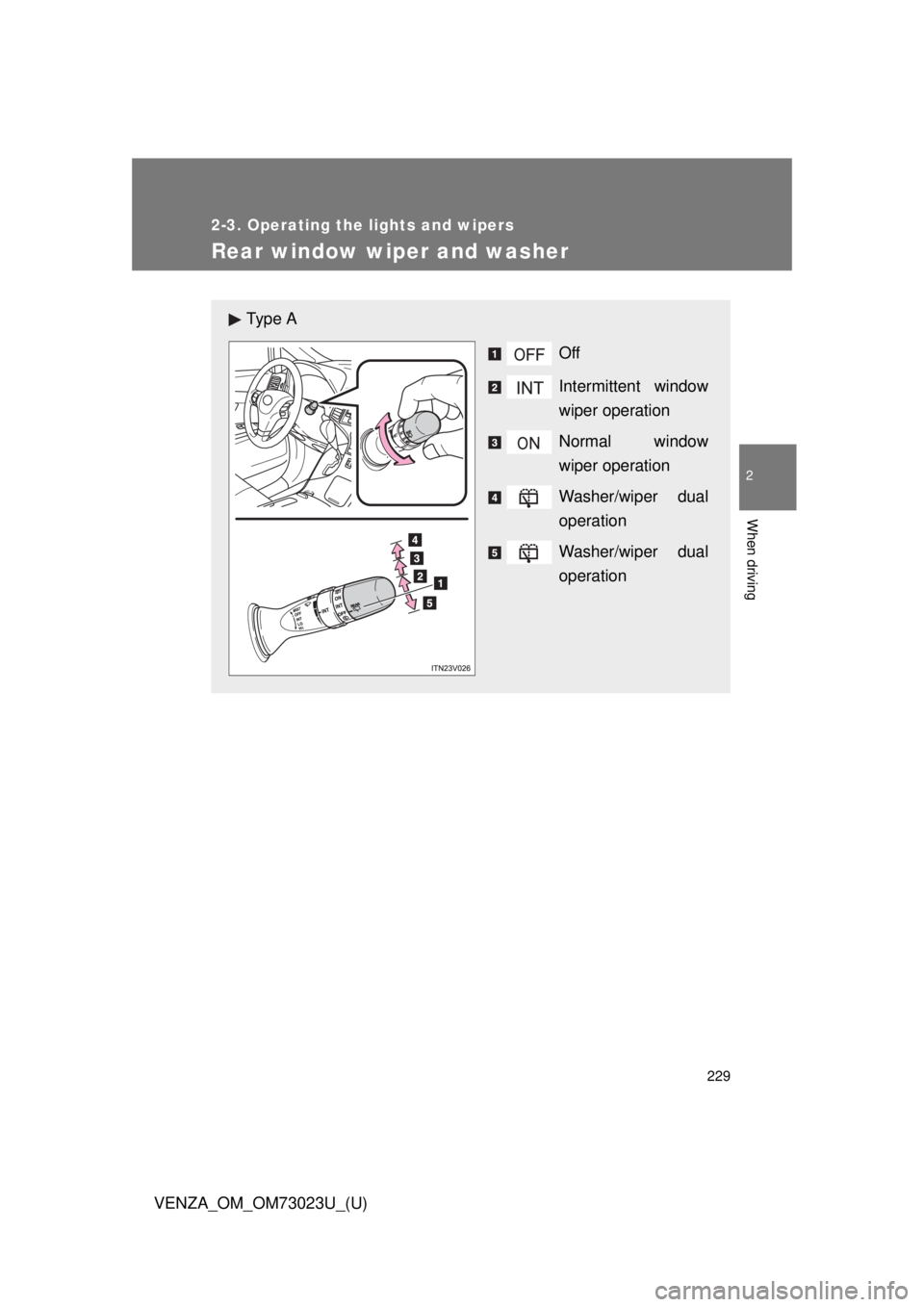

Rear window wiper and washer
Ty p e AOff
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation

230 2-3. Operating the lights and wipers
VENZA_OM_OM73023U_(U)
■The rear window wiper and w asher can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Ty p e B
Off
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation
