TOYOTA VENZA 2015 Owners Manual (in English)

251
2-4. Using other
driving systems
2
When driving
VENZA_OM_OM73023U_(U)
SymptomLikely causeSolution
The image is dif-
ficult to see • The vehicle is in a dark area
• The temperature around the
lens is either high or low
• The outside temperature is low
• There are water droplets on the camera
• It is raining or humid
• Foreign matter (mud etc.) is adhering to the camera
• There are scratches on the camera
• Sunlight or headlights are shining directly into the cam-
era
• The vehicle is under fluores- cent lights, sodium lights, mer-
cury lights etc. If this happens due to
these causes, it does
not indicate a mal-
function. Back up
while visually check-
ing the vehicle’s sur-
roundings. (Use the
monitor again once
conditions have been
improved.)
The image is
blurry Dirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the cam-
era. Flush the camera with
a large quantity of
water. After that, rinse
the camera lens with
water and wipe it
clean with a soft and
wet cloth.
The image is out
of alignment The camera or surrounding
area has received a strong
impact. Have the vehicle
inspected by your
Toyota dealer.

252 2-4. Using other driving systems
VENZA_OM_OM73023U_(U)
SymptomLikely causeSolution
The guide lines
are very far out
of alignment The camera position is out of
alignment.
Have the vehicle
inspected by your
Toyota dealer.
• The vehicle is tilted (there is a heavy load on the vehicle, tire
pressure is low due to a tire
puncture, etc.)
• The vehicle is used on an incline. If this happens due to
these causes, it does
not indicate a mal-
function.
Back up while visually
checking the vehicle’s
surroundings.

253
2-4. Using other
driving systems
2
When driving
VENZA_OM_OM73023U_(U)
CAUTION
■When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist
the driver when backing up. When backing up, be sure to check visually
behind and all around the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
●Never depend on the rear view monitor system entirely when backing up.
The image and the position of the guide lines displayed on the screen may
differ from the actual state.
Use caution, just as you would when backing up any vehicle.
● Be sure to back up slowly, depressing the brake pedal to control vehicle
speed.
● When and how much to turn the steering wheel will vary according to traf-
fic conditions, road surface conditions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of this before using the rear view
monitor system.
● When parking, be sure to check that the parking space will accommodate
your vehicle before maneuvering into it.
● Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or the compact spare tire
• When the back door is not closed completely
• On roads that are not flat or straight, such as curves or slopes.

254 2-4. Using other driving systems
VENZA_OM_OM73023U_(U)
CAUTION
●In low temperatures, the screen may darken or the image may become
faint. The image could distort when the vehicle is moving, or you may
become unable to see the image on the screen. Be sure to check direct
visually and with the mirrors all around the vehicle before proceeding.
● If the tire sizes are changed, the position of the guide lines displayed on
the screen may change.
● The camera uses a special lens. The distances between objects and
pedestrians that appear in the image displayed on the screen will differ
from the actual distances. ( P. 247)

255
2-4. Using other
driving systems
2
When driving
VENZA_OM_OM73023U_(U)
NOTICE
■How to use the camera
●The rear view monitor system may not operate properly in the following
cases.
• If the back of the vehicle is hit, the position and mounting angle of the
camera may change.
• As the camera has a water proof construction, do not detach, disas- semble or modify it. This may cause incorrect operation.
• When cleaning the camera lens, flush the camera with a large quantity of water, rinse the camera lens with water and wipe it with a soft and
wet cloth. Failure to do so may cause the camera lens to be scratched
and unable to transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to the camera. If this happens, wipe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on the vehicle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in the camera malfunc-
tioning.
● Do not expose the camera to strong impact as this could cause a malfunc-
tion. If this happens, have the vehicle inspected by your Toyota dealer as
soon as possible.

256
2-4. Using other driving systems
VENZA_OM_OM73023U_(U)

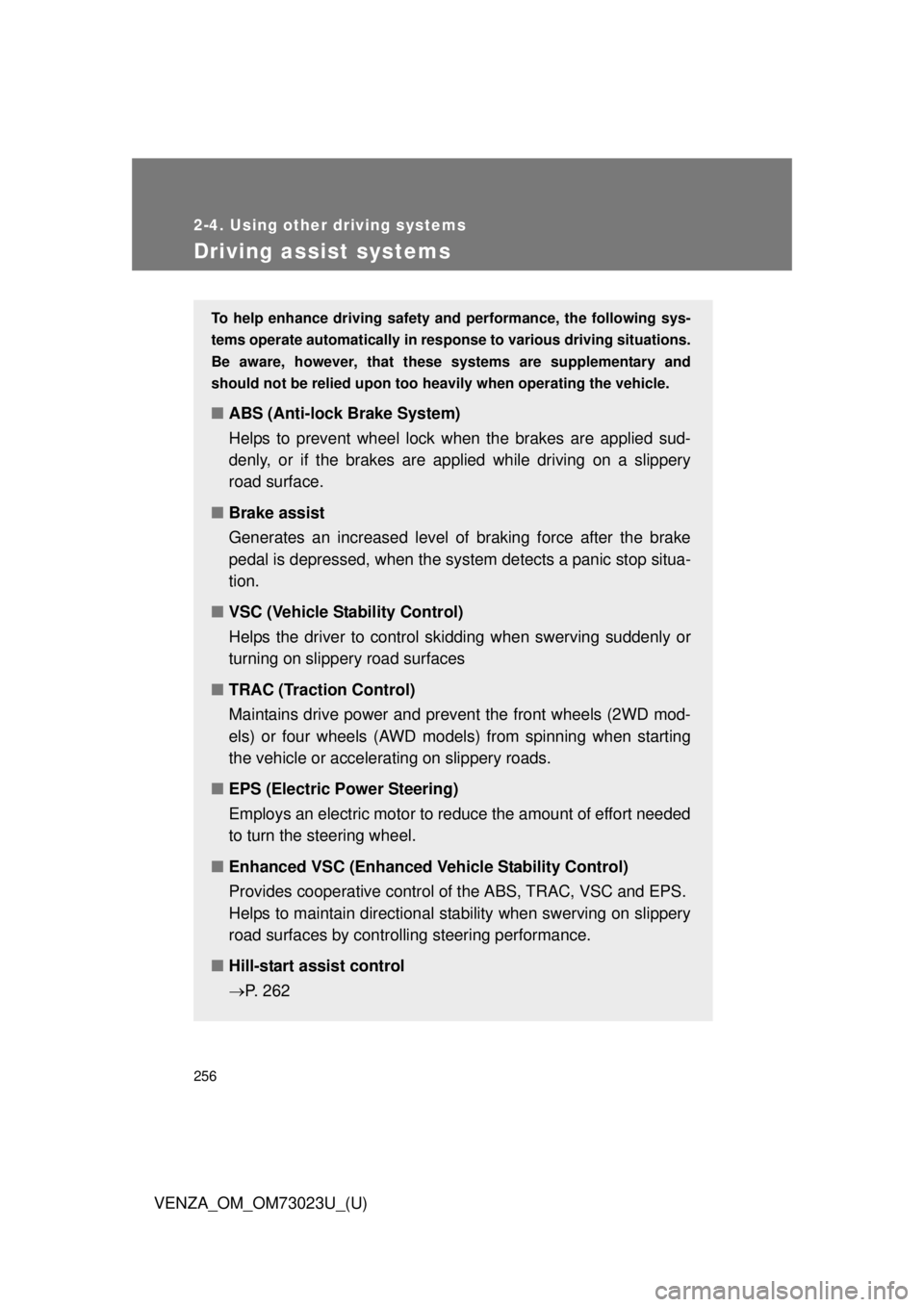

Driving assist systems
To help enhance driving safety and performance, the following sys-
tems operate automatically in res ponse to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavi ly when operating the vehicle.
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock w hen the brakes are applied sud-
denly, or if the brakes are applied while driving on a slippery
road surface.
■ Brake assist
Generates an increased level of braking force after the brake
pedal is depressed, when the system detects a panic stop situa-
tion.
■ VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or
turning on slippery road surfaces
■ TRAC (Traction Control)
Maintains drive power and prevent the front wheels (2WD mod-
els) or four wheels (AWD models) from spinning when starting
the vehicle or accelerating on slippery roads.
■ EPS (Electric Power Steering)
Employs an electric motor to re duce the amount of effort needed
to turn the steering wheel.
■ Enhanced VSC (Enhanced Vehicle Stability Control)
Provides cooperative control of the ABS, TRAC, VSC and EPS.
Helps to maintain directional stability when swerving on slippery
road surfaces by cont rolling steering performance.
■ Hill-start assist control
P. 262

257
2-4. Using other
driving systems
2
When driving
VENZA_OM_OM73023U_(U)
When the TRAC/VSC system are operating
The slip indicator light will flash
while the TRAC/VSC systems
are operating.
■Active Torque Control 4WD (if equipped)
Automatically switches from fr ont-wheel drive to AWD (All-
Wheel Drive) according to driving conditions, helping to ensure
reliable handling and stability. Ex amples of conditions where the
system will switch to AWD are when cornering, going uphill,
starting off or accelerating, and when the road surface is slippery
due to snow or rain etc.

258 2-4. Using other driving systems
VENZA_OM_OM73023U_(U)
Disabling the TRAC systemIf the vehicle gets stuck in mud, dirt or snow, the TRAC system may
reduce power from the engine to the wheels. Pressing to turn
the system off may make it easier for you to rock the vehicle in order
to free it. To turn the TRAC system off,
quickly press and release
The TRAC OFF indicator light will
come on.
Push again to turn the sys-
tem back on.
■Turning off both TRAC and VSC system
To turn the TRAC and VSC systems off, press and hold for
more than 3 seconds while the vehicle is stopped.
●The TRAC OFF indicator light and VSC OFF indicator light will
come on.
● Press again to turn the systems back on.

259
2-4. Using other
driving systems
2
When driving
VENZA_OM_OM73023U_(U)
■When the “TRAC OFF” indicator light comes on even if the VSC OFF
switch has not been pressed
TRAC and hill-start assist control cannot be operated. Contact your Toyota
dealer.
■ Automatic reactivation of TRAC and VSC
After turning the TRAC and VSC systems off, the systems will be automati-
cally re-enabled in the following situations:
●When the “ENGINE START STOP” switch is turned off (vehicles with
smart key system)
● When the engine switch is turned to the “LOCK” position (vehicles with-
out smart key system)
● If only the TRAC system is turned off, the TRAC will turn on when vehicle
speed increases
If both the TRAC and VSC systems are turned off, automatic re-enabling
will not occur when vehicle speed increases.
■ Sounds and vibrations caused by the ABS, brake assist, TRAC and
VSC
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indi-
cate that a malfunction has occurred in any of these systems.
● Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.

260 2-4. Using other driving systems
VENZA_OM_OM73023U_(U)
■EPS operation sound
When the steering wheel is operated, a motor sound (whirring sound) may
be heard.
This does not indicate a malfunction.
■ Reduced effectiveness of EPS system
The effectiveness of EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel may feel heavy as a result. Should this occur,
refrain from excessive steering input or stop the vehicle and turn the engine
off. The EPS system should return to normal within 10 minutes.
CAUTION
■The ABS does not operate effectively when
●The limits of tire gripping performance have been exceeded.
● The vehicle hydroplanes while driving at high speed on the wet or slick
road.
■ Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you in the following situ-
ations.
● When driving on dirt, gravel or snow-covered roads
● When driving with tire chains
● When driving over bumps in the road
● When driving over roads with pothol es or roads with uneven roads
■ TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRAC is operating.
Drive the vehicle carefully in conditions where stability and power may be
lost.
