Trailer towing
Your vehicle is designed primarily as a passenger-and-load-carrying
vehicle. Towing a trailer can have an adverse impact on handling,
performance, braking, durability, and fuel consumption. For your
safety and the safety of others, you must not overload your vehicle
or trailer. You must also ensure that you are using appropriate tow-
ing equipment, that the towing eq uipment has been installed cor-
rectly and used properly, and that you employ the requisite driving
habits.
Vehicle-trailer stability and br aking performance are affected by
trailer stability, brake performa nce and setting, trailer brakes, the
hitch and hitch systems (if equipped).
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with your trailer’s ch aracteristics and operating condi-
tions.
Toyota warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Contact your Toyota dealer for fu rther information about additional
requirements such as a towing kit, etc.

282 2-5. Driving information
VENZA_OM_OM73023U_(U)

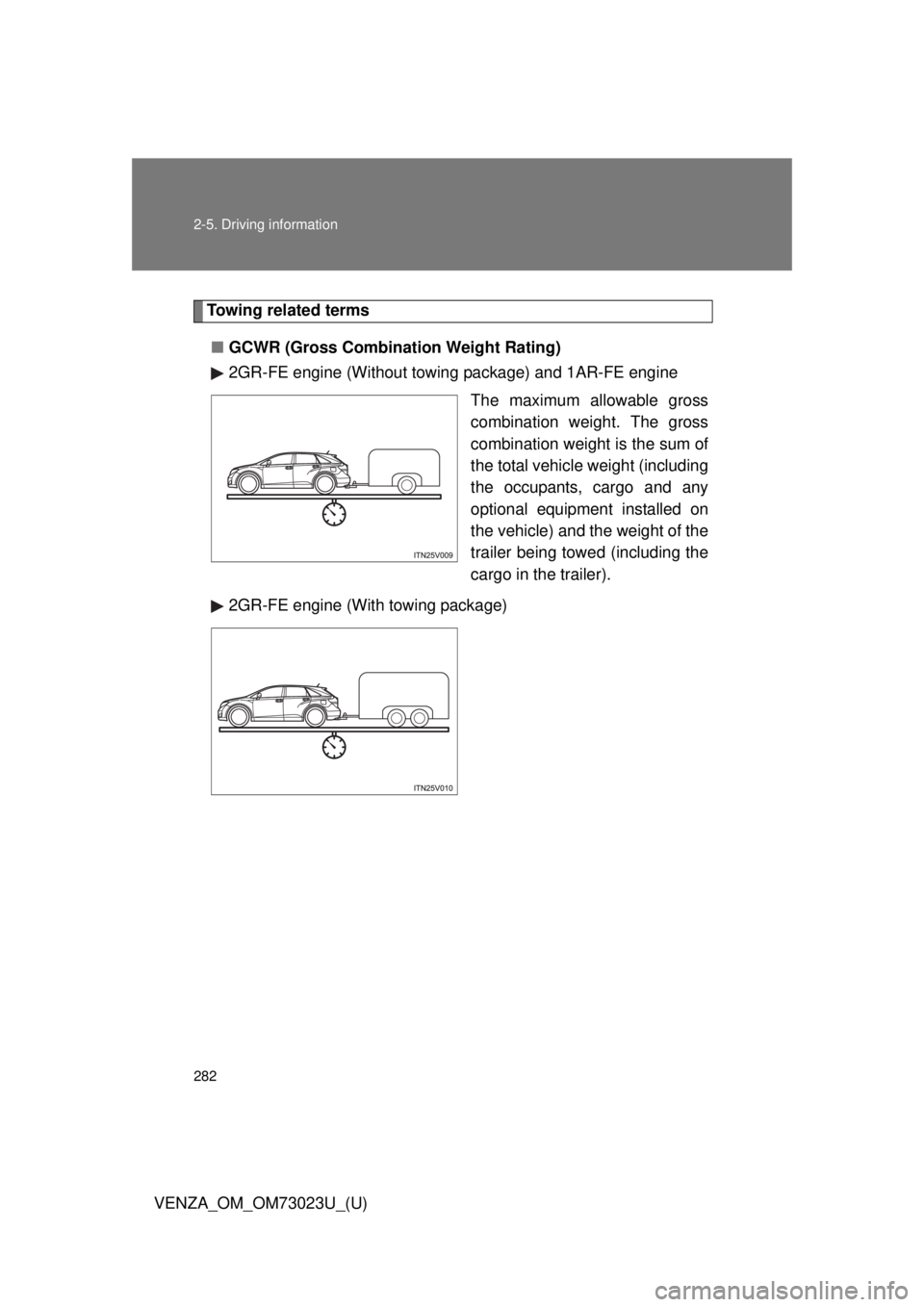

Towing related terms■ GCWR (Gross Combination Weight Rating)
2GR-FE engine (Without towing package) and 1AR-FE engine
The maximum allowable gross
combination weight. The gross
combination weight is the sum of
the total vehicle weight (including
the occupants, cargo and any
optional equipment installed on
the vehicle) and the weight of the
trailer being towed (including the
cargo in the trailer).
2GR-FE engine (With towing package)

283
2-5. Driving information
2
When driving
VENZA_OM_OM73023U_(U)
■

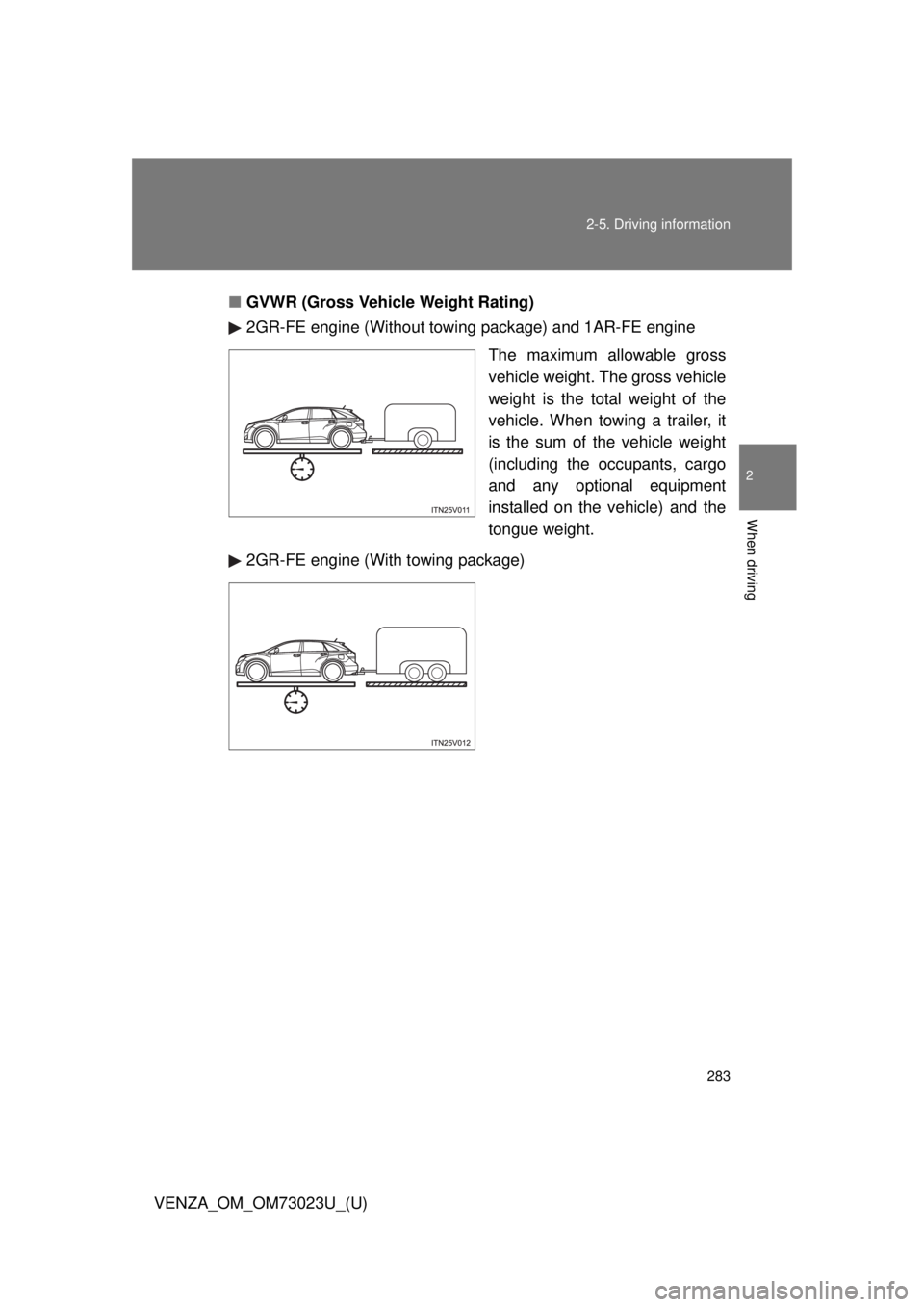

GVWR (Gross Vehicle Weight Rating)
2GR-FE engine (Without towing package) and 1AR-FE engine
The maximum allowable gross
vehicle weight. The gross vehicle
weight is the total weight of the
vehicle. When towing a trailer, it
is the sum of the vehicle weight
(including the occupants, cargo
and any optional equipment
installed on the vehicle) and the
tongue weight.
2GR-FE engine (With towing package)

284 2-5. Driving information
VENZA_OM_OM73023U_(U)■

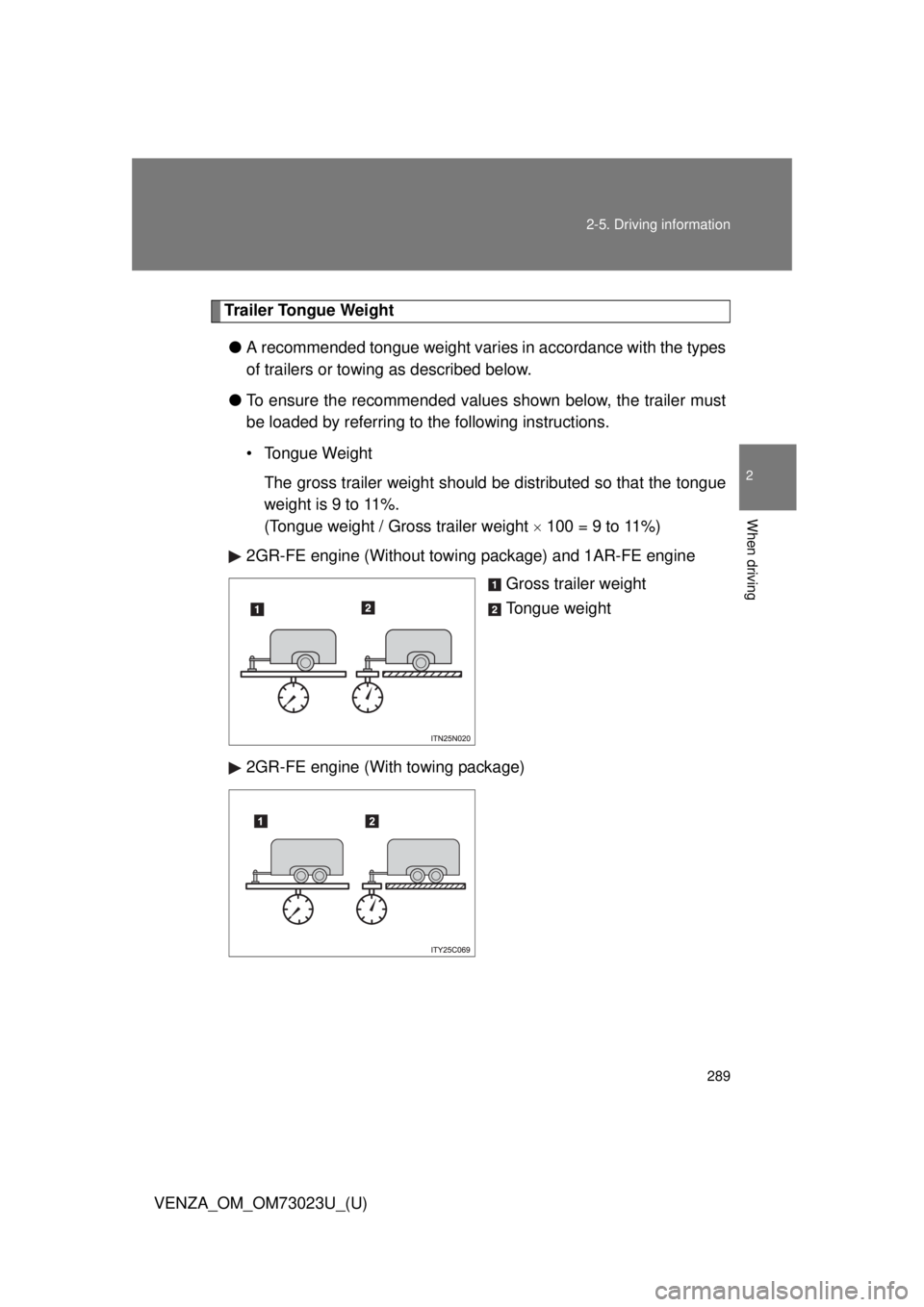

GAWR (Gross Axle Weight Rating)
2GR-FE engine (Without towing package) and 1AR-FE engine
The maximum allowable gross
axle weight. The gross axle
weight is the load placed on
each axle (front and rear).
2GR-FE engine (With towing package)
Front GAWR
Rear GAWR
Front GAWR
Rear GAWR

285
2-5. Driving information
2
When driving
VENZA_OM_OM73023U_(U)
■

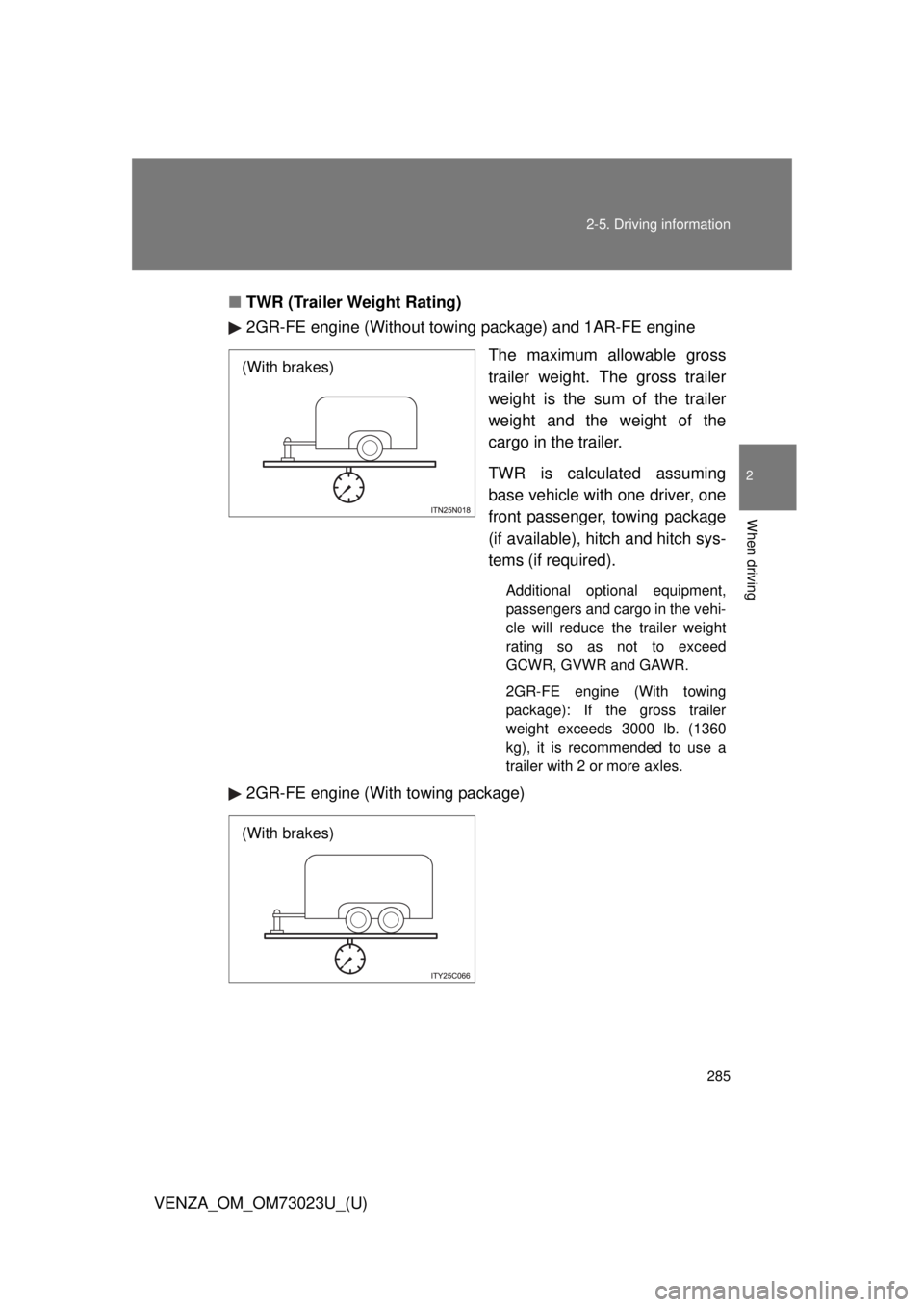

TWR (Trailer Weight Rating)
2GR-FE engine (Without towing package) and 1AR-FE engine
The maximum allowable gross
trailer weight. The gross trailer
weight is the sum of the trailer
weight and the weight of the
cargo in the trailer.
TWR is calculated assuming
base vehicle with one driver, one
front passenger, towing package
(if available), hitch and hitch sys-
tems (if required).
Additional optional equipment,
passengers and cargo in the vehi-
cle will reduce the trailer weight
rating so as not to exceed
GCWR, GVWR and GAWR.
2GR-FE engine (With towing
package): If the gross trailer
weight exceeds 3000 lb. (1360
kg), it is recommended to use a
trailer with 2 or more axles.
2GR-FE engine (With towing package)
(With brakes)
(With brakes)

286 2-5. Driving information
VENZA_OM_OM73023U_(U)■
Unbraked TWR (Unbraked Trailer Weight Rating)
The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.

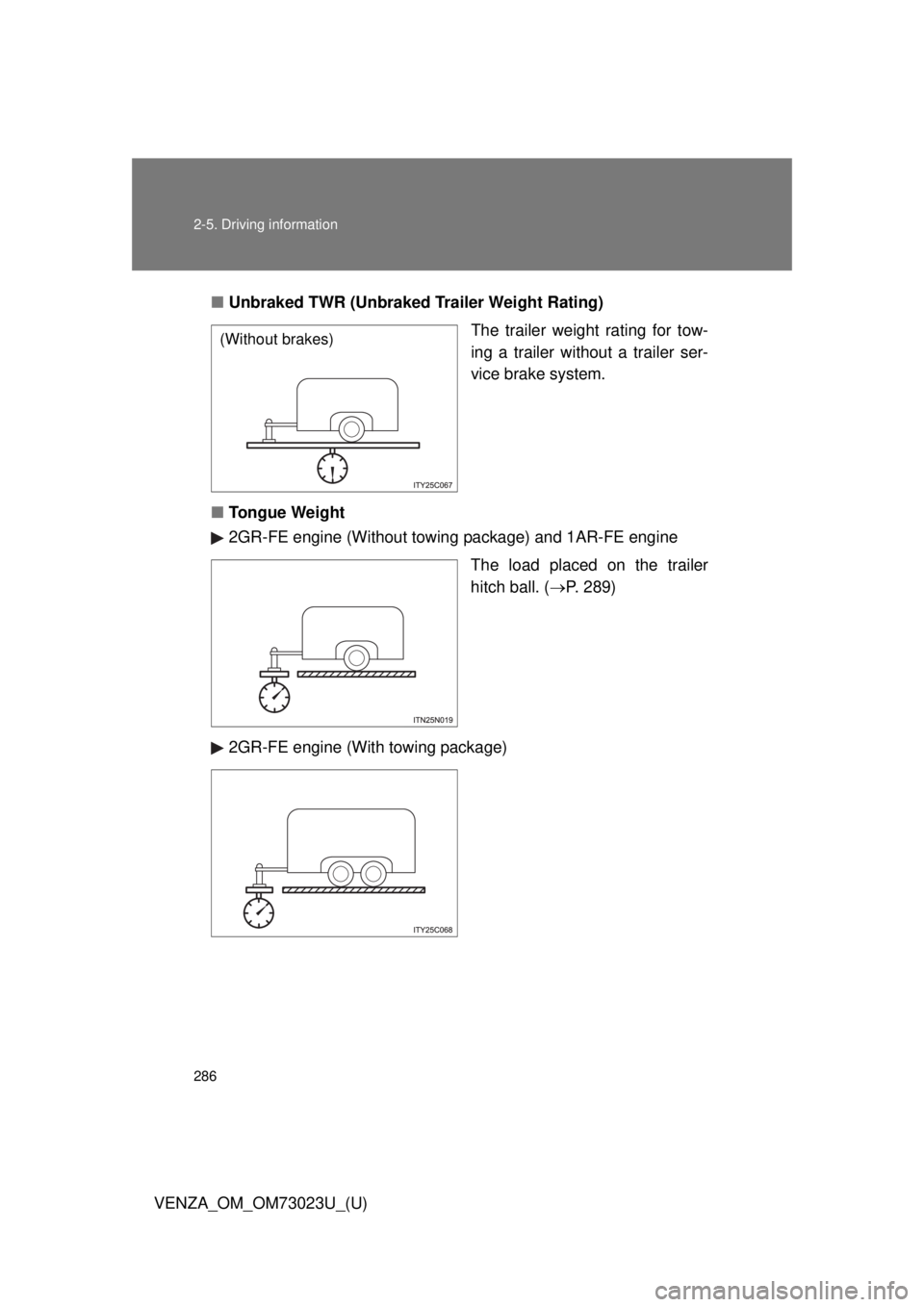

■ Tongue Weight
2GR-FE engine (Without towing package) and 1AR-FE engine
The load placed on the trailer
hitch ball. ( P. 289)
2GR-FE engine (With towing package)
(Without brakes)

287
2-5. Driving information
2
When driving
VENZA_OM_OM73023U_(U)
Weight limits
● The gross trailer weight must never exceed TWR described in the
table. ( P. 288)
● The gross combination weight must never exceed the GCWR
described in the table. ( P. 288)

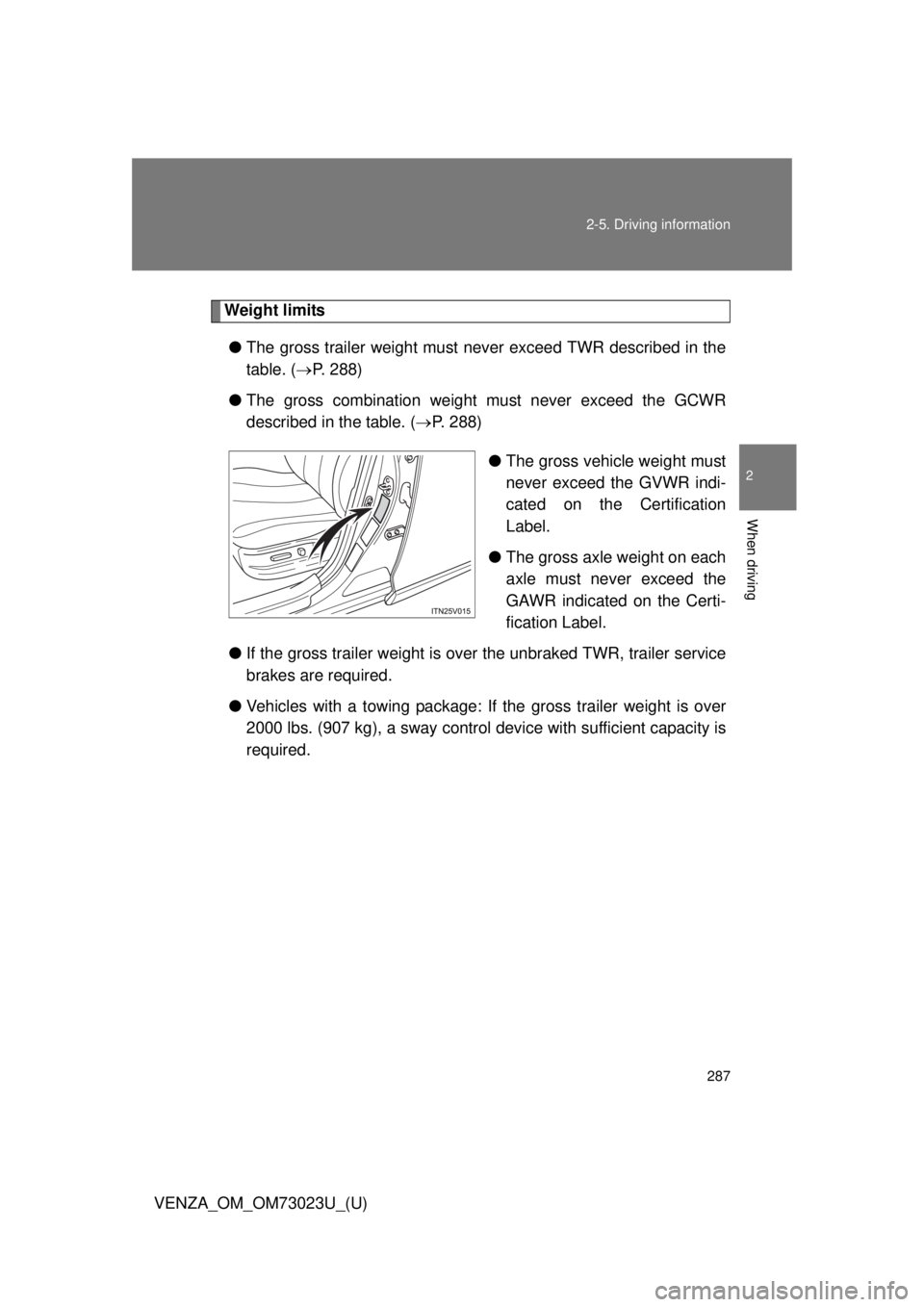

●The gross vehicle weight must
never exceed the GVWR indi-
cated on the Certification
Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated on the Certi-
fication Label.
● If the gross trailer weight is over the unbraked TWR, trailer service
brakes are required.
● Vehicles with a towing package: If the gross trailer weight is over
2000 lbs. (907 kg), a sway control device with sufficient capacity is
required.

288 2-5. Driving information
VENZA_OM_OM73023U_(U)
GCWR, TWR and Unbraked TWR Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and tongue weight are all within the
limits.
■ GCWR
*and TWR*
Vehicles without towing package
Vehicles with towing package
■ Unbraked TWR
*
1000 lb. (450kg)
*: These models meet the tow-vehicle trailering requirement of
SAE International per SAE J2807.
EngineDriving
systemGCWRTWR
1AR-FE engine 2WD 5960 lb. (2700 kg)
1000 lb. (450 kg)
AWD 6160 lb. (2790 kg)
2GR-FE engine 2WD 6095 lb. (2760 kg)
AWD 6270 lb. (2840 kg)
EngineDriving
systemGCWRTWR
1AR-FE engine 2WD 7460 lb. (3385 kg)
2500 lb. (1135 kg)
AWD 7660 lb. (3475 kg)
2GR-FE engine 2WD 8595 lb. (3895 kg)
3500 lb. (1585 kg)
AWD 8770 lb. (3975 kg)

289
2-5. Driving information
2
When driving
VENZA_OM_OM73023U_(U)
Trailer Tongue Weight
● A recommended tongue weight varies in accordance with the types
of trailers or towing as described below.
● To ensure the recommended values shown below, the trailer must
be loaded by referring to the following instructions.
• Tongue Weight
The gross trailer weight should be distributed so that the tongue
weight is 9 to 11%.
(Tongue weight / Gross trailer weight  100 = 9 to 11%)
2GR-FE engine (Without towing package) and 1AR-FE engine
Gross trailer weight
Tongue weight
2GR-FE engine (With towing package)

290 2-5. Driving information
VENZA_OM_OM73023U_(U)If using a weight distributing hitch when towing, return the front
axle to the same weight as before the trailer connection.
If front axle weight cannot be
measured directly, measure the front
fender height above the front axle before connection. Adjust weight
distributing hitch torque until fr ont fender is returned to the same
height as before connection.
The gross trailer weight, gross axle weight and tongue weight can
be measured with platform scales found at a highway weighing sta-
tion, building supply company, trucking company, junk yard, etc.
Hitch
Trailer hitch assemblies have different weight capacities. Toyota rec-
ommends the use of Toyota hitch/brac ket for your vehicle. For details,
contact your Toyota dealer.
● If you wish to install a trailer hitch, contact your Toyota dealer.
● Use only a hitch that c onforms to the gross trailer weight require-
ment of your vehicle.
● Follow the directions supplied by the hitch manufacturer.
● Lubricate the hitch ball with a light coating of grease.
● Remove the trailer hitch whenever you are not towing a trailer.
After removing the hitch, seal any mounting hole in the vehicle
body to prevent entry of any substances into the vehicle.
