TOYOTA VERSO 2015 Owners Manual

91 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Pass the outside seat belts
through the seat belt hangers.
This prevents the shoulder belt
from being damaged.
Adjust the head restraint to the
down-most position.
Folding down the third seats
From inside
Pull the seatback angle adjust-
ment strap and fold down the
seatback.
VERSO_WE.book Page 91 Thursday, June 19, 2014 11:31 AM

92 1-3. Adjustable components (seats, mirrors, steering wheel)
From outside
Open the back door and pull the
lock release strap to fold down
the third seats.
Returning the third seats
Lift up the seatbacks until they lock.
Remove the outside seat belts from the seat belt hangers.
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to “P” (Multidrive or automatic transmission) or “1” (manual transmis-
sion).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
VERSO_WE.book Page 92 Thursday, June 19, 2014 11:31 AM

93 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
Seat adjustment
Be careful not to get your hands pinched between the luggage cover and
the seat.
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary. If the seat is too reclined, the lap
belt may slide past the hips and apply restraint forces directly to the abdo-
men, or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident. Adjustments should not
be made while driving as the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
After returning the seatbacks to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Make sure the seatback is securely locked by pressing forward and rear-
ward on the top.
Check that the seat belts are not twisted or caught in the seatback.
NOTICE
Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
VERSO_WE.book Page 93 Thursday, June 19, 2014 11:31 AM

94
1-3. Adjustable components (seats, mirrors, steering wheel)

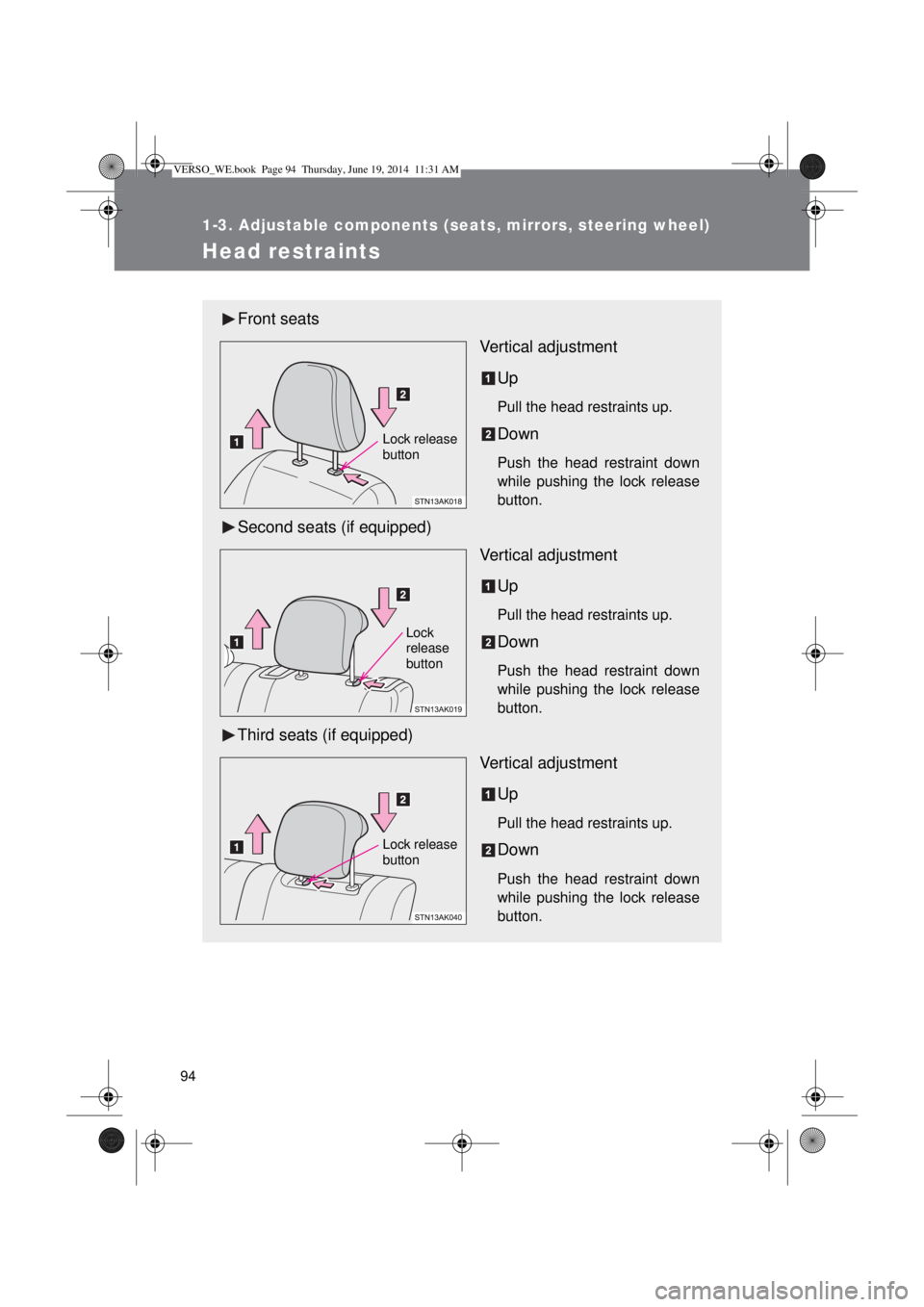

Head restraints
Front seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Second seats (if equipped)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Third seats (if equipped)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release
button
Lock
release
button
Lock release
button
VERSO_WE.book Page 94 Thursday, June 19, 2014 11:31 AM

95 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Removing the head restraints
Adjusting the height of the head restraints
Adjusting the rear seat head restraint (vehicles with rear seats)
Always raise the head restraint one level from the stowed position when
using.
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.
Pull the head restraint up while pressing
the lock release button.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
VERSO_WE.book Page 95 Thursday, June 19, 2014 11:31 AM

96
1-3. Adjustable components (seats, mirrors, steering wheel)

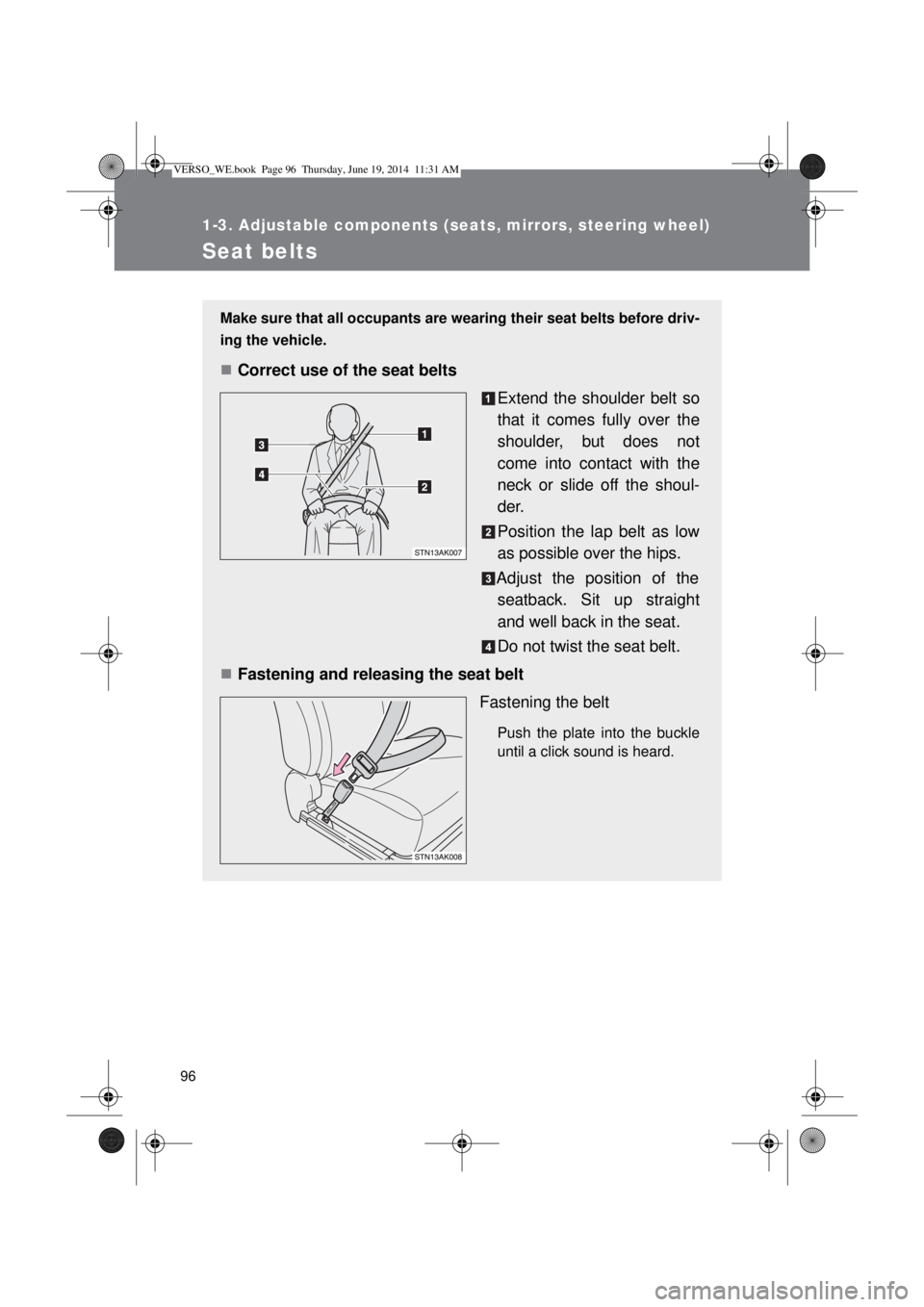

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fastening the belt
Push the plate into the buckle
until a click sound is heard.
VERSO_WE.book Page 96 Thursday, June 19, 2014 11:31 AM

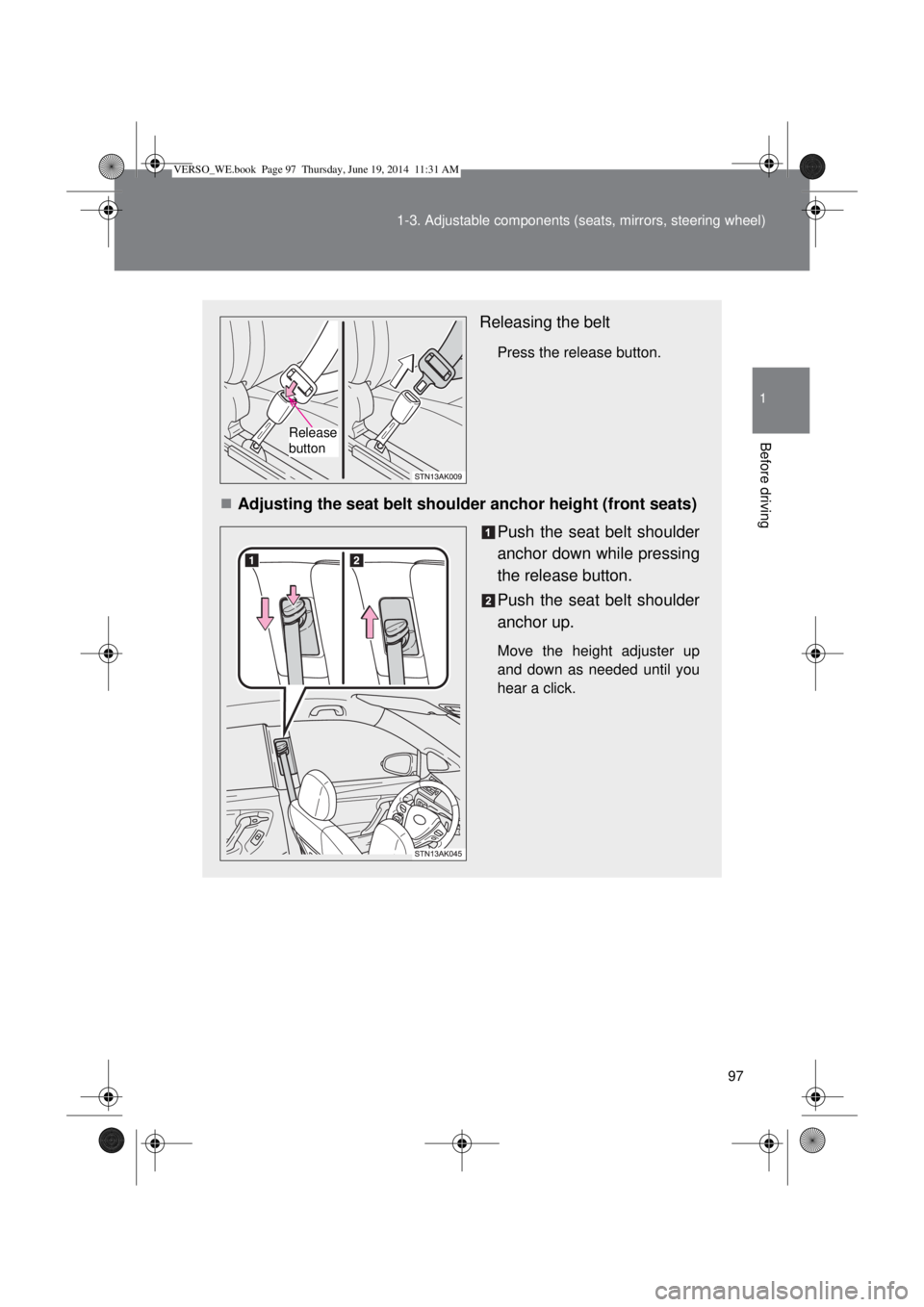

97 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Releasing the belt
Press the release button.
Adjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.
Release
button
VERSO_WE.book Page 97 Thursday, June 19, 2014 11:31 AM

98 1-3. Adjustable components (seats, mirrors, steering wheel)
Center second seat belt
The center second seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation.
Fastening the belt
Push the plate into the buckle
until a click sound is heard.
Release method
The center second seat belt can be completely released when not
required, such as when folding down the second seat.
Releasing the belt
Press the release button.
Release buttonRelease button
VERSO_WE.book Page 98 Thursday, June 19, 2014 11:31 AM

99 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Stow the seat belt tabs in the
cover set in the roof as shown.
Extracting the belt
Push the tab.
Remove the tabs from the
cover.
VERSO_WE.book Page 99 Thursday, June 19, 2014 11:31 AM

100 1-3. Adjustable components (seats, mirrors, steering wheel)
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 158)
When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 96 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, for seat belt replacement or installation.
