TOYOTA VERSO 2015 Owners Manual

101 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt before driving.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
Do not recline the seat any more than necessary to achieve a proper seat-
ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
Pregnant women
People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 96)
Obtain medical advice and wear the seat
belt in the proper way. (P. 96)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
VERSO_WE.book Page 101 Thursday, June 19, 2014 11:31 AM

102 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event or a sudden stop,
sudden swerve or accident. (P. 97)
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
VERSO_WE.book Page 102 Thursday, June 19, 2014 11:31 AM

103 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
Seat belt damage and wear
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional. Inappropriate handling of the pretensioner may prevent it
from operating properly resulting in death or serious injury.
When using the center second seat belt
Do not use the center second seat belt
with either buckle released. Fastening
only one of the buckles may result in
death or serious injury in case of sudden
braking or a collision.
VERSO_WE.book Page 103 Thursday, June 19, 2014 11:31 AM

104
1-3. Adjustable components (seats, mirrors, steering wheel)
Steering wheel
CAUTION
Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

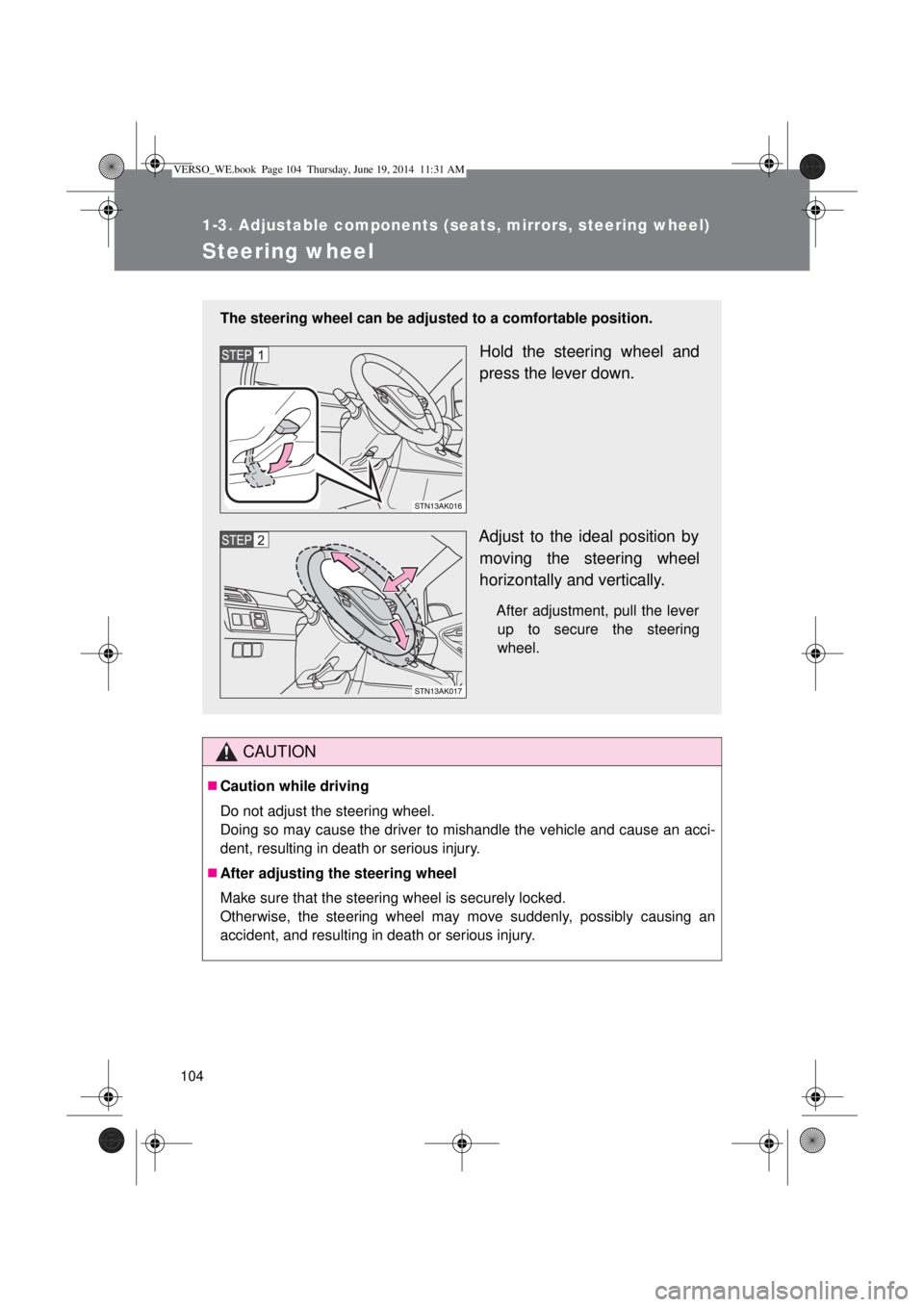

The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
VERSO_WE.book Page 104 Thursday, June 19, 2014 11:31 AM

105
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Anti-glare inside rear view mirror
Adjusting the height of rear view mirror (vehicles with auto anti-
glare inside rear view mirror)
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver’s seating
posture.
VERSO_WE.book Page 105 Thursday, June 19, 2014 11:31 AM

106 1-3. Adjustable components (seats, mirrors, steering wheel)
Anti-glare function
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be
reduced by operating the lever.
Normal position
Anti-glare position
VERSO_WE.book Page 106 Thursday, June 19, 2014 11:31 AM

107 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
Vehicles without smart entry &
start system:
The function will set to ON mode
each time the engine switch is
turned to the “ON” position.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
Vehicles with smart entry & start
system:
The function will set to ON mode
each time the “ENGINE START
STOP” switch is turned to IGNI-
TION ON mode.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
VERSO_WE.book Page 107 Thursday, June 19, 2014 11:31 AM

108 1-3. Adjustable components (seats, mirrors, steering wheel)
To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
CAUTION
Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.
VERSO_WE.book Page 108 Thursday, June 19, 2014 11:31 AM

109
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

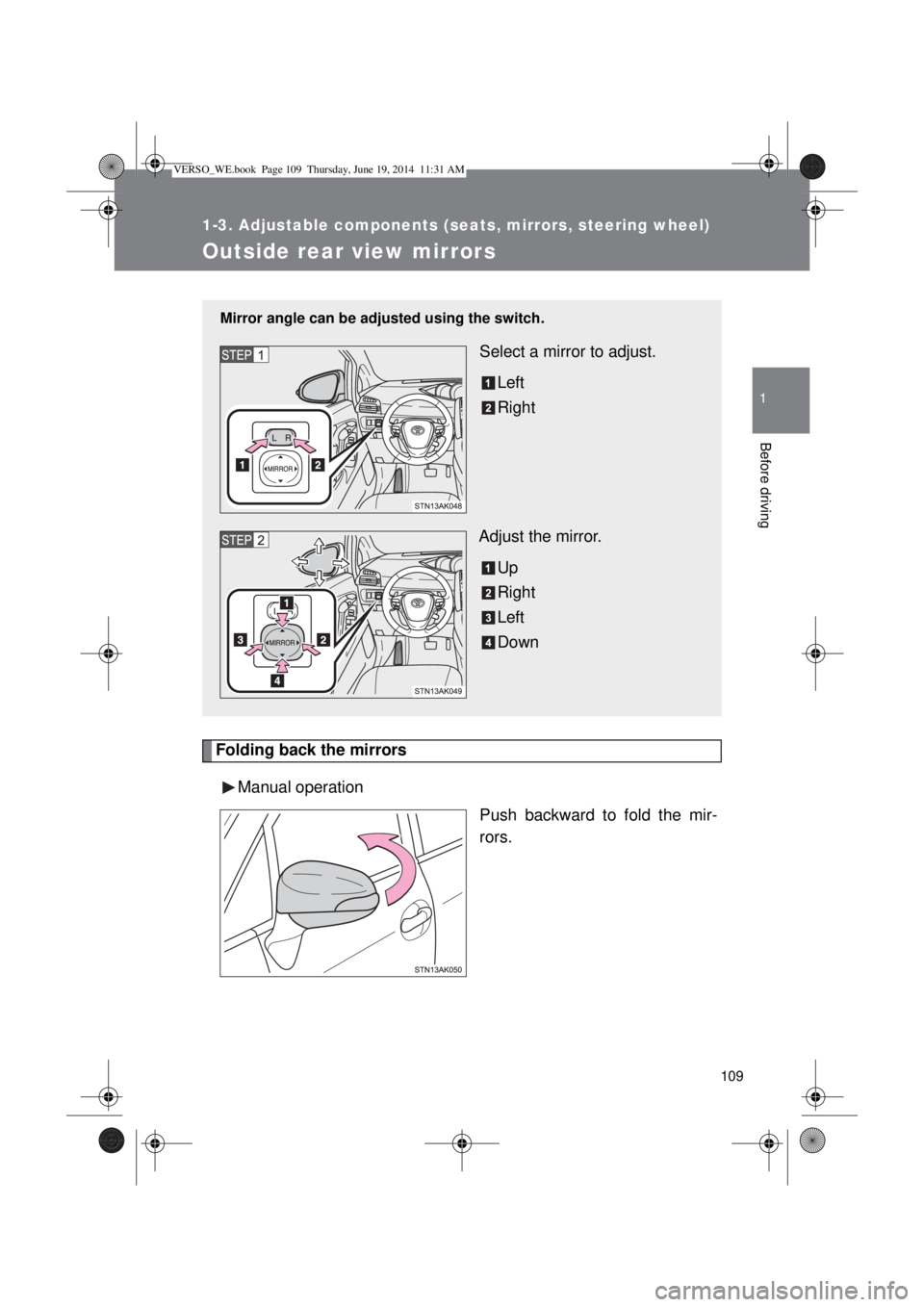

Outside rear view mirrors
Folding back the mirrors
Manual operation
Push backward to fold the mir-
rors.
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror.
Up
Right
Left
Down
VERSO_WE.book Page 109 Thursday, June 19, 2014 11:31 AM

110 1-3. Adjustable components (seats, mirrors, steering wheel)
Electric operation (if equipped)
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
The outside rear view mirrors can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. (P. 326)
VERSO_WE.book Page 110 Thursday, June 19, 2014 11:31 AM
