TOYOTA VERSO 2016 Owners Manual

661
What to do if...
VERSO_EE_OM64590E

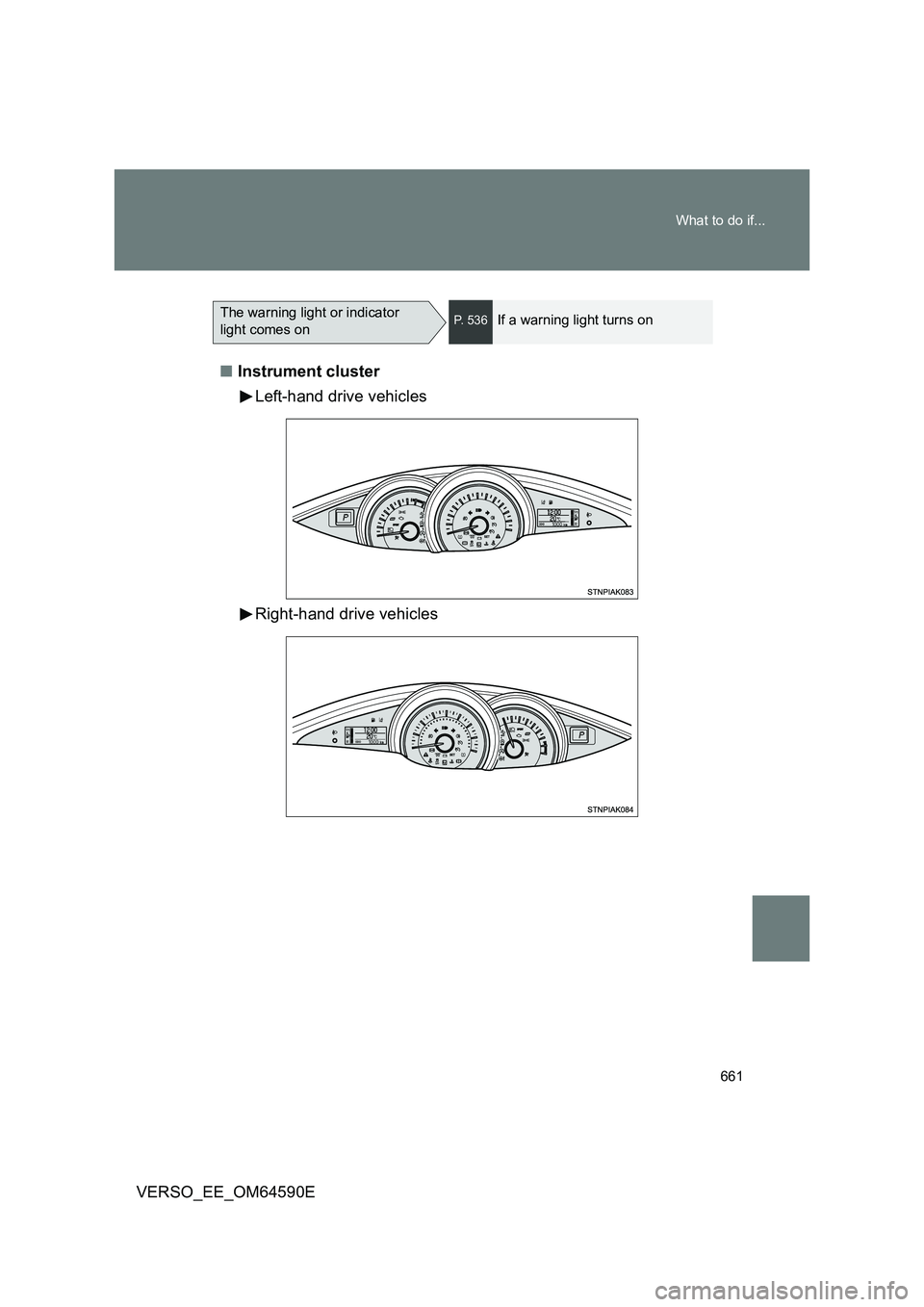

■ Instrument cluster
Left-hand drive vehicles
Right-hand drive vehicles
The warning light or indicator
light comes onP. 536If a warning light turns on

662
What to do if...
VERSO_EE_OM64590E

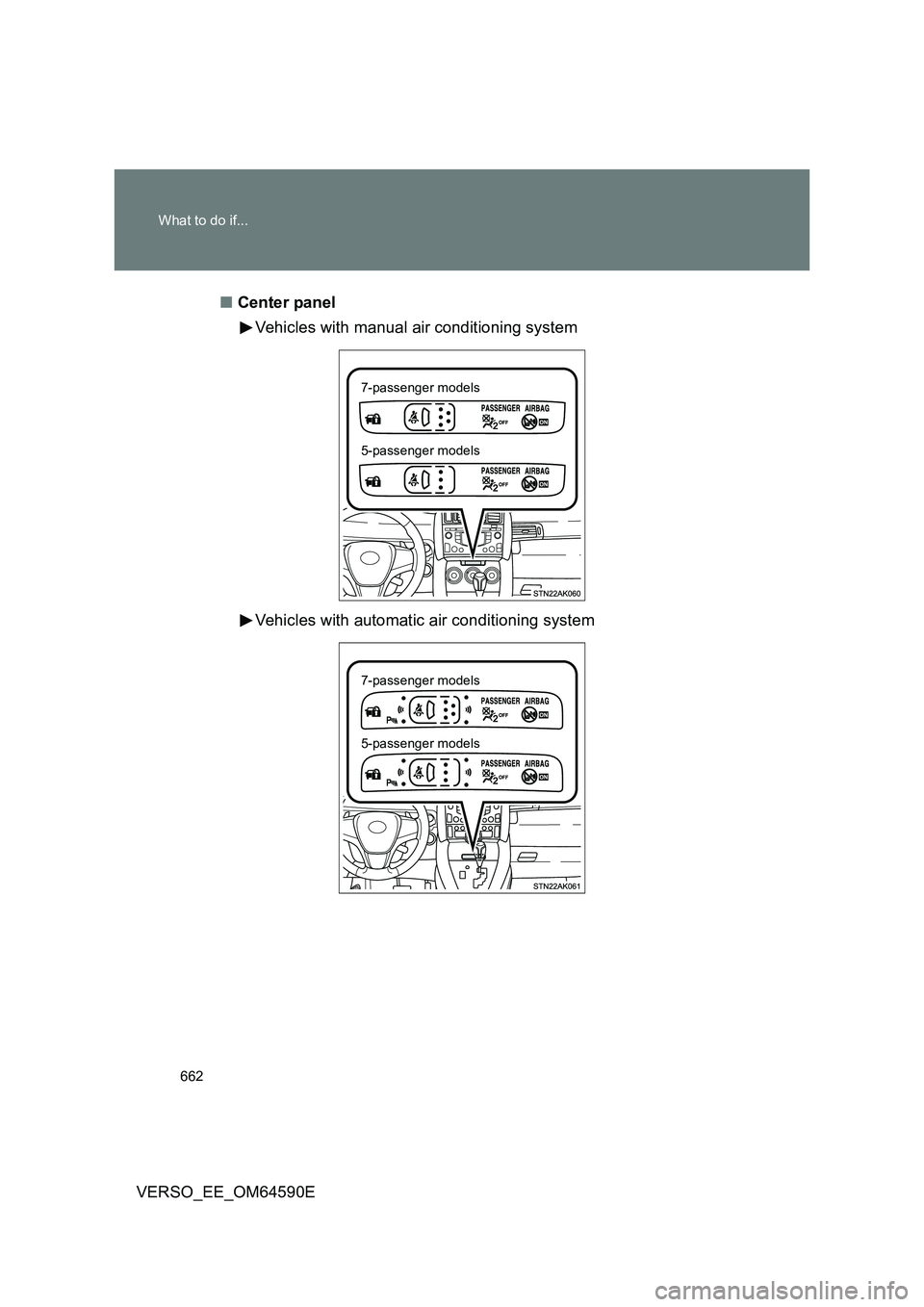

■ Center panel
Vehicles with manual air conditioning system
Vehicles with automatic air conditioning system
7-passenger models
5-passenger models
7-passenger models
5-passenger models

663
What to do if...
VERSO_EE_OM64590E

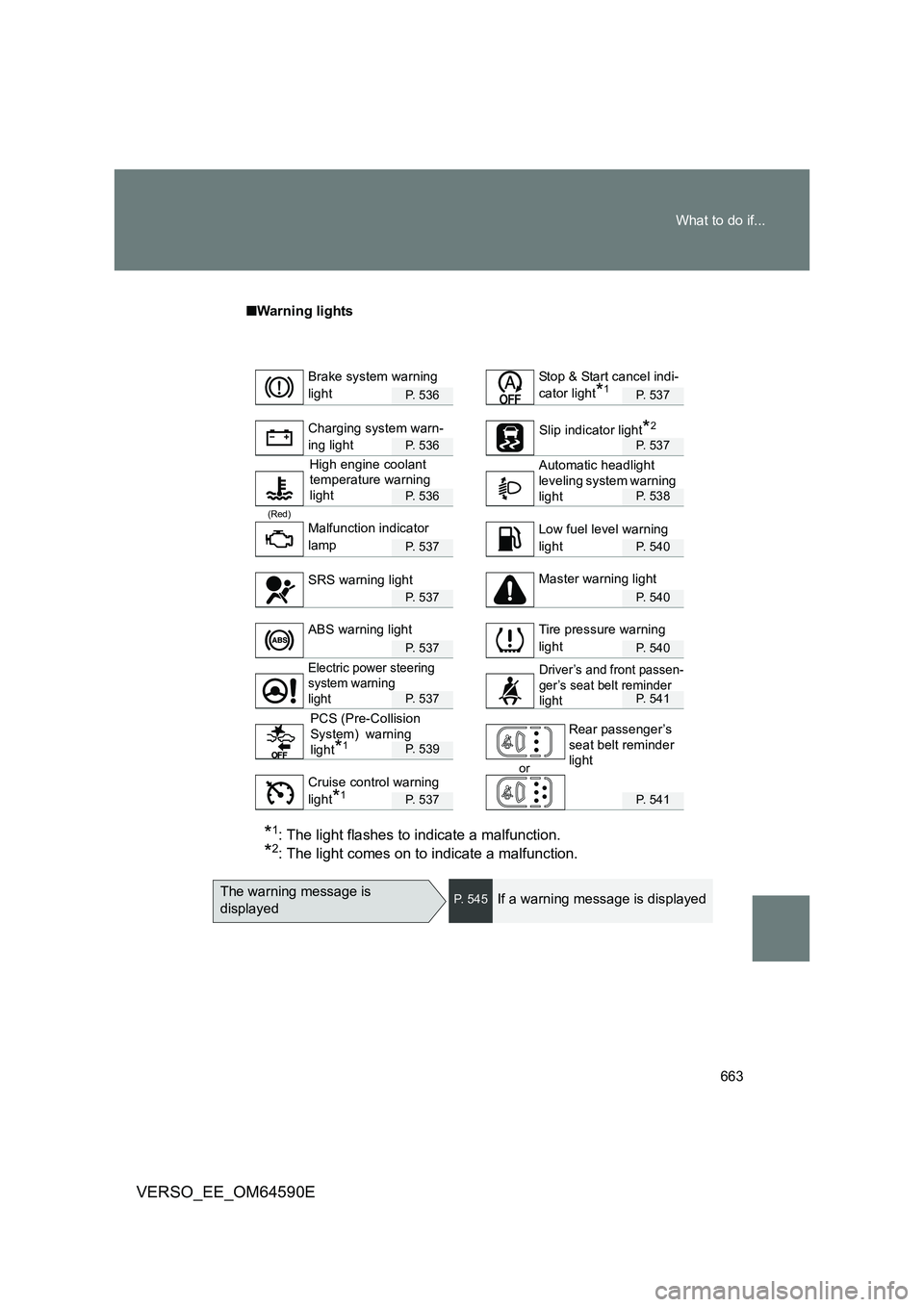

■ Warning lights
P. 536P. 537
P. 536P. 537
P. 536P. 538
(Red)
P. 537P. 540
P. 537P. 540
P. 537P. 540
P. 537P. 541
P. 539
or
P. 537P. 541
*1: The light flashes to indicate a malfunction.
*2: The light comes on to indicate a malfunction.
Brake system warning
light
Stop & Start cancel indi-
cator light*1
Charging system warn-
ing light
High engine coolant temperature warning
light
Automatic headlight
leveling system warning light
Malfunction indicator
lamp
Low fuel level warning
light
SRS warning lightMaster warning light
ABS warning lightTire pressure warning
light
Electric power steering system warning
light
PCS (Pre-Collision
System) warning light*1Rear passenger’s seat belt reminder light
Cruise control warning
light*1
Driver’s and front passen- ger’s seat belt reminder light
Slip indicator light*2
The warning message is
displayedP. 545If a warning message is displayed

664
VERSO_EE_OM64590E

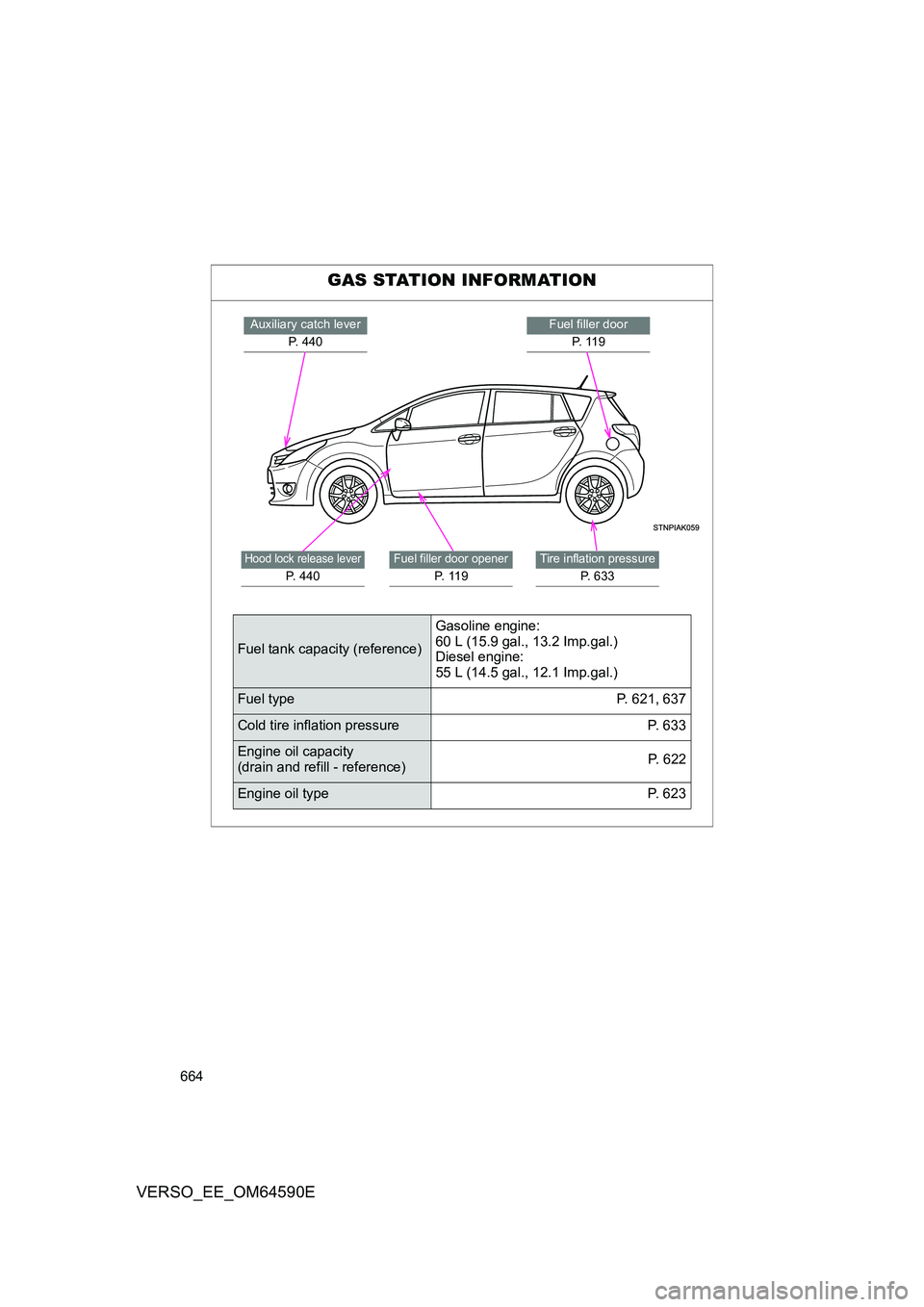

GAS STATION INFORMATION
Fuel filler door
P. 1 1 9
Auxiliary catch lever
P. 440
Tire inflation pressure
P. 6 3 3
Fuel filler door opener
P. 1 1 9
Hood lock release lever
P. 440
Fuel tank capacity (reference)
Gasoline engine:
60 L (15.9 gal., 13.2 Imp.gal.) Diesel engine:55 L (14.5 gal., 12.1 Imp.gal.)
Fuel type P. 621, 637
Cold tire inflation pressure P. 633
Engine oil capacity
(drain and refill - reference) P. 6 2 2
Engine oil type P. 623
