621
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Diesel engine
Fuel
Gasoline engine

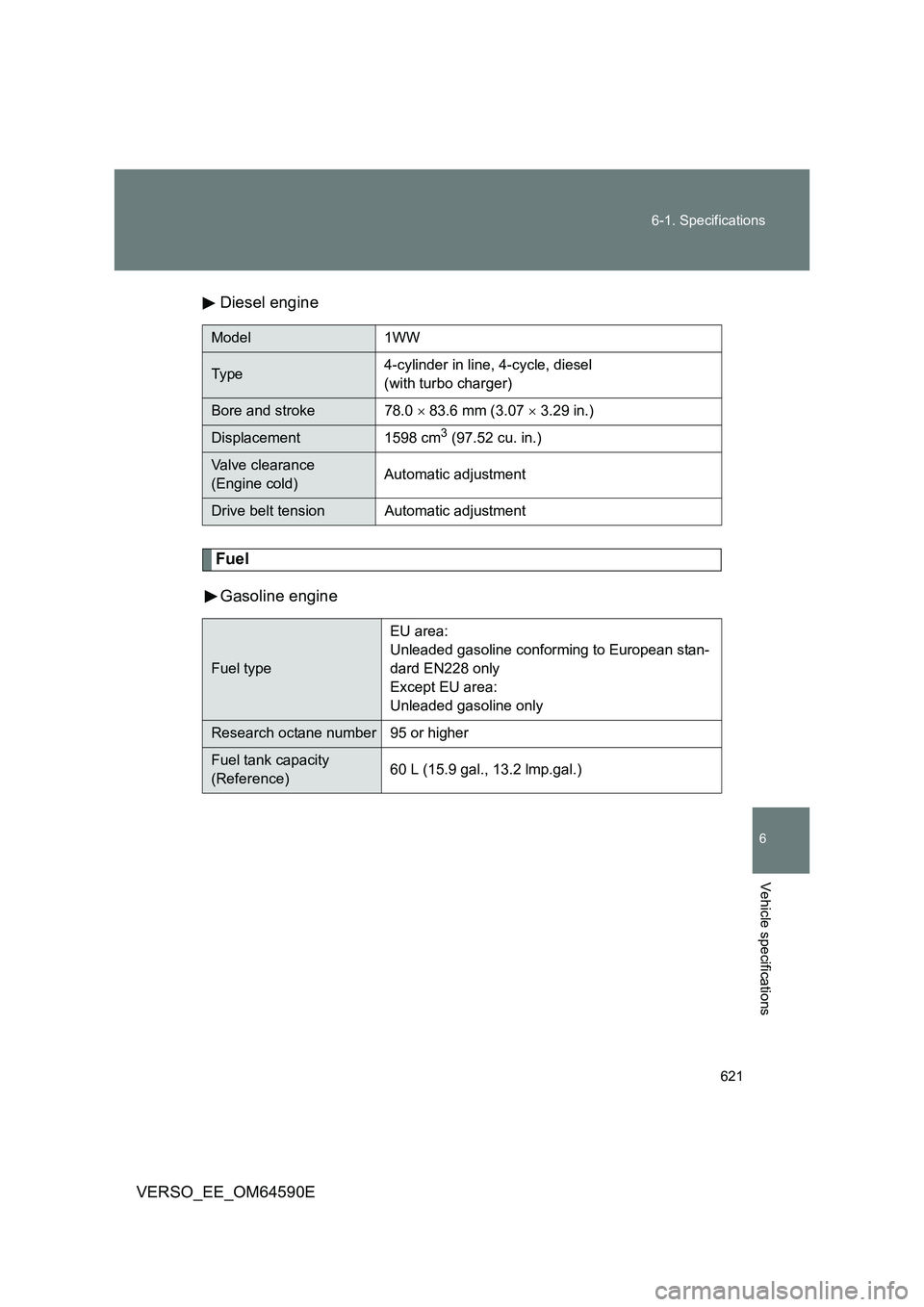

Model 1WW
Ty p e 4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke 78.0 83.6 mm (3.07 3.29 in.)
Displacement 1598 cm3 (97.52 cu. in.)
Valve clearance
(Engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(Reference) 60 L (15.9 gal., 13.2 lmp.gal.)
Page 622 of 664

622
6-1. Specifications
VERSO_EE_OM64590E
Diesel engine
Lubrication system
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.

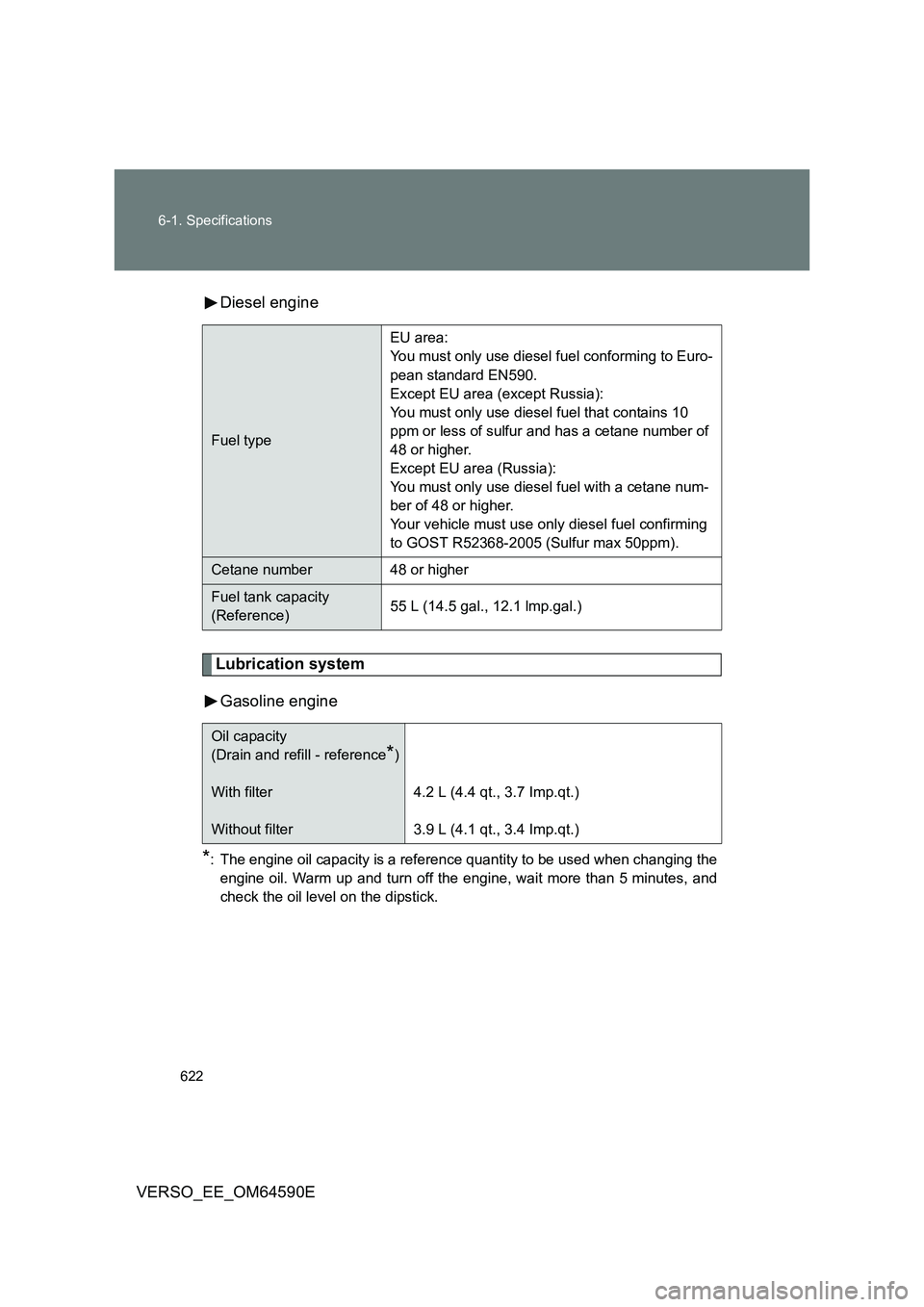

Fuel type
EU area:
You must only use diesel fuel conforming to Euro-
pean standard EN590.
Except EU area (except Russia):
You must only use diesel fuel that contains 10
ppm or less of sulfur and has a cetane number of
48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a cetane num-
ber of 48 or higher.
Your vehicle must use only diesel fuel confirming
to GOST R52368-2005 (Sulfur max 50ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference) 55 L (14.5 gal., 12.1 lmp.gal.)
Oil capacity
(Drain and refill - reference*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)
Page 623 of 664

623
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E

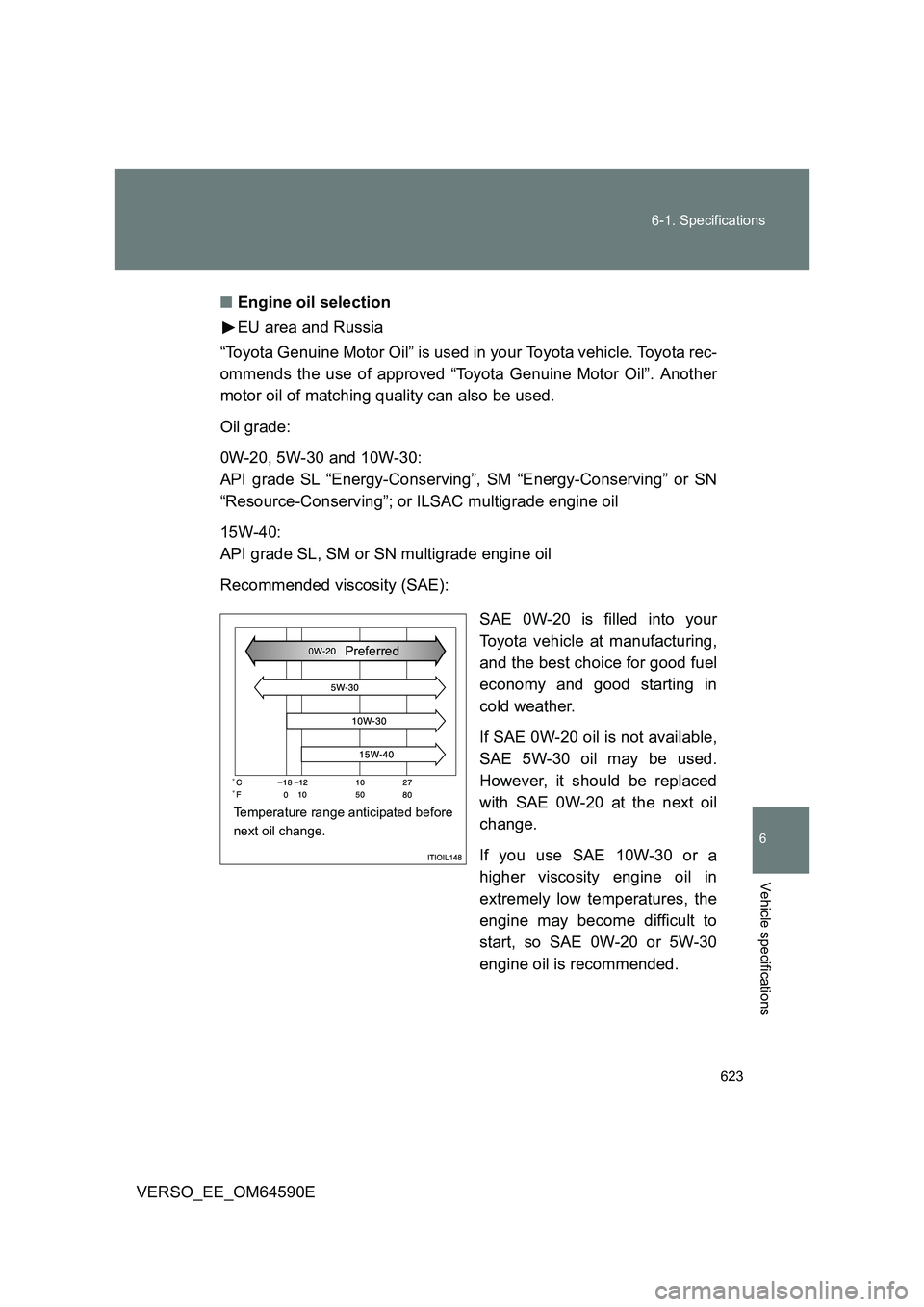

■ Engine oil selection
EU area and Russia
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20 or 5W-30
engine oil is recommended.
Temperature range anticipated before
next oil change.
Preferred
Page 624 of 664

624
6-1. Specifications
VERSO_EE_OM64590E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

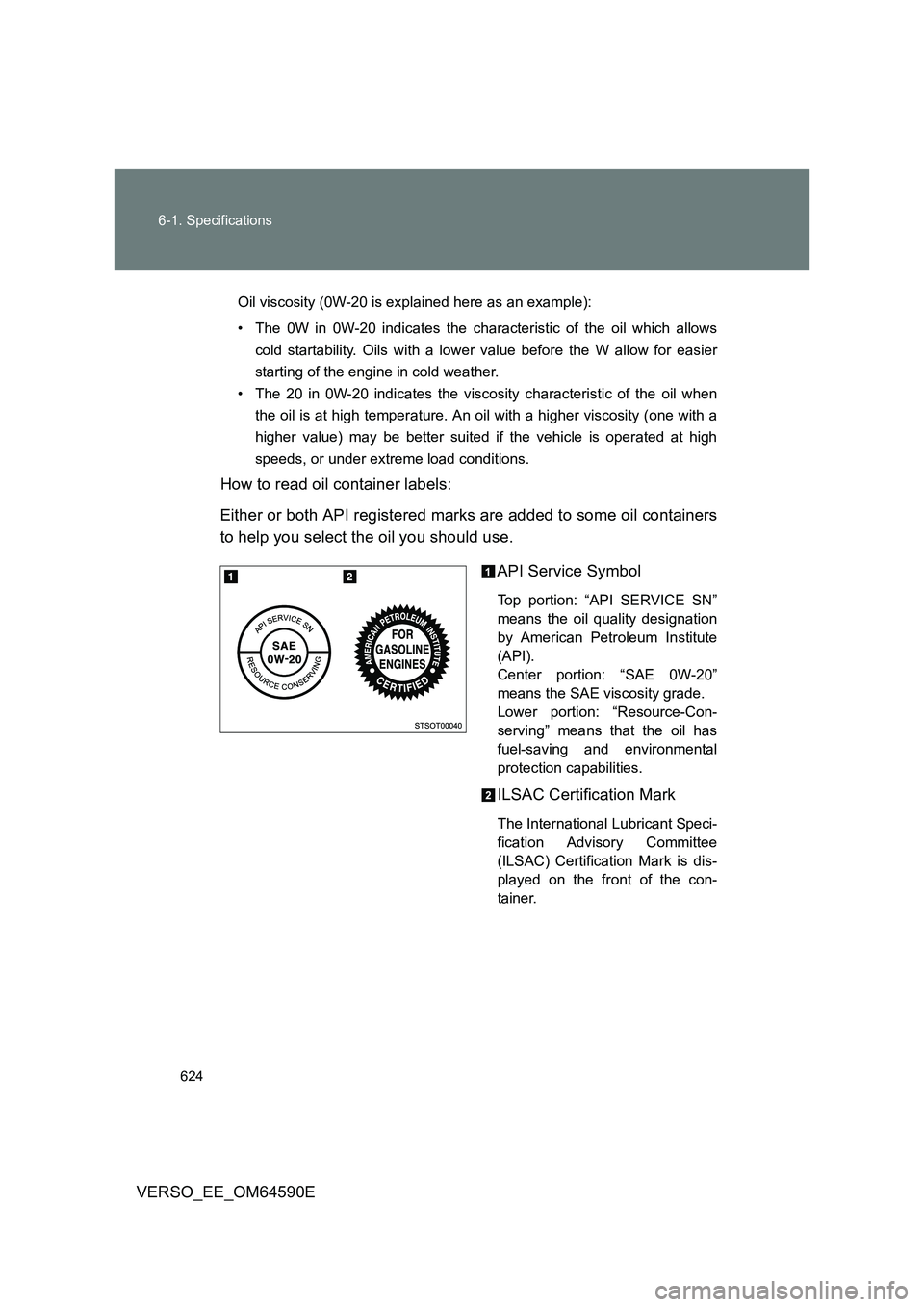

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.
Page 625 of 664

625
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Other area
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil

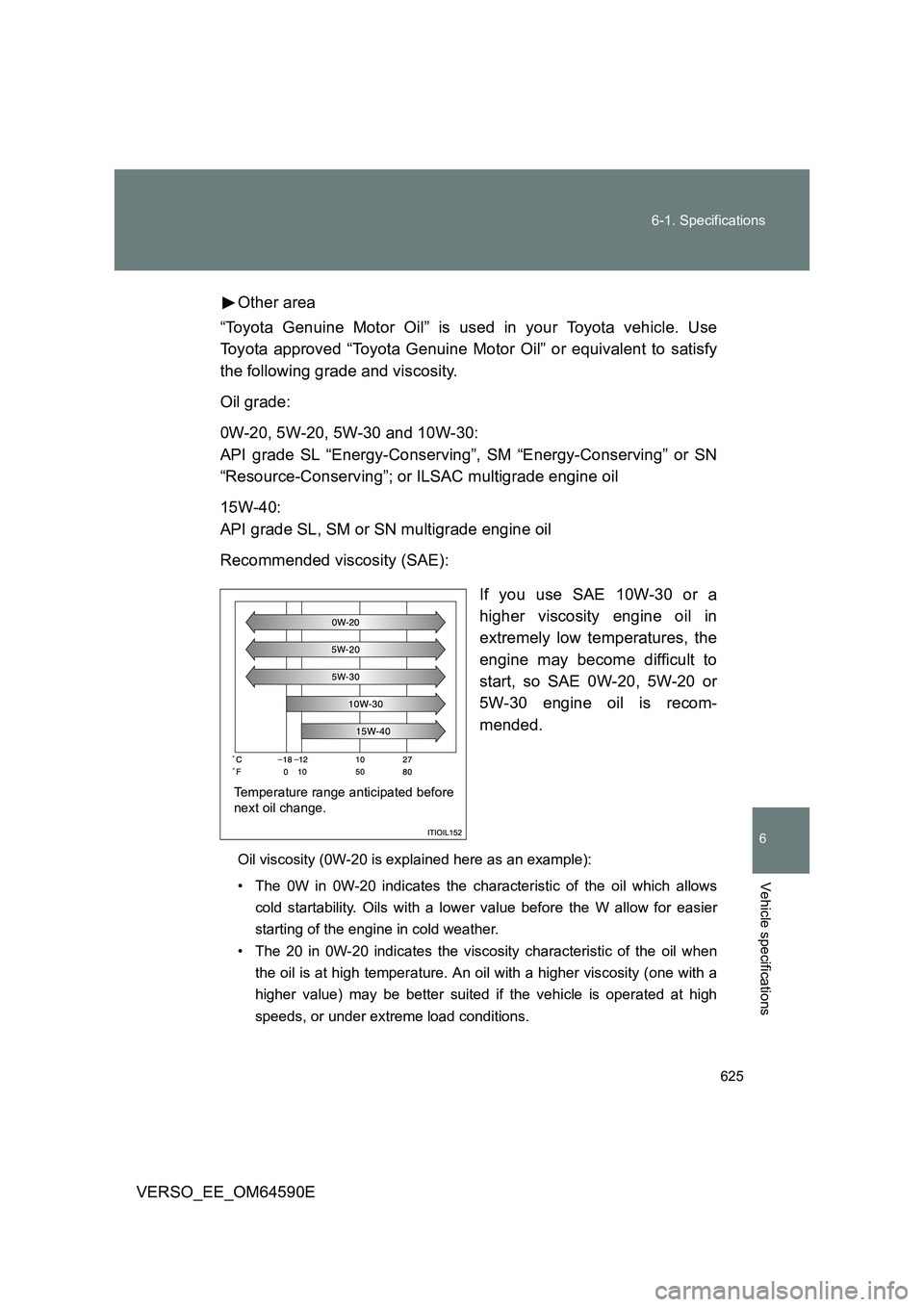

Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Page 626 of 664

626
6-1. Specifications
VERSO_EE_OM64590E

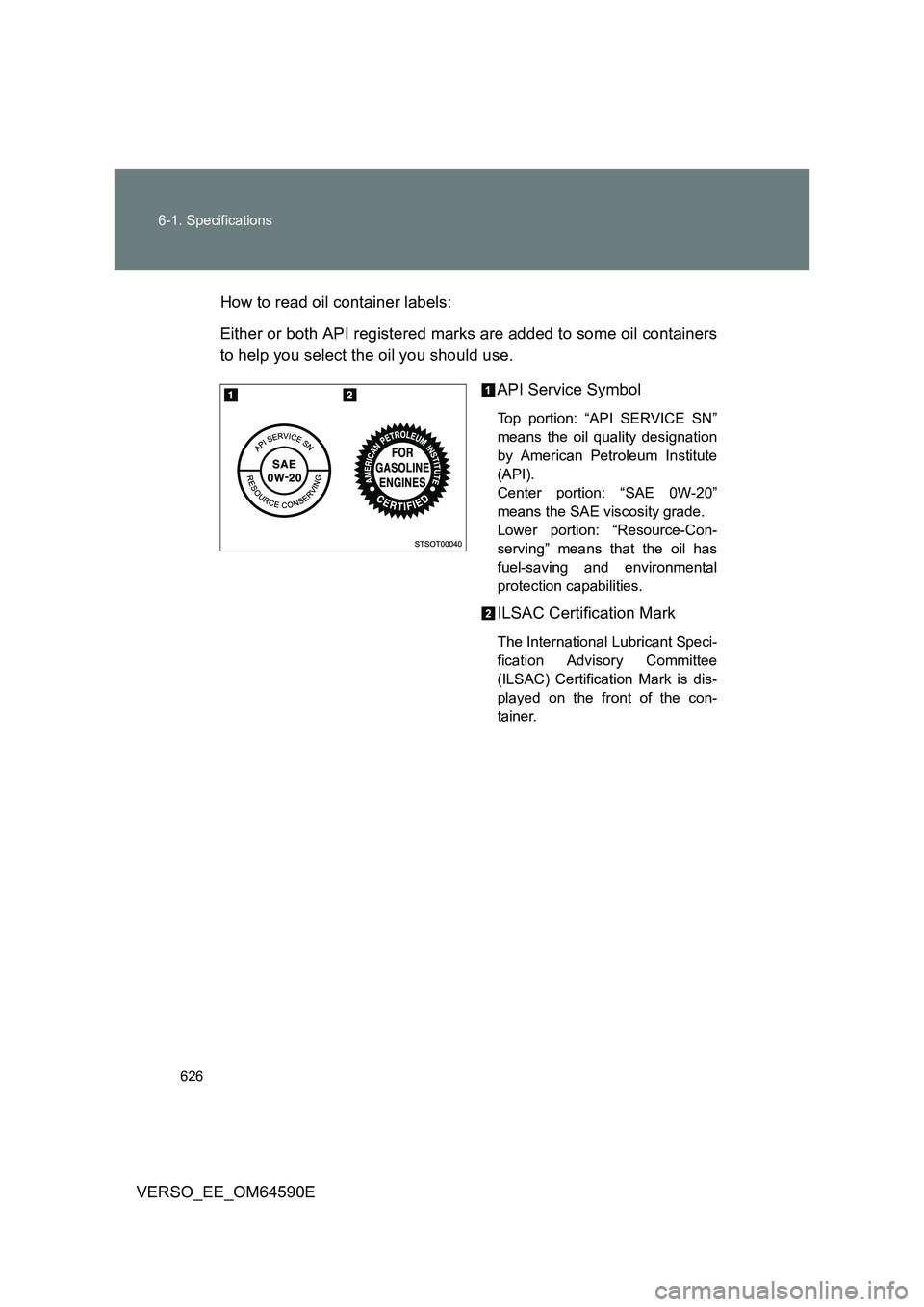

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.
Page 627 of 664

627
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Diesel engine

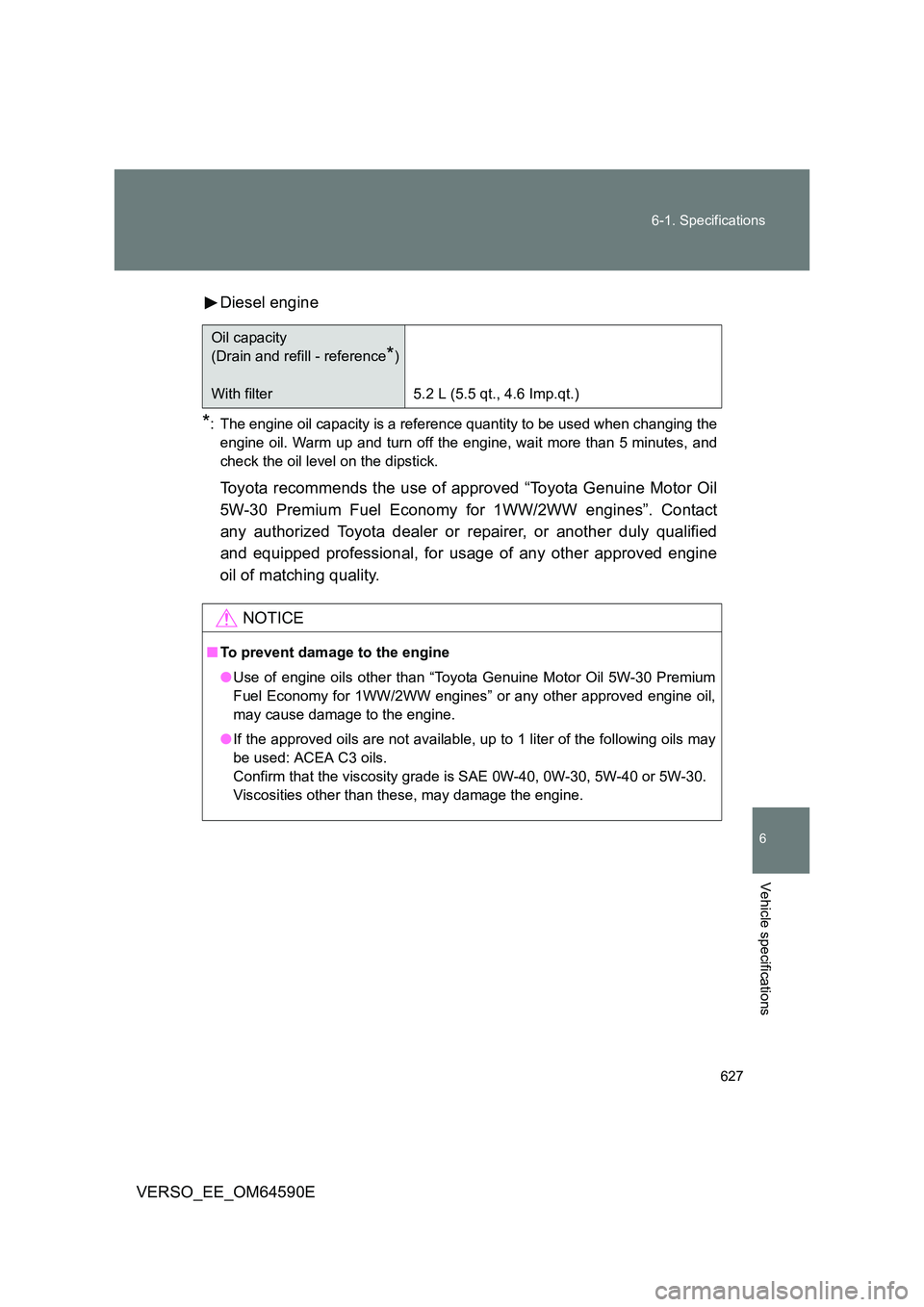

*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Toyota recommends the use of approved “Toyota Genuine Motor Oil
5W-30 Premium Fuel Economy for 1WW/2WW engines”. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for usage of any other approved engine
oil of matching quality.
Oil capacity
(Drain and refill - reference*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
NOTICE
■ To prevent damage to the engine
● Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
● If the approved oils are not available, up to 1 liter of the following oils may
be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.
Page 628 of 664

628
6-1. Specifications
VERSO_EE_OM64590E

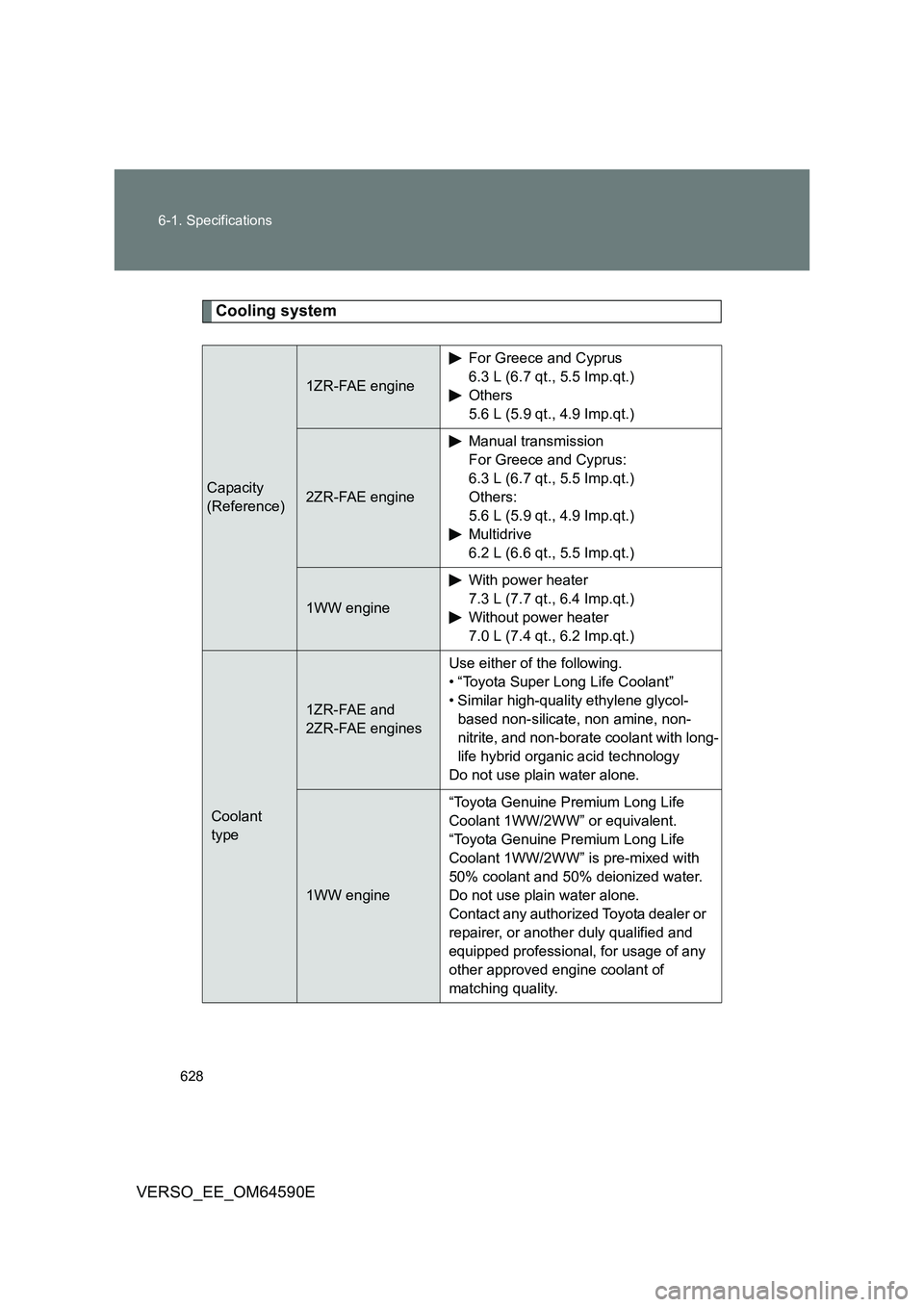

Cooling system
Capacity
(Reference)
1ZR-FAE engine
For Greece and Cyprus
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
2ZR-FAE engine
Manual transmission
For Greece and Cyprus:
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others:
5.6 L (5.9 qt., 4.9 Imp.qt.)
Multidrive
6.2 L (6.6 qt., 5.5 Imp.qt.)
1WW engine
With power heater
7.3 L (7.7 qt., 6.4 Imp.qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Coolant
type
1ZR-FAE and
2ZR-FAE engines
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
1WW engine
“Toyota Genuine Premium Long Life
Coolant 1WW/2WW” or equivalent.
“Toyota Genuine Premium Long Life
Coolant 1WW/2WW” is pre-mixed with
50% coolant and 50% deionized water.
Do not use plain water alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional, for usage of any
other approved engine coolant of
matching quality.
Page 629 of 664

629
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E

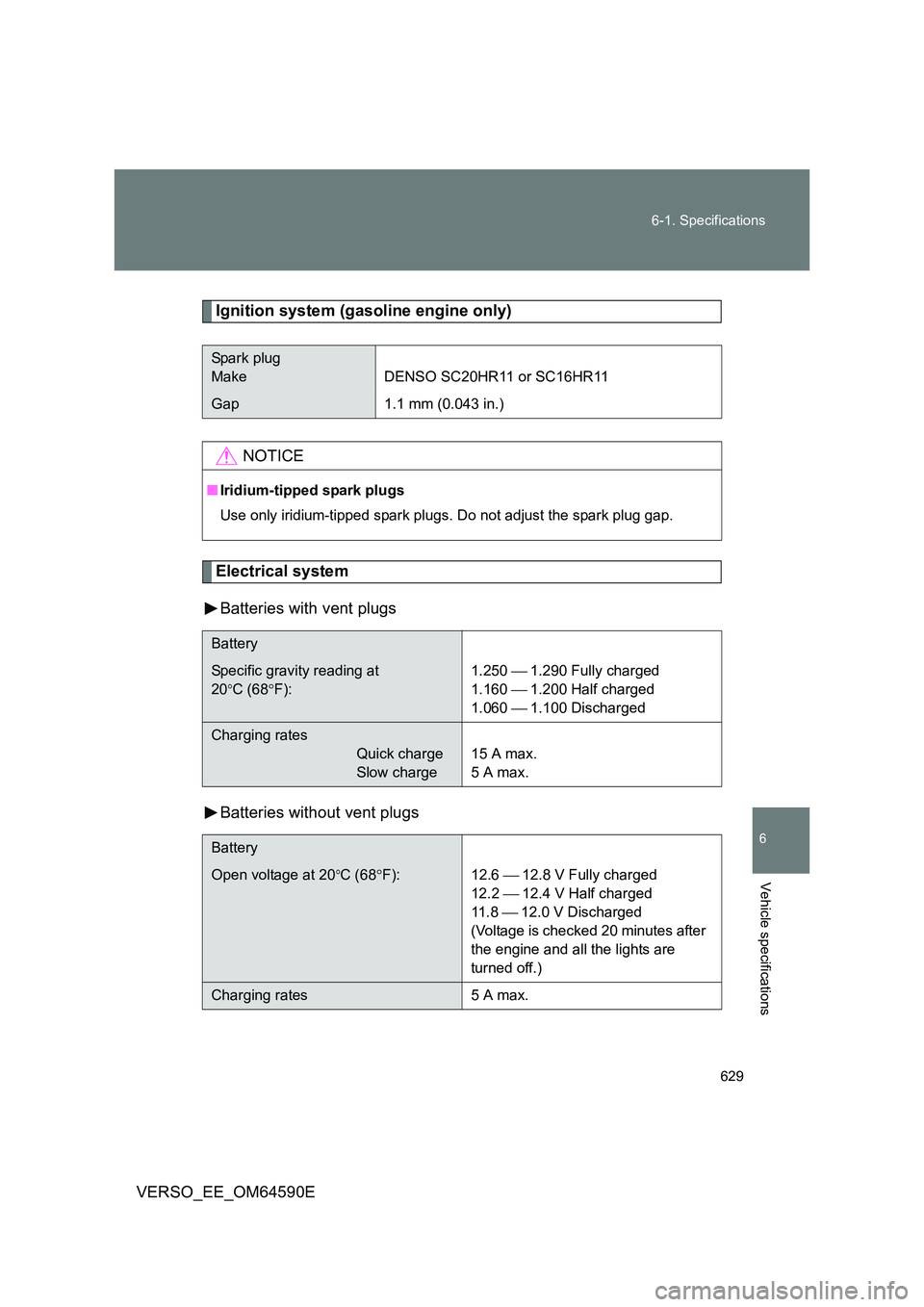

Ignition system (gasoline engine only)
Electrical system
Batteries with vent plugs
Batteries without vent plugs
Spark plug
Make DENSO SC20HR11 or SC16HR11
Gap 1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery
Specific gravity reading at
20C (68 F):
1.250 1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Battery
Open voltage at 20C (68 F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Page 630 of 664

630
6-1. Specifications
VERSO_EE_OM64590E

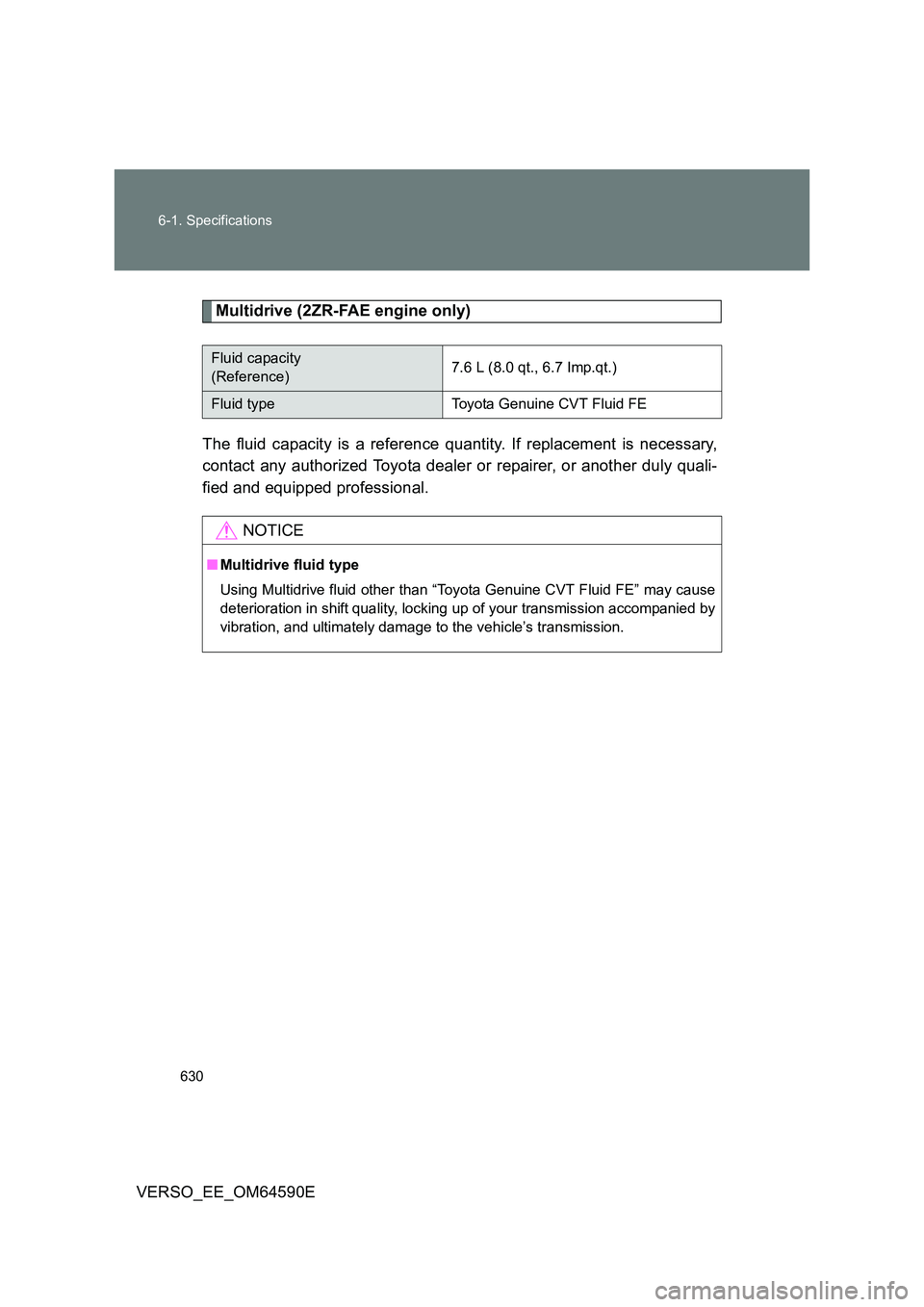

Multidrive (2ZR-FAE engine only)
The fluid capacity is a reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Fluid capacity
(Reference)7.6 L (8.0 qt., 6.7 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
