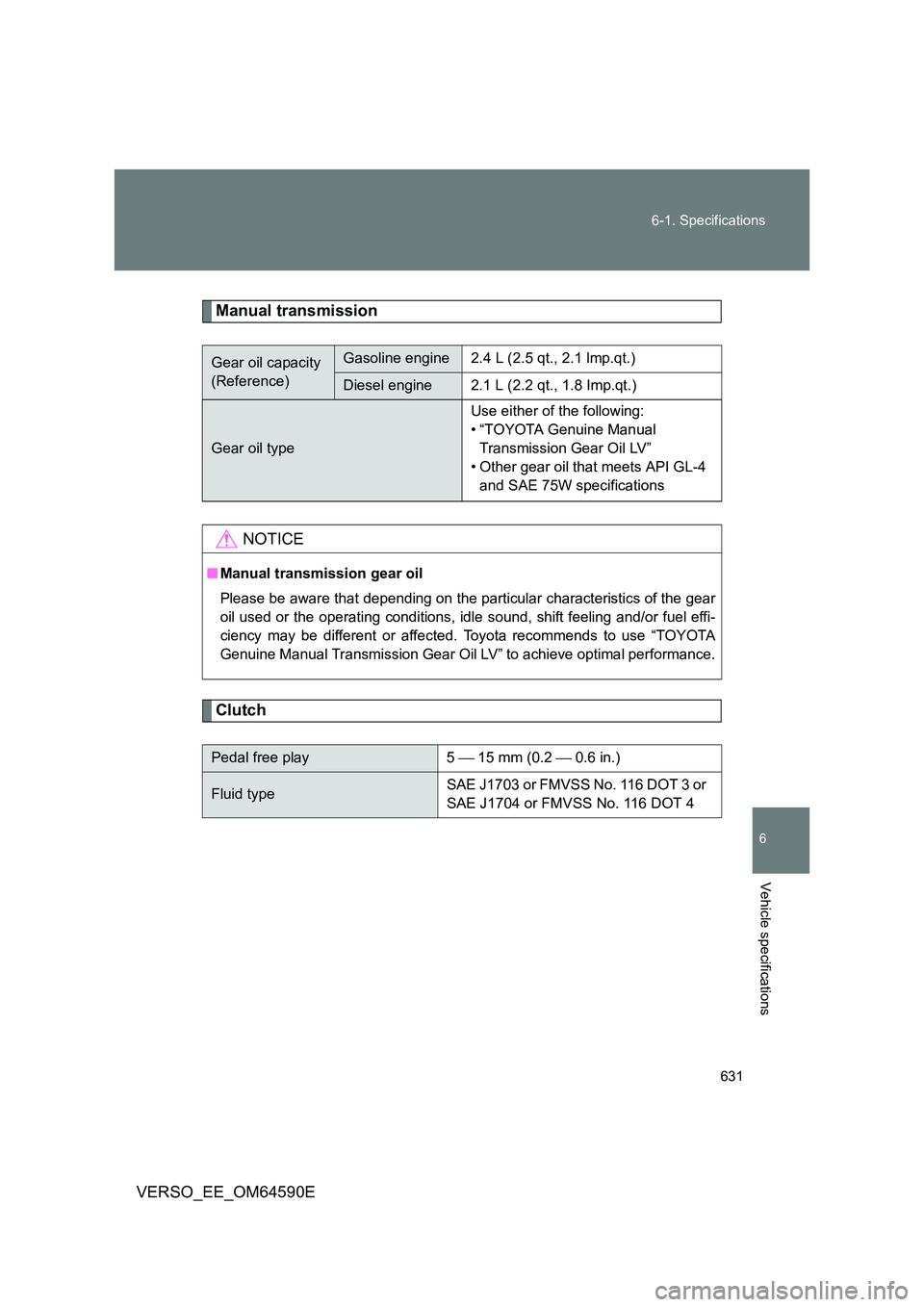

631
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E
Manual transmission
Clutch
Gear oil capacity
(Reference)
Gasoline engine2.4 L (2.5 qt., 2.1 lmp.qt.)
Diesel engine2.1 L (2.2 qt., 1.8 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 5 15 mm (0.2 0.6 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Page 632 of 664

632
6-1. Specifications
VERSO_EE_OM64590E

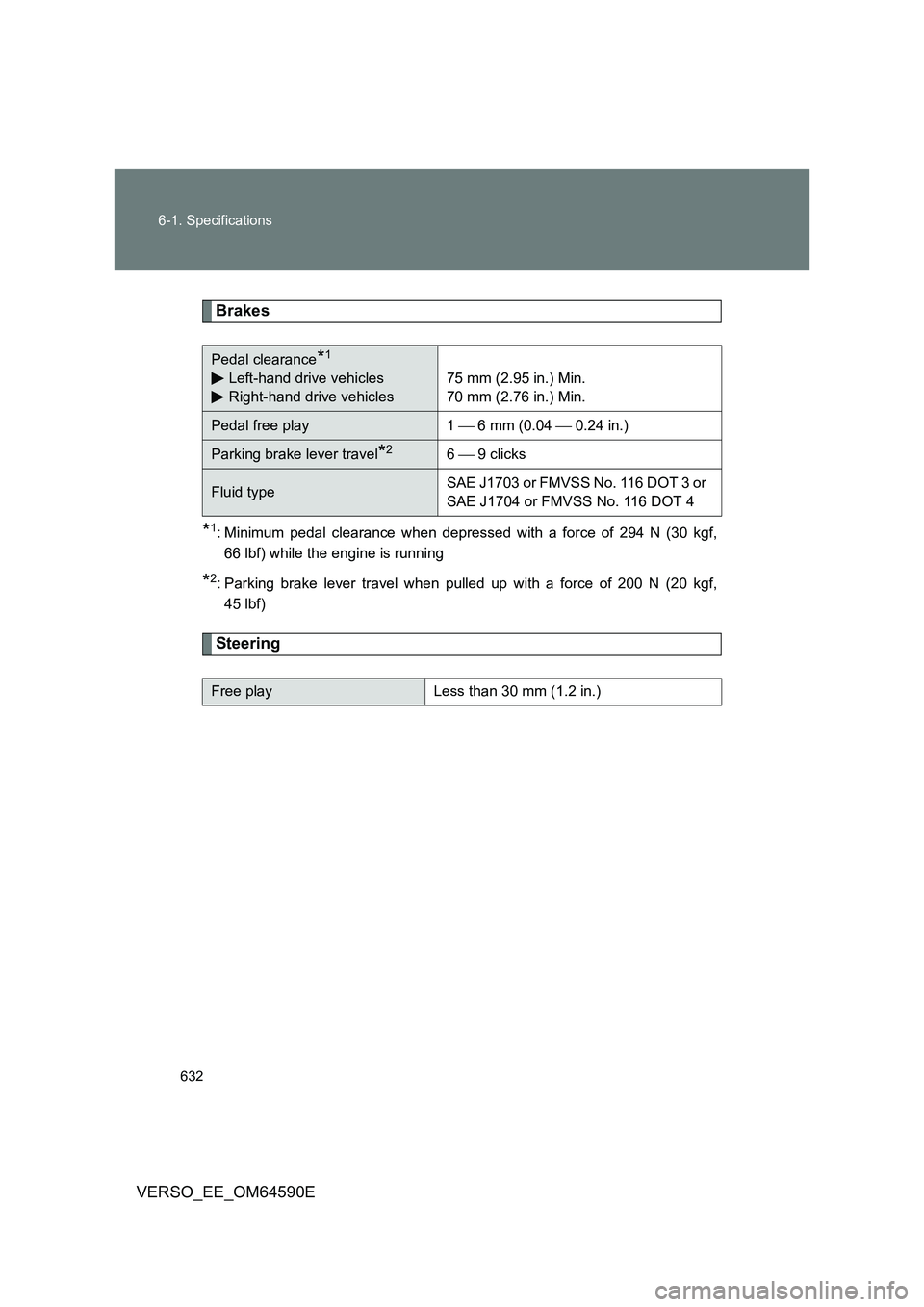

Brakes
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf,
45 lbf)
Steering
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles
75 mm (2.95 in.) Min.
70 mm (2.76 in.) Min.
Pedal free play 1 6 mm (0.04 0.24 in.)
Parking brake lever travel*26 9 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.2 in.)
Page 633 of 664

633
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E

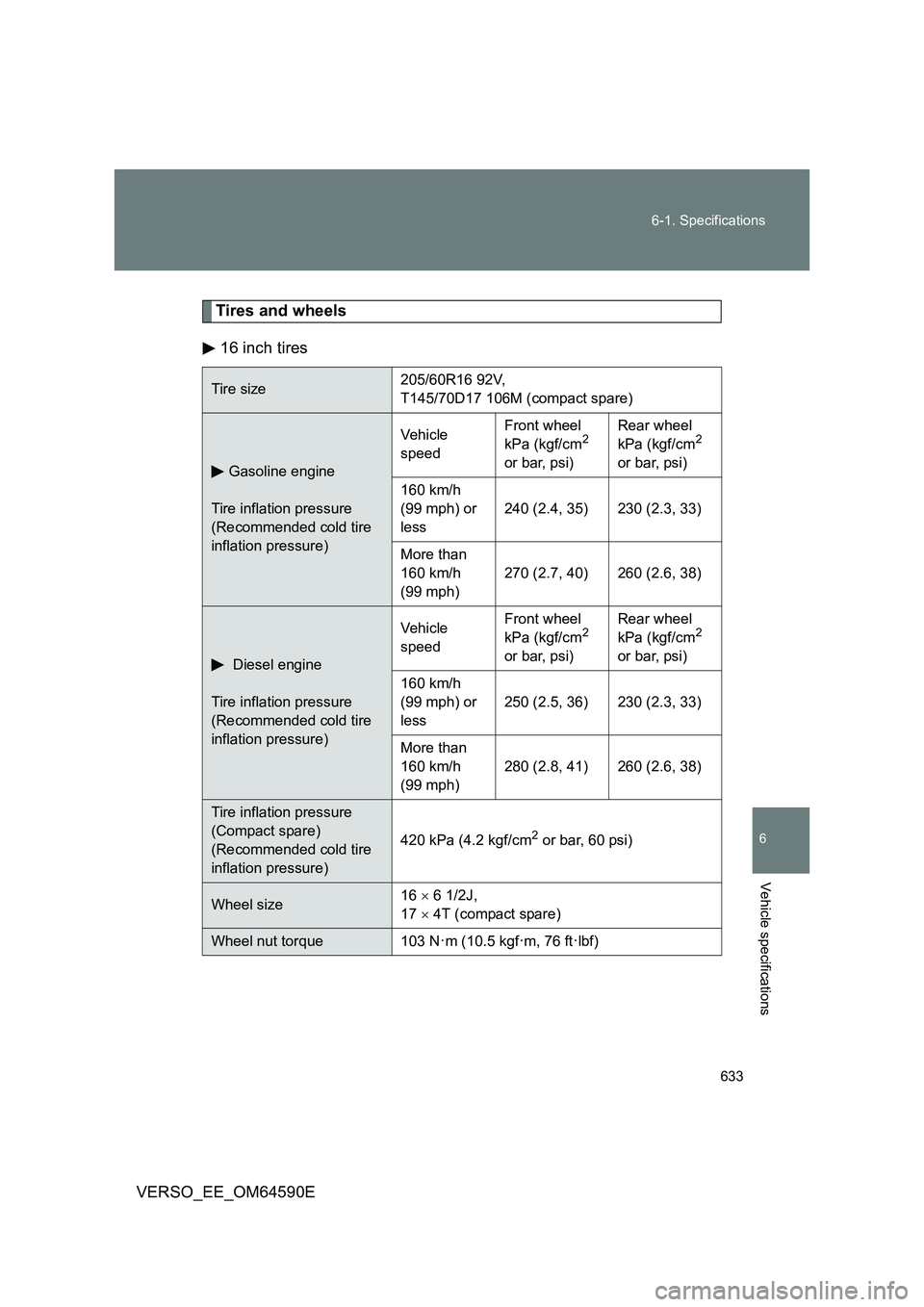

Tires and wheels
16 inch tires
Tire size 205/60R16 92V,
T145/70D17 106M (compact spare)
Gasoline engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehi c le
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less
240 (2.4, 35) 230 (2.3, 33)
More than
160 km/h
(99 mph)
270 (2.7, 40) 260 (2.6, 38)
Diesel engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehi c le
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
More than
160 km/h
(99 mph)
280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(Compact spare)
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 16 6 1/2J,
17 4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
Page 634 of 664

634
6-1. Specifications
VERSO_EE_OM64590E

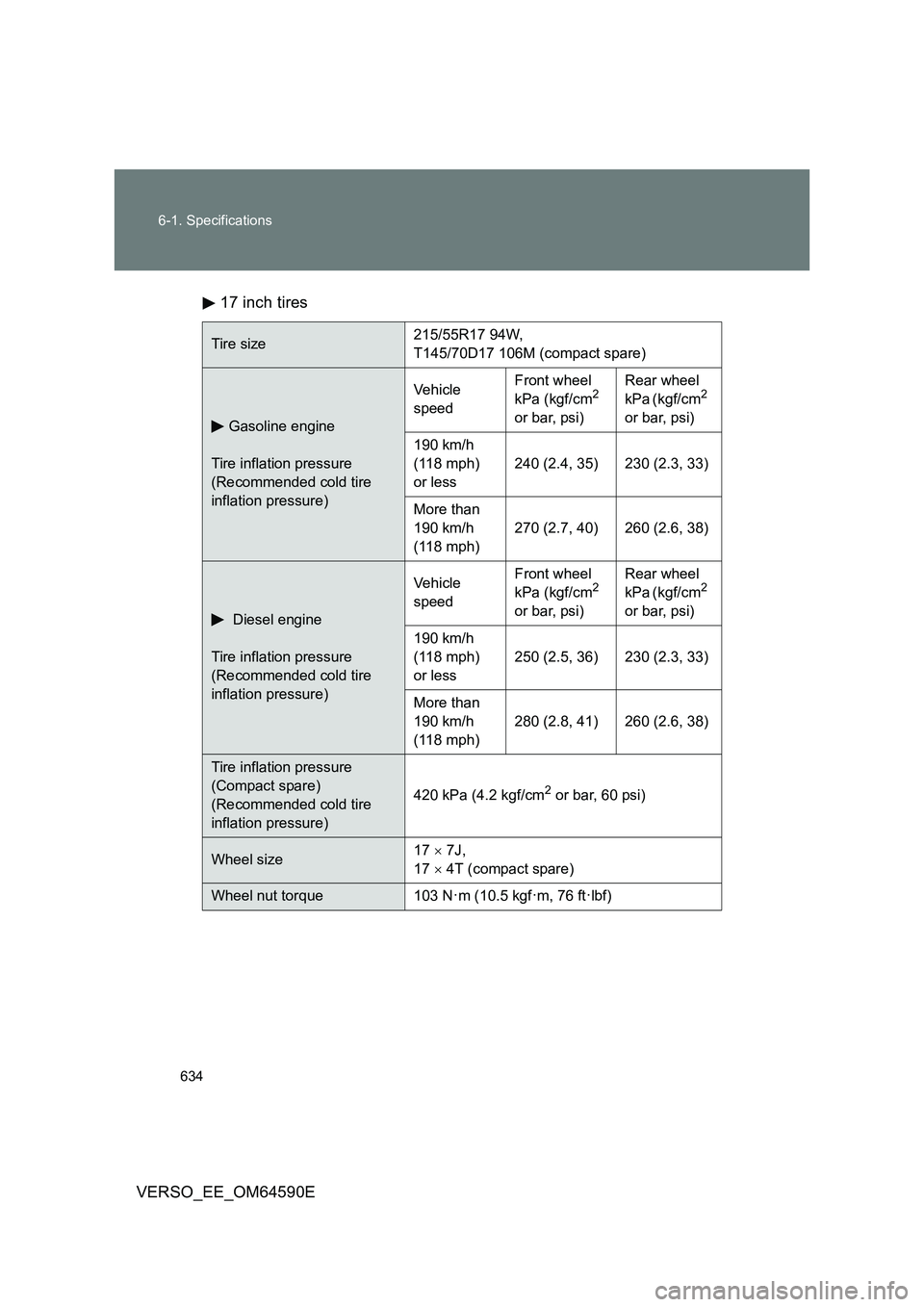

17 inch tires
Tire size 215/55R17 94W,
T145/70D17 106M (compact spare)
Gasoline engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less
240 (2.4, 35) 230 (2.3, 33)
More than
190 km/h
(118 mph)
270 (2.7, 40) 260 (2.6, 38)
Diesel engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less
250 (2.5, 36) 230 (2.3, 33)
More than
190 km/h
(118 mph)
280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(Compact spare)
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17 7J,
17 4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
Page 635 of 664

635
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E

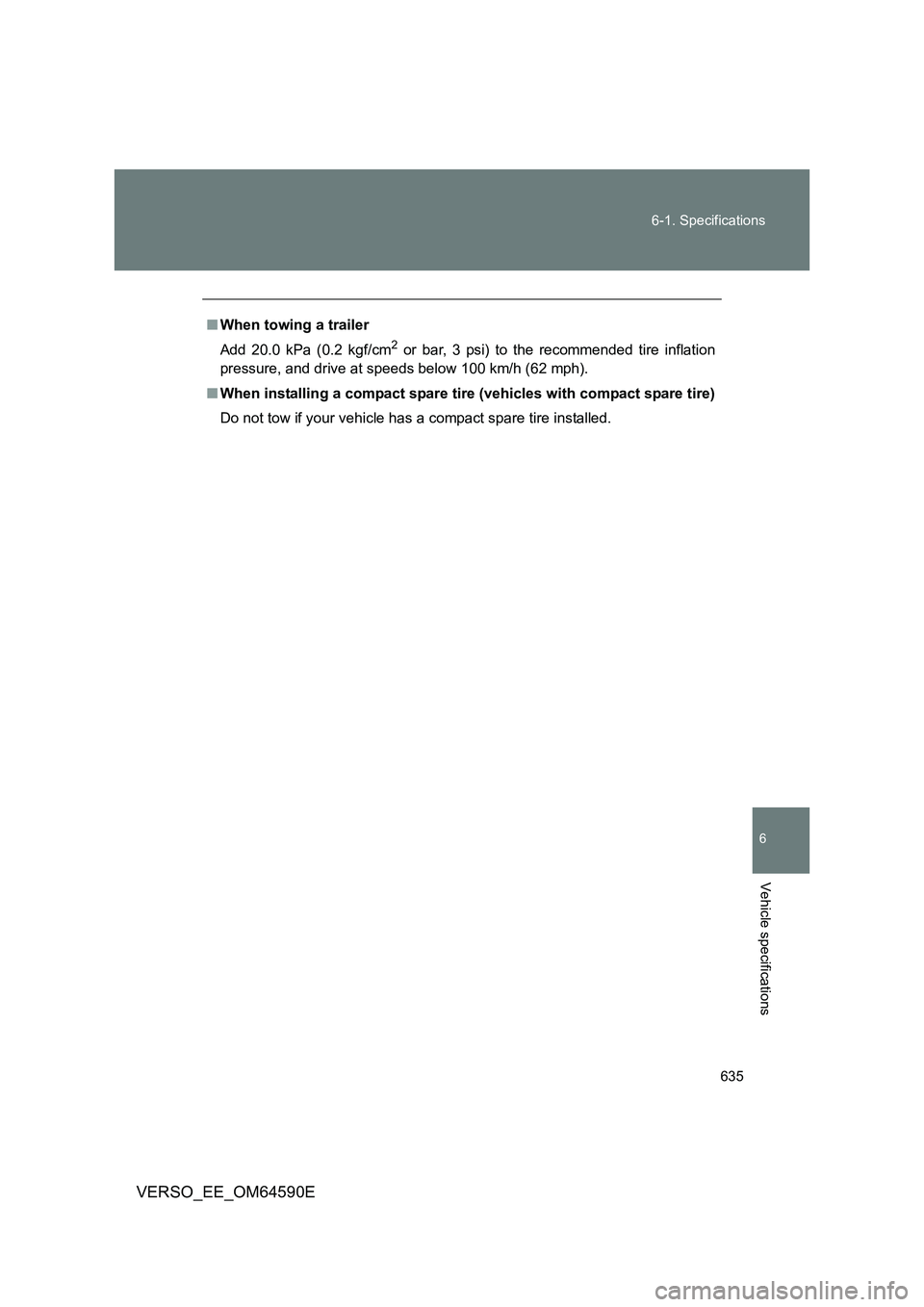

■ When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
■ When installing a compact spare tire (vehicles with compact spare tire)
Do not tow if your vehicle has a compact spare tire installed.
Page 636 of 664

636
6-1. Specifications
VERSO_EE_OM64590E

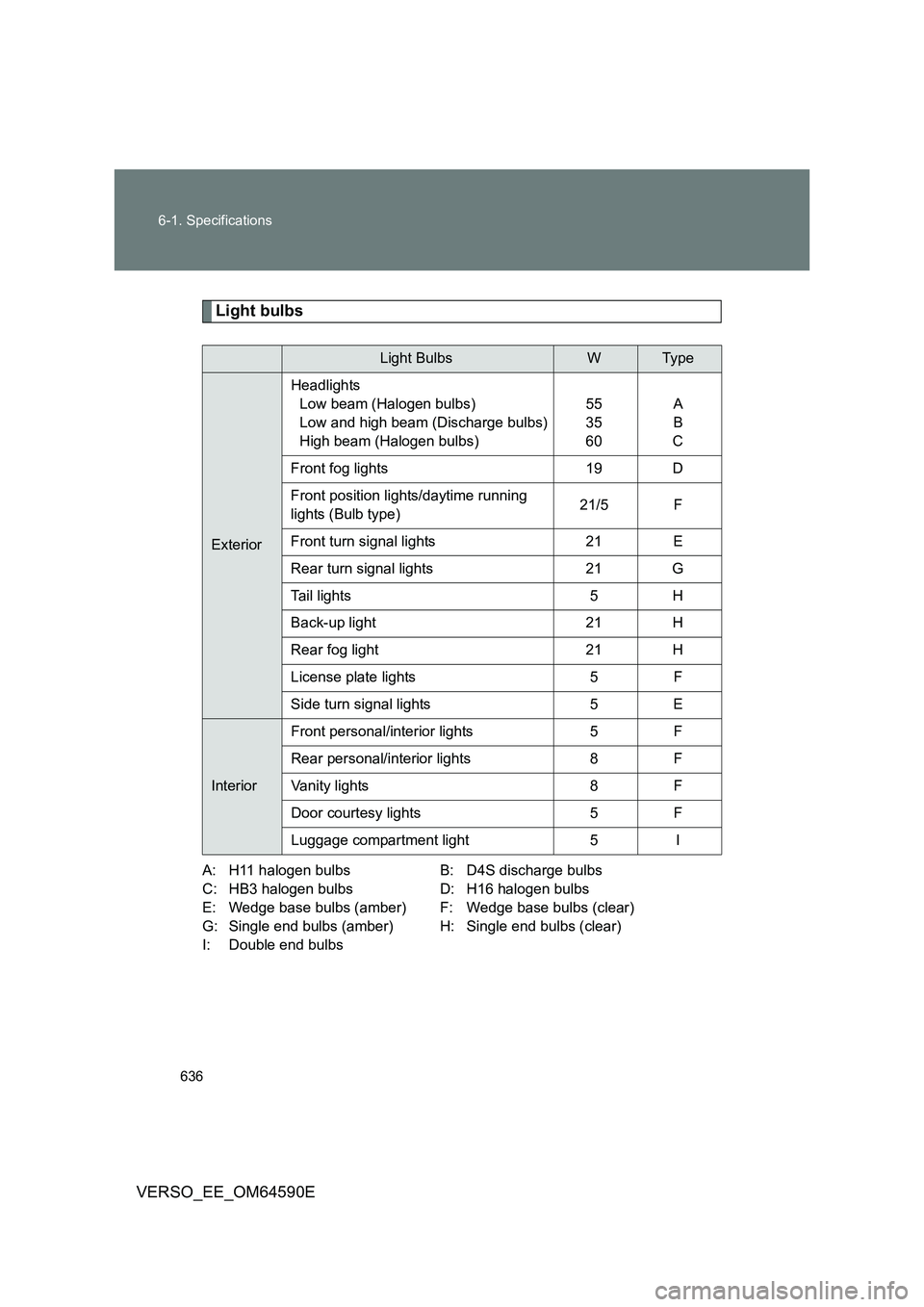

Light bulbs
A: H11 halogen bulbs B: D4S discharge bulbs
C: HB3 halogen bulbs D: H16 halogen bulbs
E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWTy p e
Exterior
Headlights
Low beam (Halogen bulbs)
Low and high beam (Discharge bulbs)
High beam (Halogen bulbs)
55
35
60
A
B
C
Front fog lights 19 D
Front position lights/daytime running
lights (Bulb type) 21/5 F
Front turn signal lights 21 E
Rear turn signal lights 21 G
Tail lights 5 H
Back-up light 21 H
Rear fog light 21 H
License plate lights 5 F
Side turn signal lights 5 E
Interior
Front personal/interior lights 5 F
Rear personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 F
Luggage compartment light 5 I
Page 637 of 664

637
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E

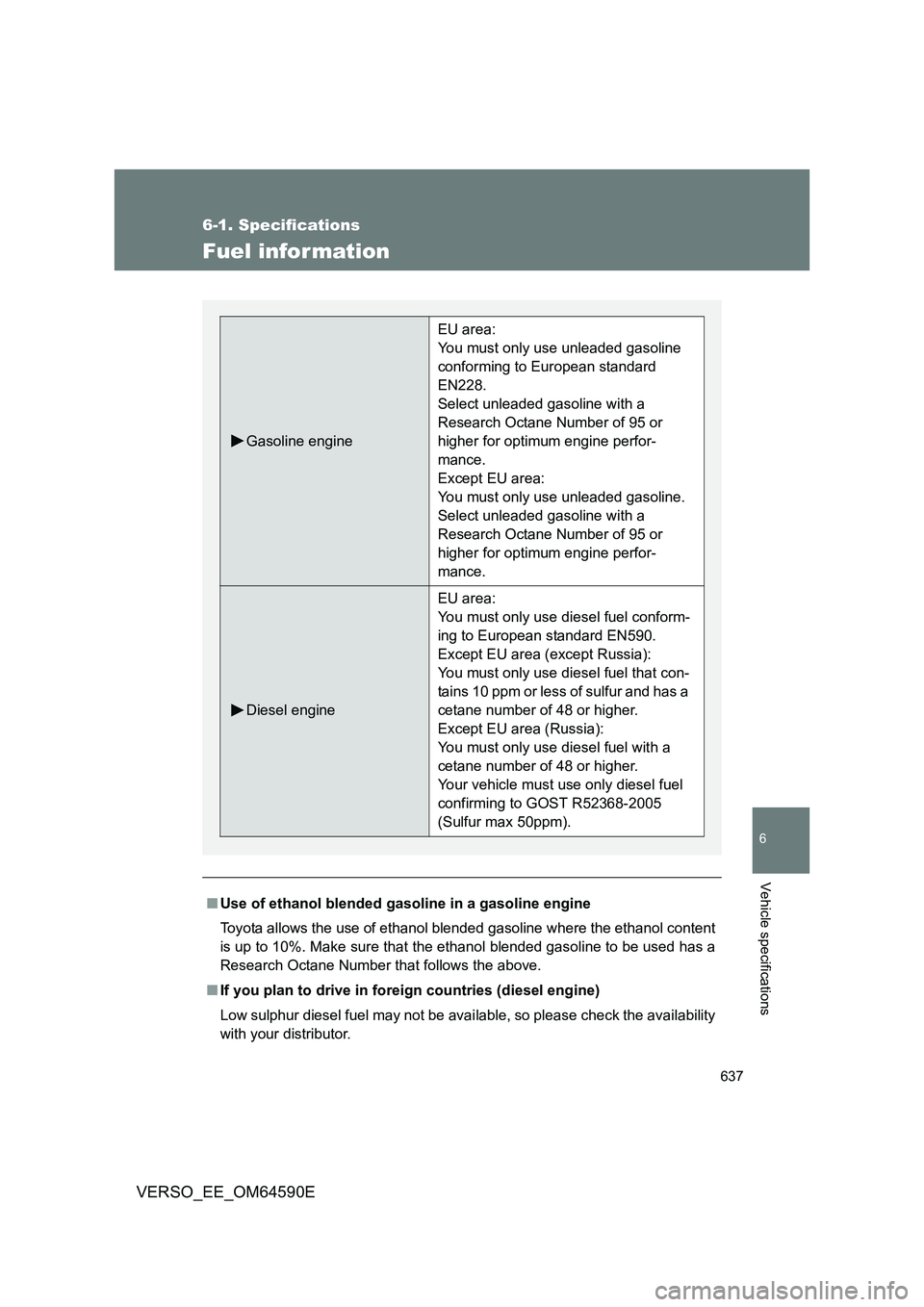

Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulphur diesel fuel may not be avai lable, so please check the availability
with your distributor.
Gasoline engine
EU area:
You must only use unleaded gasoline
conforming to European standard
EN228.
Select unleaded gasoline with a
Research Octane Number of 95 or
higher for optimum engine perfor-
mance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a
Research Octane Number of 95 or
higher for optimum engine perfor-
mance.
Diesel engine
EU area:
You must only use diesel fuel conform-
ing to European standard EN590.
Except EU area (except Russia):
You must only use diesel fuel that con-
tains 10 ppm or less of sulfur and has a
cetane number of 48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a
cetane number of 48 or higher.
Your vehicle must use only diesel fuel
confirming to GOST R52368-2005
(Sulfur max 50ppm).
Page 638 of 664

638
6-1. Specifications
VERSO_EE_OM64590E

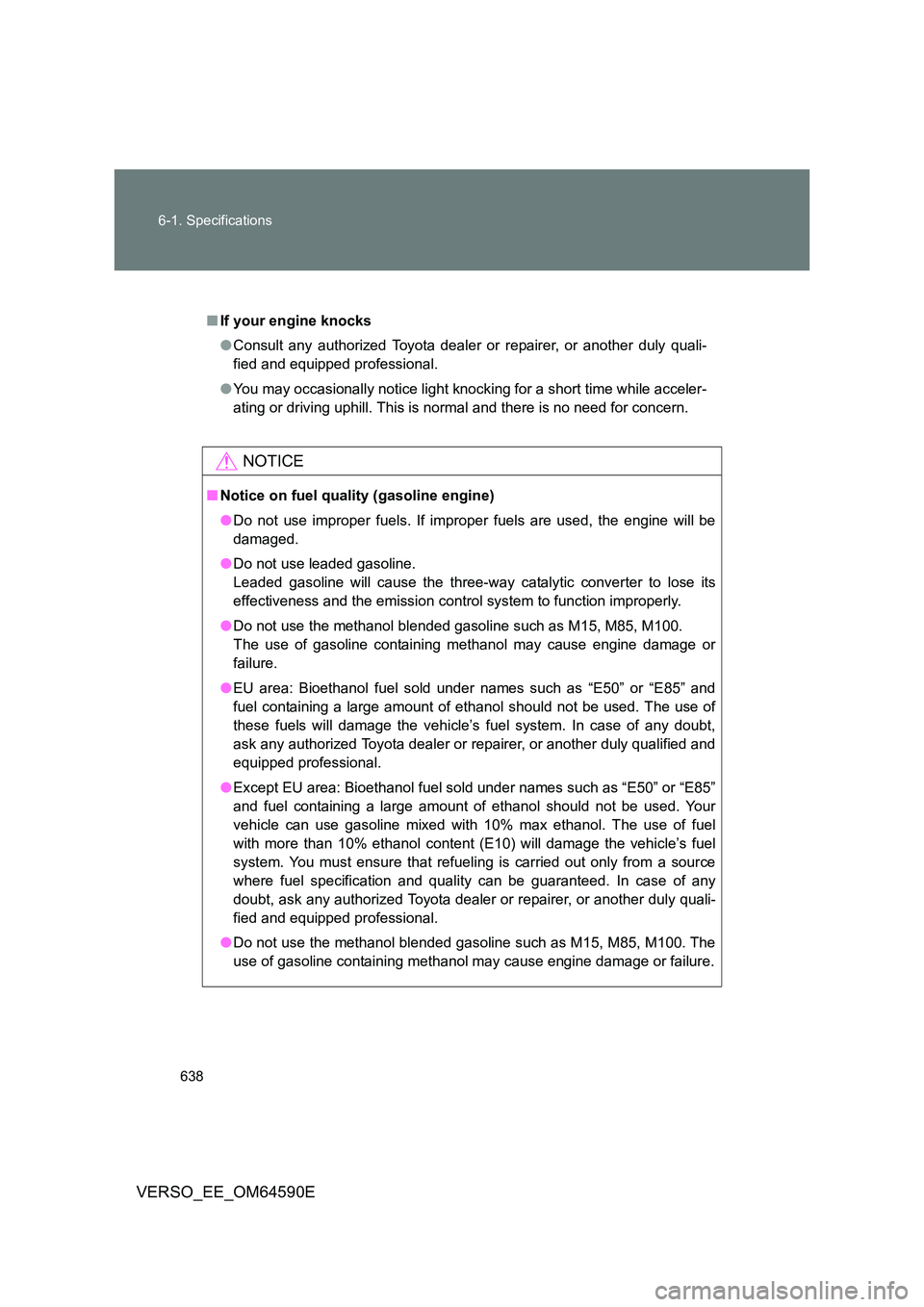

■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on fuel quality (gasoline engine)
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.
Page 639 of 664

639
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64590E

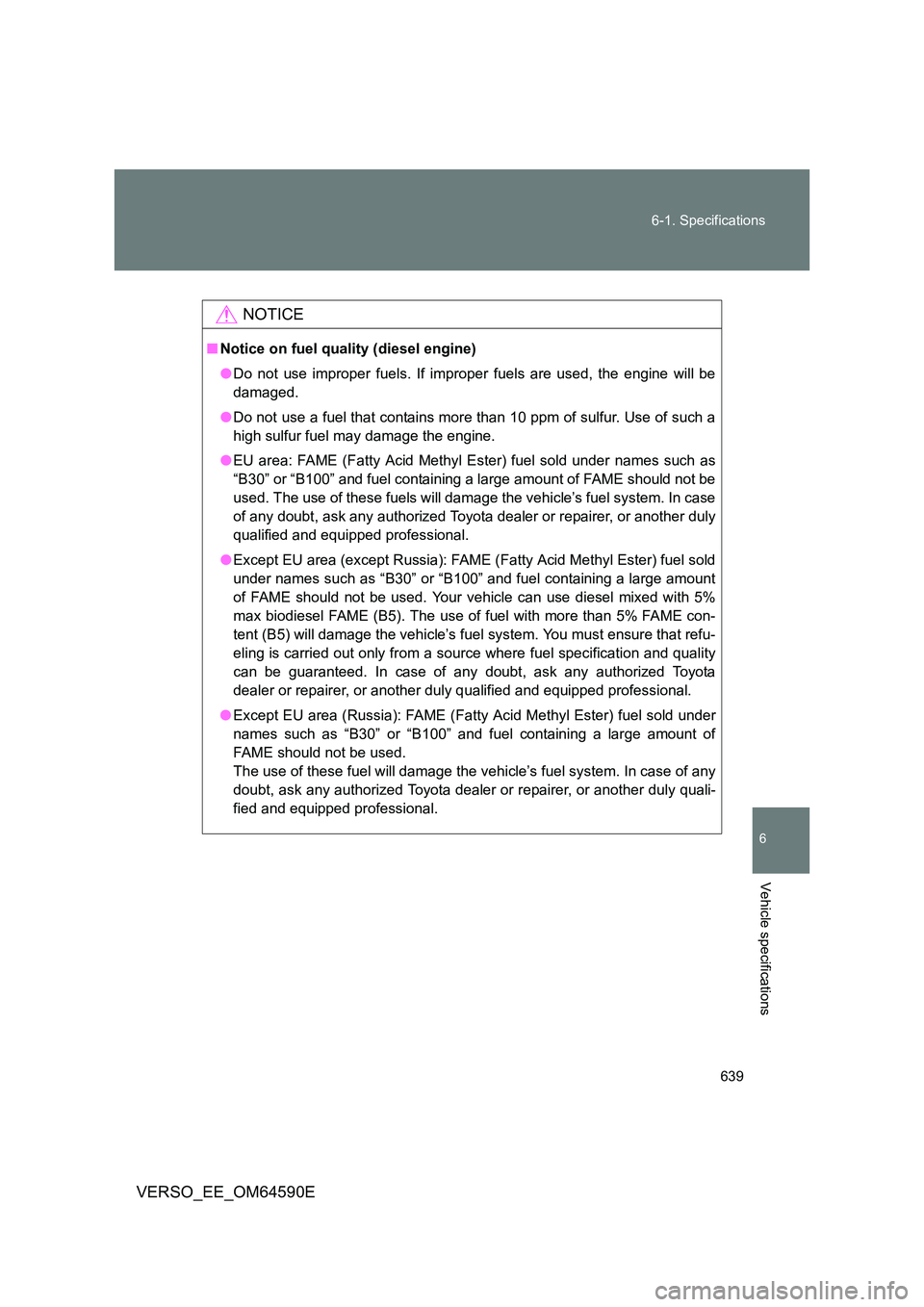

NOTICE
■ Notice on fuel quality (diesel engine)
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use a fuel that contains more than 10 ppm of sulfur. Use of such a
high sulfur fuel may damage the engine.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Except EU area (except Russia): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used.
The use of these fuel will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Page 640 of 664

640
VERSO_EE_OM64590E
6-2. Customization

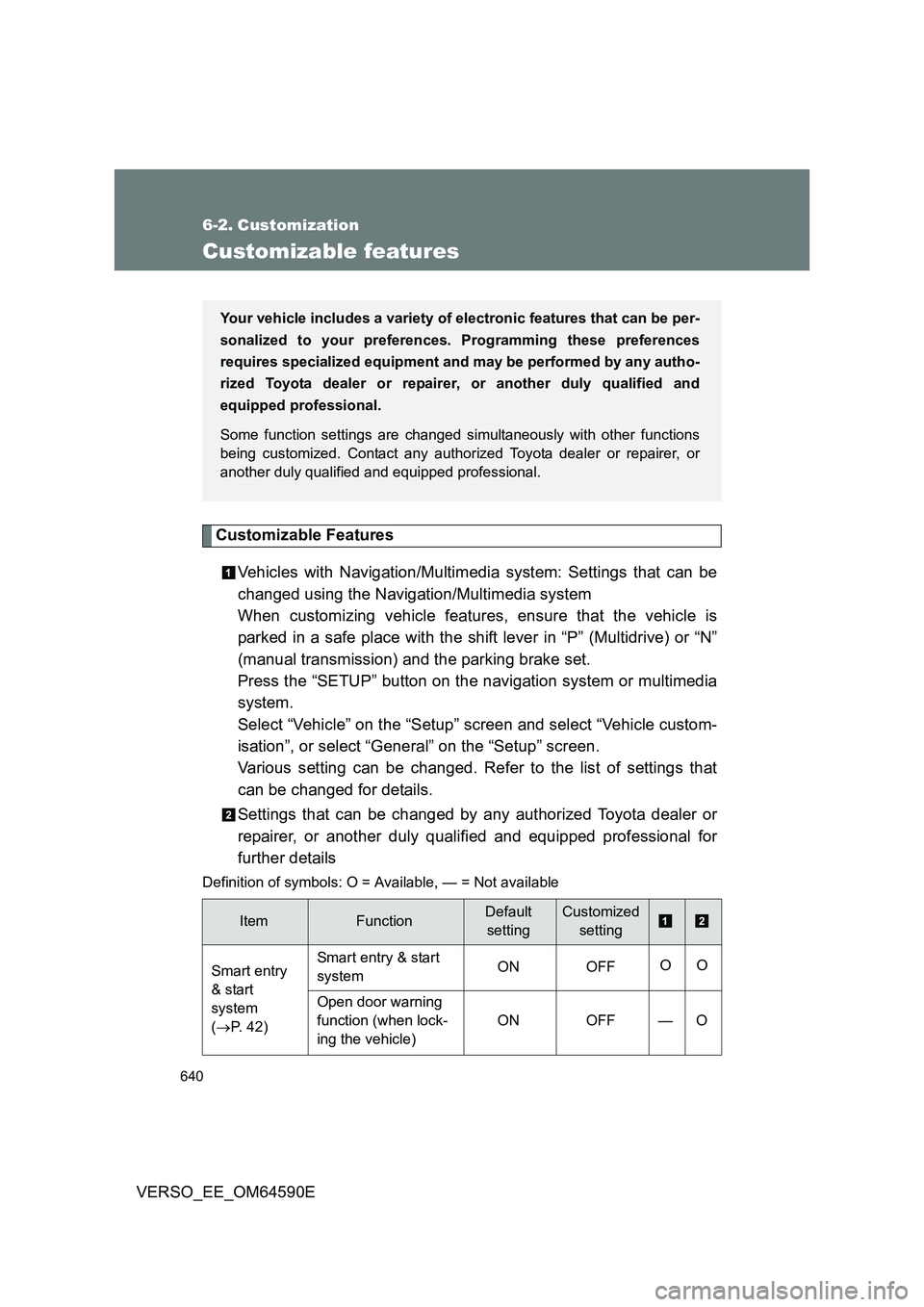

Customizable features
Customizable Features
Vehicles with Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
When customizing vehicle features, ensure that the vehicle is
parked in a safe place with the shift lever in “P” (Multidrive) or “N”
(manual transmission) and the parking brake set.
Press the “SETUP” button on the navigation system or multimedia
system.
Select “Vehicle” on the “Setup” screen and select “Vehicle custom-
isation”, or select “General” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that
can be changed for details.
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
further details
Definition of symbols: O = Av ailable, — = Not available
ItemFunctionDefault
setting
Customized
setting
Smart entry
& start
system
( P. 42)
Smart entry & start
system ON OFF OO
Open door warning
function (when lock-
ing the vehicle)
ON OFF — O
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
