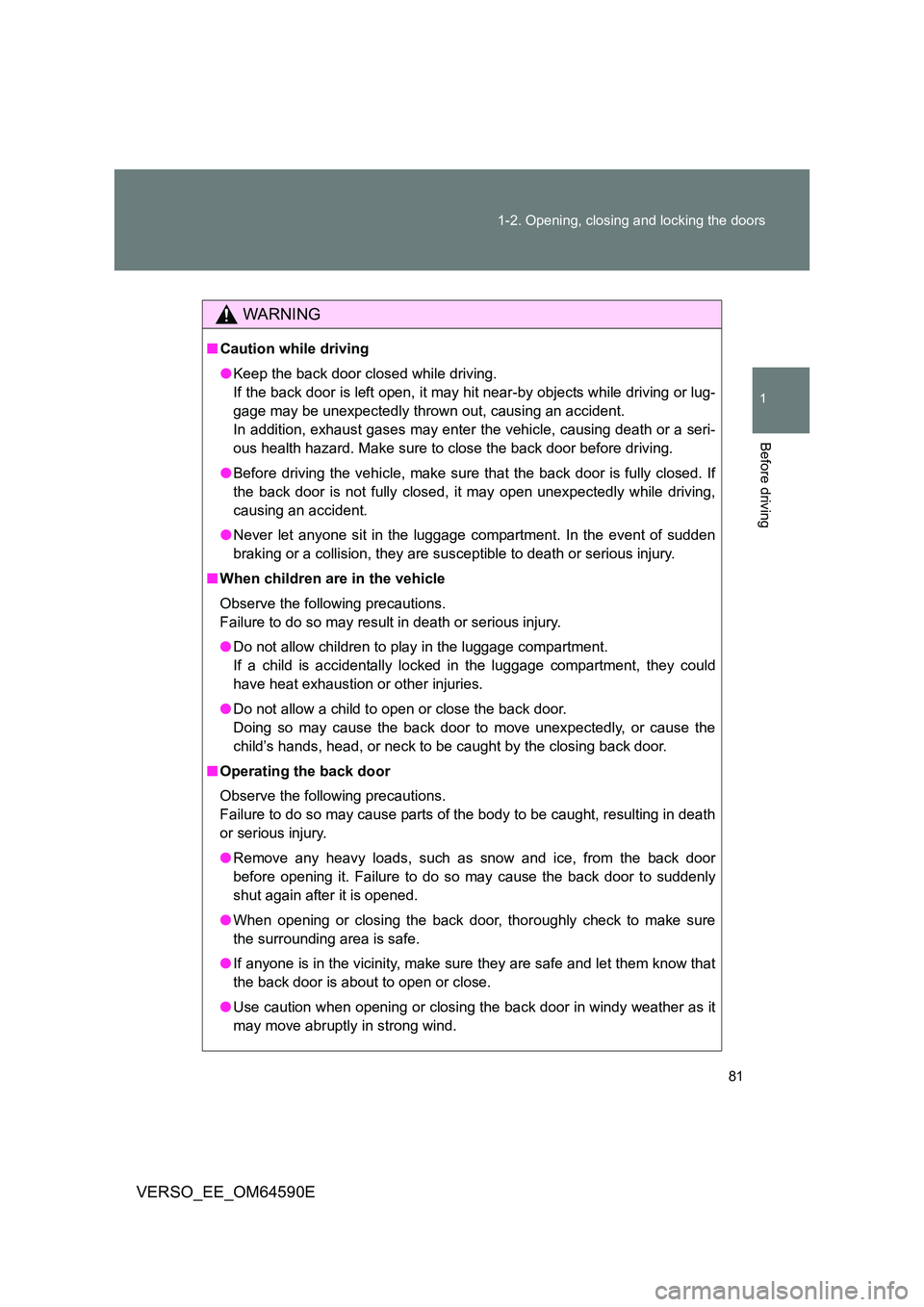

81
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E
WARNING
■ Caution while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

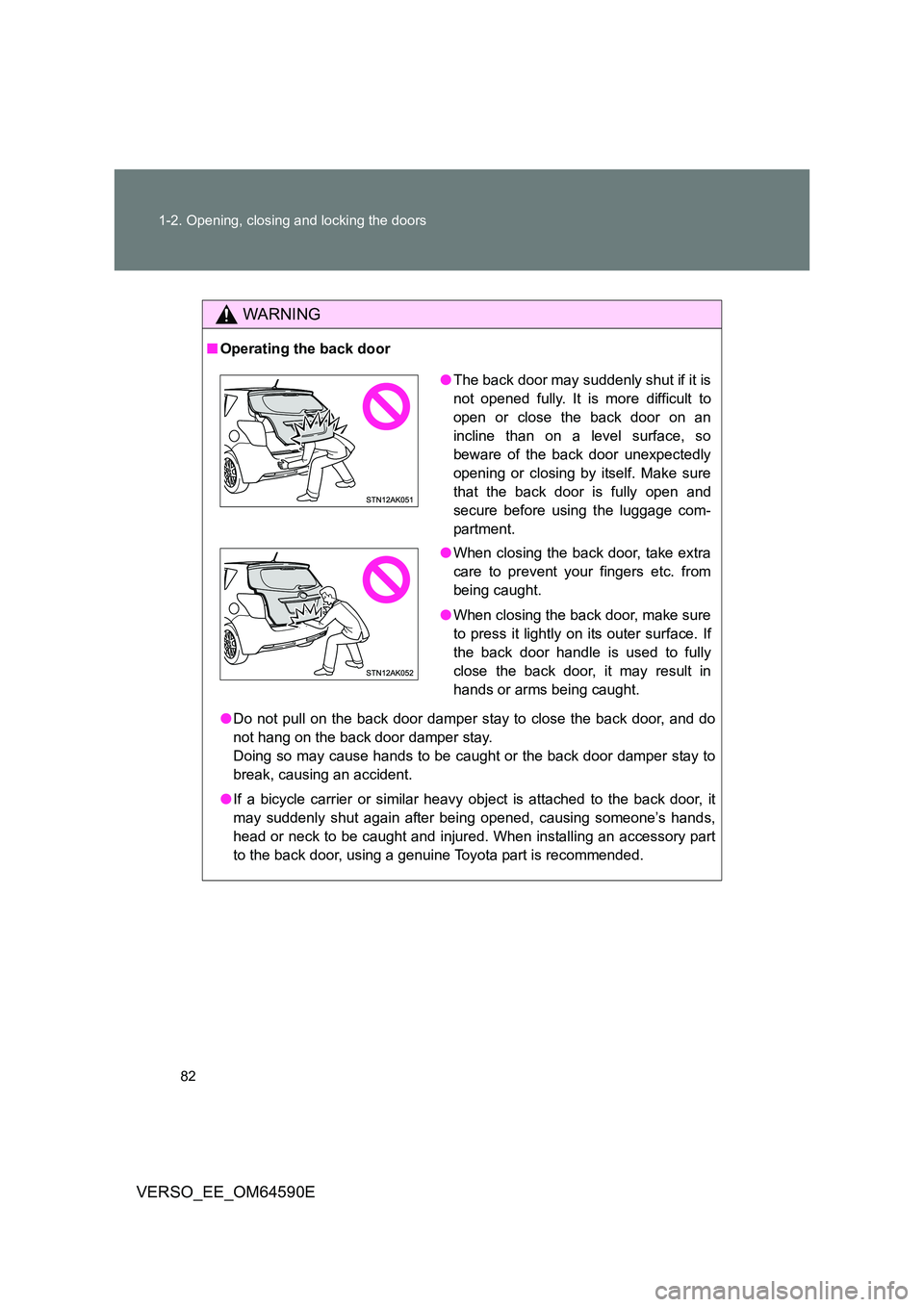

82
1-2. Opening, closing and locking the doors
VERSO_EE_OM64590E
WARNING
■ Operating the back door
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
● The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

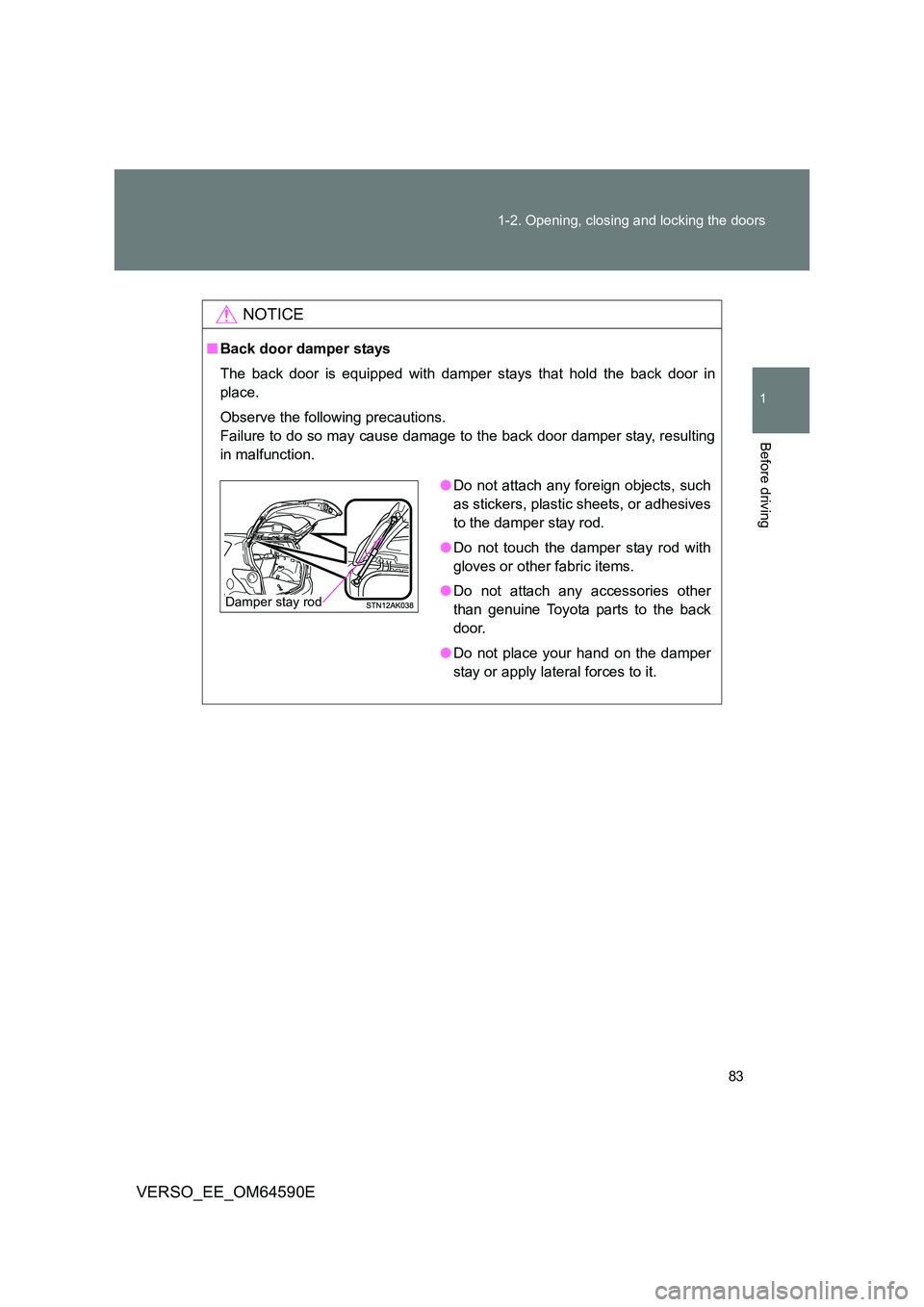

83
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64590E
NOTICE
■ Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay rod

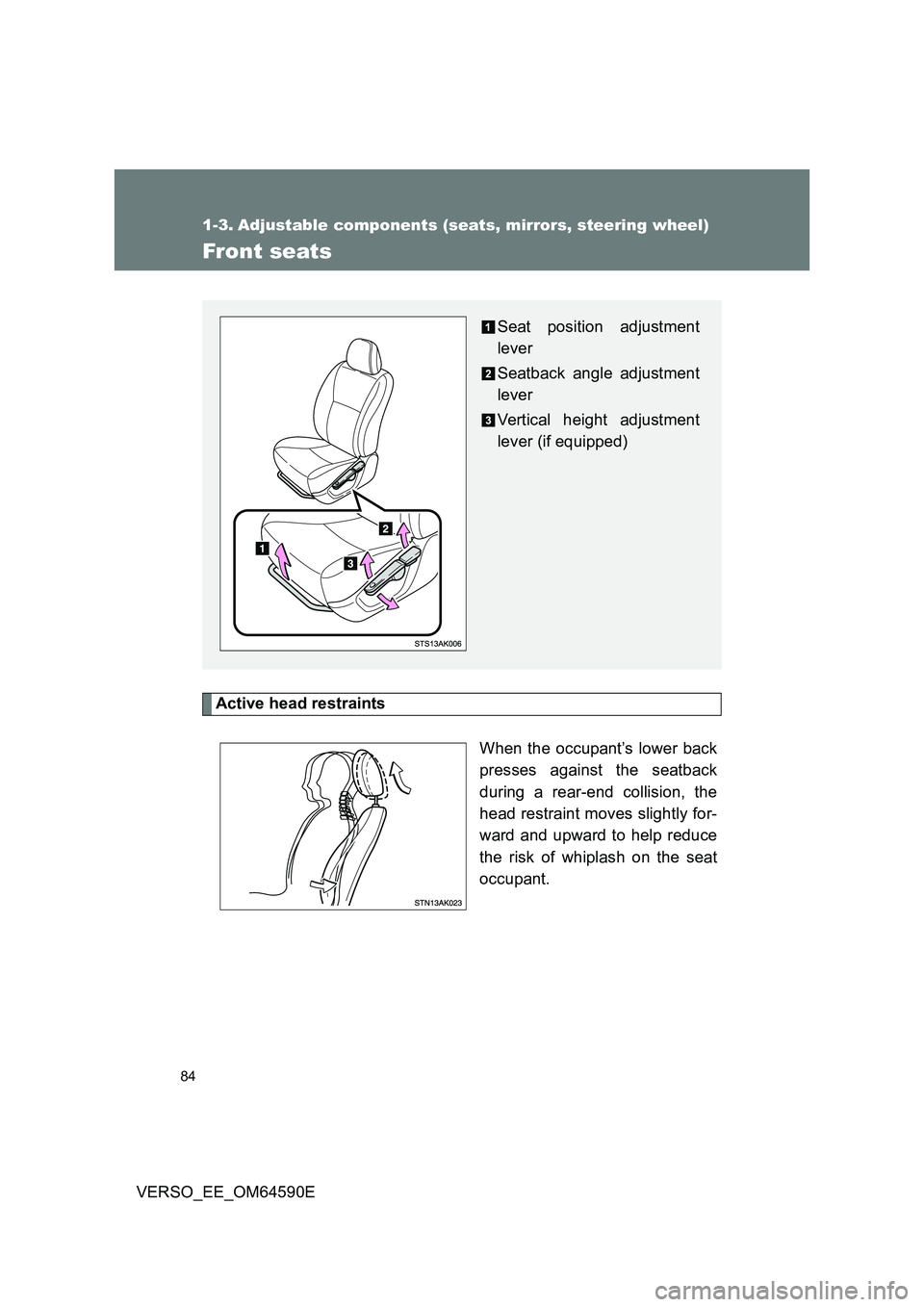

84
VERSO_EE_OM64590E
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Active head restraints
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (if equipped)

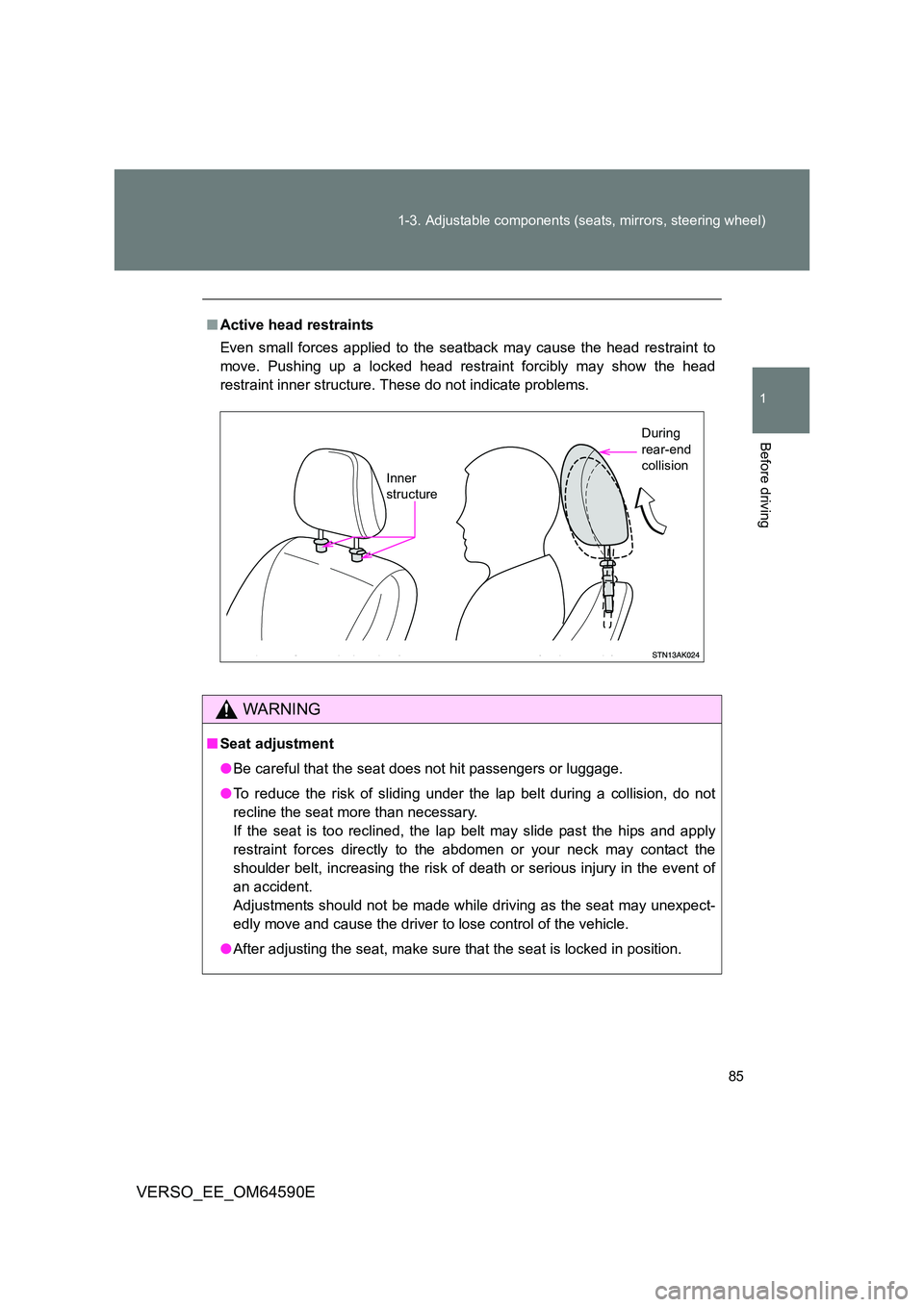

85
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64590E
■ Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may show the head
restraint inner structure. These do not indicate problems.
WARNING
■ Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
Inner
structure
During
rear-end
collision

86
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64590E

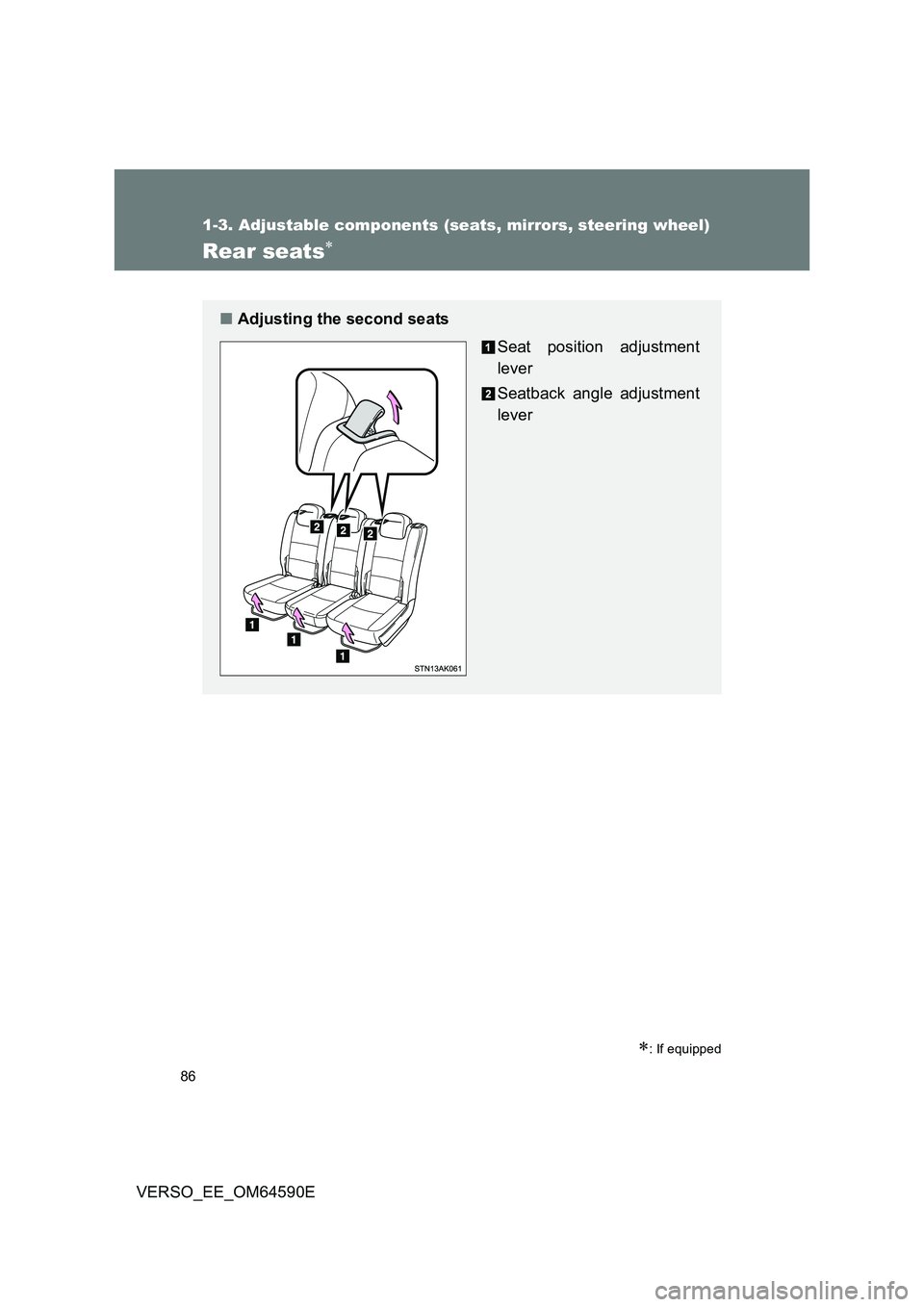

Rear seats
: If equipped
■Adjusting the second seats
Seat position adjustment
lever
Seatback angle adjustment
lever

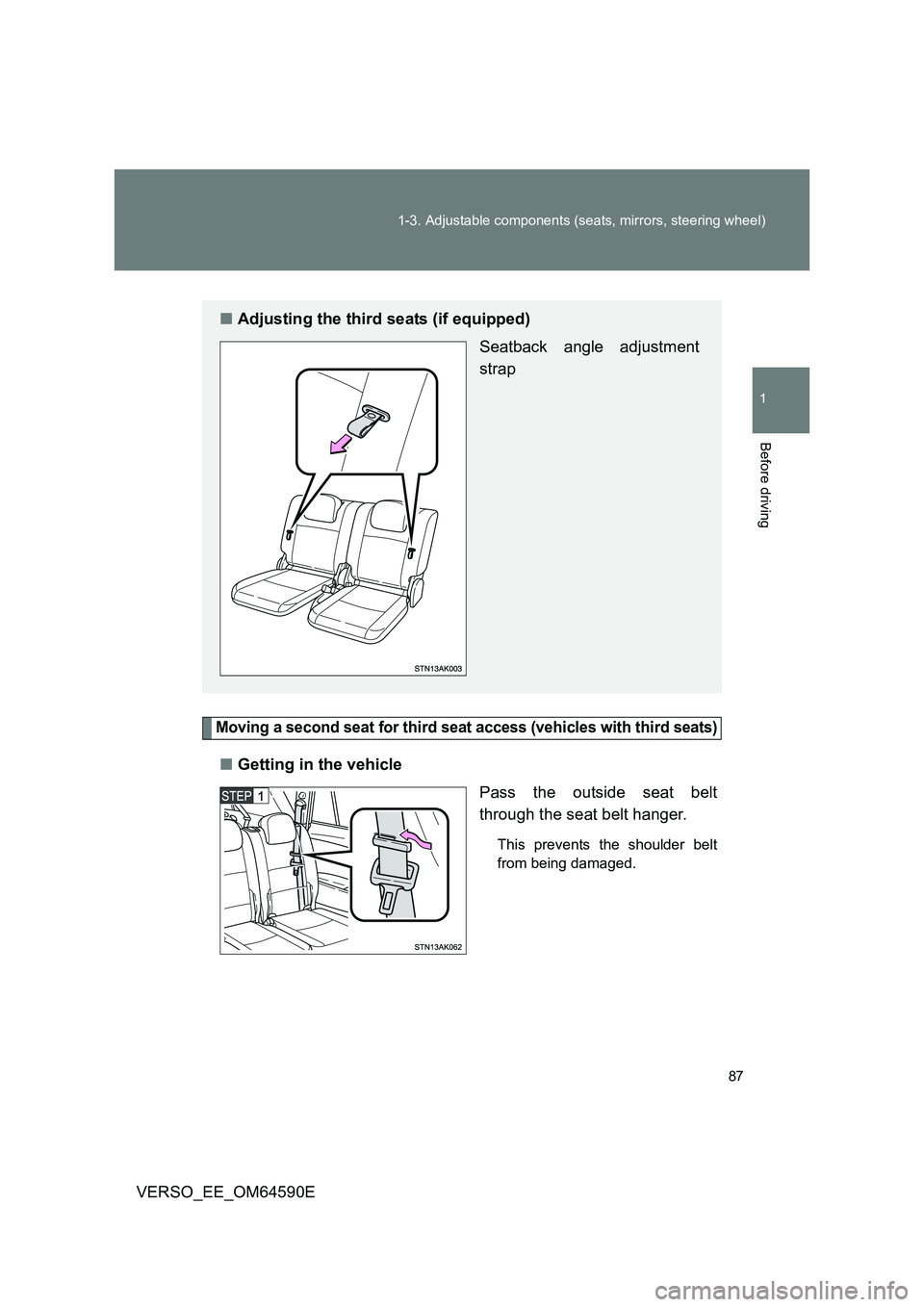

87
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64590E
Moving a second seat for third seat access (vehicles with third seats)
■ Getting in the vehicle
Pass the outside seat belt
through the seat belt hanger.
This prevents the shoulder belt
from being damaged.
■ Adjusting the third seats (if equipped)
Seatback angle adjustment
strap

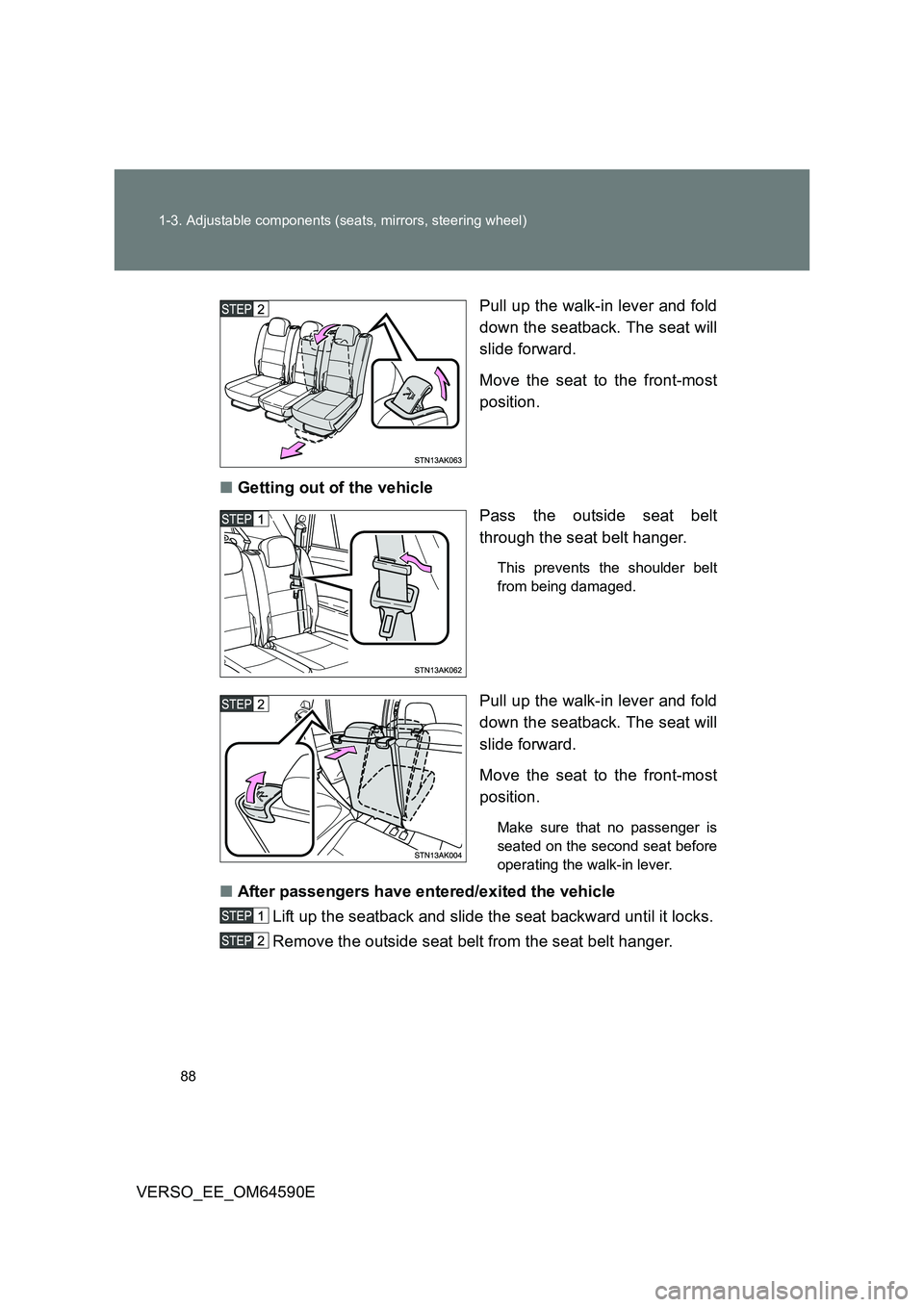

88
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64590E
Pull up the walk-in lever and fold
down the seatback. The seat will
slide forward.
Move the seat to the front-most
position.
■ Getting out of the vehicle
Pass the outside seat belt
through the seat belt hanger.
This prevents the shoulder belt
from being damaged.
Pull up the walk-in lever and fold
down the seatback. The seat will
slide forward.
Move the seat to the front-most
position.
Make sure that no passenger is
seated on the second seat before
operating the walk-in lever.
■ After passengers have entered/exited the vehicle
Lift up the seatback and slide the seat backward until it locks.
Remove the outside seat belt from the seat belt hanger.

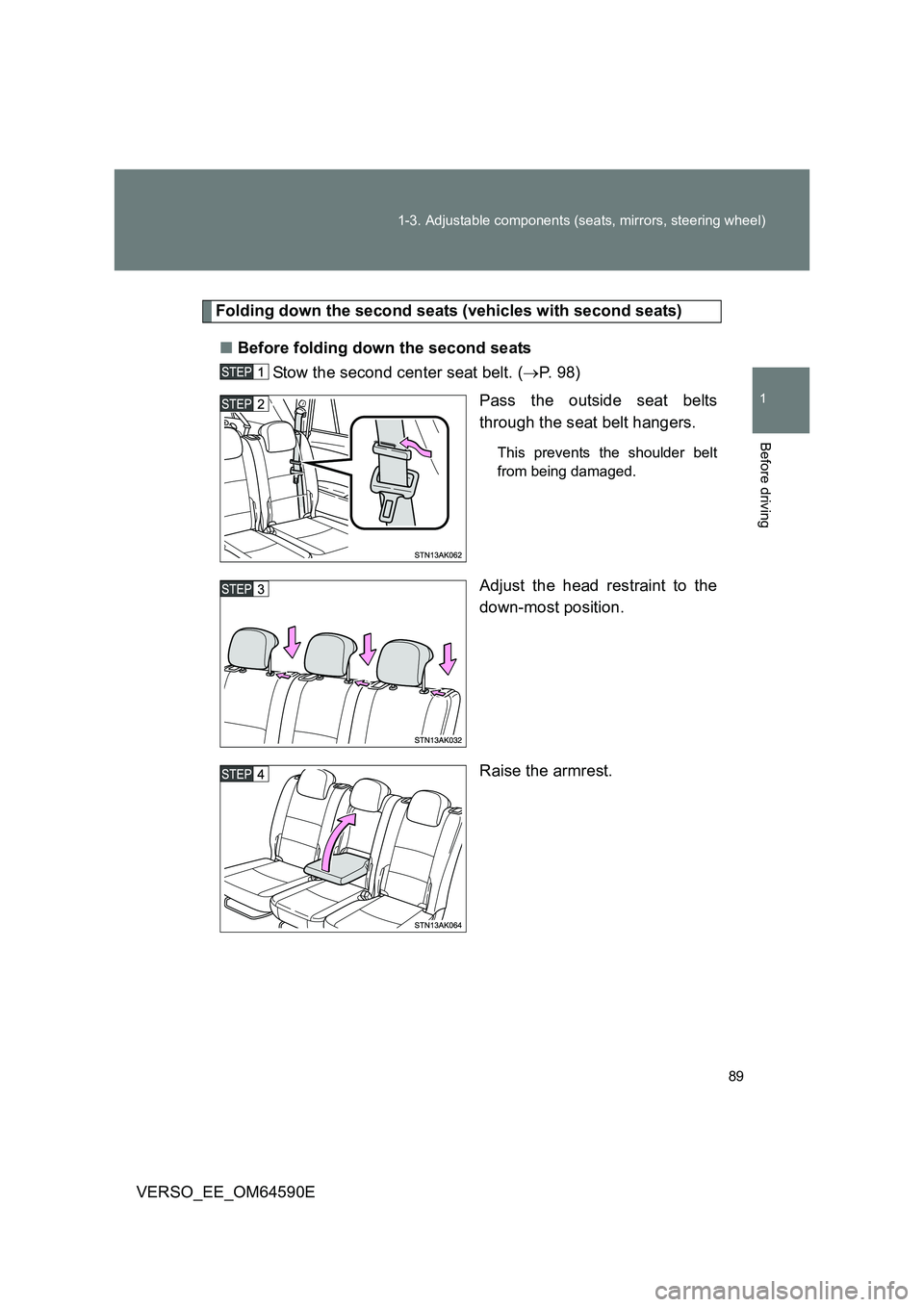

89
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64590E
Folding down the second seats (vehicles with second seats)
■ Before folding down the second seats
Stow the second center seat belt. ( P. 9 8 )
Pass the outside seat belts
through the seat belt hangers.
This prevents the shoulder belt
from being damaged.
Adjust the head restraint to the
down-most position.
Raise the armrest.

90
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64590E

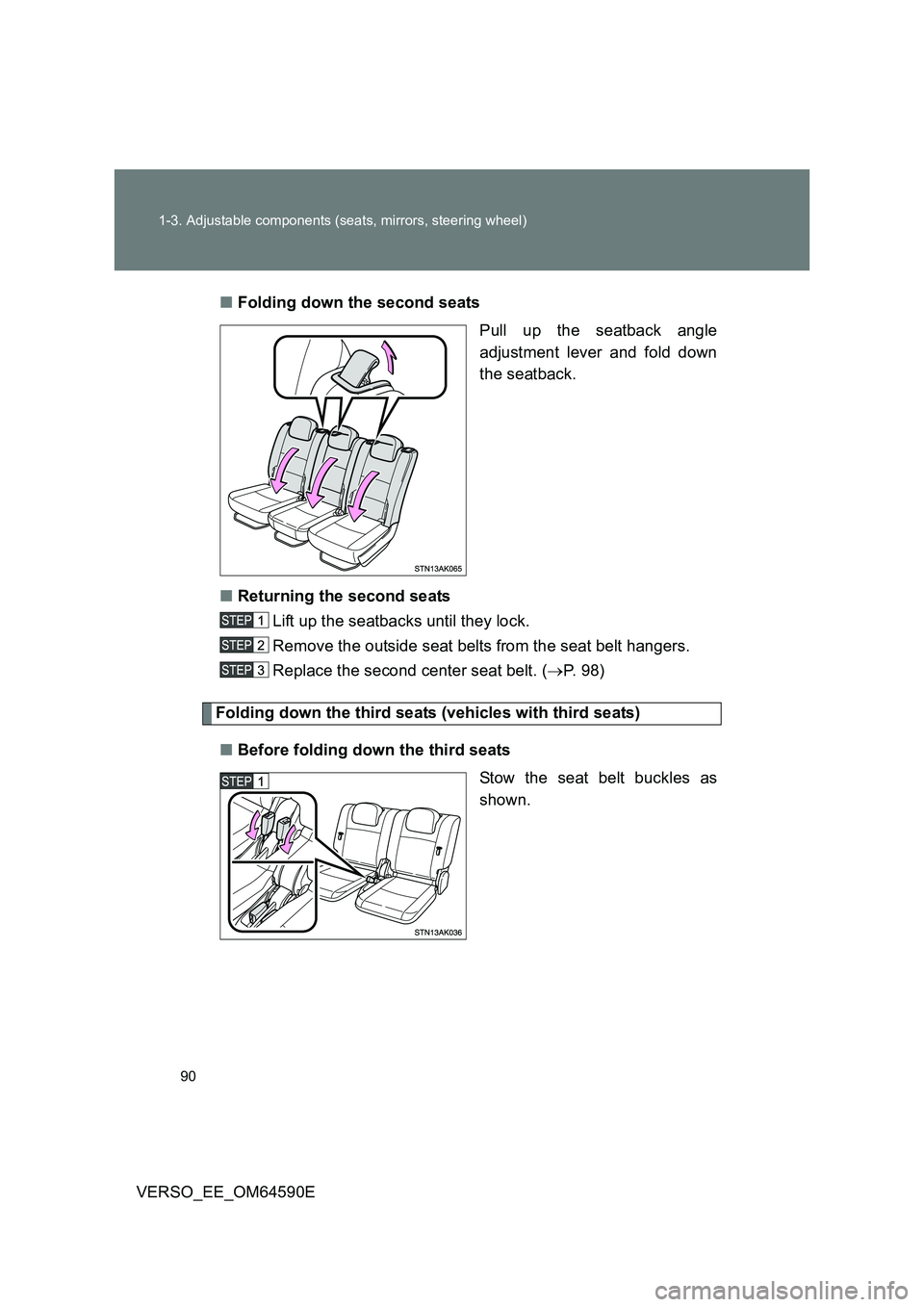

■ Folding down the second seats
Pull up the seatback angle
adjustment lever and fold down
the seatback.
■ Returning the second seats
Lift up the seatbacks until they lock.
Remove the outside seat belts from the seat belt hangers.
Replace the second center seat belt. ( P. 9 8 )
Folding down the third seats (vehicles with third seats)
■ Before folding down the third seats
Stow the seat belt buckles as
shown.
