TOYOTA VERSO 2017 Owners Manual

641
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

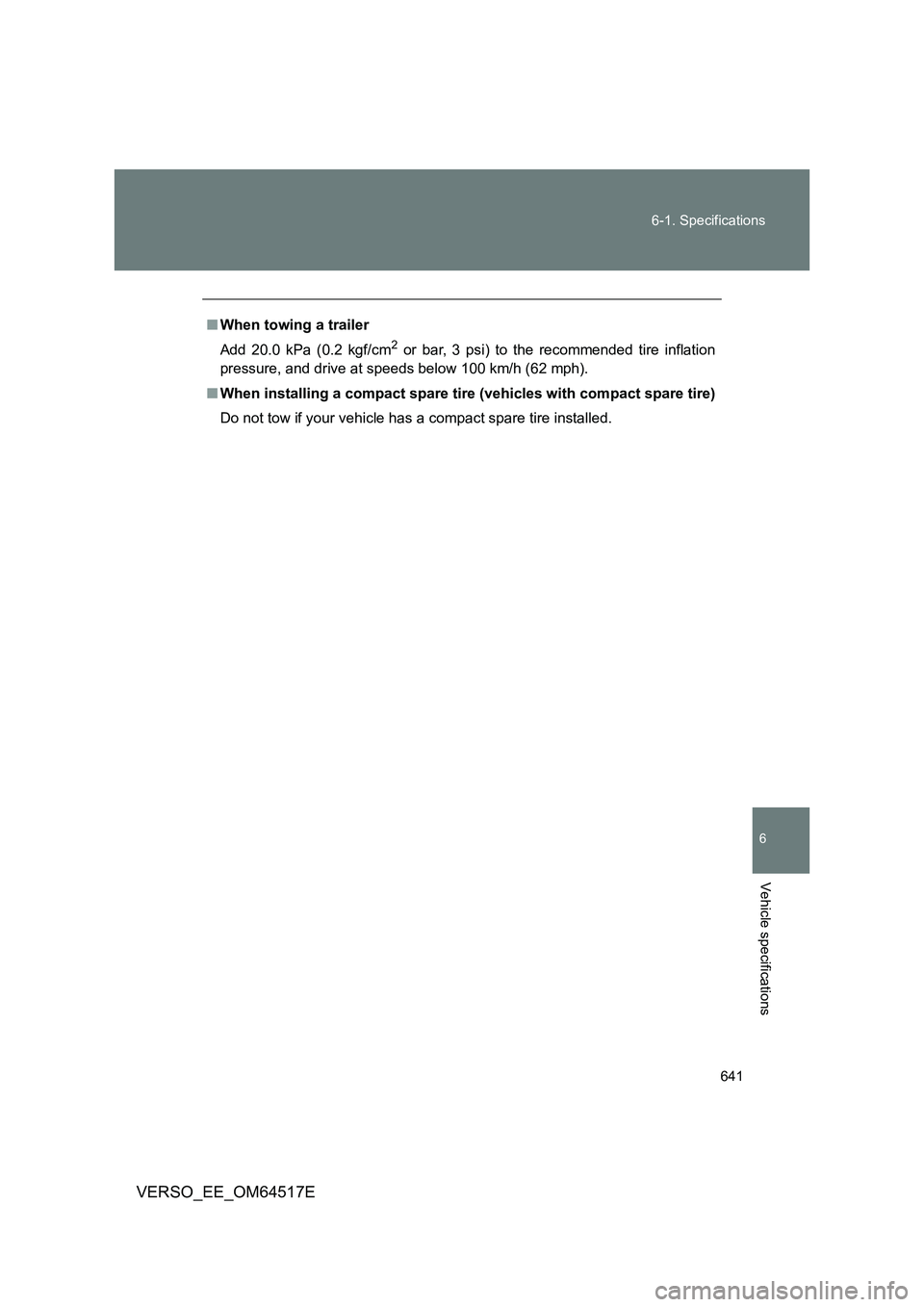

■ When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
■ When installing a compact spare tire (vehicles with compact spare tire)
Do not tow if your vehicle has a compact spare tire installed.

642
6-1. Specifications
VERSO_EE_OM64517E

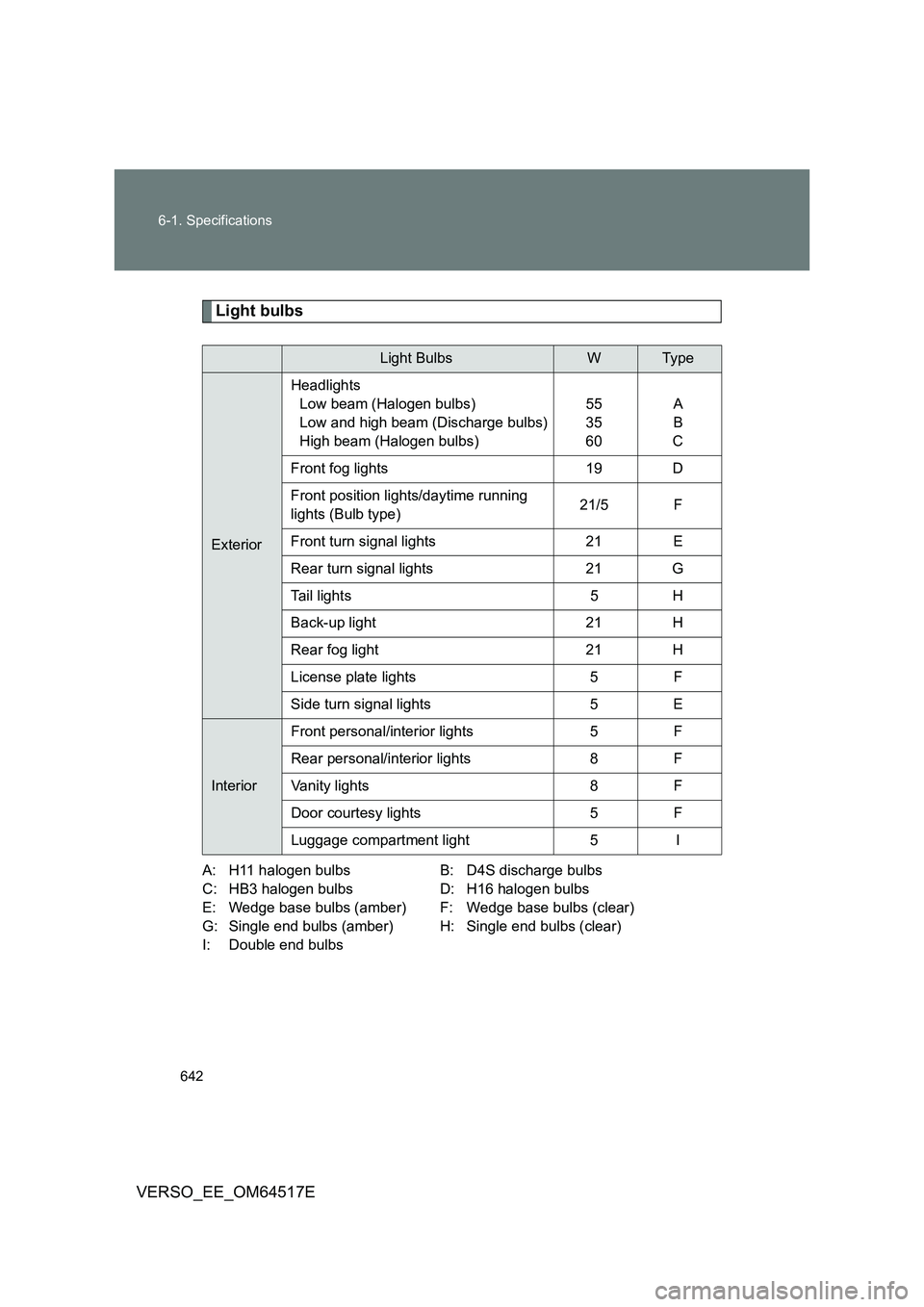

Light bulbs
A: H11 halogen bulbs B: D4S discharge bulbs
C: HB3 halogen bulbs D: H16 halogen bulbs
E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWTy p e
Exterior
Headlights
Low beam (Halogen bulbs)
Low and high beam (Discharge bulbs)
High beam (Halogen bulbs)
55
35
60
A
B
C
Front fog lights 19 D
Front position lights/daytime running
lights (Bulb type) 21/5 F
Front turn signal lights 21 E
Rear turn signal lights 21 G
Tail lights 5 H
Back-up light 21 H
Rear fog light 21 H
License plate lights 5 F
Side turn signal lights 5 E
Interior
Front personal/interior lights 5 F
Rear personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 F
Luggage compartment light 5 I

643
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E
Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulphur diesel fuel may not be avai lable, so please check the availability
with your distributor.
Gasoline engine
EU area:
You must only use unleaded gasoline
conforming to European standard
EN228.
Select unleaded gasoline with a
Research Octane Number of 95 or
higher for optimum engine perfor-
mance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a
Research Octane Number of 95 or
higher for optimum engine perfor-
mance.
Diesel engine
EU area:
You must only use diesel fuel conform-
ing to European standard EN590.
Except EU area (except Russia):
You must only use diesel fuel that con-
tains 10 ppm or less of sulfur and has a
cetane number of 48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a
cetane number of 48 or higher.
Your vehicle must use only diesel fuel
confirming to GOST R52368-2005
(Sulfur max 50ppm).

644
6-1. Specifications
VERSO_EE_OM64517E

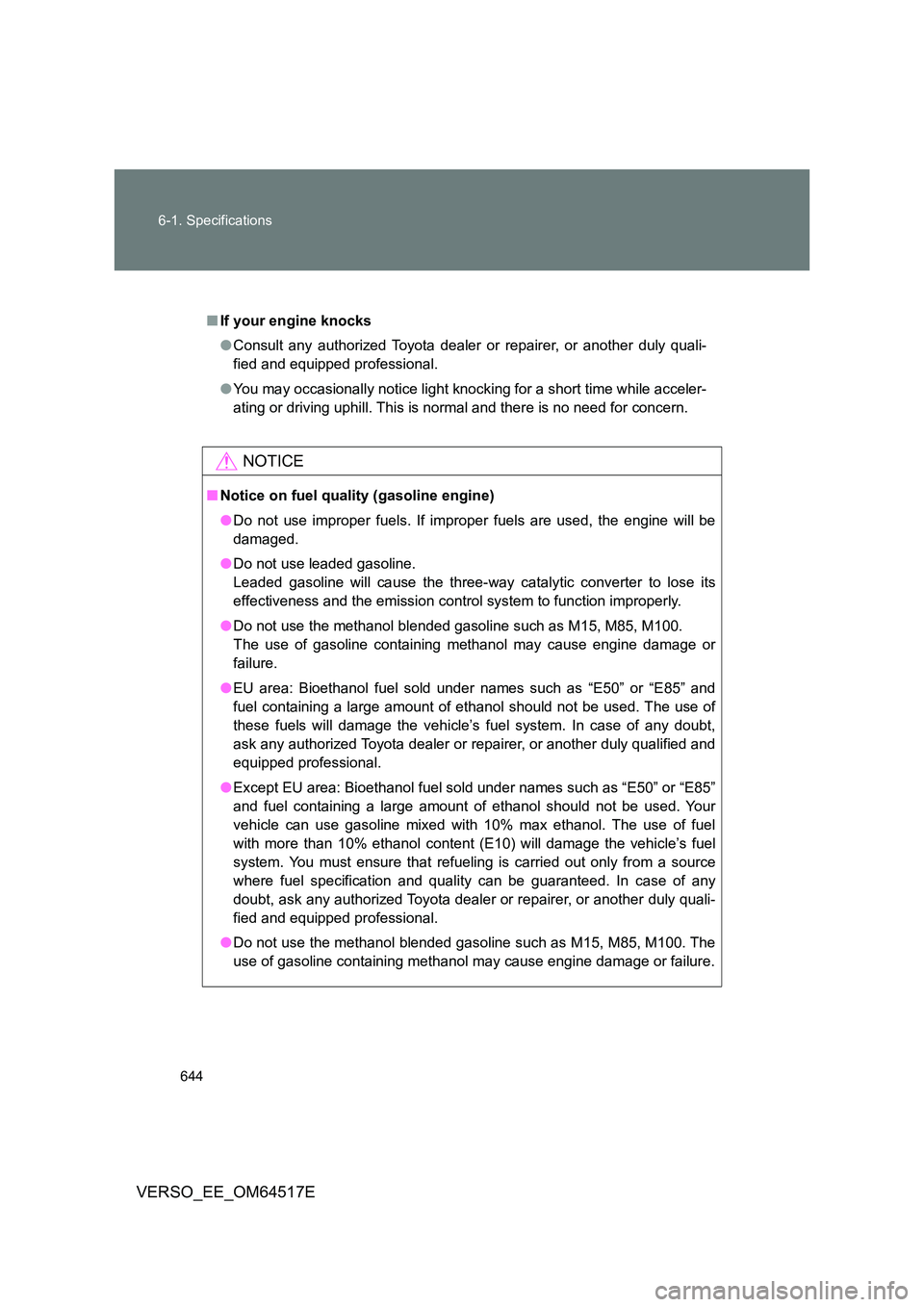

■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on fuel quality (gasoline engine)
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.

645
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E
NOTICE
■ Notice on fuel quality (diesel engine)
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use a fuel that contains more than 10 ppm of sulfur. Use of such a
high sulfur fuel may damage the engine.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Except EU area (except Russia): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your v ehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used.
The use of these fuel will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.

646
VERSO_EE_OM64517E

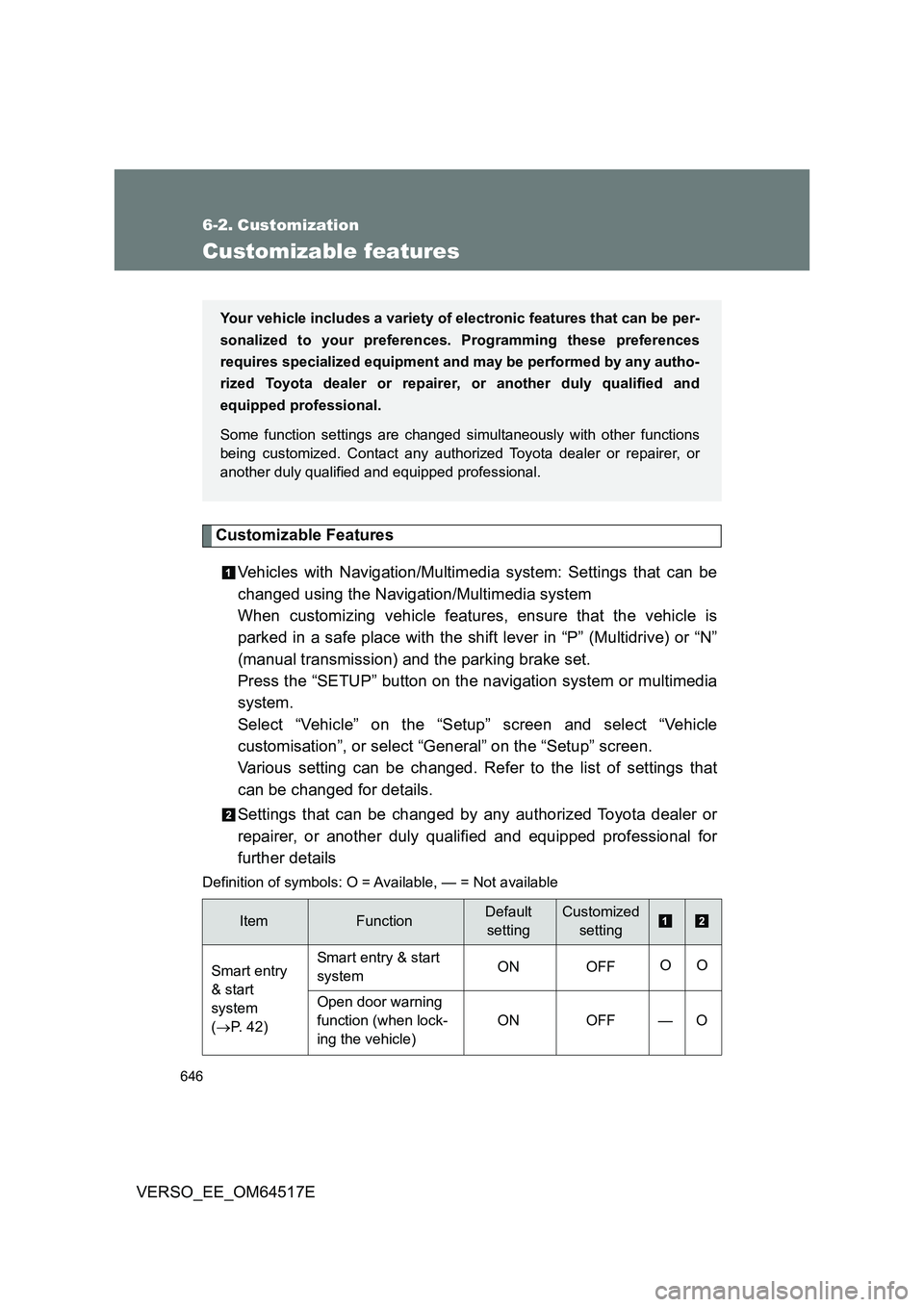

6-2. Customization
Customizable features
Customizable Features
Vehicles with Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
When customizing vehicle features, ensure that the vehicle is
parked in a safe place with the shift lever in “P” (Multidrive) or “N”
(manual transmission) and the parking brake set.
Press the “SETUP” button on the navigation system or multimedia
system.
Select “Vehicle” on the “Setup” screen and select “Vehicle
customisation”, or select “General” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that
can be changed for details.
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
further details
Definition of symbols: O = Av ailable, — = Not available
ItemFunctionDefault
setting
Customized
setting
Smart entry
& start
system
( P. 42)
Smart entry & start
system ON OFF OO
Open door warning
function (when lock-
ing the vehicle)
ON OFF — O
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

647
6-2. Customization
6
Vehicle specifications
VERSO_EE_OM64517E

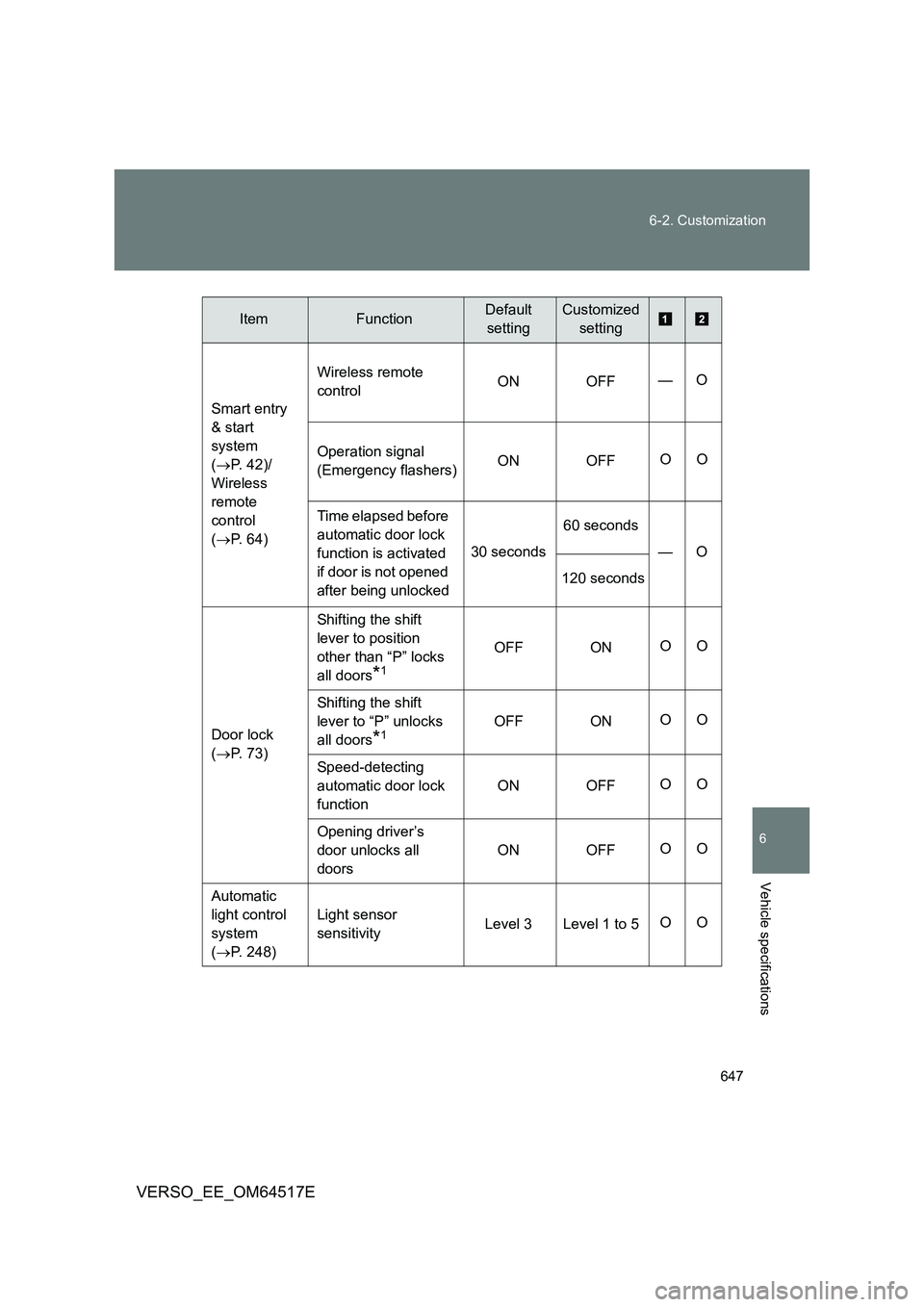

Smart entry
& start
system
( P. 42)/
Wireless
remote
control
( P. 64)
Wireless remote
control ON OFF —O
Operation signal
(Emergency flashers) ON OFF OO
Time elapsed before
automatic door lock
function is activated
if door is not opened
after being unlocked
30 seconds
60 seconds
—O
120 seconds
Door lock
( P. 73)
Shifting the shift
lever to position
other than “P” locks
all doors*1
OFF ON OO
Shifting the shift
lever to “P” unlocks
all doors*1OFF ON OO
Speed-detecting
automatic door lock
function
ON OFF OO
Opening driver’s
door unlocks all
doors
ON OFF OO
Automatic
light control
system
( P. 248)
Light sensor
sensitivity Level 3 Level 1 to 5 OO
ItemFunctionDefault
setting
Customized
setting

648
6-2. Customization
VERSO_EE_OM64517E

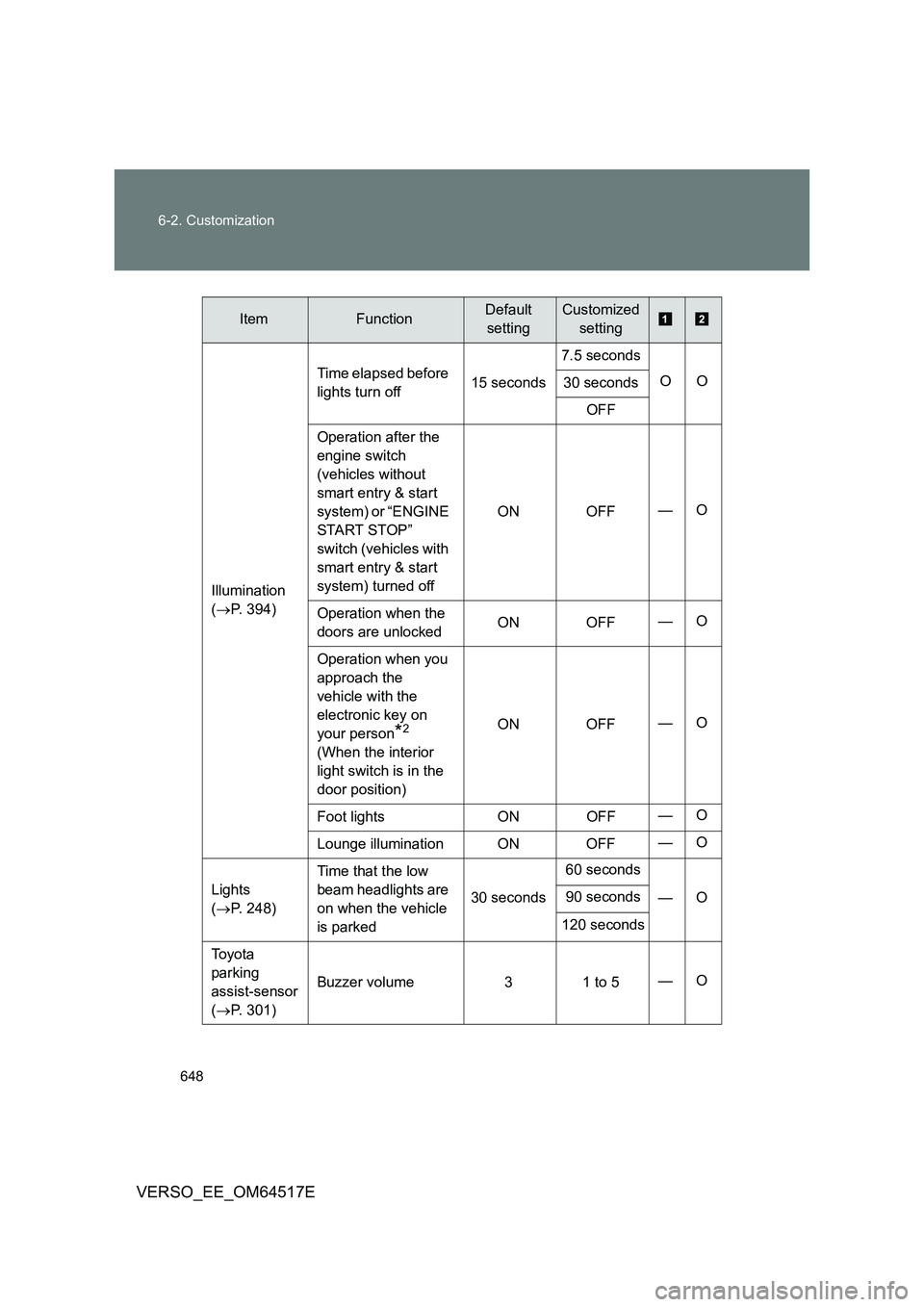

Illumination
( P. 394)
Time elapsed before
lights turn off 15 seconds
7.5 seconds
OO 30 seconds
OFF
Operation after the
engine switch
(vehicles without
smart entry & start
system) or “ENGINE
START STOP”
switch (vehicles with
smart entry & start
system) turned off
ON OFF —O
Operation when the
doors are unlocked ON OFF —O
Operation when you
approach the
vehicle with the
electronic key on
your person*2
(When the interior
light switch is in the
door position)
ON OFF —O
Foot lights ON OFF —O
Lounge illumination ON OFF —O
Lights
( P. 248)
Time that the low
beam headlights are
on when the vehicle
is parked
30 seconds
60 seconds
—O 90 seconds
120 seconds
To y o t a
parking
assist-sensor
( P. 301)
Buzzer volume 3 1 to 5 —O
ItemFunctionDefault
setting
Customized
setting

649

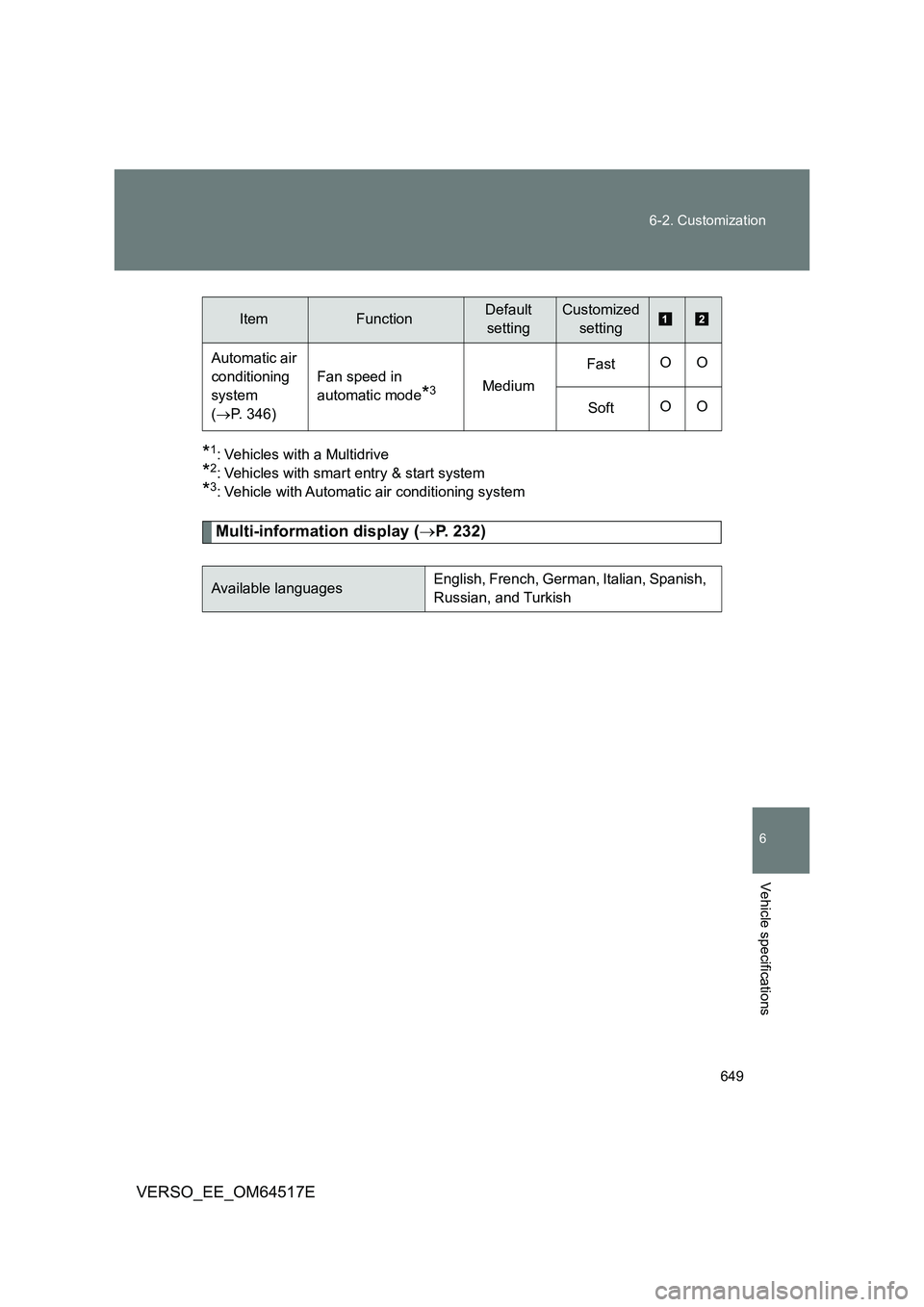

6-2. Customization
6
Vehicle specifications
VERSO_EE_OM64517E
*1: Vehicles with a Multidrive
*2: Vehicles with smart entry & start system
*3: Vehicle with Automati c air conditioning system
Multi-information display (P. 232)
Automatic air
conditioning
system
( P. 346)
Fan speed in
automatic mode*3Medium
Fast OO
Soft OO
Available languagesEnglish, French, German, Italian, Spanish,
Russian, and Turkish
ItemFunctionDefault
setting
Customized
setting

650
VERSO_EE_OM64517E

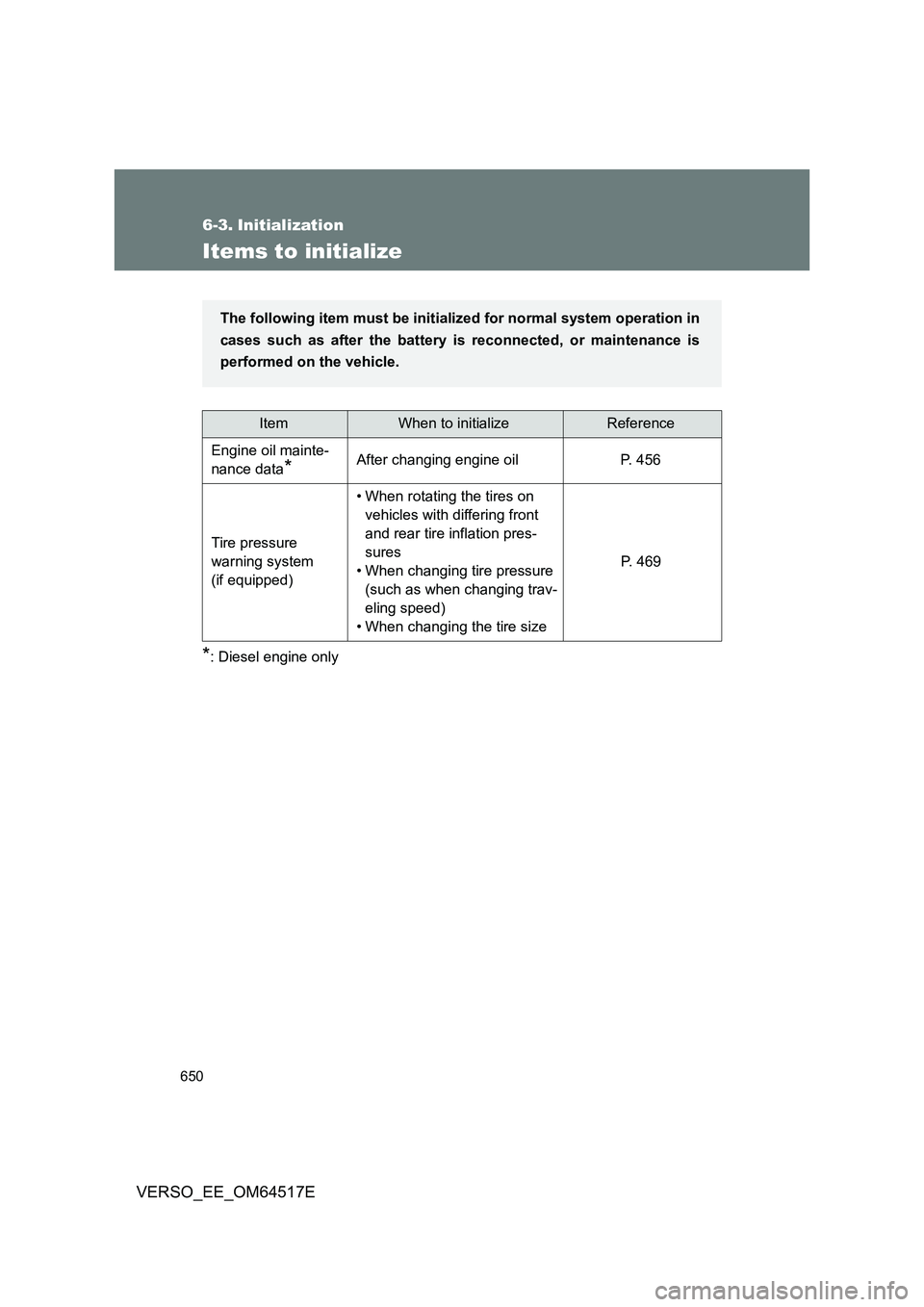

6-3. Initialization
Items to initialize
*: Diesel engine only
ItemWhen to initializeReference
Engine oil mainte-
nance data*After changing engine oil P. 456
Tire pressure
warning system
(if equipped)
• When rotating the tires on
vehicles with differing front
and rear tire inflation pres-
sures
• When changing tire pressure
(such as when changing trav-
eling speed)
• When changing the tire size
P. 469
The following item must be initia lized for normal system operation in
cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.
