6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

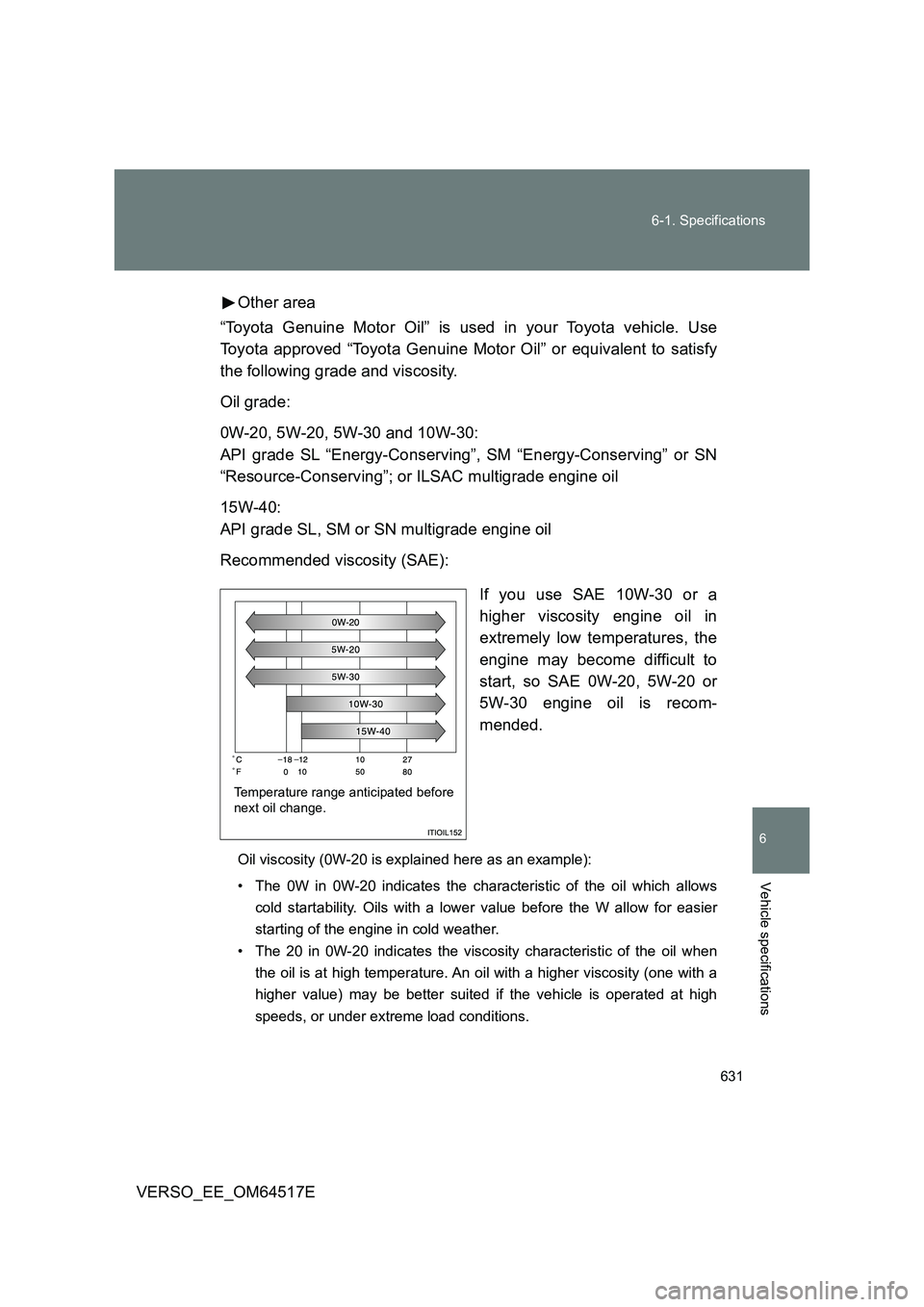

Other area
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.

632
6-1. Specifications
VERSO_EE_OM64517E

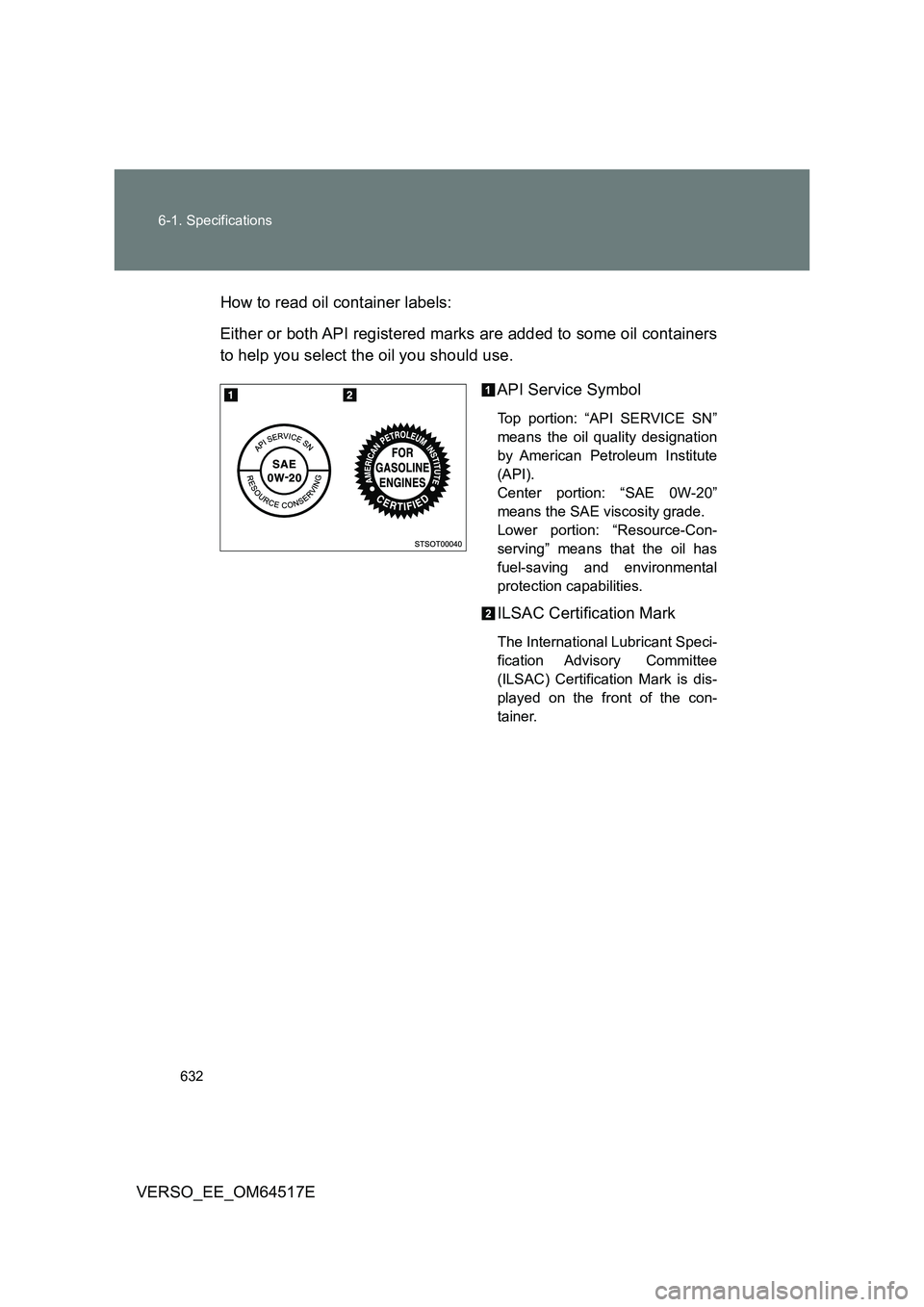

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.

633
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

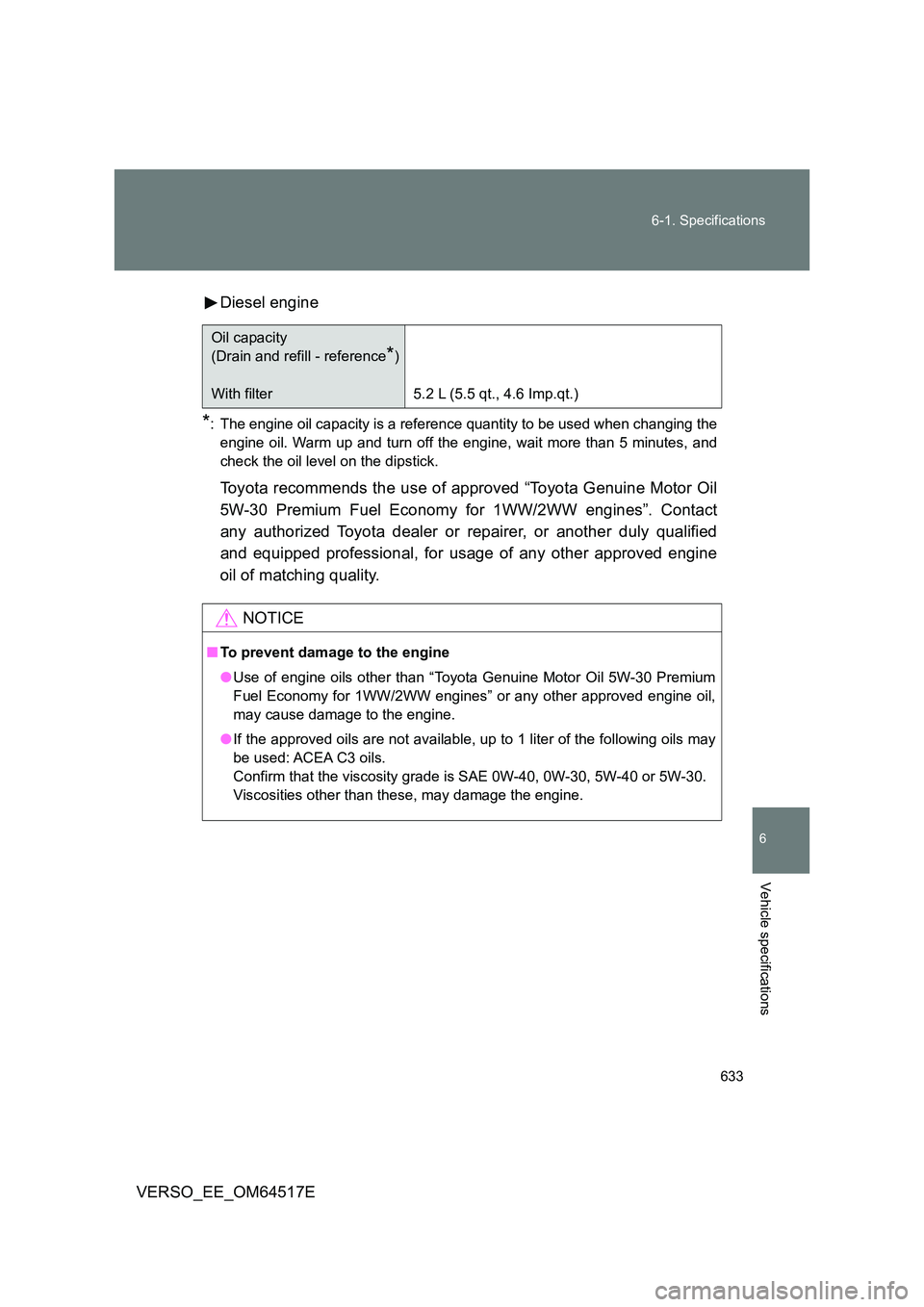

Diesel engine
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Toyota recommends the use of approved “Toyota Genuine Motor Oil
5W-30 Premium Fuel Economy for 1WW/2WW engines”. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for usage of any other approved engine
oil of matching quality.
Oil capacity
(Drain and refill - reference*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
NOTICE
■ To prevent damage to the engine
● Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
● If the approved oils are not available, up to 1 liter of the following oils may
be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.

634
6-1. Specifications
VERSO_EE_OM64517E

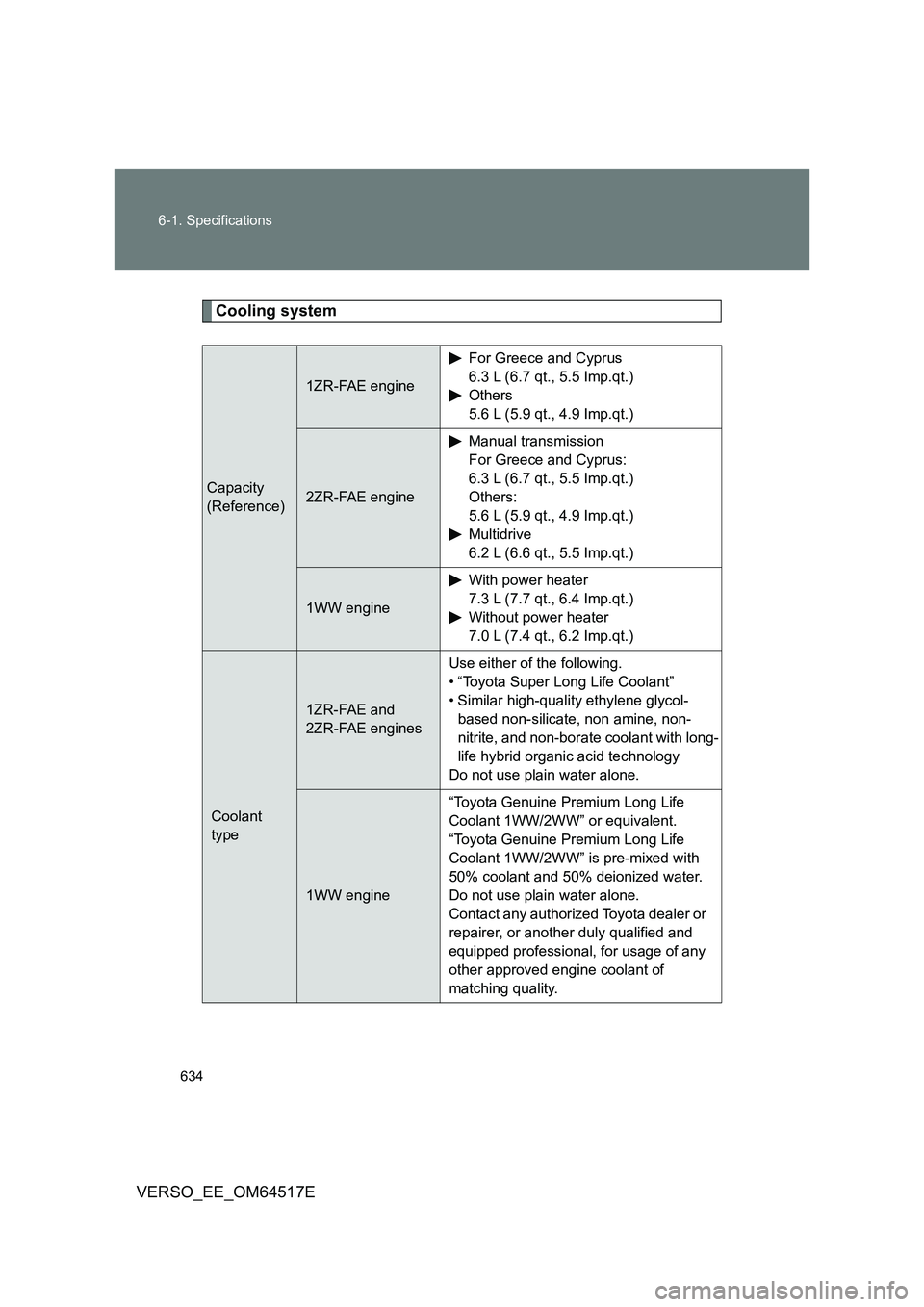

Cooling system
Capacity
(Reference)
1ZR-FAE engine
For Greece and Cyprus
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
2ZR-FAE engine
Manual transmission
For Greece and Cyprus:
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others:
5.6 L (5.9 qt., 4.9 Imp.qt.)
Multidrive
6.2 L (6.6 qt., 5.5 Imp.qt.)
1WW engine
With power heater
7.3 L (7.7 qt., 6.4 Imp.qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Coolant
type
1ZR-FAE and
2ZR-FAE engines
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
1WW engine
“Toyota Genuine Premium Long Life
Coolant 1WW/2WW” or equivalent.
“Toyota Genuine Premium Long Life
Coolant 1WW/2WW” is pre-mixed with
50% coolant and 50% deionized water.
Do not use plain water alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional, for usage of any
other approved engine coolant of
matching quality.

635
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

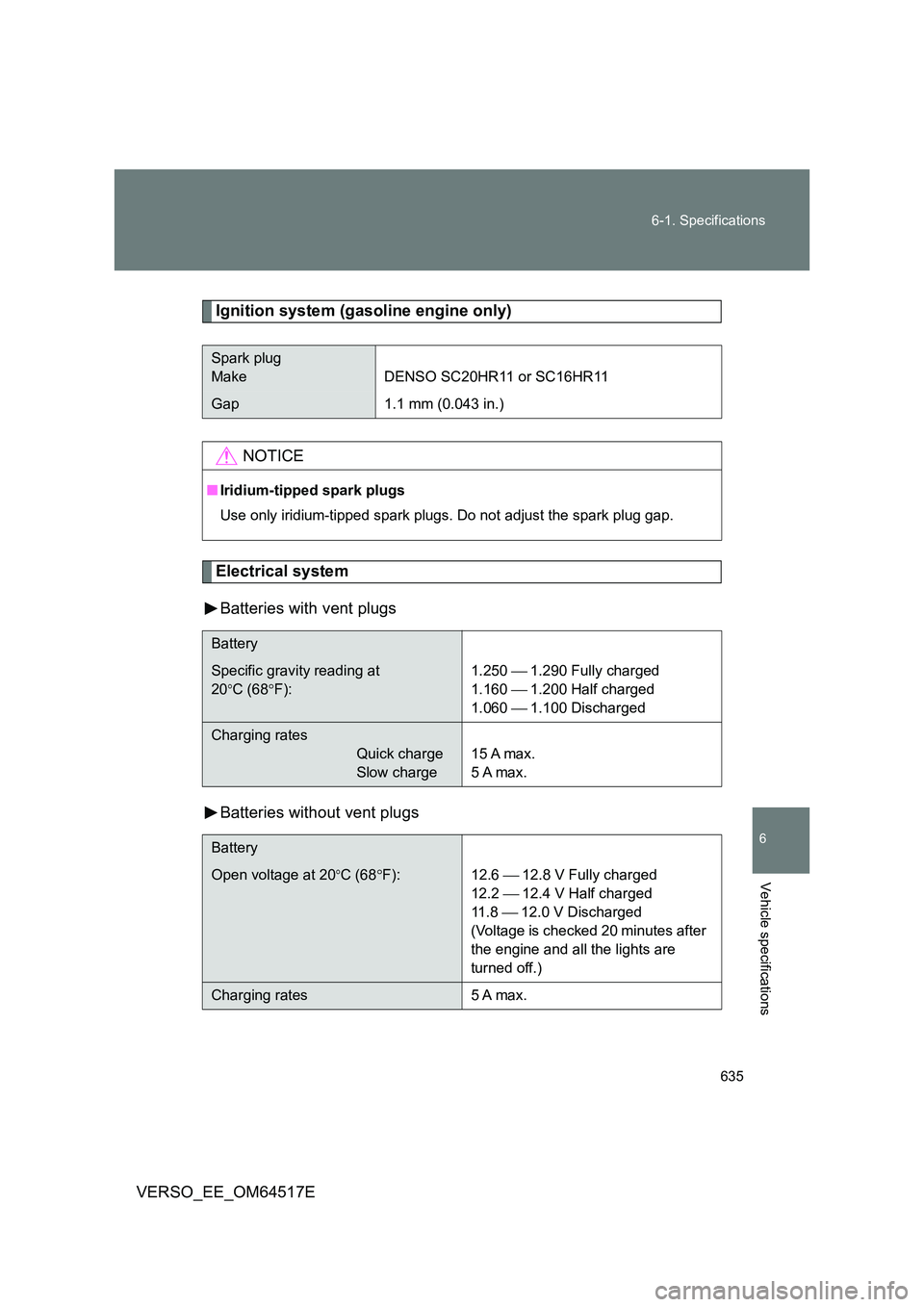

Ignition system (gasoline engine only)
Electrical system
Batteries with vent plugs
Batteries without vent plugs
Spark plug
Make DENSO SC20HR11 or SC16HR11
Gap 1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery
Specific gravity reading at
20C (68 F):
1.250 1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Battery
Open voltage at 20C (68 F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.

636
6-1. Specifications
VERSO_EE_OM64517E

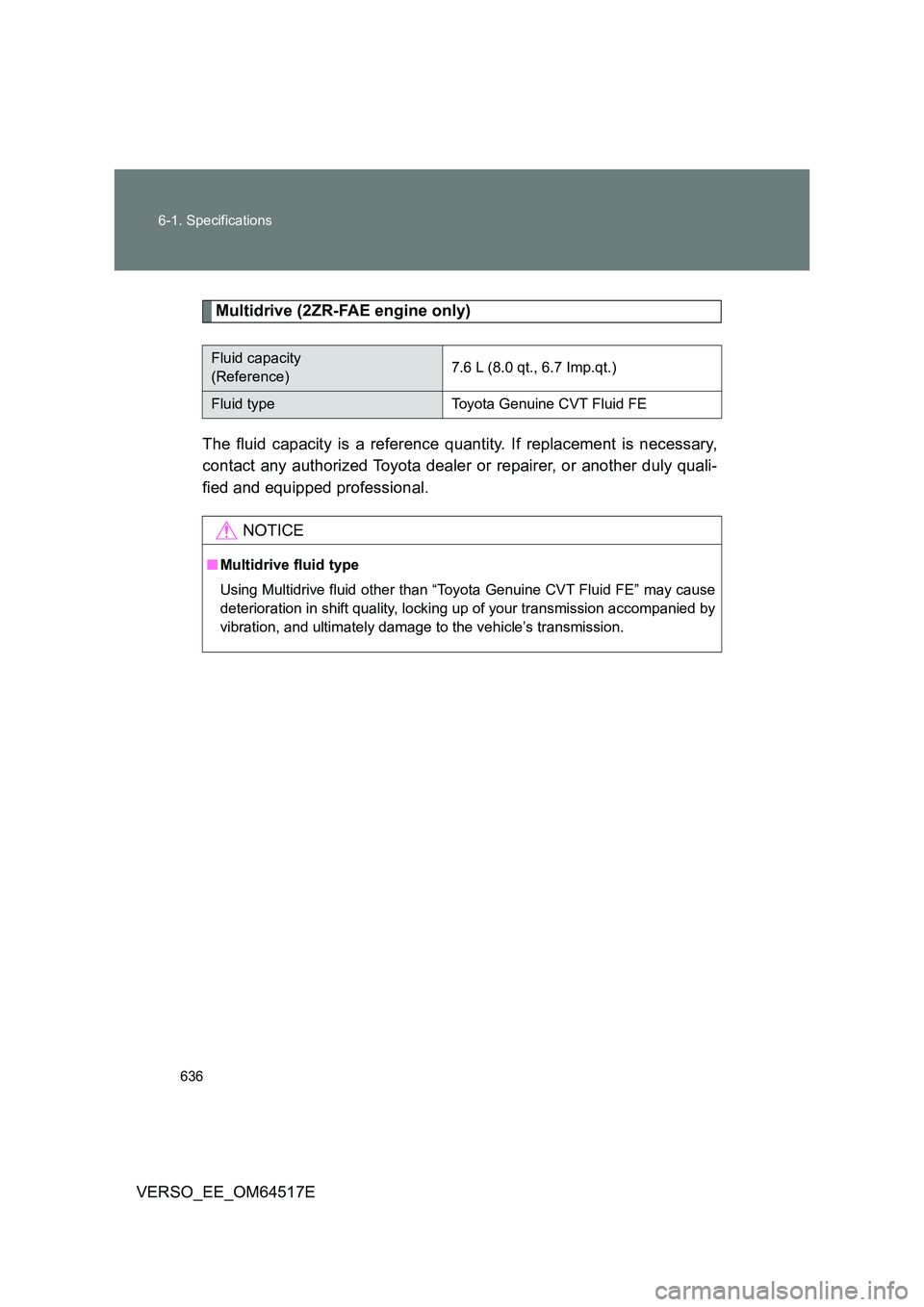

Multidrive (2ZR-FAE engine only)
The fluid capacity is a reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Fluid capacity
(Reference)7.6 L (8.0 qt., 6.7 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.

637
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

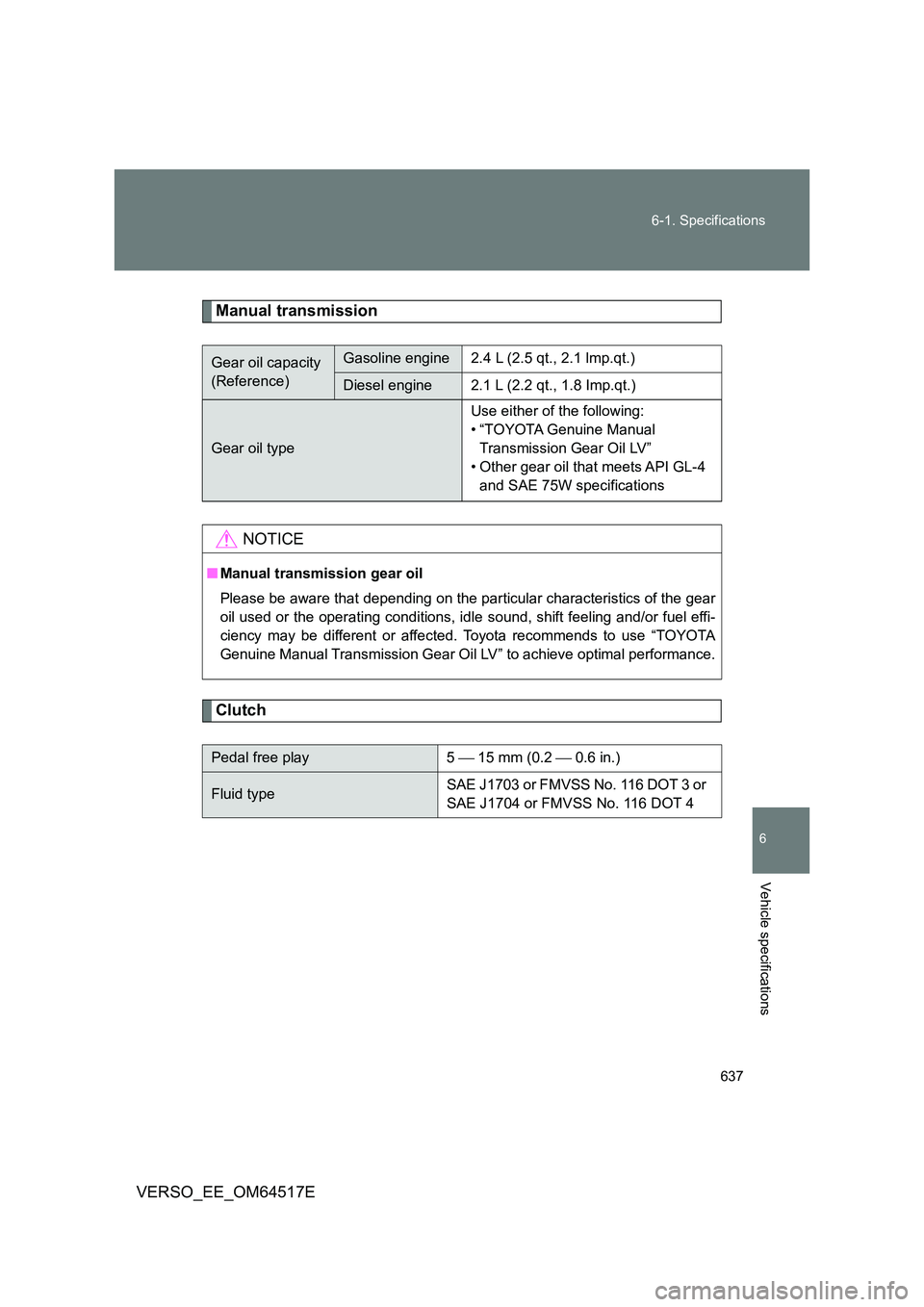

Manual transmission
Clutch
Gear oil capacity
(Reference)
Gasoline engine2.4 L (2.5 qt., 2.1 lmp.qt.)
Diesel engine2.1 L (2.2 qt., 1.8 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4

638
6-1. Specifications
VERSO_EE_OM64517E

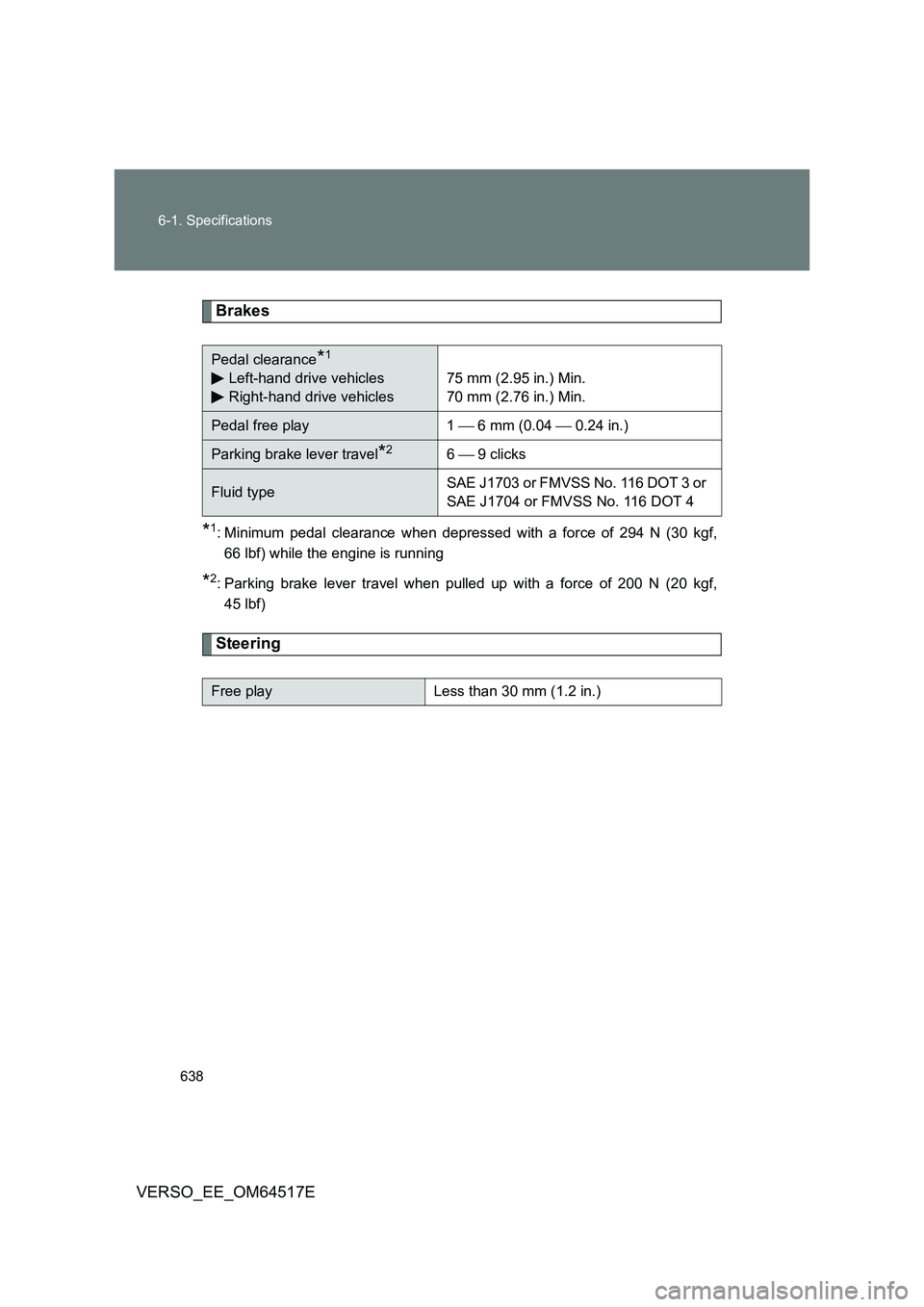

Brakes
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf,
45 lbf)
Steering
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles
75 mm (2.95 in.) Min.
70 mm (2.76 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*26  9 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.2 in.)

639
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

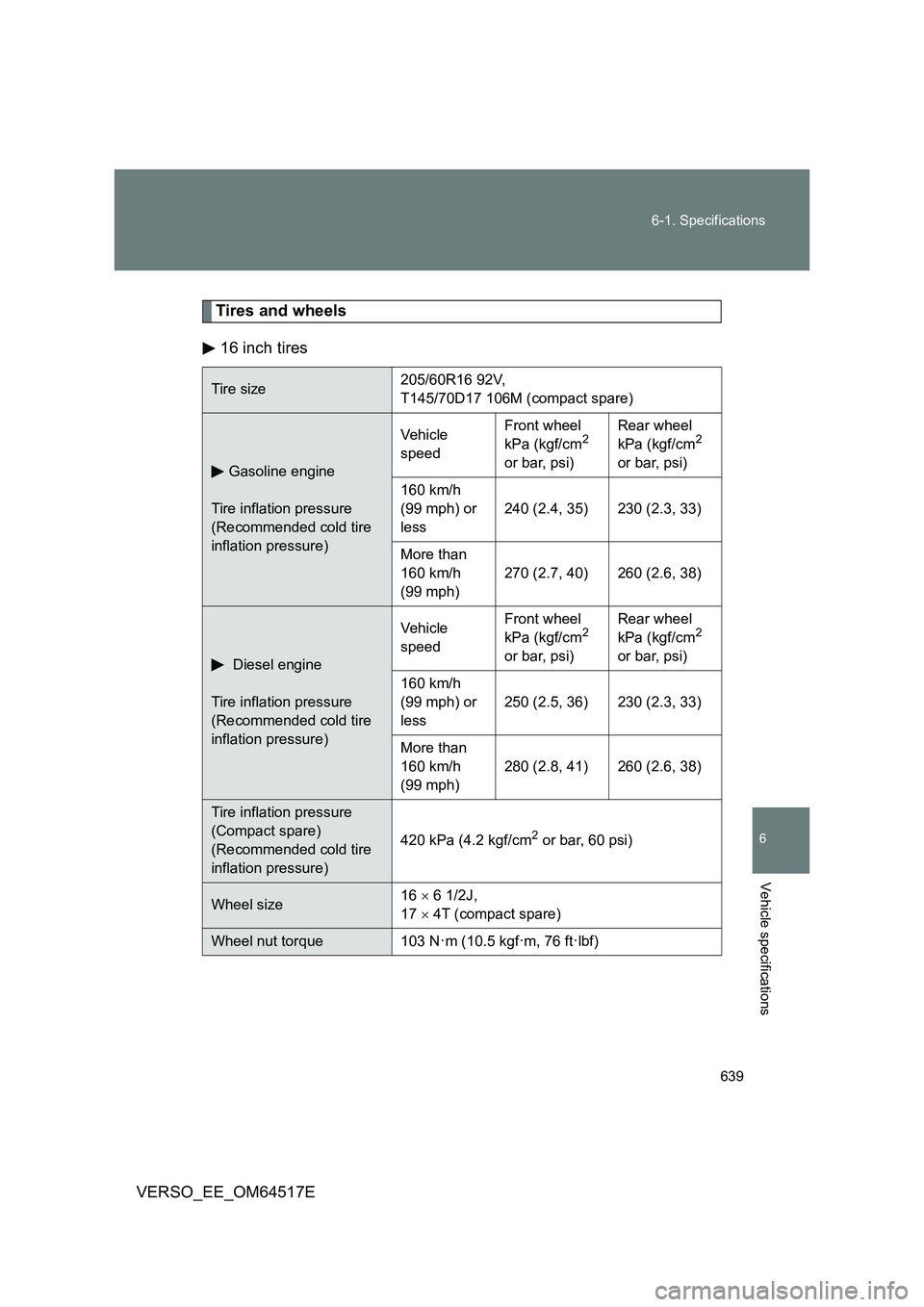

Tires and wheels
16 inch tires
Tire size 205/60R16 92V,
T145/70D17 106M (compact spare)
Gasoline engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehi c le
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less
240 (2.4, 35) 230 (2.3, 33)
More than
160 km/h
(99 mph)
270 (2.7, 40) 260 (2.6, 38)
Diesel engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehi c le
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
More than
160 km/h
(99 mph)
280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(Compact spare)
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 16  6 1/2J,
17  4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

640
6-1. Specifications
VERSO_EE_OM64517E

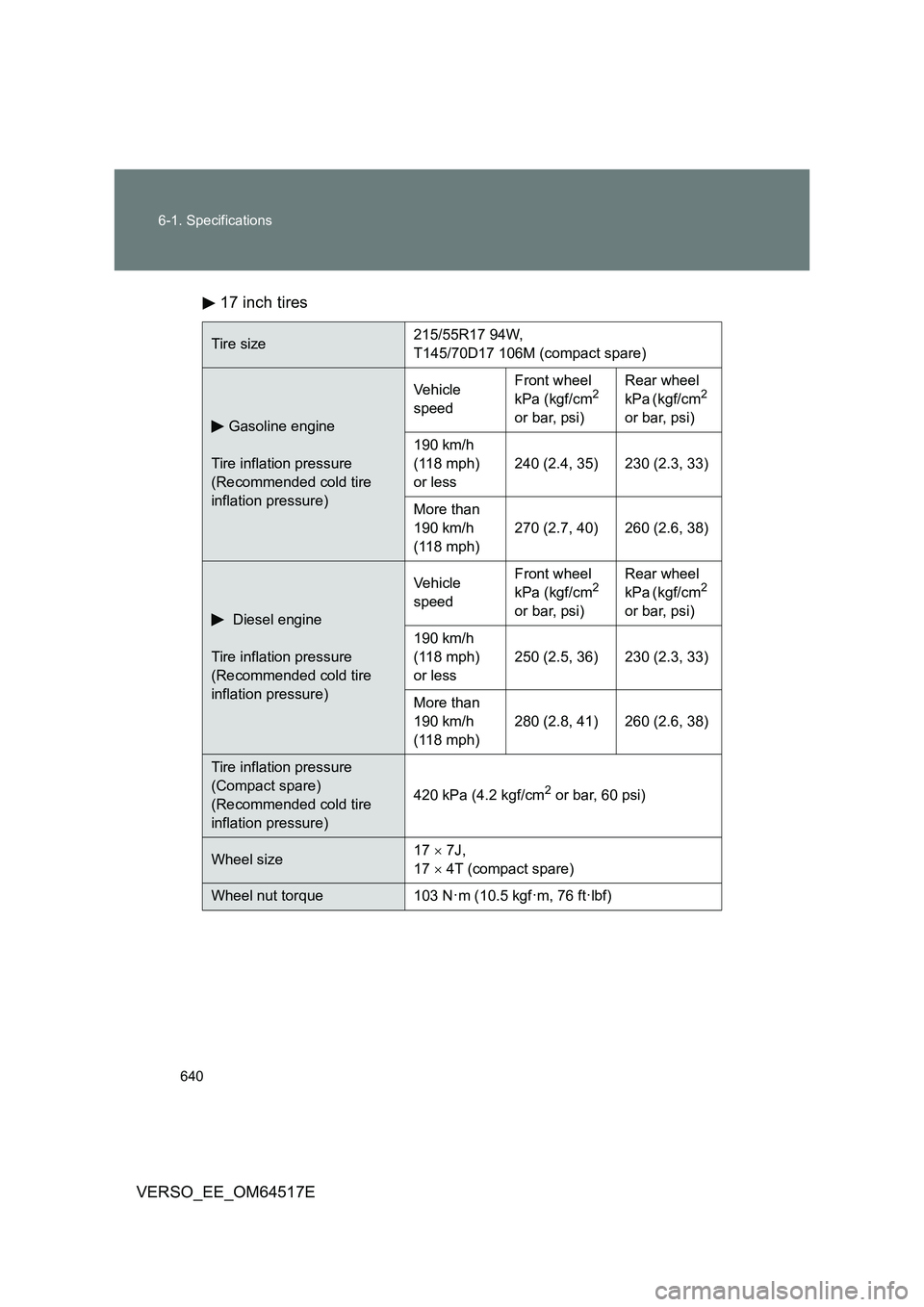

17 inch tires
Tire size 215/55R17 94W,
T145/70D17 106M (compact spare)
Gasoline engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less
240 (2.4, 35) 230 (2.3, 33)
More than
190 km/h
(118 mph)
270 (2.7, 40) 260 (2.6, 38)
Diesel engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle
speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less
250 (2.5, 36) 230 (2.3, 33)
More than
190 km/h
(118 mph)
280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(Compact spare)
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  7J,
17  4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
