CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Scion dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

62
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
13A066

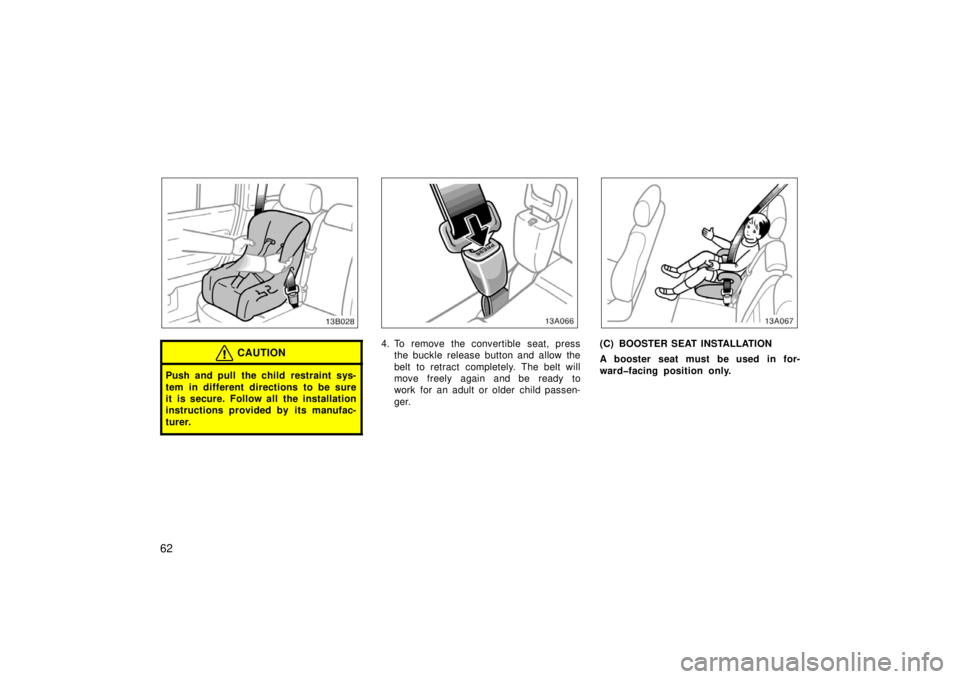

4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
13A067
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

63
Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be installed
on the front passenger seat only
when it is unavoidable. Always move
the seat as far back as possible even
if the “AIRBAG OFF” indicator light is
illuminated, because the front passen-
ger airbag could inflate with consider-
able speed and force. Otherwise, the
child may be killed or seriously in-
jured.

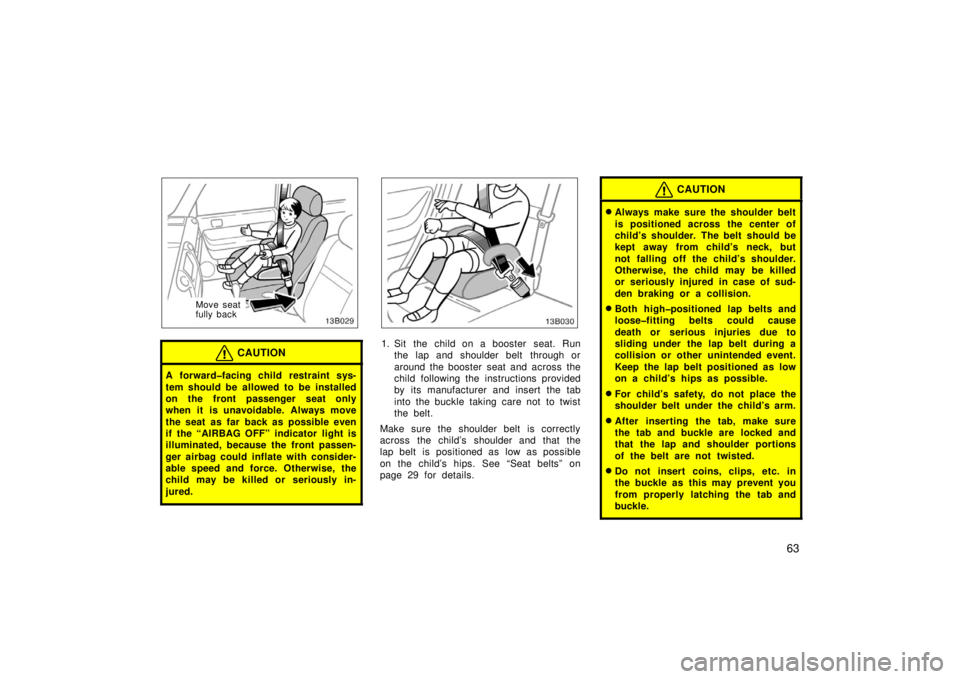

1. Sit the child on a booster seat. Run the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 29 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off the child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under the child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

64
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Scion dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.
13A070

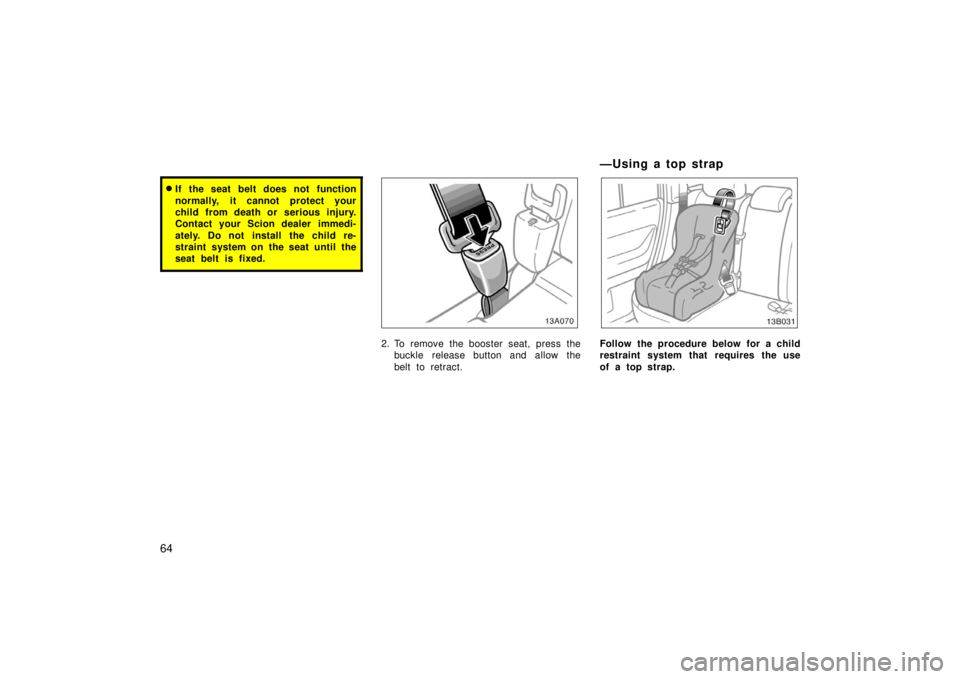

2. To remove the booster seat, press thebuckle release button and allow the
belt to retract.
— U sin g a to p st rap
Follow the procedure below for a child
restraint system that requires the use
of a top strap.

65

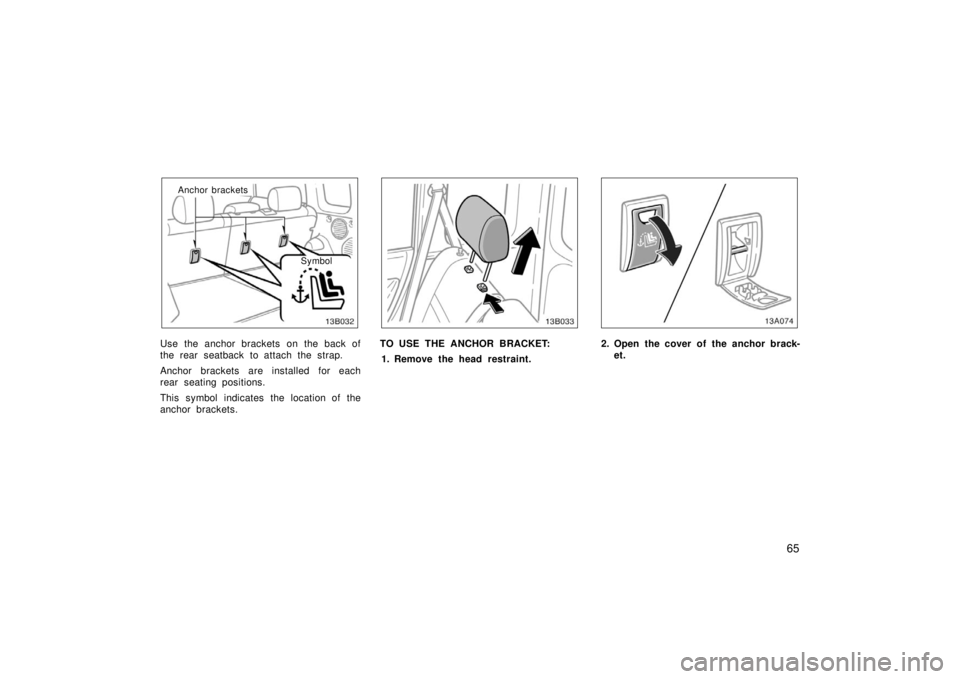

Anchor bracketsSymbol
Use the anchor brackets on the back of
the rear seatback to attach the strap.
Anchor brackets are installed for each
rear seating positions.
This symbol indicates the location of the
anchor brackets.TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
13A074
2. Open the cover of the anchor brack- et.

66

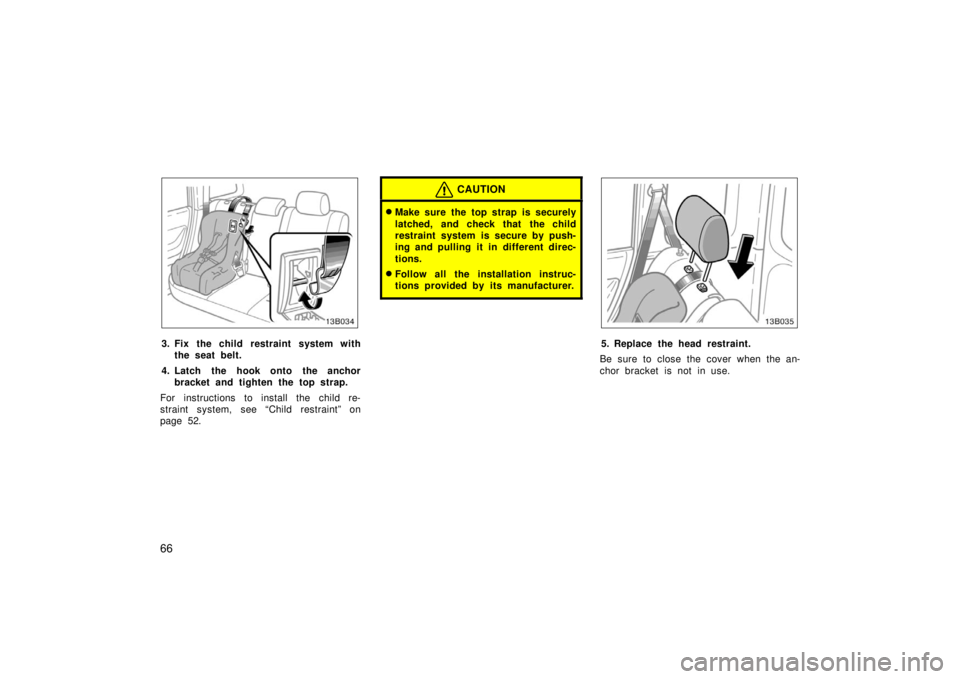

3. Fix the child restraint system withthe seat belt.
4. Latch the hook onto the anchor bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 52.
CAUTION
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions.
Follow all the installation instruc-
tions provided by its manufacturer.
5. Replace the head restraint.
Be sure to close the cover when the an-
chor bracket is not in use.

67
13A077

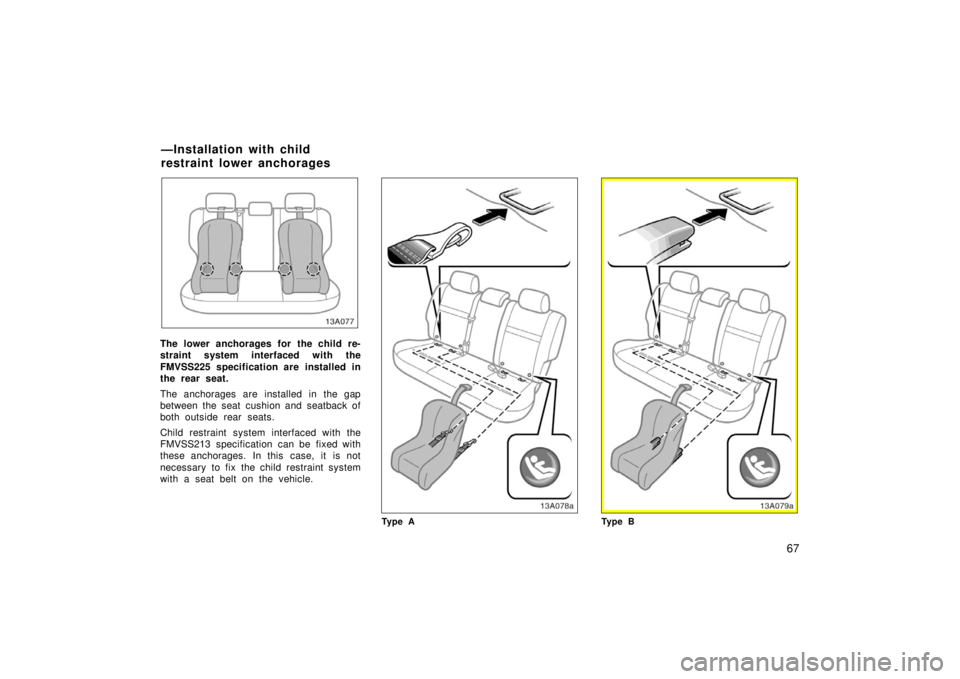

The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint system interfaced with the
FMVSS213 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.13A078a
Ty p e A
13A079a
Ty p e B
—Installation with child
restraint lower anchorages

68
CHILD RESTRAINT SYSTEM
INSTALLATION1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages below the buttons in the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 64.)
For installation details, refer to the instruc-

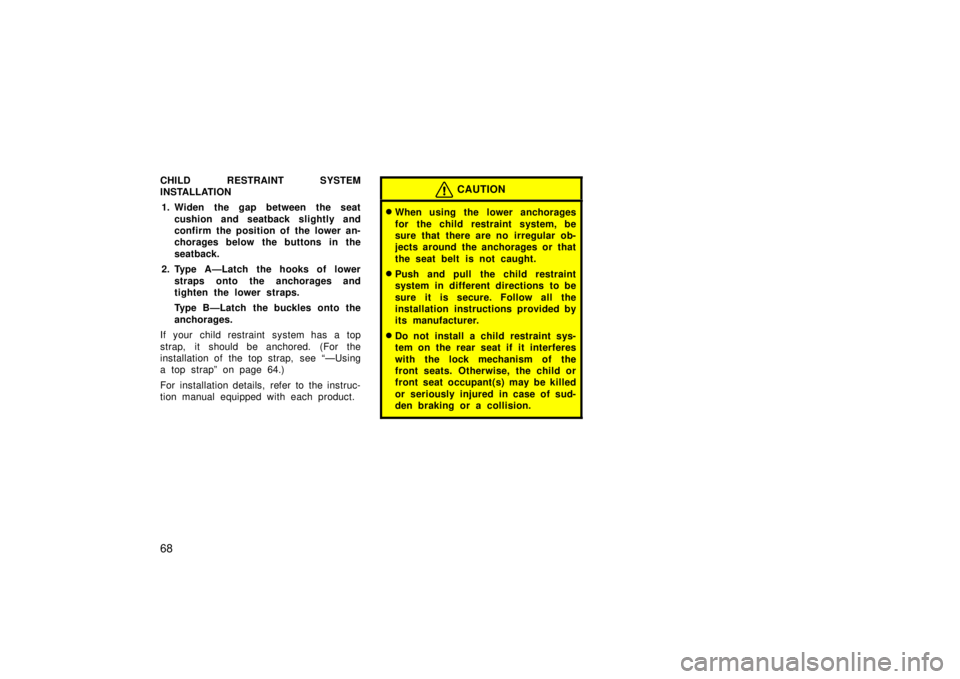

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

69
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
SECTION 1 4

70
Tilt steering wheel

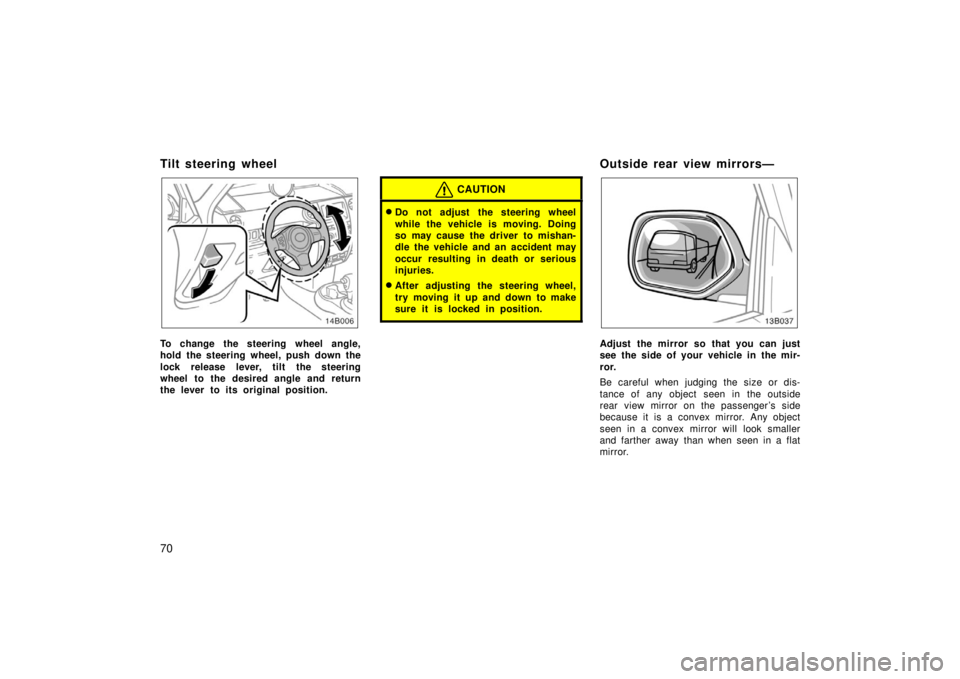

To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
