TOYOTA xB 2008 Accessories, Audio & Navigation (in English)

31

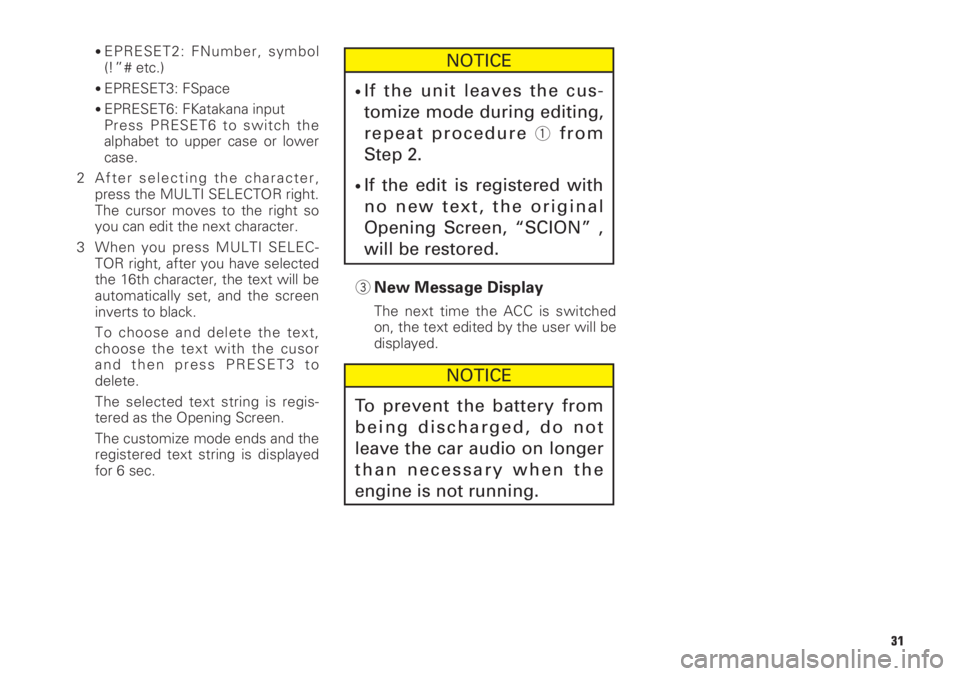

•EPRESET2: FNumber, symbol
(!”# etc.)
•EPRESET3: FSpace
•EPRESET6: FKatakana input
Press PRESET6 to switch the
alphabet to upper case or lower
case.
2 After selecting the character,
press the MULTI SELECTOR right.
The cursor moves to the right so
you can edit the next character.
3 When you press MULTI SELEC-
TOR right, after you have selected
the 16th character, the text will be
automatically set, and the screen
inverts to black.
To choose and delete the text,
choose the text with the cusor
and then press PRESET3 to
delete.
The selected text string is regis-
tered as the Opening Screen.
The customize mode ends and the
registered text string is displayed
for 6 sec.
3New Message Display
The next time the ACC is switched
on, the text edited by the user will be
displayed.
NOTICE
To prevent the battery from
being discharged, do not
leave the car audio on longer
than necessary when the
engine is not running.
NOTICE
•If the unit leaves the cus-
tomize mode during editing,
repeat procedure
1from
Step 2.
•If the edit is registered with
no new text, the original
Opening Screen, “SCION” ,
will be restored.

Rewriting the enter-
tainment displays
function
You can rewrite the entertainment
display function. Please create or
download the data to use on your
computer, and record it on a CD-R.
For details, please visit the follow-
ing web site:
http://www.pioneer.jp/car/oel_scree
nsaver_studio//
Downloading the CD-R
1 After removing the CD, turn the
power to “OFF” position, and
then press MENU and MULTI
SELECTOR at the same time.
2 Insert CD-R and Download.
Automatically downloads the cre-
ated or downloaded data.
3 After the download has finished,
press EJECT and remove the
CD-R.
MULTI SELECTOR
MENU
32

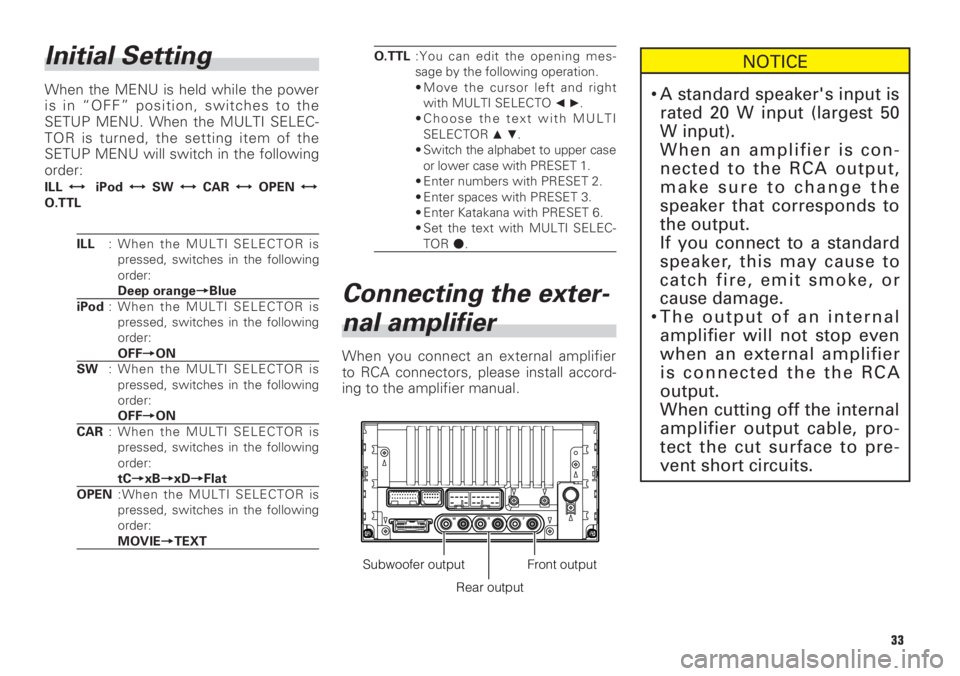

Initial Setting
When the MENU is held while the power
is in “OFF” position, switches to the
SETUP MENU. When the MULTI SELEC-
TOR is turned, the setting item of the
SETUP MENU will switch in the following
order:
ILL iPod SW CAR OPEN
O.TTL
ILL: When the MULTI SELECTOR is
pressed, switches in the following
order:
Deep orange=Blue
iPod: When the MULTI SELECTOR is
pressed, switches in the following
order:
OFF=ON
SW: When the MULTI SELECTOR is
pressed, switches in the following
order:
OFF=ON
CAR: When the MULTI SELECTOR is
pressed, switches in the following
order:
tC=xB=xD=Flat
OPEN:When the MULTI SELECTOR is
pressed, switches in the following
order:
MOVIE=TEXT
O.TTL:You can edit the opening mes-
sage by the following operation.
• Move the cursor left and right
with MULTI SELECTO .
• Choose the text with MULTI
SELECTOR  .
• Switch the alphabet to upper case
or lower case with PRESET 1.
• Enter numbers with PRESET 2.
• Enter spaces with PRESET 3.
• Enter Katakana with PRESET 6.
• Set the text with MULTI SELEC-
TOR .
Connecting the exter-
nal amplifier
When you connect an external amplifier
to RCA connectors, please install accord-
ing to the amplifier manual.
Subwoofer output
Rear outputFront output
33
NOTICE
•A standard speaker' s input is
rated 20 W input (largest 50
W input).
When an amplifier is con-
nected to the RCA output,
make sure to change the
speaker that corresponds to
the output.
If you connect to a standard
speaker, this may cause to
catch fire, emit smoke, or
cause damage.
•
The output of an internal
amplifier will not stop even
when an external amplifier
is connected the the RCA
output.
When cutting off the internal
amplifier output cable, pro-
tect the cut surface to pre-
vent short circuits.

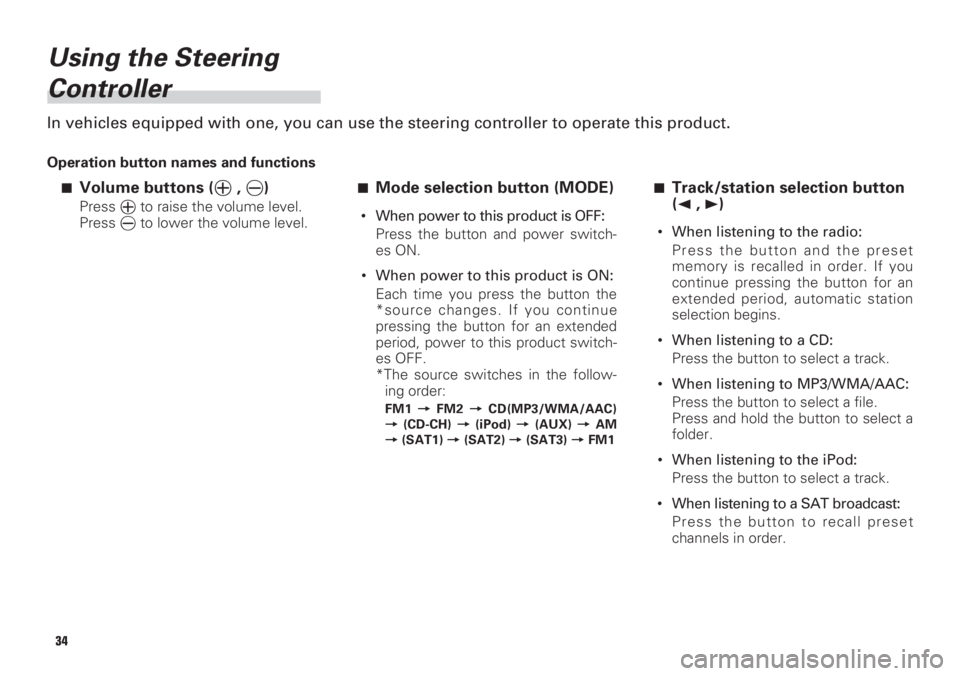

Using the Steering
Controller
In vehicles equipped with one, you can use the steering controller to operate this product.
Operation button names and functions
34
7Volume buttons (ª, ·)
Press ªto raise the volume level.
Press ·to lower the volume level.
7Mode selection button (MODE)
•When power to this product is OFF:
Press the button and power switch-
es ON.
•When power to this product is ON:
Each time you press the button the
*source changes. If you continue
pressing the button for an extended
period, power to this product switch-
es OFF.
*The source switches in the follow-
ing order:
FM1 =FM2 =CD(MP3/WMA/AAC)
=(CD-CH) =(iPod) =(AUX) =AM
=(SAT1) =(SAT2) =(SAT3) =FM1
7Track/station selection button
(2, 3)
•When listening to the radio:
Press the button and the preset
memory is recalled in order. If you
continue pressing the button for an
extended period, automatic station
selection begins.
•When listening to a CD:
Press the button to select a track.
•When listening to MP3/WMA/AAC:
Press the button to select a file.
Press and hold the button to select a
folder.
•When listening to the iPod:
Press the button to select a track.
•When listening to a SAT broadcast:
Press the button to recall preset
channels in order.

35
MP3, WMA and A AC
files
• MP3 is short for MPEG Audio Layer 3 and
refers to an audio compression technology
standard.
• WMA is short for Windows Media
TMAudio
and refers to an audio compression tech-
nology that is developed by Microsoft
Corporation. WMA data can be encoded
by using Windows Media Player version 7
or later.
• AAC is short for Advanced Audio Coding
and refers to an audio compression tech-
nology standard.
• With some applications used to encode
WMA files, this unit may not operate cor-
rectly.
• With some applications used to encode
WMA files, album names and other text
information may not be correctly dis-
played.
• This unit allows playback of MP3/ WMA /A AC
files on CD-ROM, CD-R and CD-RW discs.
Disc recordings compatible with level 1
and level 2 of ISO9660 and with the
Romeo and Joliet file system can be
played back.
• It is possible to play back multi-session
compatible recorded discs.
• MP3/WMA/AAC files are not compatible
with packet write data transfer.
• The maximum number of characters which
can be displayed for a file name, including
the extension (.mp3, .wma, .m4a), is 64 ,from the first character.
• The maximum number of characters which
can be displayed for a folder name is 64 .
• In case of files recorded according to the
Romeo file system, only the first 64 char-
acters can be displayed.
• The folder selection sequence for playback
and other operations becomes the writing
sequence used by the writing software.
For this reason, the expected sequence at
the time of playback may not coincide with
the actual playback sequence. However,
there also is some writing software which
permits setting of the playback order.
MP3 additional infor-
mation
• Files are compatible with the ID3 Tag Ver.
1.0, 1.1, 2.2, 2.3 and 2.4 formats for dis-
play of album (disc title), track (track title),
artist (track artist) and comments. Ver. 2.x
of ID3 Tag is given priority when both Ver.
1.x and Ver. 2.x exist.
• The emphasis function is valid only when
MP3 files of 32, 44.1 and 48 kHz frequen-
cies are played back. (16, 22.05, 24, 32,
44.1, 48 kHz sampling frequencies can be
played back.)
• There is no m3u play list compatibility.
• There is no compatibility with the MP3i
(MP3 interactive) or mp3 PRO formats.
• The sound quality of MP3 files generally
becomes better with an increased bit
rates. This unit can play recordings with bit
rates from 8 kbps to 320 kbps, but in order
to be able to enjoy sound of a certain quali-
ty, we recommend using only discs
recorded with a bit rate of at least 128
kbps.
IMPORTANT
•When naming an MP3/
WMA/AAC file, add the cor-
responding filename exten-
sion (.mp3, .wma, .m4a).
•This unit plays back files
with the filename extension
(.mp3, .wma, .m4a) as an
MP3/ WMA /AAC file. To pre-
vent noise and malfunc-
tions, do not use these
extensions for files other than
MP3/WMA/AAC files.

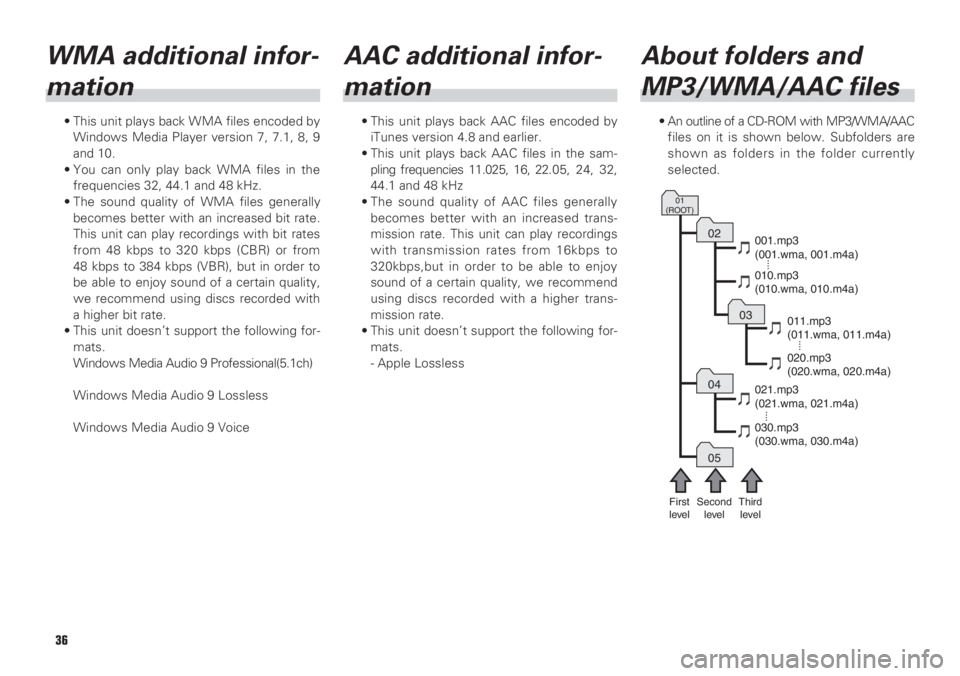

WMA additional infor-
mation
• This unit plays back WMA files encoded by
Windows Media Player version 7, 7.1, 8, 9
and 10.
• You can only play back WMA files in the
frequencies 32, 44.1 and 48 kHz.
• The sound quality of WMA files generally
becomes better with an increased bit rate.
This unit can play recordings with bit rates
from 48 kbps to 320 kbps (CBR) or from
48 kbps to 384 kbps (VBR), but in order to
be able to enjoy sound of a certain quality,
we recommend using discs recorded with
a higher bit rate.
• This unit doesn’t support the following for-
mats.
Windows Media Audio 9 Professional(5.1ch)
Windows Media Audio 9 Lossless
Windows Media Audio 9 Voice
AAC additional infor-
mation
• This unit plays back AAC files encoded by
iTunes version 4.8 and earlier.
• This unit plays back AAC files in the sam-
pling frequencies 11.025, 16, 22.05, 24, 32,
44.1 and 48 kHz
• The sound quality of AAC files generally
becomes better with an increased trans-
mission rate. This unit can play recordings
with transmission rates from 16kbps to
320kbps,but in order to be able to enjoy
sound of a certain quality, we recommend
using discs recorded with a higher trans-
mission rate.
• This unit doesn’t support the following for-
mats.
- Apple Lossless
About folders and
MP3/WMA/AAC files
• An outline of a CD-ROM with MP3/WMA/AAC
files on it is shown below. Subfolders are
shown as folders in the folder currently
selected.
001.mp3
(001.wma, 001.m4a)
010.mp3
(010.wma, 010.m4a)
021.mp3
(021.wma, 021.m4a)
030.mp3
(030.wma, 030.m4a)
011.mp3
(011.wma, 011.m4a)
020.mp3
(020.wma, 020.m4a)
First
levelSecond
levelThird
level
01
(ROOT)
02
04
05
03
36

37

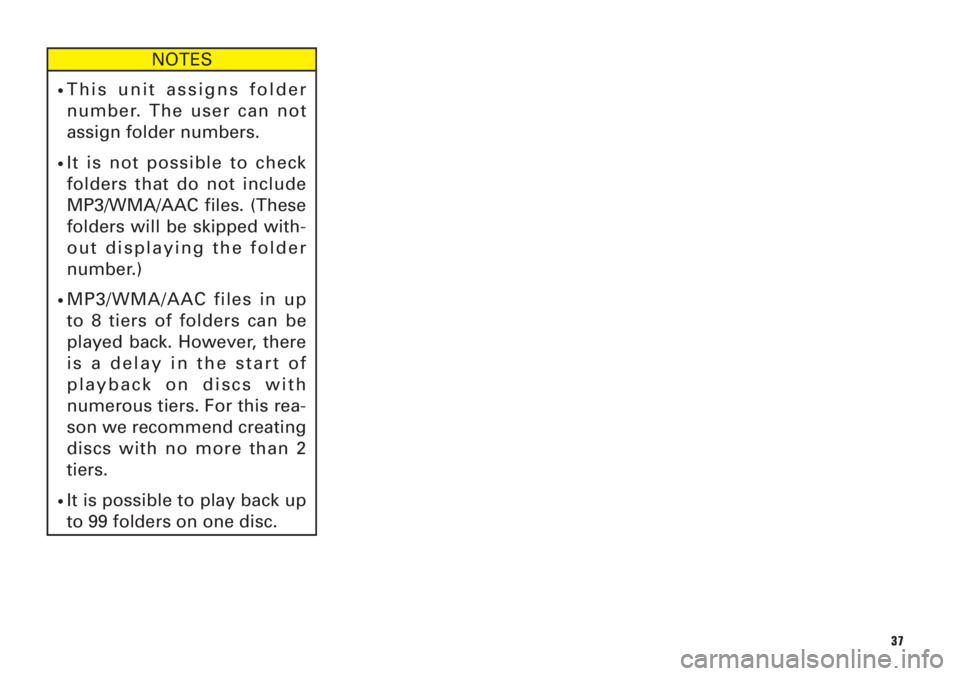

NOTES
•This unit assigns folder
number. The user can not
assign folder numbers.
•It is not possible to check
folders that do not include
MP3/WMA/AAC files. (These
folders will be skipped with-
out displaying the folder
number.)
•MP3/WMA/AAC files in up
to 8 tiers of folders can be
played back. However, there
is a delay in the start of
playback on discs with
numerous tiers. For this rea-
son we recommend creating
discs with no more than 2
tiers.
•It is possible to play back up
to 99 folders on one disc.

38
Terms
Packet writeThis is a general term for a method
of writing on CD-R, etc. at the time
required for a file, just as is done
with files on floppy or hard discs.
Bit rateThis expresses data volume per sec-
ond, or bps units (bits per second).
The higher the rate, the more infor-
mation is available to reproduce the
sound. Using the same encoding
method (such as MP3), the higher
the rate, the better the sound.
Multi-sessionMulti-session is a recording method
that allows additional data to be
recorded later. When recording data
on a CD-ROM, CD-R or CD-RW, etc.,
all data from beginning to end is
treated as a single unit or session.
Multi-session is a method of record-
ing more than 2 sessions in one disc.
CD-DACD-DA is an abbreviation of Compact
Disc Digital Audio. It refers to the
uncompressed format of regular
CDs.
ID3 TagThis is a method of embedding track-
related information in a MP3 file. This
embedded information can include
the track title, the artist’s name, the
album title, the music genre, the year
of production, comments and other
data. The contents can be freely edit-
ed using software with ID3 Tag edit-
ing functions. Although the tags are
restricted to the number of charac-
ters, the information can be viewed
when the track is played back.
ISO9660 formatThis is the international standard for
the format logic of CD-ROM folders
and files. For the ISO9660 format,
there are regulations for the follow-
ing two levels.
Level 1:
The file name is in 8.3 format (the name
consists of up to 8 characters, half-byte
English capital letters and half-byte
numerals and the “_” sign, with a file-
extension of three characters.)
Level 2:
The file name can have up to 31 charac-
ters (including the separation mark “.”
and a file extension). Each folder contains
less than 8 hierarchies.
Extended formats
Joliet:
File names can have up to 64 characters.
Romeo:
File names can have up to 128 characters.
m3uPlaylists created using the
“WINAMP” software have a playlist
file extension (.m3u).
MP3MP3 is short for MPEG1 & 2 Audio
Layer3. It is an audio compression stan-
dard set by a working group (MPEG) of
the ISO (International Standards
Organization). MP3 is able to compress
audio data to about 1/10 the level of a
conventional disc.
WMAWMA is short for Windows MediaTM
Audio and refers to an audio com-
pression technology that is developed
by Microsoft Corporation. WMA data
can be encoded by using Windows
Media Player version 7 or later.
Microsoft, Windows Media, and the
Windows logo are trademarks, or
registered trademarks of Microsoft
Corporation in the United States and/
or other countries.
AACAAC is short for Advanced Audio
Coding and refers to an audio com-
pression technology standard used
with MPEG2 and MPEG4.

39

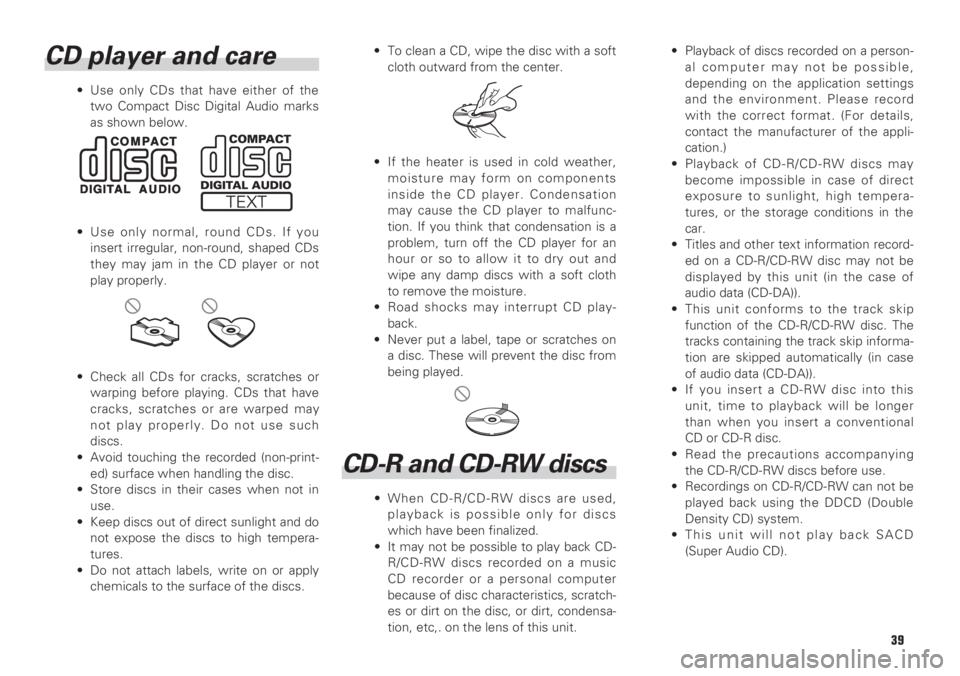

CD player and care
• Use only CDs that have either of the
two Compact Disc Digital Audio marks
as shown below.
• Use only normal, round CDs. If you
insert irregular, non-round, shaped CDs
they may jam in the CD player or not
play properly.
• Check all CDs for cracks, scratches or
warping before playing. CDs that have
cracks, scratches or are warped may
not play properly. Do not use such
discs.
• Avoid touching the recorded (non-print-
ed) surface when handling the disc.
• Store discs in their cases when not in
use.
• Keep discs out of direct sunlight and do
not expose the discs to high tempera-
tures.
• Do not attach labels, write on or apply
chemicals to the surface of the discs.• To clean a CD, wipe the disc with a soft
cloth outward from the center.
• If the heater is used in cold weather,
moisture may form on components
inside the CD player. Condensation
may cause the CD player to malfunc-
tion. If you think that condensation is a
problem, turn off the CD player for an
hour or so to allow it to dry out and
wipe any damp discs with a soft cloth
to remove the moisture.
• Road shocks may interrupt CD play-
back.
• Never put a label, tape or scratches on
a disc. These will prevent the disc from
being played.
CD-R and CD-RW discs
• When CD-R/CD-RW discs are used,
playback is possible only for discs
which have been finalized.
• It may not be possible to play back CD-
R/CD-RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics, scratch-
es or dirt on the disc, or dirt, condensa-
tion, etc,. on the lens of this unit.• Playback of discs recorded on a person-
al computer may not be possible,
depending on the application settings
and the environment. Please record
with the correct format. (For details,
contact the manufacturer of the appli-
cation.)
• Playback of CD-R/CD-RW discs may
become impossible in case of direct
exposure to sunlight, high tempera-
tures, or the storage conditions in the
car.
• Titles and other text information record-
ed on a CD-R/CD-RW disc may not be
displayed by this unit (in the case of
audio data (CD-DA)).
• This unit conforms to the track skip
function of the CD-R/CD-RW disc. The
tracks containing the track skip informa-
tion are skipped automatically (in case
of audio data (CD-DA)).
• If you insert a CD-RW disc into this
unit, time to playback will be longer
than when you insert a conventional
CD or CD-R disc.
• Read the precautions accompanying
the CD-R/CD-RW discs before use.
• Recordings on CD-R/CD-RW can not be
played back using the DDCD (Double
Density CD) system.
• This unit will not play back SACD
(Super Audio CD).

40

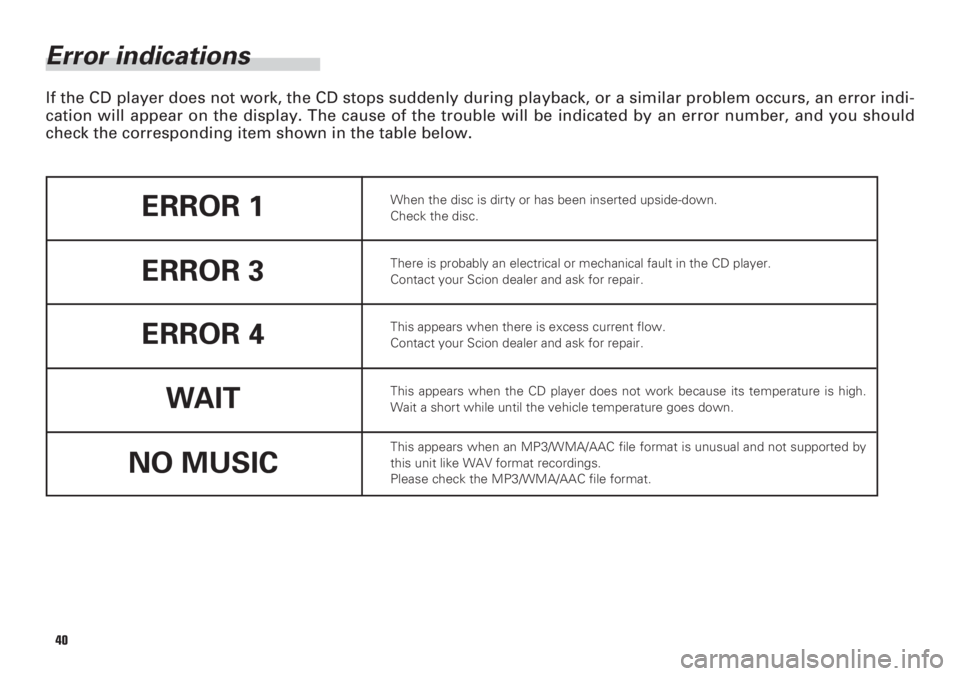

Error indications
If the CD player does not work, the CD stops suddenly during playback, or a similar problem occurs, an error indi-
cation will appear on the display. The cause of the trouble will be indicated by an error number, and you should
check the corresponding item shown in the table below.
When the disc is dirty or has been inserted upside-down.
Check the disc.
There is probably an electrical or mechanical fault in the CD player.
Contact your Scion dealer and ask for repair.
This appears when there is excess current flow.
Contact your Scion dealer and ask for repair.
This appears when the CD player does not work because its temperature is high.
Wait a short while until the vehicle temperature goes down.
This appears when an MP3/WMA/AAC file format is unusual and not supported by
this unit like WAV format recordings.
Please check the MP3/WMA/AAC file format.ERROR 1
ERROR 3
ERROR 4
WAIT
NO MUSIC
