11 4
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the engine switch is turned to “ON”
position, the system automatically turns
on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self−check mode, but does not indicate a
malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON” position. If the indicator light does
not come on when the engine switch is
turned on, contact your Scion dealer.
Traction control system

11 6
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
The vehicle stability control system is acti-
vated when the vehicle speed is about
more than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self−check mode,

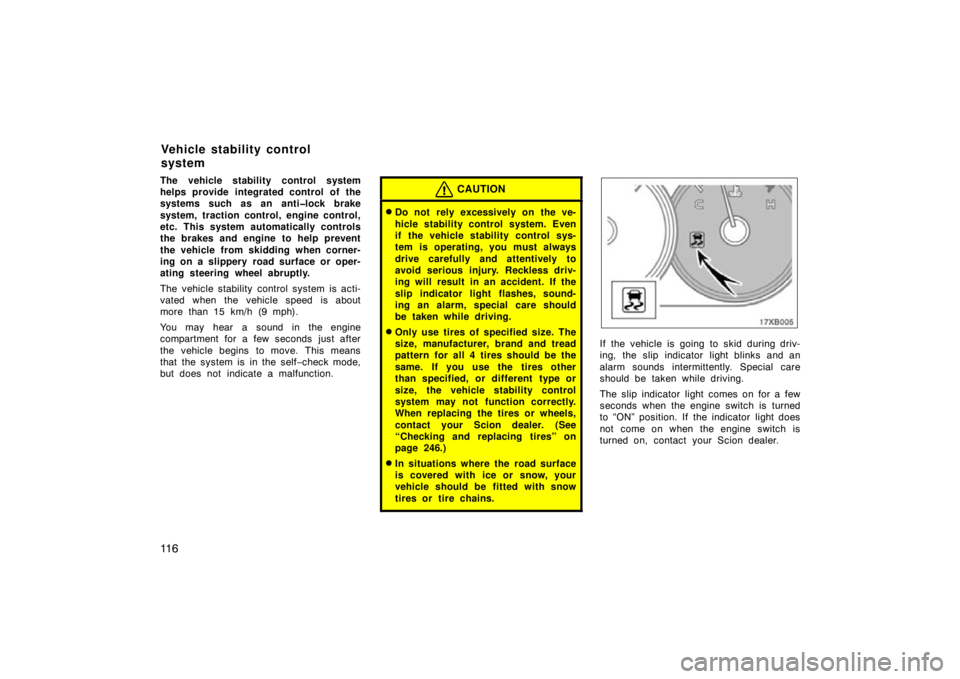

but does not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an accident. If the
slip indicator light flashes, sound-
ing an alarm, special care should
be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Scion dealer. (See
“Checking and replacing tires” on
page 246.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON” position. If the indicator light does
not come on when the engine switch is
turned on, contact your Scion dealer.
Vehicle stability control
system

121
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Scion dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.

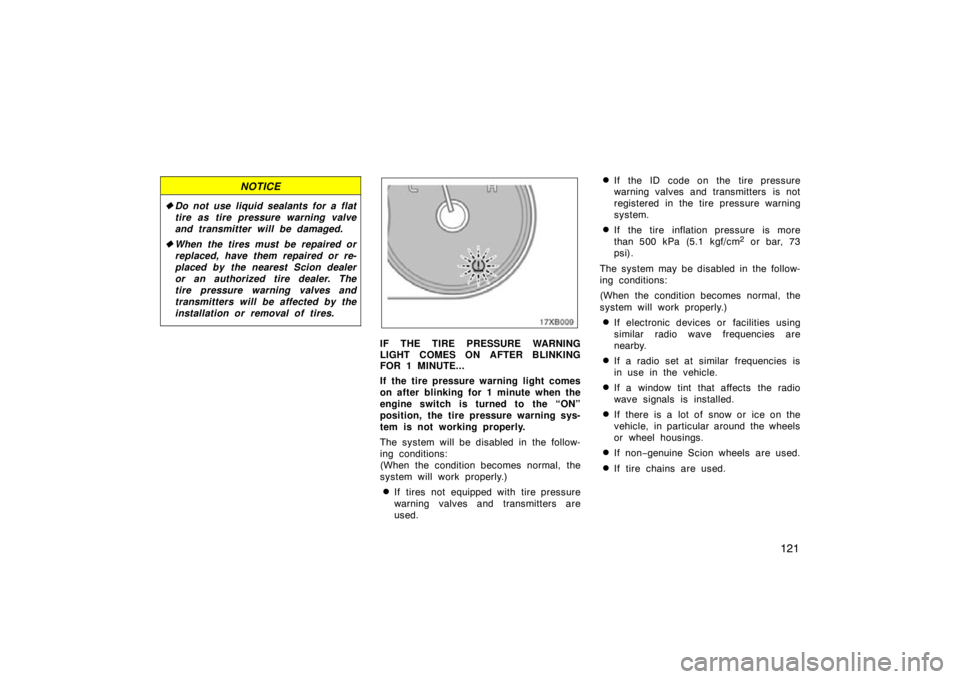

IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
system.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi).
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Scion wheels are used.
If tire chains are used.

160
When the antilock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti−lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti −lock brake sys-
tem activation, the brake pedal may
move a little forward.

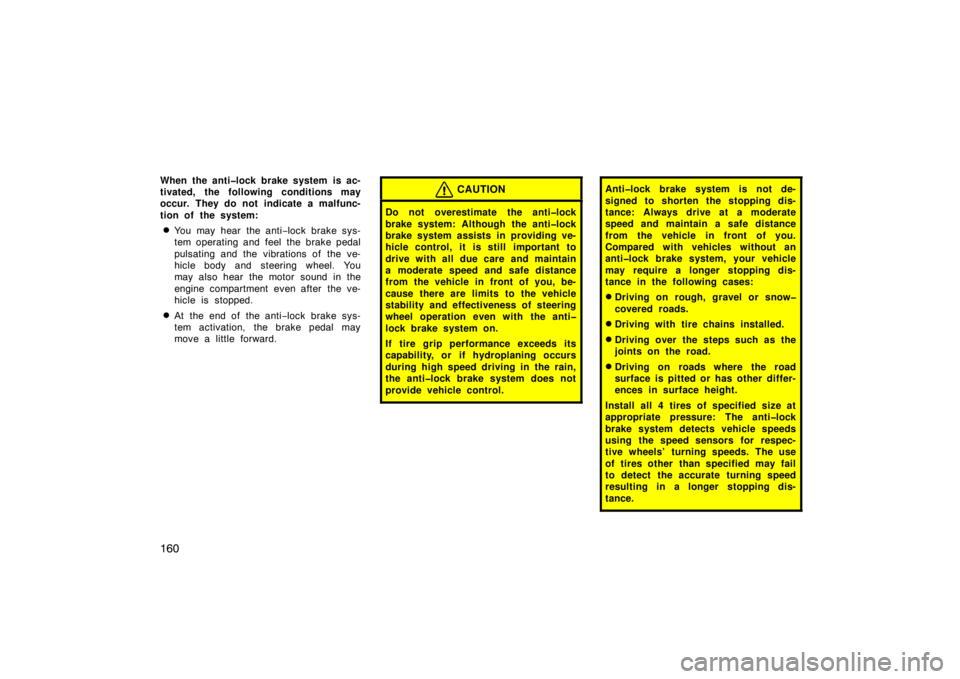

CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.

190
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Scion
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” (automatic) or into first or reverse
(manual) and block the rear wheels. Do
not use the parking brake, or snow or
water accumulated in and around the
parking brake mechanism may freeze,
making it hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,

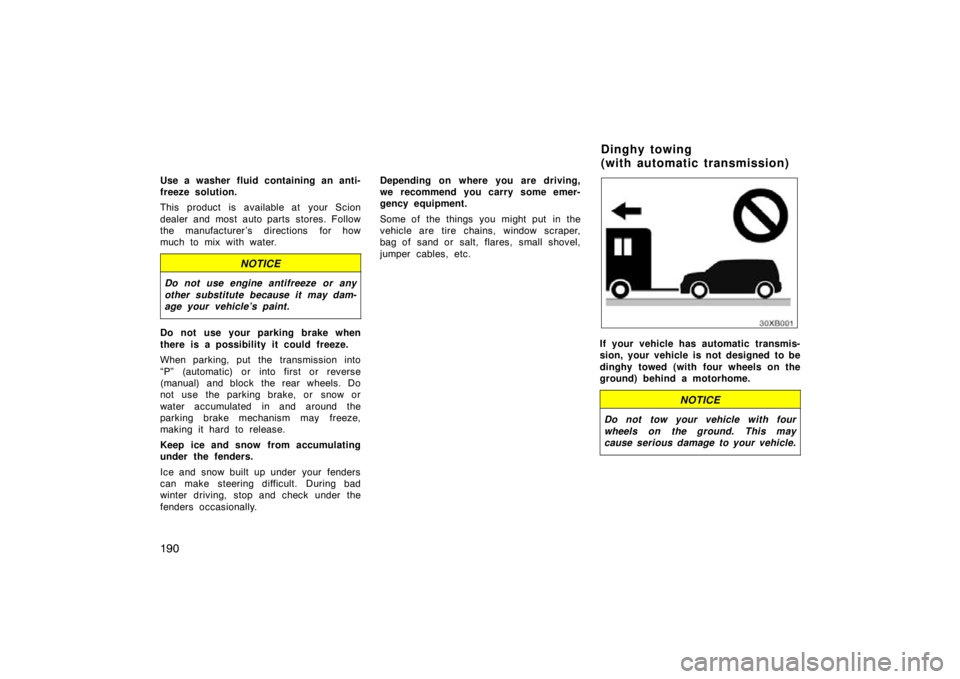

jumper cables, etc.If your vehicle has automatic transmis-
sion, your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing
(with automatic transmission)

239
DOITYOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 242
. . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking tire inflation pressure 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 7 2

247
REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater maximum
load as the originally installed
tires.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.
Check that the maximum load of the
replaced tire is greater than 1/2 of the
Gross Axle Weight Ratings (GAWR)
of either the front axle or the rear
axle, whichever is greater. As for the
maximum load of the tire, see the load
limit at maximum cold tire inflation
pressure mentioned on the sidewall
of the tire, and as for the Gross Axle
Weight Ratings (GAWR), see the Cer-
tification Label. For details about the
sidewall of the tire and the Certifica-
tion Label, see pages 165 and 162.

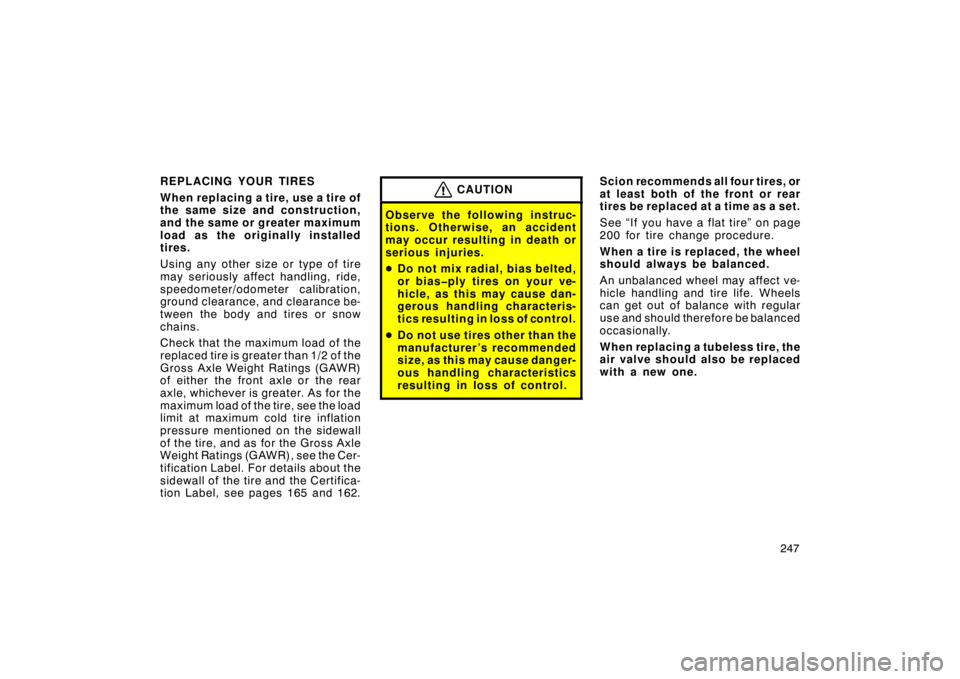

CAUTION
Observe the following instruc-
tions. Otherwise, an accident
may occur resulting in death or
serious injuries.

Do not mix radial, bias belted,
or biasply tires on your ve-
hicle, as this may cause dan-
gerous handling characteris-
tics resulting in loss of control.
 Do not use tires other than the
manufacturer’s recommended
size, as this may cause danger-
ous handling characteristics
resulting in loss of control.
Scion recommends all four tires, or
at least both of the front or rear
tires be replaced at a time as a set.
See “If you have a flat tire” on page
200 for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect ve-
hicle handling and tire life. Wheels
can get out of balance with regular
use and should therefore be balanced
occasionally.
When replacing a tubeless tire, the
air valve should also be repl aced
w i t h a new on e.

248

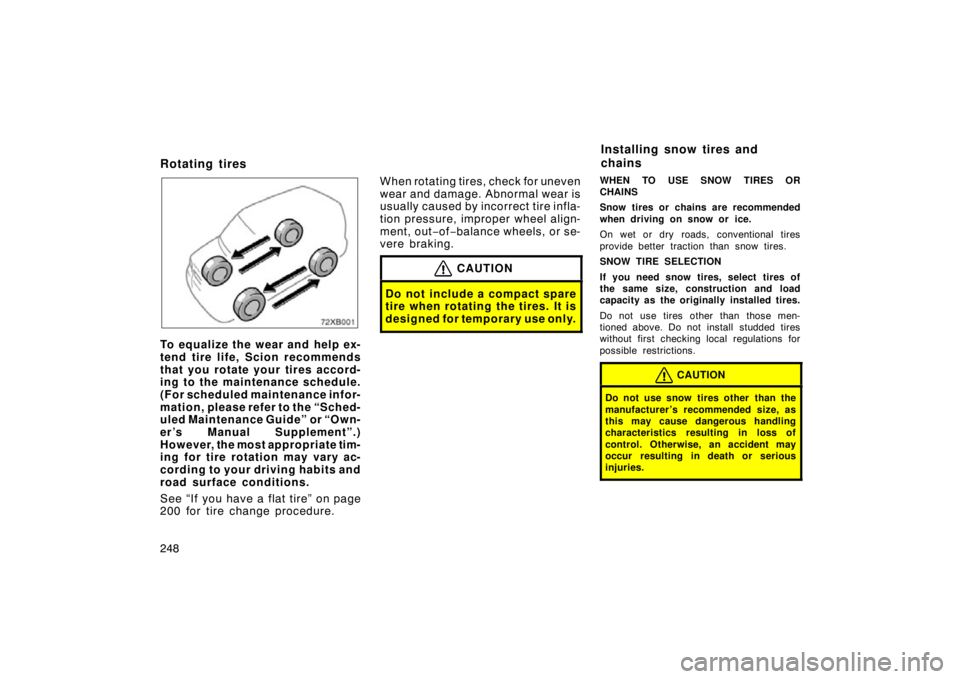

Rotating tires
To equalize the wear and help ex-
tend tire life, Scion recommends
that you rotate your tires accord-
ing to the maintenance schedule.
(For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.)
However, the most appropriate tim-
ing for tire rotation may vary ac-
cording to your driving habits and
road surface conditions.
See “If you have a flat tire” on page
200 for tire change procedure.When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire infla-
tion pressure, improper wheel align-
ment, out
−of −balance wheels, or se-
vere braking.
CAUTION
Do not include a compact spare
tire when rotating the tires. It is
designed for temporary use only.
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Do not use snow tires other than the
manufacturer ’s recommended size, as
this may cause dangerous handling
characteristics resulting in loss of
control. Otherwise, an accident may
occur resulting in death or serious
injuries.
Installing snow tires and
chains

249
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.

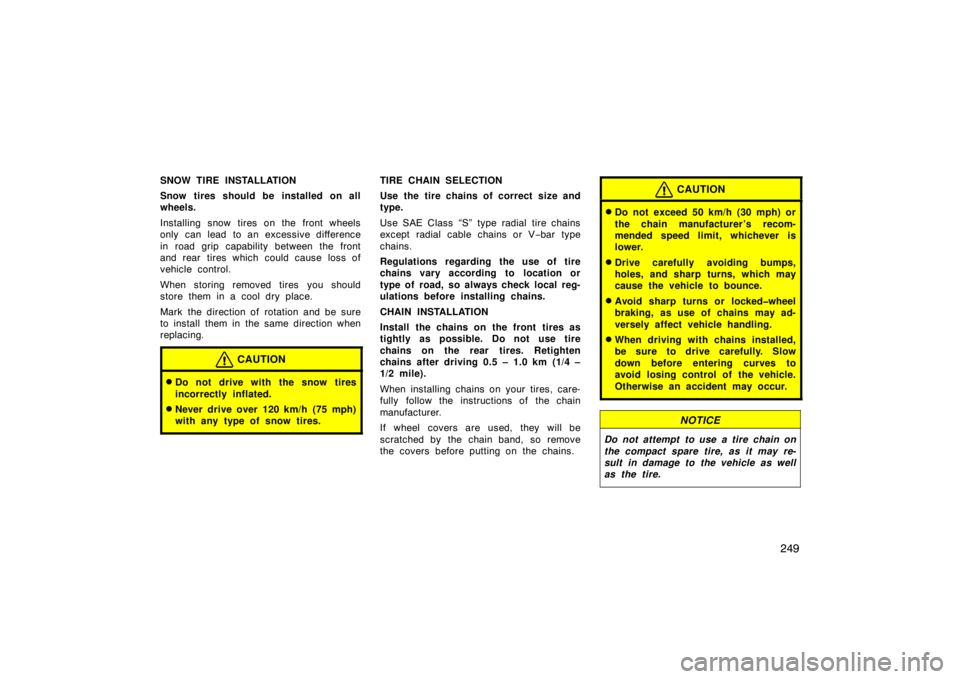

CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
TIRE CHAIN SELECTION
Use the tire chains of correct size and
type.
Use SAE Class “S” type radial tire chains
except radial cable chains or V −bar type
chains.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5 – 1.0 km (1/4 –
1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
NOTICE
Do not attempt to use a tire chain on
the compact spare tire, as it may re-
sult in damage to the vehicle as well
as the tire.

276
R
RadiatorCoolant, Engine 242 . . . . . . . . . . . . . . . . . .
Rear console box 147 . . . . . . . . . . . . . . . . . .
Rear seat Fold −down 29 . . . . . . . . . . . . . . . . . . . . . . .
Rear view mirror Inside rear view mirror 82 . . . . . . . . . . . . .
Outside rear view mirror 80 . . . . . . . . . . .
Rear window defogger switch 90 . . . . . . . . .
Rear window wiper and washer 90 . . . . . . .
Reporting safety defects
for U.S. owners 270 . . . . . . . . . . . . . . . . . .
S
Seat adjustment precautions
Front seats 26 . . . . . . . . . . . . . . . . . . . . . . .
Seat belt extender 35 . . . . . . . . . . . . . . . . . . .
Seat belt reminder buzzer 97 . . . . . . . . . . . .
Seat belt reminder light 97 . . . . . . . . . . . . . .
Seat belt pretensioner warning light 97 . . . . . . . . . . . . . . . . . . . . . .
Seat belts Cleaning 223 . . . . . . . . . . . . . . . . . . . . . . . .
Seat belt precautions 31 . . . . . . . . . . . . . .
Seat belt pretensioners 37 . . . . . . . . . . . .
Seating capacity 179 . . . . . . . . . . . . . . . . . . .
Seats 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and maintenance 226 . . . . . . . . . . .
Service reminder indicators 97 . . . . . . . . . . Side door locks 14
. . . . . . . . . . . . . . . . . . . . .
Side vents 136 . . . . . . . . . . . . . . . . . . . . . . . . .
Spare fuse 254 . . . . . . . . . . . . . . . . . . . . . . . .
Spare tire 203 . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 261 . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbags 40 . . . . . . . . . . . .
SRS warning light 97 . . . . . . . . . . . . . . . . . . .
Starting Cold weather 186 . . . . . . . . . . . . . . . . . . . .
Engine 186 . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 197 . . . . . . . . . . . . . . . . . . . .
Starting a flooded engine 196 . . . . . . . . . . . .
Steering Tilt steering wheel 80
. . . . . . . . . . . . . . . . .
Steering column
Column lock 108
. . . . . . . . . . . . . . . . . . . . .
Suspension and chassis 164
. . . . . . . . . . . .
Switch
Emergency flasher 87
. . . . . . . . . . . . . . . .
Headlight, dimmer and turn signal 86
. . . . . . . . . . . . . . . . . . . . . .
Ignition 108
. . . . . . . . . . . . . . . . . . . . . . . . . .
Overdrive 109
. . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 90
. . . . . . . . . . . . .
Power window 18
. . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer 89 . . . . . . .
T
Theft prevention labels 163
. . . . . . . . . . . . . .
Three −way catalytic converter 154 . . . . . . .
Tie −down hooks 149
. . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 80
. . . . . . . . . . . . . . . . . . .
Tire pressure warning light 97, 118 . . . . . . .
Tire pressure warning system 118 . . . . . . .
Tires Changing 206
. . . . . . . . . . . . . . . . . . . . . . . .
Flat tire 200
. . . . . . . . . . . . . . . . . . . . . . . . .
Glossary 172
. . . . . . . . . . . . . . . . . . . . . . . .
Inflation pressure 243
. . . . . . . . . . . . . . . .
Replacing 246
. . . . . . . . . . . . . . . . . . . . . . .
Rotation 248
. . . . . . . . . . . . . . . . . . . . . . . . .
Size 169, 265
. . . . . . . . . . . . . . . . . . . . . . .
Snow tires and chains 248
. . . . . . . . . . . .
Spare 203
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols 165
. . . . . . . . . . . . . . . . . . . . . . . .
Tire identification number (TIN) 168 . . . .
Tools 203
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total load capacity 179
. . . . . . . . . . . . . . . . .
To w i n g Capacity 179
. . . . . . . . . . . . . . . . . . . . . . . .
Dinghy towing 190
. . . . . . . . . . . . . . . . . . .
Emergency towing 213
. . . . . . . . . . . . . . . .
If your vehicle needs to be
towed 211
. . . . . . . . . . . . . . . . . . . . . . . . .
Trailer 192
. . . . . . . . . . . . . . . . . . . . . . . . . .
Traction control system 114
. . . . . . . . . . . . .
Trailer towing 192
. . . . . . . . . . . . . . . . . . . . . .
Trip meter 95
. . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signals 86
. . . . . . . . . . . . . . . . . . . . . . . .
