TOYOTA xB 2010 Owners Manual (in English)

93
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature gauge 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 97
. . . . . . . . . . . . . . .
SECTION 1 6

94

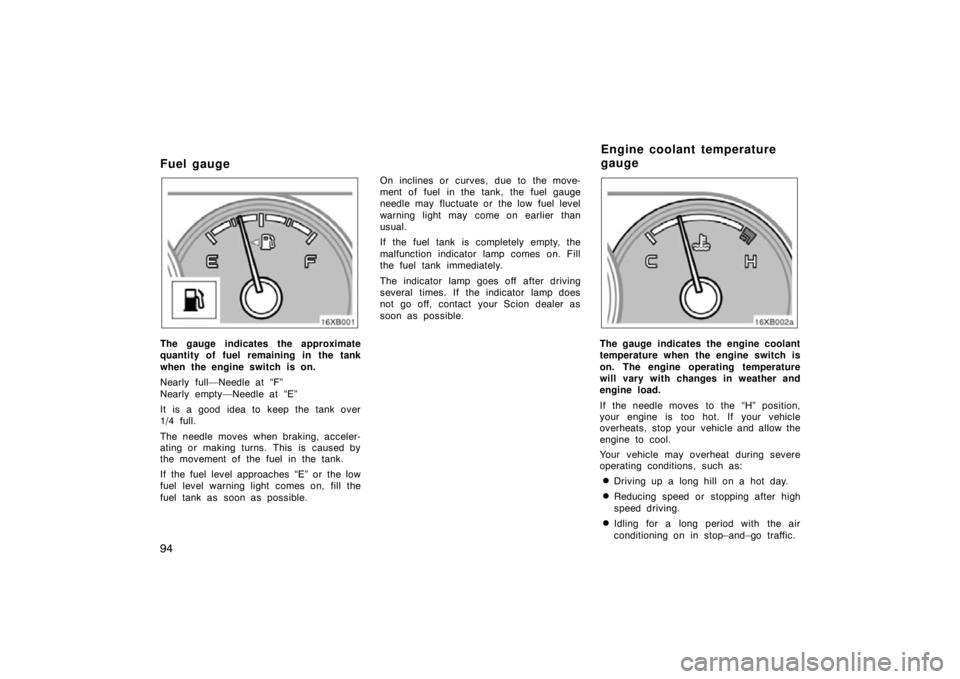

Fuel gauge
16XB001
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the engine switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Scion dealer as
soon as possible.
16XB002a
The gauge indicates the engine coolant
temperature when the engine switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves to the “H” position,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop–and–go traffic.
Engine coolant temperature
gauge

95
If the engine coolant temperature gauge
needle is not displayed, there may be a
problem in the system. In this case, con-
tact your Scion dealer as soon as pos-
sible.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 199.

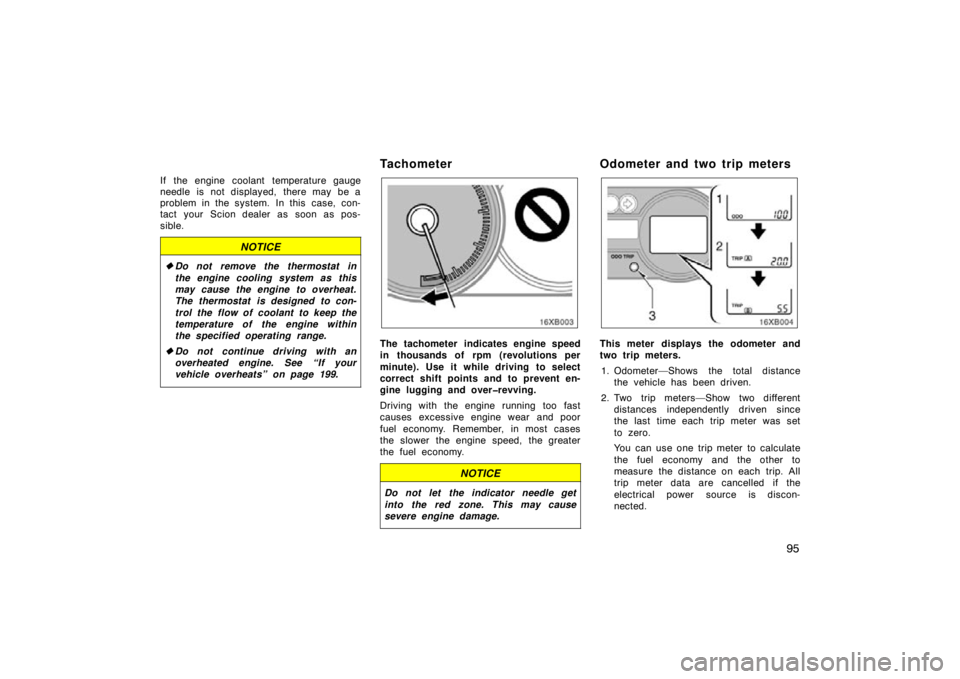

Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data are cancelled if the
electrical power source is discon-
nected.

96
3. Trip meter reset knob—It can reset thetwo trip meters to zero, and also
change the meter display.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
The speed units, km/h and MPH, can
be selected by pushing the trip meter
reset knob for more than 1 second
when the odometer indication is dis-
played.

97
Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)(Indicator and buzzer)If parking brake is off, stop immediately and contact Scion dealer.
(b)
(Indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(Indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Replace engine oil.
(e)Stop immediately and contact Scion dealer.
(f)Take vehicle to Scion dealer.
(g)Fill up tank.

98
If the indicator or buzzer comes on...Do this.
(h)Stop and check.
(i)Take vehicle to Scion dealer. If the brake system warning light is also on, stop immedi-
ately and contact Scion dealer.
(j)Close all side doors and back door.
(k)Take vehicle to Scion dealer immediately.
(l)Take vehicle to Scion dealer immediately.
(m)If the light flashes, take vehicle to Scion dealer.
(n)Adjust tire inflation pressure. If the light comes on after blinking for 1 minute, contact
Scion dealer.

99
If the indicator or buzzer comes on...Do this.
(o)Key reminder
buzzerRemove key.
(p)Light reminder
buzzerTurn off lights.

100
(a) Brake System Warning Light andBuzzer
This light comes on in the following cases
when the engine switch is in the “ON”
position.
When the parking brake is applied...
This light comes on for a few seconds
when the engine switch is turned to the
“ON” position even after the parking brake
is released.
If the vehicle speed rises above 5 km/h
(3 mph) with the parking brake applied for
1 seconds or more, a buzzer sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Scion dealer in the following cases:
The light does not come on even if the
parking brake is applied when the en-
gine switch is in the “ON” position.
The light does not come on even if the
engine switch is turned on with the
parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Scion dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will increase. Depress the
brake pedal firmly and bring the ve-
hicle to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.

101
(b) Driver’s Seat Belt Reminder Lightand Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the engine switch is turned to the
“ON” or “START” position, the reminder
light and buzzer come on if the driver’s
seat belt is not fastened. Unless the driv-
er fastens the belt, the light continues
flashing and 5 beeps sound.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer.
However, Scion recommends that the seat
belt reminder buzzer be operational to
alert the driver and front passenger that
the seat belts are not fastened. (c) Front Passenger ’s Seat Belt
Reminder Light and Buzzer
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the engine switch is turned to the
“ON” or “START” position, the reminder
light comes on if a passenger sits in the
front passenger seat and does not fasten
the seat belt. Unless the front passenger
fastens the belt, the light continues flash-
ing.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the driver ’s seat
belt is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer. (d) Engine Oil Replacement Reminder
Light
This light acts as a reminder to replace
the engine oil.
This light will come on when the engine
switch is turned to the “ON” position, and
will go off after a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 16 seconds
after the engine switch is turned to the
“ON” position. If you continue driving with-
out engine oil replacement, and if the driv-
ing range exceeds 8000 km (5000 miles),
the light will come on when the engine
switch is turned to the “ON” position. The
light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.

102
The system must be reset after the en-
gine oil replacement. Reset the system by
following the procedure below:1. Turn the engine switch to the “OFF” position with the trip meter A reading
shown. (For details, see “Odometer and
two trip meters” on page 95.)
2. Turn the engine switch to the “ON” position while holding down the trip
meter reset knob.
Hold down the knob for at least 5 sec-
onds. The light goes off, and the display
shows zero for 1 second and changes to
the odometer reading.
If the system fails to reset, the light will
keep flashing. (e) Charging System Warning Light
This warning light comes on when the
engine switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r
unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Scion
dealer.
(f) Malfunction Indicator Lamp
This lamp comes on when the engine
switch is turned to the “ON” position
and goes off after the engine starts.
This means that the warning light sys-
tem is operating properly.
If the lamp remains on, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Scion dealer as
soon as possible.
