Manual transmission
The shift pattern is conventional as
shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. Do
not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
gear km/h (mph)147 (29)
281 (50)
3125 (77)
4 172 (106)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
NOTICE
 Do not use any gears other than
first gear when starting off and
moving forward. Doing so may dam-
age the clutch.
 Make sure the vehicle is completely
stopped before shifting into reverse.

11 4
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the engine switch is turned to “ON”
position, the system automatically turns
on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self−check mode, but does not indicate a
malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON” position. If the indicator light does
not come on when the engine switch is
turned on, contact your Scion dealer.
Traction control system

11 5
TRACTION CONTROL OFF MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road and sand, turn off the traction
control system or vehicle stability con-
trol system. (See page 117 to turn off
the vehicle stability control system.)
These systems control engine perfor-
mance that interferes with the process
of freeing your wheels.
To turn off: Push “VSC OFF” switch
briefly.
The slip indicator light will come on.
When the engine switch is turned to “ON”
position, the traction control system and
vehicle stability control system always turn
on.
Traction control system turns back on
when the vehicle reaches to the certain
speed.
To turn on: Push “VSC OFF” switch
once again.
The slip indicator light will go off.
CAUTION
When traction control and vehicle sta-
bility control system are off, be espe-
cially careful and drive at a speed
appropriate to the road conditions. As
these are systems to ensure vehicle
stability and driving force, do not
turn off traction control and vehicle
stability control system unless neces-
sary.
In the following cases, contact your Scion
dealer:
The slip indicator light does not come
on when the engine switch is turned to
“ON” position.
The slip indicator light remains on after
the engine switch is turned to “ON”
position.
The slip indicator light comes on in the
normal driving mode while driving.

11 6
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
The vehicle stability control system is acti-
vated when the vehicle speed is about
more than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self−check mode,
but does not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively. Reck-
less driving will result in an acci-
dent and cause death or serious
injury. If the slip indicator light
flashes, sounding an alarm, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Scion dealer. (See
“Checking and replacing tires” on
page 246.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON” position. If the indicator light does
not come on when the engine switch is
turned on, contact your Scion dealer.
Vehicle stability control
system

11 7
VEHICLE STABILITY CONTROL OFF
MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road and sand, turn off the traction
control system or vehicle stability con-
trol system. (See page 115 to turn off
the traction control system). These sys-
tems control engine performance that
interferes with the process of freeing
your wheels.
To turn off: Push and hold the “VSC
OFF” switch for 3 seconds when the
vehicle is not moving.
The slip indicator light and “VSC OFF”
indicator light will come on.
When the engine switch is turned to “ON”
position, the traction control system and
vehicle stability control system always turn
on.
To turn on: Push “VSC OFF” switch
once again.
The slip indicator light and “VSC OFF”
indicator light will go off.
CAUTION
When traction control and vehicle sta-
bility control system are off, be espe-
cially careful and drive at a speed
appropriate to the road conditions. As
these are systems to ensure vehicle
stability and driving force, do not
turn off traction control and vehicle
stability control system unless neces-
sary.
In the following cases, contact your Scion
dealer:
The slip indicator light and “VSC OFF”
indicator light do not come on when the
engine switch is turned to “ON” position.
The slip indicator light or “VSC OFF”
indicator light remains on after the en-
gine switch is turned to “ON” position
.
The slip indicator light or “VSC OFF”
indicator light come on in the normal
driving mode while driving.

11 8
The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.
17XB008a

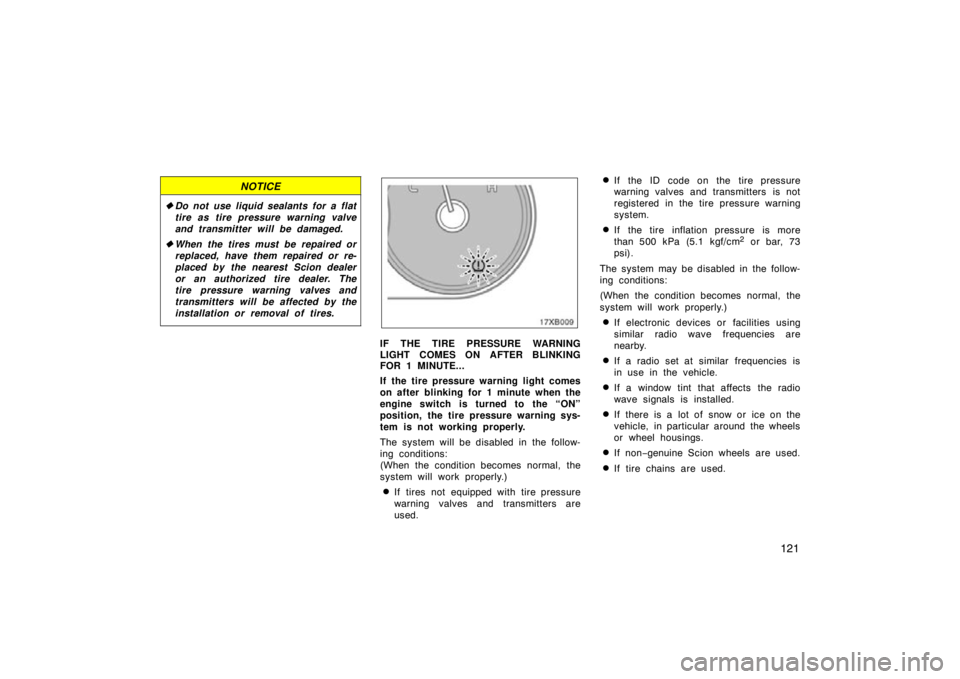

The tire pressure warning light comes on
when the engine switch is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning system is operating properly. If
the tire inflation pressure becomes low,
the light comes on again. In this case,
adjusting the tire inflation pressure will
turn off the light after a few minutes. If
the light comes on after blinking for 1
minute, the tire pressure warning system
is not working properly.Indicator
status
MeaningsDo this
ONTire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Scion
dealer
Tire pressure warning system

11 9

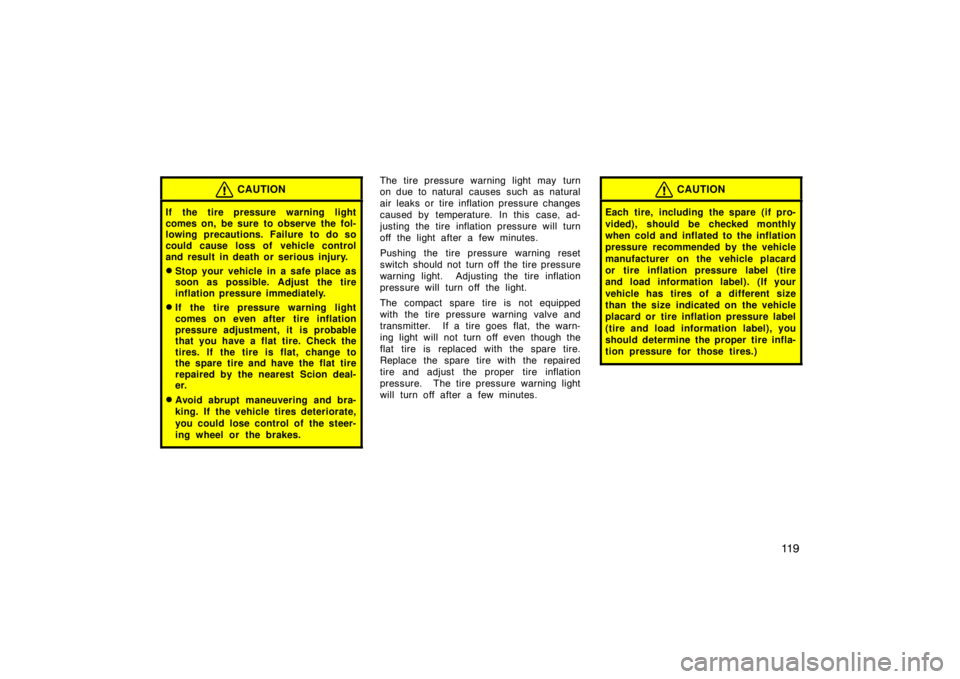

CAUTION
If the tire pressure warning light
comes on, be sure to observe the fol-
lowing precautions. Failure to do so
could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Scion deal-
er.
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after a few minutes.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warn-
ing light will not turn off even though the
flat tire is replaced with the spare tire.
Replace the spare tire with the repaired
tire and adjust the proper tire inflation
pressure. The tire pressure warning light
will turn off after a few minutes.CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)

120

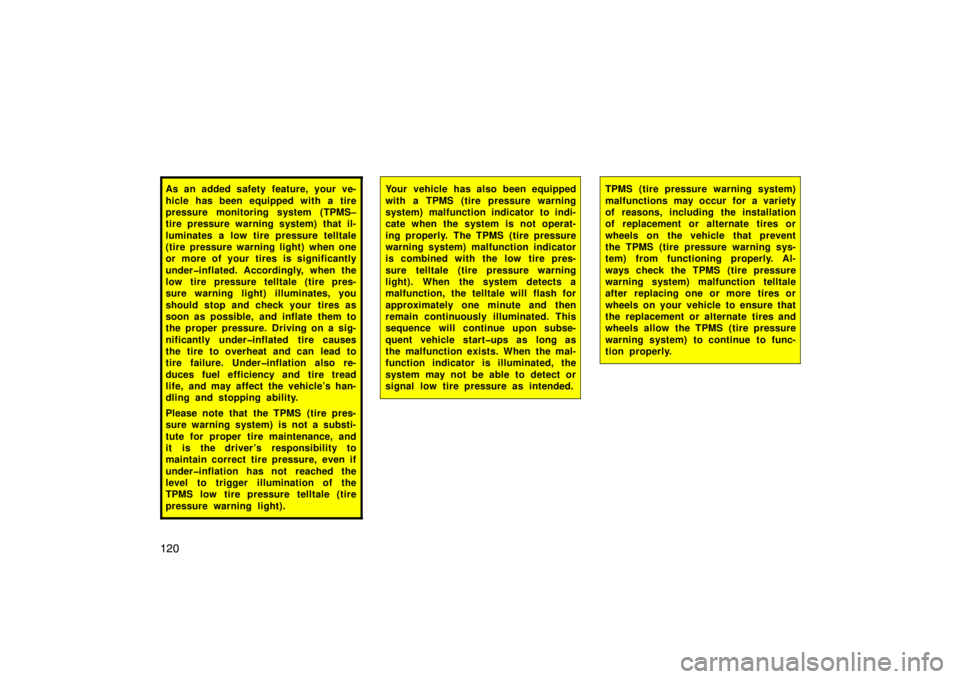

As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle startups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.

121
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Scion dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
system.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi).
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Scion wheels are used.
If tire chains are used.

122
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the engine switch is turned to the
“ON” position, have the system checked
by your Scion dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light.

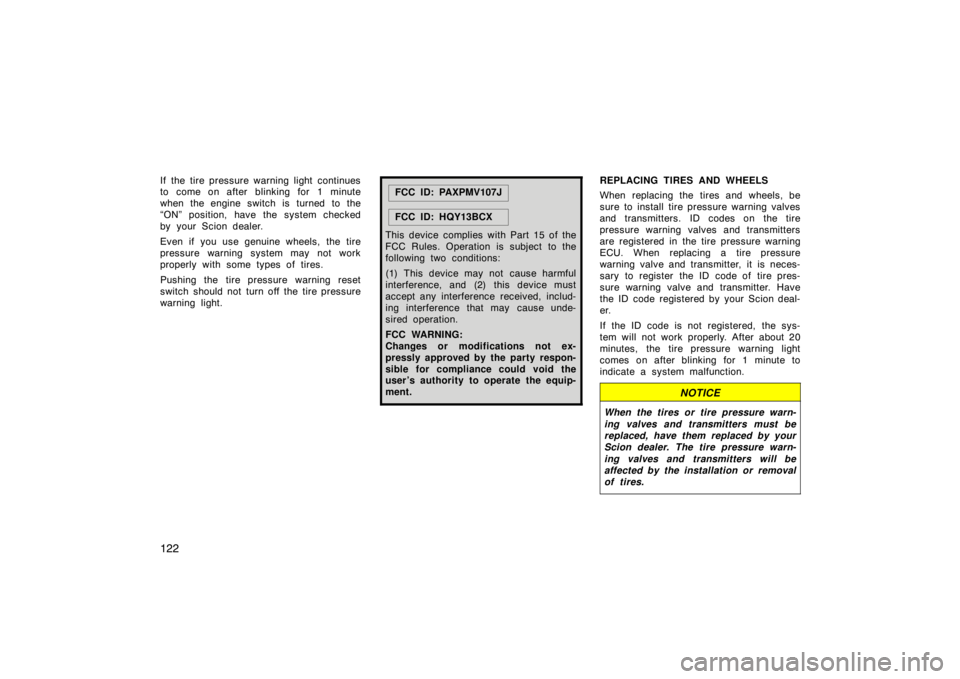

FCC ID: PAXPMV107J
FCC ID: HQY13BCX
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
ECU. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Scion deal-
er.
If the ID code is not registered, the sys-
tem will not work properly. After about 20
minutes, the tire pressure warning light
comes on after blinking for 1 minute to
indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Scion dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
