153
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied worldwide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 4 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Scion recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.OXYGENATES IN GASOLINE
Scion allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Scion, be sure that it has an octane
rating no lower than 87.
Scion does not recommend the use of
gasoline containing methanol.
GASOLINE CONTAINING MMT
Some gasoline contains an octane en-
hancing additive called MMT (Methylcy-
cropentadienyl Manganese Tricarbonyl).
Scion does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Scion dealer for ser-
vice.
GASOLINE QUALITY
In a very few cases, you may experience
drivability problems caused by the particu-
lar gasoline that you are using. If you
continue to have unacceptable drivability,
try changing gasoline brands. If this does
not rectify your problem, then consult your
Scion dealer.
NOTICE

Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If drivability problems are encoun-
tered (poor hot starting, vaporizing,
engine knock, etc.), discontinue the
use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
53 L (14.0 gal., 11.7 lmp.gal.)

154
Operation in foreign countries
If you plan to drive your Scion in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).

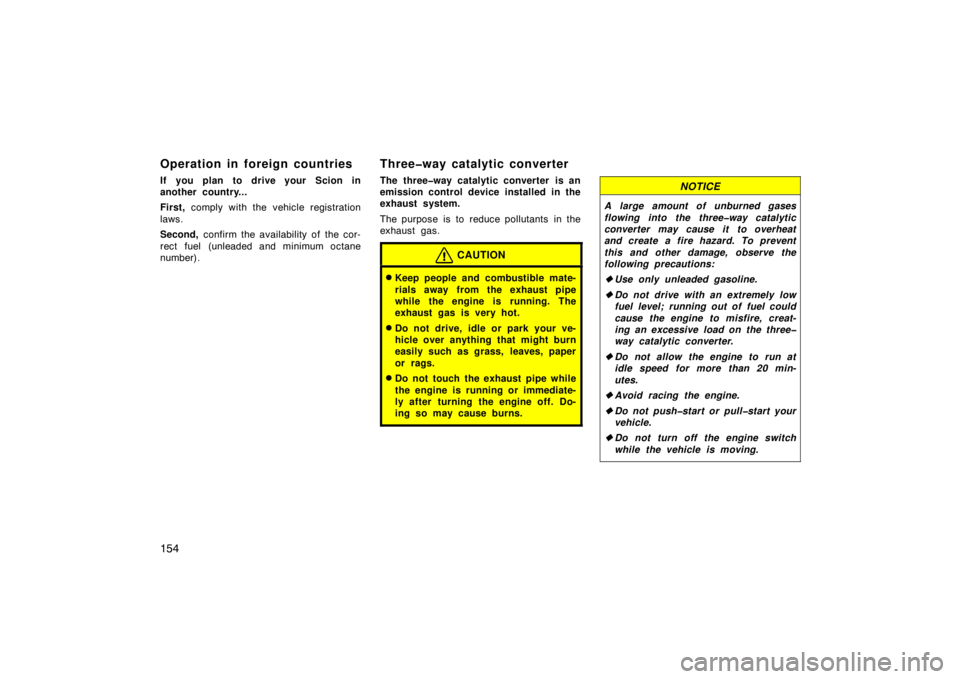

Threeway catalytic converter
The threeway catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not drive, idle or park your ve-
hicle over anything that might burn
easily such as grass, leaves, paper
or rags.
Do not touch the exhaust pipe while
the engine is running or immediate-
ly after turning the engine off. Do-
ing so may cause burns.
NOTICE
A large amount of unburned gases
flowing into the threeway catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
 Use only unleaded gasoline.
 Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three
way catalytic converter.
 Do not allow the engine to run at
idle speed for more than 20 min-
utes.
 Avoid racing the engine.
 Do not pushstart or pullstart your
vehicle.
 Do not turn off the engine switch
while the vehicle is moving.

155
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high threeway catalytic
converter temperature.
 If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a checkup as soon
as possible. Remember, your Scion
dealer knows your vehicle and its
threeway catalytic converter sys-
tem best.
 To ensure that the threeway
catalytic converter and the entire
emission control system operate
properly, your vehicle must receive
the periodic inspections required by
the Scion Maintenance Schedule.
For scheduled maintenance
information, refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.

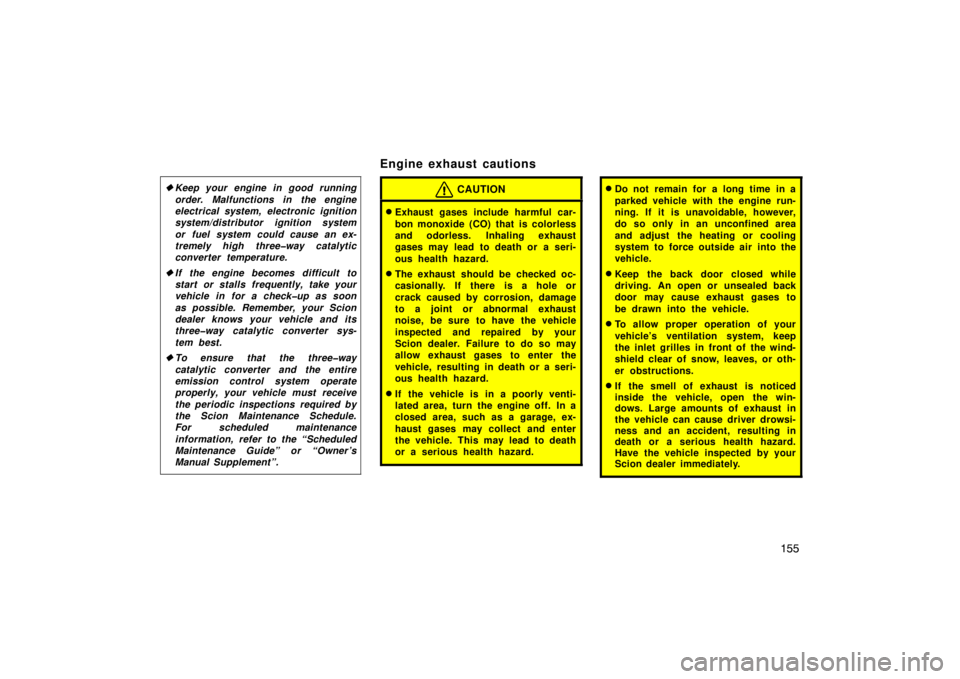

Engine exhaust cautions
CAUTION
Exhaust gases include harmful car-
bon monoxide (CO) that is colorless
and odorless. Inhaling exhaust
gases may lead to death or a seri-
ous health hazard.
The exhaust should be checked oc-
casionally. If there is a hole or
crack caused by corrosion, damage
to a joint or abnormal exhaust
noise, be sure to have the vehicle
inspected and repaired by your
Scion dealer. Failure to do so may
allow exhaust gases to enter the
vehicle, resulting in death or a seri-
ous health hazard.
If the vehicle is in a poorly venti-
lated area, turn the engine off. In a
closed area, such as a garage, ex-
haust gases may collect and enter
the vehicle. This may lead to death
or a serious health hazard.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Keep the back door closed while
driving. An open or unsealed back
door may cause exhaust gases to
be drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If the smell of exhaust is noticed
inside the vehicle, open the win-
dows. Large amounts of exhaust in
the vehicle can cause driver drowsi-
ness and an accident, resulting in
death or a serious health hazard.
Have the vehicle inspected by your
Scion dealer immediately.

156
Do not leave the engine running in
an area with snow buildup, or
where it is snowing. If snowbanks
build up around the vehicle while
the engine is running, exhaust
gases may collect and enter the ve-
hicle. This may lead to death or a
serious health hazard.
When taking a nap in the vehicle,
always turn the engine off. Other-
wise, you may accidentally move
the shift lever or depress the accel-
erator pedal, which could cause an
accident or fire due to engine over-
heating. Additionally, if the vehicle
is parked in a poorly ventilated
area, exhaust gases may collect and
enter the vehicle, leading to death
or a serious health hazard.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the
quality of the oil and the conditions the
vehicle is driven.
More oil is consumed by high −speed driv-
ing and frequent acceleration and decel-
eration.
A new engine consumes more oil, since
its pistons, piston rings and cylinder walls
have not become conditioned.
Oil consumption: Max. 1.0 L per 1000
km (1.1 qt./600 miles, 0.9 lmp.qt./600
miles)
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to judge
the true level accurately.
Facts about engine oil
consumption

157
As an example, if a vehicle is used for
repeated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more. This
is because the oil is gradually becoming
diluted with fuel or moisture, making it
appear that the oil level has not changed.
The diluting ingredients evaporate out
when the vehicle is then driven at high
speeds, as on an express way, making it
appear that oil is excessively consumed
after driving at high speeds.
IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-
gine oil at the optimum level so that oil
function will not be impaired. Therefore, it
is essential that the oil level be checked
regularly. Scion recommends that the oil
level be checked every time you refuel
the vehicle.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
For detailed information on oil level check,
see “Checking the engine oil level” on
page 240.The electric power steering system, us-
ing an electric motor, assists the turn-
ing of the steering wheel.
In the following cases, you may feel the
steering becomes heavy. However, the
electric power steering system warning
light does not come on. (Because it is
not a malfunction.)
When maneuvering or turning frequently
over a long time
The power steering effect will be re-
duced to prevent the system from over-
heating. Avoid turning the steering
wheel, or stop the vehicle and turn the
engine switch to “ACC” or LOCK”. The
system will become cool in a
bout 10
minutes.
NOTICE
Frequent maneuvering and turning
over a long time may cause damage
to the system in which the mecha-
nism prevents overheating of the elec-
tric power steering system.
Electric power steering system

158
When racing the engine for 30 seconds
or more with the vehicle stopped
The normal power steering effect will
be obtained when you start driving.
When the battery is discharged
Check the battery’s condition. If neces-
sary, recharge or replace the battery.
For details, see “Checking battery con-
dition” on page 252.

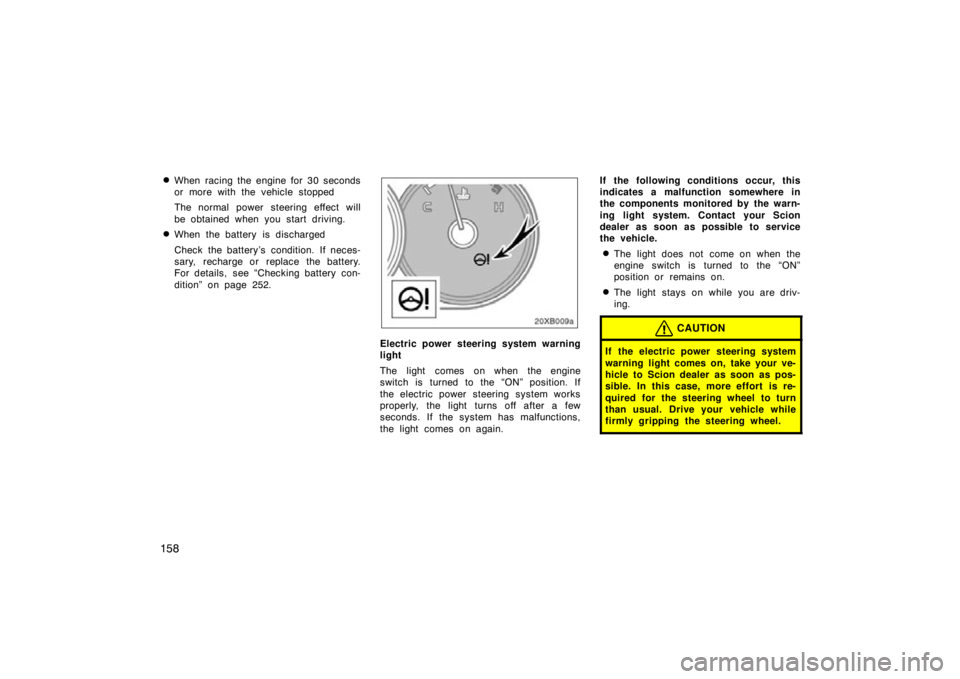

20XB009a
Electric power steering system warning
light
The light comes on when the engine
switch is turned to the “ON” position. If
the electric power steering system works
properly, the light turns off after a few
seconds. If the system has malfunctions,
the light comes on again.
If the following conditions occur, this
indicates a malfunction somewhere in
the components monitored by the warn-
ing light system. Contact your Scion
dealer as soon as possible to service
the vehicle.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on.
The light stays on while you are driv-
ing.
CAUTION
If the electric power steering system
warning light comes on, take your ve-
hicle to Scion dealer as soon as pos-
sible. In this case, more effort is re-
quired for the steering wheel to turn
than usual. Drive your vehicle while
firmly gripping the steering wheel.

159
Brake system
The tandem master cylinder brake system
is a hydraulic system with two separate
sub−systems. If either sub −system s hould
fail, the other will still work. However, the
pedal will be harder to press, and your
stopping distance will increase. Also, the
brake system warning light may come on.

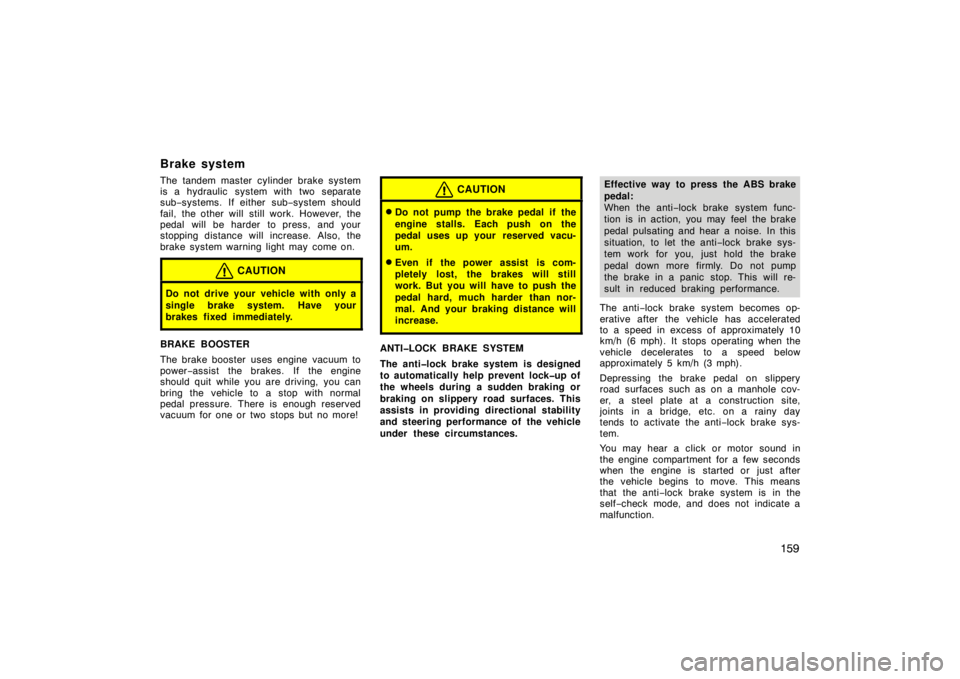

CAUTION
Do not drive your vehicle with only a
single brake system. Have your
brakes fixed immediately.
BRAKE BOOSTER
The brake booster uses engine vacuum to
power −assist the brakes. If the engine
should quit while you are driving, you can
bring the vehicle to a stop with normal
pedal pressure. There is enough reserved
vacuum for one or two stops but no more!
CAUTION
Do not pump the brake pedal if the
engine stalls. Each push on the
pedal uses up your reserved vacu-
um.
Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push the
pedal hard, much harder than nor-
mal. And your braking distance will
increase.
ANTILOCK BRAKE SYSTEM
The antilock brake system is designed
to automatically help prevent lockup of
the wheels during a sudden braking or
braking on slippery road surfaces. This
assists in providing directional stab ility
and steering performance of the vehicle
under these circumstances.
Effective way to press the ABS brake
pedal:
When the anti −lock brake system func-
tion is in action, you may feel the brake
pedal pulsating and hear a noise. In this
situation, to let the anti −lock brake sys-
tem work for you, just hold the brake
pedal down more firmly. Do not pump
the brake in a panic stop. This will re-
sult in reduced braking performance.
The anti −lock brake system becomes op-
erative after the vehicle has accelerated
to a speed in excess of approximately 10
km/h (6 mph). It stops operating when the
vehicle decelerates to a speed below
approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery
road surfaces such as on a manhole cov-
er, a steel plate at a construction site,
joints in a bridge, etc. on a rainy day
tends to activate the anti −lock brake sys-
tem.
You may hear a click or motor sound in
the engine compartment for a few seconds
when the engine is started or just after
the vehicle begins to move. This means
that the anti −lock brake system is in the
self −check mode, and does not indicate a
malfunction.

160
When the antilock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti−lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti −lock brake sys-
tem activation, the brake pedal may
move a little forward.

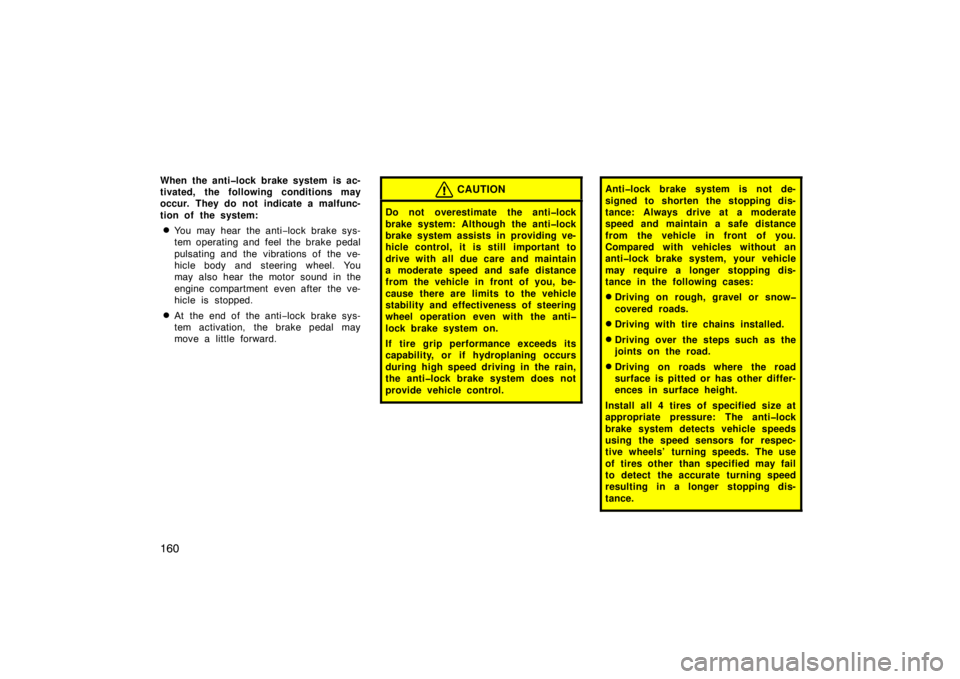

CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.

161

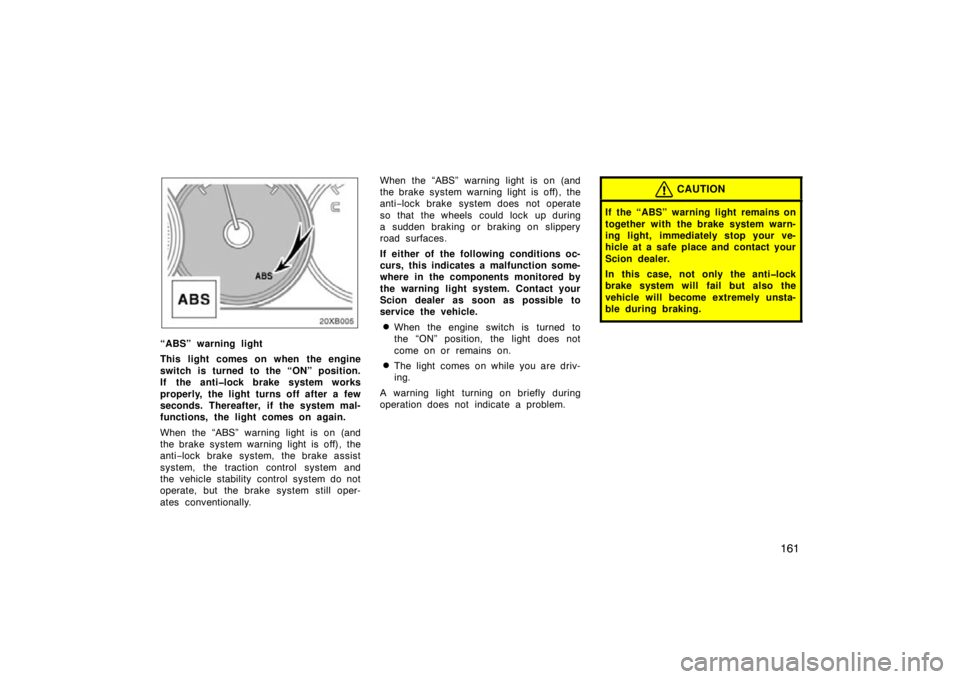

“ABS” warning light
This light comes on when the engine
switch is turned to the “ON” position.
If the antilock brake system works
properly, the light turns off after a few
seconds. Thereafter, if the system mal-
functions, the light comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system, the brake assist
system, the traction control system and
the vehicle stability control system do not
operate, but the brake system still oper-
ates conventionally. When the “ABS” warning light is on (and
the brake system warning light is off), the
anti
−lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact your
Scion dealer as soon as possible to
service the vehicle.
When the engine switch is turned to
the “ON” position, the light does not
come on or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Scion dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.

162
BRAKE ASSIST SYSTEM
When you slam the brakes on, the
brake assist system judges as an emer-
gency stop and provides more powerful
braking for a driver who cannot hold
down the brake pedal firmly.
When you slam the brakes on, more pow-
erful braking will be applied. At this time,
you may hear a sound in the engine
compartment and feel the vibrations of the
brake pedal. This does not indicate a mal-
function.
The brake assist system becomes opera-
tive after the vehicle has accelerated to a
speed in excess of approximately 10 km/h
(6 mph). It stops operating when the ve-
hicle decelerates to a speed below
approximately 5 km/h (3 mph).
For an explanation of this system’s warn-
ing light, see “Service reminder indicators
and warning buzzers” on page 97.
Brake pad wear limit indicators
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Scion deal-
er as soon as possible. Expensive rotor
damage can result if the pads are not
replaced when necessary.The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Scion. It is used in registering
the ownership of your vehicle.
Your Scion’s identification—
—Vehicle identification
number
