TOYOTA xB 2013 (in English) Owner's Manual

21
Scion_xB_OM_OM12G46U_(U)
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Scion and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. releasing seat belt).

22
Scion_xB_OM_OM12G46U_(U)

Before driving1
23
Scion_xB_OM_OM12G46U_(U)
1-1. Key informationKeys ................................... 24
1-2. Opening, closing and locking the doors
Wireless remote control ..... 27
Side doors .......................... 31
Back door ........................... 37
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 43
Rear seats.......................... 44
Head restraints................... 46
Seat belts ........................... 48
Steering wheel ................... 55
Anti-glare inside rear view mirror ....................... 56
Outside rear view mirrors.............................. 57 1-4. Opening and closing
the windows
Power windows .................. 59
1-5. Refueling Opening the fuel tank cap ................................... 61
1-6. Theft deterrent system Engine immobilizer system ............................. 65
Theft prevention labels (for U.S.A.) ....................... 67
1-7. Safety information Correct driving posture....... 68
SRS airbags ....................... 70
Front passenger occupant classification system ........ 82
Child restraint systems....... 88
Installing child restraints..... 93

24
Scion_xB_OM_OM12G46U_(U)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Type A (without an engine immobilizer system)
Keys (with a wireless
remote control function)
Operating the wireless remote
control function ( P. 27)
Key (without a wireless
remote control function)
Key number plate
Type A (with an engine immobilizer system) Master keys
Operating the wireless remote
control function (P. 27)
Va l e t k e y
Key number plate
Ty p e B Keys
Operating the wireless remote
control function (P. 27)
Key number plate

25
1-1. Key information
1
Before driving
Scion_xB_OM_OM12G46U_(U)
Using the key (type B)
Releasing
To release the key, press the but-
ton.
Folding
To stow the key back in its case,
push the key back to the stowed
position while pressing the but-
ton.
■When required to leave the vehicle’s key with a parking attendant (type
A [with an engine immobilizer system])
Carry the master key for your own use and provide the attendant with the
valet key.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Scion dealer using
the key number plate. ( P. 323)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the a\
ircraft.

26 1-1. Key information
Scion_xB_OM_OM12G46U_(U)
NOTICE
■To prevent key damage
Observe the following:
● Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the electronic key.

27
1
Before driving
Scion_xB_OM_OM12G46U_(U)
1-2. Opening, closing and locking the doors

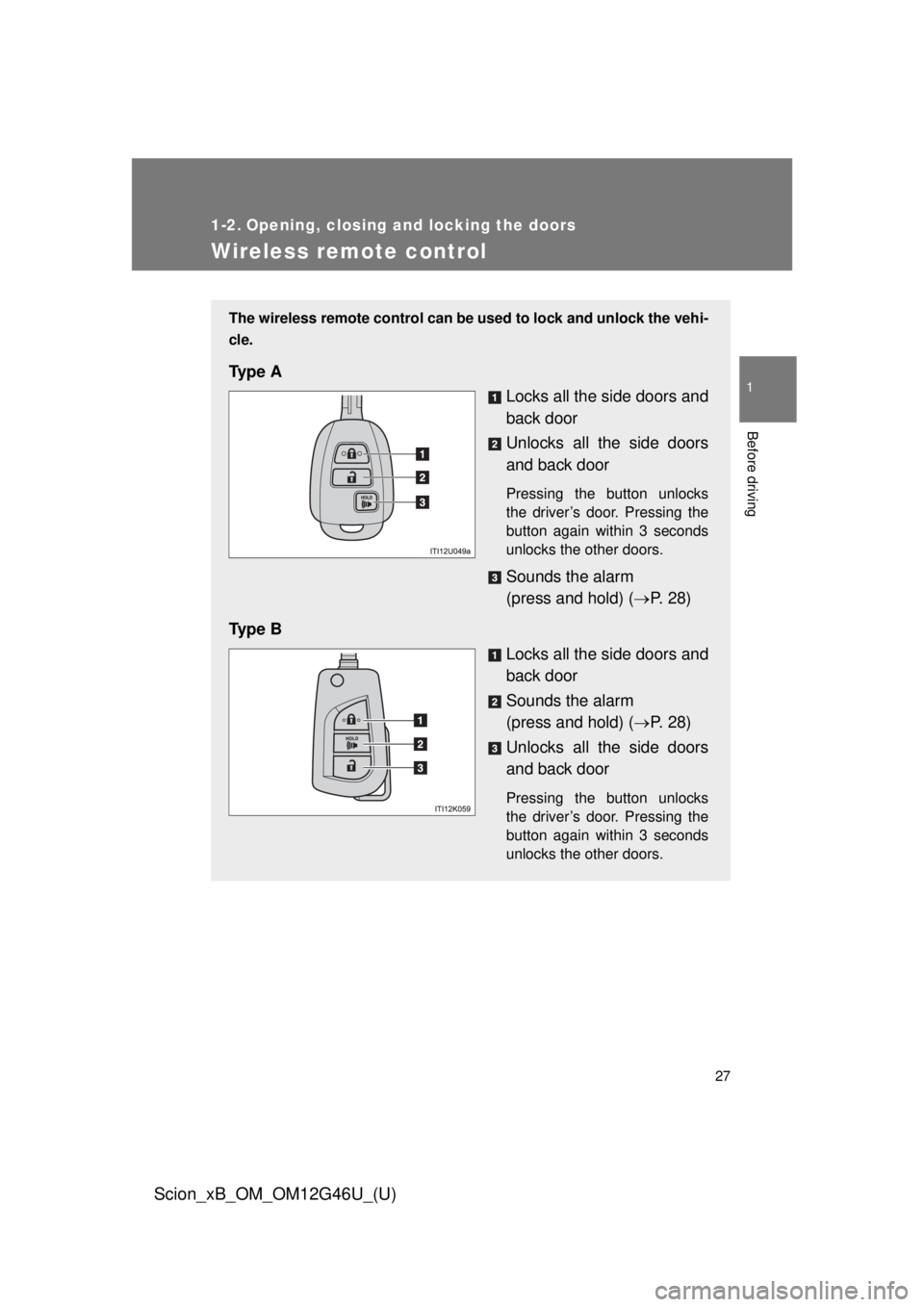

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle.
Ty p e A
Locks all the side doors and
back door
Unlocks all the side doors
and back door
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Sounds the alarm
(press and hold) (P. 2 8 )
Ty p e B Locks all the side doors and
back door
Sounds the alarm
(press and hold) (P. 2 8 )
Unlocks all the side doors
and back door
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.

28 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ Panic mode
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.

29
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xB_OM_OM12G46U_(U)
■
Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Conditions aff ecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
● When the wireless remote control battery is depleted
● Near a TV tower, radio station, electr ic power plant, airport or other facil-
ity that generates strong radio waves
● When carrying a portable radio, cell ular phone or other wireless commu-
nication devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by, a metallic
object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as
a personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window
■ Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( P. 258)
■ Customization that can be configured at Scion dealer
Settings (e.g. door unlocking function) can be changed.
(Customizable features: P. 362)

30 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
■Certification for wir eless remote control
U.S.A.
FCC ID: HYQ13BDP
FCC ID: HYQ12BDP
FCC ID: HYQ12BEA
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interfer-
ence, including interference that may cause undesired operation of the
device.
