TOYOTA xB 2013 (in English) Owner's Guide

31
1
1-2. Opening, closing and locking the doors
Before driving
Scion_xB_OM_OM12G46U_(U)

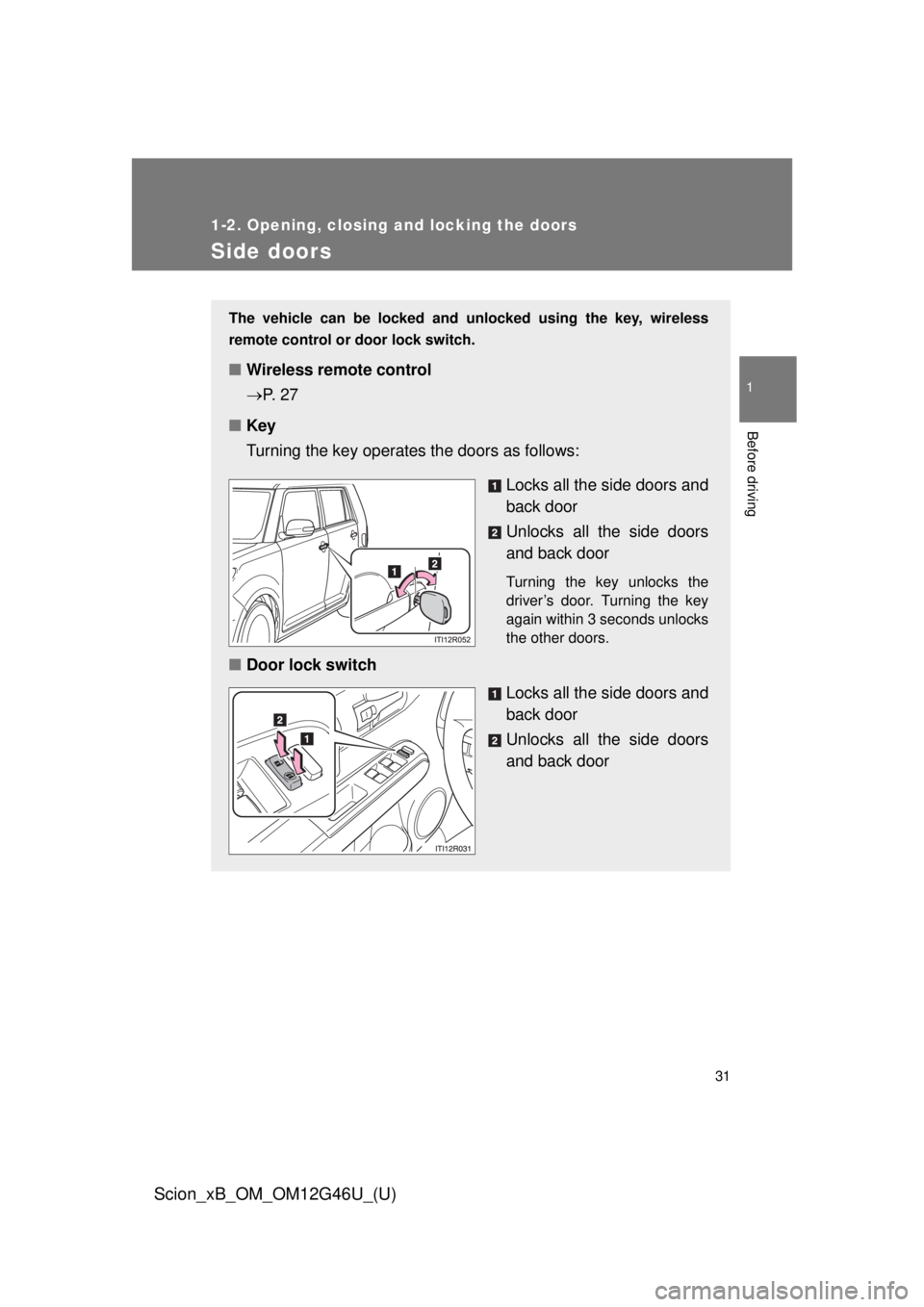

Side doors
The vehicle can be locked and unlocked using the key, wireless
remote control or door lock switch.
■Wireless remote control
P. 2 7
■ Key
Turning the key operates the doors as follows:
Locks all the side doors and
back door
Unlocks all the side doors
and back door
Turning the key unlocks the
driver’s door. Turning the key
again within 3 seconds unlocks
the other doors.
■Door lock switch
Locks all the side doors and
back door
Unlocks all the side doors
and back door

32 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
Locking the front doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the key is in the engine switch.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set. Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
■Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
STEP 1
STEP 2

33
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xB_OM_OM12G46U_(U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
*1: Vehicles with an automatic transmission only
*2: Default setting is off
FunctionOperation
Shift position linked
door locking function
*1Shifting the shift lever out of P locks all the
doors.
Shift position linked
door unlocking func-
tion
*1
Shifting the shift lever to P unlocks all the
doors.
Speed linked door lock-
ing function
*2
All the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked door
unlocking function
*2
All the doors are unlocked when the driver’s
door is opened within 10 seconds after turn-
ing the engine switch to the “ACC” or
“LOCK” position.

34 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
■Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below.
Close all the doors and turn the engine switch to the “ON”
position. (Perform step 2 within 10 seconds.)
Shift the shift lever to P or N, and
press and hold the driver’s door
lock switch (
or ) for
approximately 5 seconds and
then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown in the following table.
Use the same procedure to can-
cel the function.
STEP 1
STEP 2

35
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xB_OM_OM12G46U_(U)
*: Vehicles with an automatic transmission only
When the setting or canceling operat
ion is complete, all the doors are
locked and then unlocked.
FunctionShift lever positionDriver’s door lock switch position
Shift position linked door lock-
ing function
*P
Shift position linked door
unlocking function
*
Speed linked door locking func-
tion N
Driver’s door linked door unlock-
ing function
■ Customization that can be configured at Scion dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 362)

36 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

37
1
1-2. Opening, closing and locking the doors
Before driving
Scion_xB_OM_OM12G46U_(U)

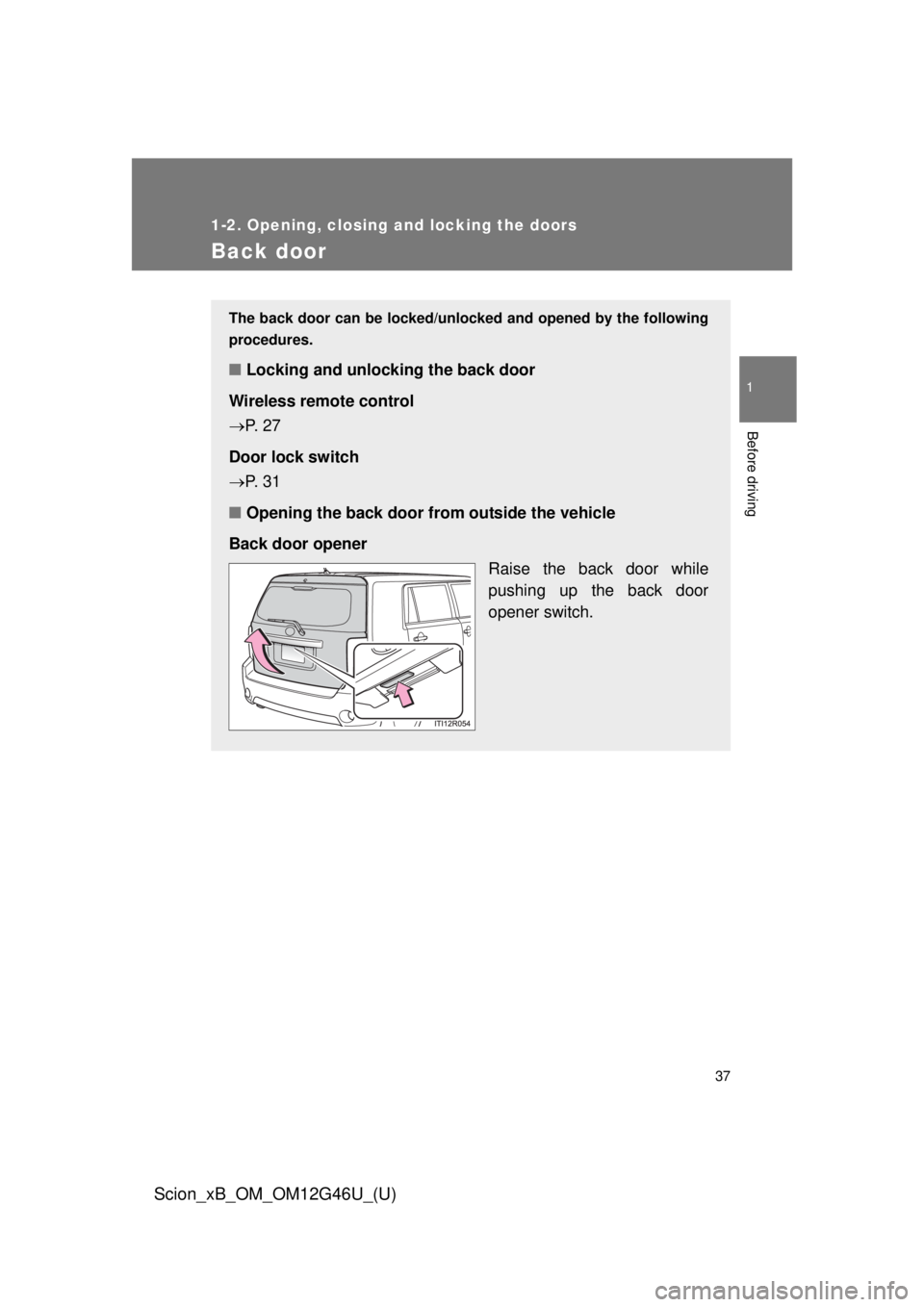

Back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Wireless remote control
 P. 2 7
Door lock switch
 P. 3 1
■ Opening the back door from outside the vehicle
Back door opener Raise the back door while
pushing up the back door
opener switch.

38 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
■When closing the back door
■ Luggage compartment light
The luggage compartment lights turn on when the back door is opened with
the luggage compartment light switch on.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Off
On

39
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xB_OM_OM12G46U_(U)
■
If the back door opener is inoperative
The back door can be operated from the inside.
Remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.
Move the lever.STEP 1
STEP 2

40 1-2. Opening, closing and locking the doors
Scion_xB_OM_OM12G46U_(U)
CAUTION
■Caution while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or an accident, they are susceptible to death or
serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
