101
If your engine coolant temperature is cool
with the engine switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Scion dealer as
soon as possible to service the vehicle.
If the high engine coolant temperature
warning light flashes, the engine is too
hot. If your vehicle overheats, stop your
vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and− go traffic.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 205.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.

102
The following information is displayed
on the multiinformation display when
you push the “MODE” switch (on the
instrument cluster) with the engine
switch turned on.
Each time you push the “MODE”
switch, the display changes to the next
display setting.1. Odometer
2. Two trip meters
3. Instantaneous fuel consumption
4. Average fuel consumption
5. Average vehicle speed
6. Driving range
Multiinformation display
15xD002a

103
The displayed values in the multi−informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
When the engine switch is on, the last
previously used mode displayed just be-
fore the engine switch is off will appear.
If the electrical power source has been
disconnected from the multi −information
display, the display will automatically be
set to the initial mode.
When the headlight switch is turned on,
the brightness of the display will be re-
duced.
You can adjust the brightness of the dis-
play. To adjust the brightness, see “Instru-
ment panel light control” on page 94.
CAUTION
Do not operate the switches while the
vehicle is moving. Make sure to oper-
ate the switches when the vehicle is
stopped.
1. Odometer
The total distance the vehicle has been
driven is displayed.
2. Two trip meters
Two different distances are displayed
independently.
You can use one trip meter to calculate
the fuel economy and the other to mea-
sure the distance on each trip. All trip
meter data are cancelled if the electrical
power source is disconnected.
To reset the trip meter A to zero, display
the meter A reading, then push and hold
the knob until the meter is set to zero.
The same process can be applied for re-
setting the trip meter B. 3. Instantaneous fuel consumption (“MPG”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption with the
engine running.
Note that an accurate figure may not be
shown in the following cases.The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope, applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the engine
switch is turned off. 4. Average fuel consumption (“AVG. MPG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
Every time you refuel the vehicle, the cal-
culation is reset. 5. Average vehicle speed (“AVG. MPH”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.

104
6. Driving range(“RANGE MI”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
Every time you refuel the vehicle, the cal-
culation is reset. However, when only a
small amount of fuel is added to the tank,
the display may not be reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.

105
Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)(Indicator and buzzer)If parking brake is off, stop immediately and contact Scion dealer.
(b)
(Indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(Indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Replace engine oil.
(e)Stop immediately and contact Scion dealer.
(f)Take vehicle to Scion dealer.
(g)Fill up tank.

106
If the indicator or buzzer comes on...Do this.
(h)Stop and check.
(i)Take vehicle to Scion dealer. If brake system warning light is also on, stop immediate-
ly and contact Scion dealer.
(j)Close all side doors and back door.
(k)Take vehicle to Scion dealer immediately.
(l)Add washer fluid.
(m)Take vehicle to Scion dealer immediately.
(n)If the light flashes, take vehicle to Scion dealer.

107
If the indicator or buzzer comes on...Do this.
(o)Adjust tire inflation pressure. If the light comes on after blinking for 1 minute, contact
Scion dealer.
(p)Stop and check.
(q)Key reminder
buzzerRemove key.
(r)Light reminder
buzzerTurn off lights.

108

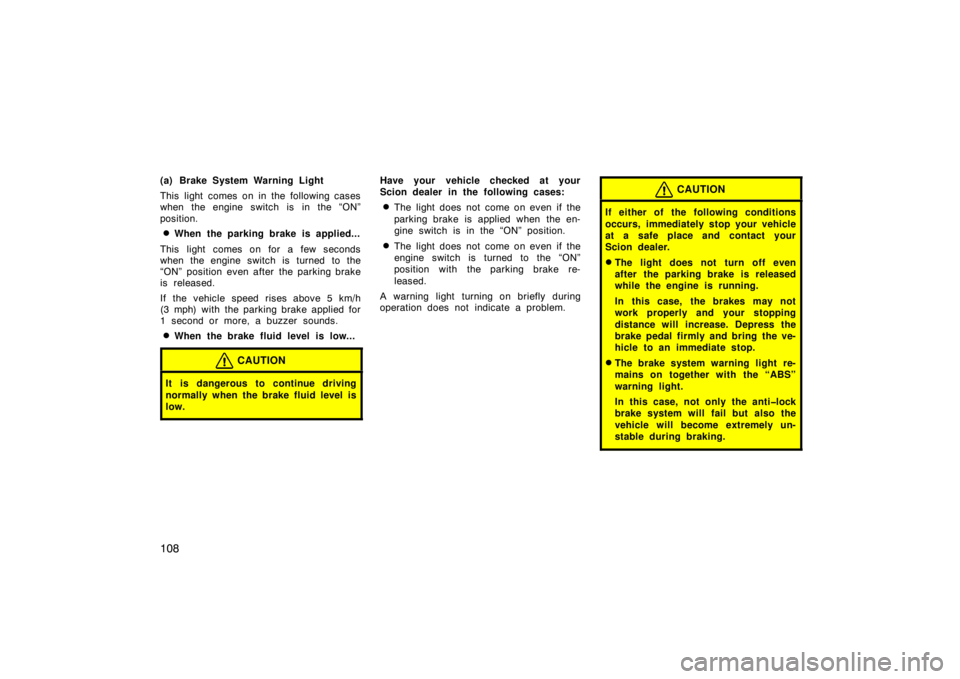

(a) Brake System Warning Light
This light comes on in the following cases
when the engine switch is in the “ON”
position.
When the parking brake is applied...
This light comes on for a few seconds
when the engine switch is turned to the
“ON” position even after the parking brake
is released.
If the vehicle speed rises above 5 km/h
(3 mph) with the parking brake applied for
1 second or more, a buzzer sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Scion dealer in the following cases:
The light does not come on even if the
parking brake is applied when the en-
gine switch is in the “ON” position.
The light does not come on even if the
engine switch is turned to the “ON”
position with the parking brake re-
leased.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Scion dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will increase. Depress the
brake pedal firmly and bring the ve-
hicle to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.

109
(b) Driver’s Seat Belt Reminder Lightand Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the engine switch is turned to the
“ON” or “START” position, the reminder
light and buzzer come on if the driver’s
seat belt is not fastened. Unless the driv-
er fastens the belt, the light continues
flashing and 5 beeps sound.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer.
However, Scion recommends that the seat
belt reminder buzzer be operational to
alert the driver and front passenger that
the seat belts are not fastened. (c) Front Passenger ’s Seat Belt
Reminder Light and Buzzer
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the engine switch is turned to the
“ON” or “START” position, the reminder
light comes on if a passenger sits in the
front passenger seat and does not fasten
the seat belt. Unless the front passenger
fastens the belt, the light continues flash-
ing.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the driver ’s seat
belt is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer. (d) Engine Oil Replacement Reminder
Light
This light acts as a reminder to replace
the engine oil.
This light will come on when the engine
switch is turned to the “ON” position, and
will go off after a few seconds.
When you drive for about 7200 km (4500
miles) after engine oil replacement, this
light illuminates for about 3 seconds and
then flashes for about 12 seconds after
the engine switch is turned to the “ON”
position. If you continue driving without
engine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on when the engine switch
is turned to the “ON” position. The light
will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.
The system must be reset after engine oil
replacement. Reset the system by follow-
ing the procedure below: 1. Turn the engine switch to the “OFF” position with the odometer reading
shown. (For details, see “Multi −informa-
tion display” on page 102.)

11 0
2. Turn the engine switch to the “ON”position while holding down the trip
meter reset knob.
Hold down the knob for at least 5 sec-
onds. The light goes off, and the display
shows zero for 1 second and changes to
the odometer reading.
If the system fails to reset, the light will
remain on or keep flashing.
(e) Charging System Warning Light
This warning light comes on when the
engine switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Scion
dealer.
(f) Malfunction Indicator Lamp
This lamp comes on when the engine
switch is turned to the “ON” position
and goes off after the engine starts.
This means that the warning light sys-
tem is operating properly.
If the lamp remains on, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Scion dealer as
soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Scion dealer as soon as
possible to service the vehicle. Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Scion deal-
er to check your vehicle’s emission control
system and OBD (On
−Board Diagnostics)
system before taking your vehicle for the
inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 236.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes very low. Fill up the
tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Scion dealer or qualified repair shop for
assistance.
