The traction control system automatical-
ly helps prevent the spinning of the
front wheels when the vehicle is started
or accelerated on slippery road sur-
faces.
When the engine switch is turned to “ON”
position, the system automatically turns
on.
CAUTION

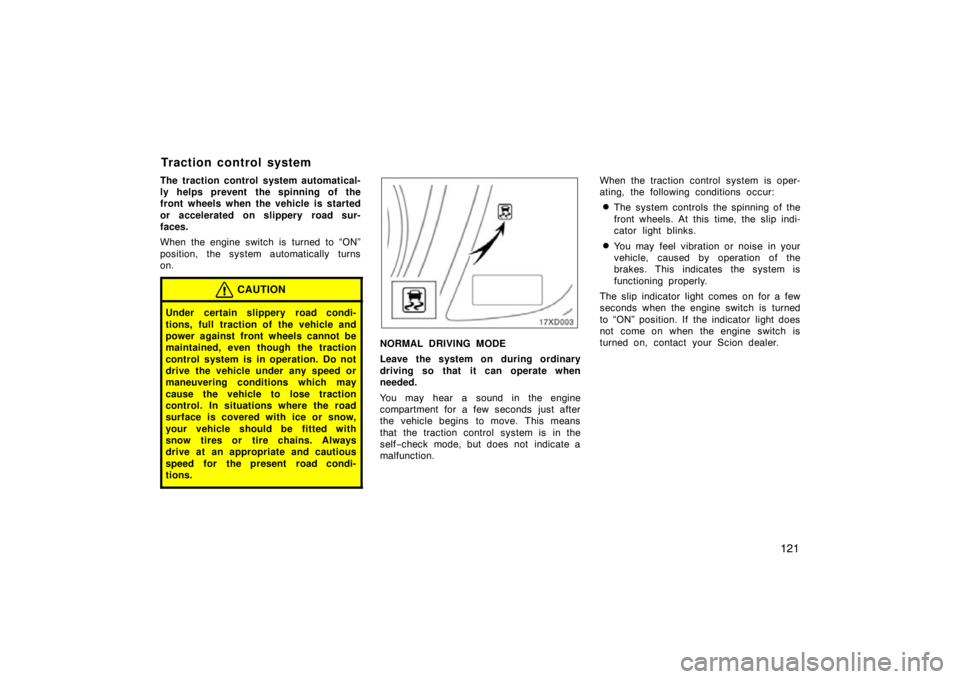

Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during ordinary
driving so that it can operate when
needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self−check mode, but does not indicate a
malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON” position. If the indicator light does
not come on when the engine switch is
turned on, contact your Scion dealer.
Traction control system

122
TRACTION CONTROL OFF MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road or sand, turn off the traction con-
trol system or vehicle stability control
system. (See page 124 to turn off the
vehicle stability control system.) These
systems control engine performance
that interferes with the process of free-
ing your wheels.
17xD007

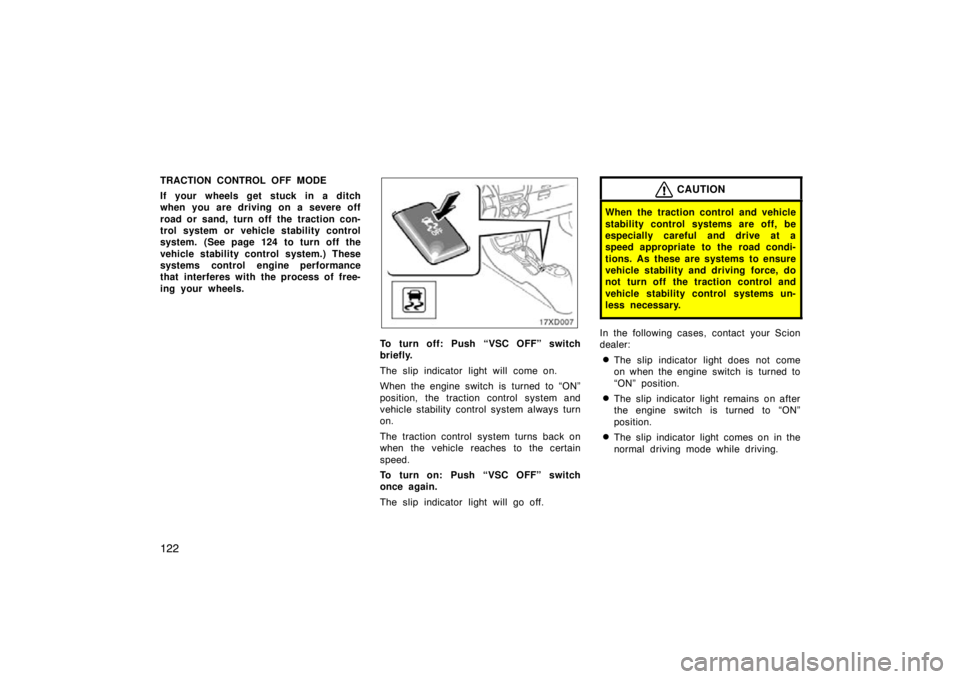

To turn off: Push “VSC OFF” switch
briefly.
The slip indicator light will come on.
When the engine switch is turned to “ON”
position, the traction control system and
vehicle stability control system always turn
on.
The traction control system turns back on
when the vehicle reaches to the certain
speed.
To turn on: Push “VSC OFF” switch
once again.
The slip indicator light will go off.
CAUTION
When the traction control and vehicle
stability control systems are off, be
especially careful and drive at a
speed appropriate to the road condi-
tions. As these are systems to ensure
vehicle stability and driving force, do
not turn off the traction control and
vehicle stability control systems un-
less necessary.
In the following cases, contact your Scion
dealer:
The slip indicator light does not come
on when the engine switch is turned to
“ON” position.
The slip indicator light remains on after
the engine switch is turned to “ON”
position.
The slip indicator light comes on in the
normal driving mode while driving.

123
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
The vehicle stability control system is acti-
vated when the vehicle speed is about
more than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self−check mode,

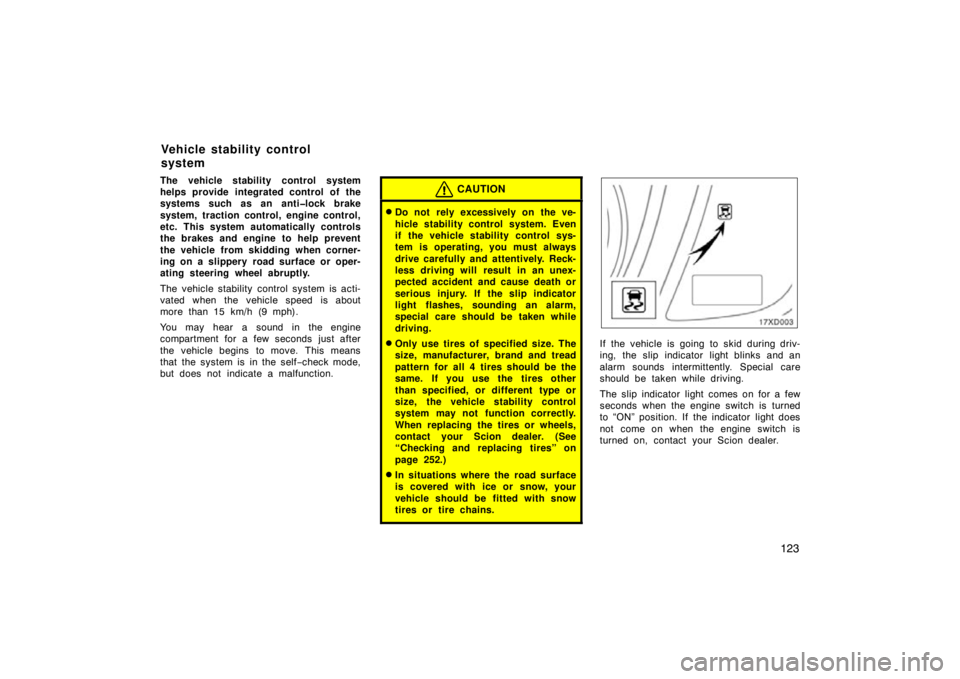

but does not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively. Reck-
less driving will result in an unex-
pected accident and cause death or
serious injury. If the slip indicator
light flashes, sounding an alarm,
special care should be taken while
driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Scion dealer. (See
“Checking and replacing tires” on
page 252.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON” position. If the indicator light does
not come on when the engine switch is
turned on, contact your Scion dealer.
Vehicle stability control
system

124
VEHICLE STABILITY CONTROL OFF
MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road or sand, turn off the traction con-
trol system or vehicle stability control
system. (See page 122 to turn off the
traction control system). These systems
control engine performance that inter-
feres with the process of freeing your
wheels.

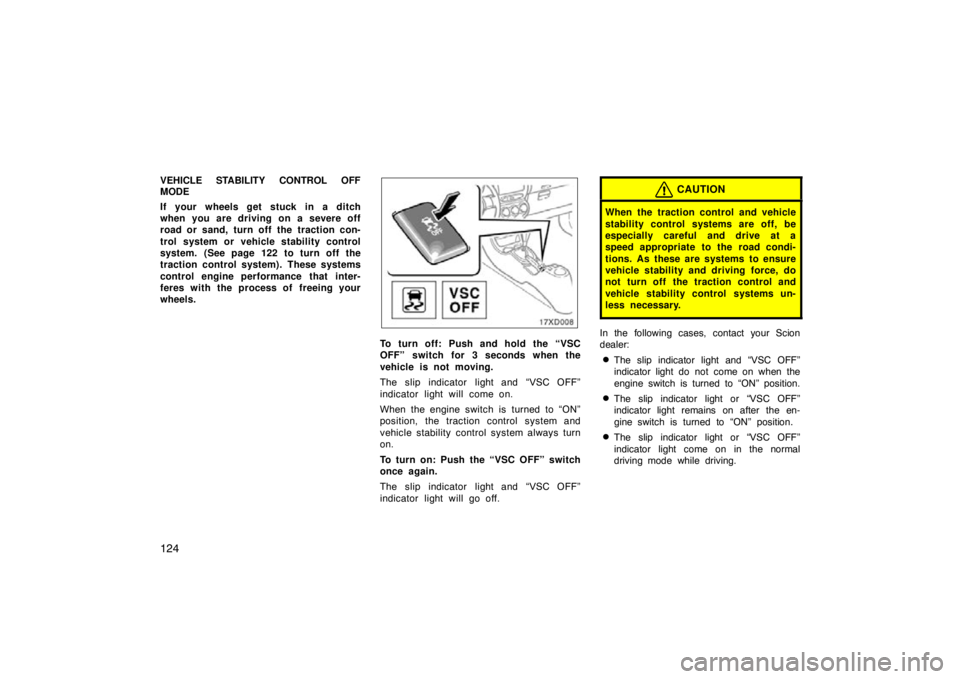

To turn off: Push and hold the “VSC
OFF” switch for 3 seconds when the
vehicle is not moving.
The slip indicator light and “VSC OFF”
indicator light will come on.
When the engine switch is turned to “ON”
position, the traction control system and
vehicle stability control system always turn
on.
To turn on: Push the “VSC OFF” switch
once again.
The slip indicator light and “VSC OFF”
indicator light will go off.
CAUTION
When the traction control and vehicle
stability control systems are off, be
especially careful and drive at a
speed appropriate to the road condi-
tions. As these are systems to ensure
vehicle stability and driving force, do
not turn off the traction control and
vehicle stability control systems un-
less necessary.
In the following cases, contact your Scion
dealer:
The slip indicator light and “VSC OFF”
indicator light do not come on when the
engine switch is turned to “ON” position.
The slip indicator light or “VSC OFF”
indicator light remains on after the en-
gine switch is turned to “ON” position
.
The slip indicator light or “VSC OFF”
indicator light come on in the normal
driving mode while driving.

125
The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.

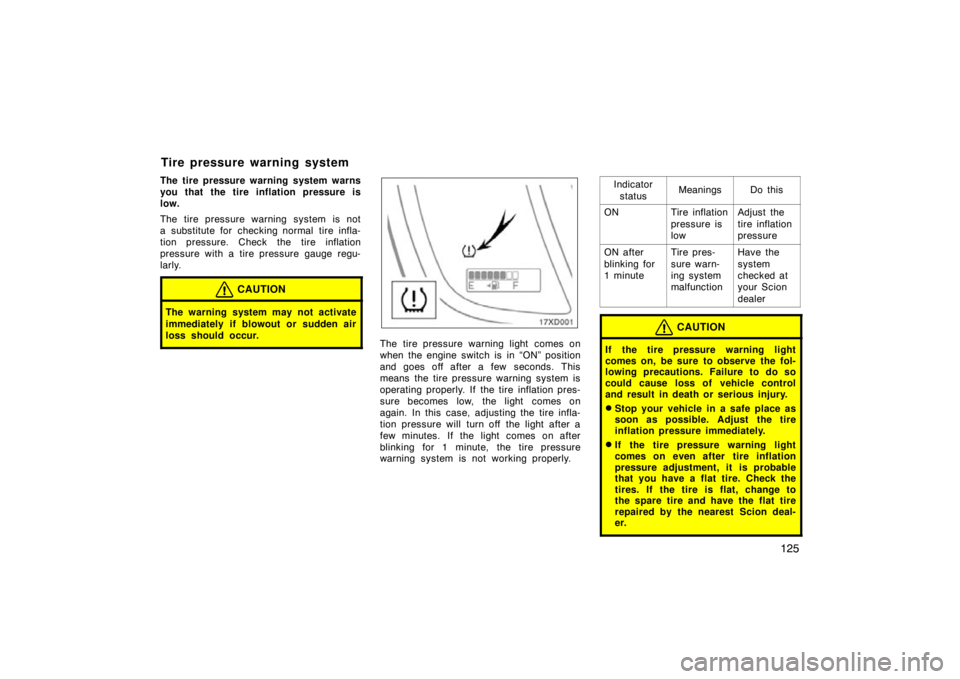

The tire pressure warning light comes on
when the engine switch is in “ON” position
and goes off after a few seconds. This
means the tire pressure warning system is
operating properly. If the tire inflation pres-
sure becomes low, the light comes on
again. In this case, adjusting the tire infla-
tion pressure will turn off the light after a
few minutes. If the light comes on after
blinking for 1 minute, the tire pressure
warning system is not working properly.Indicator
status
MeaningsDo this
ONTire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Scion
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the fol-
lowing precautions. Failure to do so
could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Scion deal-
er.
Tire pressure warning system

126
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after a few minutes.

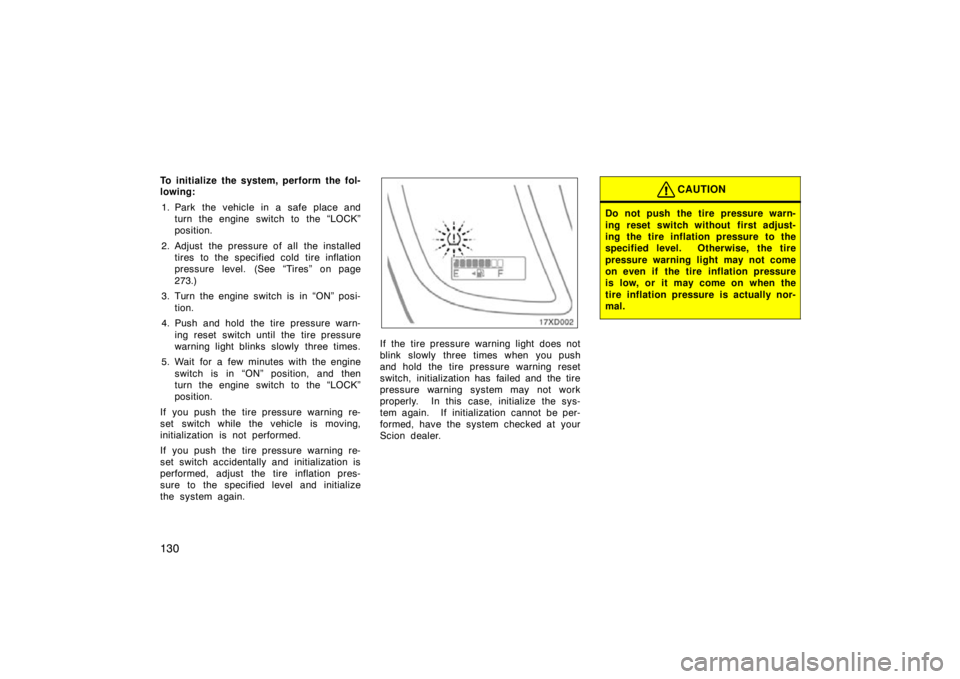

Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warn-
ing light will not turn off even though the
flat tire is replaced with the spare tire.
Replace the spare tire with the repaired
tire and adjust the proper tire inflation
pressure. The tire pressure warning light
will turn off after a few minutes.

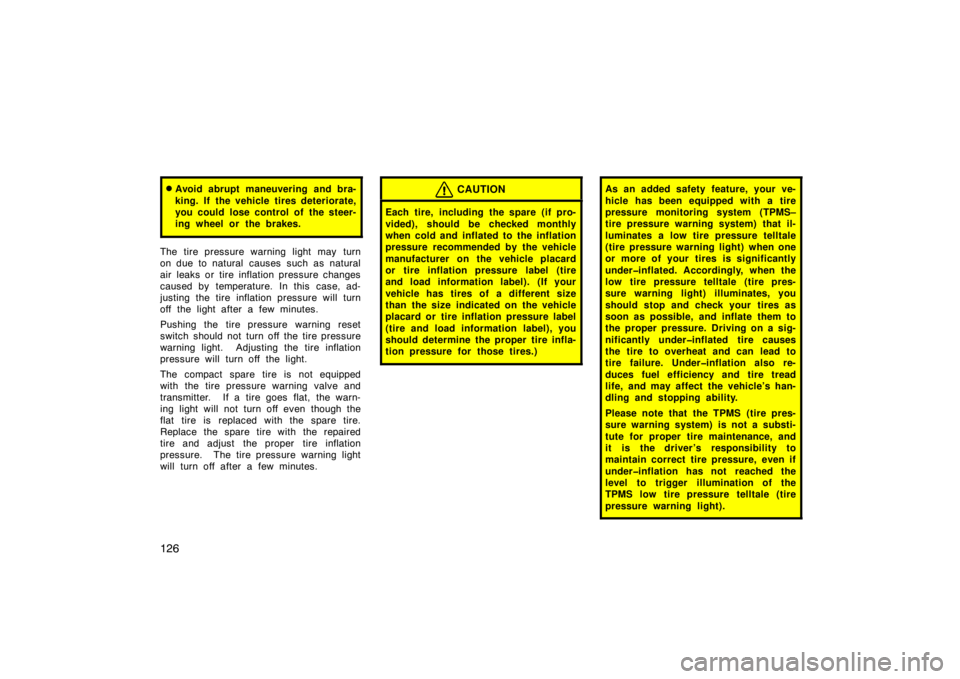

CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).

127

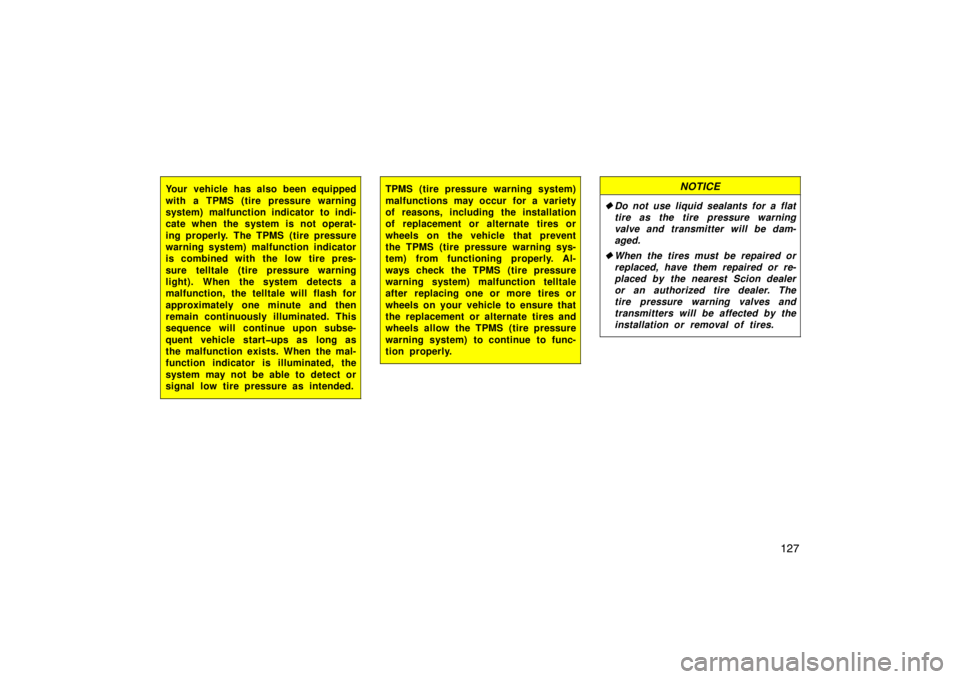

Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle startups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.NOTICE
Do not use liquid sealants for a flat
tire as the tire pressure warning
valve and transmitter will be dam-
aged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Scion dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.

128
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is in “ON” position, the
tire pressure warning system is not
working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
computer.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi).
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Scion wheels are used.
If tire chains are used. If the tire pressure warning light continues
to come on after blinking for 1 minute
when the engine switch is in “ON” posi-
tion, have the system checked by your
Scion dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light.

129

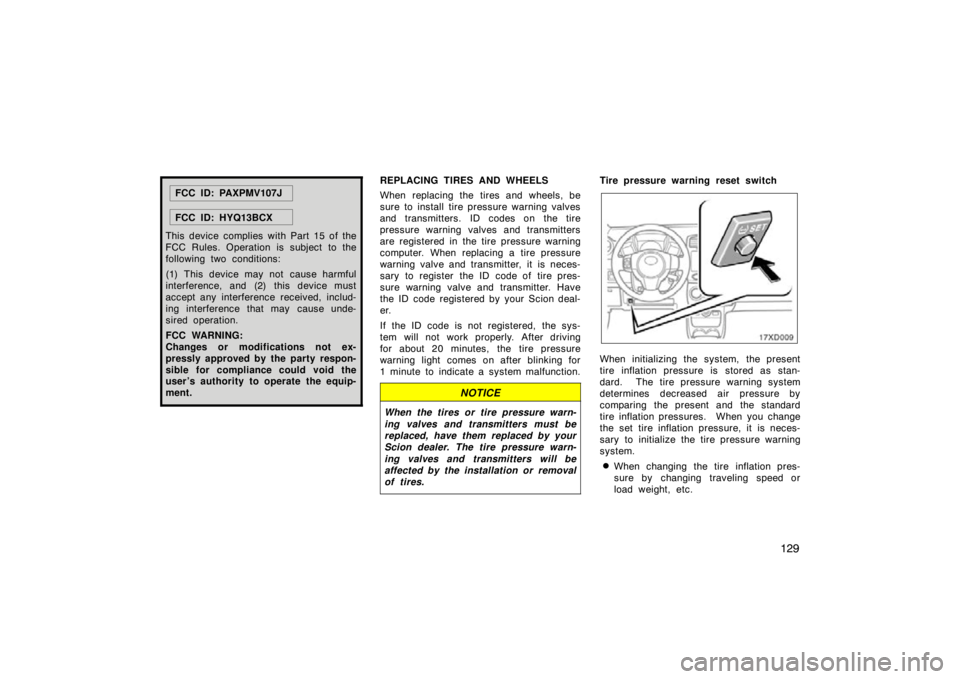

FCC ID: PAXPMV107J
FCC ID: HYQ13BCX
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
computer. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Scion deal-
er.
If the ID code is not registered, the sys-
tem will not work properly. After driving
for about 20 minutes, the tire pressure
warning light comes on after blinking for
1 minute to indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Scion dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
Tire pressure warning reset switch
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When changing the tire inflation pres-
sure by changing traveling speed or
load weight, etc.

130
To initialize the system, perform the fol-
lowing:1. Park the vehicle in a safe place and turn the engine switch to the “LOCK”
position.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
273.)
3. Turn the engine switch is in “ON” posi- tion.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for a few minutes with the engine switch is in “ON” position, and then
turn the engine switch to the “LOCK”
position.
If you push the tire pressure warning re-
set switch while the vehicle is moving,
initialization is not performed.
If you push the tire pressure warning re-
set switch accidentally and initialization is
performed, adjust the tire inflation pres-
sure to the specified level and initialize
the system again.
If the tire pressure warning light does not
blink slowly three times when you push
and hold the tire pressure warning reset
switch, initialization has failed and the tire
pressure warning system may not work
properly. In this case, initialize the sys-
tem again. If initialization cannot be per-
formed, have the system checked at your
Scion dealer.
CAUTION
Do not push the tire pressure warn-
ing reset switch without first adjust-
ing the tire inflation pressure to the
specified level. Otherwise, the tire
pressure warning light may not come
on even if the tire inflation pressure
is low, or it may come on when the
tire inflation pressure is actually nor-
mal.
