TOYOTA xD 2010 Accessories, Audio & Navigation (in English)

51
ALPINE MFTY802A 68-14470Z28-C (EN)

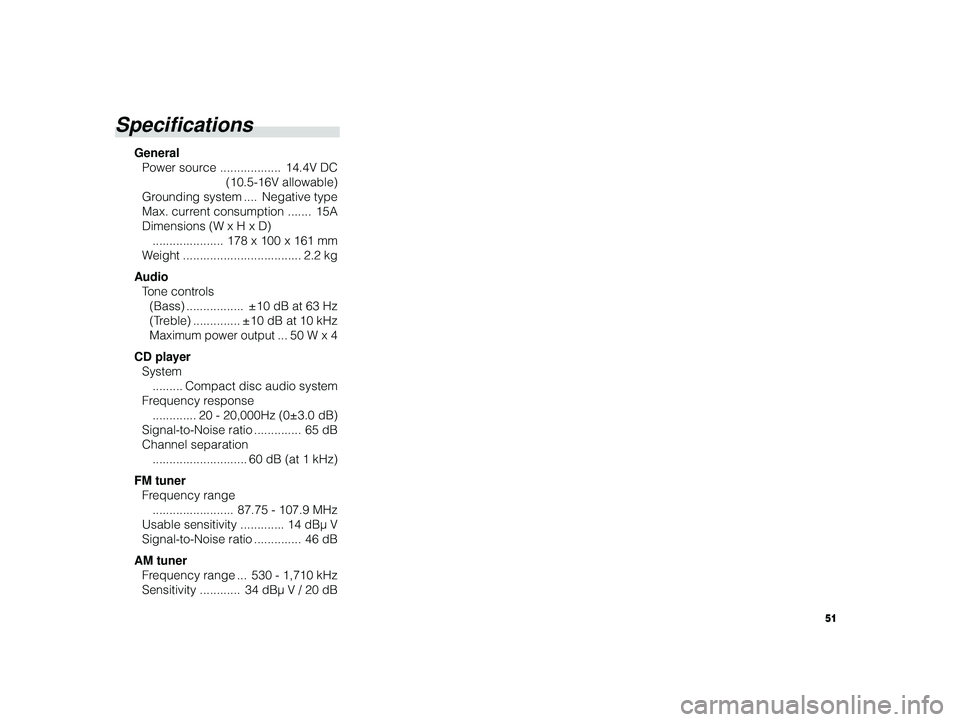

Specifications
General
Power source .................. 14.4V DC (10.5-16V allowable)
Grounding system .... Negative type
Max. current consumption ....... 15A
Dimensions (W x H x D) ..................... 178 x 100 x 161 mm
W eight ................................... 2.2 kg
A udio
T one controls
(Bass) ................. ±10 dB at 63 Hz
(Treble) .............. ±10 dB at 10 kHz
Maximum power output ...50 W x 4
CD player System ......... Compact disc audio system
Frequency response ............. 20 - 20,000Hz (0±3.0 dB)
Signal-to-Noise ratio .............. 65 dB
Channel separation ............................ 60 dB (at 1 kHz)
FM tuner Frequency range ........................ 87.75 - 107.9 MHz
Usable sensitivity ............. 14 dBµ V
Signal-to-Noise ratio .............. 46 dB
AM tuner Frequency range ... 530 - 1,710 kHz
Sensitivity ............ 34 dBµ V / 20 dB

ALPINE MFTY802A 68-14470Z28-C (EN)
68-14470Z28-C
