TOYOTA xD 2011 (in English) User Guide

3
1. Headlight and turn signal switches
2. Audio remote controls(steering switches)
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. “AIR BAG ON” and “AIR BAG OFF” indicator lights / front passenger ’s seat
belt reminder light
7. Air conditioning controls
8. Rear window defogger and outside rear view mirror defogger* switch
9. Power outlet
10. USB port/AUX port
11. Cruise control switch
12. Engine (ignition) switch
13. Tilt steering lock release lever
14. Tire pressure warning reset switch
15. Instrument panel light control dial
16. Power rear view mirror control switches *: For vehicles sold in Canada

4
1. Service reminder indicators andindicator lights
2. Speedometer
3. MODE switch 4. Multi
−information display
5. Tachometer 6. Shift position indicators
7. Fuel gauge
Instrument cluster overview

5
Indicator symbols on the instrument cluster
Brake system warning light*1
Driver ’s seat belt reminder light*1
Charging system warning light*1
Malfunction indicator lamp*1
Low engine oil pressure warning light*1
Anti-lock brake system warning light*1
SRS warning light*1
Low windshield washer fluid level warning
light*1
Electric power steering system warning light*1
VSC OFF indicator light Low engine coolant temperature indicator light*
2
High engine coolant temperature warning light*1
Front passenger ’s seat belt reminder light*1
Open door warning light*1
Engine oil replacement reminder light*1
(for vehicles sold in U.S.A.)
oror or

6
Turn signal indicator lights
Headlight high beam indicator light
Cruise control indicator light*
3
*1: For details, see “Service reminder indicators and warning
buzzers” on page 113.
*2: For details, see “Engine coolant temperature indicator and warning light” on page 108.
*3: If this light flashes, see “Cruise control” on page 140.
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Headlight low beam indicator light
Low fuel level warning light*1
Tire pressure warning light*1
Slip indicator light*1
“TRAC OFF” indicator light
Tail light indicator light

7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Engine immobilizer system 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2

8

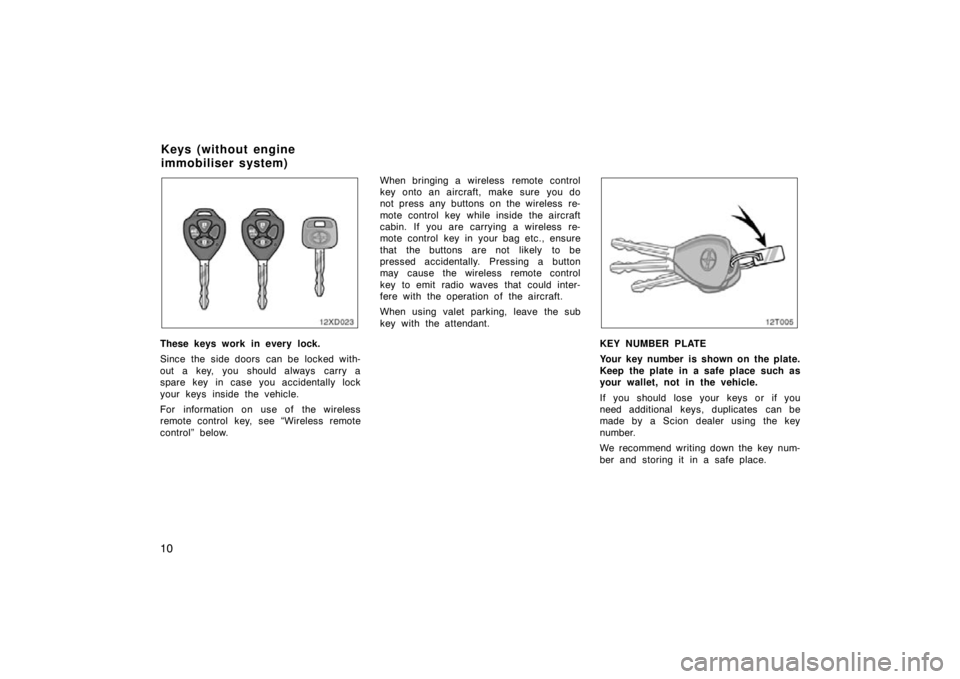

These keys work in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” below.When bringing a wireless remote control
key onto an aircraft, make sure you do
not press any buttons on the wireless re-
mote control key while inside the aircraft
cabin. If you are carrying a wireless re-
mote control key in your bag etc., ensure
that the buttons are not likely to be
pressed accidentally. Pressing a button
may cause the wireless remote control
key to emit radio waves that could inter-
fere with the operation of the aircraft.
A transponder chip for engine immobilizer
system has been placed in the head of
the keys. These chips are needed to en-
able the system to function correctly, so
be careful not to lose these keys. If you
make your own duplicate key, you will not
be able to cancel the system or start the
engine.
When using valet parking, leave the sub
key with the attendant.
12h005
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys (with engine immobiliser
system)

9
12h006
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
12h007
Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

10
These keys work in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” below.When bringing a wireless remote control
key onto an aircraft, make sure you do
not press any buttons on the wireless re-
mote control key while inside the aircraft
cabin. If you are carrying a wireless re-
mote control key in your bag etc., ensure
that the buttons are not likely to be
pressed accidentally. Pressing a button
may cause the wireless remote control
key to emit radio waves that could inter-
fere with the operation of the aircraft.
When using valet parking, leave the sub
key with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Keys (without engine
immobiliser system)

11
12T006

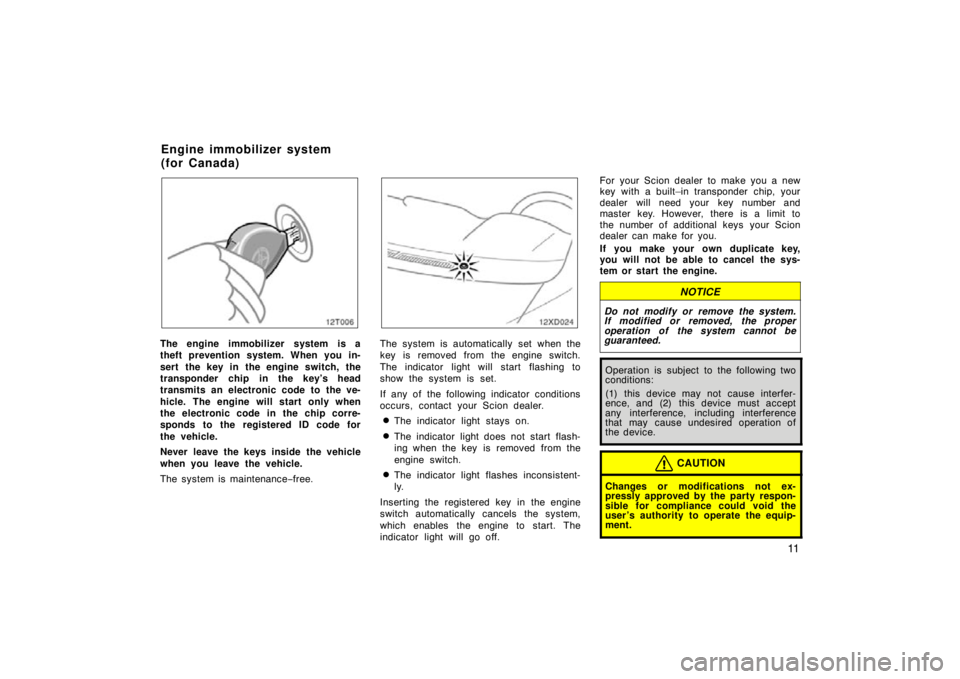

The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the engine switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.
The system is maintenance−free.The system is automatically set when the
key is removed from the engine switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Scion dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
engine switch.
The indicator light flashes inconsistent-
ly.
Inserting the registered key in the engine
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off. For your Scion dealer to make you a new
key with a built–in transponder chip, your
dealer will need your key number and
master key. However, there is a limit to
the number of additional keys your Scion
dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify or remove the system.
If modified or removed, the proper
operation of the system cannot be
guaranteed.
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Engine immobilizer system
(for Canada)

12

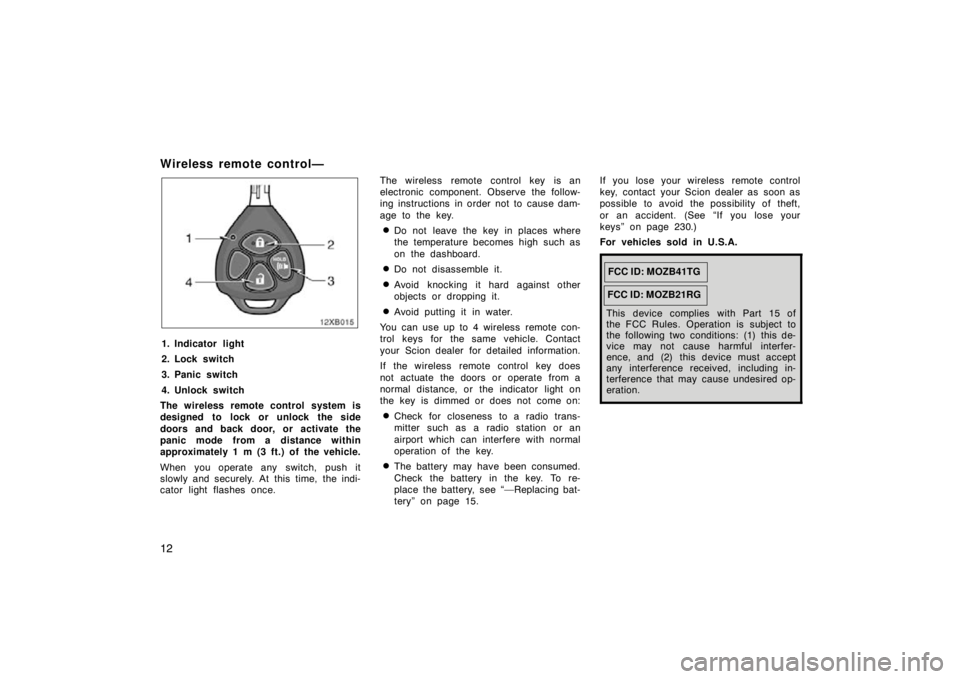

Wireless remote control—
1. Indicator light
2. Lock switch
3. Panic switch
4. Unlock switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, or activate the
panic mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once. The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 15. If you lose your wireless remote control
key, contact your Scion dealer as soon as
possible to avoid the possibility of theft,
or an accident. (See “If you lose your
keys” on page 230.)
For vehicles sold in U.S.A.
FCC ID: MOZB41TG
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) this de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired op-
eration.
FCC ID: MOZB21RG
