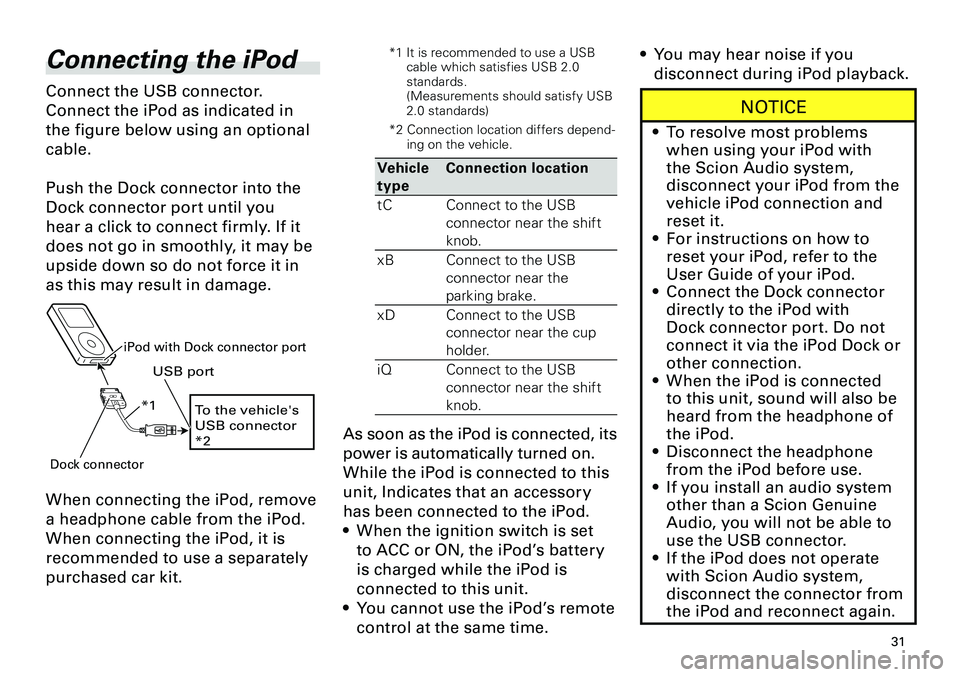

Connecting the iPod
Connect the USB connector.
Connect the iPod as indicated in
the figure below using an optional
cable.
Push the Dock connector into the
Dock connector port until you
hear a click to connect firmly. If it
does not go in smoothly, it may be
upside down so do not force it in
as this may result in damage.
To the vehicle's USB connector *2
*1
USB port
iPod with Dock connector port
Dock connector
When connecting the iPod, remove
a headphone cable from the iPod.
When connecting the iPod, it is
recommended to use a separately
purchased car kit.
*1 It is recommended to use a USB cable which satisfies USB 2.0 standards. (Measurements should satisfy USB 2.0 standards)
*2 Connection location differs depend
-ing on the vehicle.
Vehicle
type
Connection location
tCConnect to the USB
connector near the shift
knob.
xBConnect to the USB
connector near the
parking brake.
xDConnect to the USB
connector near the cup
holder.
iQConnect to the USB
connector near the shift
knob.
As soon as the iPod is connected, its
power is automatically turned on.
While the iPod is connected to this
unit, Indicates that an accessory
has been connected to the iPod.
When the ignition switch is set
to ACC or ON, the iPod’s battery
is charged while the iPod is
connected to this unit.
You cannot use the iPod’s remote
control at the same time.
•
•
You may hear noise if you
disconnect during iPod playback.
NOTICE
To resolve most problems
when using your iPod with
the Scion Audio system,
disconnect your iPod from the
vehicle iPod connection and
reset it.
For instructions on how to
reset your iPod, refer to the
User Guide of your iPod.
Connect the Dock connector
directly to the iPod with
Dock connector port. Do not
connect it via the iPod Dock or
other connection.
When the iPod is connected
to this unit, sound will also be
heard from the headphone of
the iPod.
Disconnect the headphone
from the iPod before use.
If you install an audio system
other than a Scion Genuine
Audio, you will not be able to
use the USB connector.
If the iPod does not operate
with Scion Audio system,
disconnect the connector from
the iPod and reconnect again.
•
•
•
•
•
•
•
•

3
3

NOTICE
When you are using iPhone by
the multitasking, according to
the application under use, it
might not be able to charge a
battery.
•

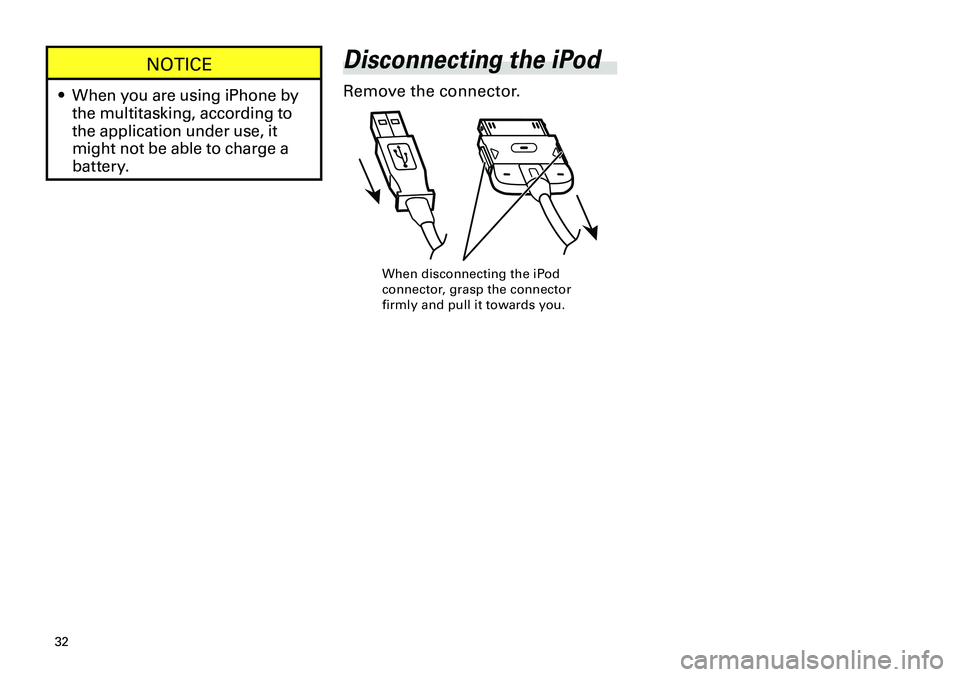

Disconnecting the iPod
Remove the connector.
When disconnecting the iPod connector, grasp the connector firmly and pull it towards you.

33
33

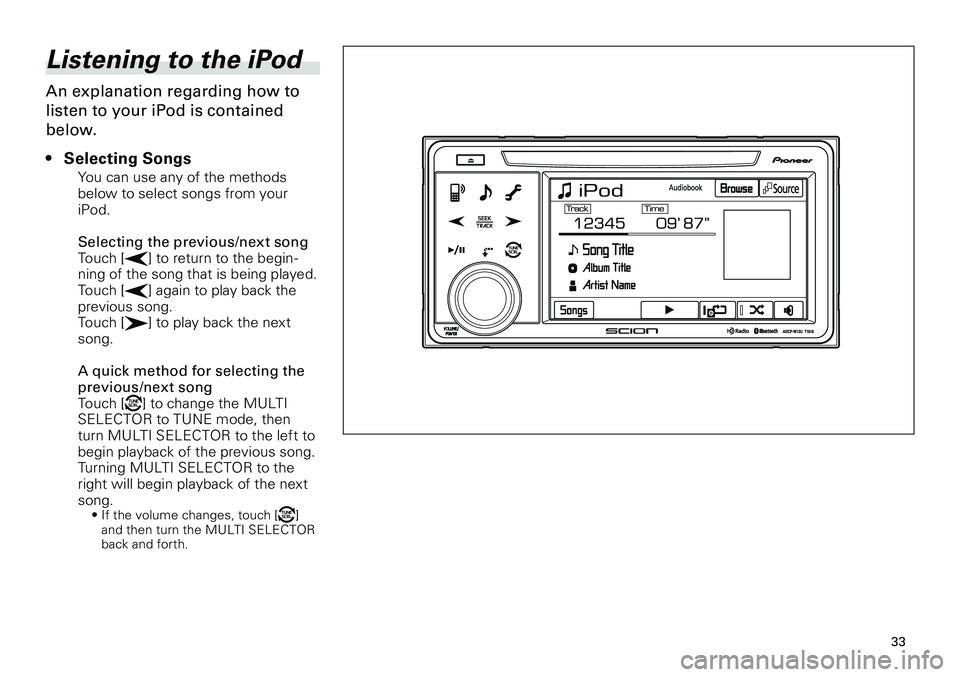

Listening to the iPod
An explanation regarding how to
listen to your iPod is contained
below.
Selecting Songs
You can use any of the methods below to select songs from your iPod.
Selecting the previous/next songTouch [] to return to the begin-ning of the song that is being played. Touch [] again to play back the previous song. Touch [] to play back the next song.
A quick method for selecting the previous/next songTouch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous song. Turning MULTI SELECTOR to the right will begin playback of the next song.• If the volume changes, touch [] and then turn the MULTI SELECTOR back and forth.
•

34
34

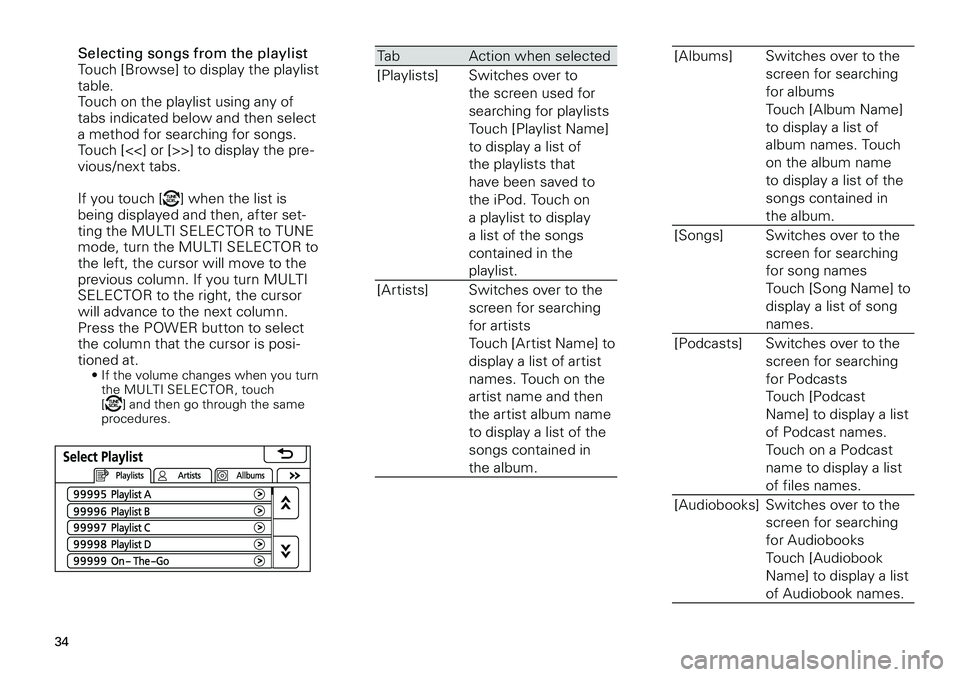

Selecting songs from the playlistTouch [Browse] to display the playlist table. Touch on the playlist using any of tabs indicated below and then select a method for searching for songs. Touch [<<] or [>>] to display the pre-vious/next tabs.
If you touch [] when the list is being displayed and then, after set-ting the MULTI SELECTOR to TUNE mode, turn the MULTI SELECTOR to the left, the cursor will move to the previous column. If you turn MULTI SELECTOR to the right, the cursor will advance to the next column. Press the POWER button to select the column that the cursor is posi-tioned at. • If the volume changes when you turn the MULTI SELECTOR, touch [] and then go through the same procedures.
TabAction when selected
[Playlists]Switches over to
the screen used for
searching for playlists
Touch [Playlist Name]
to display a list of
the playlists that
have been saved to
the iPod. Touch on
a playlist to display
a list of the songs
contained in the
playlist.
[Artists]Switches over to the
screen for searching
for artists
Touch [Artist Name] to
display a list of artist
names. Touch on the
artist name and then
the artist album name
to display a list of the
songs contained in
the album.
[Albums]Switches over to the
screen for searching
for albums
Touch [Album Name]
to display a list of
album names. Touch
on the album name
to display a list of the
songs contained in
the album.
[Songs]Switches over to the
screen for searching
for song names
Touch [Song Name] to
display a list of song
names.
[Podcasts]Switches over to the
screen for searching
for Podcasts
Touch [Podcast
Name] to display a list
of Podcast names.
Touch on a Podcast
name to display a list
of files names.
[Audiobooks]Switches over to the
screen for searching
for Audiobooks
Touch [Audiobook
Name] to display a list
of Audiobook names.

35
35

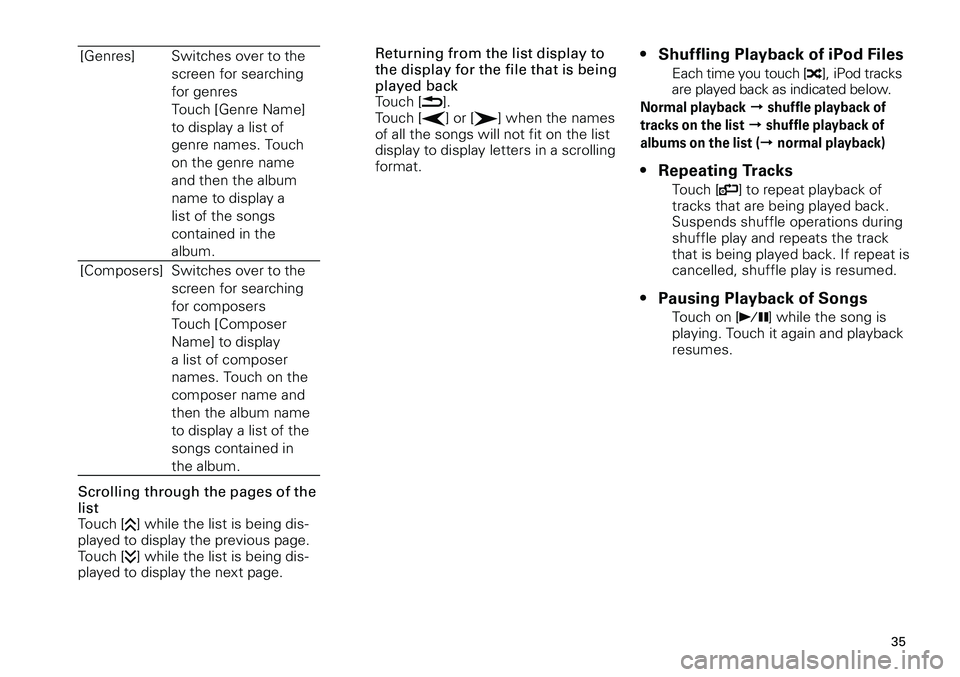

[Genres]Switches over to the
screen for searching
for genres
Touch [Genre Name]
to display a list of
genre names. Touch
on the genre name
and then the album
name to display a
list of the songs
contained in the
album.
[Composers]Switches over to the
screen for searching
for composers
Touch [Composer
Name] to display
a list of composer
names. Touch on the
composer name and
then the album name
to display a list of the
songs contained in
the album.
Scrolling through the pages of the listTouch [] while the list is being dis-played to display the previous page. Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the display for the file that is being played backTouch [].Touch [] or [] when the names of all the songs will not fit on the list display to display letters in a scrolling format.
Shuffling Playback of iPod Files
Each time you touch [], iPod tracks are played back as indicated below.
Normal playback d shuffle playback of
tracks on the list d shuffle playback of
albums on the list (d normal playback)
Repeating Tracks
Touch [] to repeat playback of tracks that are being played back.Suspends shuffle operations during shuffle play and repeats the track that is being played back. If repeat is cancelled, shuffle play is resumed.
Pausing Playback of Songs
Touch on [] while the song is playing. Touch it again and playback resumes.
•
•
•

36
36

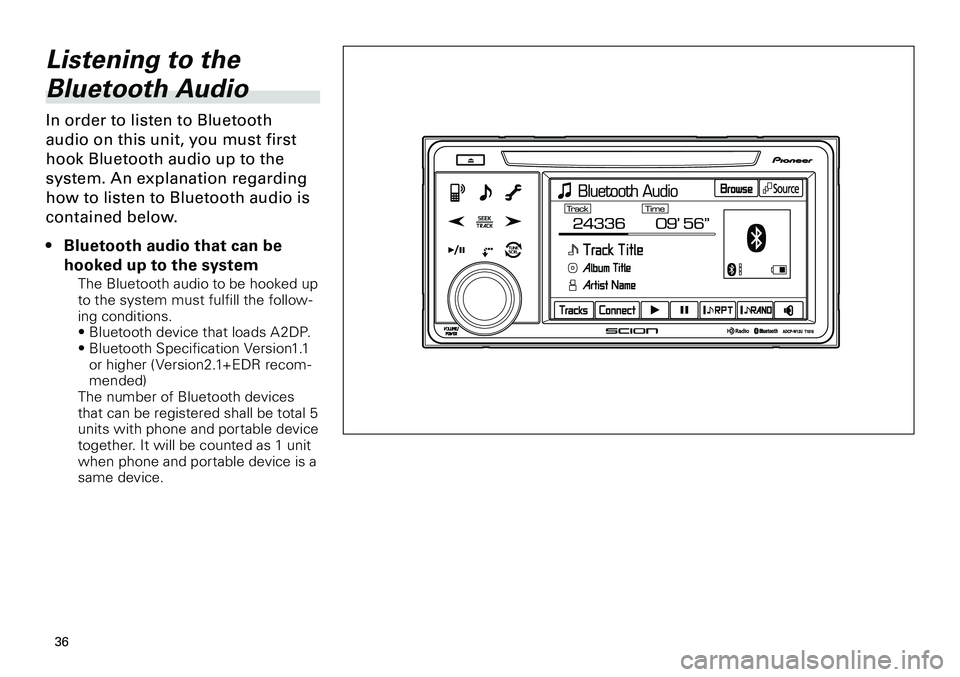

Listening to the
Bluetooth Audio
In order to listen to Bluetooth
audio on this unit, you must first
hook Bluetooth audio up to the
system. An explanation regarding
how to listen to Bluetooth audio is
contained below.
Bluetooth audio that can be
hooked up to the system
The Bluetooth audio to be hooked up to the system must fulfill the follow-ing conditions.
• Bluetooth device that loads A 2DP.
• Bluetooth Specification Version1.1
or higher ( Version2.1+EDR recom-mended)The number of Bluetooth devices that can be registered shall be total 5 units with phone and portable device together. It will be counted as 1 unit when phone and portable device is a same device.
•

37
37

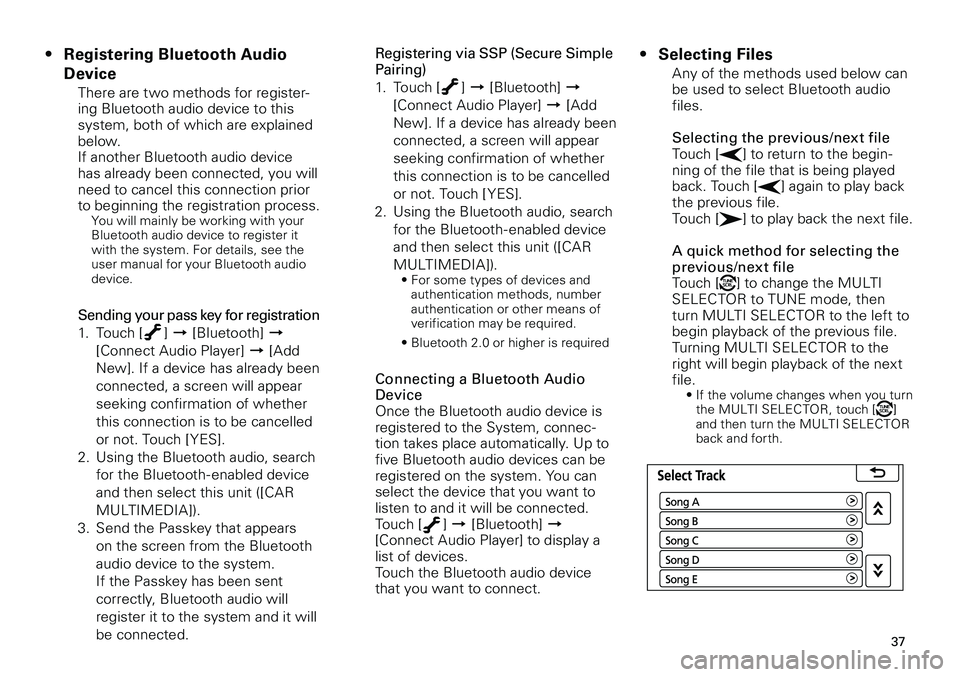

Registering Bluetooth Audio
Device
There are two methods for register-ing Bluetooth audio device to this system, both of which are explained below. If another Bluetooth audio device has already been connected, you will need to cancel this connection prior to beginning the registration process.You will mainly be working with your Bluetooth audio device to register it with the system. For details, see the user manual for your Bluetooth audio device.
Sending your pass key for registration
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be cancelled
or not. Touch [YES].
2. Using the Bluetooth audio, search
for the Bluetooth- enabled device
and then select this unit ([CAR
MULTIMEDIA]).
3. Send the Passkey that appears
on the screen from the Bluetooth
audio device to the system.
If the Passkey has been sent
correctly, Bluetooth audio will
register it to the system and it will
be connected.
•Registering via SSP (Secure Simple Pairing)
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be cancelled
or not. Touch [YES].
2. Using the Bluetooth audio, search
for the Bluetooth- enabled device
and then select this unit ([CAR
MULTIMEDIA]). • For some types of devices and authentication methods, number authentication or other means of verification may be required.
• Bluetooth 2.0 or higher is required
Connecting a Bluetooth Audio DeviceOnce the Bluetooth audio device is registered to the System, connec-tion takes place automatically. Up to five Bluetooth audio devices can be registered on the system. You can select the device that you want to listen to and it will be connected.Touch [] d [Bluetooth] d [Connect Audio Player] to display a list of devices. Touch the Bluetooth audio device that you want to connect.
Selecting Files
Any of the methods used below can be used to select Bluetooth audio files.
Selecting the previous/next fileTouch [] to return to the begin-ning of the file that is being played back. Touch [] again to play back the previous file. Touch [] to play back the next file.
A quick method for selecting the
previous/next fileTouch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous file. Turning MULTI SELECTOR to the right will begin playback of the next file.• If the volume changes when you turn the MULTI SELECTOR, touch [] and then turn the MULTI SELECTOR back and forth.
•

38
38

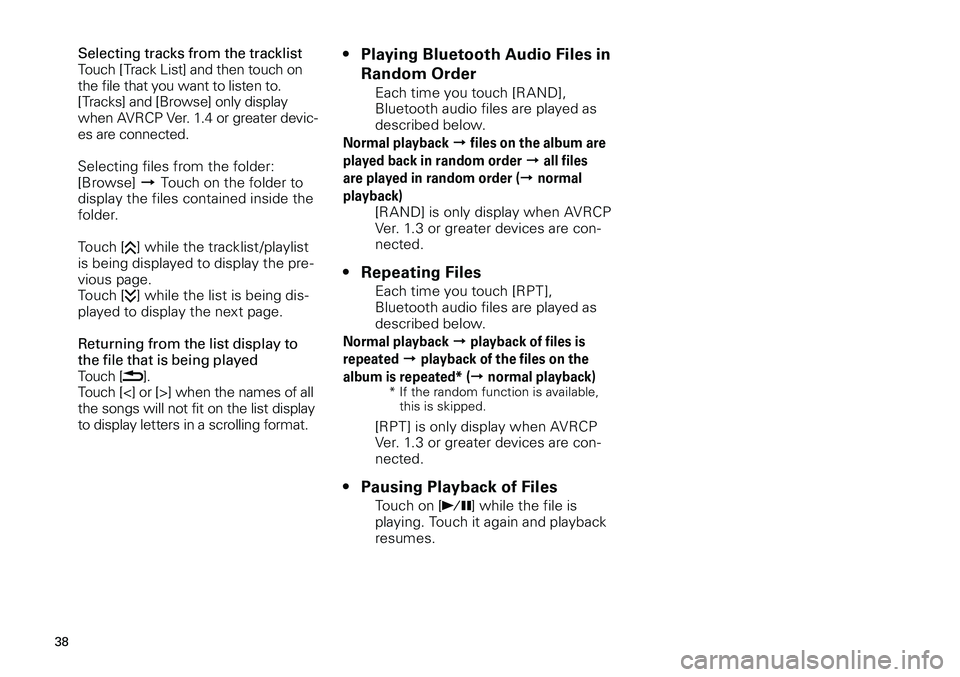

Selecting tracks from the tracklistTouch [Track List] and then touch on the file that you want to listen to.[Tracks] and [Browse] only display when AVRCP Ver. 1.4 or greater devic-es are connected.
Selecting files from the folder:[Browse] d Touch on the folder to display the files contained inside the folder.
Touch [] while the tracklist /playlist
is being displayed to display the pre-vious page.Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the file that is being playedTouch [].Touch [<] or [>] when the names of all the songs will not fit on the list display to display letters in a scrolling format.
Playing Bluetooth Audio Files in
Random Order
Each time you touch [RAND], Bluetooth audio files are played as described below.
Normal playback d files on the album are
played back in random order d all files
are played in random order (d normal
playback)[RAND] is only display when AVRCP Ver. 1.3 or greater devices are con-nected.
Repeating Files
Each time you touch [RPT], Bluetooth audio files are played as described below.
Normal playback d playback of files is
repeated d playback of the files on the
album is repeated* (d normal playback)* If the random function is available, this is skipped.
[RPT] is only display when AVRCP Ver. 1.3 or greater devices are con-nected.
Pausing Playback of Files
Touch on [] while the file is playing. Touch it again and playback resumes.
•
•
•

39
39

40
40

Listening to Pandora
Pandora is an Internet radio service
that utilizes an enormous music
database to provide a high-quality
selection of songs. To listen to
Pandora using this system, you
must connect iPod touch or iPhone
and then install the applicable
Pandora application for viewing
Pandora. An explanation on how
to listen to Pandora is contained
below.
Refer to Connecting the iPod (page 31)
for information regarding how to connect
iPod touch or iPhone.
NOTICE
You will not be able to operate
your iPod touch or iPhone while
viewing Pandora.
