TOYOTA xD 2012 Accessories, Audio & Navigation (in English)

41
41

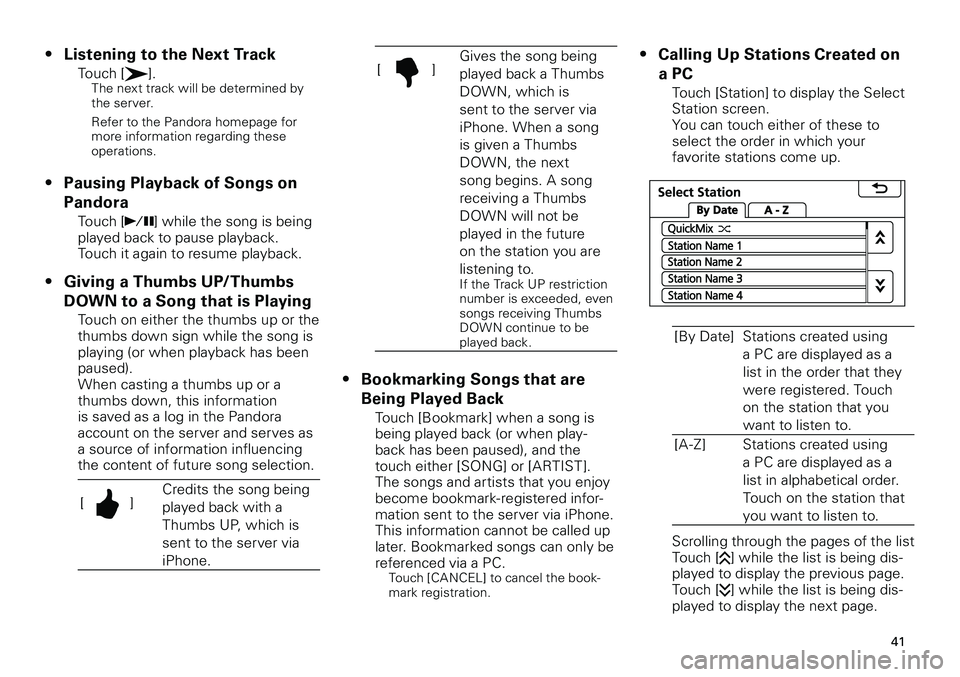

Listening to the Next Track
Touch [].The next track will be determined by the server.
Refer to the Pandora homepage for more information regarding these operations.
Pausing Playback of Songs on
Pandora
Touch [] while the song is being played back to pause playback.
Touch it again to resume playback.
Giving a Thumbs UP/Thumbs
DOWN to a Song that is Playing
Touch on either the thumbs up or the thumbs down sign while the song is playing (or when playback has been paused).When casting a thumbs up or a thumbs down, this information is saved as a log in the Pandora account on the server and serves as a source of information influencing the content of future song selection.
[]Credits the song being
played back with a
Thumbs UP, which is
sent to the server via
iPhone.
•
•
•
[]Gives the song being
played back a Thumbs
DOWN, which is
sent to the server via
iPhone. When a song
is given a Thumbs
DOWN, the next
song begins. A song
receiving a Thumbs
DOWN will not be
played in the future
on the station you are
listening to.If the Track UP restriction number is exceeded, even songs receiving Thumbs DOWN continue to be played back.
Bookmarking Songs that are
Being Played Back
Touch [Bookmark] when a song is being played back (or when play-back has been paused), and the touch either [SONG] or [ARTIST]. The songs and artists that you enjoy become bookmark-registered infor-mation sent to the server via iPhone. This information cannot be called up later. Bookmarked songs can only be referenced via a PC.Touch [CANCEL] to cancel the book-mark registration.
•
Calling Up Stations Created on
a PC
Touch [Station] to display the Select Station screen. You can touch either of these to select the order in which your favorite stations come up.
By Date
[By Date]Stations created using
a PC are displayed as a
list in the order that they
were registered. Touch
on the station that you
want to listen to.
[A-Z]Stations created using
a PC are displayed as a
list in alphabetical order.
Touch on the station that
you want to listen to.
Scrolling through the pages of the listTouch [] while the list is being dis-played to display the previous page. Touch [] while the list is being dis-played to display the next page.
•

4
4

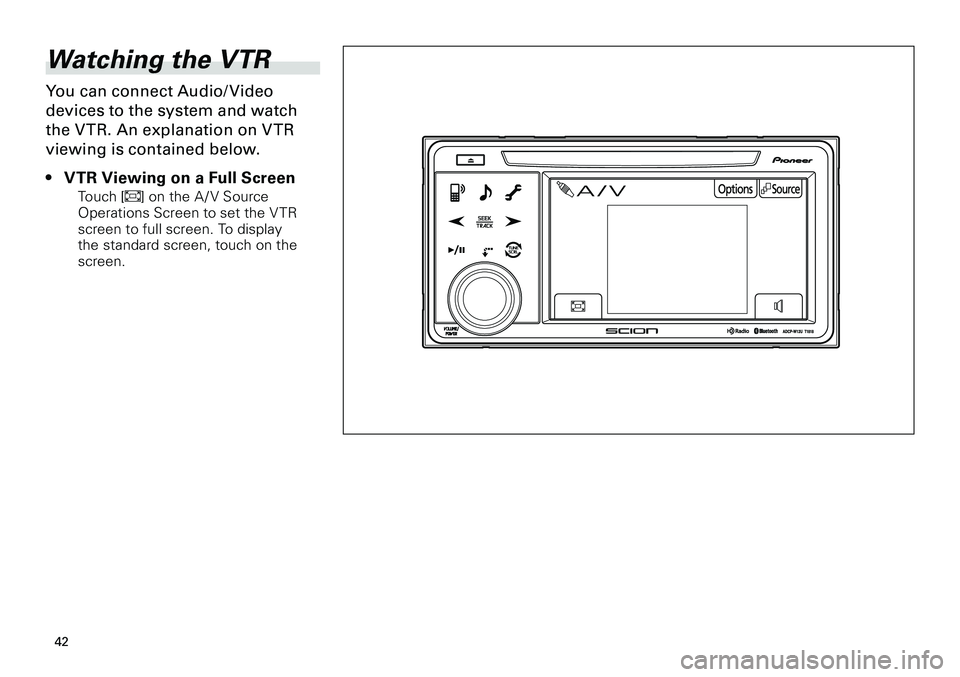

Watching the VTR
You can connect Audio/ Video
devices to the system and watch
the VTR. An explanation on VTR
viewing is contained below.
VTR Viewing on a Full Screen
Touch [] on the A / V Source Operations Screen to set the V TR screen to full screen. To display the standard screen, touch on the
screen.
•

43
43

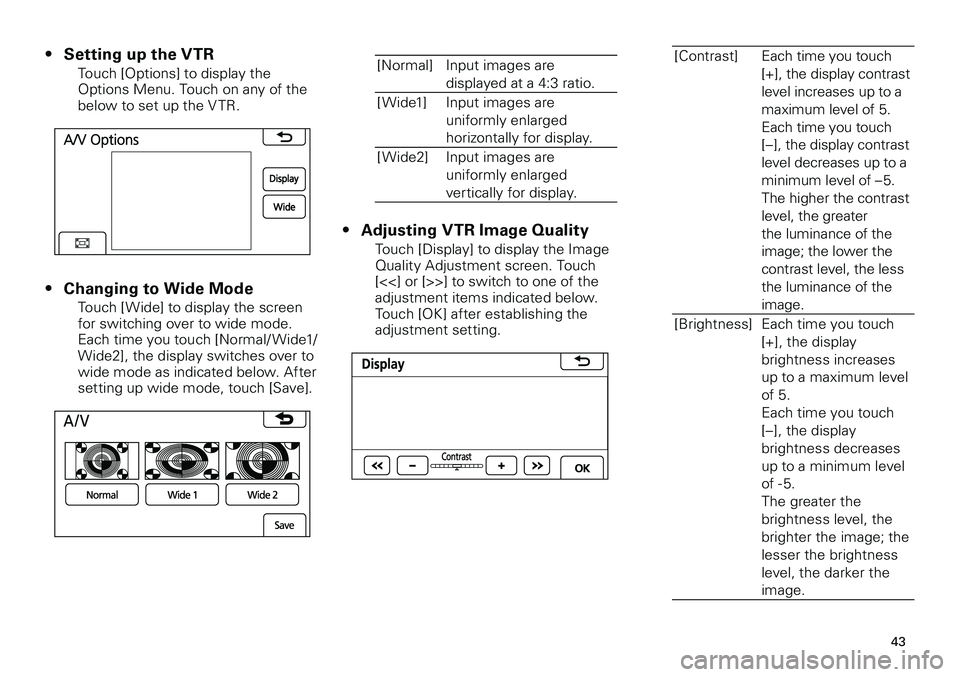

Setting up the VTR
Touch [Options] to display the Options Menu. Touch on any of the below to set up the V TR.
Changing to Wide Mode
Touch [Wide] to display the screen for switching over to wide mode. Each time you touch [Normal/ Wide1/Wide2], the display switches over to wide mode as indicated below. After setting up wide mode, touch [Save].
•
•
[Normal]Input images are
displayed at a 4:3 ratio.
[Wide1]Input images are
uniformly enlarged
horizontally for display.
[Wide2]Input images are
uniformly enlarged
vertically for display.
Adjusting VTR Image Quality
Touch [Display] to display the Image
Quality Adjustment screen. Touch [<<] or [>>] to switch to one of the adjustment items indicated below. Touch [OK] after establishing the adjustment setting.
•
[Contrast]Each time you touch
[+], the display contrast
level increases up to a
maximum level of 5.
Each time you touch
[–], the display contrast
level decreases up to a
minimum level of – 5.
The higher the contrast
level, the greater
the luminance of the
image; the lower the
contrast level, the less
the luminance of the
image.
[Brightness]Each time you touch
[+], the display
brightness increases
up to a maximum level
of 5.
Each time you touch
[–], the display
brightness decreases
up to a minimum level
of - 5.
The greater the
brightness level, the
brighter the image; the
lesser the brightness
level, the darker the
image.

44
44

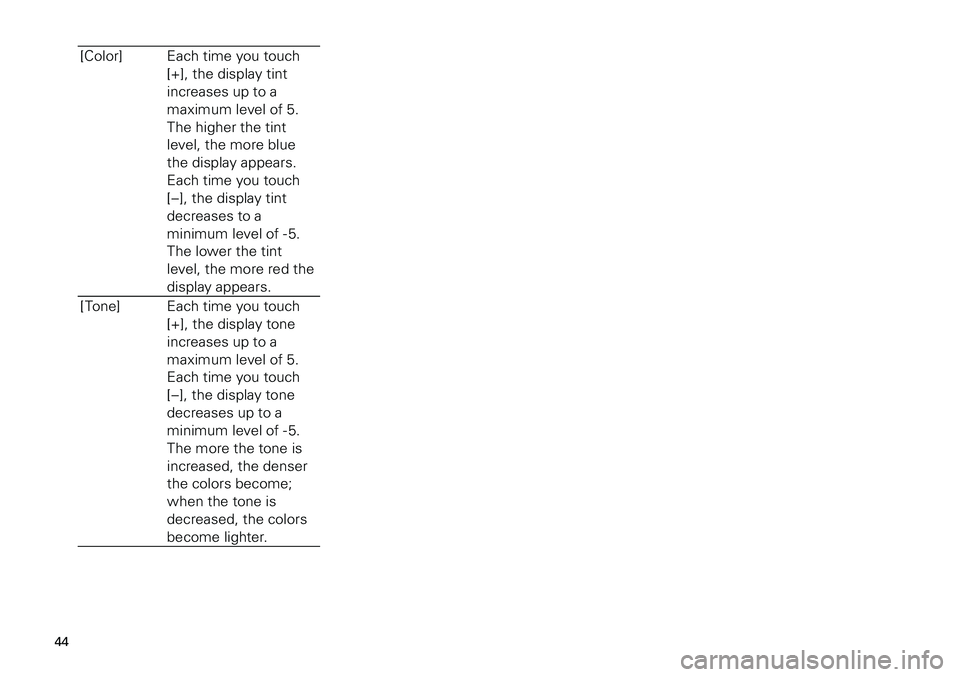

[Color]Each time you touch
[+], the display tint
increases up to a
maximum level of 5.
The higher the tint
level, the more blue
the display appears.
Each time you touch
[–], the display tint
decreases to a
minimum level of - 5.
The lower the tint
level, the more red the
display appears.
[Tone]Each time you touch
[+], the display tone
increases up to a
maximum level of 5.
Each time you touch
[–], the display tone
decreases up to a
minimum level of - 5.
The more the tone is
increased, the denser
the colors become;
when the tone is
decreased, the colors
become lighter.

45
45

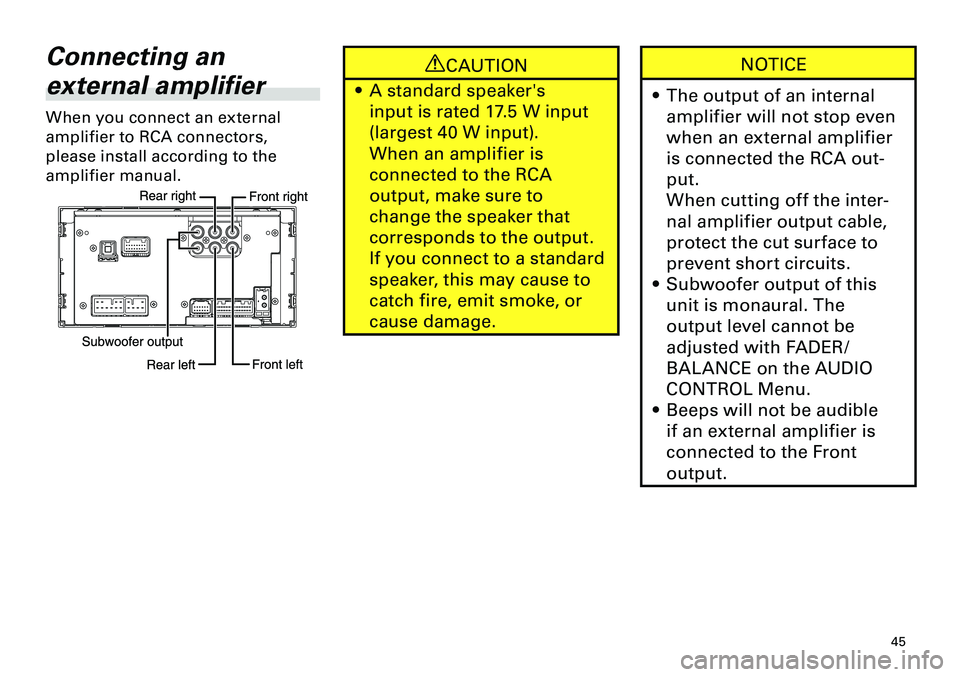

Connecting an
external amplifier
When you connect an external
amplifier to RCA connectors,
please install according to the
amplifier manual.
CAUTION
A standard speaker's
input is rated 17.5 W input
(largest 40 W input).
When an amplifier is
connected to the RCA
output, make sure to
change the speaker that
corresponds to the output.
If you connect to a standard
speaker, this may cause to
catch fire, emit smoke, or
cause damage.
•
NOTICE
The output of an internal
amplifier will not stop even
when an external amplifier
is connected the RCA out-
put.
When cutting off the inter-
nal amplifier output cable,
protect the cut surface to
prevent short circuits.
Subwoofer output of this
unit is monaural. The
output level cannot be
adjusted with FADER/
BALANCE on the AUDIO
CONTROL Menu.
Beeps will not be audible
if an external amplifier is
connected to the Front
output.
•
•
•

46
46

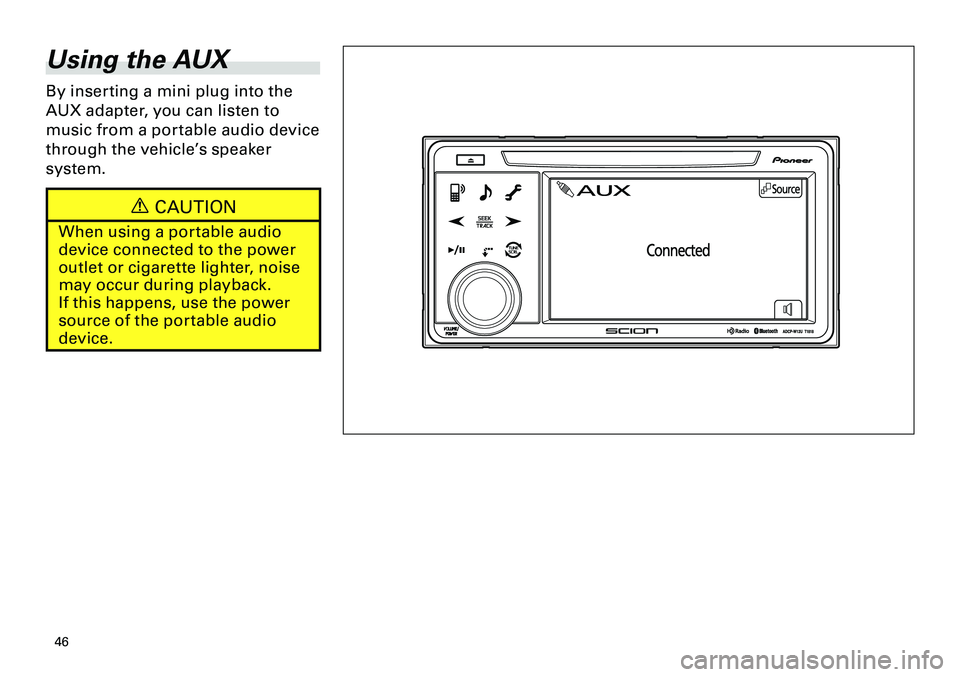

Using the AUX
By inserting a mini plug into the
AUX adapter, you can listen to
music from a portable audio device
through the vehicle’s speaker
system.
CAUTION
When using a portable audio
device connected to the power
outlet or cigarette lighter, noise
may occur during playback.
If this happens, use the power
source of the portable audio
device.

47
47

NOTICE
If the mini plug of a
commercially available cable
connected to a portable audio
or other component is not
connected to the car AUX
adapter, the mode will not
change to the AUX mode.
Volume level when playing a
component connected with a
mini plug dif fers to that when
listening to the built-in CD
player or radio so please make
adjustments.
If you install an audio system
other than a Scion Genuine
Audio, you will not be able to
use the AUX adapter.
•
•
•
Muting the AUX audio
Touch []. Touch it again to cancel the muting.
•

48
48

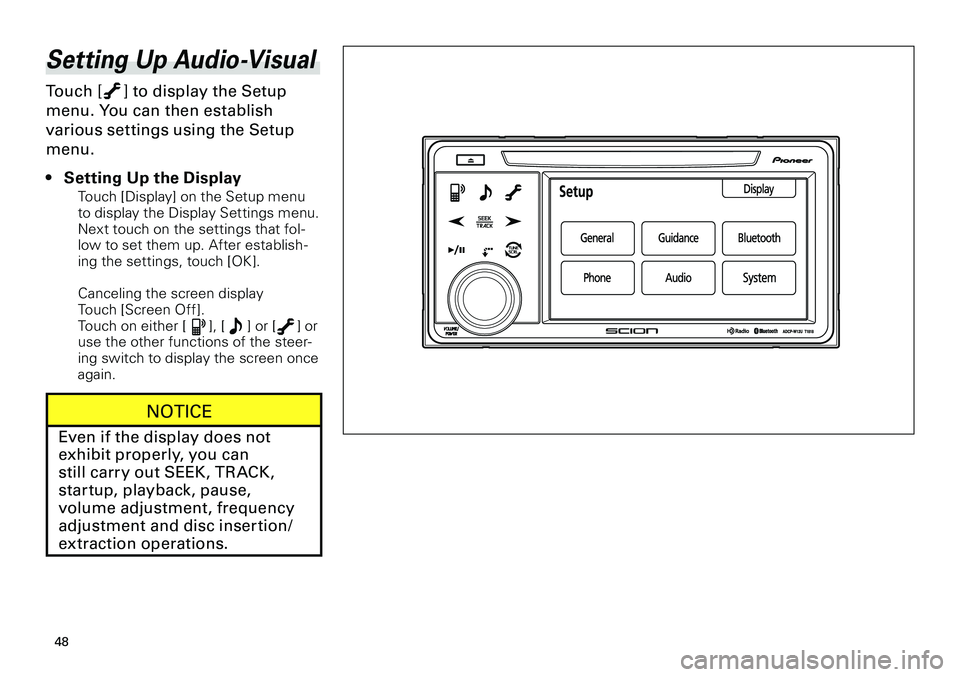

Setting Up Audio-Visual
Touch [] to display the Setup
menu. You can then establish
various settings using the Setup
menu.
Setting Up the Display
Touch [Display] on the Setup menu to display the Display Settings menu. Next touch on the settings that fol-low to set them up. After establish-
ing the settings, touch [OK].
Canceling the screen displayTouch [Screen Off]. Touch on either [], [] or [] or use the other functions of the steer-ing switch to display the screen once again.
NOTICE
Even if the display does not
exhibit properly, you can
still carry out SEEK, TRACK,
startup, playback, pause,
volume adjustment, frequency
adjustment and disc insertion/
extraction operations.
•

49
49

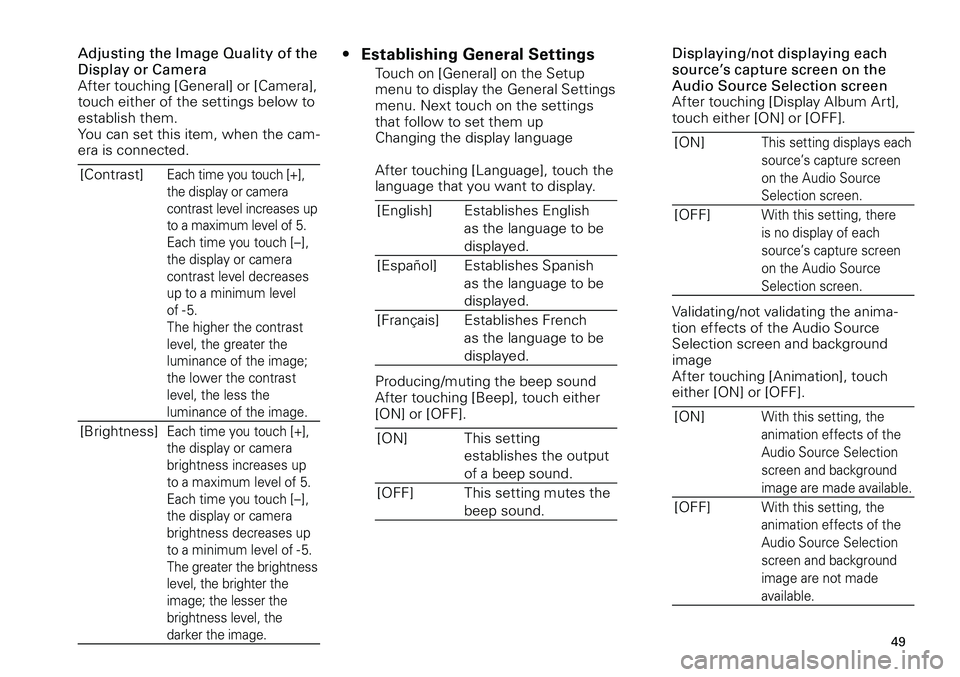

Adjusting the Image Quality of the Display or CameraAfter touching [General] or [Camera], touch either of the settings below to establish them.You can set this item, when the cam-era is connected.
[Contrast]Each time you touch [+],
the display or camera
contrast level increases up
to a maximum level of 5.
Each time you touch [–],
the display or camera
contrast level decreases
up to a minimum level
of - 5.
The higher the contrast
level, the greater the
luminance of the image;
the lower the contrast
level, the less the
luminance of the image.
[Brightness]Each time you touch [+],
the display or camera
brightness increases up
to a maximum level of 5.
Each time you touch [–],
the display or camera
brightness decreases up
to a minimum level of - 5.
The greater the brightness
level, the brighter the
image; the lesser the
brightness level, the
darker the image.
Establishing General Settings
Touch on [General] on the Setup menu to display the General Settings menu. Next touch on the settings that follow to set them upChanging the display language
After touching [Language], touch the language that you want to display.
[English]Establishes English
as the language to be
displayed.
[Español]Establishes Spanish
as the language to be
displayed.
[Français]Establishes French
as the language to be
displayed.
Producing/muting the beep soundAfter touching [Beep], touch either [ON] or [OFF].
[ON]This setting
establishes the output
of a beep sound.
[OFF]This setting mutes the
beep sound.
•Displaying/not displaying each source’s capture screen on the Audio Source Selection screenAfter touching [Display Album Art], touch either [ON] or [OFF].
[ON]This setting displays each
source’s capture screen
on the Audio Source
Selection screen.
[OFF]With this setting, there
is no display of each
source’s capture screen
on the Audio Source
Selection screen.
Validating/not validating the anima-tion effects of the Audio Source Selection screen and background imageAfter touching [Animation], touch either [ON] or [OFF].
[ON]With this setting, the
animation effects of the
Audio Source Selection
screen and background
image are made available.
[OFF]With this setting, the
animation effects of the
Audio Source Selection
screen and background
image are not made
available.

50
50

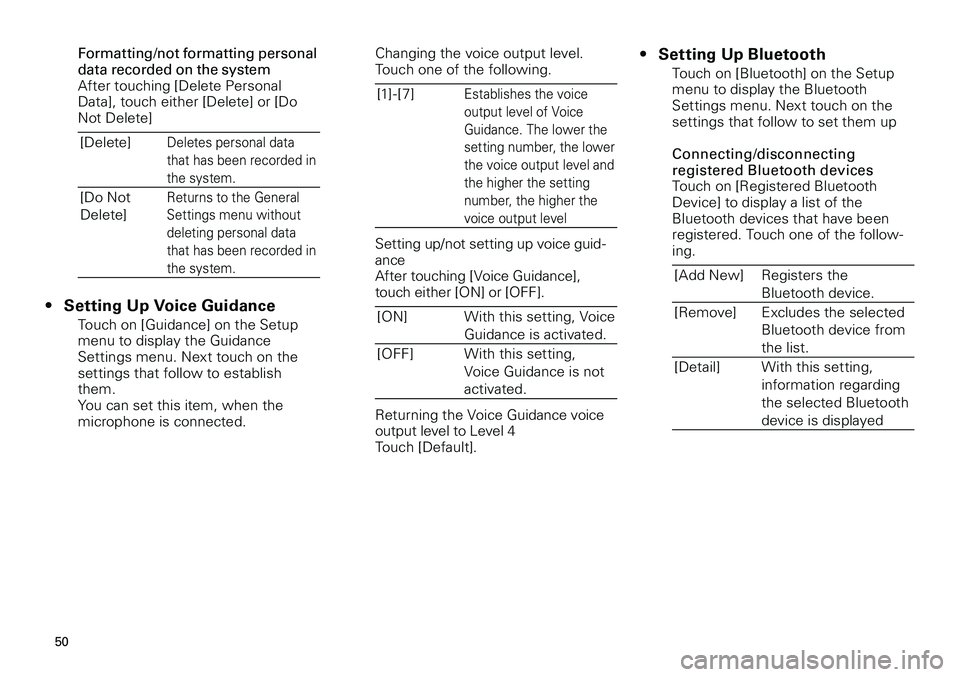

Formatting/not formatting personal data recorded on the systemAfter touching [Delete Personal Data], touch either [Delete] or [Do Not Delete]
[Delete]Deletes personal data
that has been recorded in
the system.
[Do Not
Delete]
Returns to the General
Settings menu without
deleting personal data
that has been recorded in
the system.
Setting Up Voice Guidance
Touch on [Guidance] on the Setup menu to display the Guidance Settings menu. Next touch on the settings that follow to establish them.You can set this item, when the microphone is connected.
•
Changing the voice output level. Touch one of the following.
[1]- [7]Establishes the voice
output level of Voice
Guidance. The lower the
setting number, the lower
the voice output level and
the higher the setting
number, the higher the
voice output level
Setting up/not setting up voice guid-anceAfter touching [Voice Guidance], touch either [ON] or [OFF].
[ON]With this setting, Voice
Guidance is activated.
[OFF]With this setting,
Voice Guidance is not
activated.
Returning the Voice Guidance voice output level to Level 4Touch [Default].
Setting Up Bluetooth
Touch on [Bluetooth] on the Setup menu to display the Bluetooth Settings menu. Next touch on the settings that follow to set them up
Connecting/disconnecting registered Bluetooth devicesTouch on [Registered Bluetooth Device] to display a list of the Bluetooth devices that have been registered. Touch one of the follow-ing.
[Add New]Registers the
Bluetooth device.
[Remove]Excludes the selected
Bluetooth device from
the list.
[Detail]With this setting,
information regarding
the selected Bluetooth
device is displayed
•
