Page 641 of 712

TOYOTA YARIS 2014  Owners Manual 5
641 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E
NOTICE
When handling jumper cables
When connecting the jumper cables, ensure that they do not become en

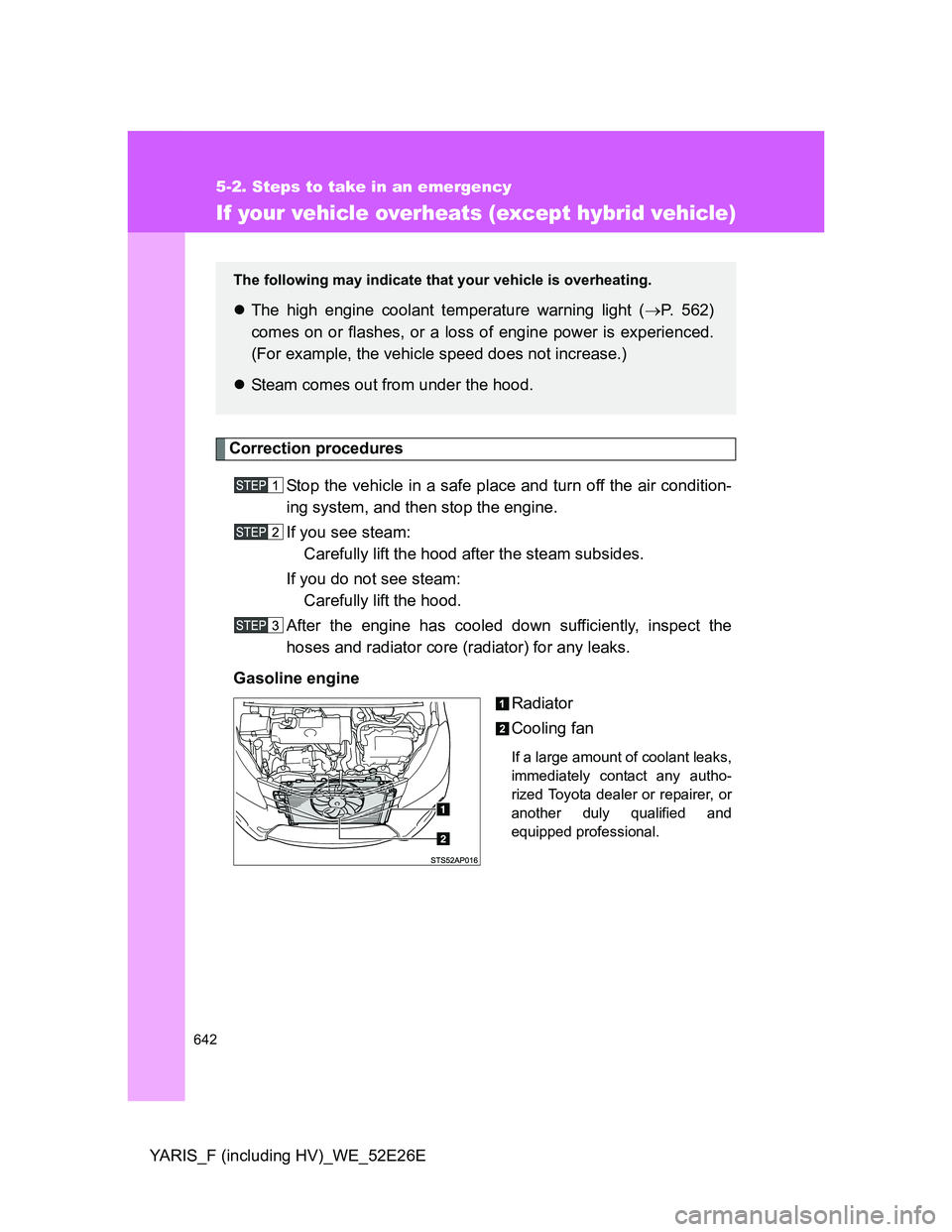

Page 642 of 712

TOYOTA YARIS 2014  Owners Manual 642
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E
If your vehicle overheats (except hybrid vehicle)
Correction procedures
Stop the vehicle in a safe place and turn off the air co

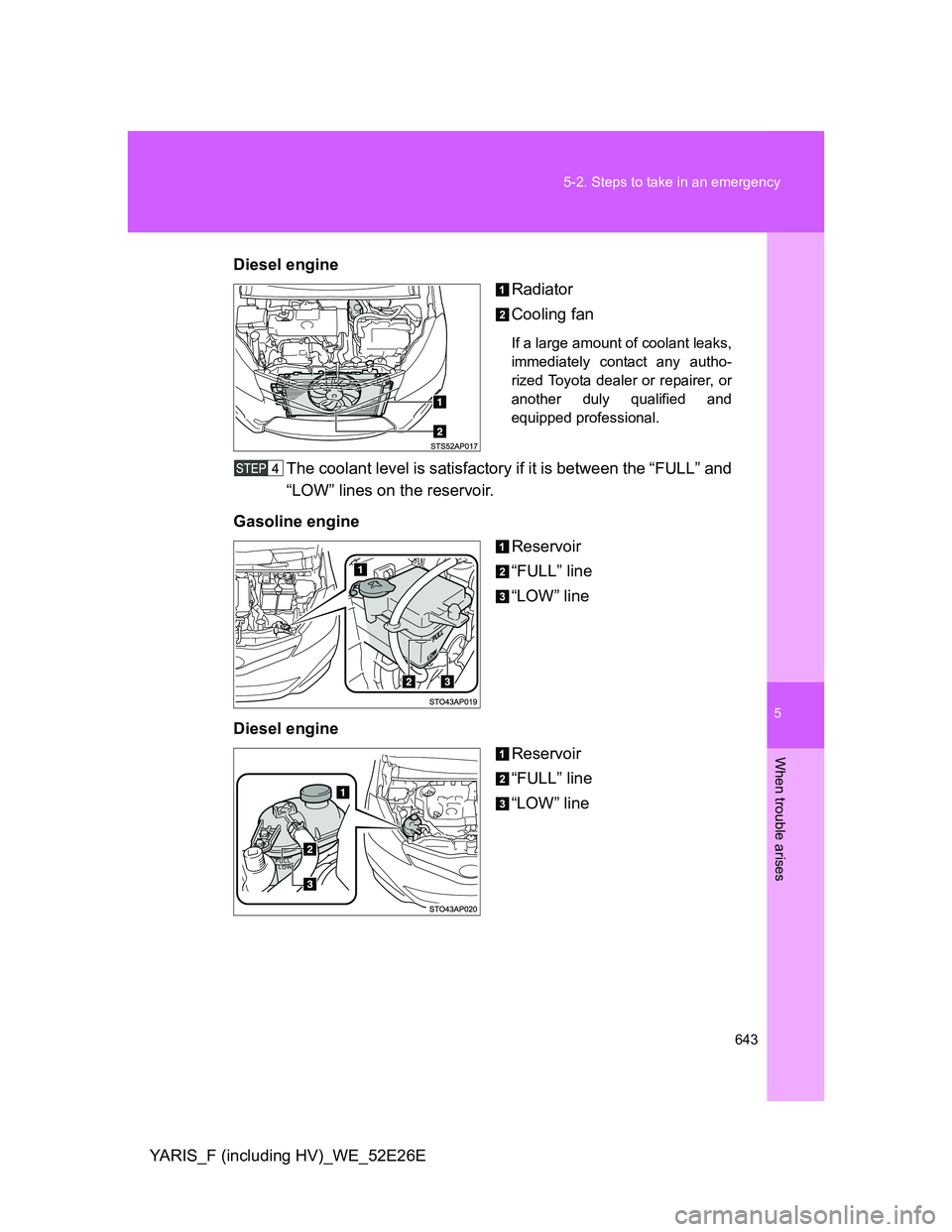

Page 643 of 712

TOYOTA YARIS 2014  Owners Manual 5
643 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26EDiesel engine
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact any autho-
rized

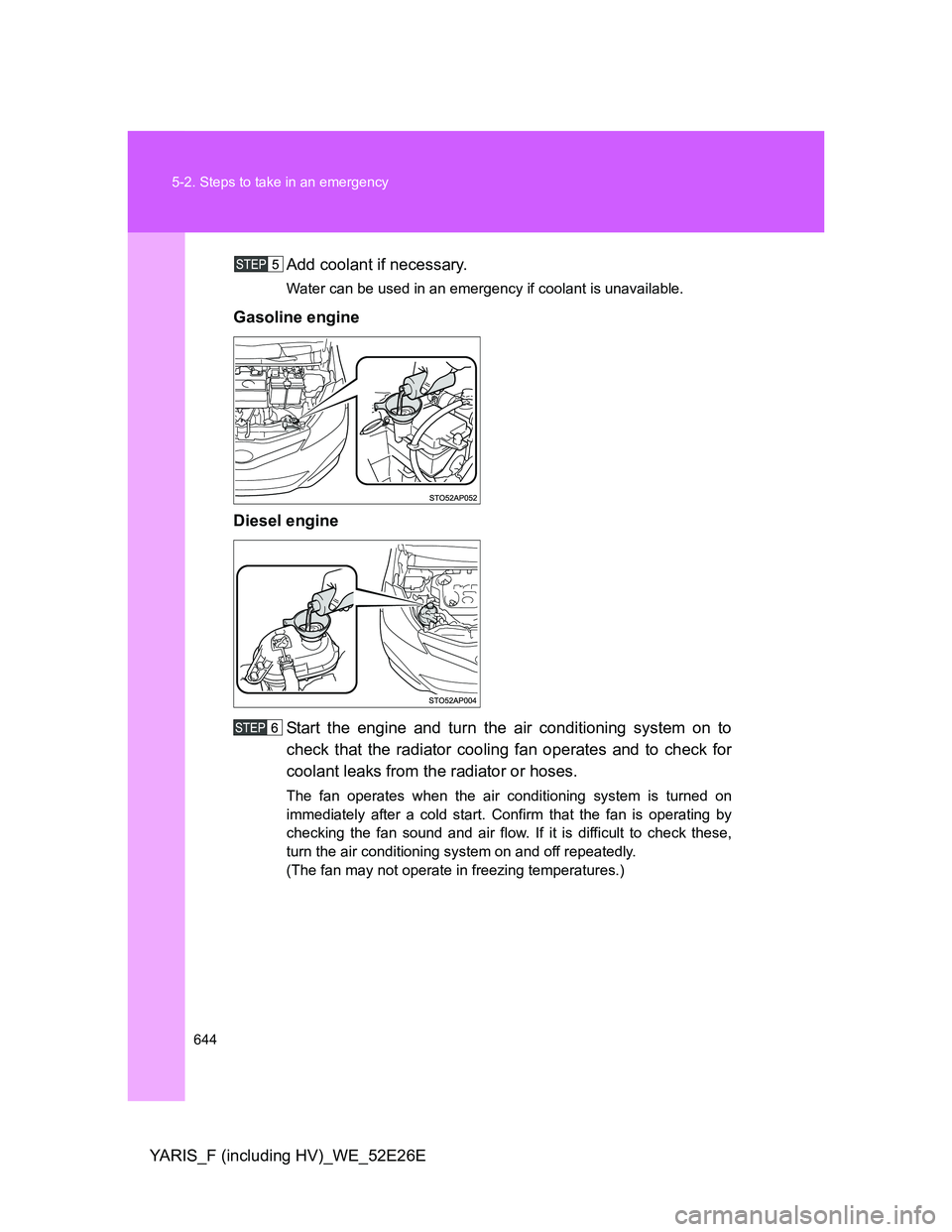

Page 644 of 712

TOYOTA YARIS 2014  Owners Manual 644 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26EAdd coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Gasoline engine
Diesel engine
Start the e

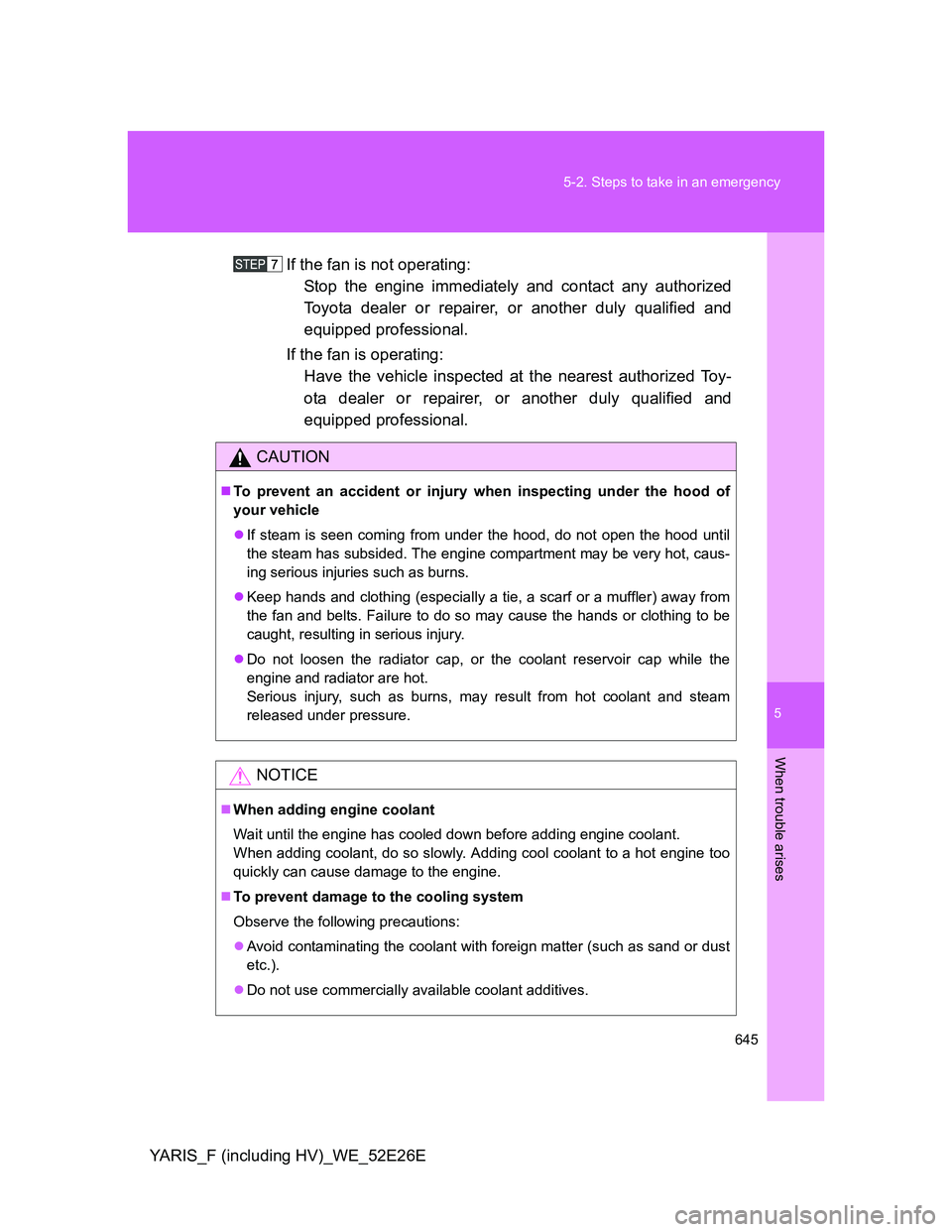

Page 645 of 712

TOYOTA YARIS 2014  Owners Manual 5
645 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26EIf the fan is not operating:
Stop the engine immediately and contact any authorized
Toyota dealer or repai

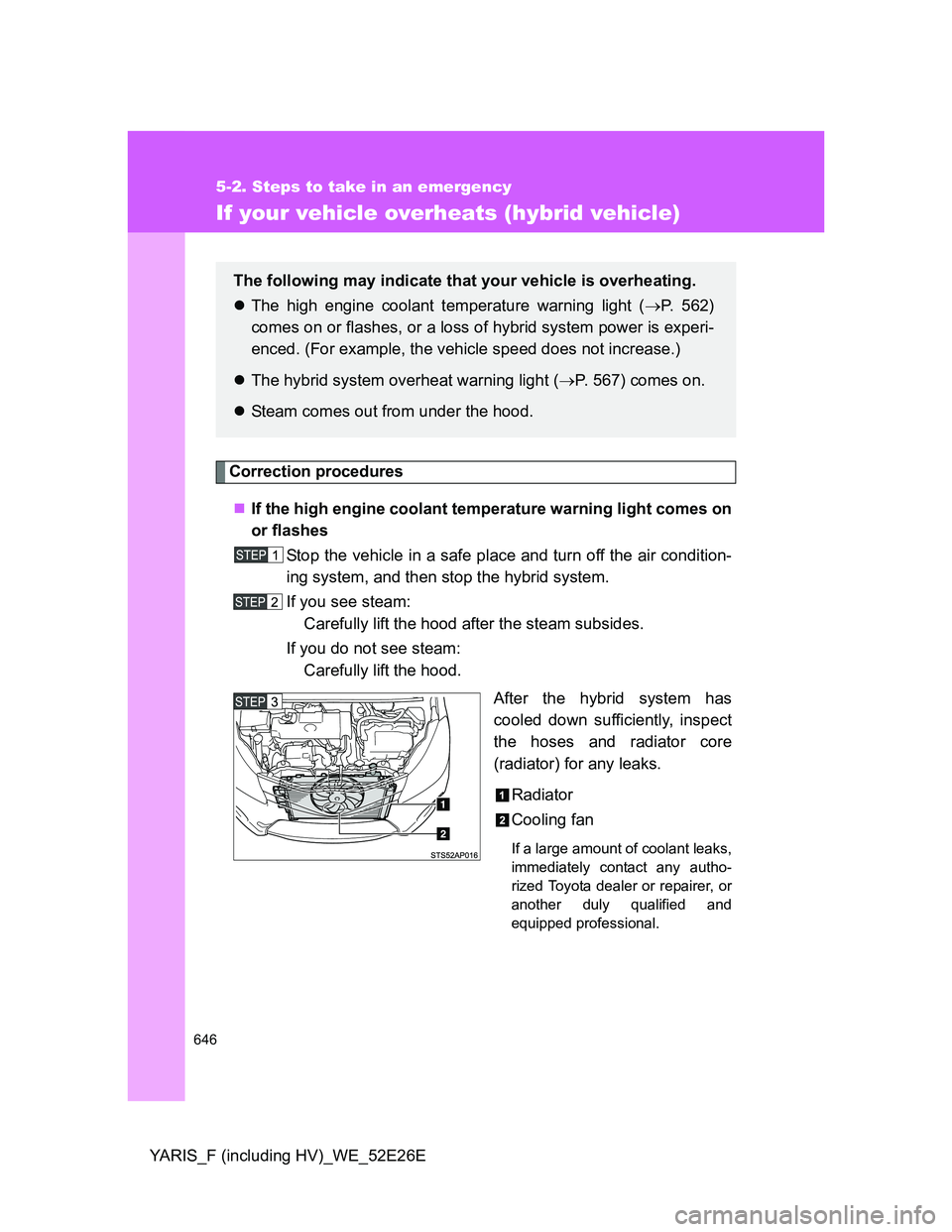

Page 646 of 712

TOYOTA YARIS 2014  Owners Manual 646
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E
If your vehicle overheats (hybrid vehicle)
Correction procedures
If the high engine coolant temperature warning light comes o

Page 647 of 712

TOYOTA YARIS 2014  Owners Manual 5
647 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26EThe coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.
Res

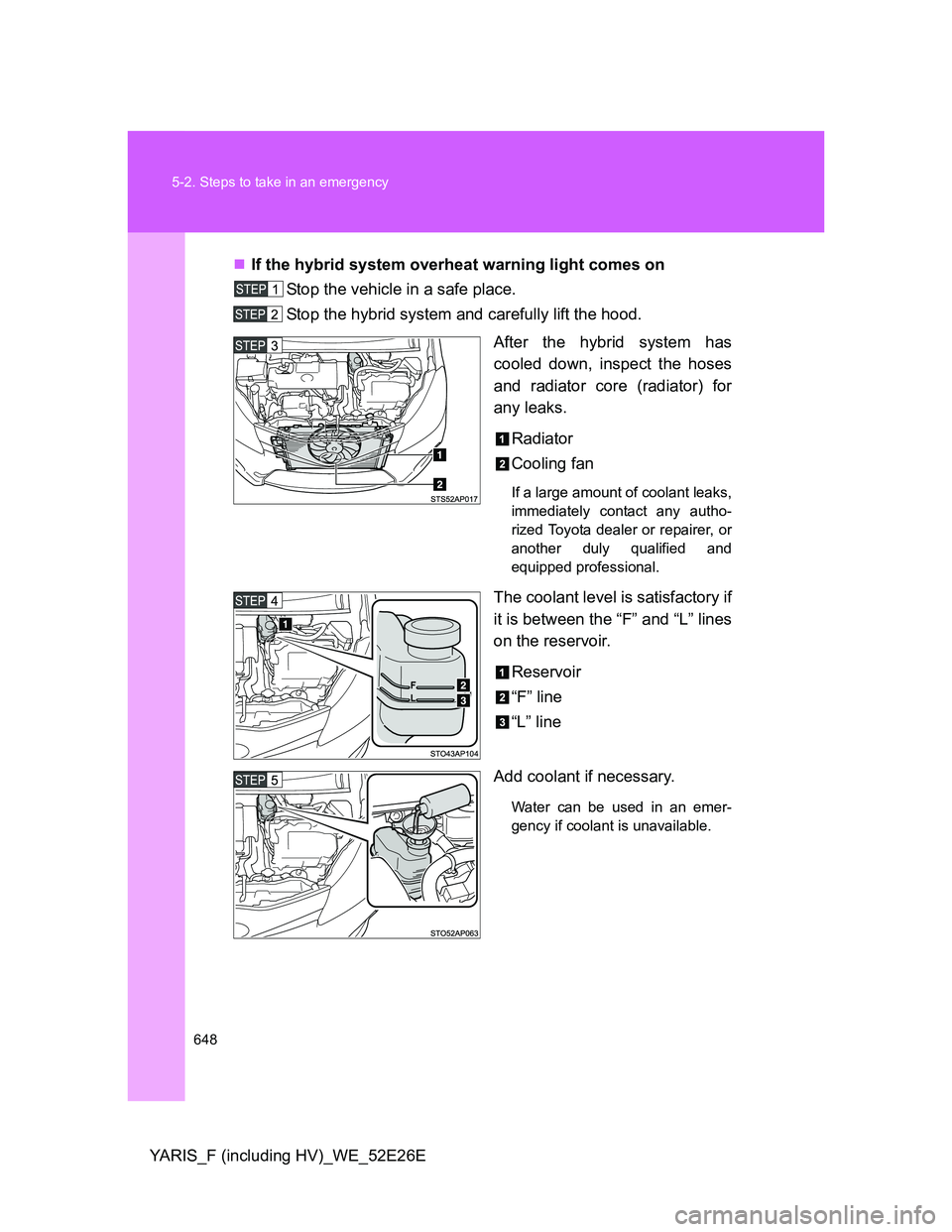

Page 648 of 712

TOYOTA YARIS 2014  Owners Manual 648 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26EIf the hybrid system overheat warning light comes on
Stop the vehicle in a safe place.
Stop the hybrid system and carefully li

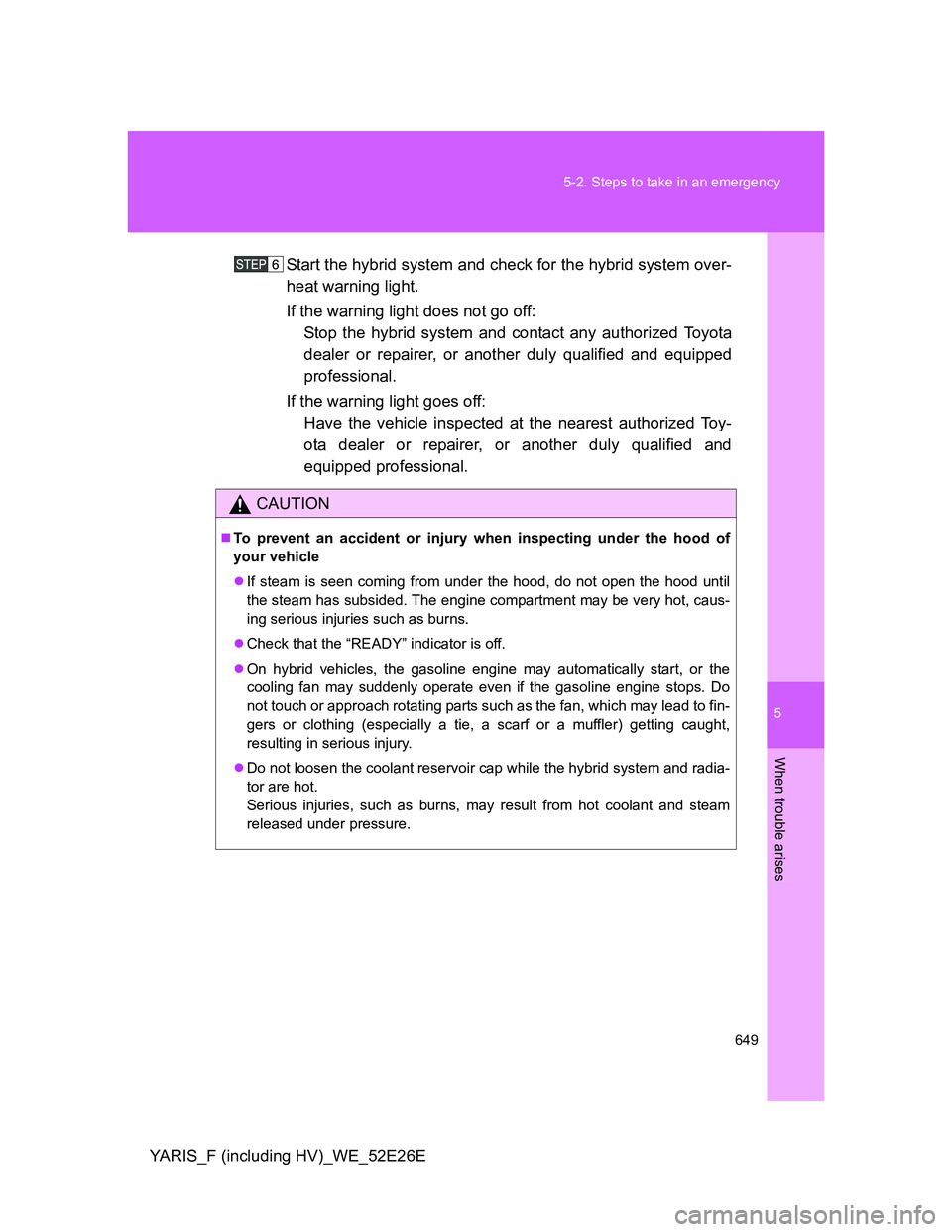

Page 649 of 712

TOYOTA YARIS 2014  Owners Manual 5
649 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26EStart the hybrid system and check for the hybrid system over-
heat warning light.
If the warning light does

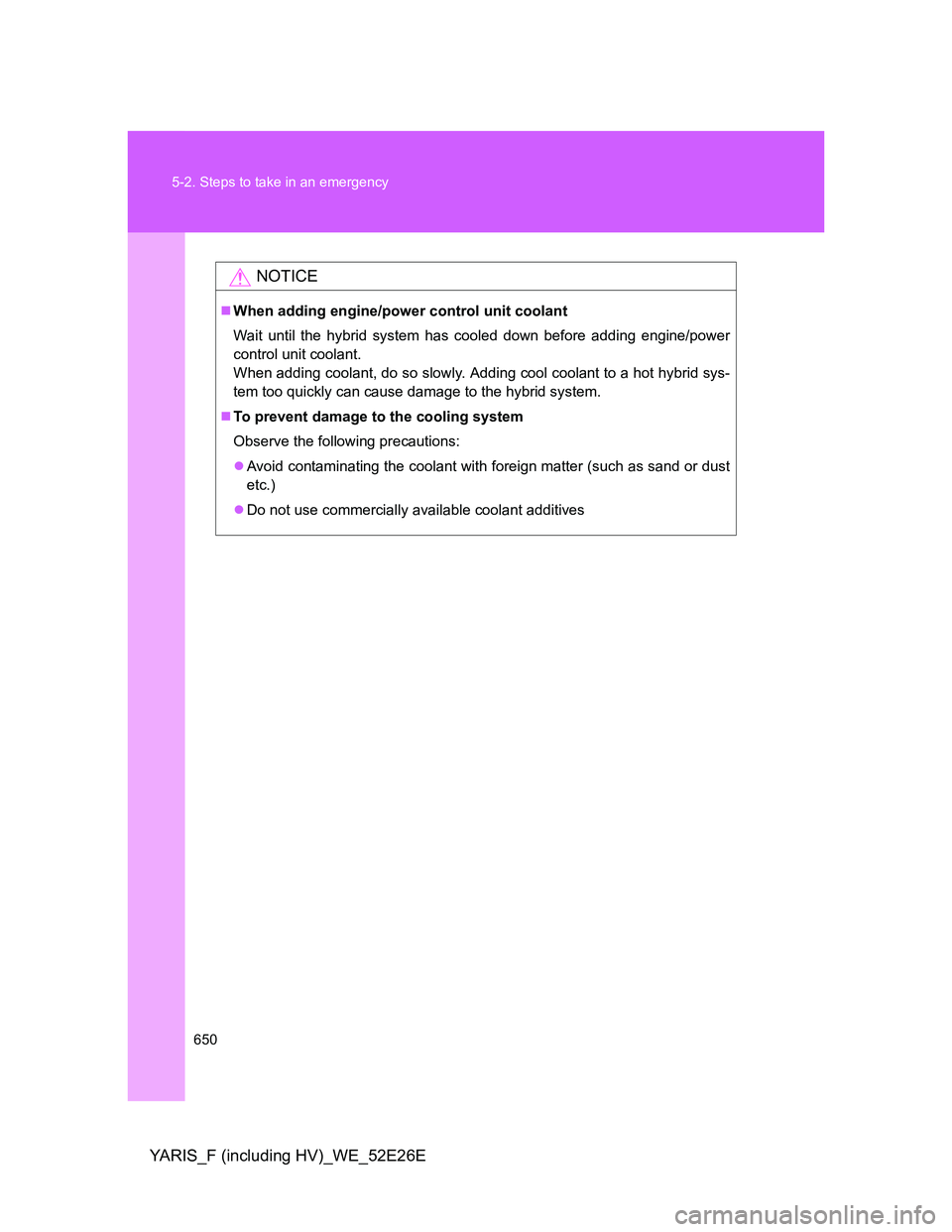

Page 650 of 712

TOYOTA YARIS 2014  Owners Manual 650 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E
NOTICE
When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
