TOYOTA YARIS 2014 Owners Manual

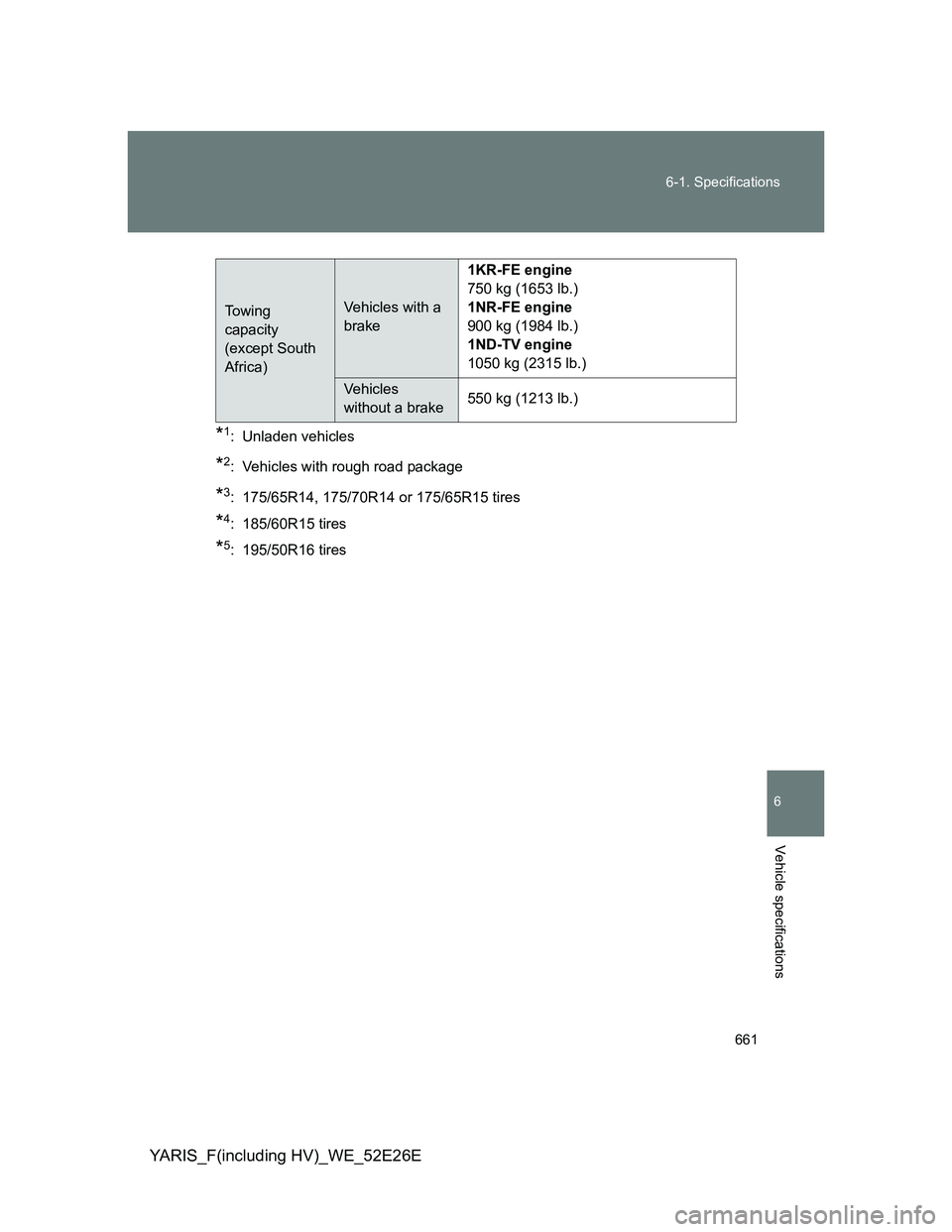

661 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26E
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R14, 175/70R14 or 175/65R15 tires
*4: 185/60R15 tires
*5: 195/50R16 tires
To w i n g
capacity
(except South
Africa)Vehicles with a
brake1KR-FE engine
750 kg (1653 lb.)
1NR-FE engine
900 kg (1984 lb.)
1ND-TV engine
1050 kg (2315 lb.)
Vehicles
without a brake550 kg (1213 lb.)

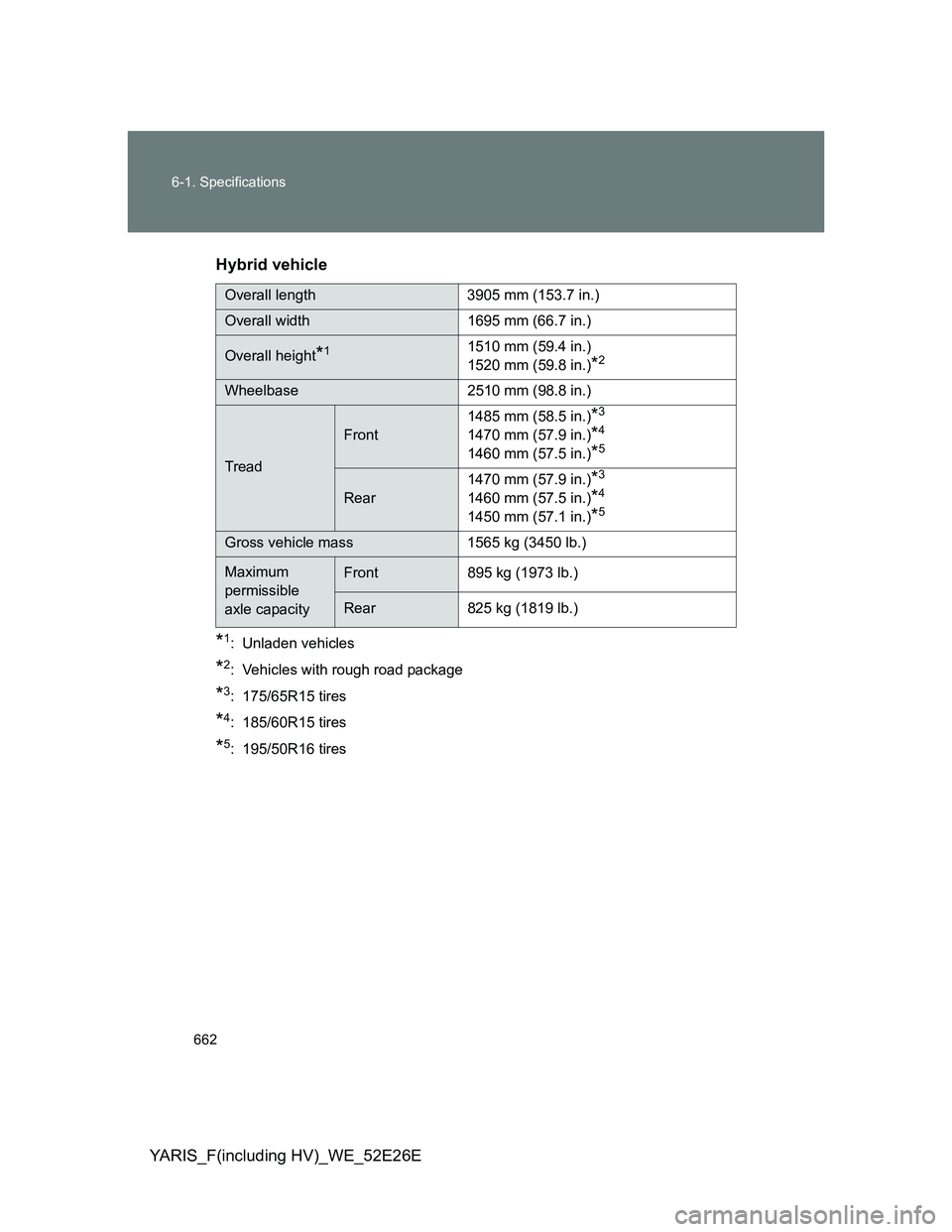

662 6-1. Specifications
YARIS_F(including HV)_WE_52E26EHybrid vehicle
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R15 tires
*4: 185/60R15 tires
*5: 195/50R16 tires
Overall length 3905 mm (153.7 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)
*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front1485 mm (58.5 in.)
*3
1470 mm (57.9 in.)*4
1460 mm (57.5 in.)*5
Rear1470 mm (57.9 in.)
*3
1460 mm (57.5 in.)*4
1450 mm (57.1 in.)*5
Gross vehicle mass 1565 kg (3450 lb.)
Maximum
permissible
axle capacityFront 895 kg (1973 lb.)
Rear 825 kg (1819 lb.)

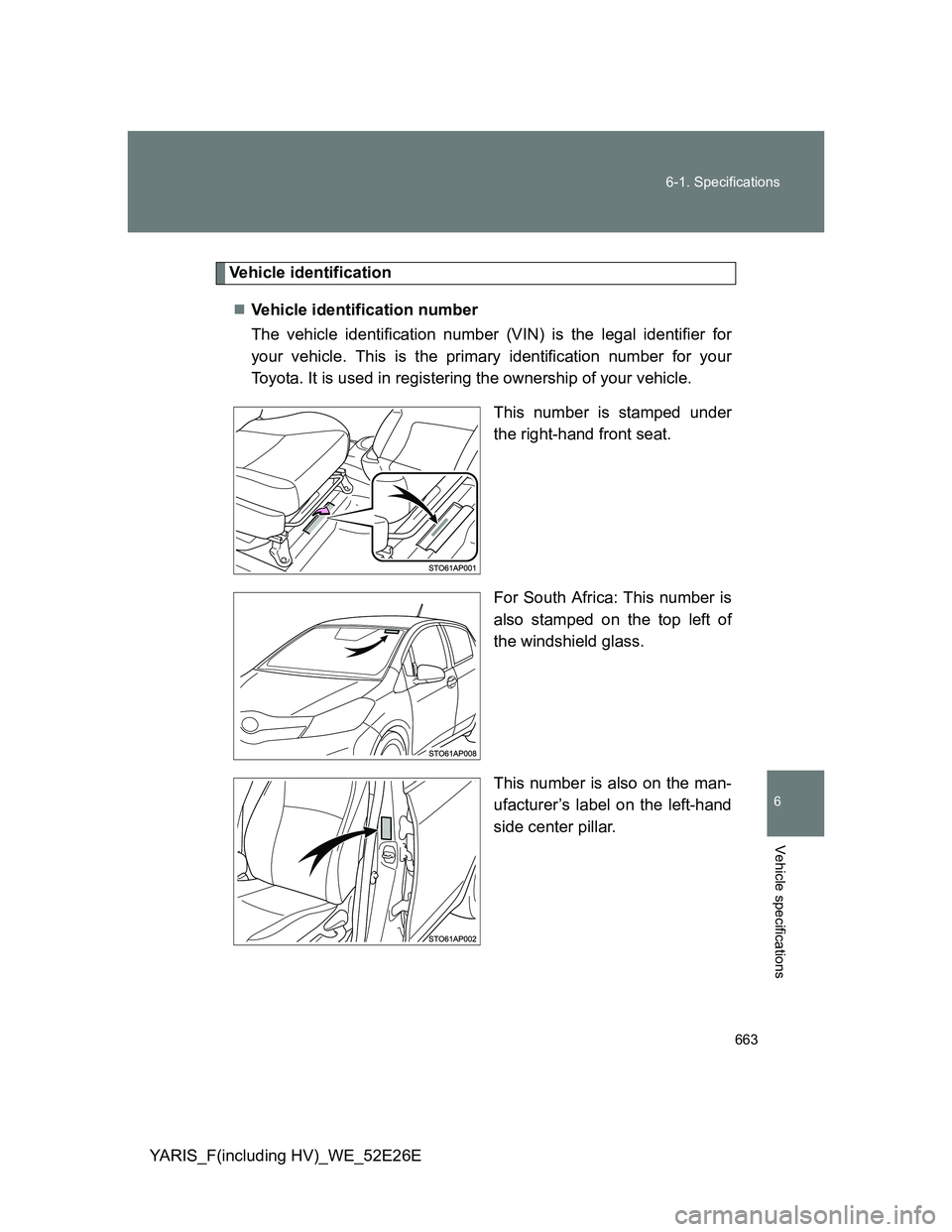

663 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26E
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
For South Africa: This number is
also stamped on the top left of
the windshield glass.
This number is also on the man-
ufacturer’s label on the left-hand
side center pillar.

664 6-1. Specifications

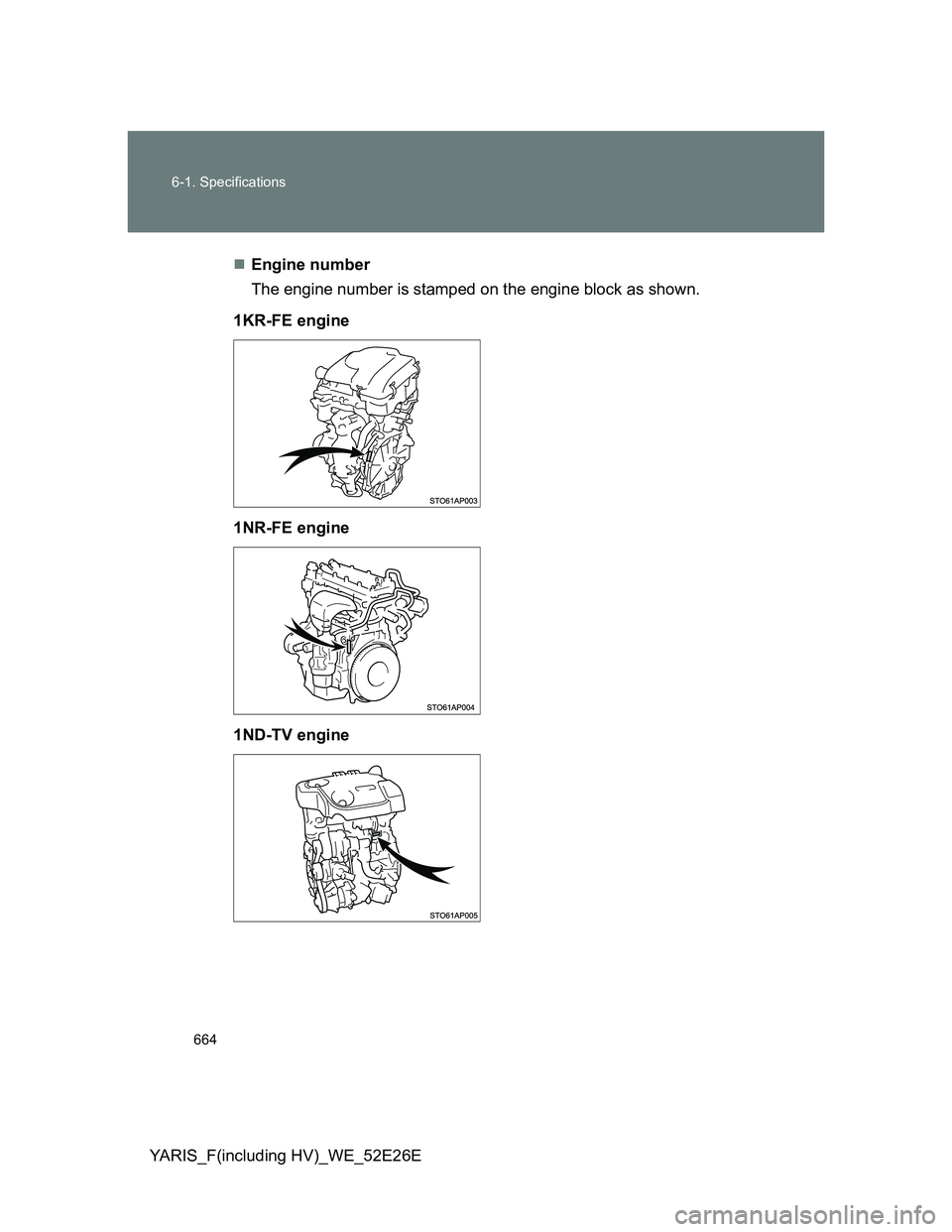

YARIS_F(including HV)_WE_52E26EEngine number
The engine number is stamped on the engine block as shown.
1KR-FE engine
1NR-FE engine
1ND-TV engine

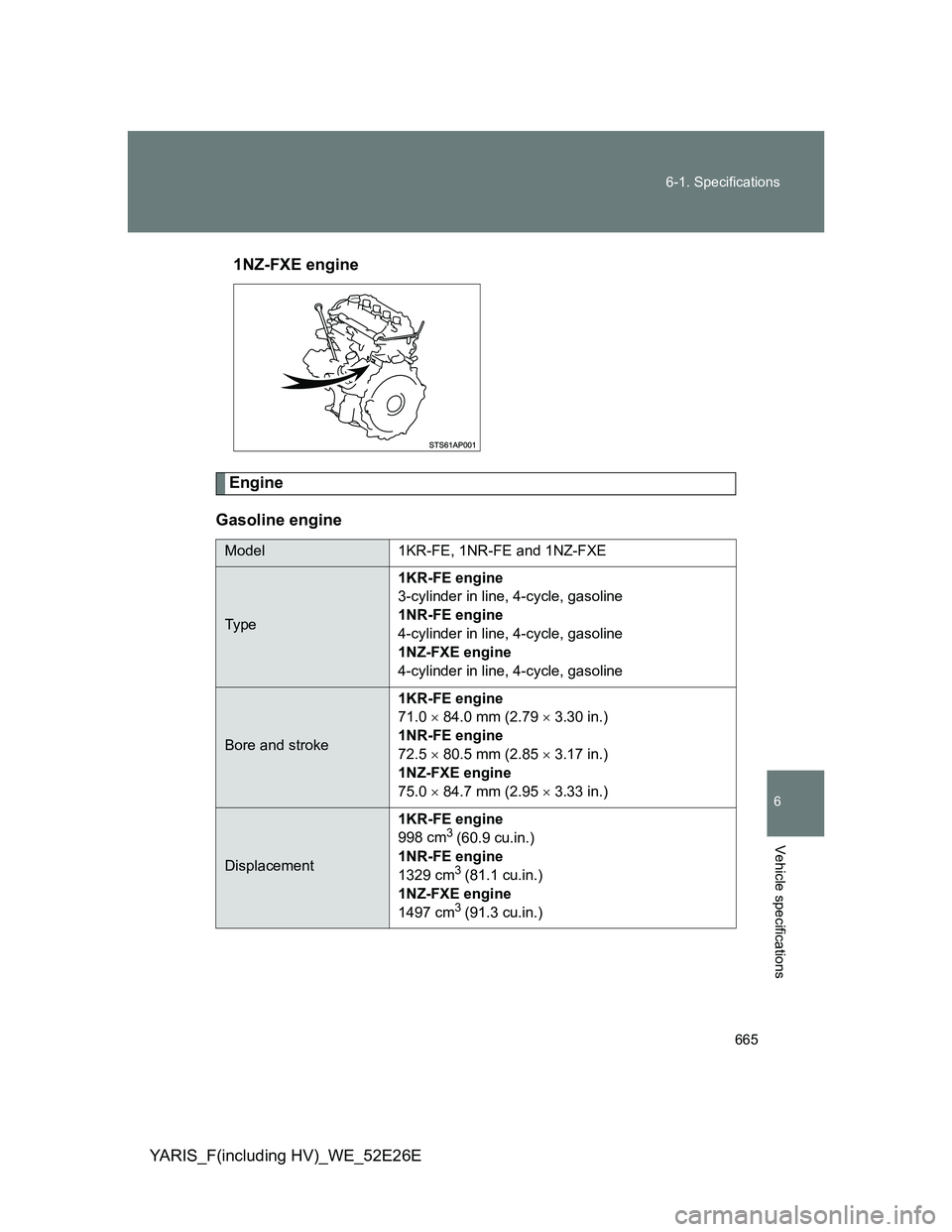

665 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26E1NZ-FXE engine
Engine
Gasoline engine
Model 1KR-FE, 1NR-FE and 1NZ-FXE
Ty p e1KR-FE engine
3-cylinder in line, 4-cycle, gasoline
1NR-FE engine
4-cylinder in line, 4-cycle, gasoline
1NZ-FXE engine
4-cylinder in line, 4-cycle, gasoline
Bore and stroke1KR-FE engine
71.0  84.0 mm (2.79  3.30 in.)
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1NZ-FXE engine
75.0  84.7 mm (2.95  3.33 in.)
Displacement1KR-FE engine
998 cm
3 (60.9 cu.in.)
1NR-FE engine
1329 cm
3 (81.1 cu.in.)
1NZ-FXE engine
1497 cm
3 (91.3 cu.in.)

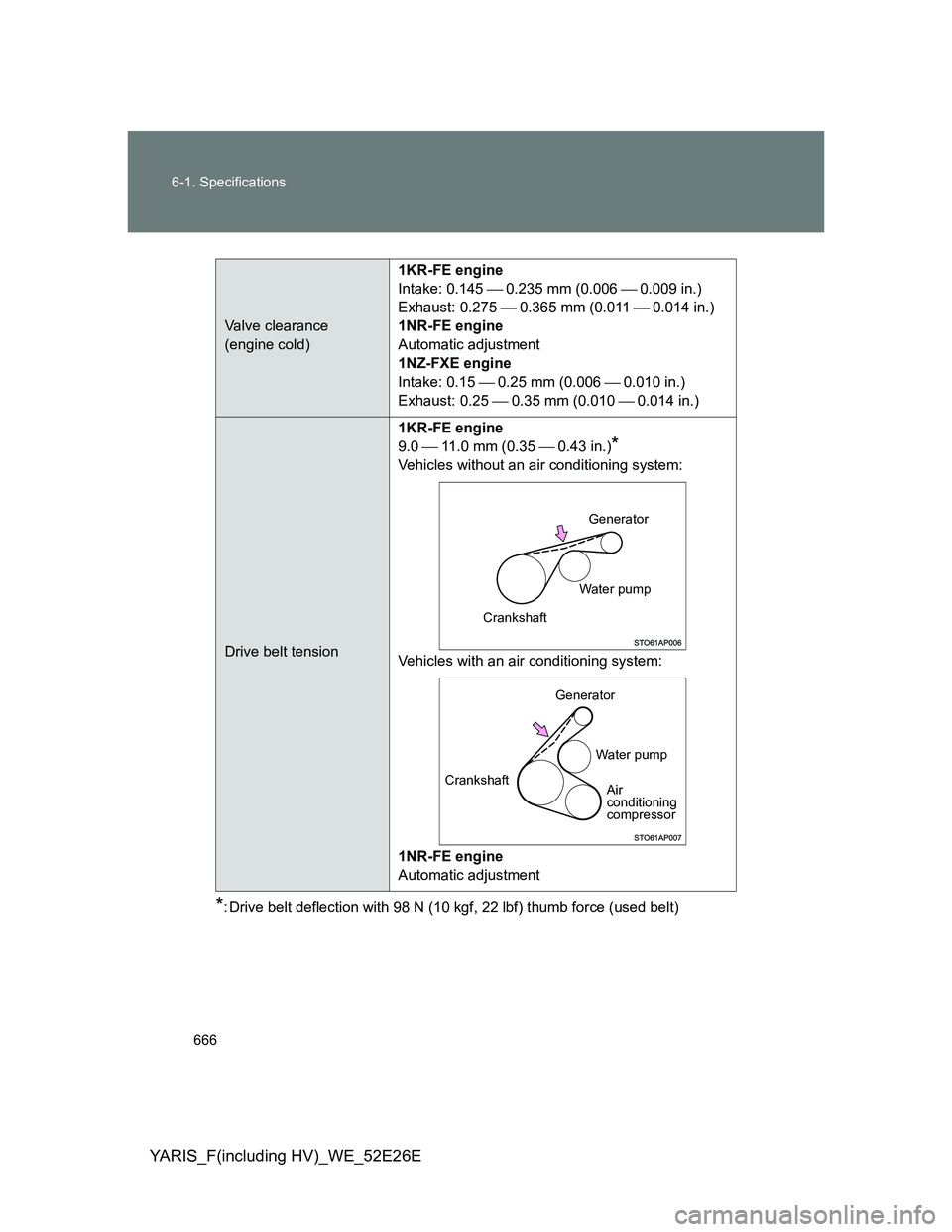

666 6-1. Specifications
YARIS_F(including HV)_WE_52E26E
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
Valve clearance
(engine cold)1KR-FE engine
Intake: 0.145 0.235 mm (0.006 0.009 in.)
Exhaust:
0.275 0.365 mm (0.011 0.014 in.)
1NR-FE engine
Automatic adjustment
1NZ-FXE engine
Intake: 0.15 0.25 mm (0.006 0.010 in.)
Exhaust:
0.25 0.35 mm (0.010 0.014 in.)
Drive belt tension1KR-FE engine
9.0 11.0 mm (0.35 0.43 in.)
*
Vehicles without an air conditioning system:
Vehicles with an air conditioning system:
1NR-FE engine
Automatic adjustment
Generator
Water pump
Crankshaft
CrankshaftWater pump Generator
Air
conditioning
compressor

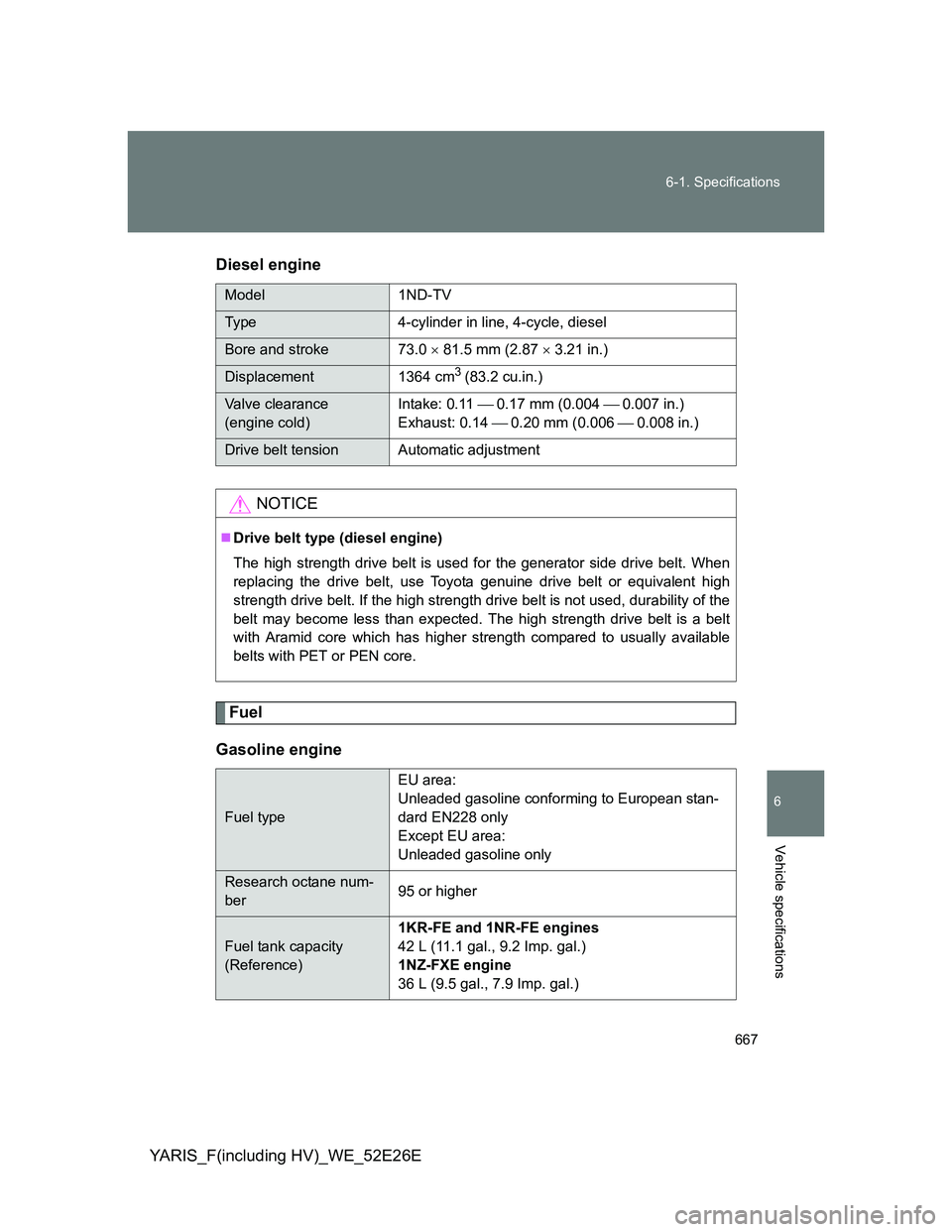

667 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26EDiesel engine
Fuel
Gasoline engine
Model 1ND-TV
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke 73.0  81.5 mm (2.87  3.21 in.)
Displacement 1364 cm3 (83.2 cu.in.)
Valve clearance
(engine cold)Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
Drive belt tension Automatic adjustment
NOTICE
Drive belt type (diesel engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)1KR-FE and 1NR-FE engines
42 L (11.1 gal., 9.2 Imp. gal.)
1NZ-FXE engine
36 L (9.5 gal., 7.9 Imp. gal.)

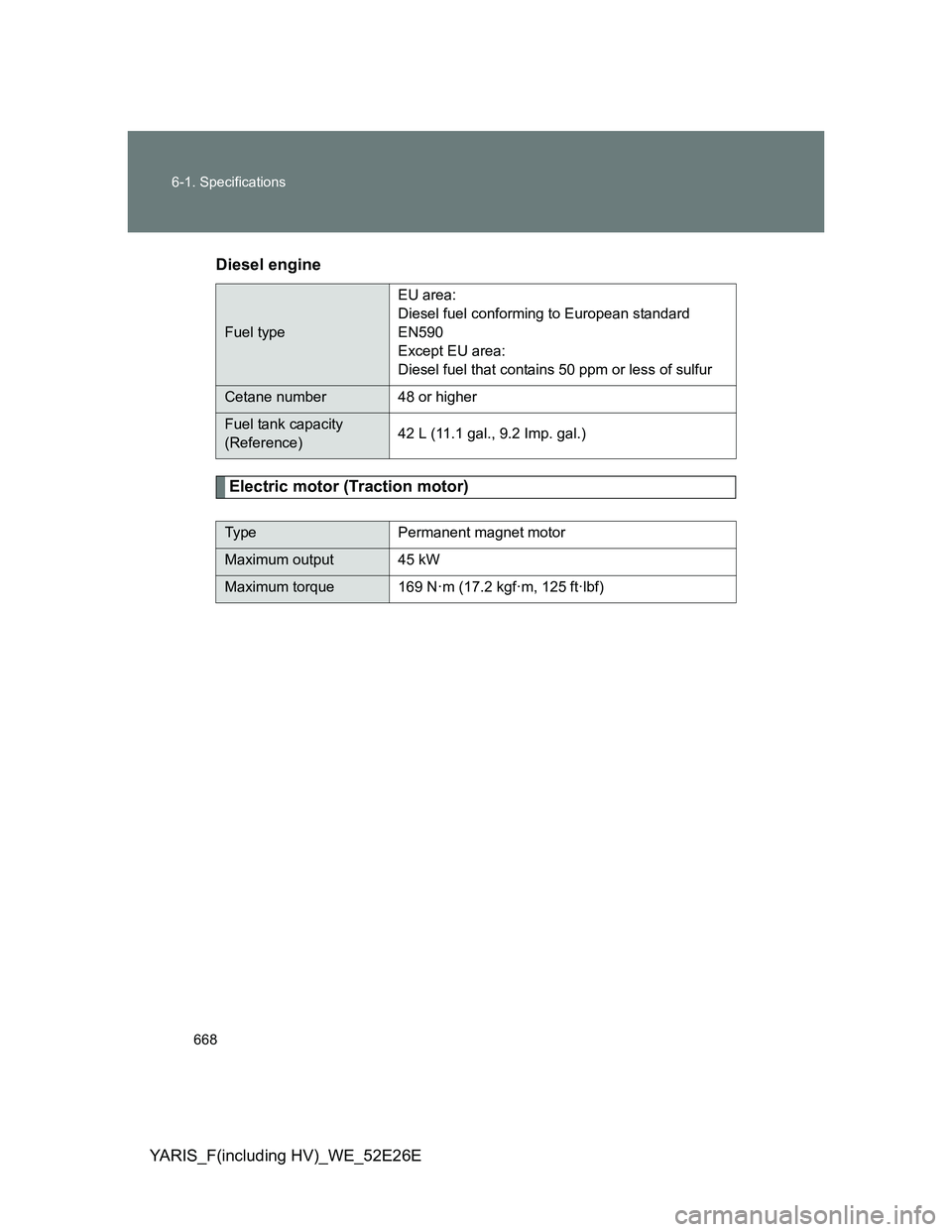

668 6-1. Specifications
YARIS_F(including HV)_WE_52E26EDiesel engine
Electric motor (Traction motor)
Fuel typeEU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number 48 or higher
Fuel tank capacity
(Reference)42 L (11.1 gal., 9.2 Imp. gal.)
Type Permanent magnet motor
Maximum output 45 kW
Maximum torque 169 N·m (17.2 kgf·m, 125 ft·lbf)

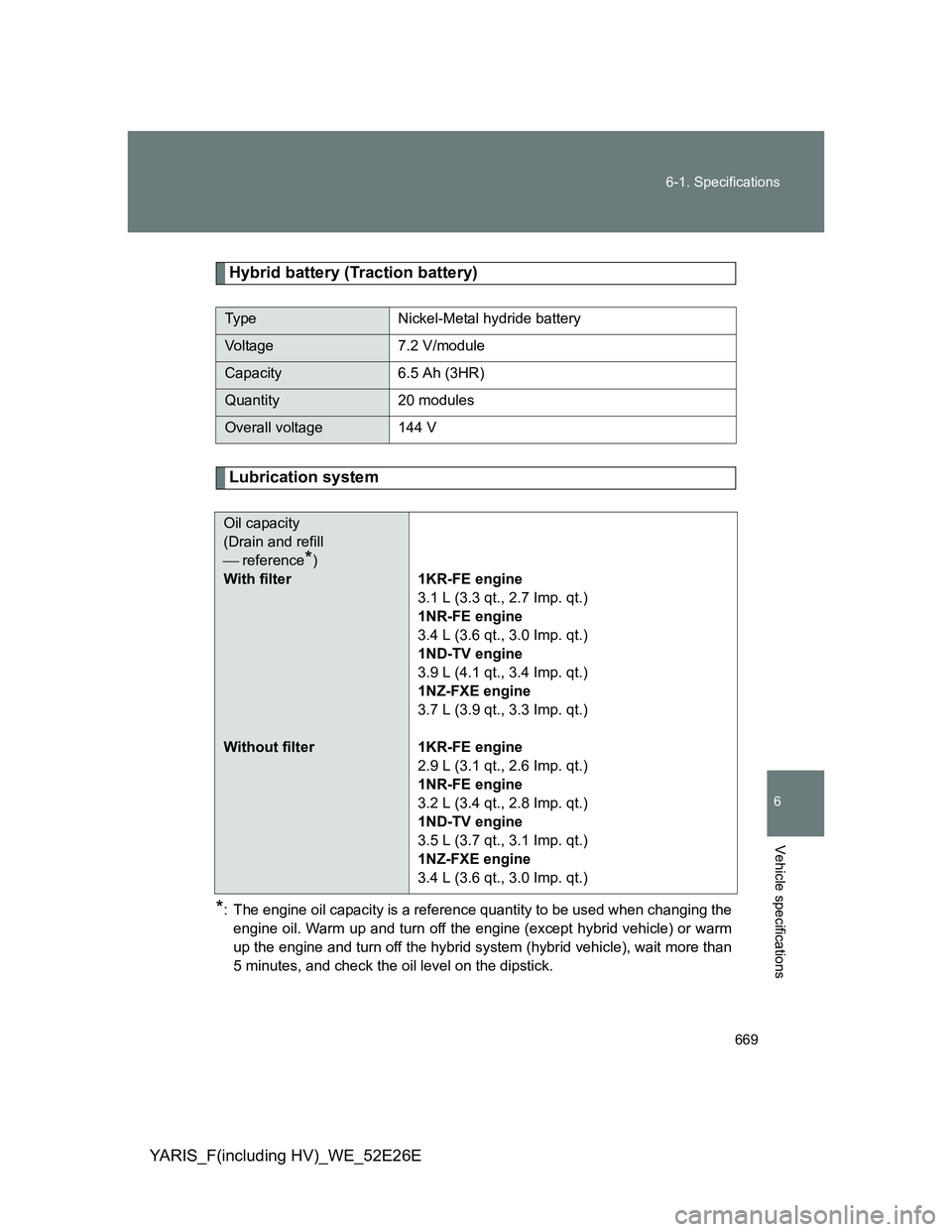

669 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26E
Hybrid battery (Traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine (except hybrid vehicle) or warm
up the engine and turn off the hybrid system (hybrid vehicle), wait more than
5 minutes, and check the oil level on the dipstick.
Type Nickel-Metal hydride battery
Voltage 7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 20 modules
Overall voltage 144 V
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter1KR-FE engine
3.1 L (3.3 qt., 2.7 Imp. qt.)
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ND-TV engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1NZ-FXE engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1KR-FE engine
2.9 L (3.1 qt., 2.6 Imp. qt.)
1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ND-TV engine
3.5 L (3.7 qt., 3.1 Imp. qt.)
1NZ-FXE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)

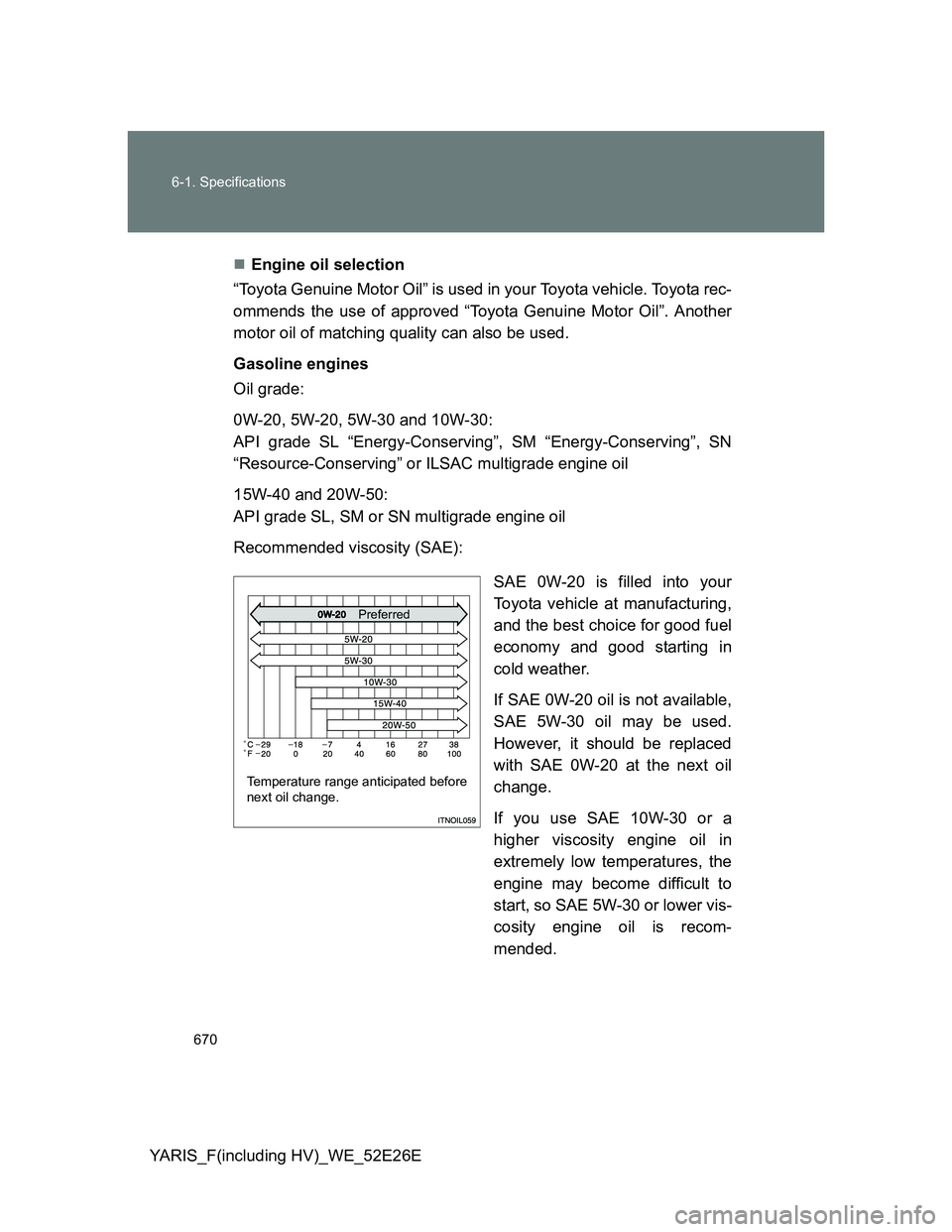

670 6-1. Specifications
YARIS_F(including HV)_WE_52E26EEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Gasoline engines
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Temperature range anticipated before
next oil change.
Preferred
