681 6-1. Specifications
6
Vehicle specifications

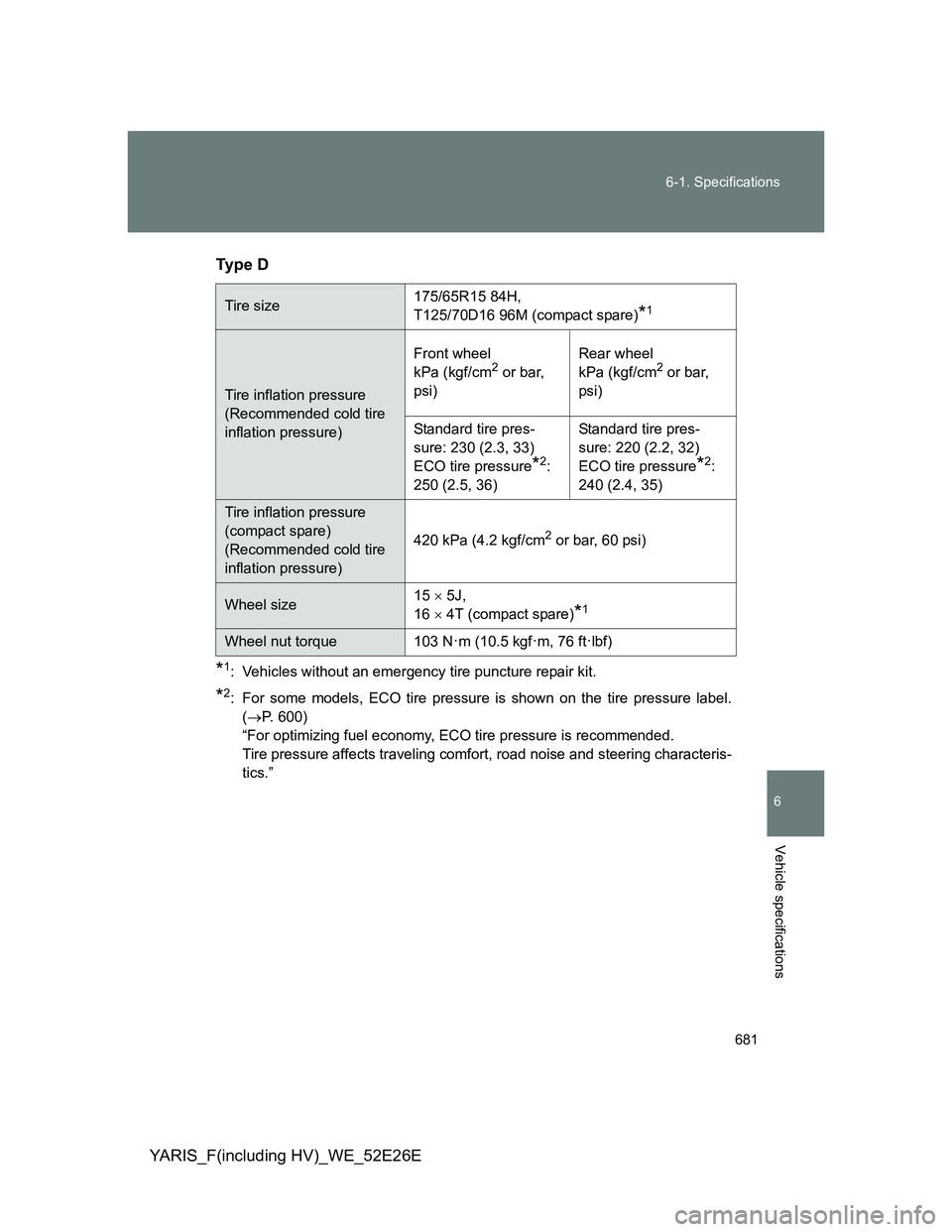

YARIS_F(including HV)_WE_52E26ETy p e D
*1: Vehicles without an emergency tire puncture repair kit.
*2: For some models, ECO tire pressure is shown on the tire pressure label.
(P. 600)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering characteris-
tics.”
Tire size175/65R15 84H,
T125/70D16 96M (compact spare)*1
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front wheel
kPa (kgf/cm
2 or bar,
psi)Rear wheel
kPa (kgf/cm2 or bar,
psi)
Standard tire pres-
sure: 230 (2.3, 33)
ECO tire pressure
*2:
250 (2.5, 36)Standard tire pres-
sure: 220 (2.2, 32)
ECO tire pressure*2:
240 (2.4, 35)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size15  5J,
16  4T (compact spare)*1
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

682 6-1. Specifications

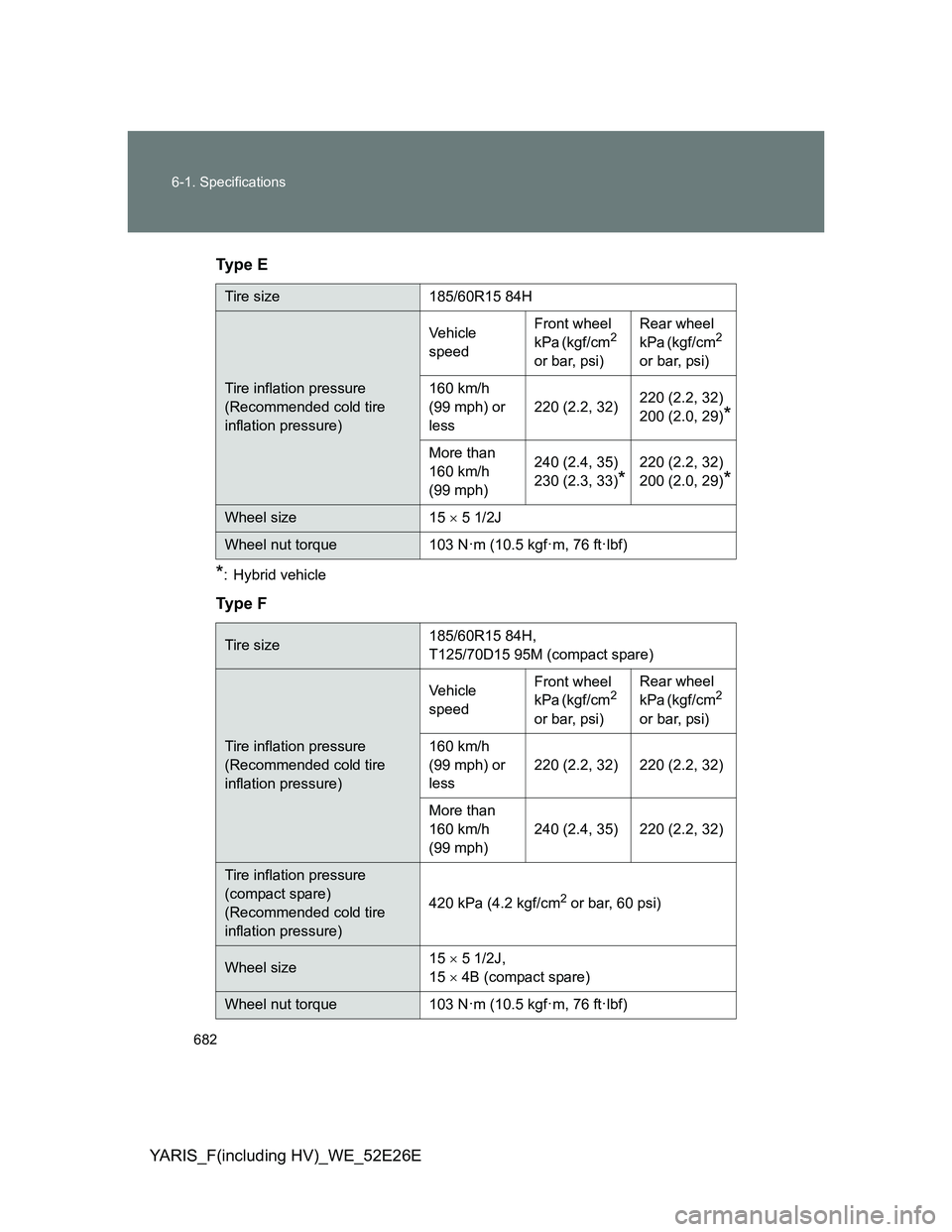

YARIS_F(including HV)_WE_52E26ETy p e E
*: Hybrid vehicle
Ty p e F
Tire size 185/60R15 84H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less220 (2.2, 32)220 (2.2, 32)
200 (2.0, 29)
*
More than
160 km/h
(99 mph)240 (2.4, 35)
230 (2.3, 33)
*
220 (2.2, 32)
200 (2.0, 29)
*
Wheel size 15  5 1/2J
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size185/60R15 84H,
T125/70D15 95M (compact spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less220 (2.2, 32) 220 (2.2, 32)
More than
160 km/h
(99 mph)240 (2.4, 35) 220 (2.2, 32)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size15  5 1/2J,
15  4B (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

683 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26ETy p e G
*: Vehicles without an emergency tire puncture repair kit.
Tire size195/50R16 84V,
T125/70D16 96M (compact spare)*
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less220 (2.2, 32) 200 (2.0, 29)
More than
160 km/h
(99 mph)240 (2.4, 35) 210 (2.1, 30)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size16  6J,
16  4T (compact spare)*
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

684 6-1. Specifications
YARIS_F(including HV)_WE_52E26E

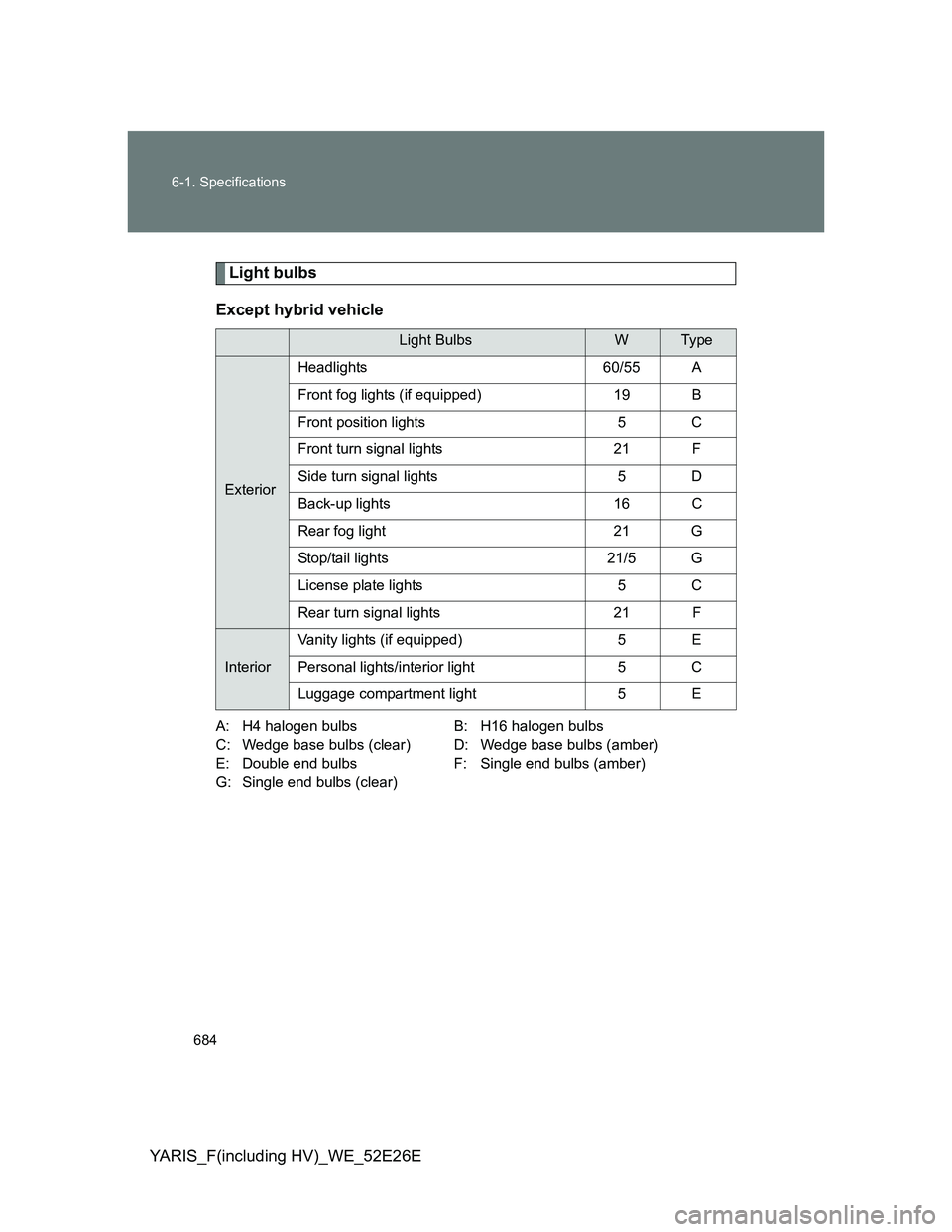

Light bulbs
Except hybrid vehicle
A: H4 halogen bulbs B: H16 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs F: Single end bulbs (amber)
G: Single end bulbs (clear)
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front fog lights (if equipped) 19 B
Front position lights 5 C
Front turn signal lights 21 F
Side turn signal lights 5 D
Back-up lights 16 C
Rear fog light 21 G
Stop/tail lights 21/5 G
License plate lights 5 C
Rear turn signal lights 21 F
InteriorVanity lights (if equipped) 5 E
Personal lights/interior light 5 C
Luggage compartment light 5 E

685 6-1. Specifications
6
Vehicle specifications

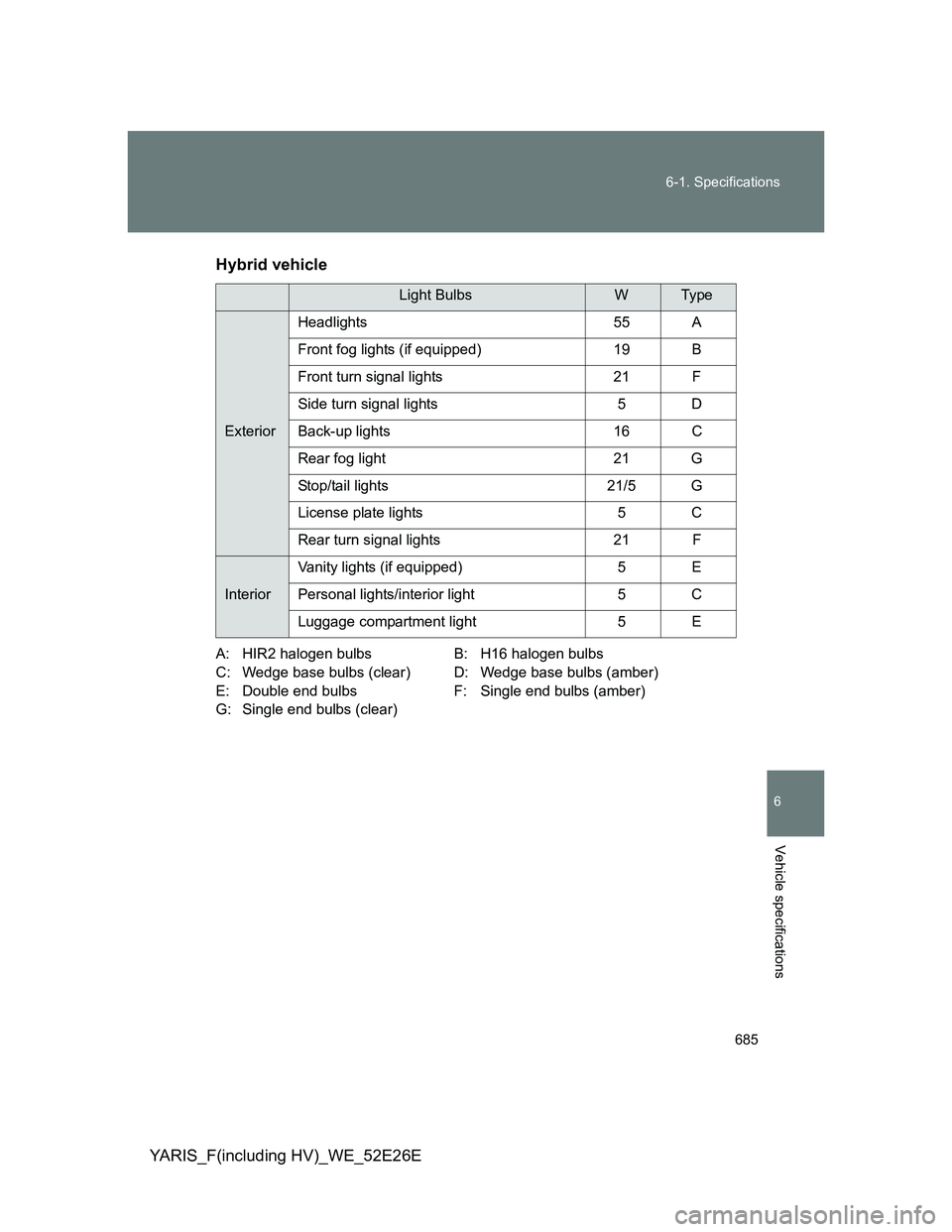

YARIS_F(including HV)_WE_52E26EHybrid vehicle
A: HIR2 halogen bulbs B: H16 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs F: Single end bulbs (amber)
G: Single end bulbs (clear)
Light BulbsWTy p e
ExteriorHeadlights 55 A
Front fog lights (if equipped) 19 B
Front turn signal lights 21 F
Side turn signal lights 5 D
Back-up lights 16 C
Rear fog light 21 G
Stop/tail lights 21/5 G
License plate lights 5 C
Rear turn signal lights 21 F
InteriorVanity lights (if equipped) 5 E
Personal lights/interior light 5 C
Luggage compartment light 5 E

686
6-1. Specifications
YARIS_F(including HV)_WE_52E26E

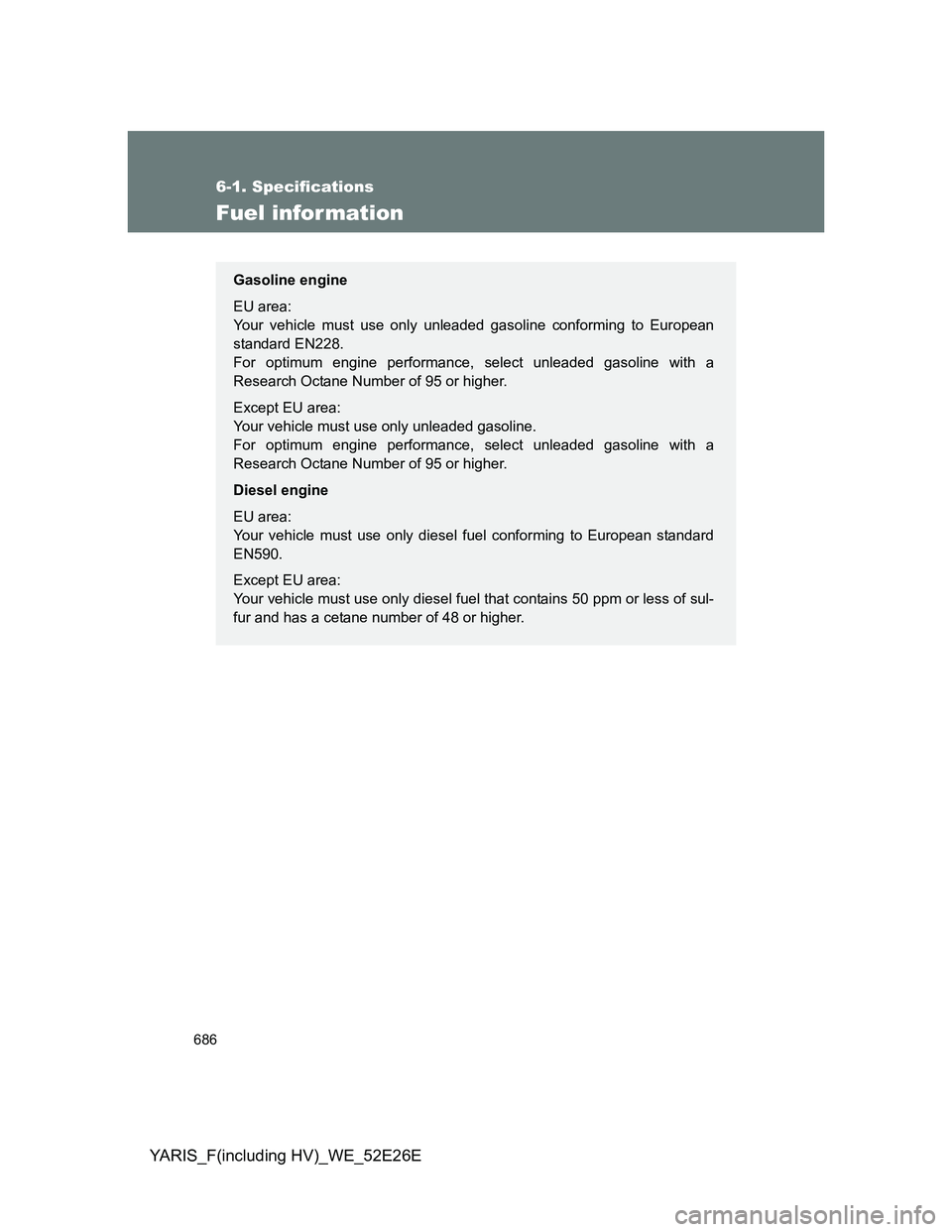

Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to European
standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European standard
EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or less of sul-
fur and has a cetane number of 48 or higher.

687 6-1. Specifications
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26E

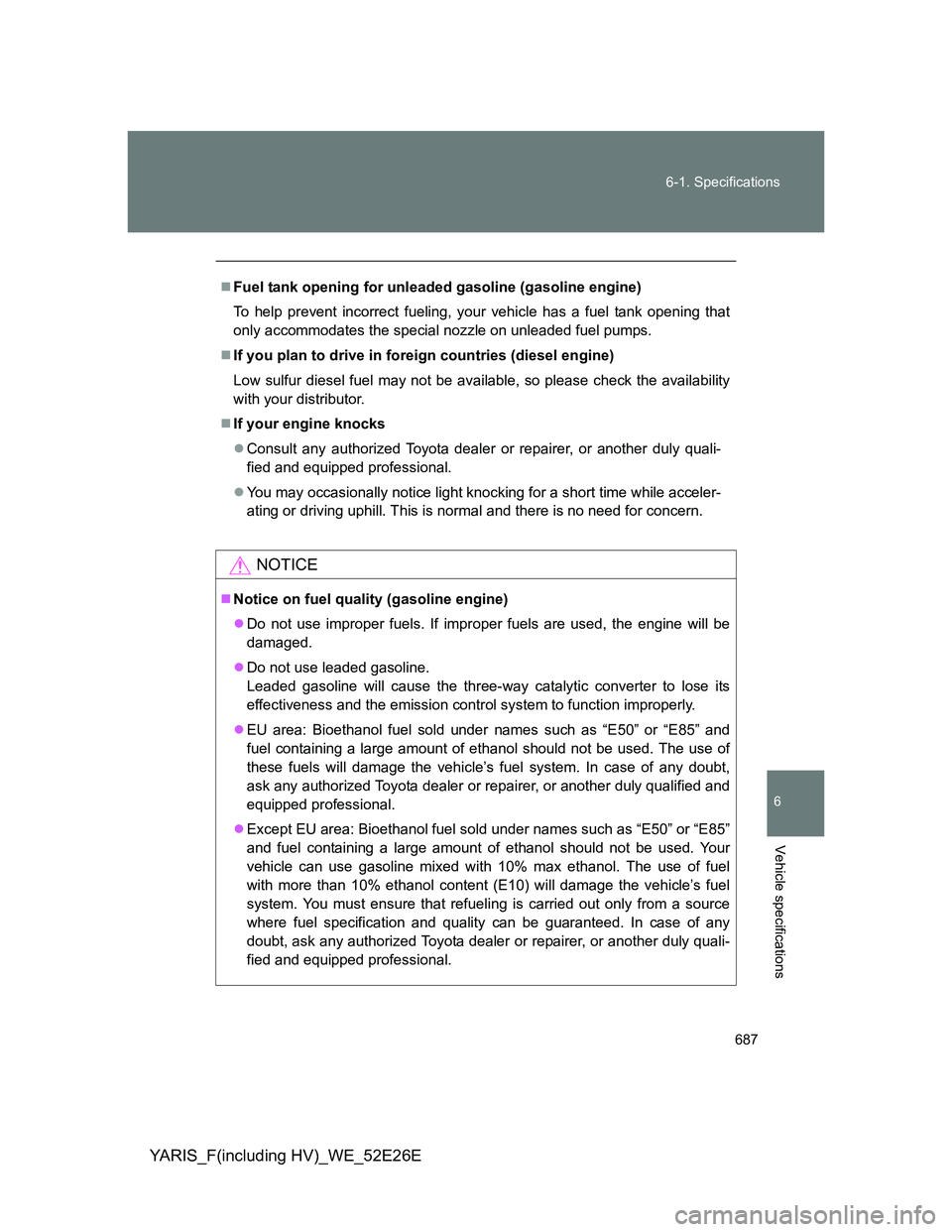

Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
Notice on fuel quality (gasoline engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.

688 6-1. Specifications
YARIS_F(including HV)_WE_52E26E

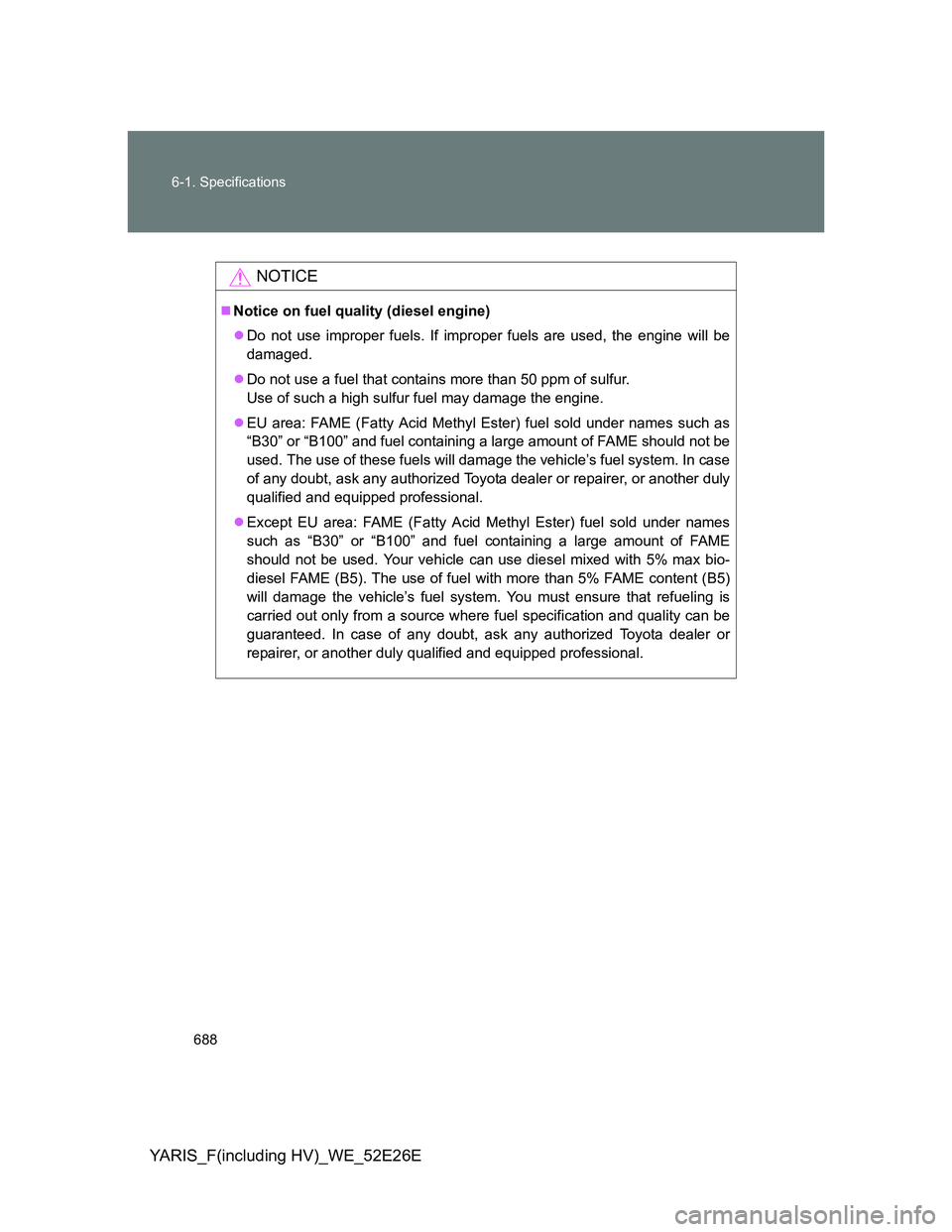

NOTICE
Notice on fuel quality (diesel engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Except EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names
such as “B30” or “B100” and fuel containing a large amount of FAME
should not be used. Your vehicle can use diesel mixed with 5% max bio-
diesel FAME (B5). The use of fuel with more than 5% FAME content (B5)
will damage the vehicle’s fuel system. You must ensure that refueling is
carried out only from a source where fuel specification and quality can be
guaranteed. In case of any doubt, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

689
6
Vehicle specifications
YARIS_F(including HV)_WE_52E26E

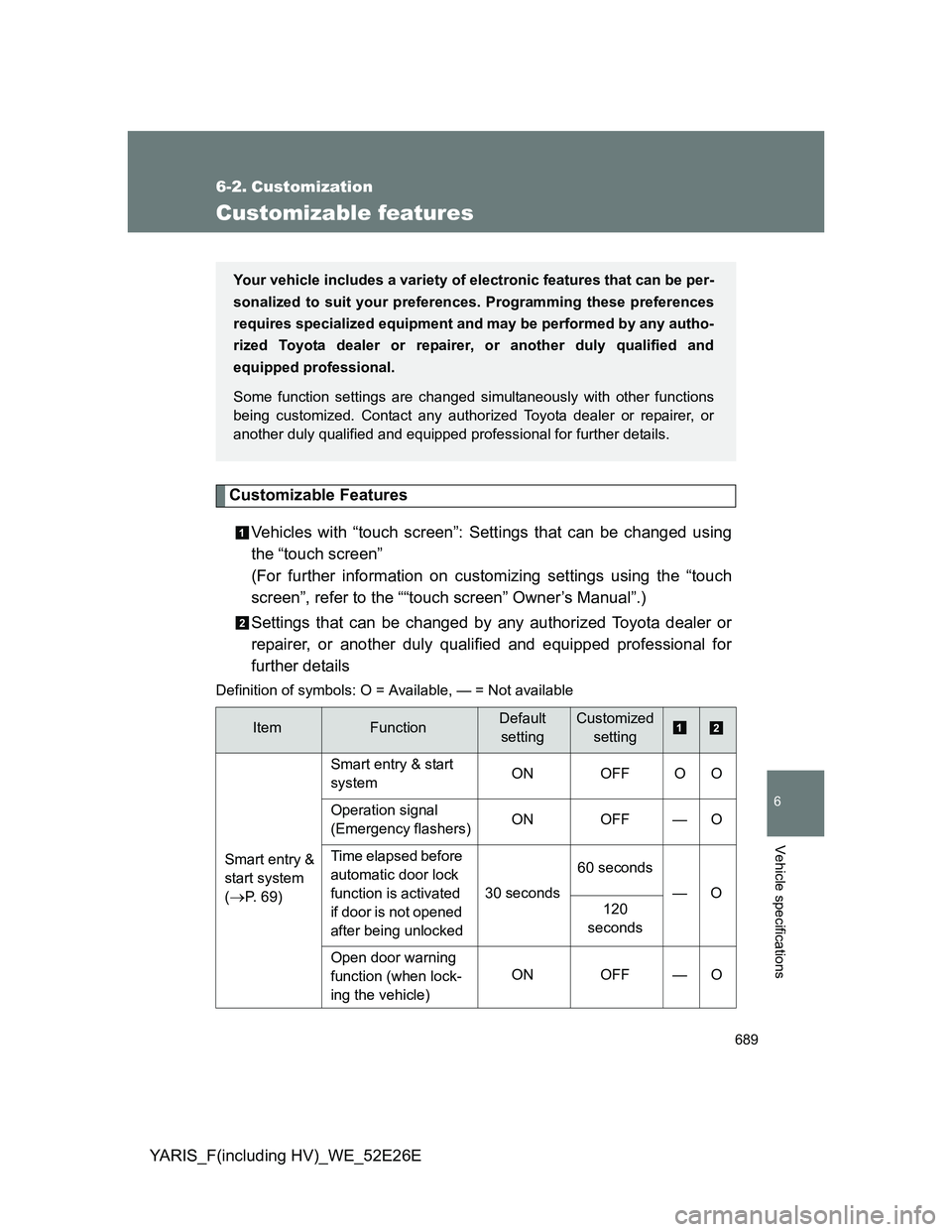

6-2. Customization
Customizable features
Customizable Features
Vehicles with “touch screen”: Settings that can be changed using
the “touch screen”
(For further information on customizing settings using the “touch
screen”, refer to the ““touch screen” Owner’s Manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
further details
Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustomized
setting
Smart entry &
start system
(
P. 69)Smart entry & start
systemON OFF O O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before
automatic door lock
function is activated
if door is not opened
after being unlocked30 seconds60 seconds
—O
120
seconds
Open door warning
function (when lock-
ing the vehicle)ON OFF — O
Your vehicle includes a variety of electronic features that can be per-
sonalized to suit your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for further details.

690 6-2. Customization
YARIS_F(including HV)_WE_52E26E

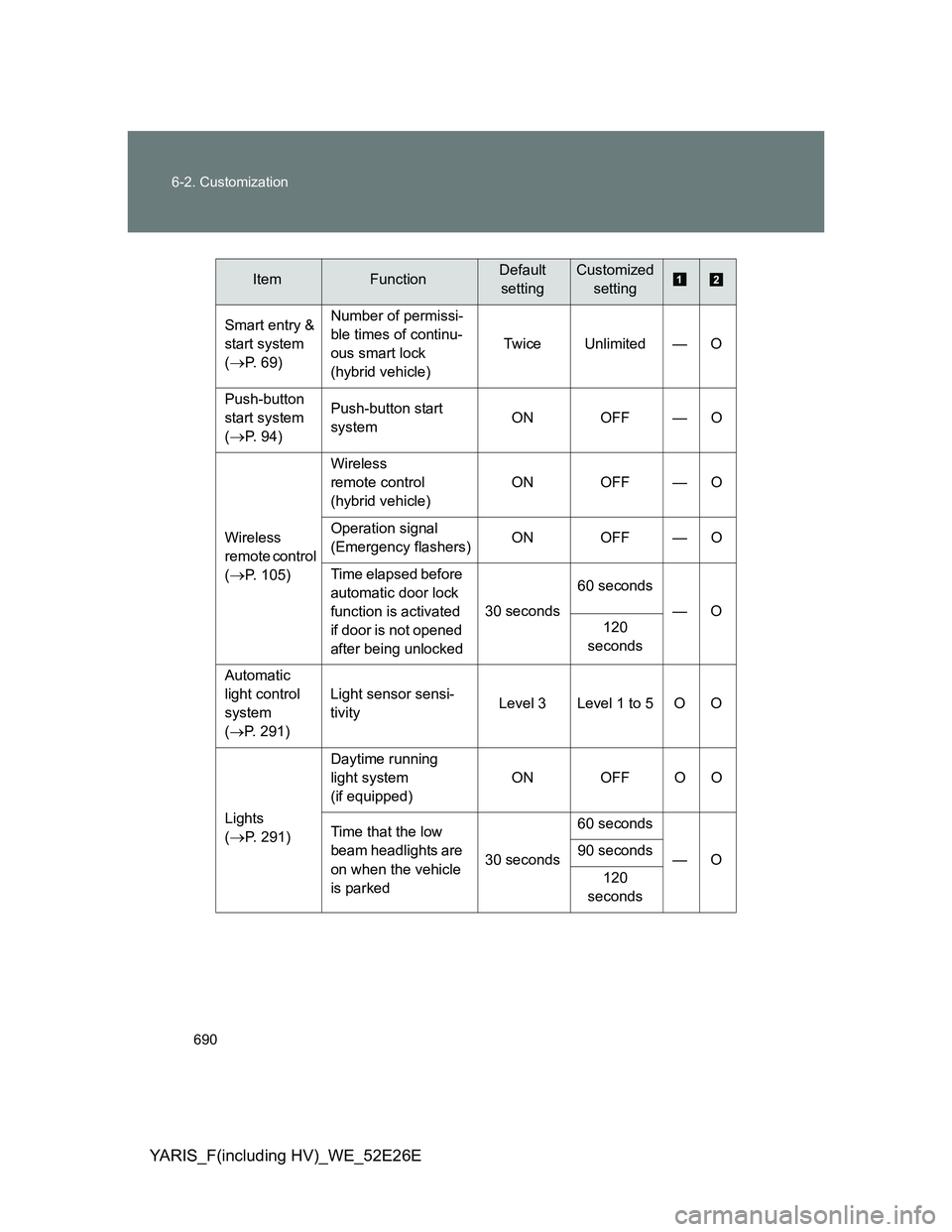

Smart entry &
start system
(
P. 69)Number of permissi-
ble times of continu-
ous smart lock
(hybrid vehicle)Twice Unlimited — O
Push-button
start system
(
P. 94)Push-button start
systemON OFF — O
Wireless
remote control
(
P. 105)Wireless
remote control
(hybrid vehicle)ON OFF — O
Operation signal
(Emergency flashers)ON OFF — O
Time elapsed before
automatic door lock
function is activated
if door is not opened
after being unlocked30 seconds60 seconds
—O
120
seconds
Automatic
light control
system
(P. 291)Light sensor sensi-
tivityLevel 3 Level 1 to 5 O O
Lights
(
P. 291)Daytime running
light system
(if equipped)ON OFF O O
Time that the low
beam headlights are
on when the vehicle
is parked30 seconds60 seconds
—O 90 seconds
120
seconds
ItemFunctionDefault
settingCustomized
setting
