5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E
If you run out of fuel and the engine stalls (diesel engine only)

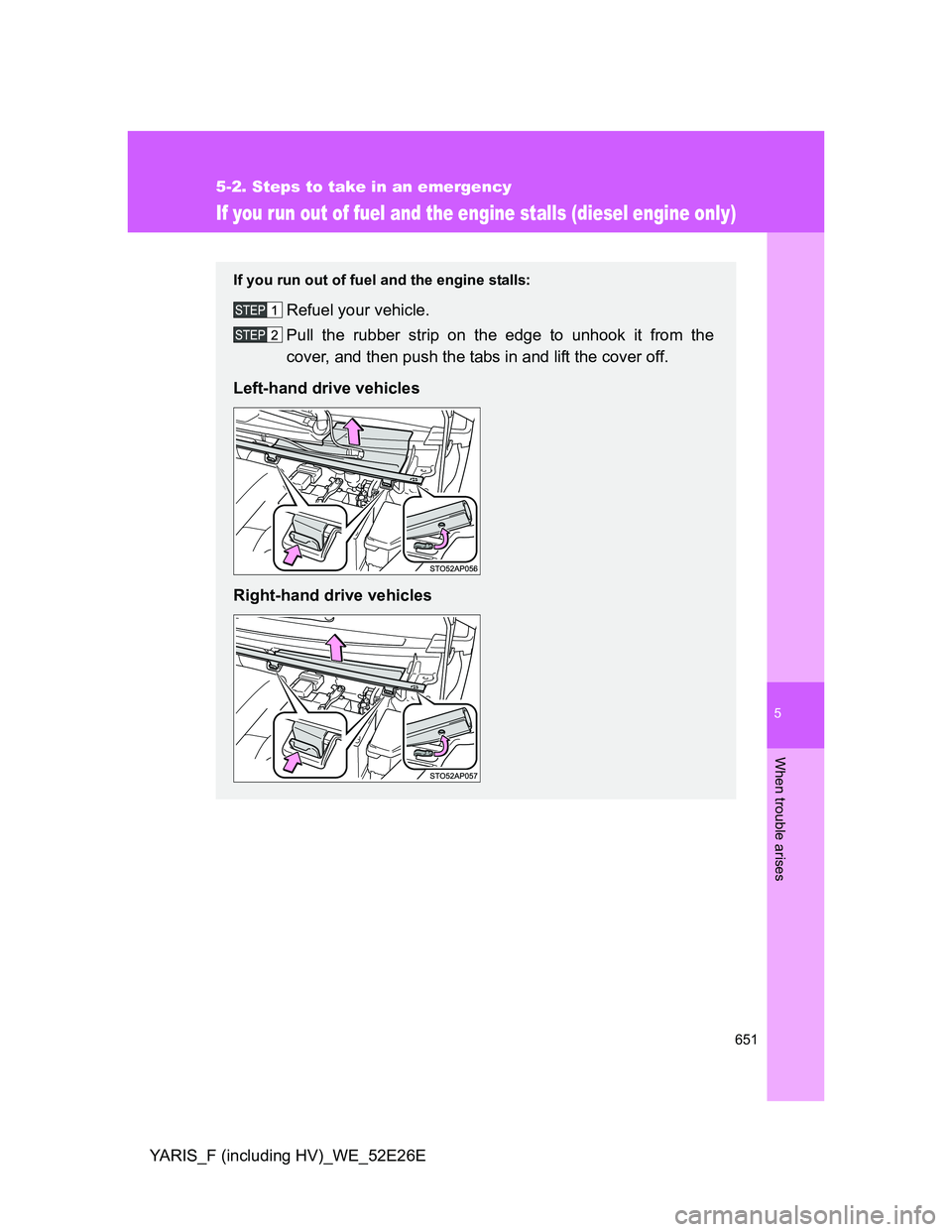

If you run out of fuel and the engine stalls:
Refuel your vehicle.
Pull the rubber strip on the edge to unhook it from the
cover, and then push the tabs in and lift the cover off.
Left-hand drive vehicles
Right-hand drive vehicles

652 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E

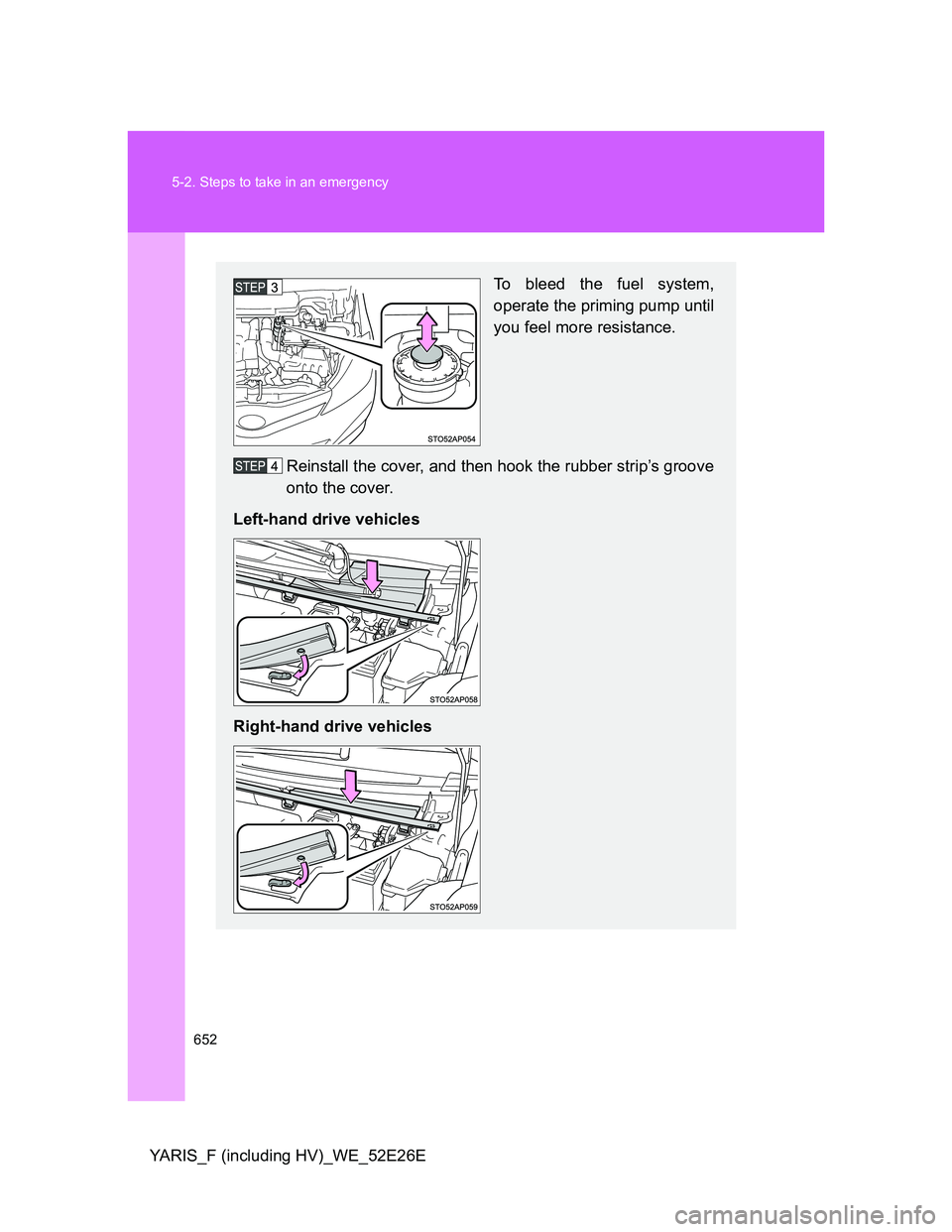

To bleed the fuel system,
operate the priming pump until
you feel more resistance.
Reinstall the cover, and then hook the rubber strip’s groove
onto the cover.
Left-hand drive vehicles
Right-hand drive vehicles

5
653 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E
NOTICE
When restarting the engine
Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
Vehicles without a smart entry & start system: Do not crank the engine for
more than 30 seconds at a time. This may overheat the starter and wiring
system.

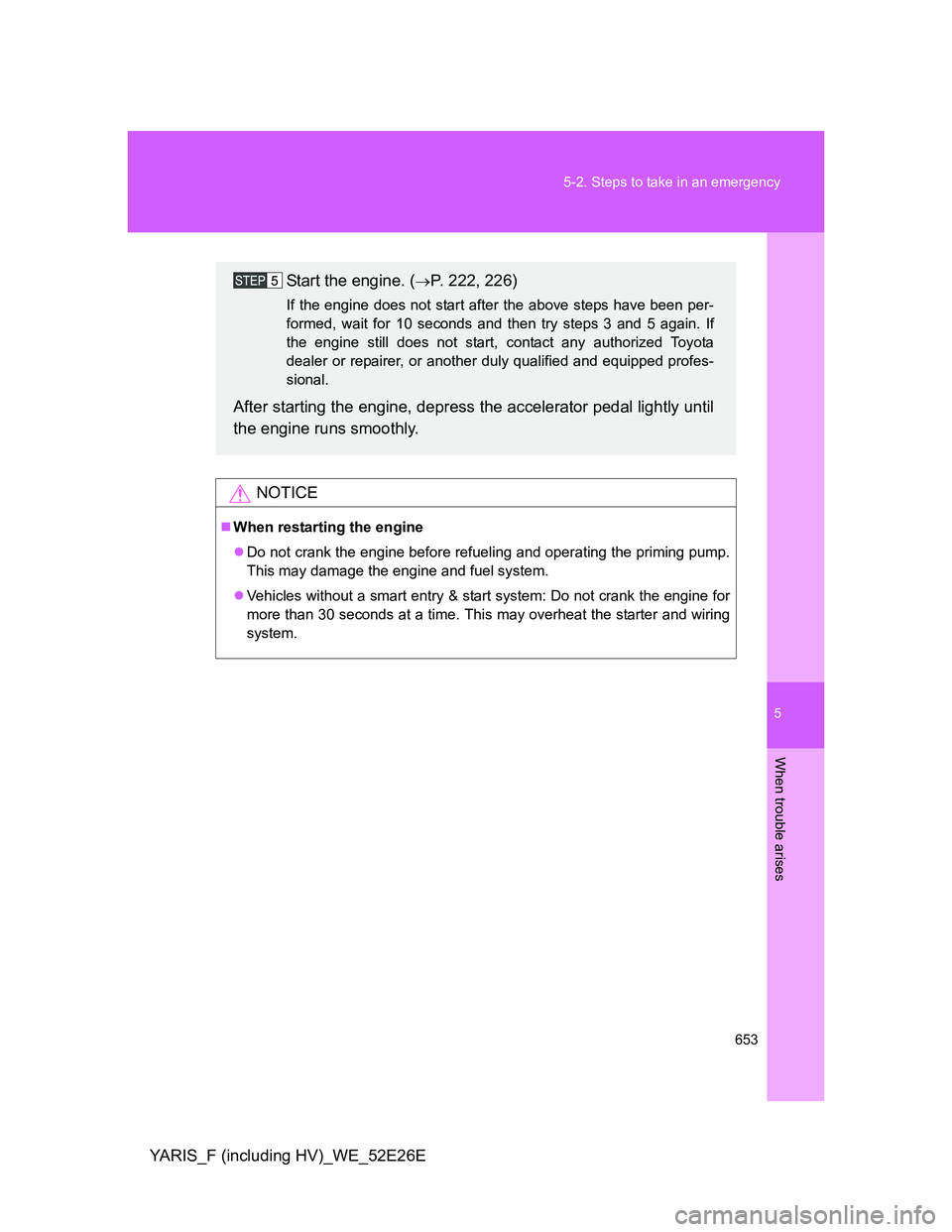

Start the engine. (P. 222, 226)
If the engine does not start after the above steps have been per-
formed, wait for 10 seconds and then try steps 3 and 5 again. If
the engine still does not start, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
After starting the engine, depress the accelerator pedal lightly until
the engine runs smoothly.

654
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E

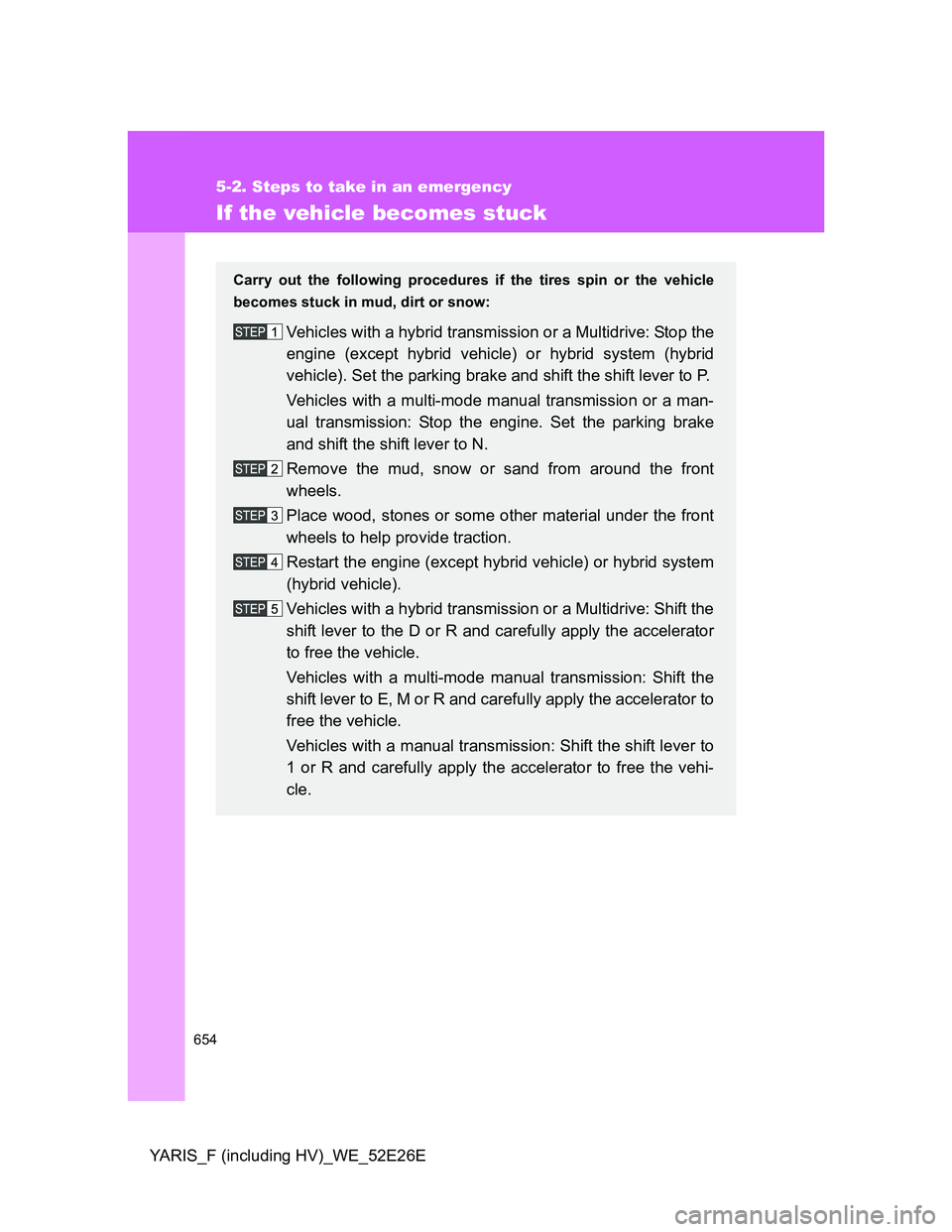

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Vehicles with a hybrid transmission or a Multidrive: Stop the
engine (except hybrid vehicle) or hybrid system (hybrid
vehicle). Set the parking brake and shift the shift lever to P.
Vehicles with a multi-mode manual transmission or a man-
ual transmission: Stop the engine. Set the parking brake
and shift the shift lever to N.
Remove the mud, snow or sand from around the front
wheels.
Place wood, stones or some other material under the front
wheels to help provide traction.
Restart the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle).
Vehicles with a hybrid transmission or a Multidrive: Shift the
shift lever to the D or R and carefully apply the accelerator
to free the vehicle.
Vehicles with a multi-mode manual transmission: Shift the
shift lever to E, M or R and carefully apply the accelerator to
free the vehicle.
Vehicles with a manual transmission: Shift the shift lever to
1 or R and carefully apply the accelerator to free the vehi-
cle.

5
655 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E

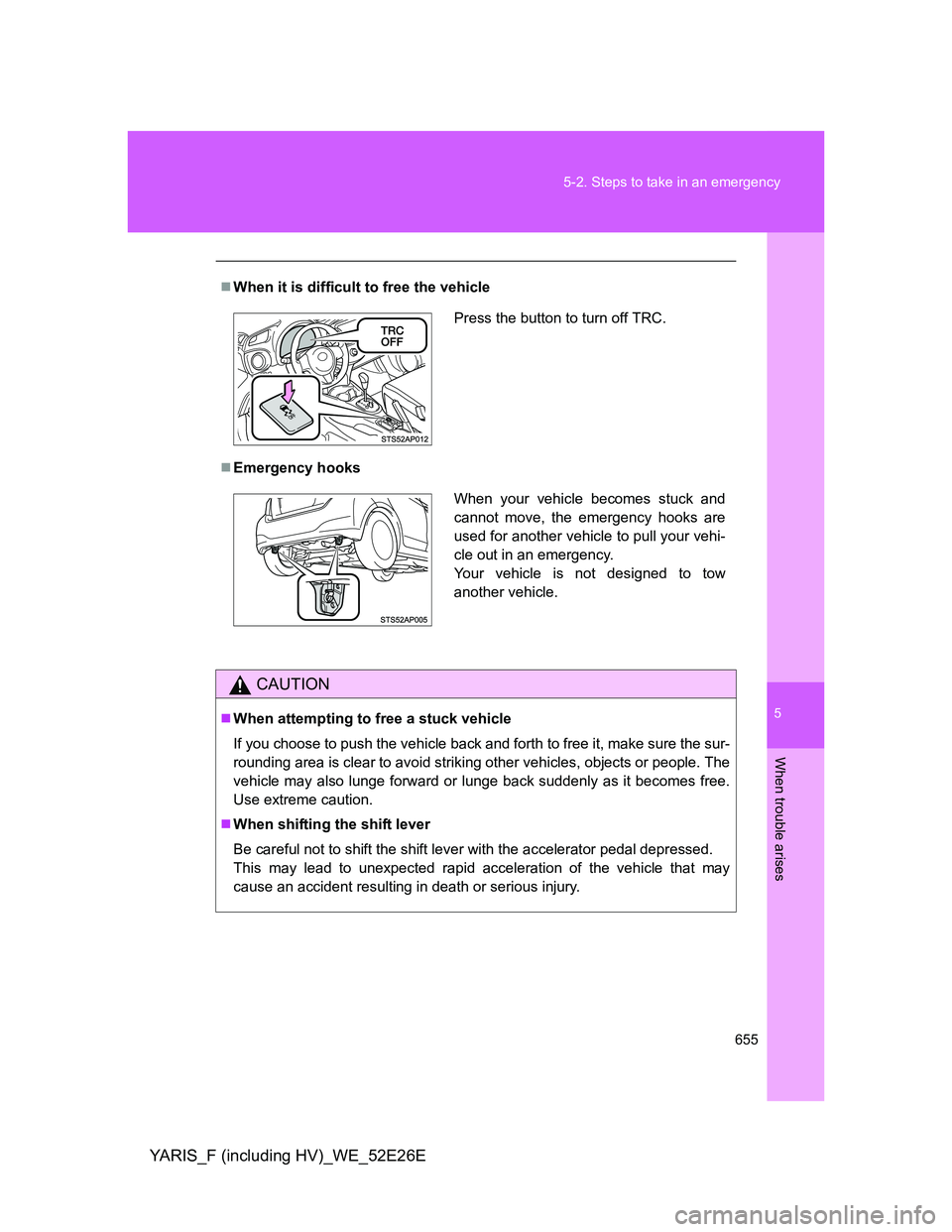

When it is difficult to free the vehicle
Emergency hooks
CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
Press the button to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.

656 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E

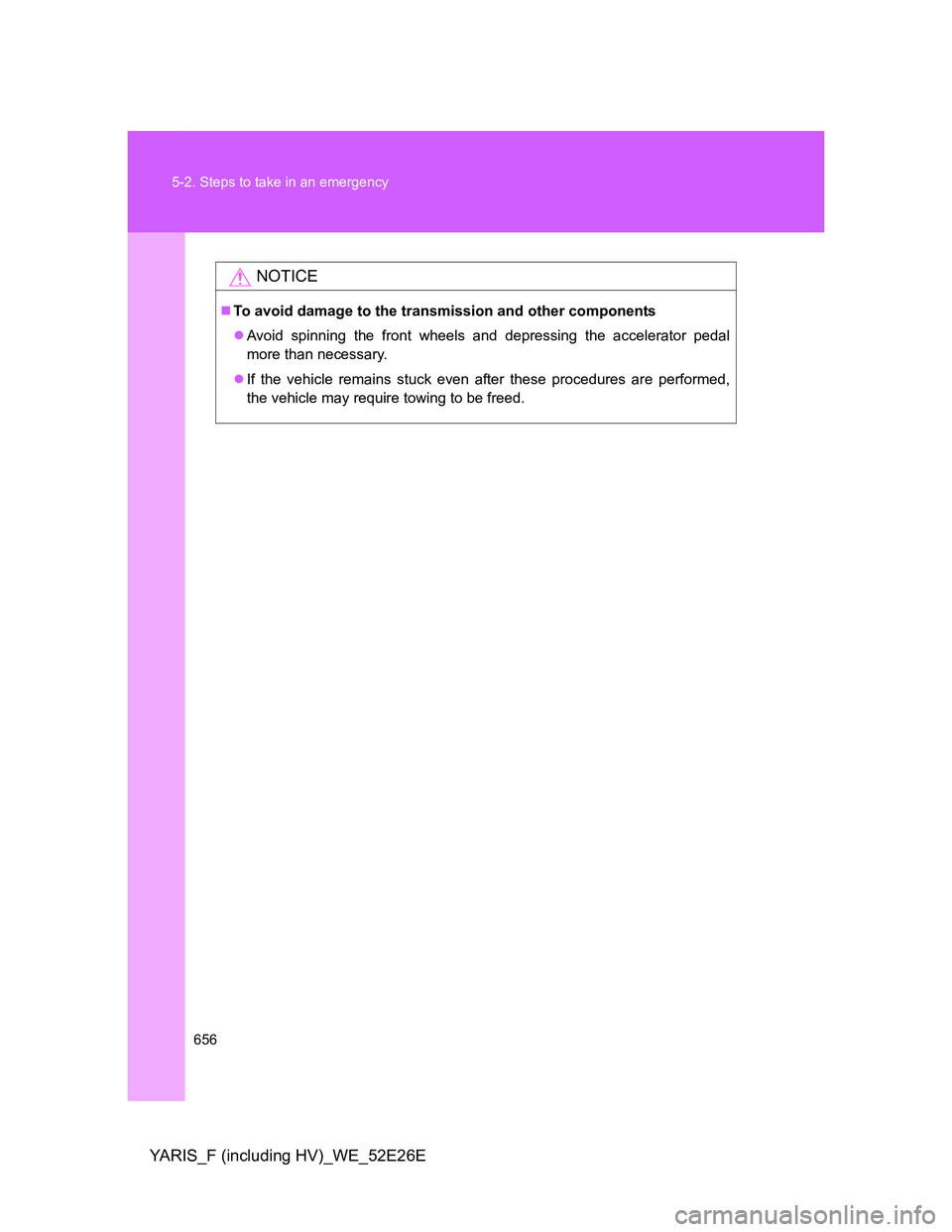

NOTICE
To avoid damage to the transmission and other components
Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5
657
5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle).
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Except hybrid vehicle (vehi-
cles without a smart entry &
start system): Stop the engine
by turning the engine switch to
the “ACC” position.
Hybrid vehicle (vehicles with-
out an electronic key): Stop
the hybrid system by turning
the engine switch to the “ACC”
position.

658 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E
CAUTION
If the engine has to be turned off while driving (except hybrid vehicle)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
If the hybrid system has to be turned off while driving (hybrid vehicle)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the hybrid system.
Vehicles without an electronic key: Never attempt to remove the key, as
doing so will lock the steering wheel.

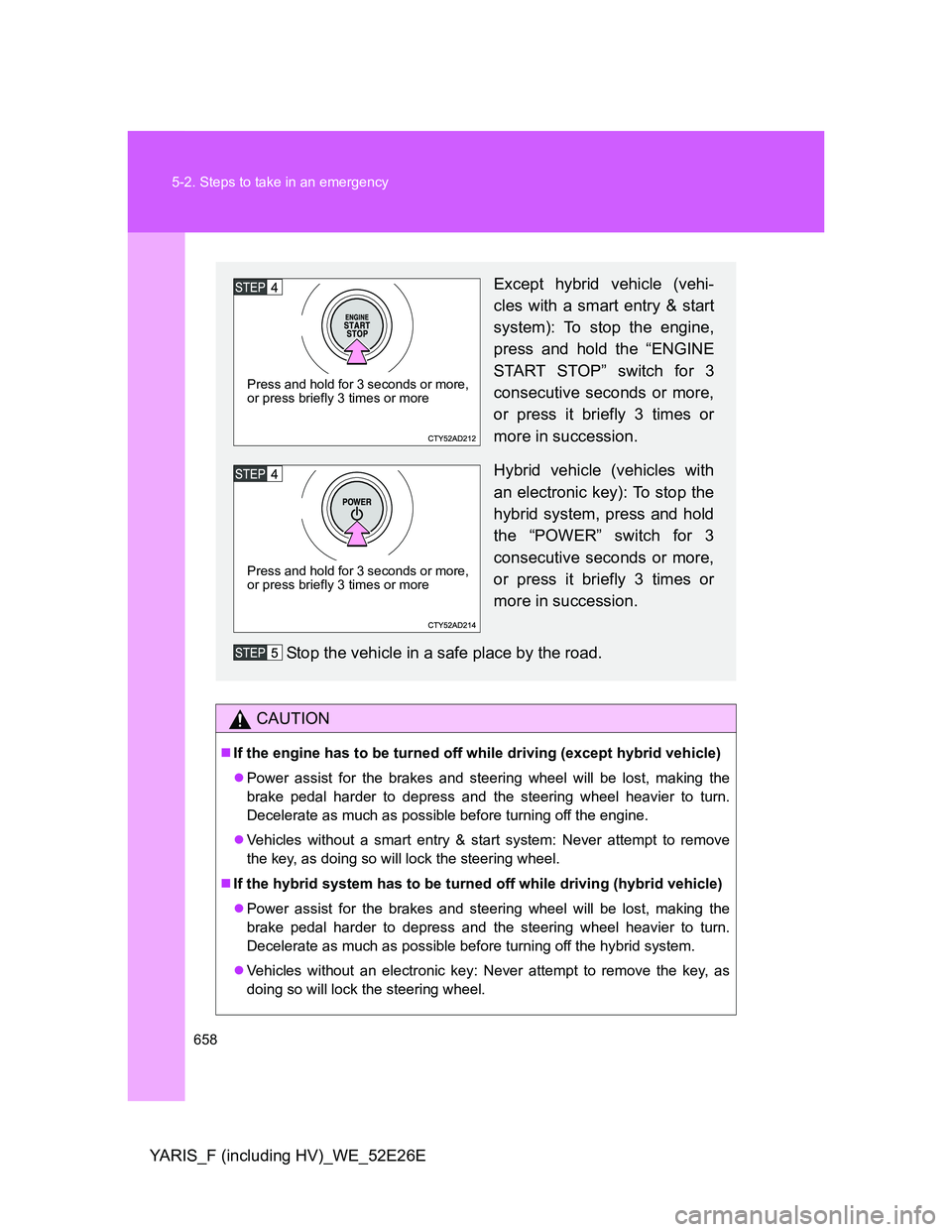

Except hybrid vehicle (vehi-
cles with a smart entry & start
system): To stop the engine,
press and hold the “ENGINE
START STOP” switch for 3
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Hybrid vehicle (vehicles with
an electronic key): To stop the
hybrid system, press and hold
the “POWER” switch for 3
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more,
or press briefly 3 times or more
Press and hold for 3 seconds or more,
or press briefly 3 times or more

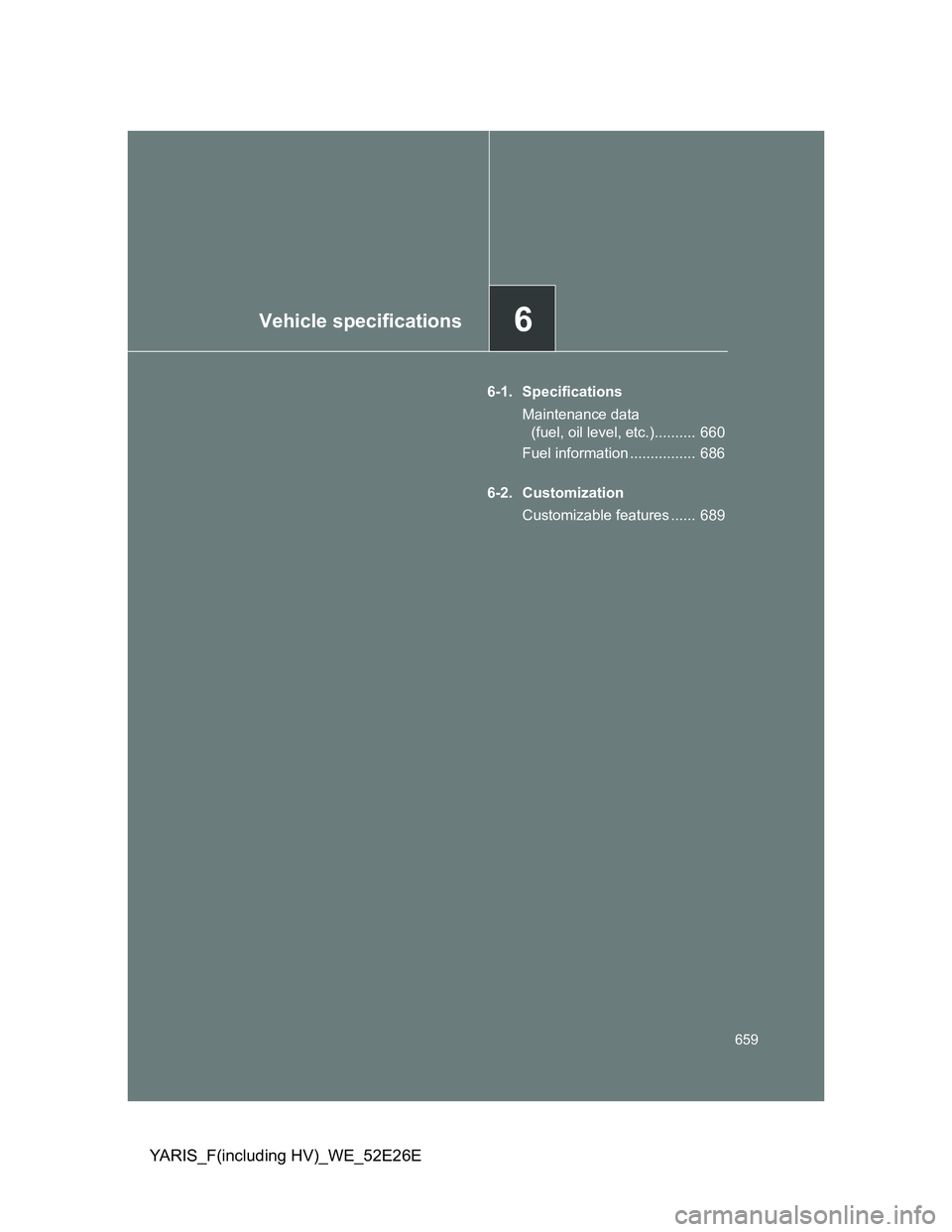

6Vehicle specifications
659
YARIS_F(including HV)_WE_52E26E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 660
Fuel information ................ 686
6-2. Customization
Customizable features ...... 689

660
YARIS_F(including HV)_WE_52E26E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)

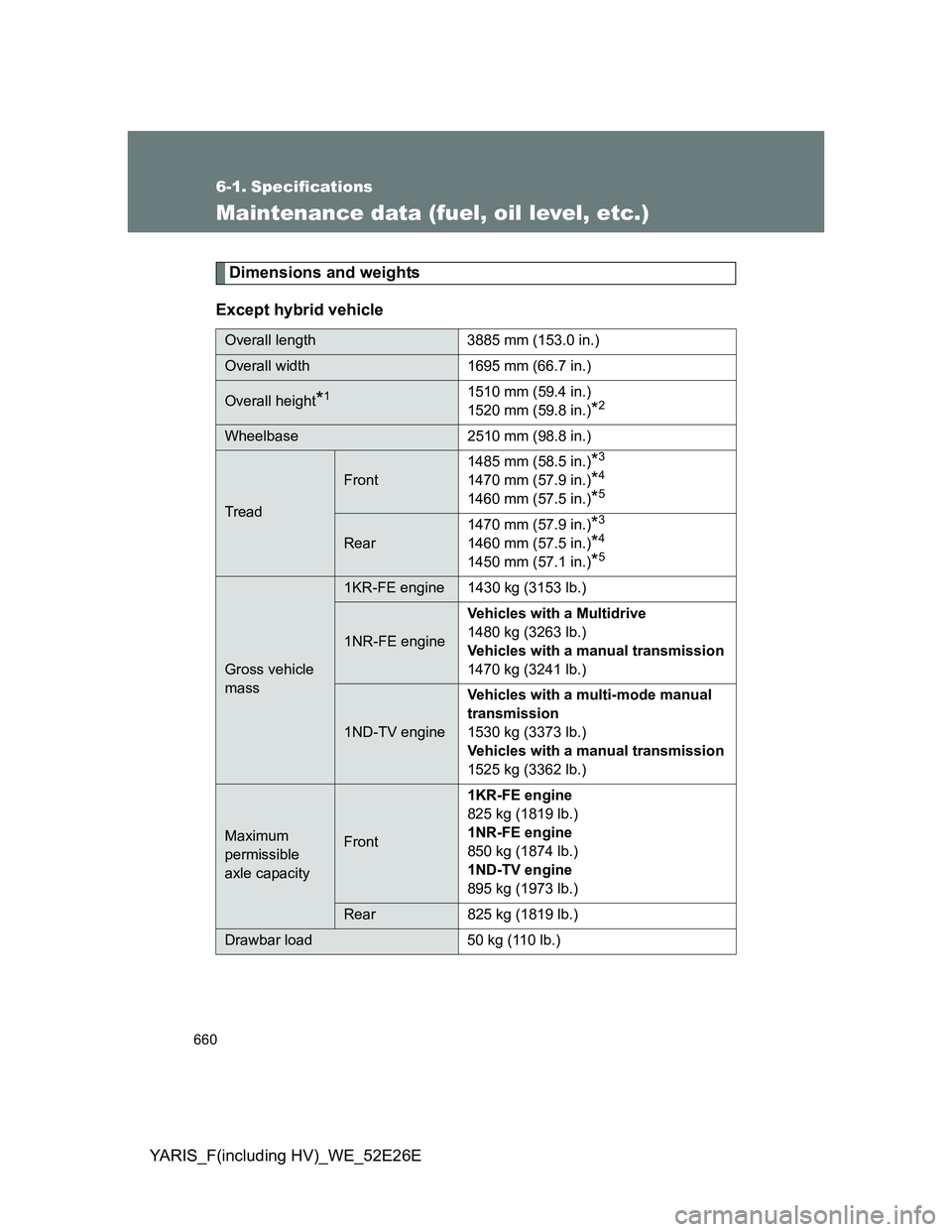

Dimensions and weights
Except hybrid vehicle
Overall length 3885 mm (153.0 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)
*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front1485 mm (58.5 in.)
*3
1470 mm (57.9 in.)*4
1460 mm (57.5 in.)*5
Rear1470 mm (57.9 in.)
*3
1460 mm (57.5 in.)*4
1450 mm (57.1 in.)*5
Gross vehicle
mass
1KR-FE engine 1430 kg (3153 lb.)
1NR-FE engineVehicles with a Multidrive
1480 kg (3263 lb.)
Vehicles with a manual transmission
1470 kg (3241 lb.)
1ND-TV engineVehicles with a multi-mode manual
transmission
1530 kg (3373 lb.)
Vehicles with a manual transmission
1525 kg (3362 lb.)
Maximum
permissible
axle capacityFront1KR-FE engine
825 kg (1819 lb.)
1NR-FE engine
850 kg (1874 lb.)
1ND-TV engine
895 kg (1973 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)
