TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
1092-3. Fuel and Emission
2
Before Driving
Engine Exhaust (Carbon monoxide)
WARNING
■Do not drive your vehicle if you smell exhaust gas inside the vehicle
Engine exhaust gas is dangerous. This gas contains carbon monoxide
(CO), which is colorless, odorless, and poisonous. When inhaled, it can
cause loss of consciousness and death. If you smell exhaust gas inside the
vehicle, keep all windows fully open and contact your Toyota dealer immedi-
ately.
■ Do not run the engine when inside an enclosed area
Running the engine inside an enclosed area, such as a garage, is danger-
ous. Exhaust gas, which contains poisonous carbon monoxide, could easily
enter the cabin. Loss of consciousness or even death could occur.
■ Open the windows or adjust the heating or cooling system to draw
fresh air when idling the engine:
Exhaust gas is dangerous. When the vehicle is stopped with the windows
closed and the engine running for a long time even in an open area,
exhaust gas, which contains poisonous carbon monoxide, could enter the
cabin. Loss of consciousness or even death could occur.
■ Clear snow from underneath and around your vehicle, particularly the
tail pipe, before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous.
The exhaust pipe could be blocked by the snow, allowing exhaust gas to
enter the cabin. Because exhaust gas contains poisonous carbon monox-
ide, it could cause loss of consciousness or even death to occupants in the
cabin.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 109 Monday, June 1, 2015 9:22 PM

110
YARIS_SEDAN_OM_OM99M18z_(U)
2-3. Fuel and Emission
Fuel-Filler Lid and Cap
WARNING
■When removing the fuel-filler cap, lo osen the cap slightly and wait for
any hissing to stop, then remove it
Fuel spray is dangerous. Fuel can burn skin and eyes and cause illness if
ingested. Fuel spray is released when there is pressure in the fuel tank and
the fuel-filler cap is removed too quickly.
■ Before refueling, stop the engine, and always keep sparks and flames
away from the filler neck
Fuel vapor is dangerous. It could be ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-filler cap or not using a fuel-filler cap
may result in a fuel leak, which could result in serious burns or death in an
accident.
■ Do not continue refueling after the fuel pump nozzle shuts off automat-
ically
Continuing to add fuel after the fuel pump nozzle has shut off automatically
is dangerous because overfilling the fuel tank may cause fuel overflow or
leakage. Fuel overflow and leakage could damage the vehicle and if the fuel
ignites it could cause a fire and explosion resulting in serious injury or
death.
NOTICE
Always use only a genuine Toyota fuel-filler cap or an approved equivalent,
available at your Toyota dealer. The wrong cap can result in a serious mal-
function of the fuel and emission control systems. It may also cause the
check engine light in the combination meter to illuminate.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 110 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
1112-3. Fuel and Emission
2
Before Driving
To open, pull the remote fuel-filler
lid release.
To close, press the fuel-filler lid
until it locks securely.Open
To remove the fuel-filler cap, turn it
counterclockwise. Attach the
removed cap to the inner side of
the fuel lid.
Close
To close the fuel-filler cap, turn it
clockwise until a click is heard.
Fuel-Filler Lid
Remote fuel-filler lid release
Fuel-Filler Cap
1
2
NOTICE
If the check fuel cap warning light illuminates, the fuel-filler cap may not be
properly installed. If the warning light illuminates, park your vehicle safely off
the right-of-way, remove the fuel-filler cap and reinstall it correctly. After the
cap has been correctly installed, the fuel cap warning light may continue to
illuminate until a number of driving cycles have been completed. A drive
cycle consists of starting the engine (after four or more hours with the
engine off) and driving the vehicle on city and highway roads.
Continuing to drive with the check fuel cap warning light illuminated could
cause the check engine light to illuminate as well.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 111 Monday, June 1, 2015 9:22 PM

112
YARIS_SEDAN_OM_OM99M18z_(U)
2-4. Steering Wheel
Steering Wheel
To change the angle or length of the steering wheel:Stop the vehicle, and then pull
down the lock release lever
under the steering column.
Tilt the steering wheel and/or
adjust the steering column
length to the desired positions,
then push the lever up to lock
the column.
Attempt to push the steering wheel up and down to make sure it’s
locked before driving.
To sound the horn, press the mark on the steering wheel.
Steering Wheel Adjustment
Lock release
lever
1
2
WARNING
■ Make sure that the steering wheel is locked firmly in place
If it is difficult to raise the lever, lightly move the steering wheel forward and
back to pull up the lever.
■ Never adjust the steering wheel while the vehicle is moving
Adjusting the steering wheel while the vehicle is moving is dangerous. Mov-
ing it can very easily cause the driver to abruptly turn to the left or right. This
can lead to loss of control or an accident.
Horn
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 112 Monday, June 1, 2015 9:22 PM

113
YARIS_SEDAN_OM_OM99M18z_(U)
2-5. Mirrors
2
Before Driving
Mirrors
■Mirror type
XFlat type (driver’s side)
Flat surface mirror.
XConvex type (front passenger side)
The mirror has single curvature on its surface.
■Power mirror adjustment
The ignition must be switched to ACC or ON position.
To a d j u s t :
Rotate the mirror switch to
the left or right to choose
the left or right side mirror.
Press the mirror switch in the
appropriate direction.
After adjusting the mirror,
lock the control by rotating
the switch in the center posi-
tion.
Before driving, adjust the inside and outside mirrors.
Outside Mirrors
Center position
Mirror switch1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 113 Monday, June 1, 2015 9:22 PM

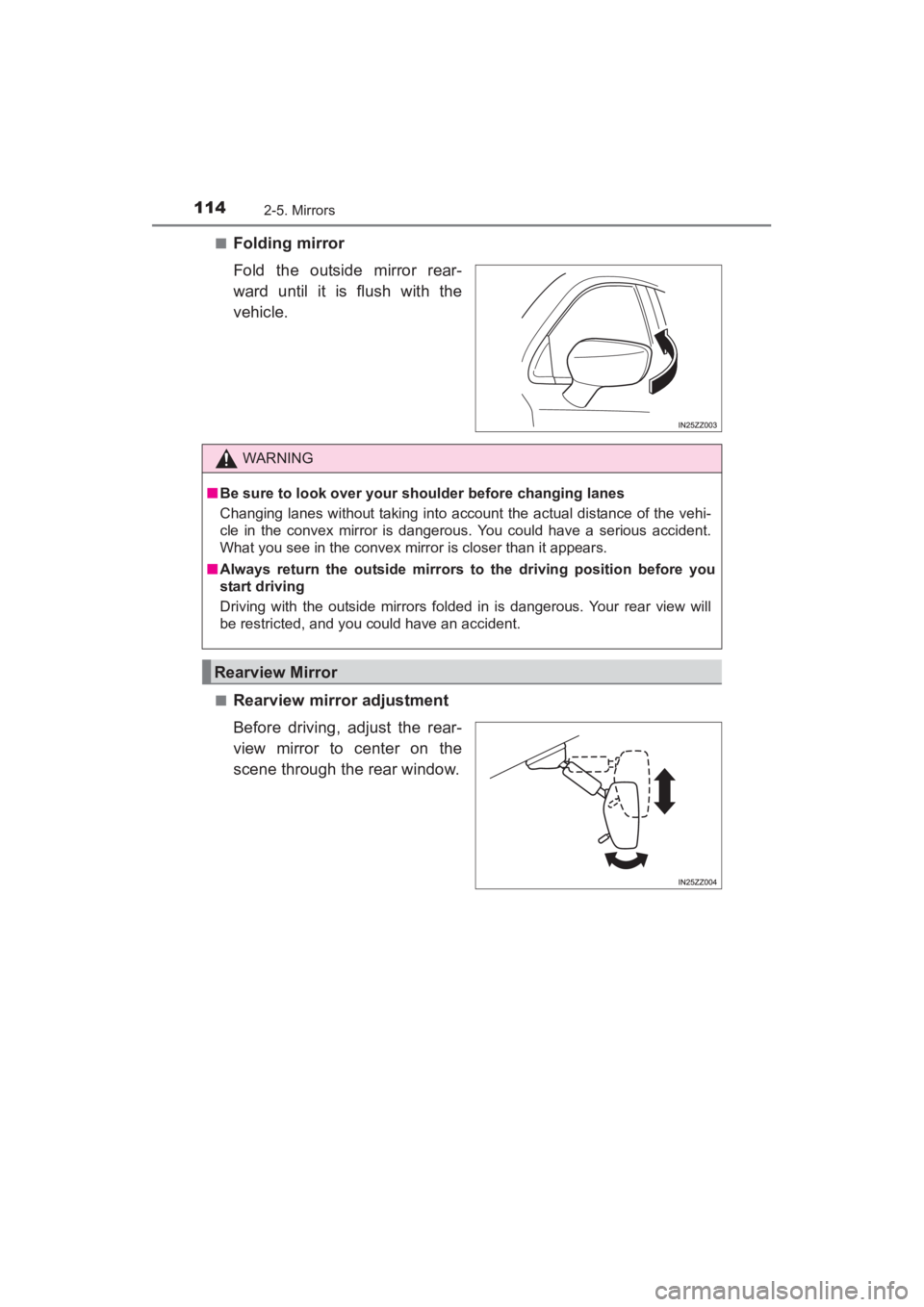

114
YARIS_SEDAN_OM_OM99M18z_(U)
2-5. Mirrors
■Folding mirror
Fold the outside mirror rear-
ward until it is flush with the
vehicle.
■Rearview mirror adjustment
Before driving, adjust the rear-
view mirror to center on the
scene through the rear window.
WARNING
■Be sure to look over your shoulder before changing lanes
Changing lanes without taking into account the actual distance of the vehi-
cle in the convex mirror is dangerous. You could have a serious accident.
What you see in the convex mirror is closer than it appears.
■ Always return the outside mirrors to the driving position before you
start driving
Driving with the outside mirrors folded in is dangerous. Your rear view will
be restricted, and you could have an accident.
Rearview Mirror
YARIS_SEDAN_OM_OM99M18z_(U).book Page 114 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
1152-5. Mirrors
2
Before Driving

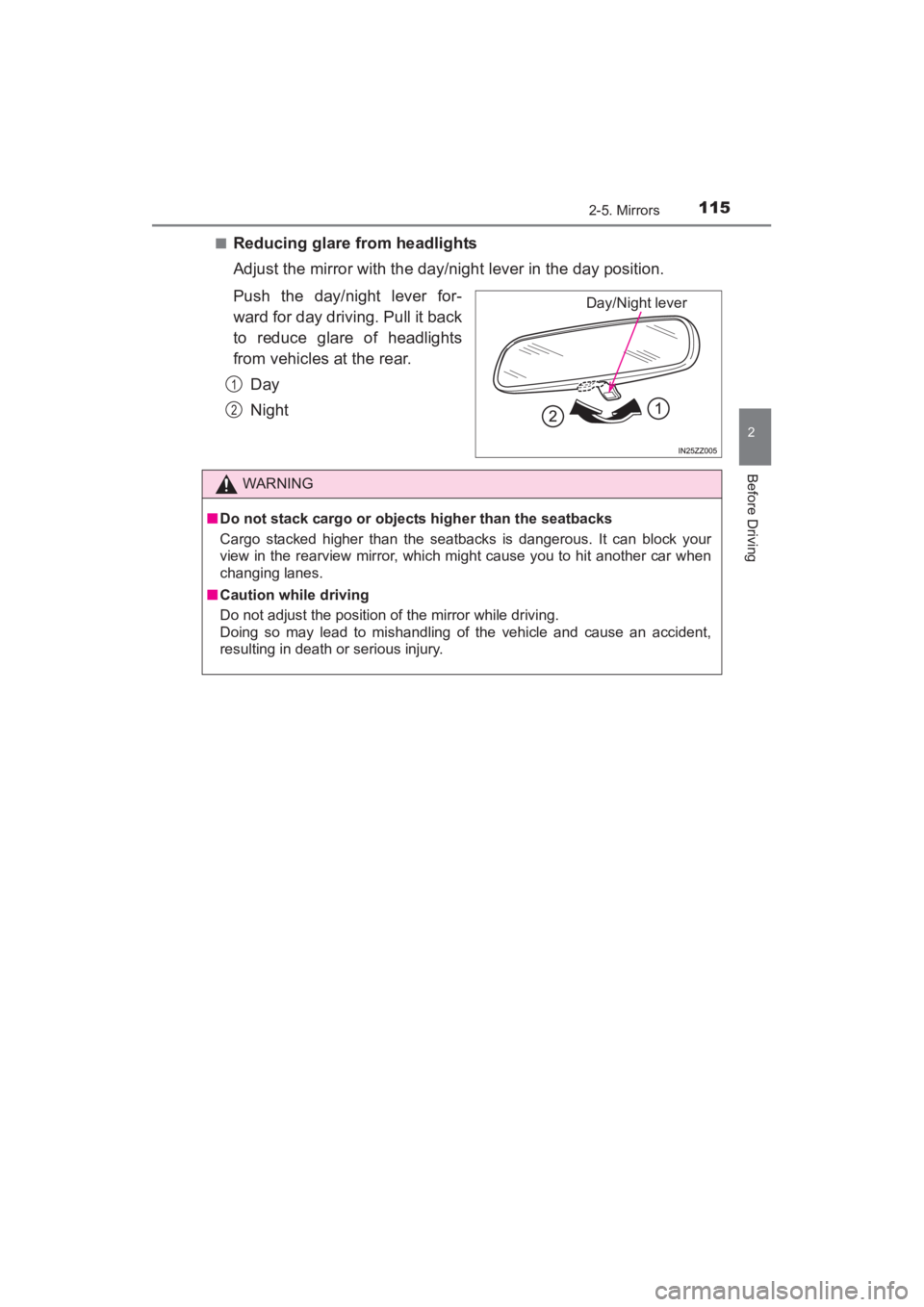

■Reducing glare from headlights
Adjust the mirror with the day/night lever in the day position.
Push the day/night lever for-
ward for day driving. Pull it back
to reduce glare of headlights
from vehicles at the rear.Day
Night
Day/Night lever
1
2
WARNING
■Do not stack cargo or objects higher than the seatbacks
Cargo stacked higher than the seatbacks is dangerous. It can block your
view in the rearview mirror, which might cause you to hit another car when
changing lanes.
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 115 Monday, June 1, 2015 9:22 PM

116
YARIS_SEDAN_OM_OM99M18z_(U)
2-6. Windows

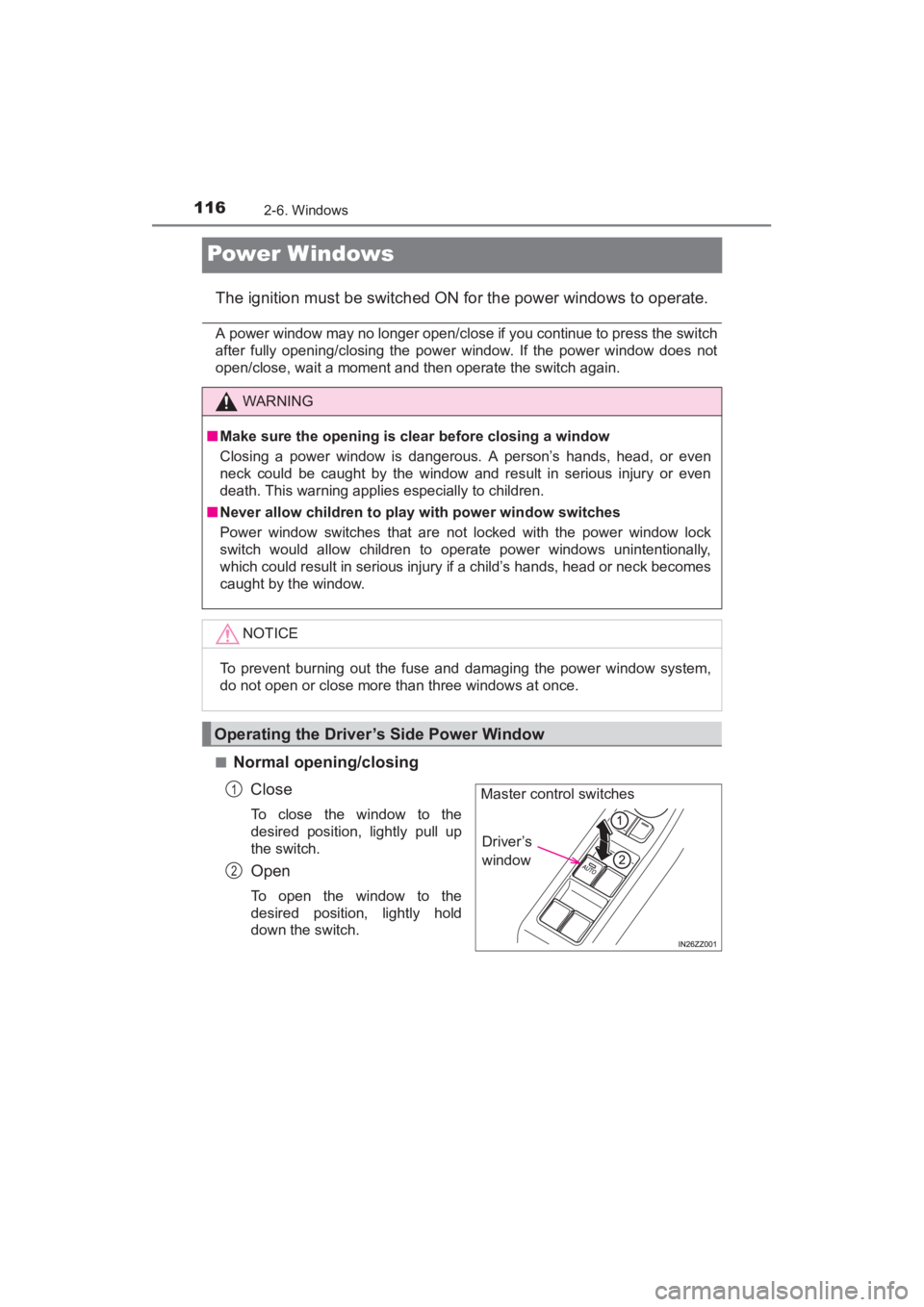

Power Windows
The ignition must be switched ON for the power windows to operate.
A power window may no longer open/close if you continue to press the switch
after fully opening/closing the power window. If the power window does not
open/close, wait a moment and then operate the switch again.
■
Normal opening/closingClose
To close the window to the
desired position, lightly pull up
the switch.
Open
To open the window to the
desired position, lightly hold
down the switch.
WARNING
■Make sure the opening is clear before closing a window
Closing a power window is dangerous. A person’s hands, head, or even
neck could be caught by the window and result in serious injury or even
death. This warning applies especially to children.
■ Never allow children to play with power window switches
Power window switches that are not locked with the power window lock
switch would allow children to operate power windows unintentionally,
which could result in serious injury if a child’s hands, head or neck becomes
caught by the window.
NOTICE
To prevent burning out the fuse and damaging the power window system,
do not open or close more than three windows at once.
Operating the Driver’s Side Power Window
Master control switches
Driver’s
window
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 116 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
1172-6. Windows
2
Before Driving

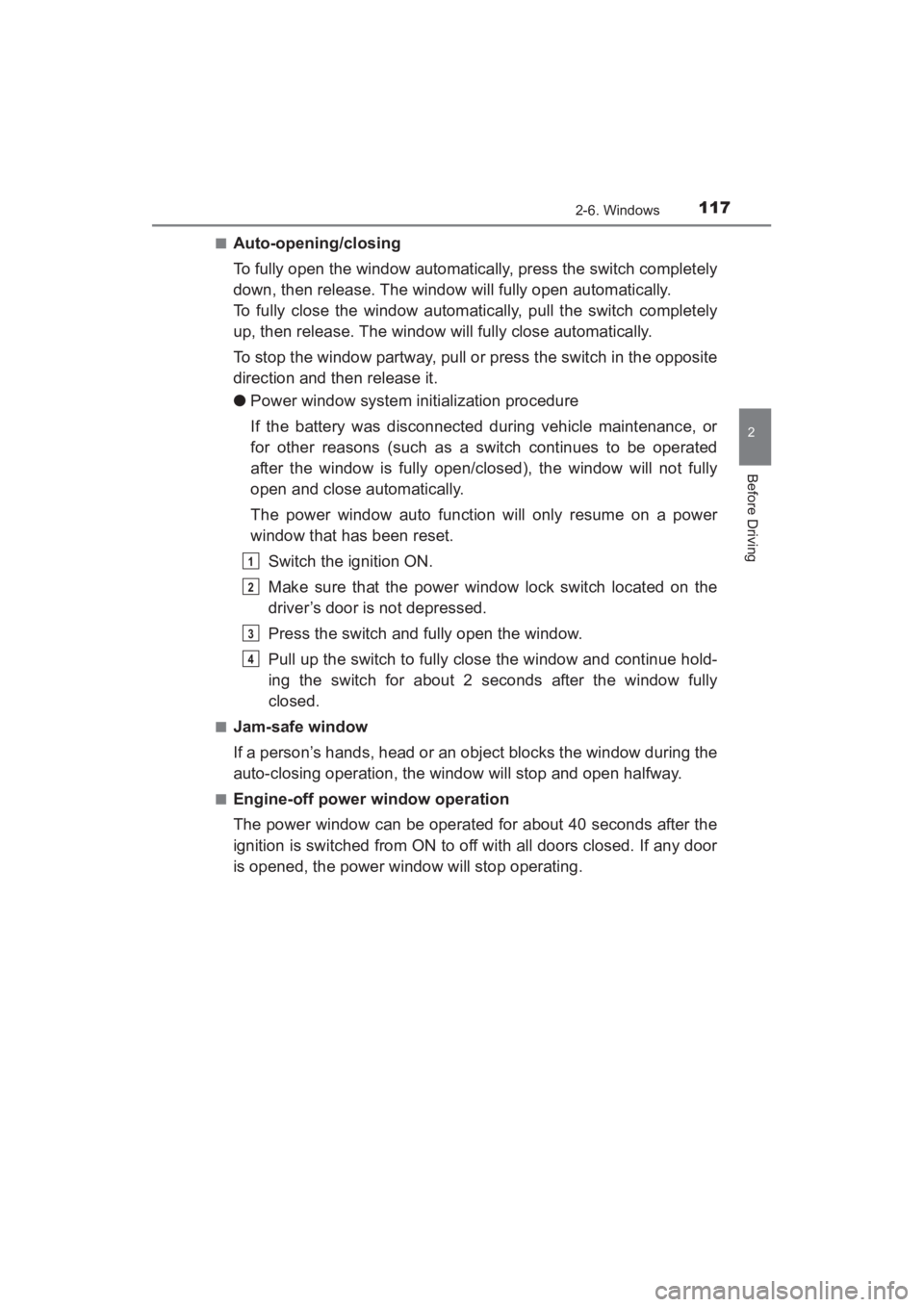

■Auto-opening/closing
To fully open the window automatically, press the switch completely
down, then release. The window will fully open automatically.
To fully close the window automatically, pull the switch completely
up, then release. The window will fully close automatically.
To stop the window partway, pull or press the switch in the opposite
direction and then release it.
●Power window system initialization procedure
If the battery was disconnected during vehicle maintenance, or
for other reasons (such as a switch continues to be operated
after the window is fully open/closed), the window will not fully
open and close automatically.
The power window auto function will only resume on a power
window that has been reset.
Switch the ignition ON.
Make sure that the power window lock switch located on the
driver’s door is not depressed.
Press the switch and fully open the window.
Pull up the switch to fully close the window and continue hold-
ing the switch for about 2 seconds after the window fully
closed.
■Jam-safe window
If a person’s hands, head or an object blocks the window during the
auto-closing operation, the window will stop and open halfway.
■Engine-off power window operation
The power window can be operated for about 40 seconds after the
ignition is switched from ON to off with all doors closed. If any door
is opened, the power window will stop operating.
1
2
3
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 117 Monday, June 1, 2015 9:22 PM

118
YARIS_SEDAN_OM_OM99M18z_(U)
2-6. Windows

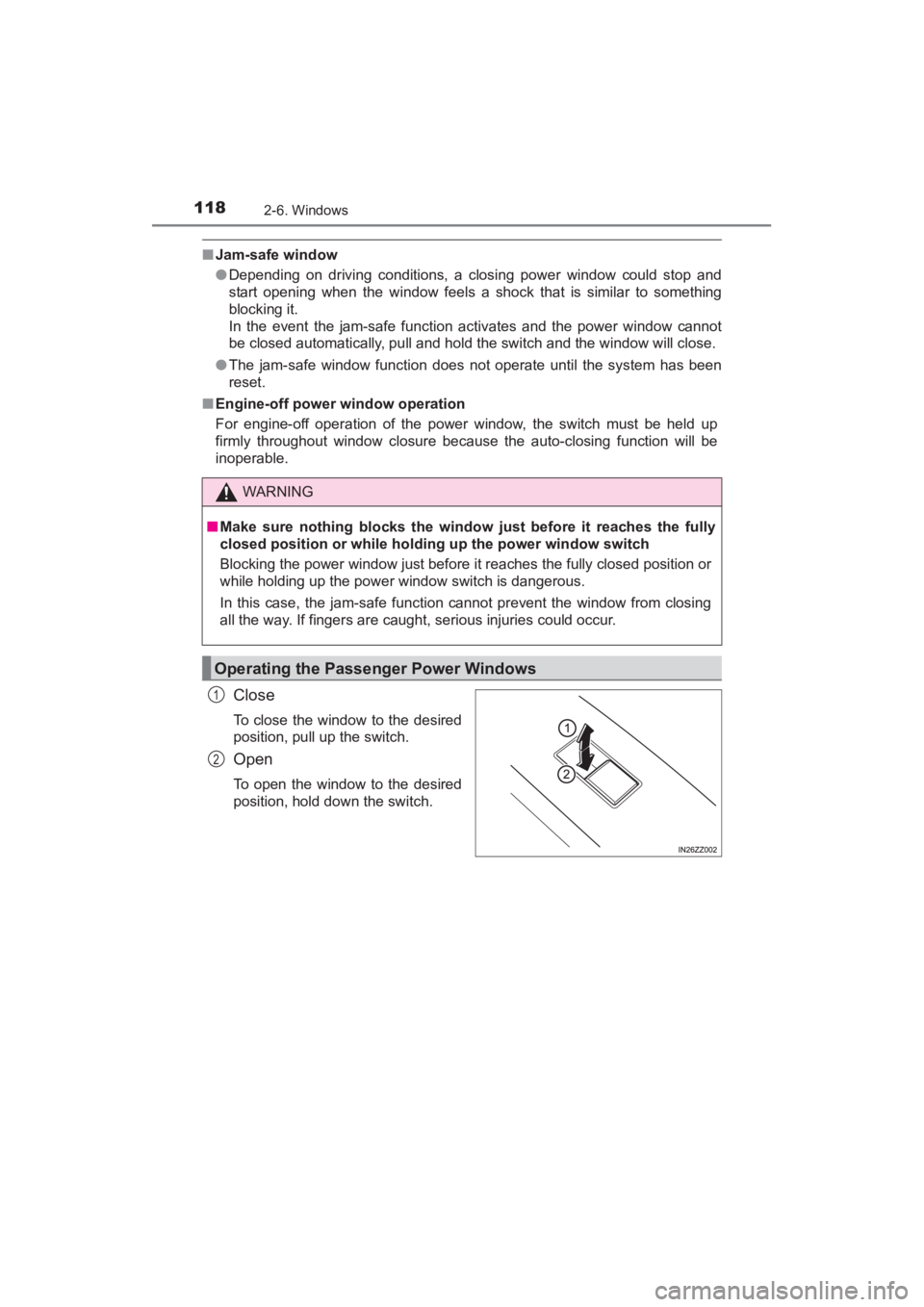

■Jam-safe window
●Depending on driving conditions, a closing power window could stop and
start opening when the window feels a shock that is similar to something
blocking it.
In the event the jam-safe function activates and the power window cannot
be closed automatically, pull and hold the switch and the window will close.
● The jam-safe window function does not operate until the system has been
reset.
■ Engine-off power window operation
For engine-off operation of the power window, the switch must be held up
firmly throughout window closure because the auto-closing function will be
inoperable.
Close
To close the window to the desired
position, pull up the switch.
Open
To open the window to the desired
position, hold down the switch.
WARNING
■Make sure nothing blocks the window just before it reaches the fully
closed position or while holding up the power window switch
Blocking the power window just before it reaches the fully closed position or
while holding up the power window switch is dangerous.
In this case, the jam-safe function cannot prevent the window from closing
all the way. If fingers are caught, serious injuries could occur.
Operating the Passenger Power Windows
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 118 Monday, June 1, 2015 9:22 PM
