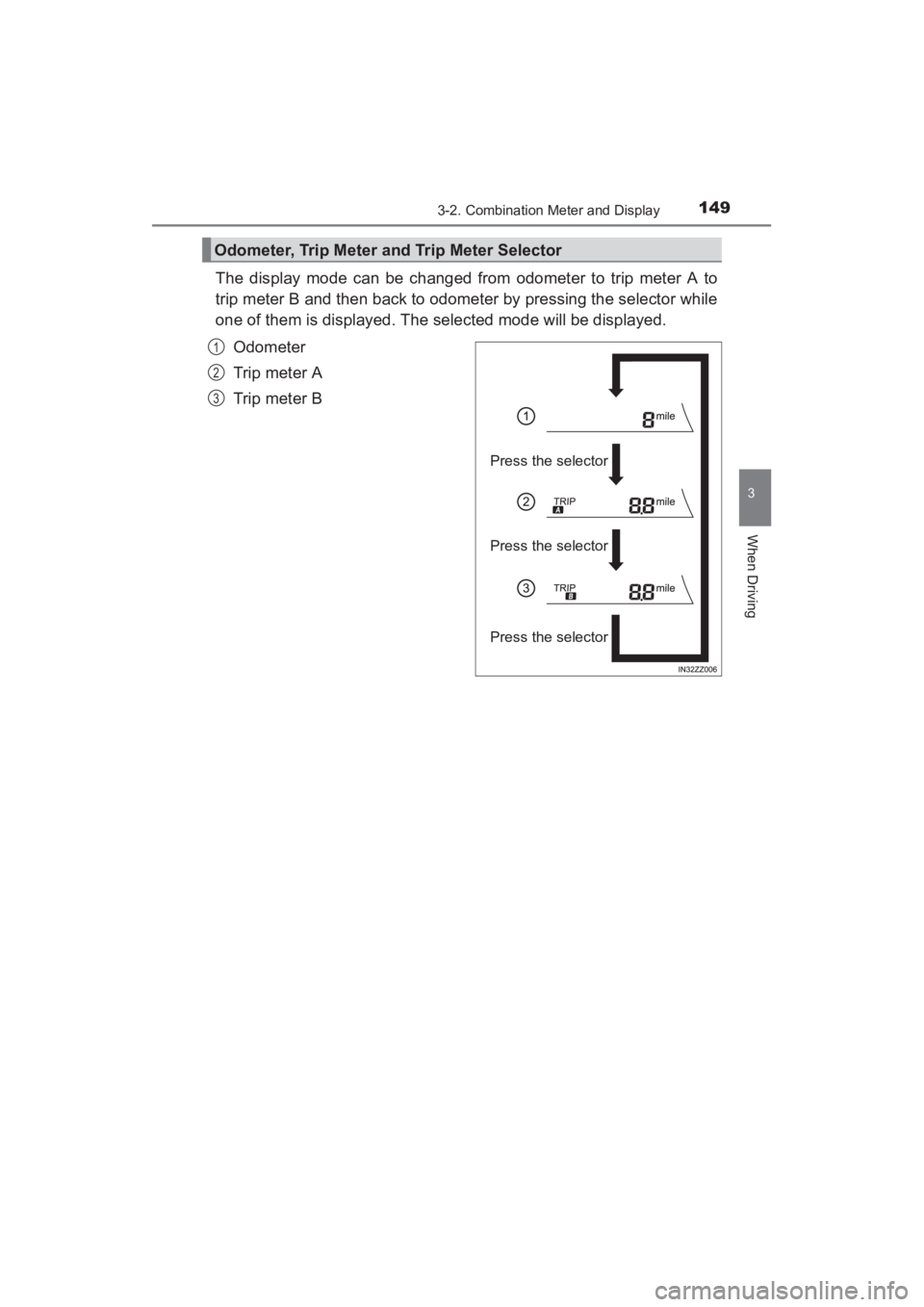

TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
1493-2. Combination Meter and Display
3
When Driving
The display mode can be changed from odometer to trip meter A to
trip meter B and then back to odometer by pressing the selector while
one of them is displayed. The selected mode will be displayed.Odometer
Trip meter A
Trip meter B
Odometer, Trip Meter and Trip Meter Selector
Press the selector
Press the selector
Press the selector
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 149 Monday, June 1, 2015 9:22 PM

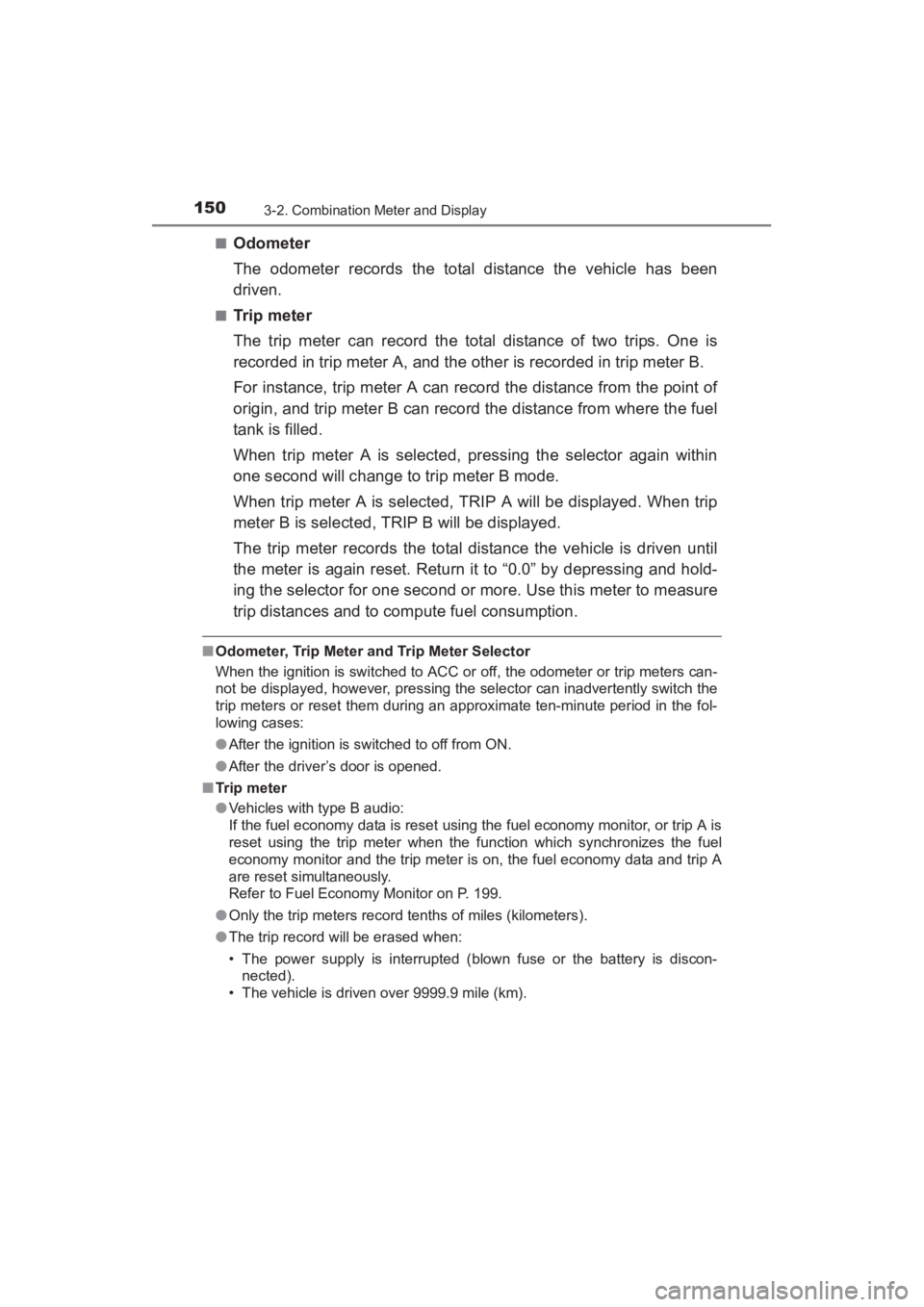

150
YARIS_SEDAN_OM_OM99M18z_(U)
3-2. Combination Meter and Display
■Odometer
The odometer records the total distance the vehicle has been
driven.
■Trip m ete r
The trip meter can record the total distance of two trips. One is
recorded in trip meter A, and the other is recorded in trip meter B.
For instance, trip meter A can record the distance from the point of
origin, and trip meter B can record the distance from where the fuel
tank is filled.
When trip meter A is selected, pressing the selector again within
one second will change to trip meter B mode.
When trip meter A is selected, TRIP A will be displayed. When trip
meter B is selected, TRIP B will be displayed.
The trip meter records the total distance the vehicle is driven until
the meter is again reset. Return it to “0.0” by depressing and hold-
ing the selector for one second or more. Use this meter to measure
trip distances and to compute fuel consumption.
■Odometer, Trip Meter and Trip Meter Selector
When the ignition is switched to ACC or off, the odometer or trip meters can-
not be displayed, however, pressing the selector can inadvertently switch the
trip meters or reset them during an approximate ten-minute period in the fol-
lowing cases:
●After the ignition is switched to off from ON.
● After the driver’s door is opened.
■ Trip meter
●Vehicles with type B audio:
If the fuel economy data is reset using the fuel economy monitor, or trip A is
reset using the trip meter when the function which synchronizes the fuel
economy monitor and the trip meter is on, the fuel economy data and trip A
are reset simultaneously.
Refer to Fuel Economy Monitor on P. 199.
● Only the trip meters record tenths of miles (kilometers).
● The trip record will be erased when:
• The power supply is interrupted (blown fuse or the battery is discon-
nected).
• The vehicle is driven over 9999.9 mile (km).
YARIS_SEDAN_OM_OM99M18z_(U).book Page 150 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

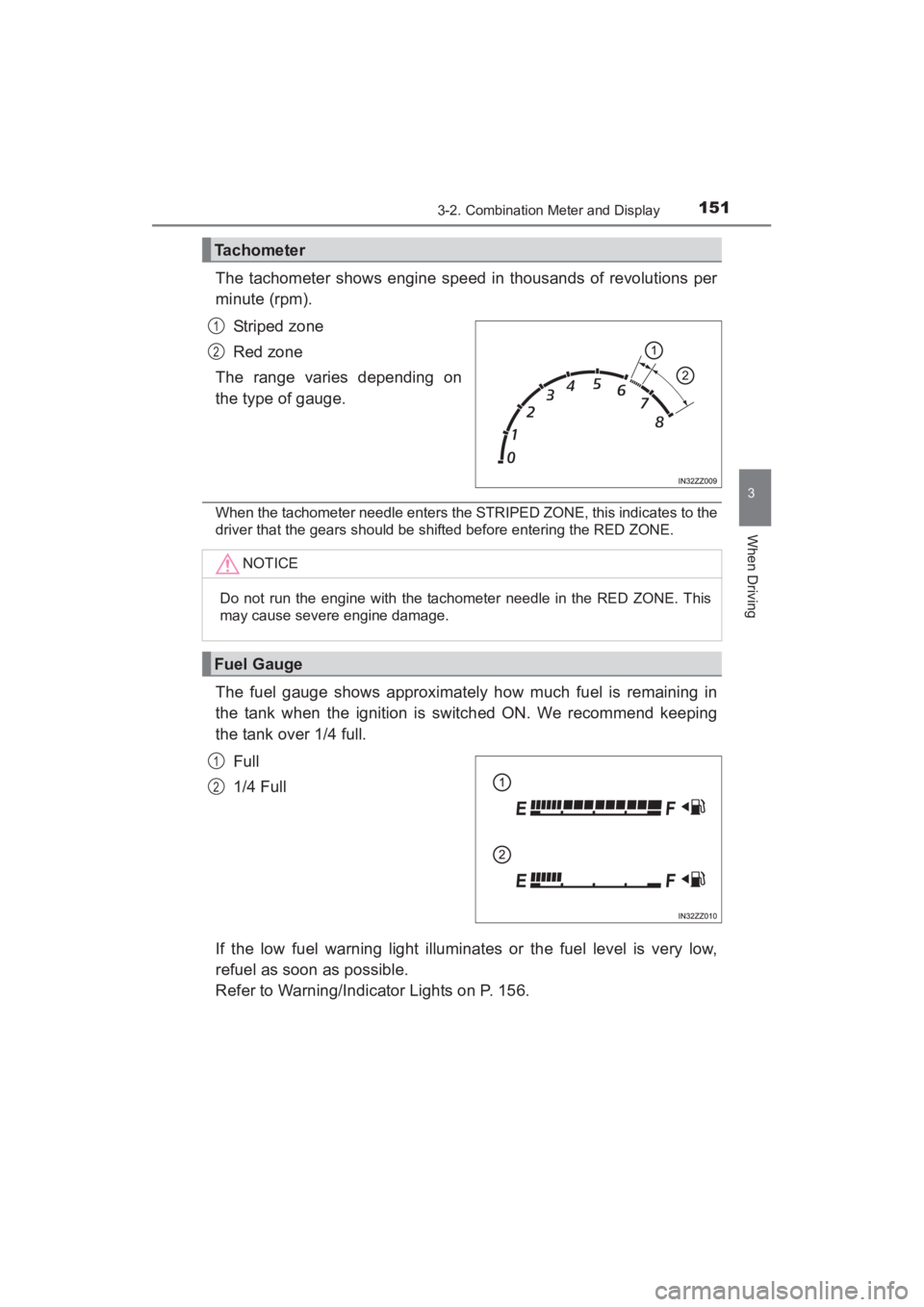

1513-2. Combination Meter and Display
3
When Driving
The tachometer shows engine speed in thousands of revolutions per
minute (rpm).Striped zone
Red zone
The range varies depending on
the type of gauge.
When the tachometer needle enters the STRIPED ZONE, this indicates to the
driver that the gears should be shifted before entering the RED ZONE.
The fuel gauge shows approximately how much fuel is remaining in
the tank when the ignition is switched ON. We recommend keeping
the tank over 1/4 full.
Full
1/4 Full
If the low fuel warning light illuminates or the fuel level is very low,
refuel as soon as possible.
Refer to Warning/Indicator Lights on P. 156.
Tachometer
1
2
NOTICE
Do not run the engine with the tac hometer needle in the RED ZONE. This
may cause severe engine damage.
Fuel Gauge
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 151 Monday, June 1, 2015 9:22 PM

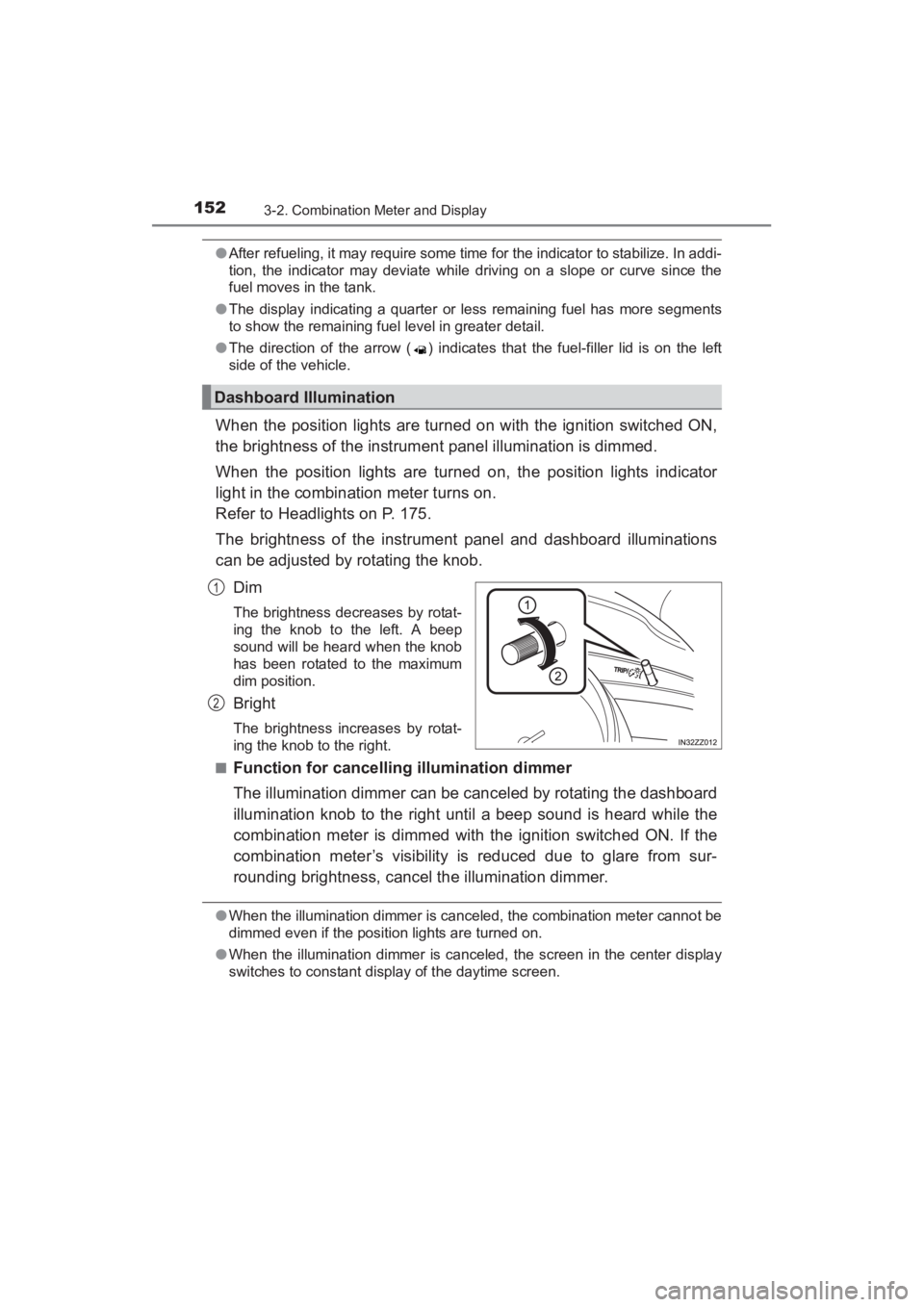

152
YARIS_SEDAN_OM_OM99M18z_(U)
3-2. Combination Meter and Display
●After refueling, it may require some time for the indicator to stabilize. In addi-
tion, the indicator may deviate while driving on a slope or curve since the
fuel moves in the tank.
● The display indicating a quarter or less remaining fuel has more segments
to show the remaining fuel level in greater detail.
● The direction of the arrow ( ) indicates that the fuel-filler lid is on the left
side of the vehicle.
When the position lights are turned on with the ignition switched ON,
the brightness of the instrument panel illumination is dimmed.
When the position lights are turned on, the position lights indicator
light in the combination meter turns on.
Refer to Headlights on P. 175.
The brightness of the instrument panel and dashboard illuminations
can be adjusted by rotating the knob.
Dim
The brightness decreases by rotat-
ing the knob to the left. A beep
sound will be heard when the knob
has been rotated to the maximum
dim position.
Bright
The brightness increases by rotat-
ing the knob to the right.
■
Function for cancelling illumination dimmer
The illumination dimmer can be canceled by rotating the dashboard
illumination knob to the right until a beep sound is heard while the
combination meter is dimmed with the ignition switched ON. If the
combination meter’s visibility is reduced due to glare from sur-
rounding brightness, cancel the illumination dimmer.
● When the illumination dimmer is canceled, the combination meter cannot be
dimmed even if the position lights are turned on.
● When the illumination dimmer is canceled, the screen in the center display
switches to constant display of the daytime screen.
Dashboard Illumination
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 152 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
1533-2. Combination Meter and Display
3
When Driving

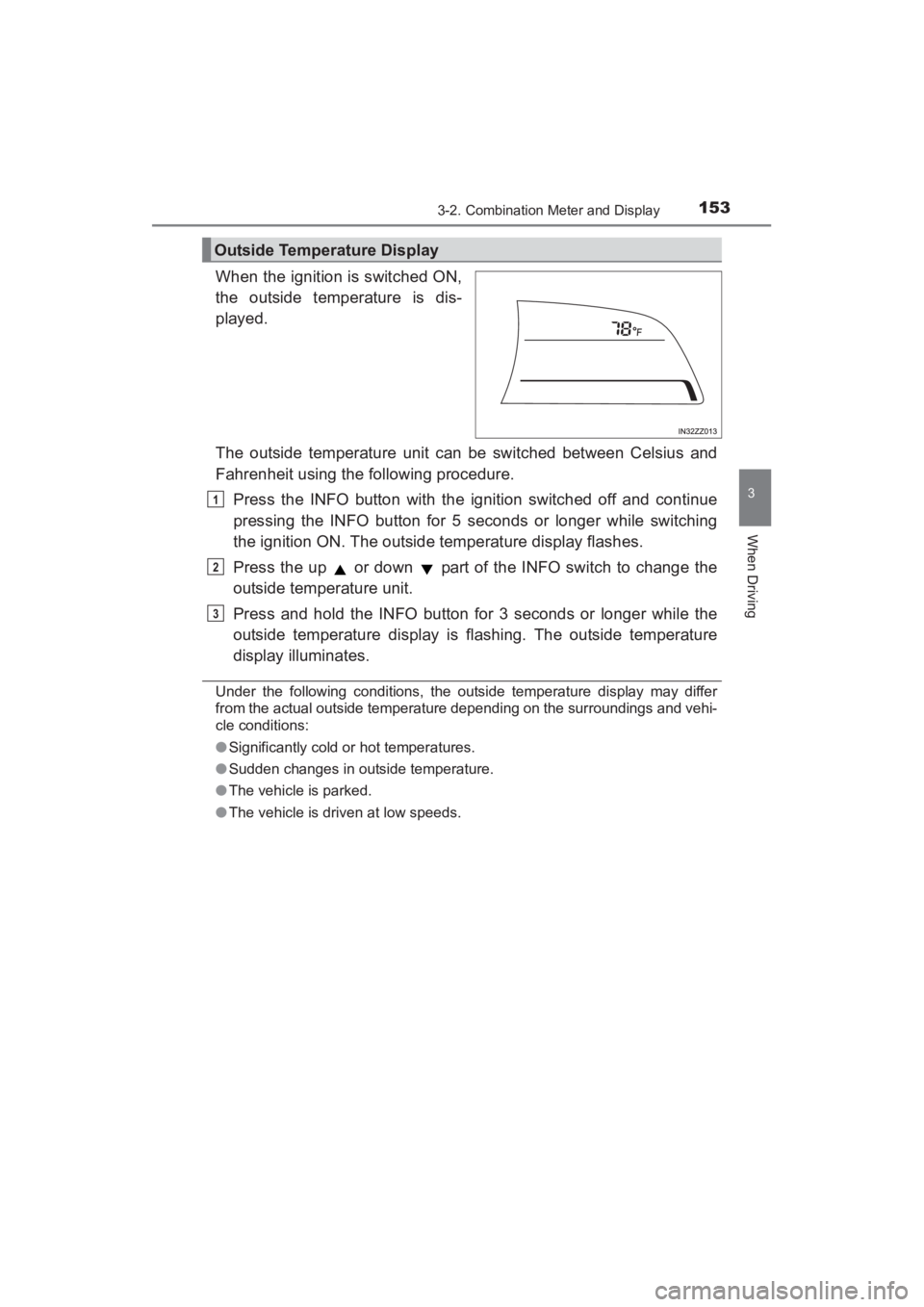

When the ignition is switched ON,
the outside temperature is dis-
played.
The outside temperature unit can be switched between Celsius and
Fahrenheit using the following procedure.Press the INFO button with the ignition switched off and continue
pressing the INFO button for 5 seconds or longer while switching
the ignition ON. The outside temperature display flashes.
Press the up or down part of the INFO switch to change the
outside temperature unit.
Press and hold the INFO button for 3 seconds or longer while the
outside temperature display is flashing. The outside temperature
display illuminates.
Under the following conditions, the outside temperature display may differ
from the actual outside temperature depending on the surroundings and vehi-
cle conditions:
●Significantly cold or hot temperatures.
● Sudden changes in outside temperature.
● The vehicle is parked.
● The vehicle is driven at low speeds.
Outside Temperature Display
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 153 Monday, June 1, 2015 9:22 PM

154
YARIS_SEDAN_OM_OM99M18z_(U)
3-2. Combination Meter and Display

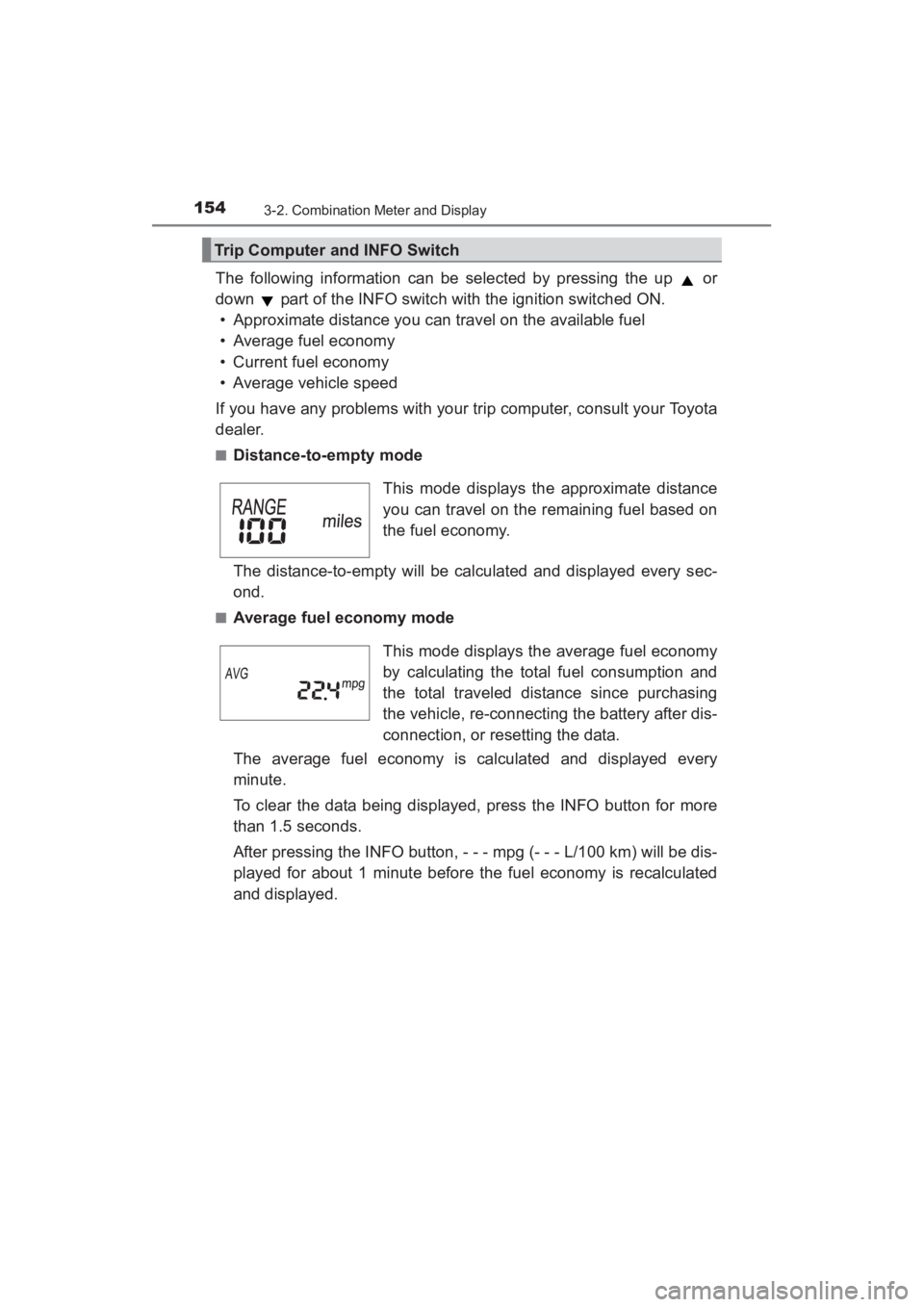

The following information can be selected by pressing the up or
down part of the INFO switch with the ignition switched ON.• Approximate distance you can travel on the available fuel
• Average fuel economy
• Current fuel economy
• Average vehicle speed
If you have any problems with your trip computer, consult your Toyota
dealer.
■Distance-to-empty mode
The distance-to-empty will be calculated and displayed every sec-
ond.
■Average fuel economy mode
The average fuel economy is calculated and displayed every
minute.
To clear the data being displayed, press the INFO button for more
than 1.5 seconds.
After pressing the INFO button, - - - mpg (- - - L/100 km) will be dis-
played for about 1 minute before the fuel economy is recalculated
and displayed.
Trip Computer and INFO Switch
This mode displays the approximate distance
you can travel on the remaining fuel based on
the fuel economy.
This mode displays the average fuel economy
by calculating the total fuel consumption and
the total traveled distance since purchasing
the vehicle, re-connecting the battery after dis-
connection, or resetting the data.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 154 Monday, June 1, 2015 9:22 PM

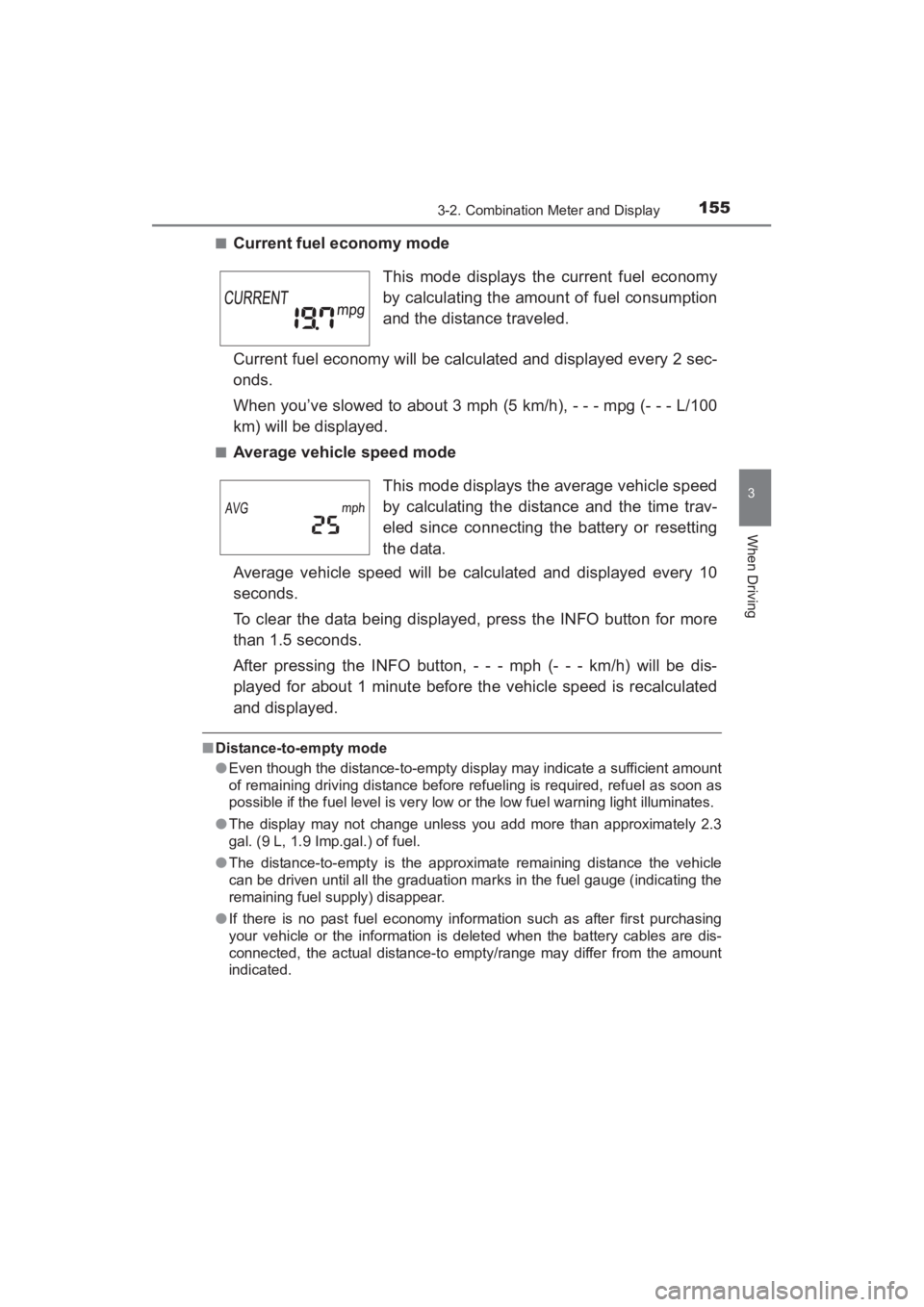

YARIS_SEDAN_OM_OM99M18z_(U)
1553-2. Combination Meter and Display
3
When Driving
■Current fuel economy mode
Current fuel economy will be calculated and displayed every 2 sec-
onds.
When you’ve slowed to about 3 mph (5 km/h), - - - mpg (- - - L/100
km) will be displayed.
■Average vehicle speed mode
Average vehicle speed will be calculated and displayed every 10
seconds.
To clear the data being displayed, press the INFO button for more
than 1.5 seconds.
After pressing the INFO button, - - - mph (- - - km/h) will be dis-
played for about 1 minute before the vehicle speed is recalculated
and displayed.
■Distance-to-empty mode
●Even though the distance-to-empty display may indicate a sufficient amount
of remaining driving distance before refueling is required, refuel as soon as
possible if the fuel level is very low or the low fuel warning light illuminates.
● The display may not change unless you add more than approximately 2.3
gal. (9 L, 1.9 Imp.gal.) of fuel.
● The distance-to-empty is the approximate remaining distance the vehicle
can be driven until all the graduation marks in the fuel gauge (indicating the
remaining fuel supply) disappear.
● If there is no past fuel economy information such as after first purchasing
your vehicle or the information is deleted when the battery cables are dis-
connected, the actual distance-to empty/range may differ from the amount
indicated.
This mode displays the current fuel economy
by calculating the amount of fuel consumption
and the distance traveled.
This mode displays the average vehicle speed
by calculating the distance and the time trav-
eled since connecting the battery or resetting
the data.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 155 Monday, June 1, 2015 9:22 PM

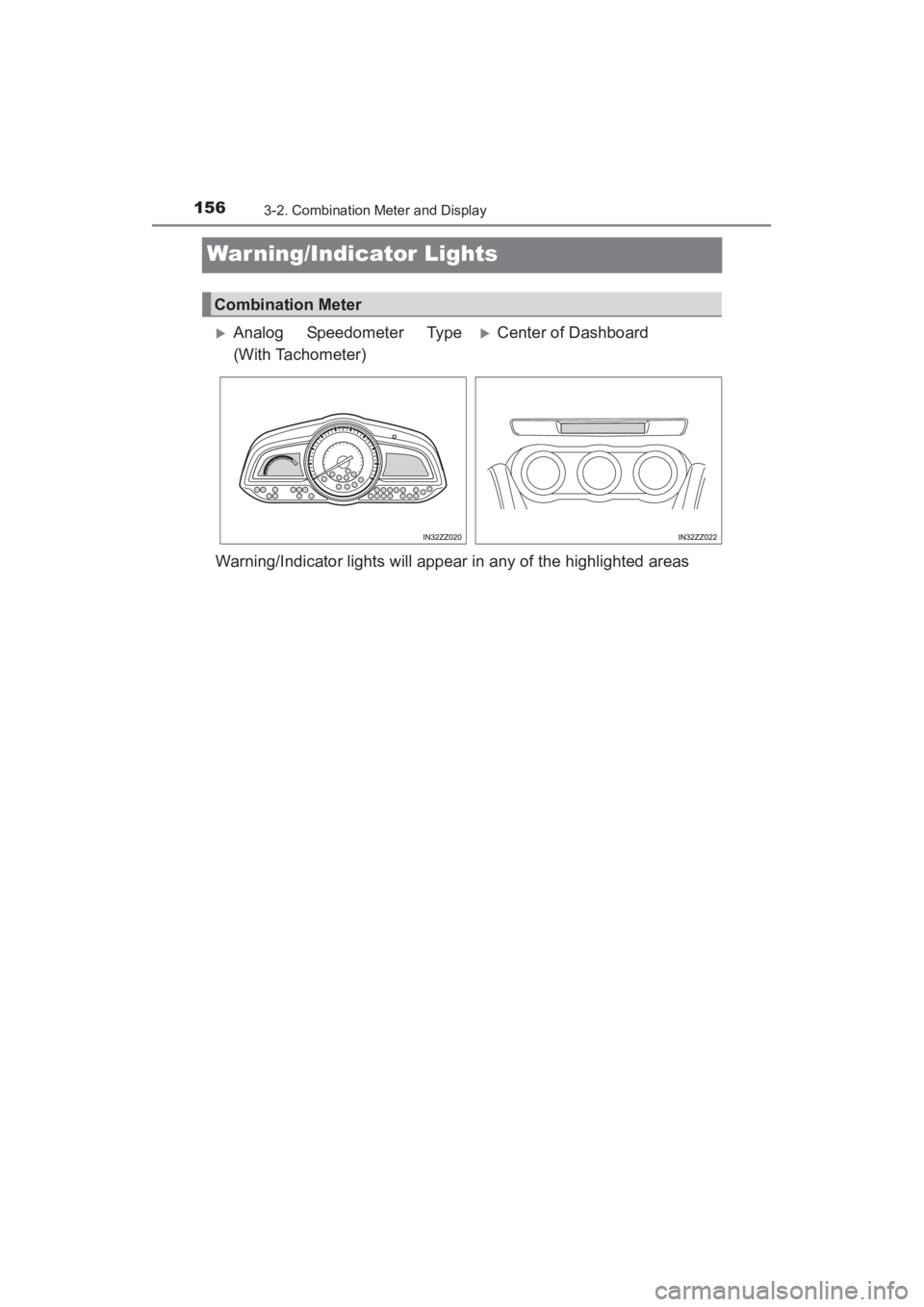

156
YARIS_SEDAN_OM_OM99M18z_(U)
3-2. Combination Meter and Display
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
Combination Meter
XAnalog Speedometer Type
(With Tachometer)XCenter of Dashboard
YARIS_SEDAN_OM_OM99M18z_(U).book Page 156 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

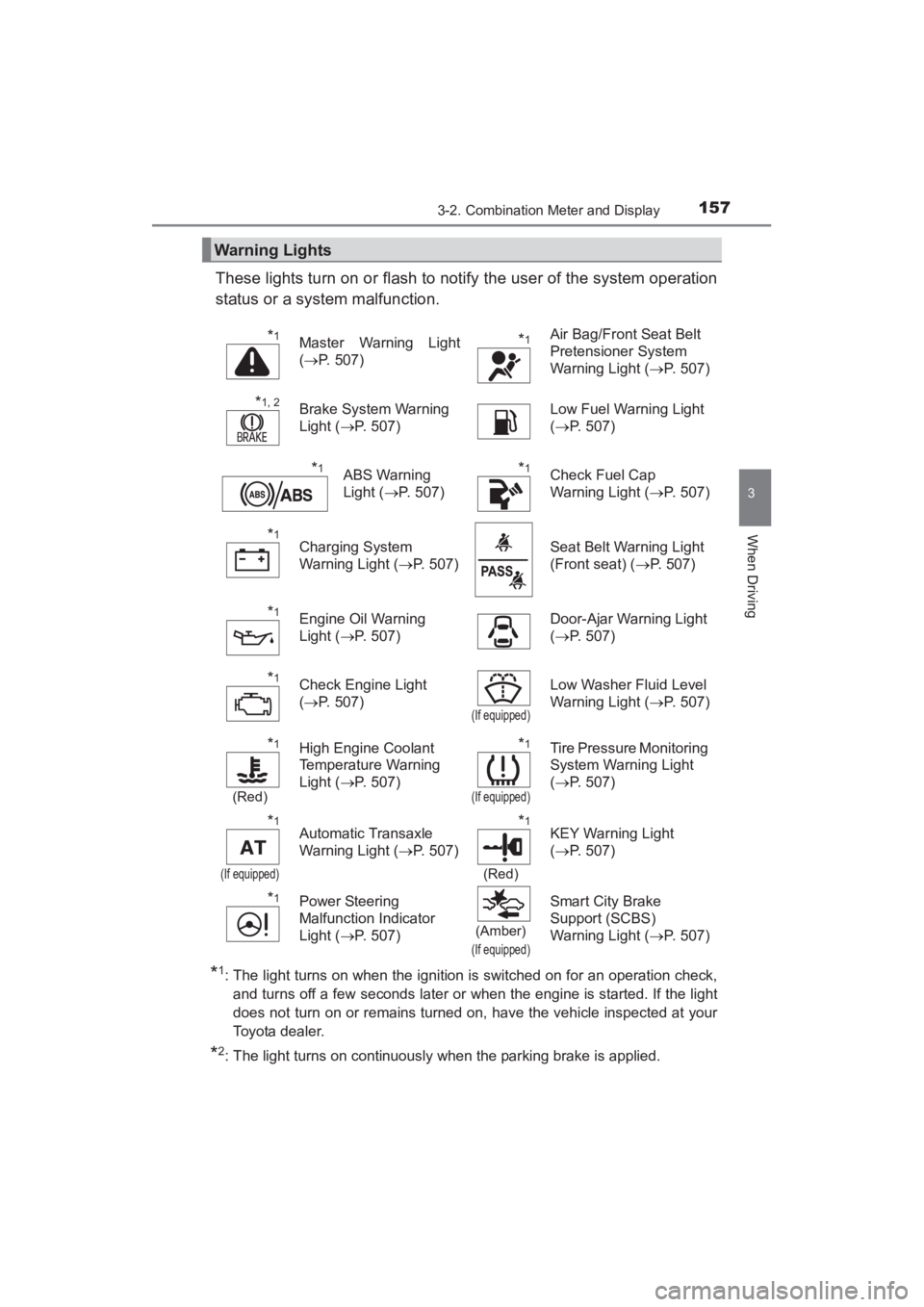

1573-2. Combination Meter and Display
3
When Driving
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1: The light turns on when the ignition is switched on for an operation check,and turns off a few seconds later or when the engine is started. If the light
does not turn on or remains turned on, have the vehicle inspected at your
Toyota dealer.
*2: The light turns on continuously when the parking brake is applied.
Warning Lights
*1Master Warning Light
(→ P. 507)*1Air Bag/Front Seat Belt
Pretensioner System
Warning Light ( →P. 507)
*1, 2Brake System Warning
Light ( →P. 507) Low Fuel Warning Light
(
→ P. 507)
*1ABS Warning
Light ( →P. 507)*1Check Fuel Cap
Warning Light ( →P. 507)
*1Charging System
Warning Light ( →P. 507) Seat Belt Warning Light
(Front seat) (
→P. 507)
*1Engine Oil Warning
Light ( →P. 507) Door-Ajar Warning Light
(
→ P. 507)
*1Check Engine Light
(→ P. 507)
(If equipped)
Low Washer Fluid Level
Warning Light ( →P. 507)
*1
(Red)
High Engine Coolant
Temperature Warning
Light ( →P. 507)*1
(If equipped)
Tire Pressure Monitoring
System Warning Light
(→ P. 507)
*1
(If equipped)
Automatic Transaxle
Warning Light ( →P. 507)*1
(Red)
KEY Warning Light
(→ P. 507)
*1Power Steering
Malfunction Indicator
Light ( →P. 507)
(Amber)
(If equipped)
Smart City Brake
Support (SCBS)
Warning Light ( →P. 507)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 157 Monday, June 1, 2015 9:22 PM

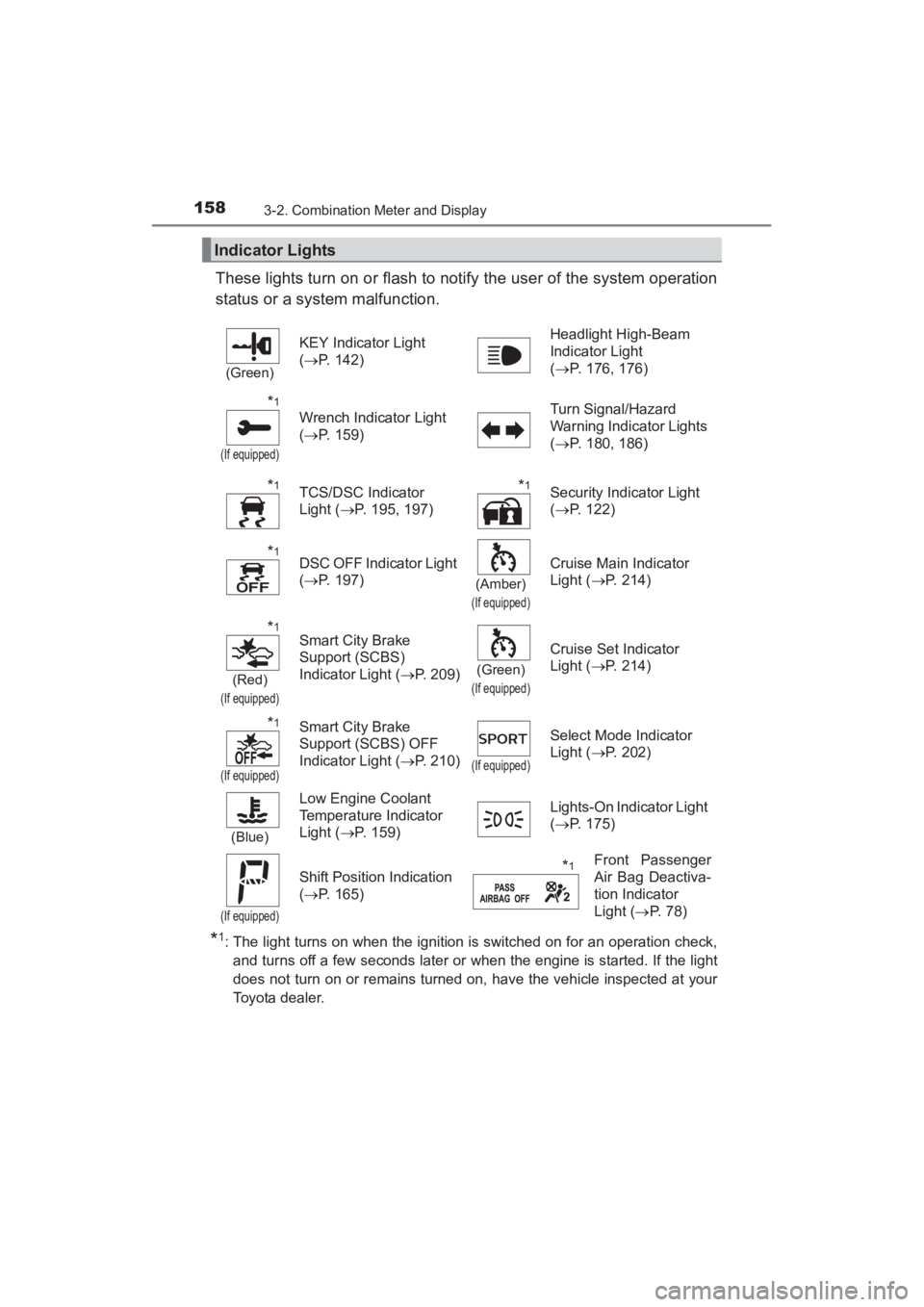

158
YARIS_SEDAN_OM_OM99M18z_(U)
3-2. Combination Meter and Display
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1: The light turns on when the ignition is switched on for an operation check,and turns off a few seconds later or when the engine is started. If the light
does not turn on or remains turned on, have the vehicle inspected at your
Toyota dealer.
Indicator Lights
(Green)
KEY Indicator Light
(→ P. 142) Headlight High-Beam
Indicator Light
(
→ P. 176, 176)
*1
(If equipped)
Wrench Indicator Light
(→ P. 159) Turn Signal/Hazard
Warning Indicator Lights
(
→ P. 180, 186)
*1TCS/DSC Indicator
Light ( →P. 195, 197)*1Security Indicator Light
(→ P. 122)
*1DSC OFF Indicator Light
(→ P. 197)
(Amber)
(If equipped)
Cruise Main Indicator
Light ( →P. 214)
*1
(Red)
(If equipped)
Smart City Brake
Support (SCBS)
Indicator Light ( →P. 209)
(Green)
(If equipped)
Cruise Set Indicator
Light ( →P. 214)
*1
(If equipped)
Smart City Brake
Support (SCBS) OFF
Indicator Light ( →P. 210)
(If equipped)
Select Mode Indicator
Light ( →P. 202)
(Blue)
Low Engine Coolant
Temperature Indicator
Light ( →P. 159) Lights-On Indicator Light
(
→ P. 175)
(If equipped)
Shift Position Indication
(→ P. 165)*1Front Passenger
Air Bag Deactiva-
tion Indicator
Light ( →P. 78)
sec_03-02.fm Page 158 Wednesday, June 3, 2015 1:43 PM
