TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
4094-4. Interior Equipment
4
Interior Features
■Illuminated Entry System
●Battery saver
If any door is left open with the overhead light switch in the DOOR position,
or the trunk lid is left open, the ov erhead light or luggage compartment light/
trunk light turns off after about 30 minutes to prevent battery depletion.
● To prevent battery depletion, if the interior lights remain turned on (the inte-
rior light switch is in the ON position or an interior light is turned on by press-
ing the lens of the interior light), they turn off automatically under the
following conditions:
• No operations are done for about 30 minutes after the ignition is switched off.
• When the LOCK button on the key is pressed or the request switch is
pressed to lock the doors on vehicles with the advanced keyless function
after the ignition is switched off (interior lights turn off a few seconds).
In addition, if the following operations are performed after turning the interior
lights off, they will turn on again.
• The ignition is switched to a position other than OFF.
• A door is opened.
• A door is unlocked.
● The operation of the illuminated entry system can be changed.
Refer to Customizable Features on P. 572.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 409 Monday, June 1, 2015 9:22 PM

410
YARIS_SEDAN_OM_OM99M18z_(U)
4-4. Interior Equipment

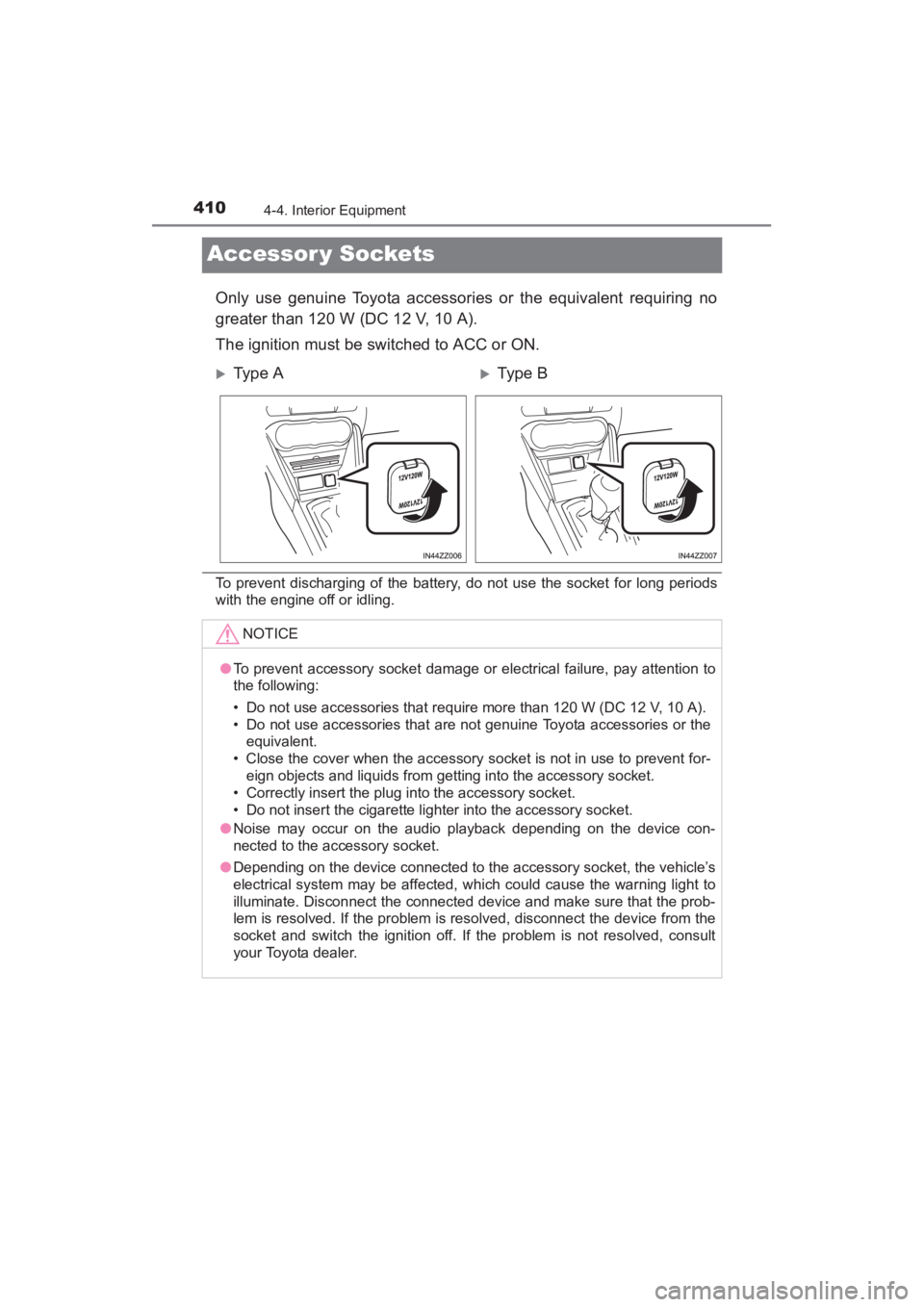

Accessor y Sockets
Only use genuine Toyota accessories or the equivalent requiring no
greater than 120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or ON.
To prevent discharging of the battery, do not use the socket for long periods
with the engine off or idling.
XType AXTy pe B
NOTICE
●To prevent accessory socket damage or electrical failure, pay attention to
the following:
• Do not use accessories that require more than 120 W (DC 12 V, 10 A).
• Do not use accessories that are not genuine Toyota accessories or the
equivalent.
• Close the cover when the accessory socket is not in use to prevent for- eign objects and liquids from getting into the accessory socket.
• Correctly insert the plug into the accessory socket.
• Do not insert the cigarette lighter into the accessory socket.
● Noise may occur on the audio playback depending on the device con-
nected to the accessory socket.
● Depending on the device connected to the accessory socket, the vehicle’s
electrical system may be affected, which could cause the warning light to
illuminate. Disconnect the connected device and make sure that the prob-
lem is resolved. If the problem is resolved, disconnect the device from the
socket and switch the ignition off. If the problem is not resolved, consult
your Toyota dealer.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 410 Monday, June 1, 2015 9:22 PM

411
YARIS_SEDAN_OM_OM99M18z_(U)
4-4. Interior Equipment
4
Interior Features

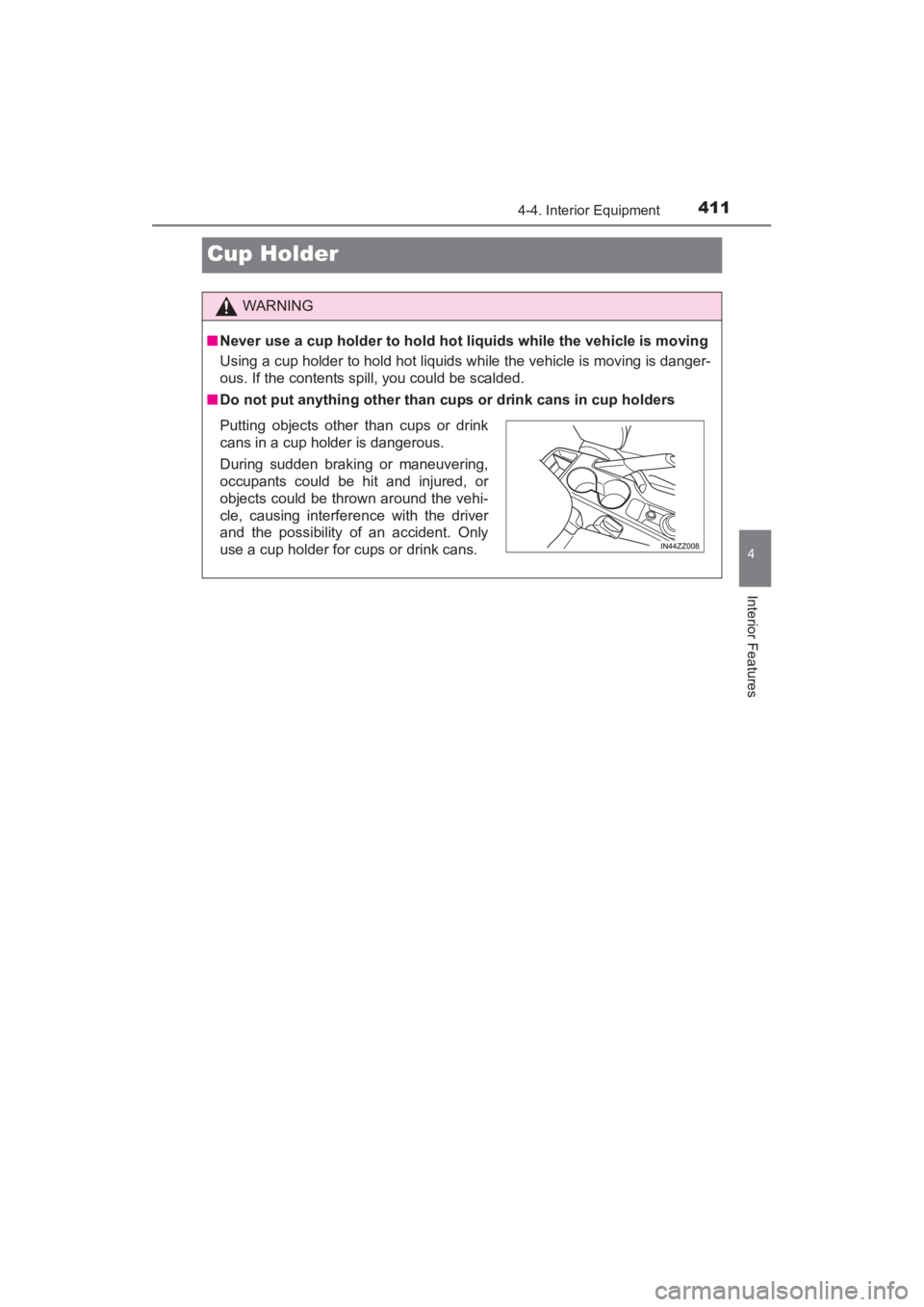

Cup Holder
WARNING
■Never use a cup holder to hold hot liquids while the vehicle is moving
Using a cup holder to hold hot liquids while the vehicle is moving is danger-
ous. If the contents spill, you could be scalded.
■ Do not put anything other than cups or drink cans in cup holders
Putting objects other than cups or drink
cans in a cup holder is dangerous.
During sudden braking or maneuvering,
occupants could be hit and injured, or
objects could be thrown around the vehi-
cle, causing interference with the driver
and the possibility of an accident. Only
use a cup holder for cups or drink cans.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 411 Monday, June 1, 2015 9:22 PM

412
YARIS_SEDAN_OM_OM99M18z_(U)
4-4. Interior Equipment
Bottle Holder
Bottle holders are on the inside of
the front doors.
Bottle holder
NOTICE
Do not use the bottle holders for containers without caps. The contents may
spill when the door is opened or closed.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 412 Monday, June 1, 2015 9:22 PM

413
YARIS_SEDAN_OM_OM99M18z_(U)
4-4. Interior Equipment
4
Interior Features

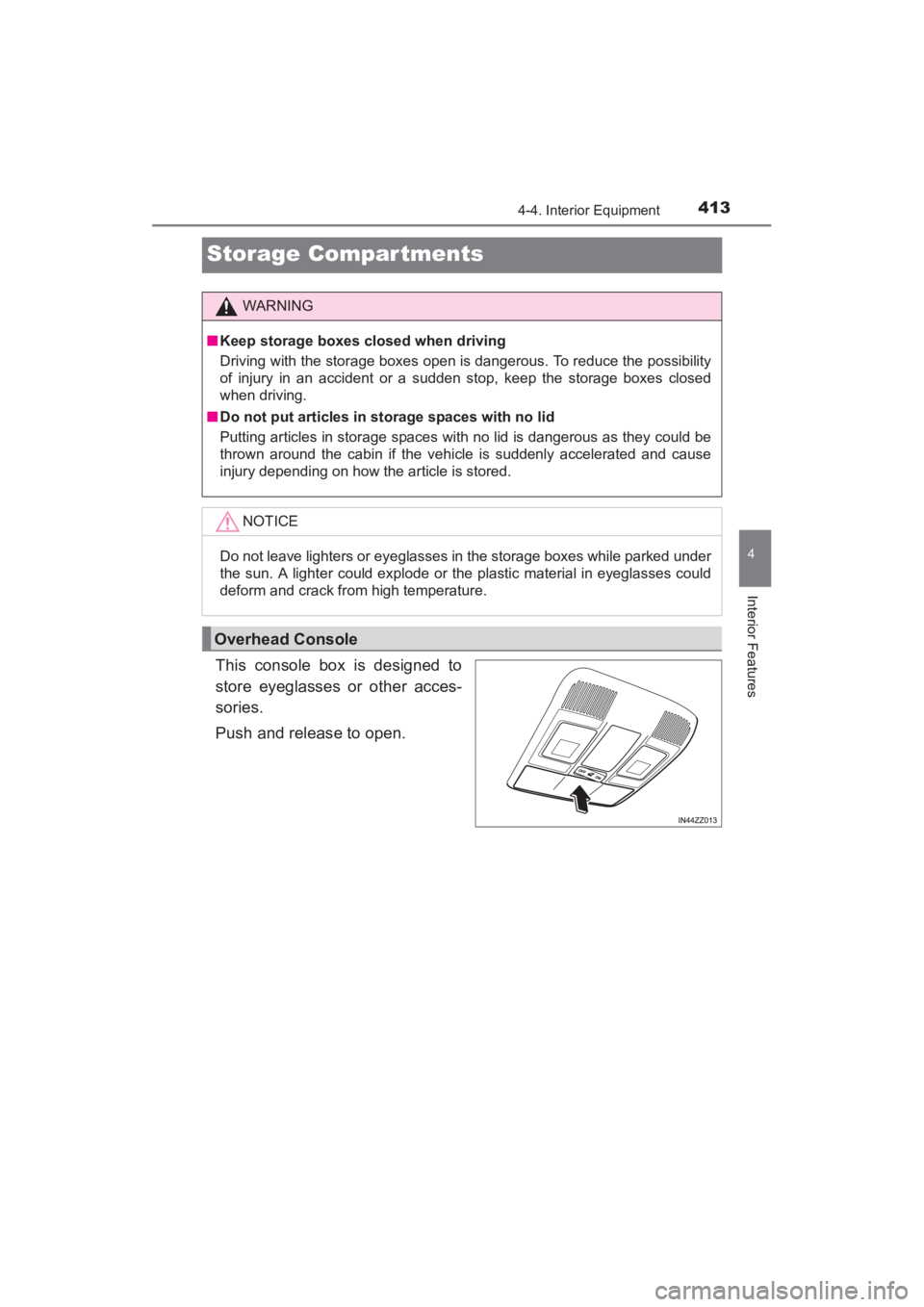

Storage Compar tments
This console box is designed to
store eyeglasses or other acces-
sories.
Push and release to open.
WARNING
■Keep storage boxes closed when driving
Driving with the storage boxes open is dangerous. To reduce the possibility
of injury in an accident or a sudden stop, keep the storage boxes closed
when driving.
■ Do not put articles in storage spaces with no lid
Putting articles in storage spaces with no lid is dangerous as they could be
thrown around the cabin if the vehicle is suddenly accelerated and cause
injury depending on how the article is stored.
NOTICE
Do not leave lighters or eyeglasses in the storage boxes while parked under
the sun. A lighter could explode or the plastic material in eyeglasses could
deform and crack from high temperature.
Overhead Console
YARIS_SEDAN_OM_OM99M18z_(U).book Page 413 Monday, June 1, 2015 9:22 PM

414
YARIS_SEDAN_OM_OM99M18z_(U)
4-4. Interior Equipment
To open the glove compartment,
pull the latch toward you.
To close the glove compartment, firmly press in the center of the glove
compartment lid.
A cup or small items can be placed on the center console tray using
the center console divider.
The center console tray is large
enough to place a small item
when the center console divider is
not in use.
Glove Compartment
Center Console Tray
WARNING
■Never use a cup holder to hold hot liquids while the vehicle is moving
Using a cup holder to hold hot liquids while the vehicle is moving is danger-
ous. If the contents spill, you could be scalded.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 414 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4154-4. Interior Equipment
4
Interior Features

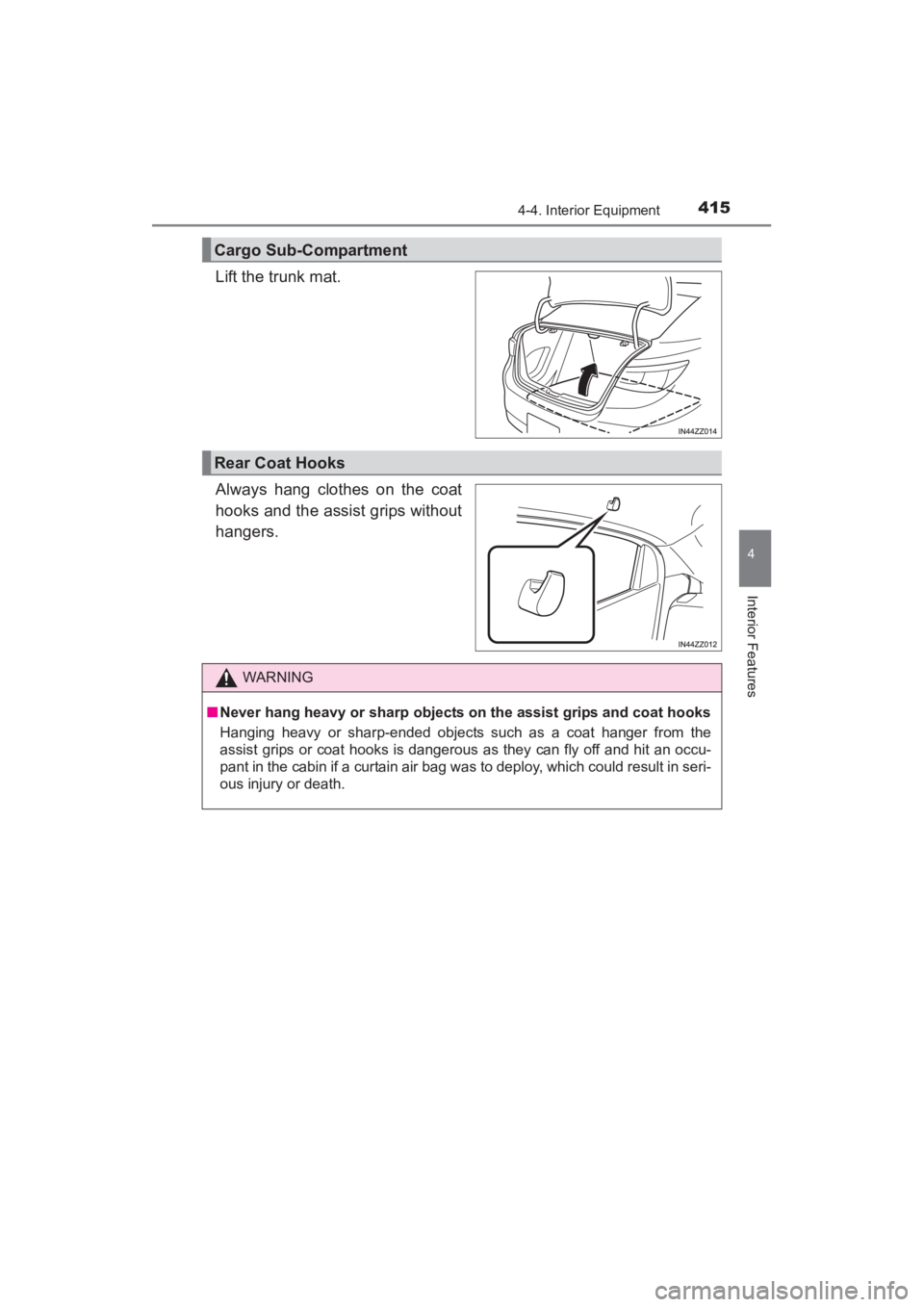

Lift the trunk mat.
Always hang clothes on the coat
hooks and the assist grips without
hangers.
Cargo Sub-Compartment
Rear Coat Hooks
WARNING
■Never hang heavy or sharp objects on the assist grips and coat hooks
Hanging heavy or sharp-ended objects such as a coat hanger from the
assist grips or coat hooks is dangerous as they can fly off and hit an occu-
pant in the cabin if a curtain air bag was to deploy, which could result in seri-
ous injury or death.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 415 Monday, June 1, 2015 9:22 PM

416
YARIS_SEDAN_OM_OM99M18z_(U)
4-4. Interior Equipment
YARIS_SEDAN_OM_OM99M18z_(U).book Page 416 Monday, June 1, 2015 9:22 PM

417
YARIS_SEDAN_OM_OM99M18z_(U)
5Maintenance and Care
5-1. Essential InformationIntroduction ....................... 418
5-2. Scheduled Maintenance Maintenance Monitor ........ 420
5-3. Owner Maintenance Owner Maintenance Precautions ..................... 424
Hood ................................. 426
Engine Compartment Overview ......................... 428
Engine Oil ......................... 429
Engine Coolant ................. 431
Brake/Clutch Fluid............. 434
Window Washer Fluid ....... 435
Body Lubrication ............... 436
Wiper Blades..................... 437
Battery............................... 440
Key Battery Replacement ................... 443
Tires .................................. 446
Light Bulbs ........................ 451
Fuses ................................ 460
5-4. Appearance Care Exterior Care ..................... 468
Interior Care ...................... 476
YARIS_SEDAN_OM_OM99M18z_(U).book Page 417 Monday, June 1, 2015 9:22 PM

418
YARIS_SEDAN_OM_OM99M18z_(U)
5-1. Essential Information

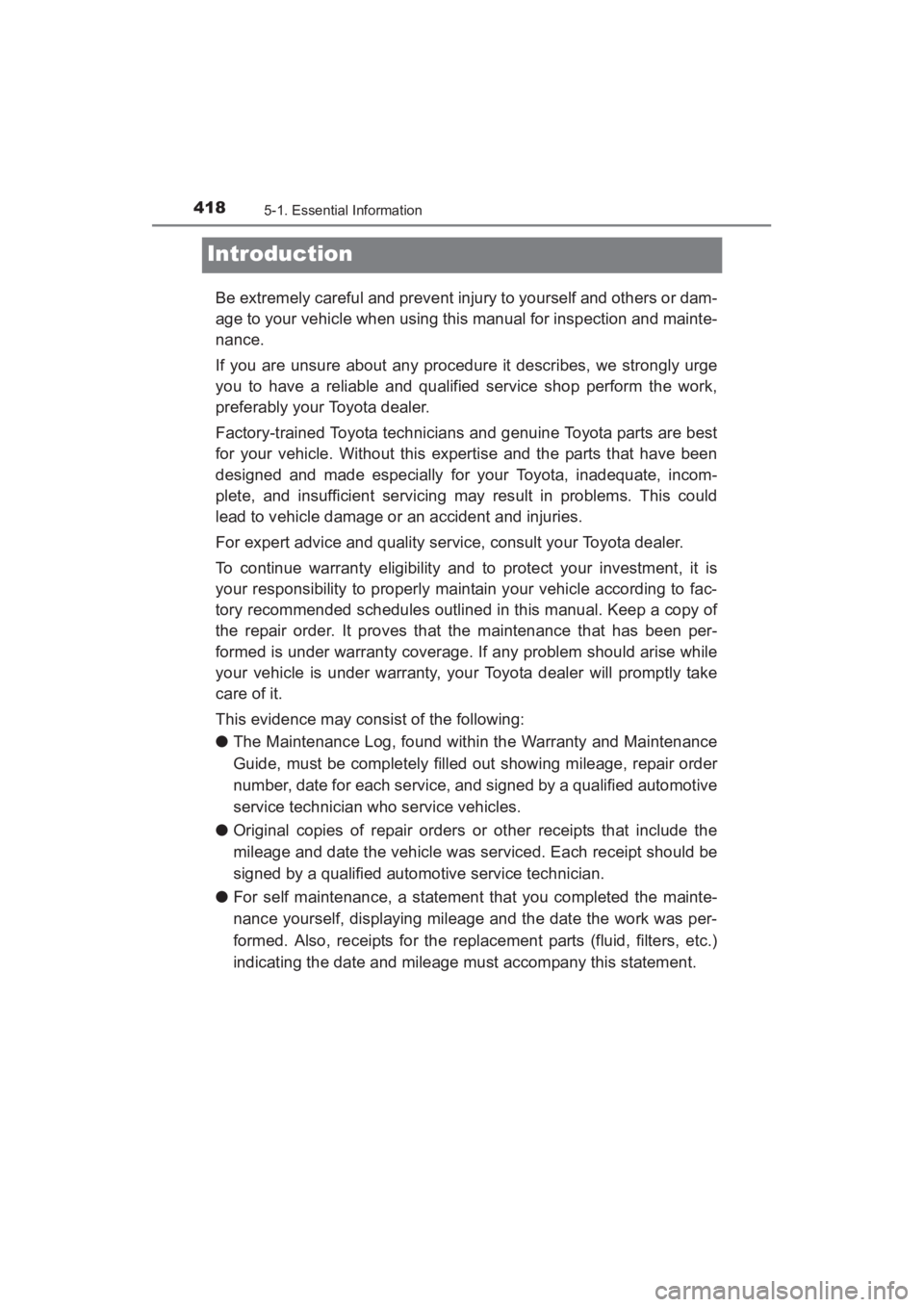

Introduction
Be extremely careful and prevent injury to yourself and others or dam-
age to your vehicle when using this manual for inspection and mainte-
nance.
If you are unsure about any procedure it describes, we strongly urge
you to have a reliable and qualified service shop perform the work,
preferably your Toyota dealer.
Factory-trained Toyota technicians and genuine Toyota parts are best
for your vehicle. Without this expertise and the parts that have been
designed and made especially for your Toyota, inadequate, incom-
plete, and insufficient servicing may result in problems. This could
lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult your Toyota dealer.
To continue warranty eligibility and to protect your investment, it is
your responsibility to properly maintain your vehicle according to fac-
tory recommended schedules outlined in this manual. Keep a copy of
the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while
your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
This evidence may consist of the following:
●The Maintenance Log, found within the Warranty and Maintenance
Guide, must be completely filled out showing mileage, repair order
number, date for each service, and signed by a qualified automotive
service technician who service vehicles.
● Original copies of repair orders or other receipts that include the
mileage and date the vehicle was serviced. Each receipt should be
signed by a qualified automotive service technician.
● For self maintenance, a statement that you completed the mainte-
nance yourself, displaying mileage and the date the work was per-
formed. Also, receipts for the replacement parts (fluid, filters, etc.)
indicating the date and mileage must accompany this statement.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 418 Monday, June 1, 2015 9:22 PM
