4195-1. Essential Information
5
Maintenance and Care

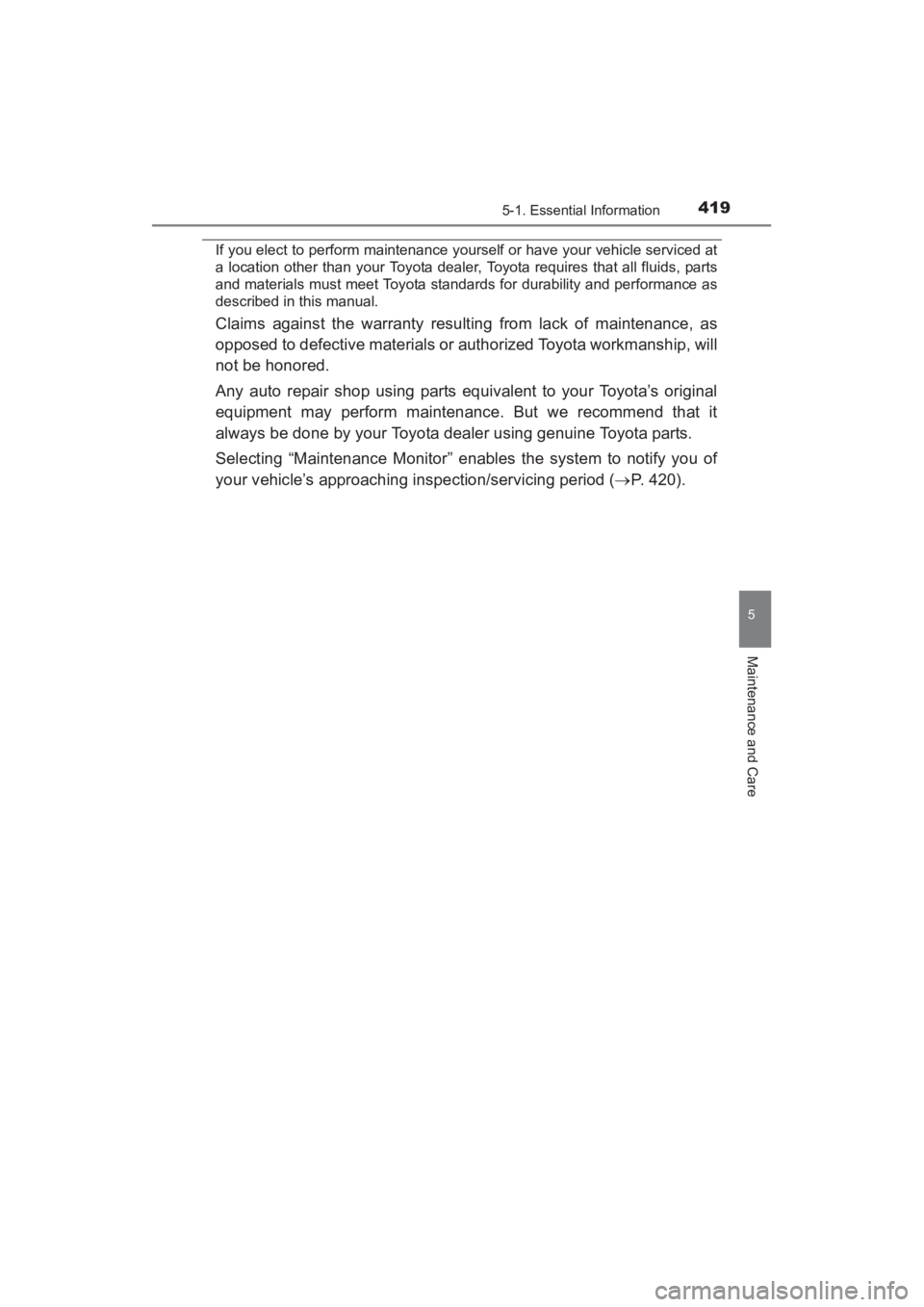

If you elect to perform maintenance yourself or have your vehicle serviced at
a location other than your Toyota dealer, Toyota requires that all fluids, parts
and materials must meet Toyota standards for durability and performance as
described in this manual.
Claims against the warranty resulting from lack of maintenance, as
opposed to defective materials or authorized Toyota workmanship, will
not be honored.
Any auto repair shop using parts equivalent to your Toyota’s original
equipment may perform maintenance. But we recommend that it
always be done by your Toyota dealer using genuine Toyota parts.
Selecting “Maintenance Monitor” enables the system to notify you of
your vehicle’s approaching inspection/servicing period ( →P. 420).
YARIS_SEDAN_OM_OM99M18z_(U).book Page 419 Monday, June 1, 2015 9:22 PM

420
YARIS_SEDAN_OM_OM99M18z_(U)
5-2. Scheduled Maintenance

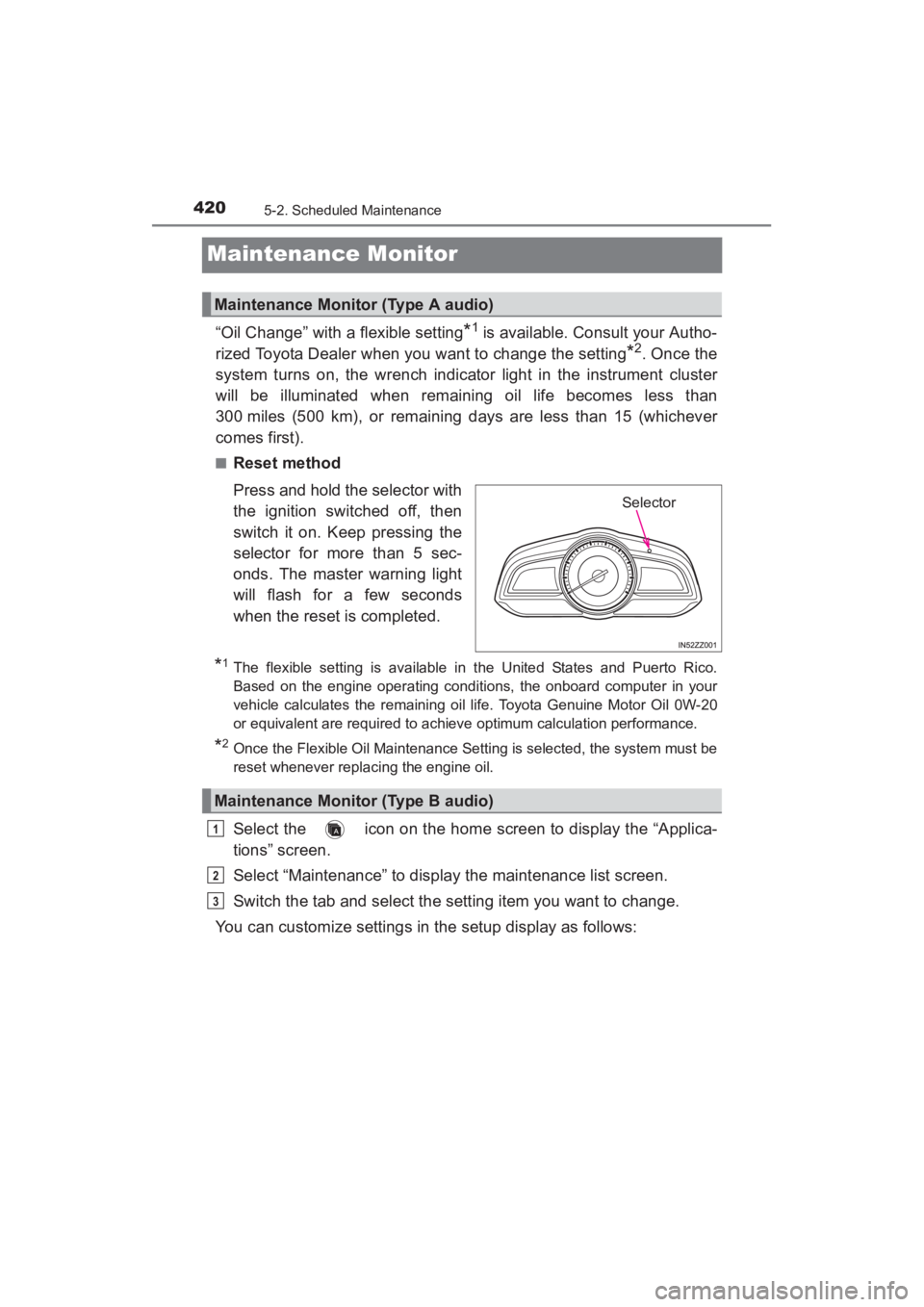

Maintenance Monitor
“Oil Change” with a flexible setting*1 is available. Consult your Autho-
rized Toyota Dealer when you want to change the setting
*2. Once the
system turns on, the wrench indicator light in the instrument cluster
will be illuminated when remaining oil life becomes less than
300 miles (500 km), or remaining days are less than 15 (whichever
comes first).
■Reset method
Press and hold the selector with
the ignition switched off, then
switch it on. Keep pressing the
selector for more than 5 sec-
onds. The master warning light
will flash for a few seconds
when the reset is completed.
*1The flexible setting is available in the United States and Puerto Rico.
Based on the engine operating conditions, the onboard computer in your
vehicle calculates the remaining oil life. Toyota Genuine Motor Oil 0W-20
or equivalent are required to achiev e optimum calculation performance.
*2Once the Flexible Oil Maintenance Setting is selected, the system must be
reset whenever replacing the engine oil.
Select the icon on the home screen to display the “Applica-
tions” screen.
Select “Maintenance” to display the maintenance list screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Maintenance Monitor (Type A audio)
Selector
Maintenance Monitor (Type B audio)
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 420 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4215-2. Scheduled Maintenance
5
Maintenance and Care

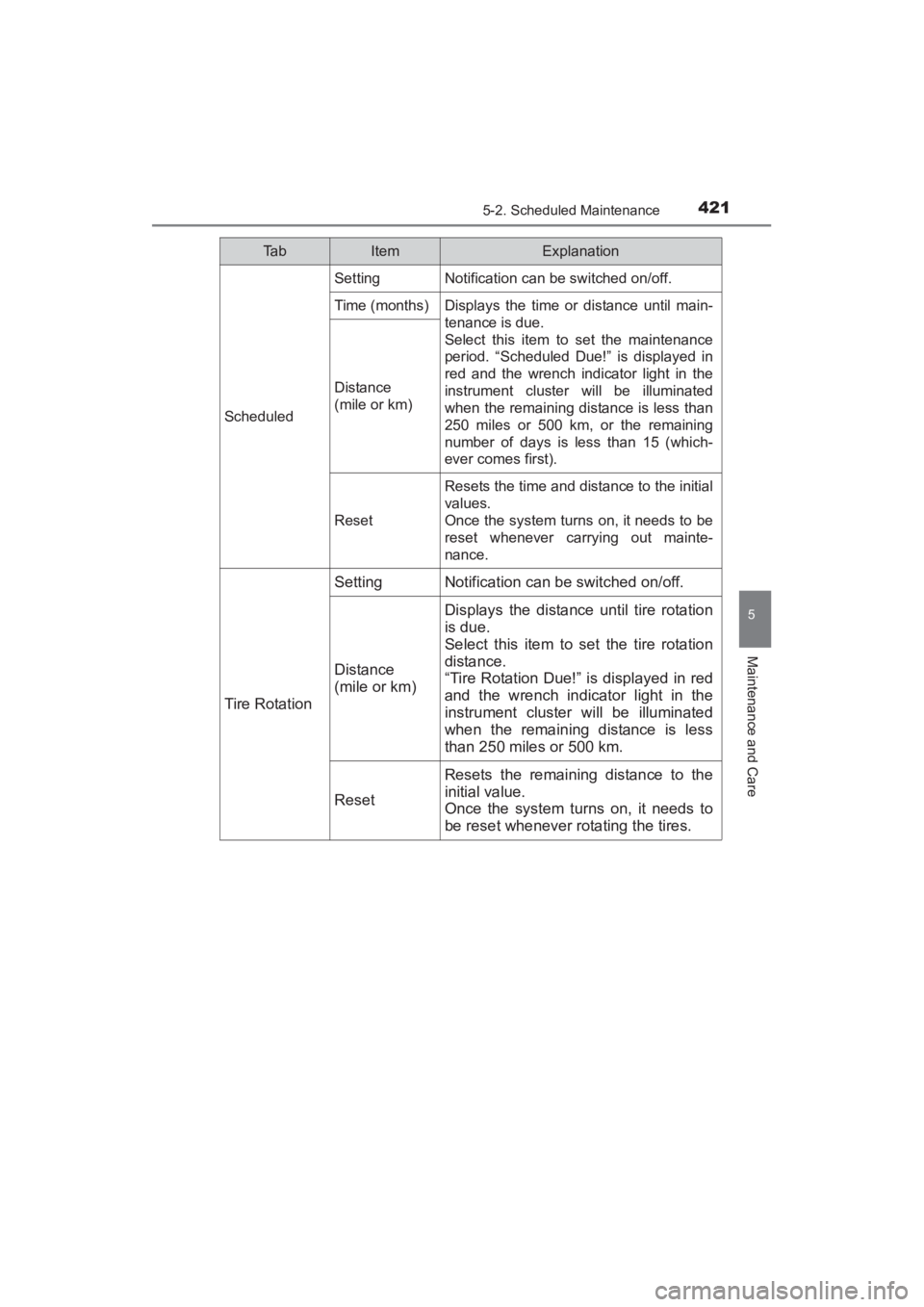

Ta bItemExplanation
Scheduled
SettingNotification can be switched on/off.
Time (months)Displays the time or distance until main-
tenance is due.
Select this item to set the maintenance
period. “Scheduled Due!” is displayed in
red and the wrench indicator light in the
instrument cluster will be illuminated
when the remaining distance is less than
250 miles or 500 km, or the remaining
number of days is less than 15 (which-
ever comes first).
Distance
(mile or km)
Reset
Resets the time and distance to the initial
values.
Once the system turns on, it needs to be
reset whenever carrying out mainte-
nance.
Tire Rotation
SettingNotification can be switched on/off.
Distance
(mile or km)
Displays the distance until tire rotation
is due.
Select this item to set the tire rotation
distance.
“Tire Rotation Due!” is displayed in red
and the wrench indicator light in the
instrument cluster will be illuminated
when the remaining distance is less
than 250 miles or 500 km.
Reset
Resets the remaining distance to the
initial value.
Once the system turns on, it needs to
be reset whenever rotating the tires.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 421 Monday, June 1, 2015 9:22 PM

4225-2. Scheduled Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)

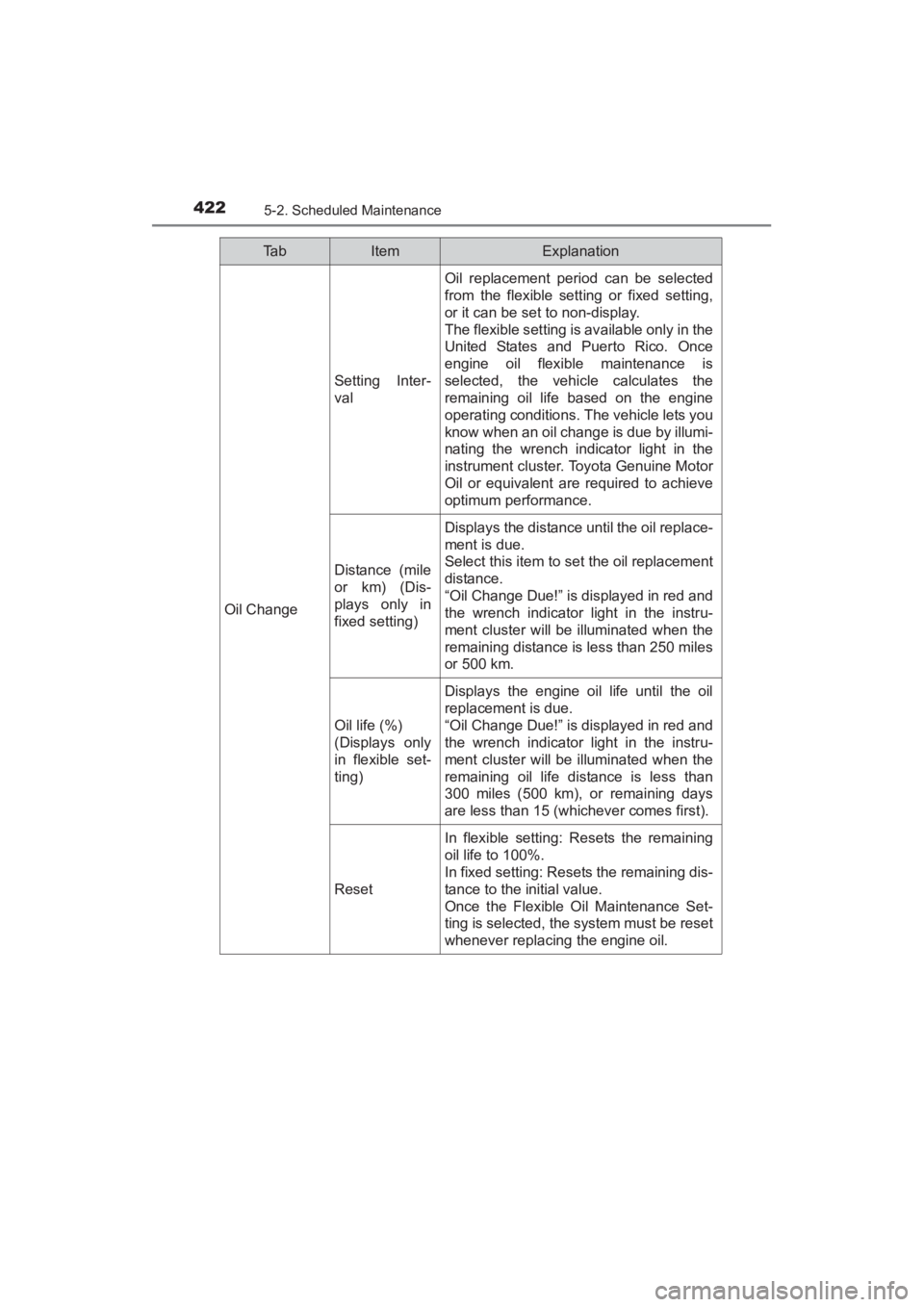

Oil Change
Setting Inter-
val
Oil replacement period can be selected
from the flexible setting or fixed setting,
or it can be set to non-display.
The flexible setting is available only in the
United States and Puerto Rico. Once
engine oil flexible maintenance is
selected, the vehicle calculates the
remaining oil life based on the engine
operating conditions. The vehicle lets you
know when an oil change is due by illumi-
nating the wrench indicator light in the
instrument cluster. Toyota Genuine Motor
Oil or equivalent are required to achieve
optimum performance.
Distance (mile
or km) (Dis-
plays only in
fixed setting)
Displays the distance until the oil replace-
ment is due.
Select this item to set the oil replacement
distance.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the instru-
ment cluster will be illuminated when the
remaining distance is less than 250 miles
or 500 km.
Oil life (%)
(Displays only
in flexible set-
ting)
Displays the engine oil life until the oil
replacement is due.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the instru-
ment cluster will be illuminated when the
remaining oil life distance is less than
300 miles (500 km), or remaining days
are less than 15 (whichever comes first).
Reset
In flexible setting: Resets the remaining
oil life to 100%.
In fixed setting: Resets the remaining dis-
tance to the initial value.
Once the Flexible Oil Maintenance Set-
ting is selected, the system must be reset
whenever replacing the engine oil.
Ta bItemExplanation
YARIS_SEDAN_OM_OM99M18z_(U).book Page 422 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4235-2. Scheduled Maintenance
5
Maintenance and Care
After replacing the engine oil, have a repair shop such as your Toyota
dealer perform the initialization (engine oil data resetting) of the
recorded value. If the value recorded by the computer is not initialized,
the wrench indicator light may not turn off or it may turn on earlier than
normal.
●This procedure is intended for vehicles with the engine oil flexible mainte-
nance setting selected.
● The initialization (engine oil data resetting) of the recorded value can be per-
formed using the following procedure:
Switch the ignition OFF.
Vehicle Engine Control Unit Reset Procedure
Switch the ignition ON with the selec-
tor pressed, and press and hold the
selector for about 5 seconds until the
master warning light flashes.
After the master warning light
flashes for several seconds, the ini-
tialization is completed.
1
2
3
Selector
YARIS_SEDAN_OM_OM99M18z_(U).book Page 423 Monday, June 1, 2015 9:22 PM

424
YARIS_SEDAN_OM_OM99M18z_(U)
5-3. Owner Maintenance
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and dependable
operation.
Bring any problem to the attention of your Toyota dealer or qualified
service technician as soon as possible.
■When Refueling
●Brake and clutch fluid level ( →P. 434)
● Engine coolant level ( →P. 431)
● Engine oil level ( →P. 430)
● Washer fluid level ( →P. 435)
■At Least Monthly
Tire inflation pressures ( →P. 446)
■At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have
some mechanical ability and a few basic tools and if you closely fol-
low the directions in this manual.
● Engine coolant ( →P. 431)
● Engine oil ( →P. 429)
Improper or incomplete service may result in problems. This sec-
tion gives instructions only for items that are easy to perform.
As explained in the Introduction ( →P. 418), several procedures can
be done only by a qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect
warranty coverage. Refer to Introduction ( →P. 418) for owner’s
responsibility in protecting your investment. For details, read the
separate Toyota Warranty and Maintenance Guide provided with
the vehicle. If you are unsure about any servicing or maintenance
procedure, have it done by your Toyota dealer.
There are strict environmental laws regarding the disposal of waste
oil and fluids. Please dispose of your waste properly and with due
regard to the environment.
We recommend that you entrust the oil and fluid changes of your
vehicle to your Toyota dealer.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 424 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4255-3. Owner Maintenance
5
Maintenance and Care

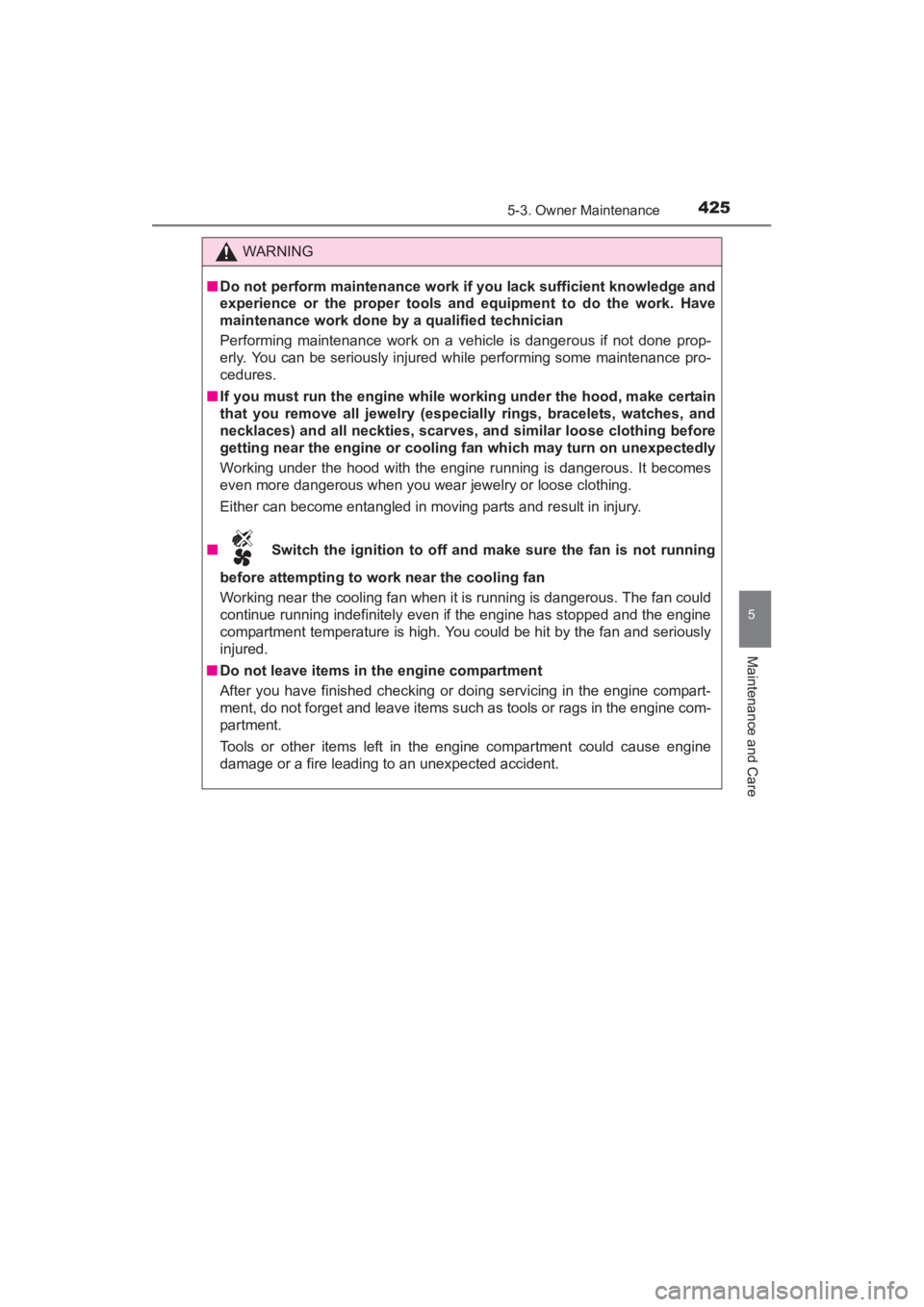

WARNING
■Do not perform maintenance work if you lack sufficient knowledge and
experience or the proper tools and equipment to do the work. Have
maintenance work done by a qualified technician
Performing maintenance work on a vehicle is dangerous if not done prop-
erly. You can be seriously injured while performing some maintenance pro-
cedures.
■ If you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and
necklaces) and all neckties, scarves, and similar loose clothing before
getting near the engine or cooling fan which may turn on unexpectedly
Working under the hood with the engine running is dangerous. It becomes
even more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
■ Switch the ignition to off and make sure the fan is not running
before attempting to work near the cooling fan
Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously
injured.
■ Do not leave items in the engine compartment
After you have finished checking or doing servicing in the engine compart-
ment, do not forget and leave items such as tools or rags in the engine com-
partment.
Tools or other items left in the engine compartment could cause engine
damage or a fire leading to an unexpected accident.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 425 Monday, June 1, 2015 9:22 PM

426
YARIS_SEDAN_OM_OM99M18z_(U)
5-3. Owner Maintenance

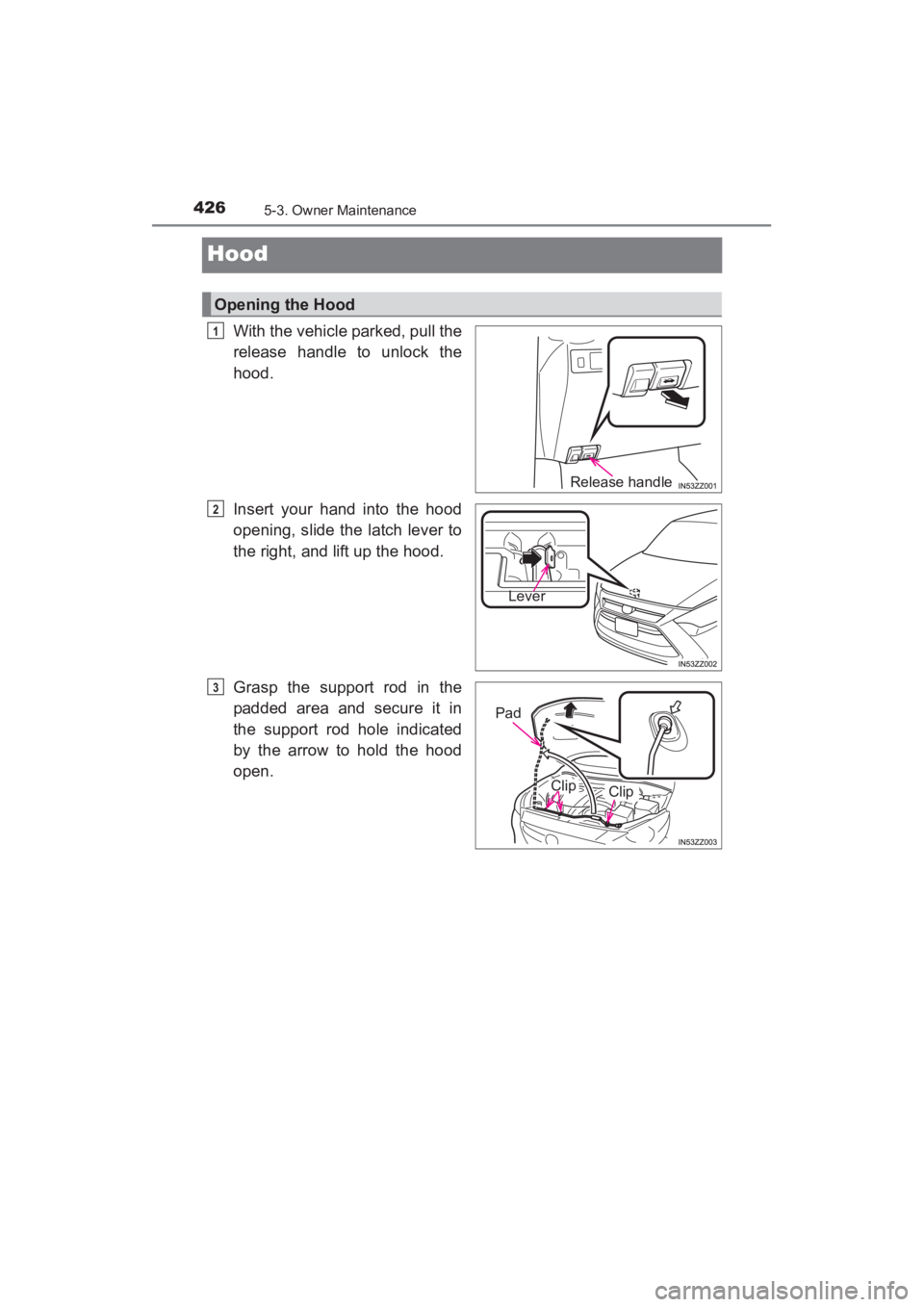

Hood
With the vehicle parked, pull the
release handle to unlock the
hood.
Insert your hand into the hood
opening, slide the latch lever to
the right, and lift up the hood.
Grasp the support rod in the
padded area and secure it in
the support rod hole indicated
by the arrow to hold the hood
open.
Opening the Hood
Release handle
1
Lever
2
Pad
ClipClip
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 426 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4275-3. Owner Maintenance
5
Maintenance and Care

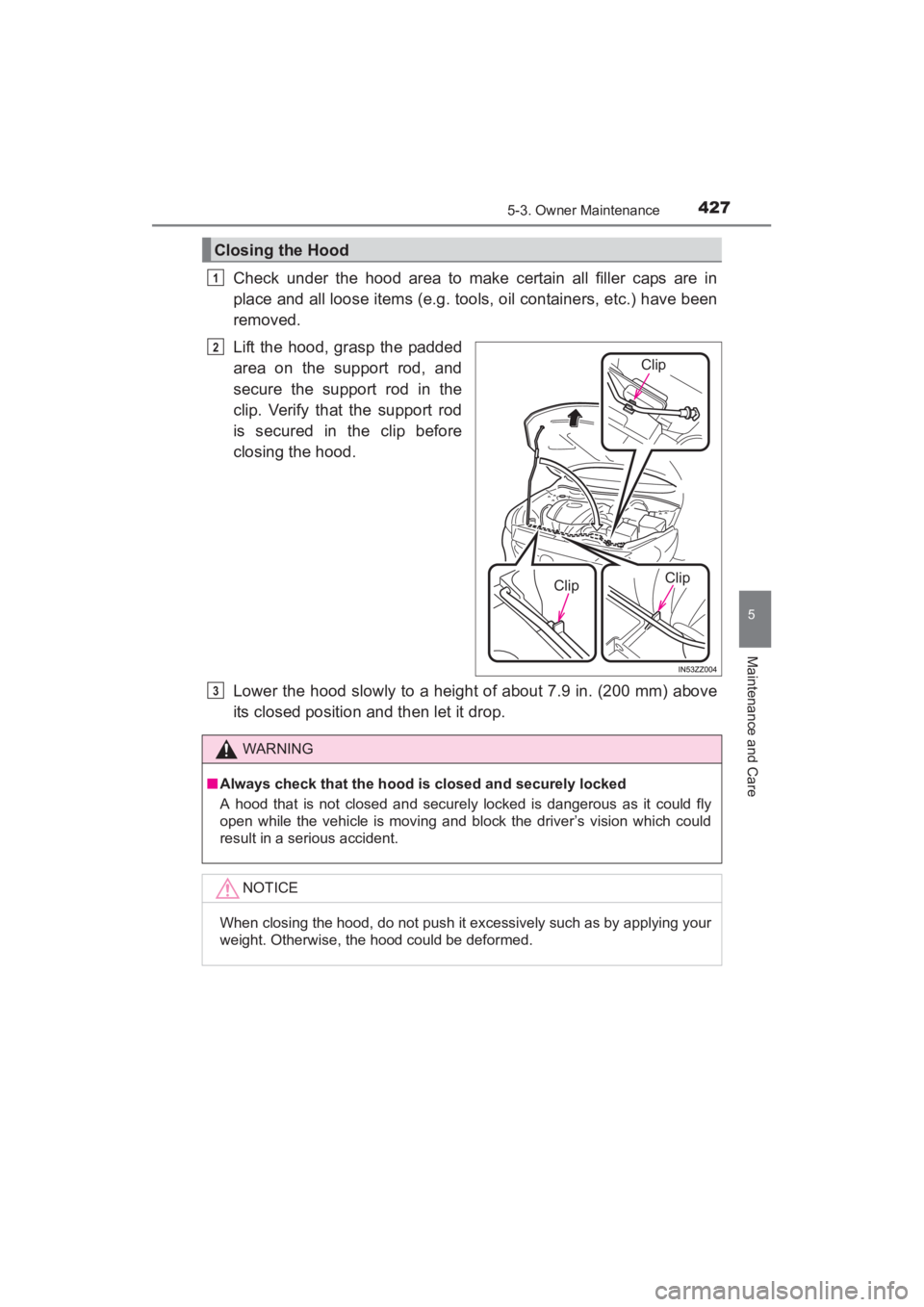

Check under the hood area to make certain all filler caps are in
place and all loose items (e.g. tools, oil containers, etc.) have been
removed.
Lift the hood, grasp the padded
area on the support rod, and
secure the support rod in the
clip. Verify that the support rod
is secured in the clip before
closing the hood.
Lower the hood slowly to a height of about 7.9 in. (200 mm) above
its closed position and then let it drop.
Closing the Hood
1
Clip
ClipClip
2
WARNING
■Always check that the hood is closed and securely locked
A hood that is not closed and securely locked is dangerous as it could fly
open while the vehicle is moving and block the driver’s vision which could
result in a serious accident.
NOTICE
When closing the hood, do not push it excessively such as by applying your
weight. Otherwise, the hood could be deformed.
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 427 Monday, June 1, 2015 9:22 PM

428
YARIS_SEDAN_OM_OM99M18z_(U)
5-3. Owner Maintenance

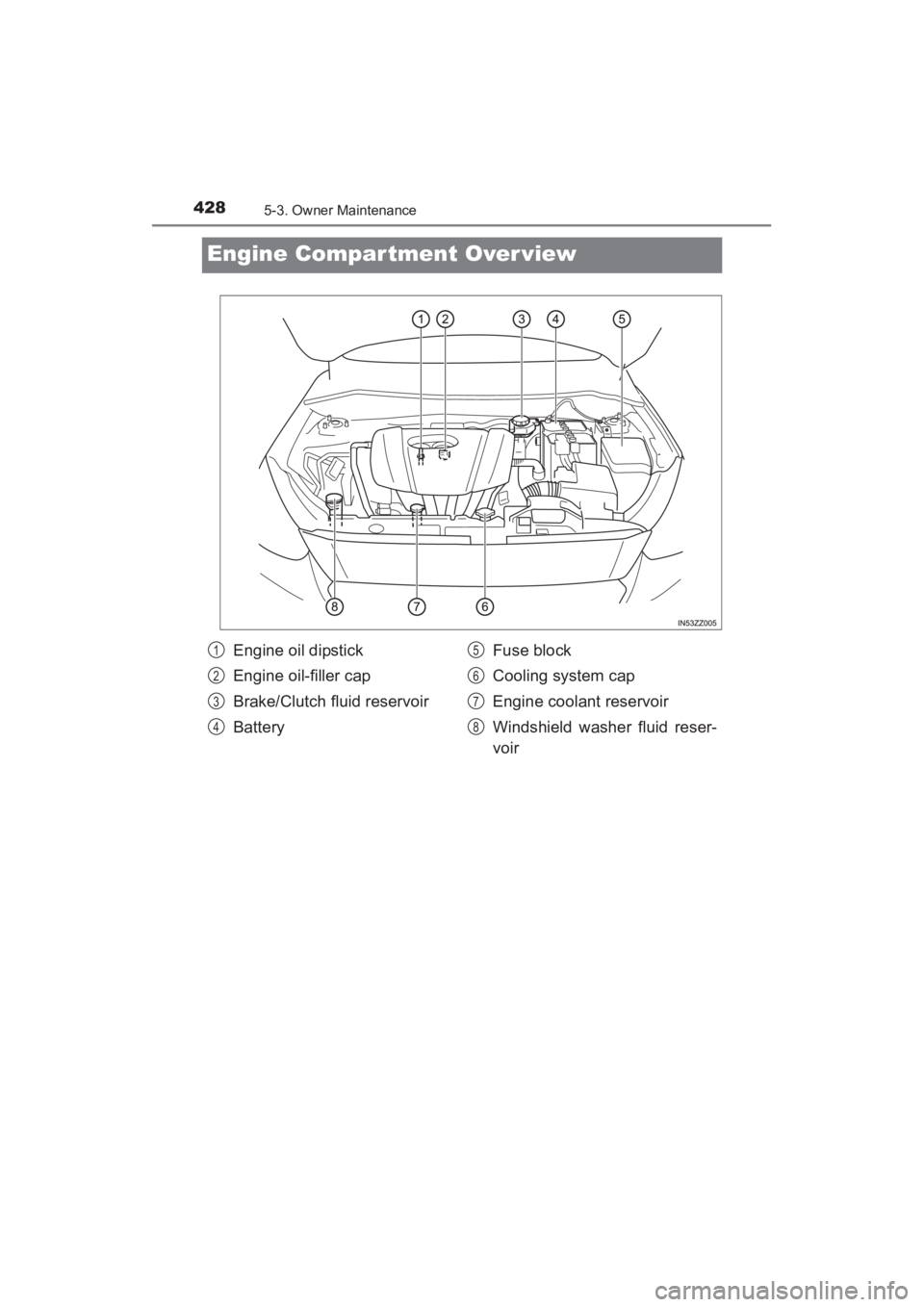

Engine Compartment Over view
Engine oil dipstick
Engine oil-filler cap
Brake/Clutch fluid reservoir
BatteryFuse block
Cooling system cap
Engine coolant reservoir
Windshield washer fluid reser-
voir1
2
3
4
5
6
7
8
YARIS_SEDAN_OM_OM99M18z_(U).book Page 428 Monday, June 1, 2015 9:22 PM
