TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
4495-3. Owner Maintenance
5
Maintenance and Care
Inspect the temporary spare tire at least monthly to make sure it is
properly inflated and stored.
The temporary spare tire is easier to handle because of its construc-
tion which is lighter and smaller than a conventional tire. This tire
should be used only for an emergency and only for a short distance.
Use the temporary spare tire only until the conventional tire is
repaired, which should be as soon as possible.
Refer to Tires on P. 570.
●The temporary spare tire condition gradually deteriorates even if it has
not been used.
●Tires degrade over time, even when they are not being used on the
road. It is recommended that tires generally be replaced when they are
6 years or older. Heat caused by hot climates or frequent high loading
conditions can accelerate the aging process. You should replace the
spare tire when you replace the other road tires due to the aging of the
spare tire. The period in which the tire was manufactured (both week
and year) is indicated by a 4-digit number.
Refer to Tire Labeling on P. 541.
WARNING
■Always use tires that are in good condition
Driving with worn tires is dangerous. Reduced braking, steering, and
traction could result in an accident.
■Replace all four tires at the same time
Replacing just one tire is dangerous. It could cause poor handling and
poor braking resulting in loss of vehicle control. Toyota strongly recom-
mends that you replace all four tires at the same time. If you replace
only two tires, the new tires should be installed on the rear of the vehi-
cle.
Temporary Spare Tire
YARIS_SEDAN_OM_OM99M18z_(U).book Page 449 Monday, June 1, 2015 9:22 PM

4505-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)

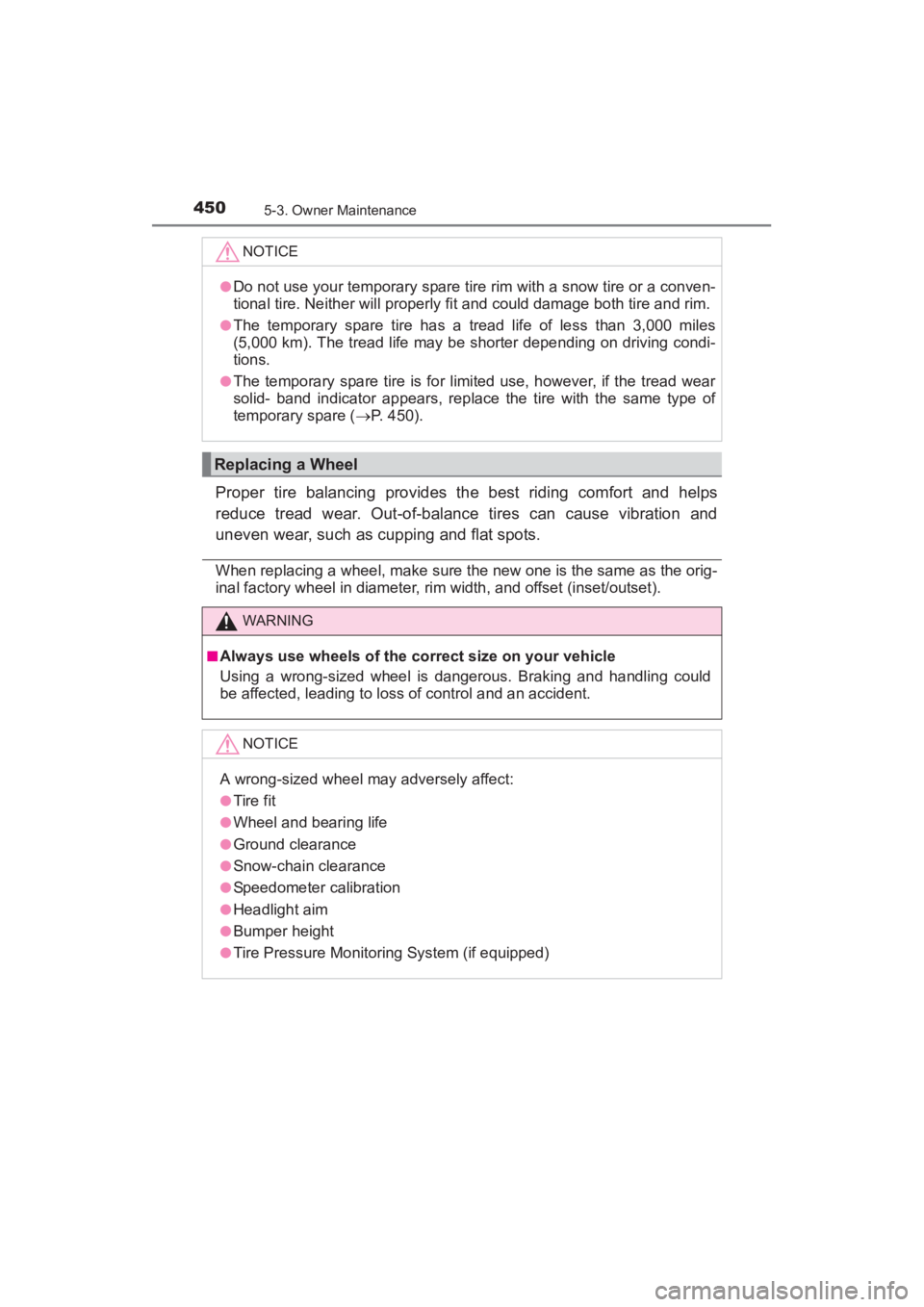

Proper tire balancing provides the best riding comfort and helps
reduce tread wear. Out-of-balance tires can cause vibration and
uneven wear, such as cupping and flat spots.
When replacing a wheel, make sure the new one is the same as the orig-
inal factory wheel in diameter, rim width, and offset (inset/outset).
NOTICE
●Do not use your temporary spare tire rim with a snow tire or a conven-
tional tire. Neither will properly fit and could damage both tire and rim.
●The temporary spare tire has a tread life of less than 3,000 miles
(5,000 km). The tread life may be shorter depending on driving condi-
tions.
●The temporary spare tire is for limited use, however, if the tread wear
solid- band indicator appears, replace the tire with the same type of
temporary spare (→P. 450).
Replacing a Wheel
WARNING
■Always use wheels of the correct size on your vehicle
Using a wrong-sized wheel is dangerous. Braking and handling could
be affected, leading to loss of control and an accident.
NOTICE
A wrong-sized wheel may adversely affect:
●Tire fit
●Wheel and bearing life
●Ground clearance
●Snow-chain clearance
●Speedometer calibration
●Headlight aim
●Bumper height
●Tire Pressure Monitoring System (if equipped)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 450 Monday, June 1, 2015 9:22 PM

451
YARIS_SEDAN_OM_OM99M18z_(U)
5-3. Owner Maintenance
5
Maintenance and Care

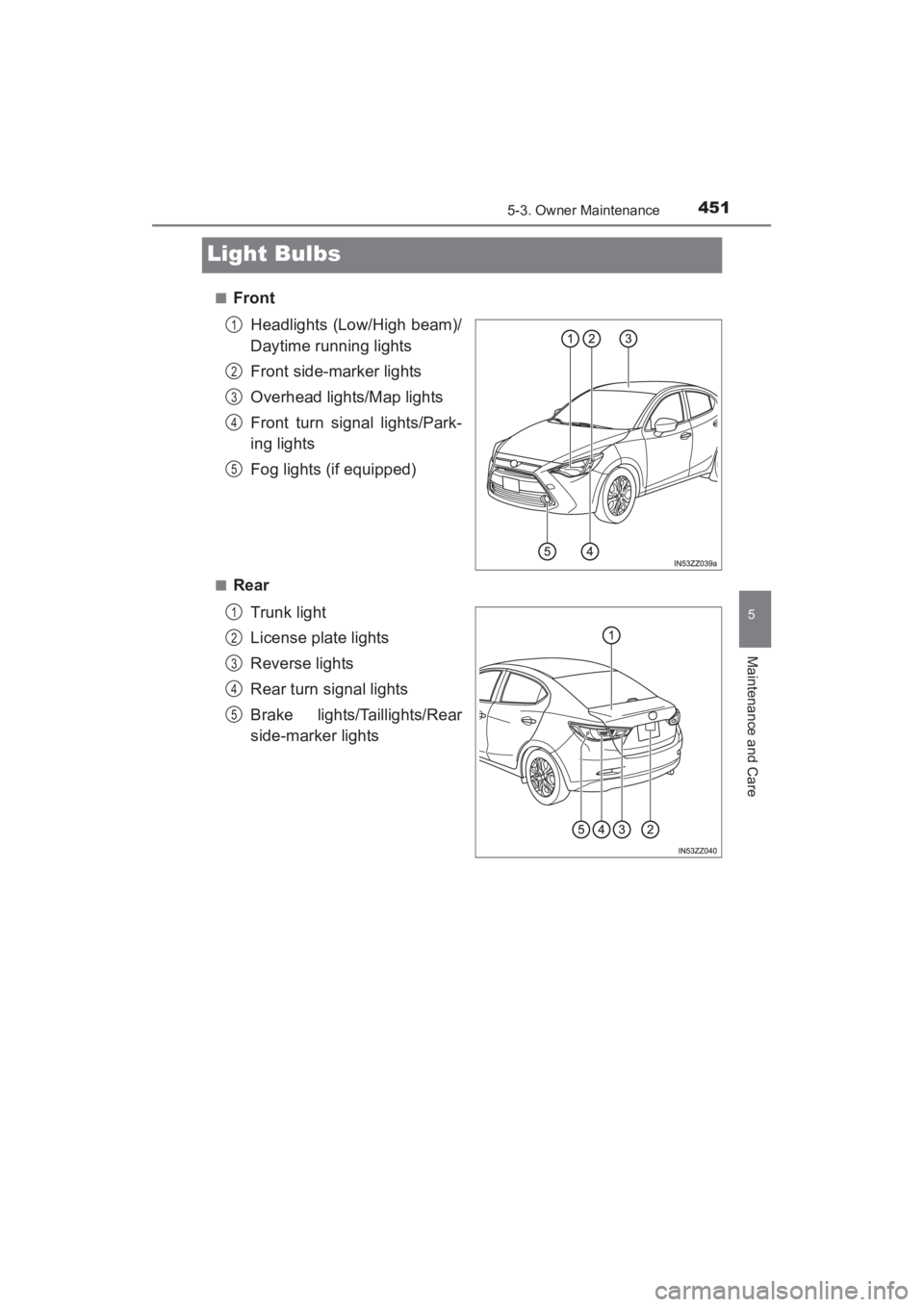

Light Bulbs
■FrontHeadlights (Low/High beam)/
Daytime running lights
Front side-marker lights
Overhead lights/Map lights
Front turn signal lights/Park-
ing lights
Fog lights (if equipped)
■Rear
Trunk light
License plate lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights/Rear
side-marker lights
1
2
3
4
5
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 451 Monday, June 1, 2015 9:22 PM

4525-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)■

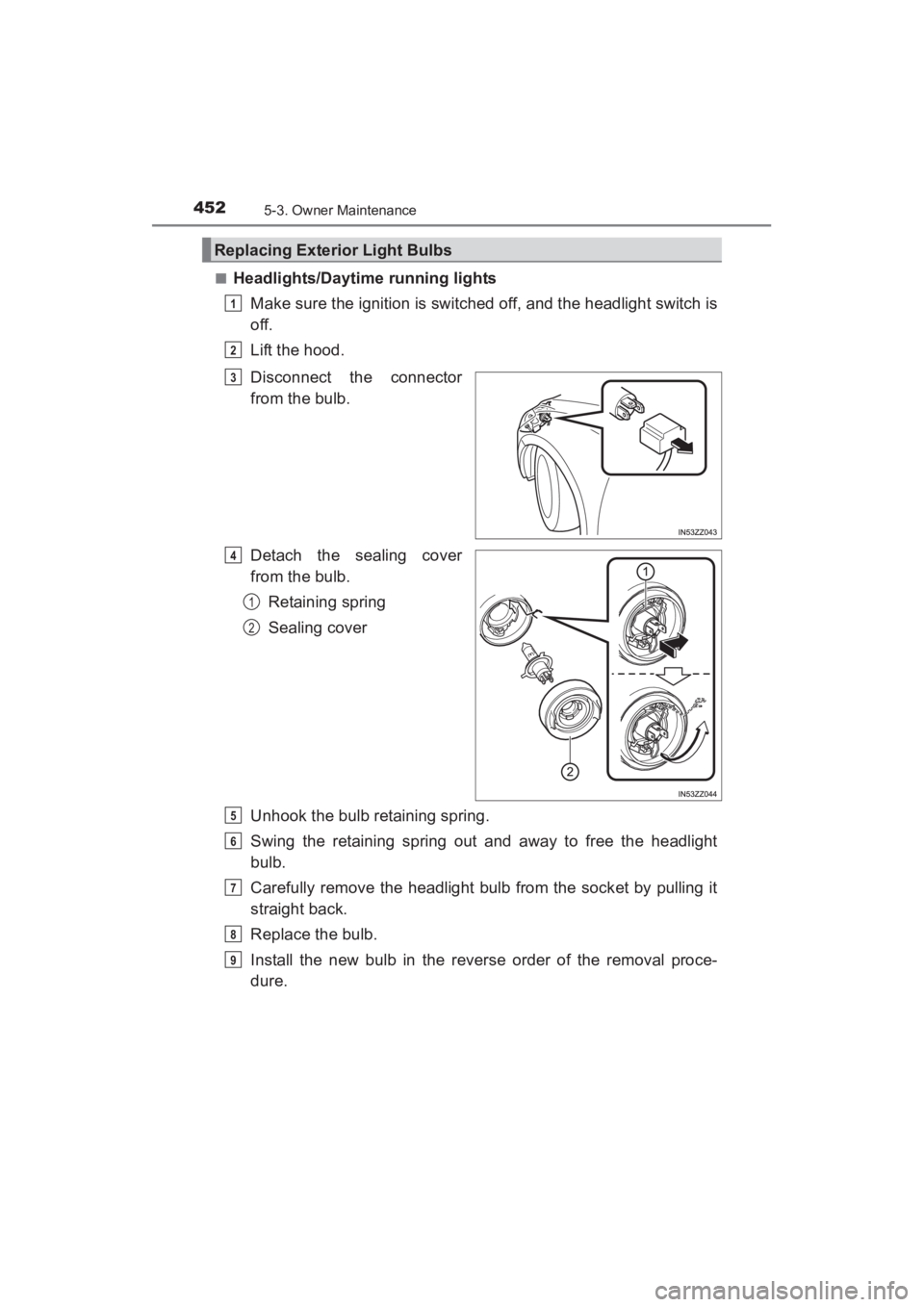

Headlights/Daytime running lights
Make sure the ignition is switched off, and the headlight switch is
off.
Lift the hood.
Disconnect the connector
from the bulb.
Detach the sealing cover
from the bulb. Retaining spring
Sealing cover
Unhook the bulb retaining spring.
Swing the retaining spring out and away to free the headlight
bulb.
Carefully remove the headlight bulb from the socket by pulling it
straight back.
Replace the bulb.
Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Exterior Light Bulbs
1
2
3
4
1
2
5
6
7
8
9
YARIS_SEDAN_OM_OM99M18z_(U).book Page 452 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4535-3. Owner Maintenance
5
Maintenance and Care

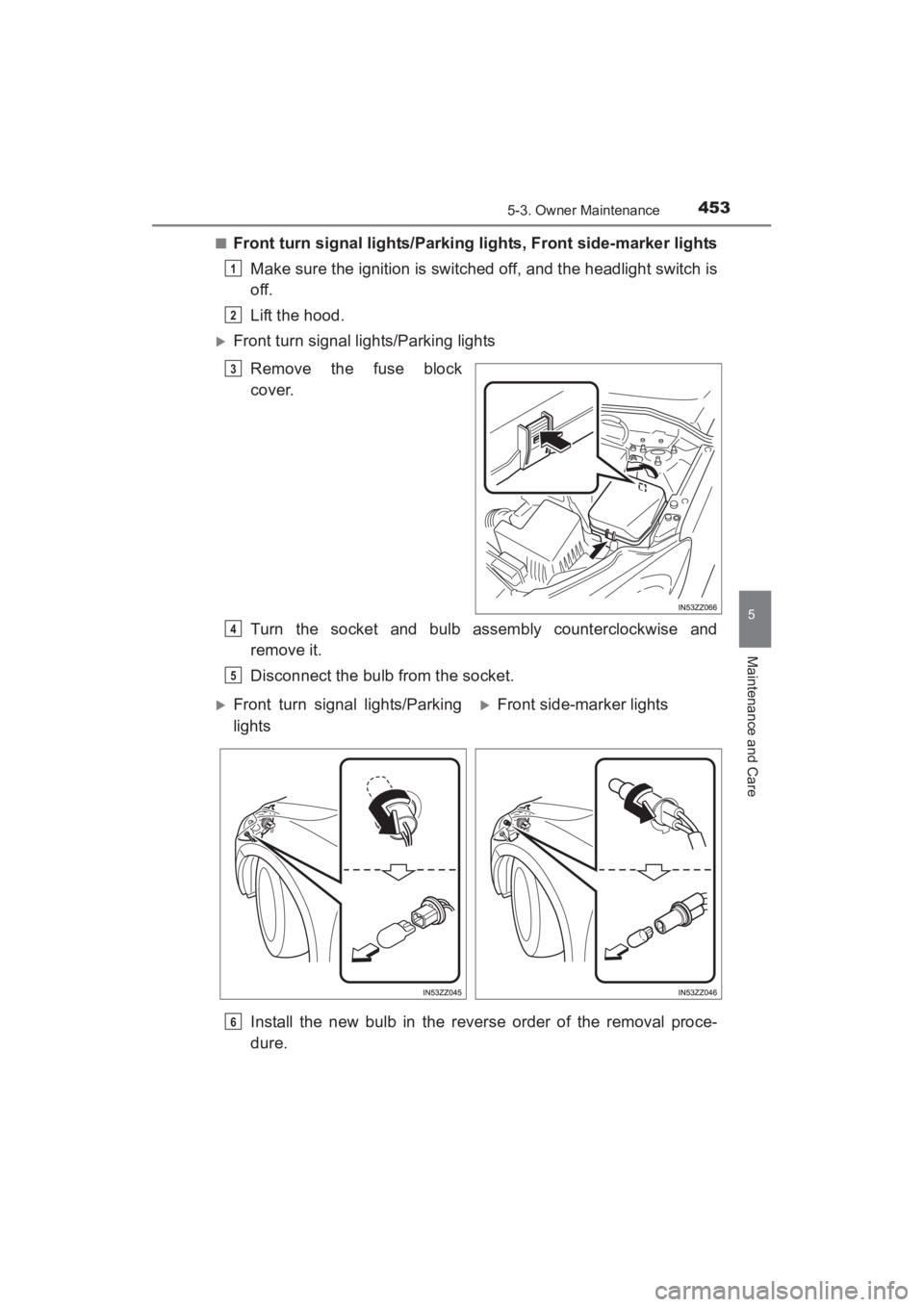

■Front turn signal lights/Parking lights, Front side-marker lightsMake sure the ignition is switched off, and the headlight switch is
off.
Lift the hood.
XFront turn signal lights/Parking lights
Remove the fuse block
cover.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
Install the new bulb in the reverse order of the removal proce-
dure.
1
2
3
4
5
XFront turn signal lights/Parking
lightsXFront side-marker lights
6
YARIS_SEDAN_OM_OM99M18z_(U).book Page 453 Monday, June 1, 2015 9:22 PM

4545-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)■

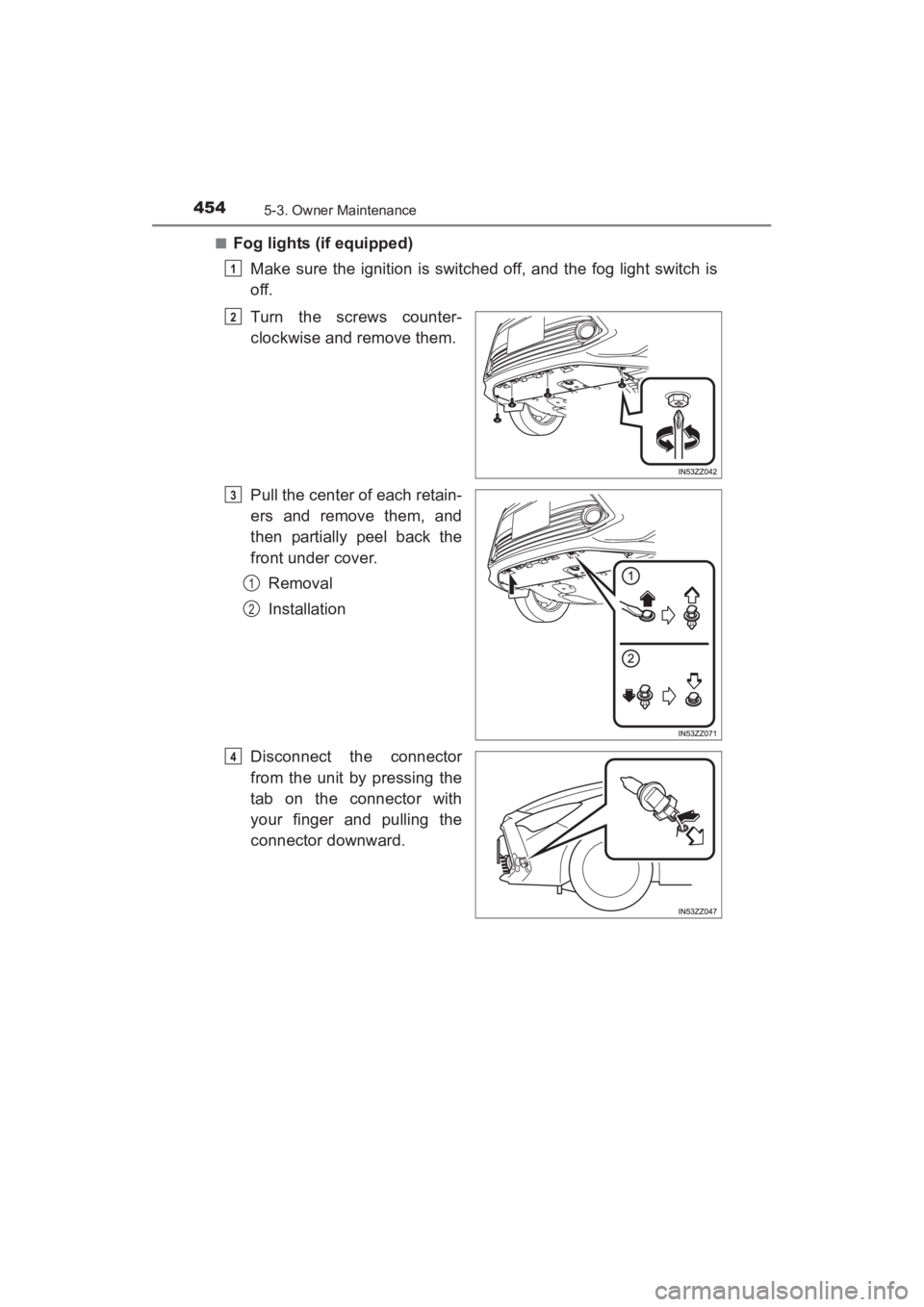

Fog lights (if equipped)
Make sure the ignition is switched off, and the fog light switch is
off.
Turn the screws counter-
clockwise and remove them.
Pull the center of each retain-
ers and remove them, and
then partially peel back the
front under cover. Removal
Installation
Disconnect the connector
from the unit by pressing the
tab on the connector with
your finger and pulling the
connector downward.
1
2
3
1
2
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 454 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4555-3. Owner Maintenance
5
Maintenance and Care

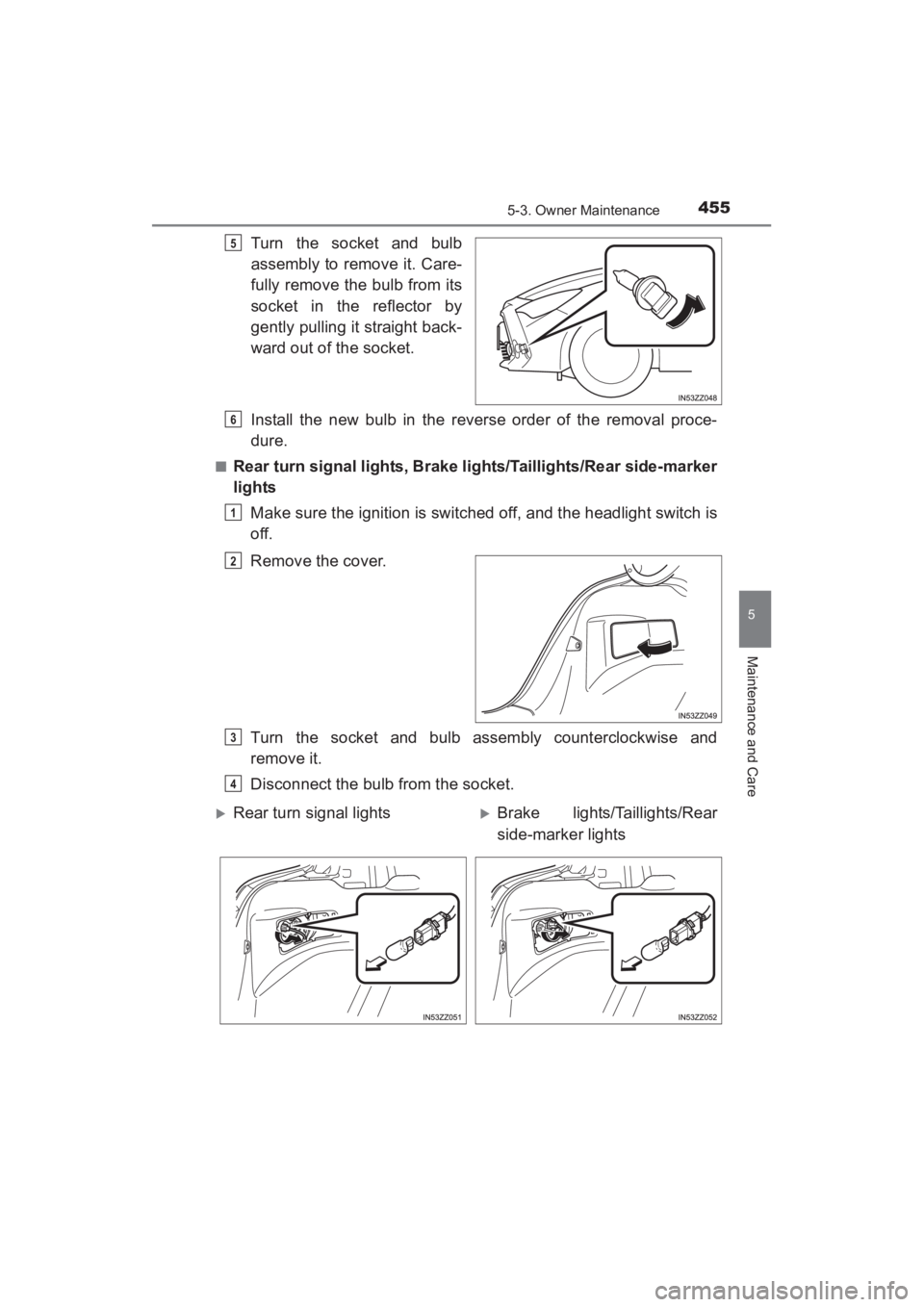

Turn the socket and bulb
assembly to remove it. Care-
fully remove the bulb from its
socket in the reflector by
gently pulling it straight back-
ward out of the socket.
Install the new bulb in the reverse order of the removal proce-
dure.
■Rear turn signal lights, Brake lights/Taillights/Rear side-marker
lightsMake sure the ignition is switched off, and the headlight switch is
off.
Remove the cover.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
5
6
1
2
3
4
XRear turn signal lightsXBrake lights/Taillights/Rear
side-marker lights
YARIS_SEDAN_OM_OM99M18z_(U).book Page 455 Monday, June 1, 2015 9:22 PM

4565-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)
Install the new bulb in the reverse order of the removal proce-
dure.
Verify that the cover is securely installed.
Insert the cover tabs and install the cover.
■Reverse lightsMake sure the ignition is switched off, and the headlight switch is
off.
Pull the center of each plastic retainers and remove them.
Remove the trunk lid trim.
Removal
Installation
Disconnect the electrical
connector from the bulb by
pressing the tab on the con-
nector with your finger and
pulling the connector.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
5
6
1
2
3
1
2
4
5
6
7
YARIS_SEDAN_OM_OM99M18z_(U).book Page 456 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4575-3. Owner Maintenance
5
Maintenance and Care
■License plate lightsMake sure the ignition is switched off, and the headlight switch is
off.
Pull the center of each plastic retainers and remove them.
Remove the trunk lid trim. Removal
Installation
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
■Side turn signal lights (if equipped), High-mount brake light
The LED bulb cannot be replaced as a single unit because it is an
integrated unit. The LED bulb has to be replaced with the unit. We
recommend your Toyota dealer when the replacement is necessary.
■ Replacing Exterior Light Bulbs
●To replace the bulb, contact your Toyota dealer.
● If the halogen bulb is accidentally touc hed, it should be cleaned with rubbing
alcohol before being used.
● Use the protective cover and carton of the replacement bulb to dispose of
the old bulb promptly out of the reach of children.
● When reinstalling the sealing cover, make sure it is fitted correctly.
1
2
3
1
2
4
5
6
YARIS_SEDAN_OM_OM99M18z_(U).book Page 457 Monday, June 1, 2015 9:22 PM

4585-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)■

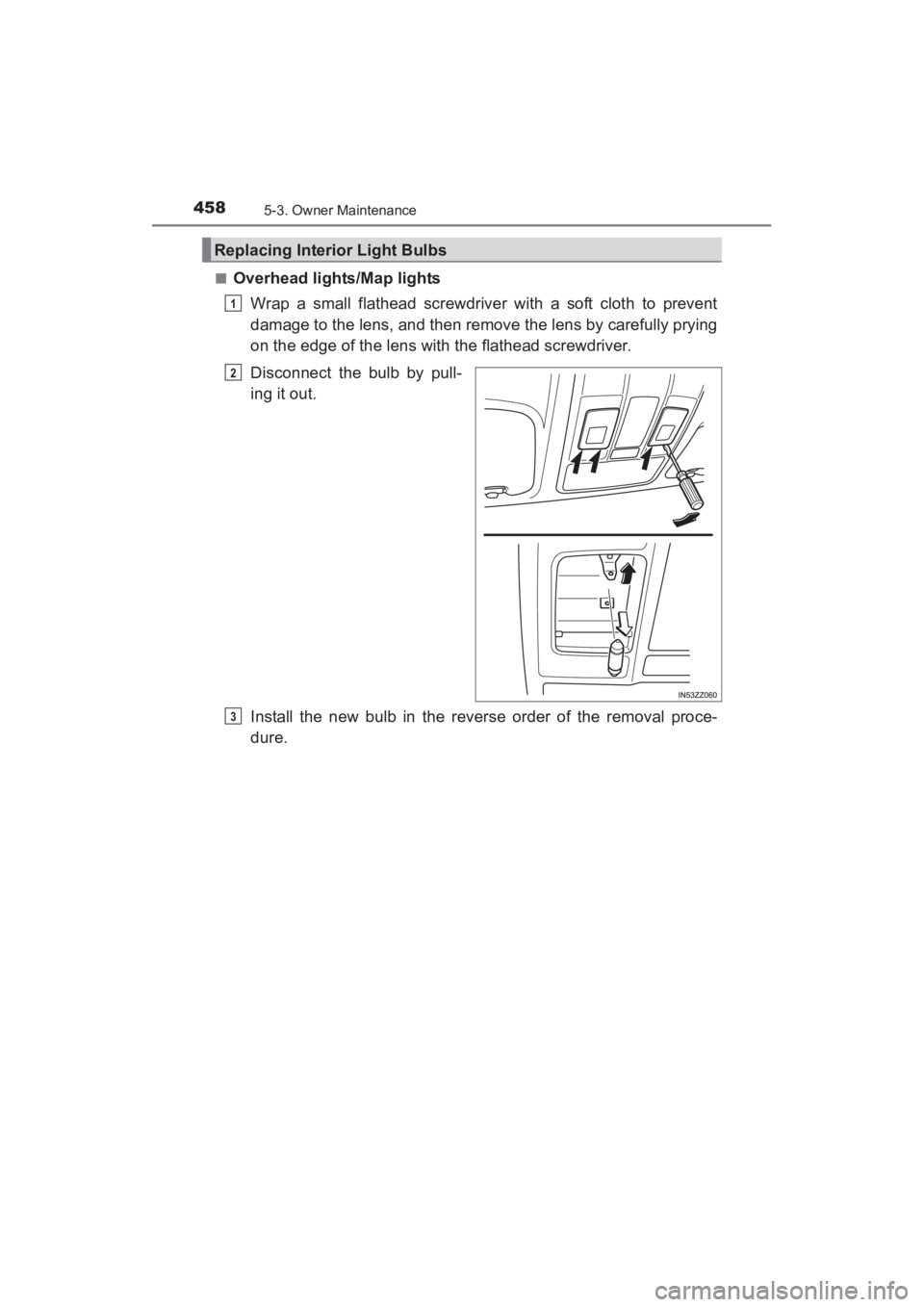

Overhead lights/Map lights
Wrap a small flathead screwdriver with a soft cloth to prevent
damage to the lens, and then remove the lens by carefully prying
on the edge of the lens with the flathead screwdriver.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Interior Light Bulbs
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 458 Monday, June 1, 2015 9:22 PM
