TOYOTA YARIS 2016 Service Manual

39
YARIS_SEDAN_OM_OM99M18z_(U)
1-2. Seat Belt Systems
1
Essential Safety Equipment
Seat Belt Extender
This extender will be only for you and for the particular vehicle and
seat. Even if it plugs into other seat belts, it may not hold in the critical
moment of a crash.
When ordering an extender, only order one that provides the neces-
sary additional length to fasten the seat belt properly.
Please contact your Toyota Dealer for more information.
When not in use, remove the seat belt extender and store it in the vehicle. If
the seat belt extender is left connected, the seat belt extender might get dam-
aged as it will not retract with the rest of the seat belt and can easily fall out of
the door when not in use and be damaged. In addition, the seat belt warning
light will not illuminate and function properly.
If your seat belt is not long enough, even when fully extended, a
seat belt extender may be available to you at no charge from
your Toyota Dealer.
WARNING
■Do not use a seat belt extender unless it is necessary
Using a seat belt extender when not necessary is dangerous. The seat belt
will be too long and not fit properly. In an accident, the seat belt will not pro-
vide adequate protection and you could be seriously injured. Only use the
extender when it is required to fasten the seat belt properly.
■ Do not use an improper extender
Using a seat belt extender that is for another person or a different vehicle or
seat is dangerous. The seat belt will not provide adequate protection and
the user could be seriously injured in an accident. Only use the extender
provided for you and for the particular vehicle and seat. NEVER use the
extender in a different vehicle or seat. If you sell your Toyota, do not leave
your seat belt extender in the vehicle. It could be used accidentally by the
new owner of the vehicle. After removing the seat belt extender, discard it.
Never use the seat belt extender in any other vehicle you may own in the
future.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 39 Monday, June 1, 2015 9:22 PM

40
YARIS_SEDAN_OM_OM99M18z_(U)
1-2. Seat Belt Systems
WARNING
■Do not use an extender that is too long
Using an extender that is too long is dangerous. The seat belt will not fit
properly. In an accident, the seat belt will not provide adequate protection
and you could be seriously injured. Do not use the extender or choose one
shorter in length if the distance between the extender’s buckle and the cen-
ter of the user’s body is less than 6 in. (150 mm).
■ Do not leave a seat belt extender connected to the buckle
Leaving a seat belt extender connected to the buckle without using the seat
belt is dangerous. When the seat belt extender is connected to the driver’s
seat belt buckle (or front passenger’s seat belt buckle), the SRS driver’s (or
front passenger’s) air bag system will determine that the driver (or front pas-
senger) is wearing the seat belt even if the driver (or front passenger) is not
wearing it. This condition could cause the driver’s (or front passenger’s) air
bag to not activate correctly and result in death or serious injury in the event
of collision. Always wear the seat belt with the seat belt extender.
■ Do not use the seat belt extender wh en installing a child-restraint sys-
tem on the front or rear passenger seat
Using a seat belt extender to fasten a child-restraint system on any seat is
dangerous. Always follow the child-restraint system manufacturer’s installa-
tion instructions and never use a seat belt extender.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 40 Monday, June 1, 2015 9:22 PM

41
YARIS_SEDAN_OM_OM99M18z_(U)
1-3. Child Restraint
1
Essential Safety Equipment
Child-Restraint Precautions
Whatever child-restraint system you consider, please pick the appro-
priate one for the age and size of the child, obey the law and follow
the instructions that come with the individual child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear
and use seat belts, both lap and shoulder. If the shoulder belt crosses
the neck or face, move the child closer to the center of the vehicle in
the outboard seats, and towards the buckle on the right if the child is
seated on the center seat.
Statistics confirm that the rear seat is the best place for all children up
to 12 years of age, and more so with a supplemental restraint system
(air bags).
A rear-facing child-restraint system should NEVER be used on the
front seat with the air bag system activated. The front passenger’s
seat is also the least preferred seat for other child-restraint systems.
To reduce the chance of injuries caused by deployment of the front
passenger air bag, the front passenger occupant classification sensor
works as a part of the supplemental restraint system. This system
deactivates the front passenger front and side air bags and also the
front passenger seat belt pretensioner system when the front passen-
ger air bag deactivation indicator light illuminates.
When an infant or small child sits on the front passenger seat, the sys-
tem shuts off the front passenger front and side air bags and seat belt
pretensioner system, so make sure the front passenger air bag deac-
tivation indicator light illuminates.
Toyota strongly urges the use of child-restraint systems for chil-
dren small enough to use them.
You are required by law to use a child-restraint system for chil-
dren in the U.S. and Canada.
Check your local and state or provincial laws for specific
requirements regarding the safety of children riding in your
vehicle.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 41 Monday, June 1, 2015 9:22 PM

42
YARIS_SEDAN_OM_OM99M18z_(U)
1-3. Child Restraint
Even if the front passenger air bag is shut off, Toyota strongly recom-
mends that children be properly restrained and child-restraint systems
of all kinds are properly secured on the rear seats which are the best
place for children.
For more details, refer to “Front passenger occupant classification
sensor” (→P. 7 8 ) .
Your Toyota is equipped with LATCH lower anchors for attachment of spe-
cially designed LATCH child-restraint systems in the rear seats. When using
these anchors to secure a child-restraint system, refer to “Using LATCH
Lower Anchor” ( →P. 57).
WARNING

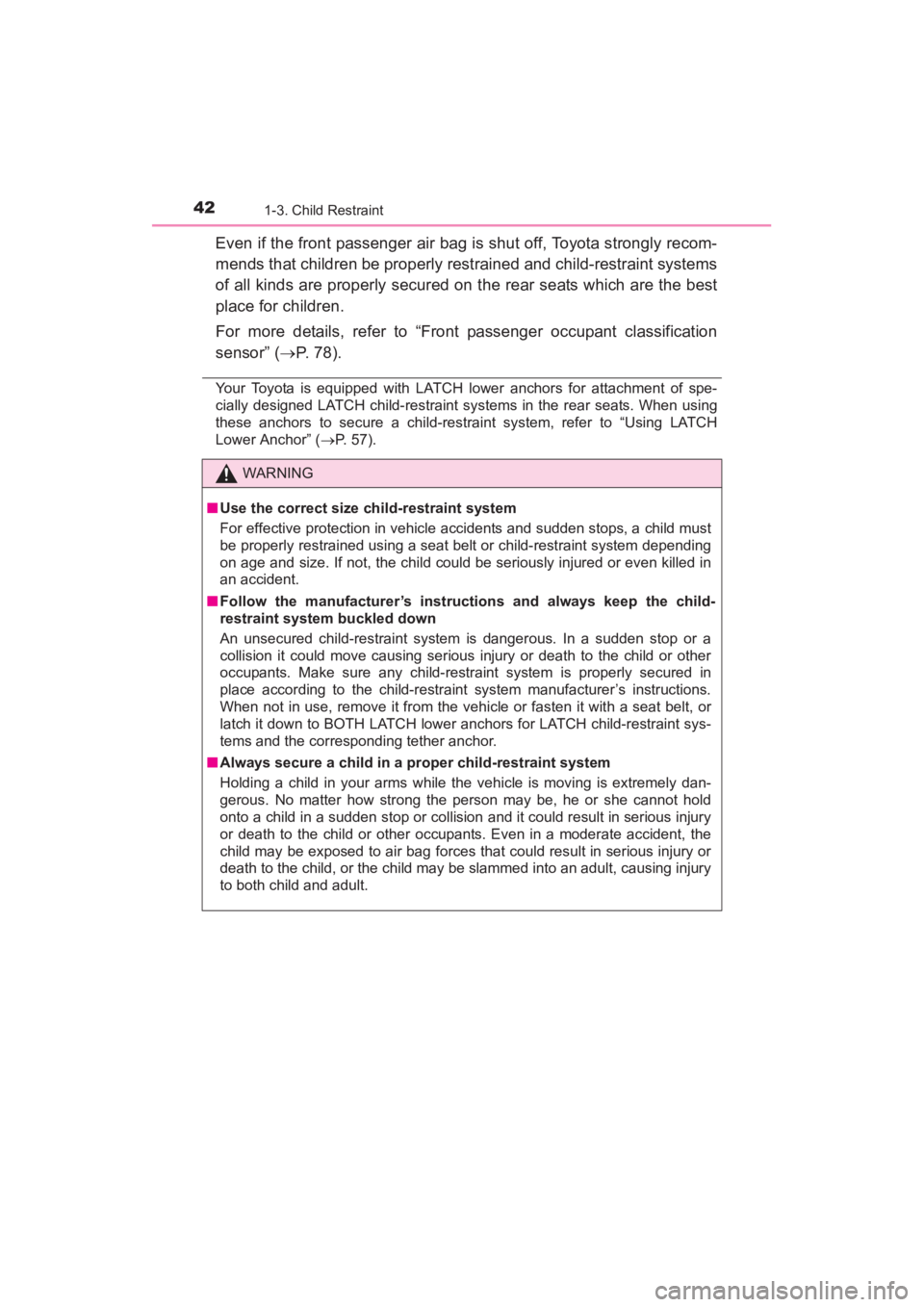

■Use the correct size child-restraint system
For effective protection in vehicle accidents and sudden stops, a child must
be properly restrained using a seat belt or child-restraint system depending
on age and size. If not, the child could be seriously injured or even killed in
an accident.
■ Follow the manufacturer’s instruct ions and always keep the child-
restraint system buckled down
An unsecured child-restraint system is dangerous. In a sudden stop or a
collision it could move causing serious injury or death to the child or other
occupants. Make sure any child-restraint system is properly secured in
place according to the child-restraint system manufacturer’s instructions.
When not in use, remove it from the vehicle or fasten it with a seat belt, or
latch it down to BOTH LATCH lower anchors for LATCH child-restraint sys-
tems and the corresponding tether anchor.
■ Always secure a child in a proper child-restraint system
Holding a child in your arms while the vehicle is moving is extremely dan-
gerous. No matter how strong the person may be, he or she cannot hold
onto a child in a sudden stop or collision and it could result in serious injury
or death to the child or other occupants. Even in a moderate accident, the
child may be exposed to air bag forces that could result in serious injury or
death to the child, or the child may be slammed into an adult, causing injury
to both child and adult.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 42 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
431-3. Child Restraint
1
Essential Safety Equipment
WARNING

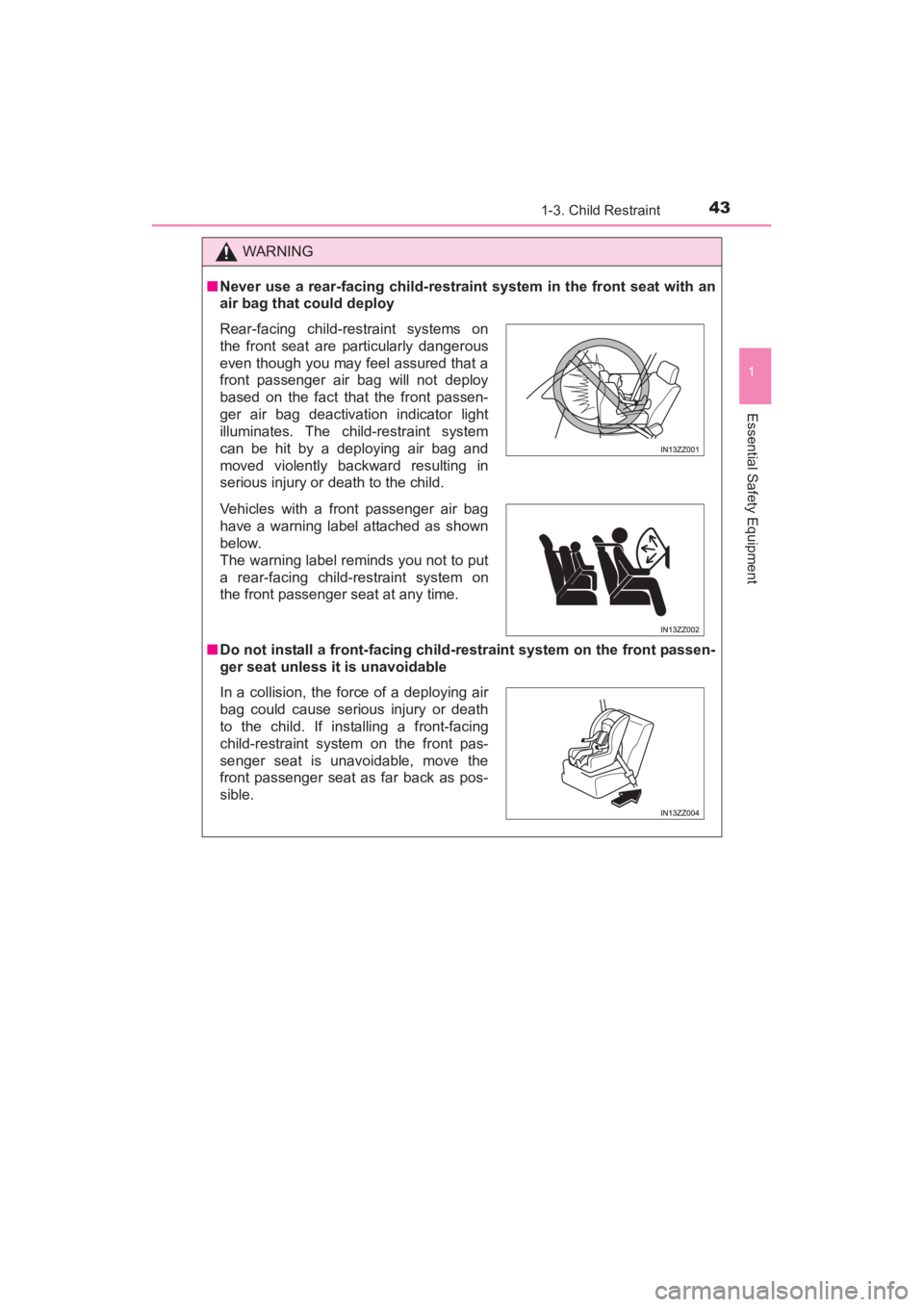

■Never use a rear-facing child-restrain t system in the front seat with an
air bag that could deploy
■ Do not install a front-facing child-restraint system on the front passen-
ger seat unless it is unavoidable
Rear-facing child-restraint systems on
the front seat are particularly dangerous
even though you may feel assured that a
front passenger air bag will not deploy
based on the fact that the front passen-
ger air bag deactivation indicator light
illuminates. The child-restraint system
can be hit by a deploying air bag and
moved violently backward resulting in
serious injury or death to the child.
Vehicles with a front passenger air bag
have a warning label attached as shown
below.
The warning label reminds you not to put
a rear-facing child-restraint system on
the front passenger seat at any time.
In a collision, the force of a deploying air
bag could cause serious injury or death
to the child. If installing a front-facing
child-restraint system on the front pas-
senger seat is unavoidable, move the
front passenger seat as far back as pos-
sible.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 43 Monday, June 1, 2015 9:22 PM

44
YARIS_SEDAN_OM_OM99M18z_(U)
1-3. Child Restraint
WARNING

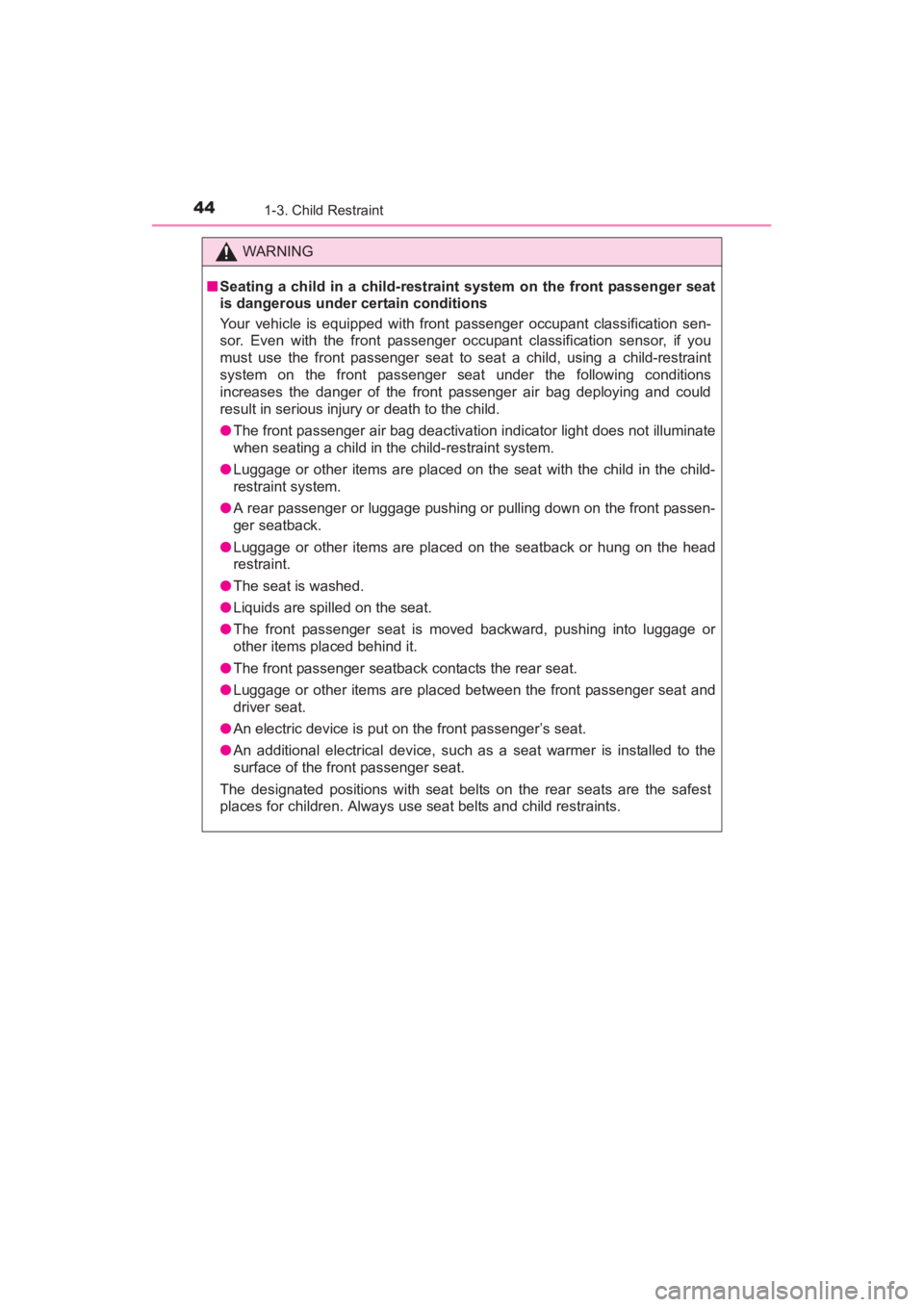

■Seating a child in a ch ild-restraint system on the front passenger seat
is dangerous under certain conditions
Your vehicle is equipped with front passenger occupant classification sen-
sor. Even with the front passenger occupant classification sensor, if you
must use the front passenger seat to seat a child, using a child-restraint
system on the front passenger seat under the following conditions
increases the danger of the front passenger air bag deploying and could
result in serious injury or death to the child.
● The front passenger air bag deactivation indicator light does not illuminate
when seating a child in the child-restraint system.
● Luggage or other items are placed on the seat with the child in the child-
restraint system.
● A rear passenger or luggage pushing or pulling down on the front passen-
ger seatback.
● Luggage or other items are placed on the seatback or hung on the head
restraint.
● The seat is washed.
● Liquids are spilled on the seat.
● The front passenger seat is moved backward, pushing into luggage or
other items placed behind it.
● The front passenger seatback contacts the rear seat.
● Luggage or other items are placed between the front passenger seat and
driver seat.
● An electric device is put on the front passenger’s seat.
● An additional electrical device, such as a seat warmer is installed to the
surface of the front passenger seat.
The designated positions with seat belts on the rear seats are the safest
places for children. Always use seat belts and child restraints.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 44 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
451-3. Child Restraint
1
Essential Safety Equipment
WARNING

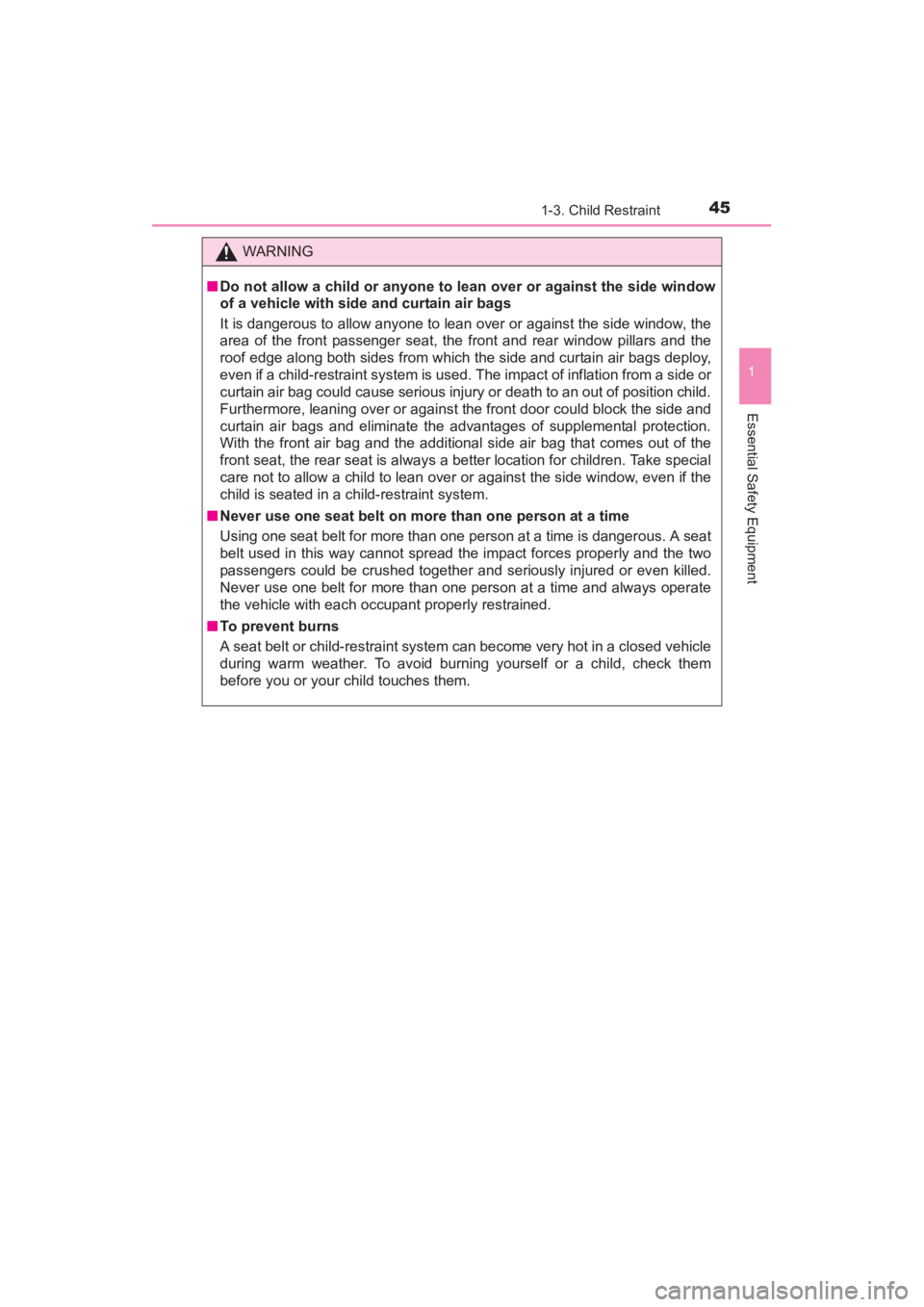

■Do not allow a child or anyone to lean over or against the side window
of a vehicle with side and curtain air bags
It is dangerous to allow anyone to lean over or against the side window, the
area of the front passenger seat, the front and rear window pillars and the
roof edge along both sides from which the side and curtain air bags deploy,
even if a child-restraint system is used. The impact of inflation from a side or
curtain air bag could cause serious injury or death to an out of position child.
Furthermore, leaning over or against t he front door could block the side and
curtain air bags and eliminate the advantages of supplemental protection.
With the front air bag and the additional side air bag that comes out of the
front seat, the rear seat is always a better location for children. Take special
care not to allow a child to lean over or against the side window, even if the
child is seated in a child-restraint system.
■ Never use one seat belt on more than one person at a time
Using one seat belt for more than one person at a time is dangerous. A seat
belt used in this way cannot spread the impact forces properly and the two
passengers could be crushed together and seriously injured or even killed.
Never use one belt for more than one person at a time and always operate
the vehicle with each occupant properly restrained.
■ To prevent burns
A seat belt or child-restraint system can become very hot in a closed vehicle
during warm weather. To avoid burning yourself or a child, check them
before you or your child touches them.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 45 Monday, June 1, 2015 9:22 PM

46
YARIS_SEDAN_OM_OM99M18z_(U)
1-3. Child Restraint
Child-Restraint System Installation

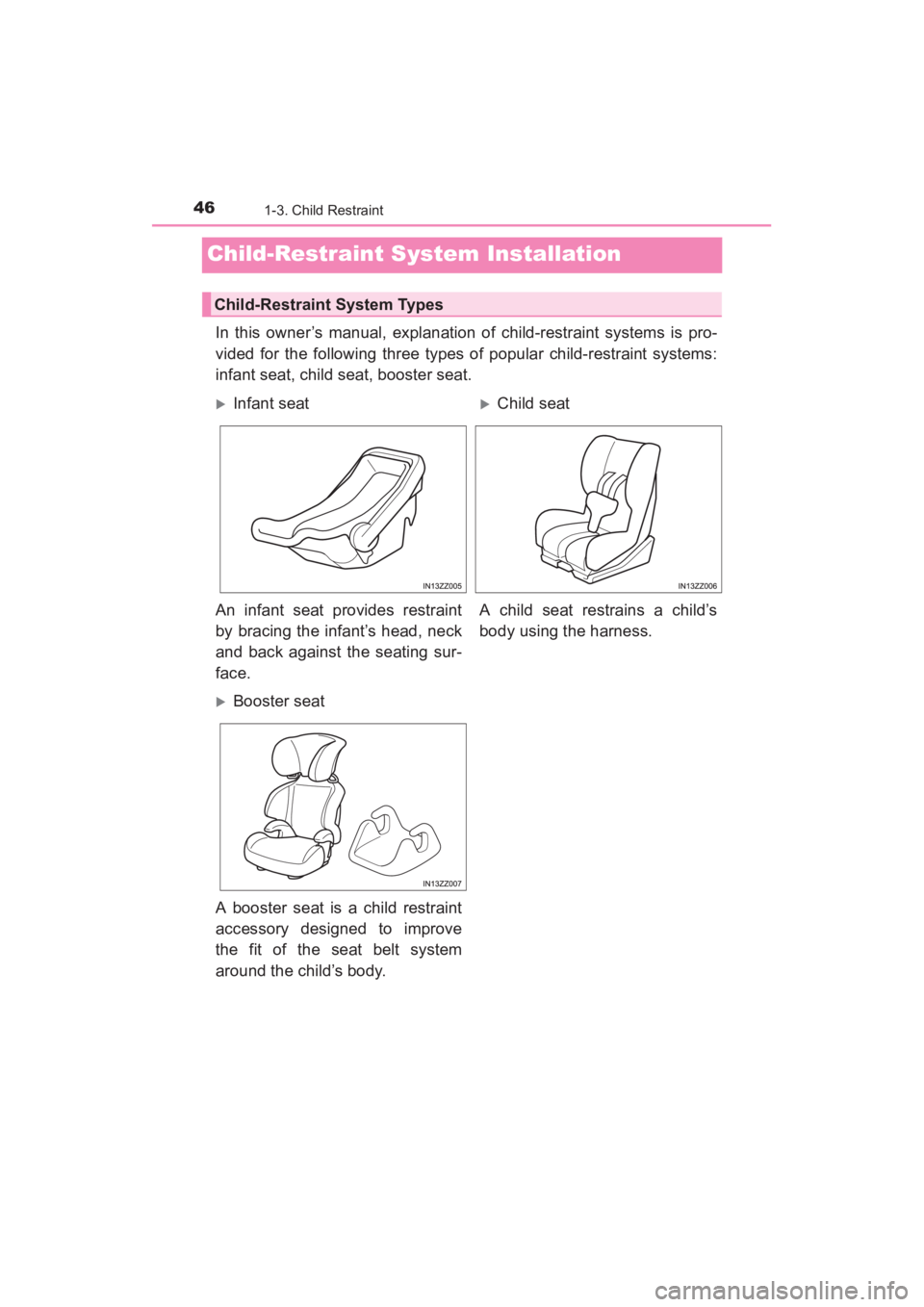

In this owner’s manual, explanation of child-restraint systems is pro-
vided for the following three types of popular child-restraint systems:
infant seat, child seat, booster seat.
Child-Restraint System Types
XInfant seatXChild seat
An infant seat provides restraint
by bracing the infant’s head, neck
and back against the seating sur-
face. A child seat restrains a child’s
body using the harness.
XBooster seat
A booster seat is a child restraint
accessory designed to improve
the fit of the seat belt system
around the child’s body.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 46 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
471-3. Child Restraint
1
Essential Safety Equipment

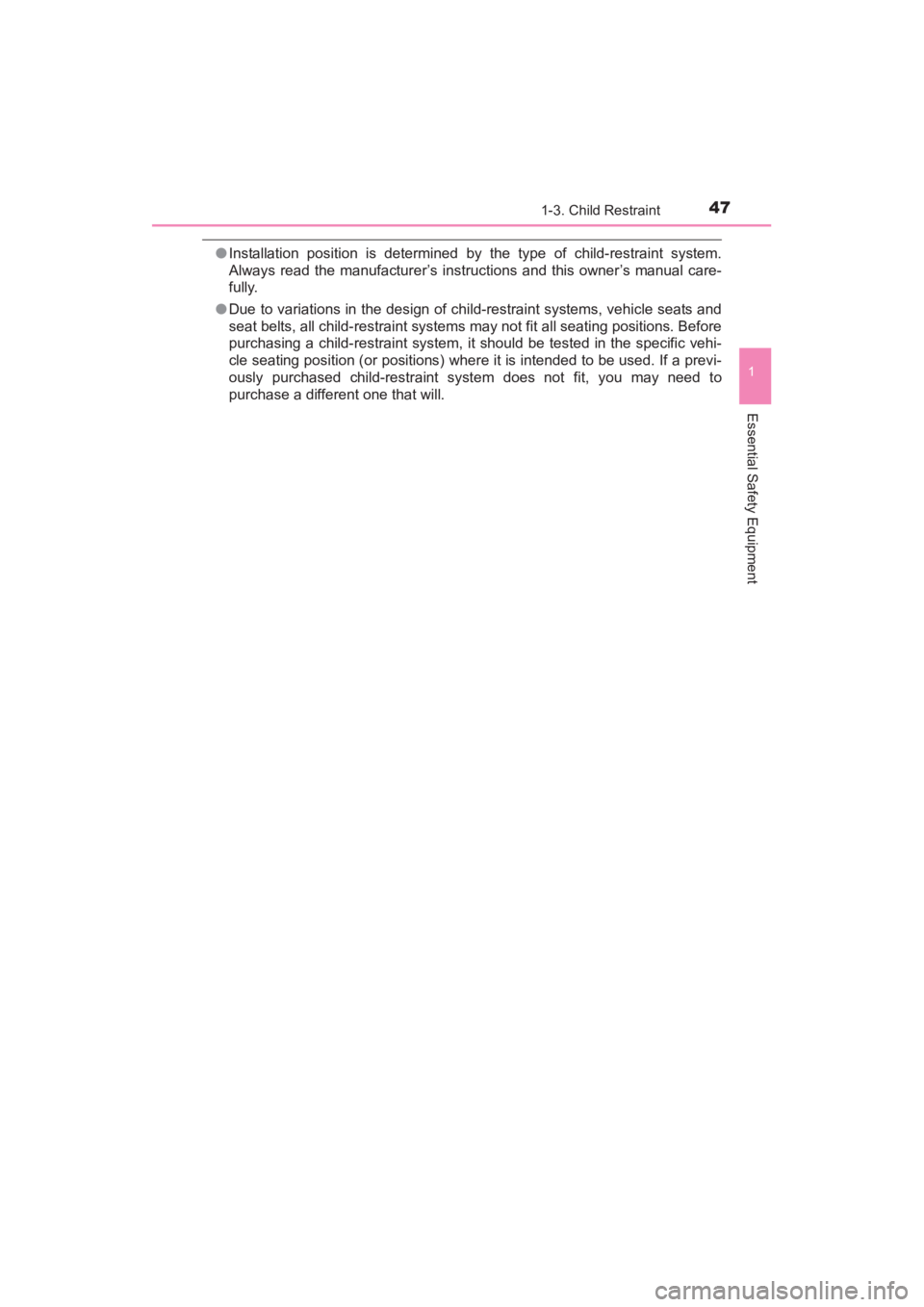

●Installation position is determined by the type of child-restraint system.
Always read the manufacturer’s instructions and this owner’s manual care-
fully.
● Due to variations in the design of child-restraint systems, vehicle seats and
seat belts, all child-restraint systems may not fit all seating positions. Before
purchasing a child-restraint system, it should be tested in the specific vehi-
cle seating position (or positions) where it is intended to be used. If a previ-
ously purchased child-restraint system does not fit, you may need to
purchase a different one that will.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 47 Monday, June 1, 2015 9:22 PM

48
YARIS_SEDAN_OM_OM99M18z_(U)
1-3. Child Restraint

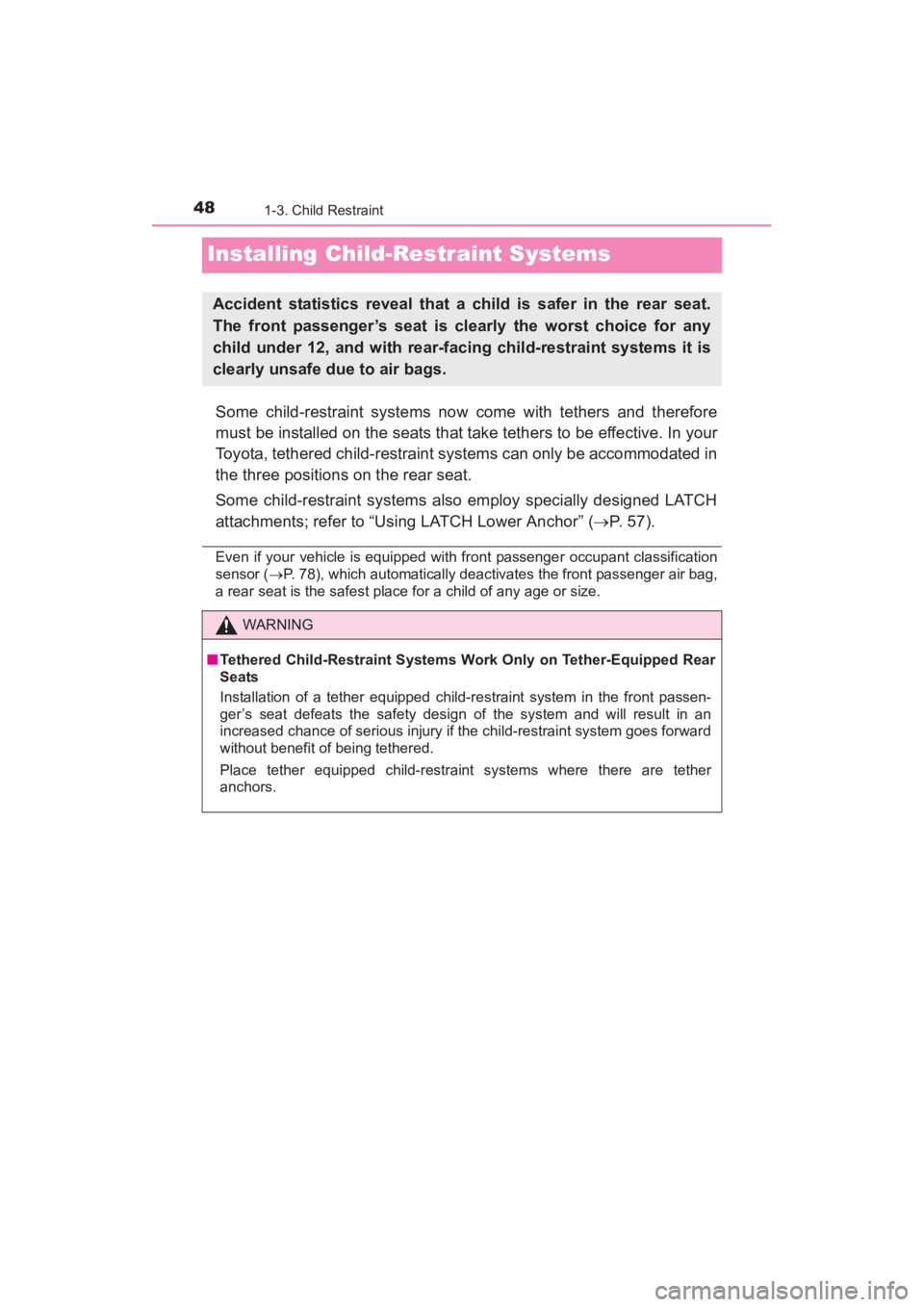

Installing Child-Restraint Systems
Some child-restraint systems now come with tethers and therefore
must be installed on the seats that take tethers to be effective. In your
Toyota, tethered child-restraint systems can only be accommodated in
the three positions on the rear seat.
Some child-restraint systems also employ specially designed LATCH
attachments; refer to “Using LATCH Lower Anchor” (→P. 5 7 ) .
Even if your vehicle is equipped with front passenger occupant classification
sensor ( →P. 78), which automatically deactivates the front passenger air bag,
a rear seat is the safest place for a child of any age or size.
Accident statistics reveal that a child is safer in the rear seat.
The front passenger’s seat is clearly the worst choice for any
child under 12, and with rear-facing child-restraint systems it is
clearly unsafe due to air bags.
WARNING
■ Tethered Child-Restraint Systems Work Only on Tether-Equipped Rear
Seats
Installation of a tether equipped child-restraint system in the front passen-
ger’s seat defeats the safety design of the system and will result in an
increased chance of serious injury if the child-restraint system goes forward
without benefit of being tethered.
Place tether equipped child-restraint systems where there are tether
anchors.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 48 Monday, June 1, 2015 9:22 PM
