TOYOTA YARIS 2017 Owners Manual

281
5
5-1. Basic Operations
Audio system
YARIS_F_OM_Europe_OM52J20E

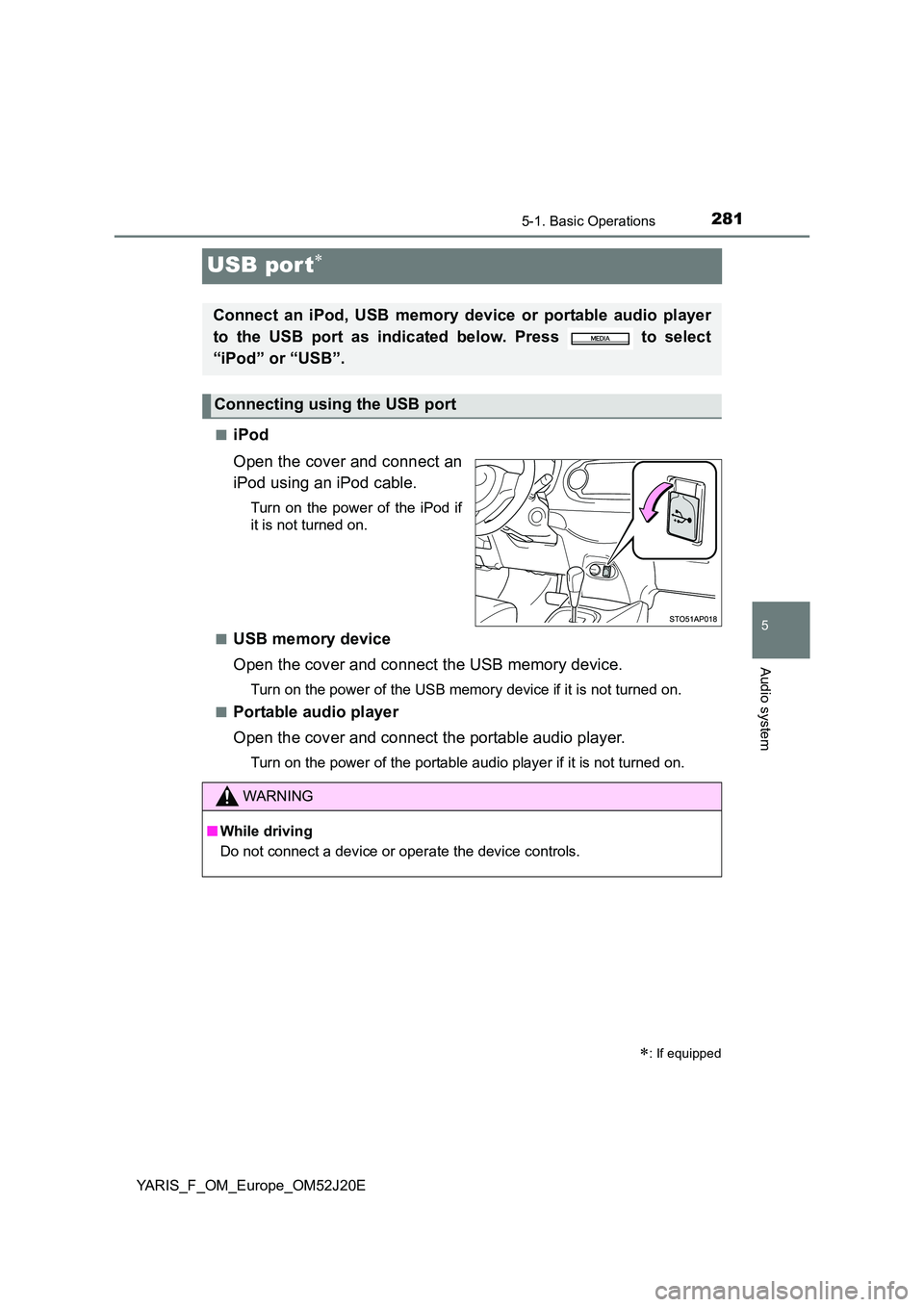

USB por t
■iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
■USB memory device
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
: If equipped
Connect an iPod, USB memory device or portable audio player
to the USB port as indicated below. Press to select
“iPod” or “USB”.
Connecting using the USB port
WARNING
■ While driving
Do not connect a device or operate the device controls.

2825-2. Using the audio system
YARIS_F_OM_Europe_OM52J20E

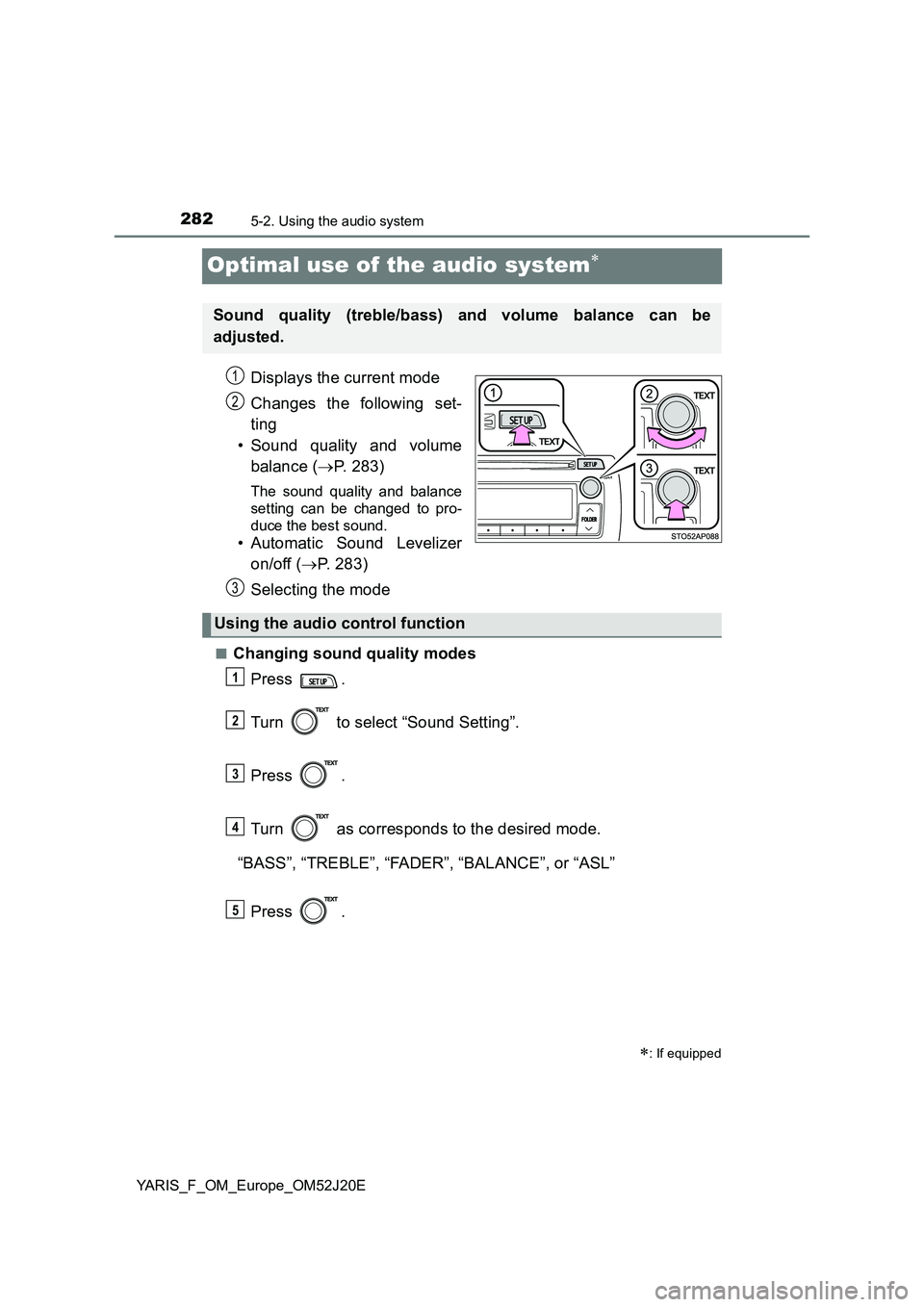

Optimal use of the audio system
Displays the current mode
Changes the following set-
ting
• Sound quality and volume
balance ( P. 283)
The sound quality and balance
setting can be changed to pro-
duce the best sound.
• Automatic Sound Levelizer
on/off ( P. 283)
Selecting the mode
■Changing sound quality modes
Press .
Turn to select “Sound Setting”.
Press .
Turn as corresponds to the desired mode.
“BASS”, “TREBLE”, “FADER”, “BALANCE”, or “ASL”
Press .
: If equipped
Sound quality (treble/bass) and volume balance can be
adjusted.
STO51AP005
1
2
3
Using the audio control function
1
2
3
4
5

2835-2. Using the audio system
5
Audio system
YARIS_F_OM_Europe_OM52J20E

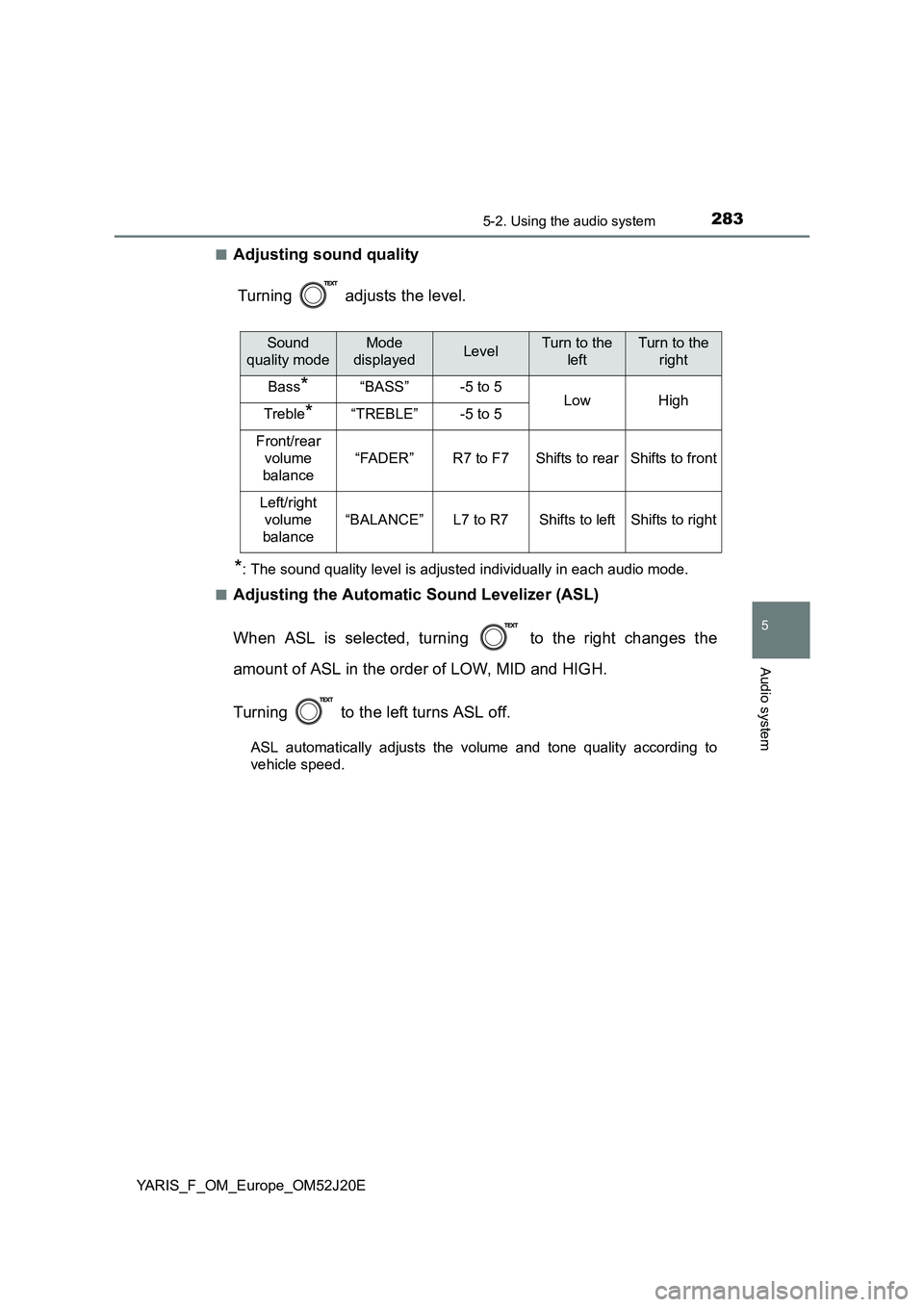

■Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
■Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turning to the right changes the
amount of ASL in the order of LOW, MID and HIGH.
Turning to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Sound
quality mode
Mode
displayedLevelTurn to the
left
Turn to the
right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear
volume
balance
“FADER”R7 to F7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

2845-3. Using the radio
YARIS_F_OM_Europe_OM52J20E

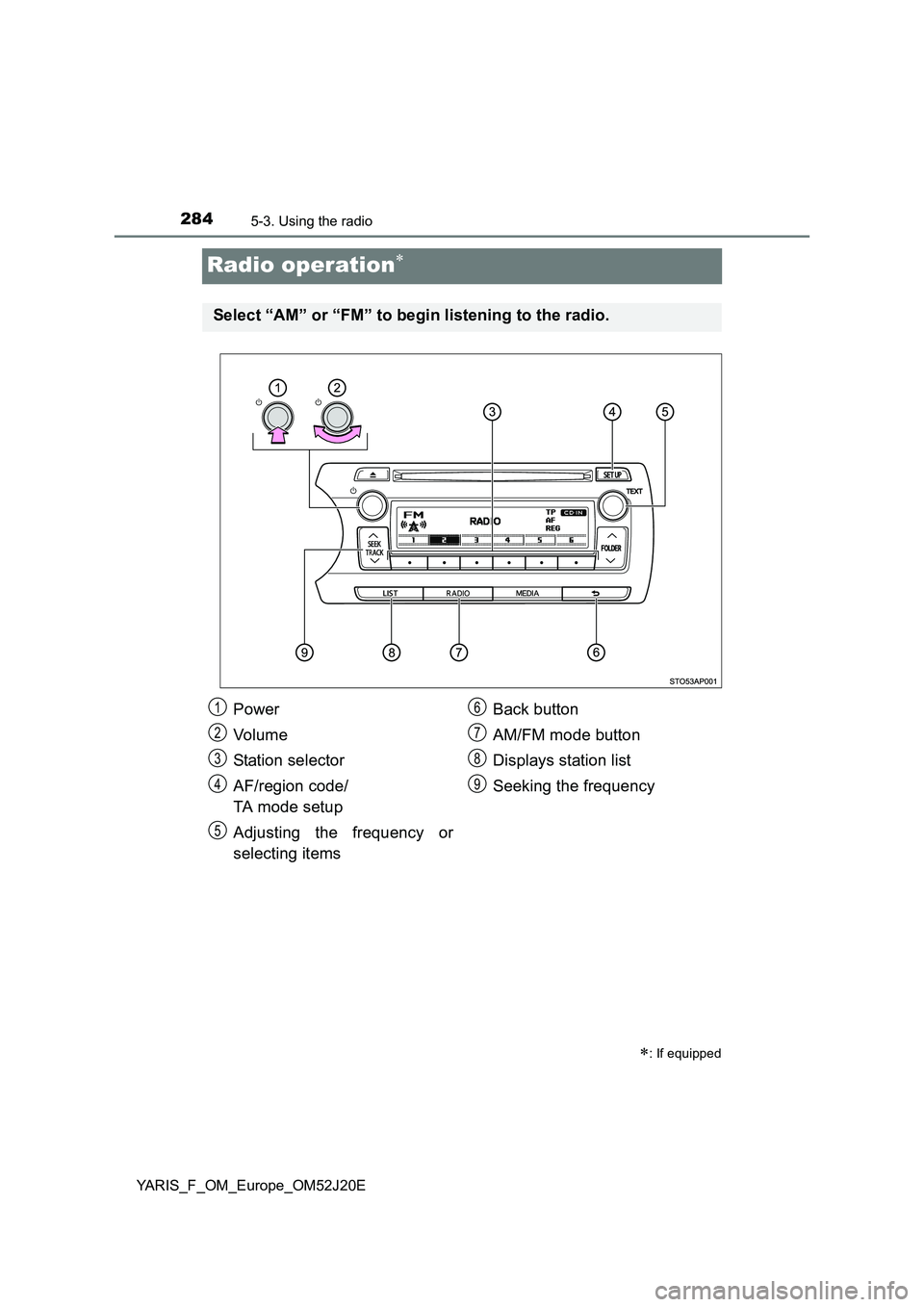

Radio operation
: If equipped
Select “AM” or “FM” to begin listening to the radio.
Power
Vo lu m e
Station selector
AF/region code/
TA mode setup
Adjusting the frequency or
selecting items
Back button
AM/FM mode button
Displays station list
Seeking the frequency
1
2
3
4
5
6
7
8
9

2855-3. Using the radio
5
Audio system
YARIS_F_OM_Europe_OM52J20E

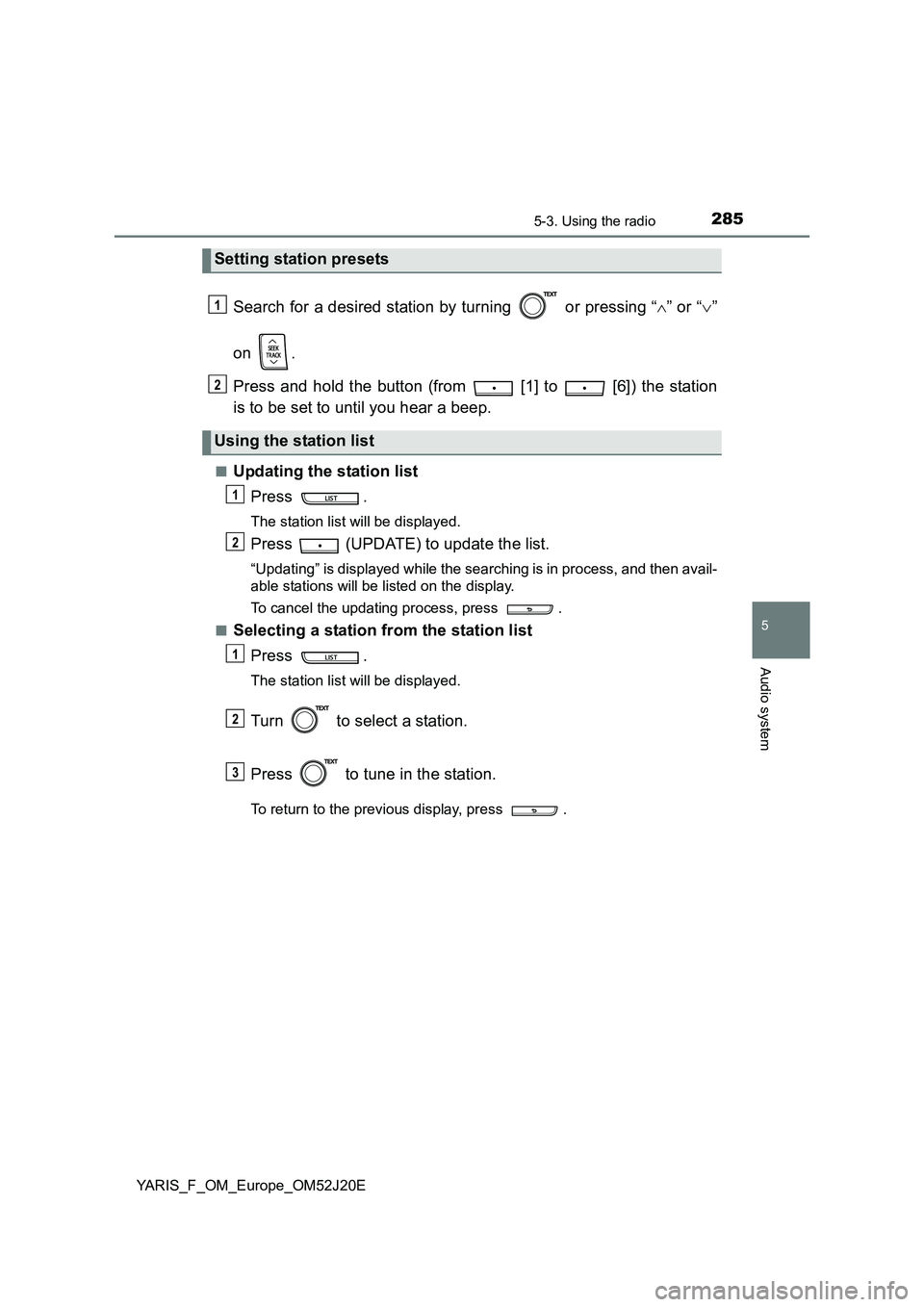

Search for a desired station by turning or pressing “” or “”
on .
Press and hold the button (from [1] to [6]) the station
is to be set to until you hear a beep.
■Updating the station list
Press .
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press .
■Selecting a station from the station list
Press .
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
Setting station presets
Using the station list
1
2
1
2
1
2
3

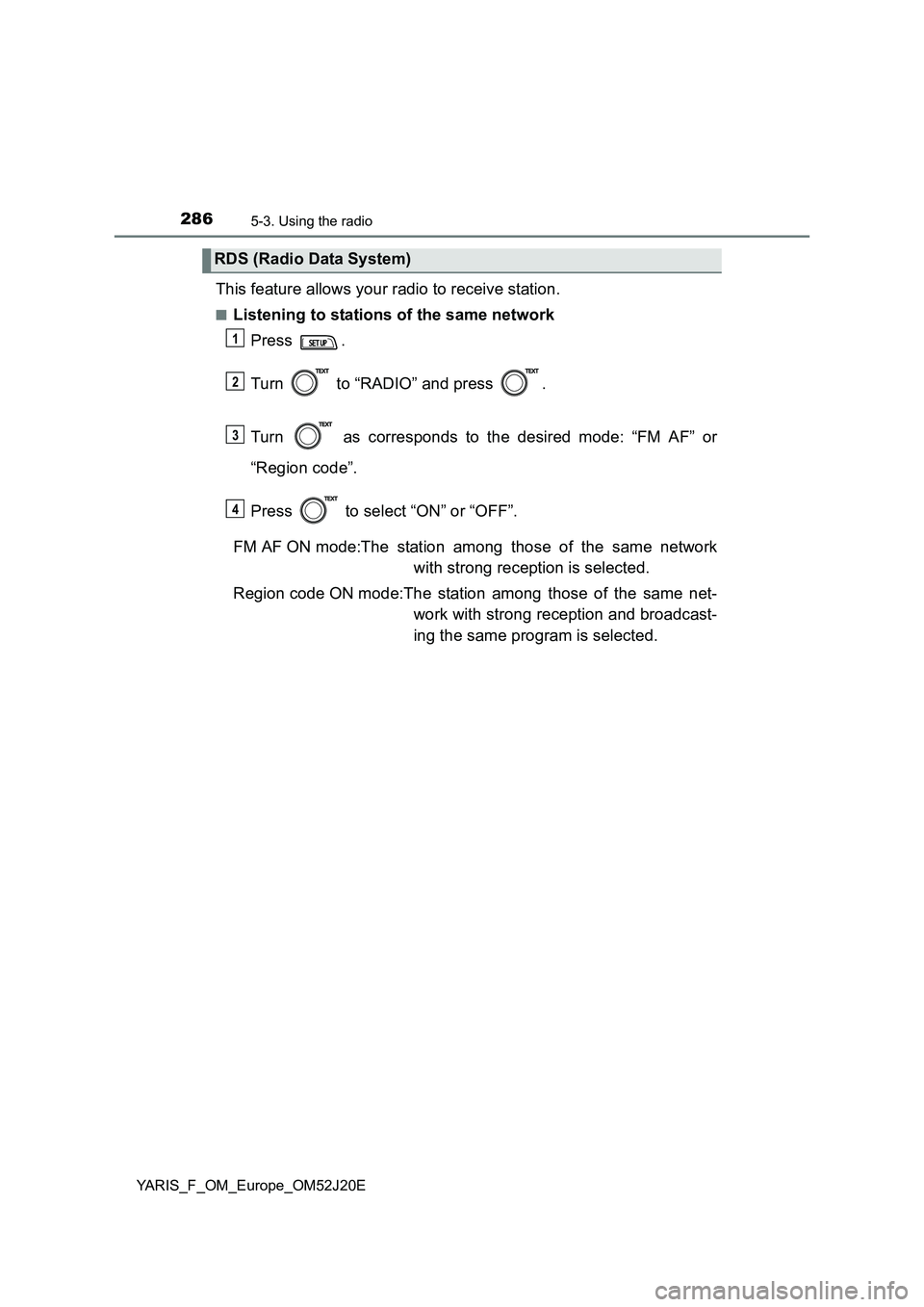

2865-3. Using the radio
YARIS_F_OM_Europe_OM52J20E
This feature allows your radio to receive station.
■Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
Press to select “ON” or “OFF”.
FM AF ON mode:The station among those of the same network
with strong reception is selected.
Region code ON mode:The station among those of the same net-
work with strong reception and broadcast-
ing the same program is selected.
RDS (Radio Data System)
1
2
3
34

2875-3. Using the radio
5
Audio system
YARIS_F_OM_Europe_OM52J20E

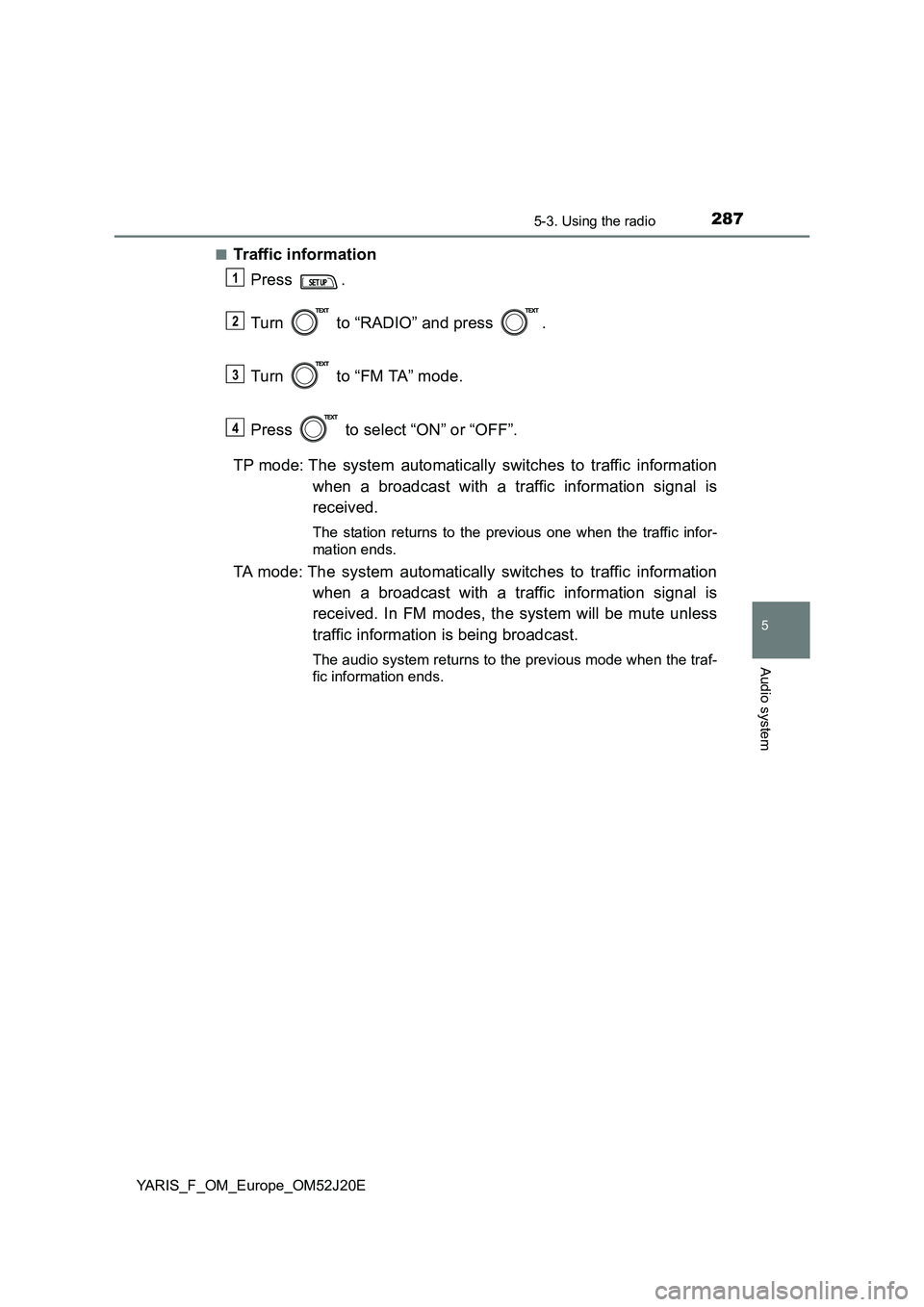

■Traffic information
Press .
Turn to “RADIO” and press .
Turn to “FM TA” mode.
Press to select “ON” or “OFF”.
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
TA mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received. In FM modes, the system will be mute unless
traffic information is being broadcast.
The audio system returns to the previous mode when the traf-
fic information ends.
1
2
3
34

2885-3. Using the radio
YARIS_F_OM_Europe_OM52J20E

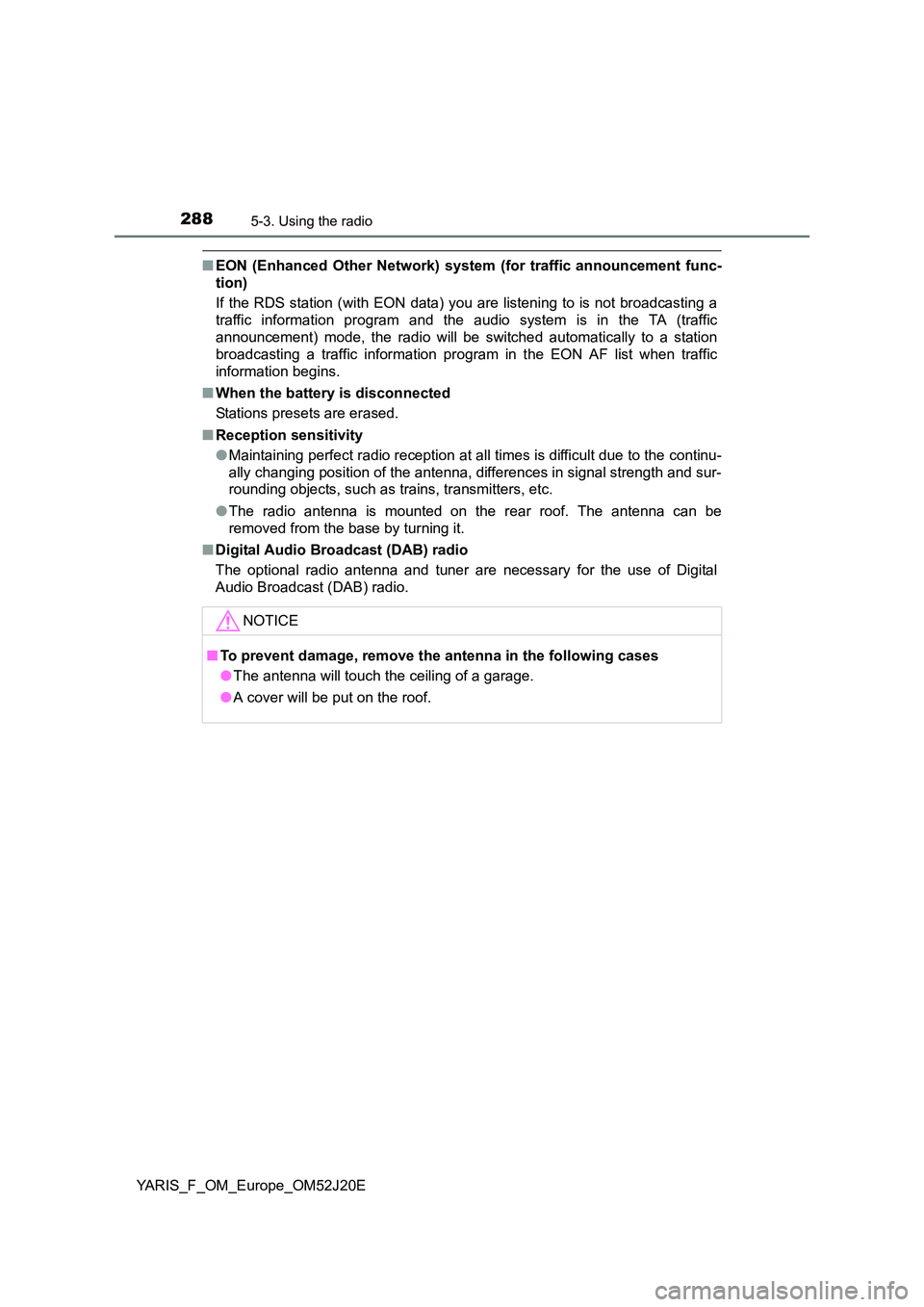

■EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■ When the battery is disconnected
Stations presets are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.
■ Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
■ To prevent damage, remove the antenna in the following cases
● The antenna will touch the ceiling of a garage.
● A cover will be put on the roof.

289
5
5-4. Playing audio CDs and MP3/WMA discs
Audio system
YARIS_F_OM_Europe_OM52J20E

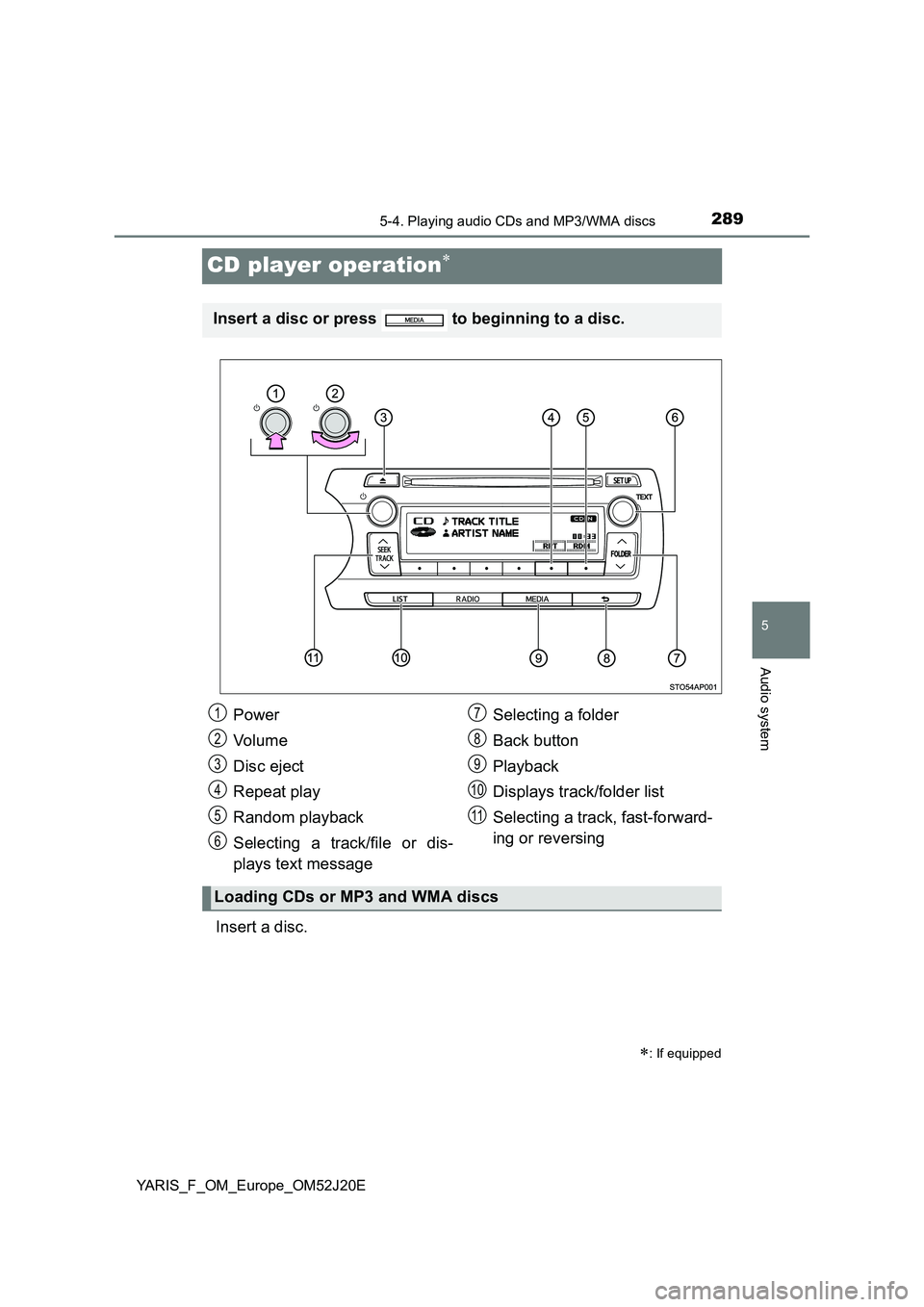

CD player operation
Insert a disc.
: If equipped
Insert a disc or press to beginning to a disc.
Power
Vo lu m e
Disc eject
Repeat play
Random playback
Selecting a track/file or dis-
plays text message
Selecting a folder
Back button
Playback
Displays track/folder list
Selecting a track, fast-forward-
ing or reversing
Loading CDs or MP3 and WMA discs
1
2
3
4
5
6
7
8
9
10
11

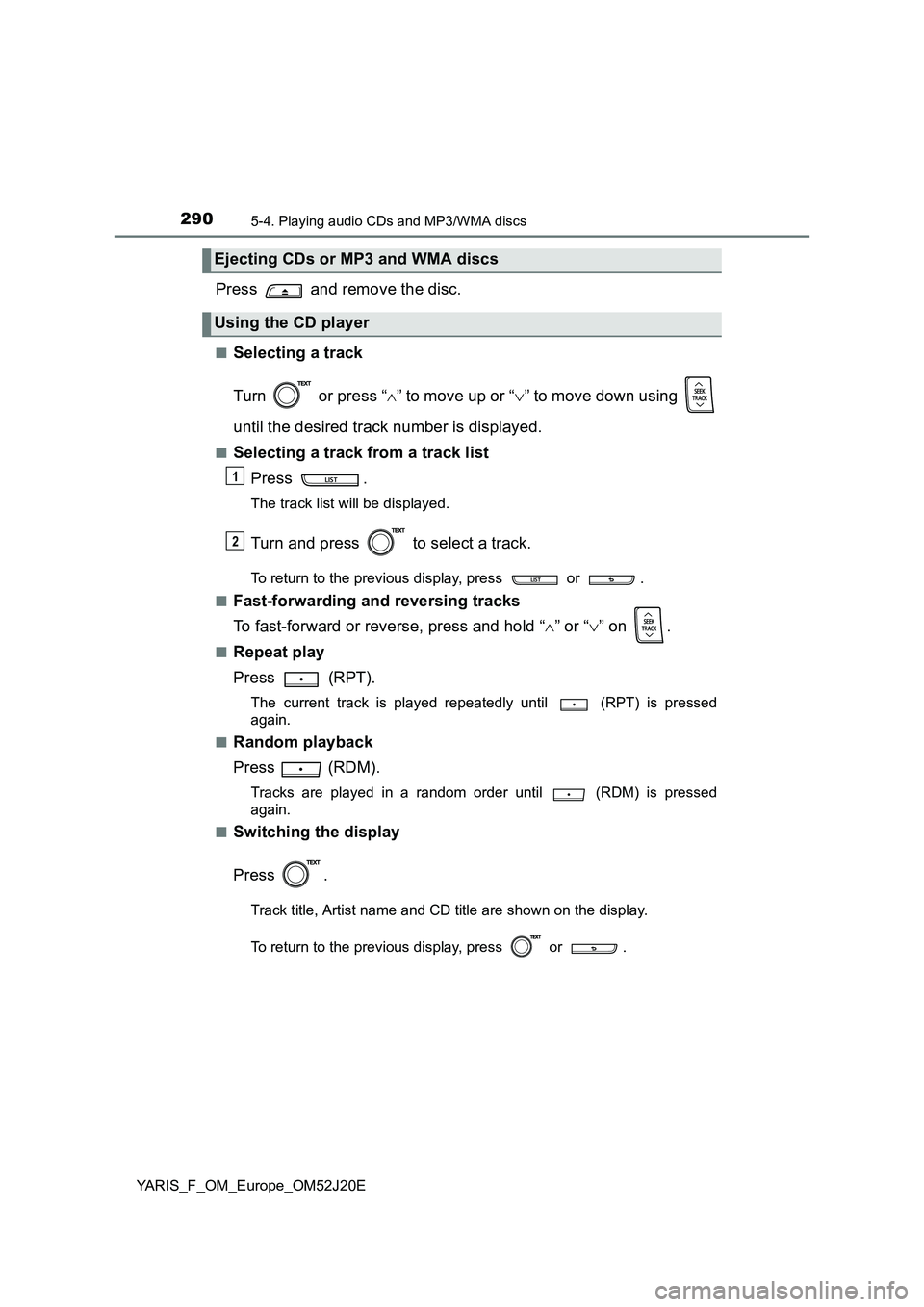

2905-4. Playing audio CDs and MP3/WMA discs
YARIS_F_OM_Europe_OM52J20E
Press and remove the disc.
■Selecting a track
Turn or press “ ” to move up or “” to move down using
until the desired track number is displayed.
■Selecting a track from a track list
Press .
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or .
■Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “ ” or “” on .
■Repeat play
Press (RPT).
The current track is played repeatedly until (RPT) is pressed
again.
■Random playback
Press (RDM).
Tracks are played in a random order until (RDM) is pressed
again.
■Switching the display
Press .
Track title, Artist name and CD title are shown on the display.
To return to the previous display, press or .
Ejecting CDs or MP3 and WMA discs
Using the CD player
1
2
