TOYOTA YARIS 2017 Owners Manual

5219-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52J20E

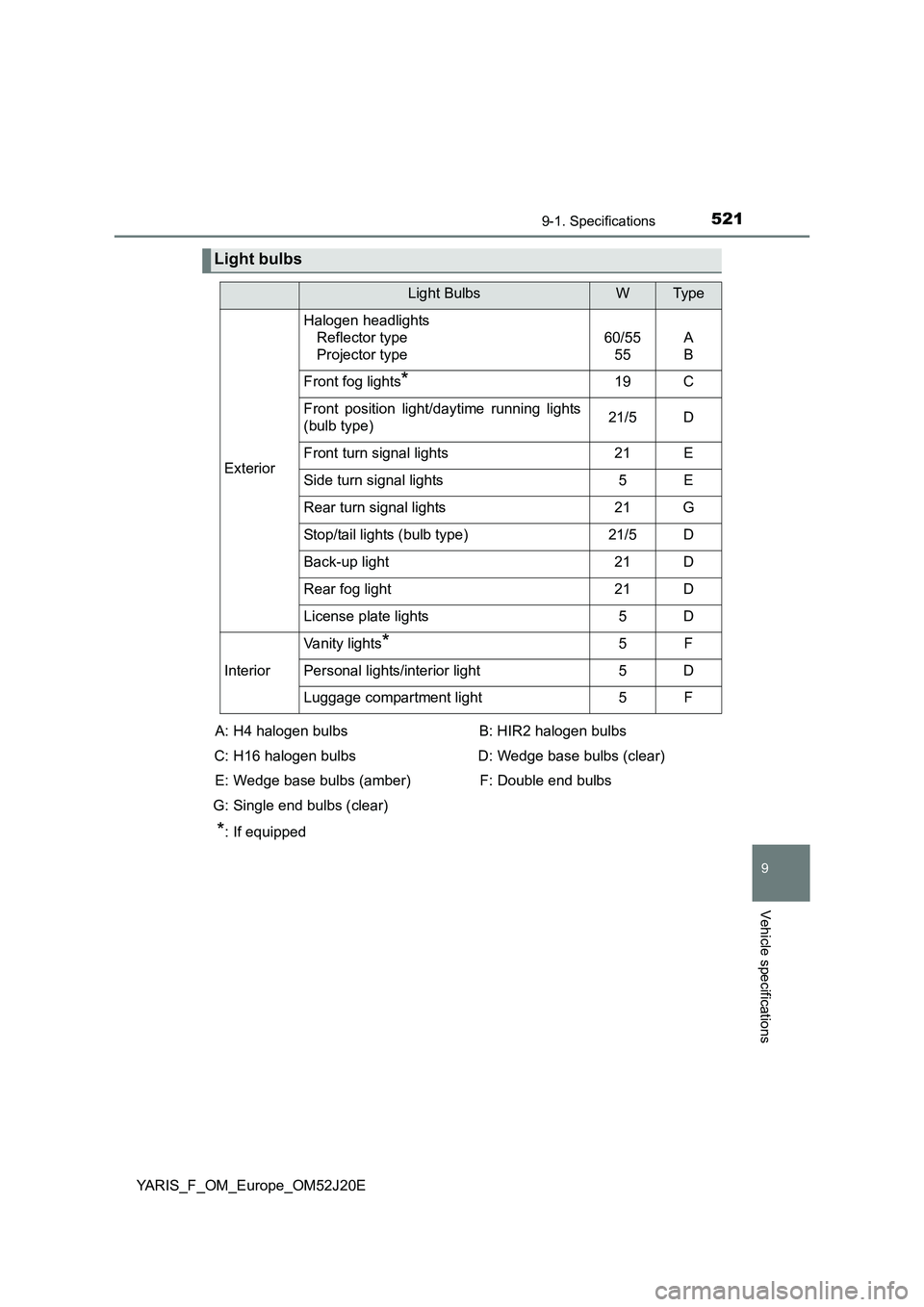

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights
Reflector type
Projector type
60/55
55
A
B
Front fog lights*19C
Front position light/daytime running lights
(bulb type)21/5D
Front turn signal lights21E
Side turn signal lights5E
Rear turn signal lights21G
Stop/tail lights (bulb type)21/5D
Back-up light21D
Rear fog light21D
License plate lights5D
Interior
Vanity lights*5F
Personal lights/interior light5D
Luggage compartment light5F
A: H4 halogen bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Single end bulbs (clear)
B: HIR2 halogen bulbs
D: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped

5229-1. Specifications
YARIS_F_OM_Europe_OM52J20E
Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.
■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Gasoline engine
EU area:
You must only use unleaded gasoline conforming to European stan-
dard EN228.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Diesel engine
EU area:
You must only use diesel fuel conforming to European standard
EN590.
Except EU area (except Russia) :
You must only use diesel fuel that contains 50 ppm or less of sulfur
with a cetane number of 48 or higher.
Except EU area (Russia) :
You must only use diesel fuel with a cetane number of 48 or higher.
Your vehicle must use only diesel fuel confirming to GOST R52368-
2005 (Sulfur max 50 ppm).

5239-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52J20E

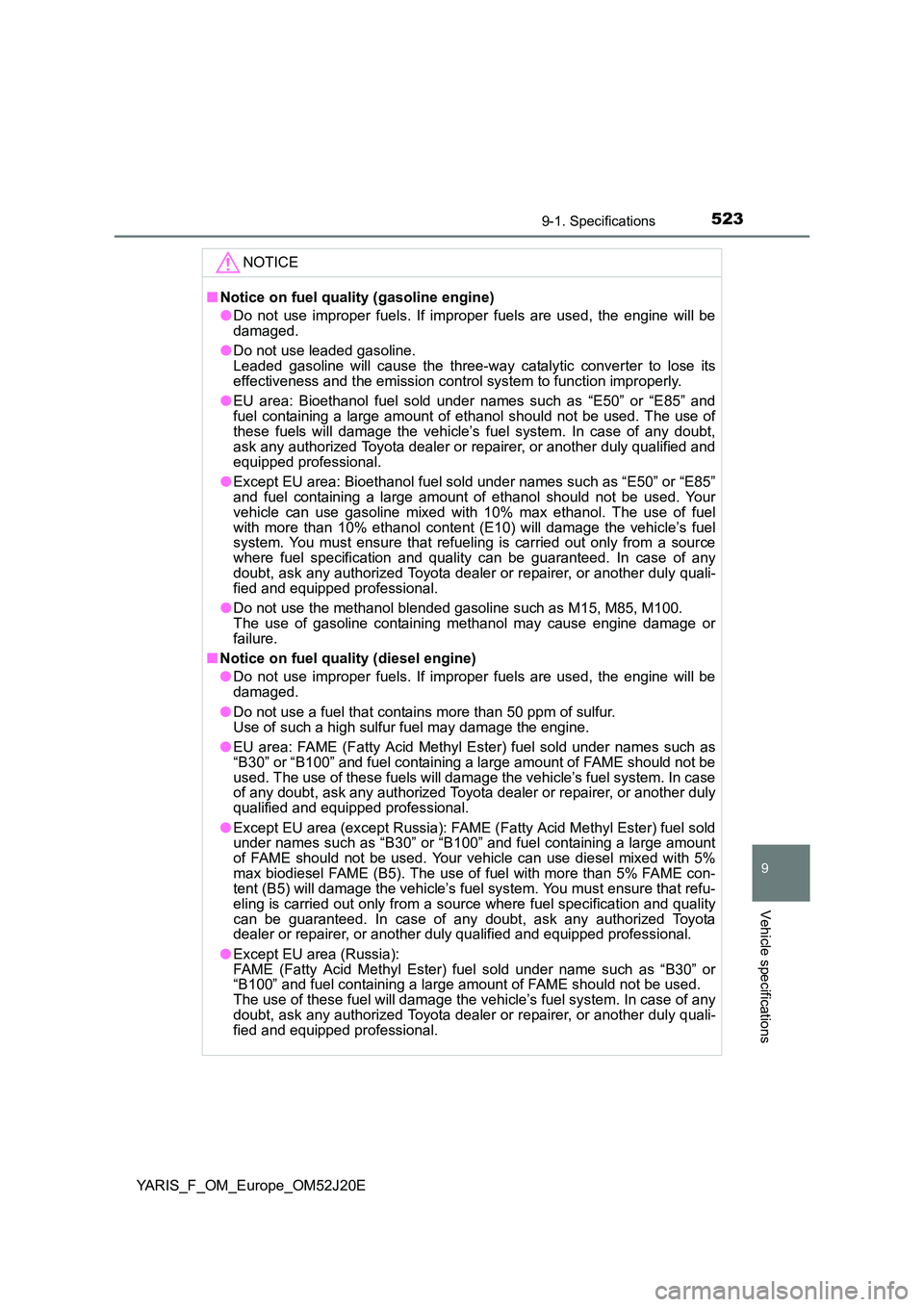

NOTICE
■Notice on fuel quality (gasoline engine)
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use leaded gasoline. Leaded gasoline will cause the three-way catalytic converter to lose itseffectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. The use ofthese fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuelwith more than 10% ethanol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel specification and quality can be guaranteed. In case of anydoubt, ask any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional.
● Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing methanol may cause engine damage or failure.
■ Notice on fuel quality (diesel engine)
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use a fuel that contains more than 50 ppm of sulfur. Use of such a high sulfur fuel may damage the engine.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as “B30” or “B100” and fuel containing a large amount of FAME should not beused. The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
● Except EU area (except Russia): FAME (Fatty Acid Methyl Ester) fuel sold under names such as “B30” or “B100” and fuel containing a large amount of FAME should not be used. Your vehicle can use diesel mixed with 5%max biodiesel FAME (B5). The use of fuel with more than 5% FAME con- tent (B5) will damage the vehicle’s fuel system. You must ensure that refu- eling is carried out only from a source where fuel specification and qualitycan be guaranteed. In case of any doubt, ask any authorized Toyota dealer or repairer, or another dul y qualified and equipped professional.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under name such as “B30” or “B100” and fuel containing a large amount of FAME should not be used. The use of these fuel will damage the vehicle’s fuel system. In case of anydoubt, ask any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional.

5249-2. Customization
YARIS_F_OM_Europe_OM52J20E

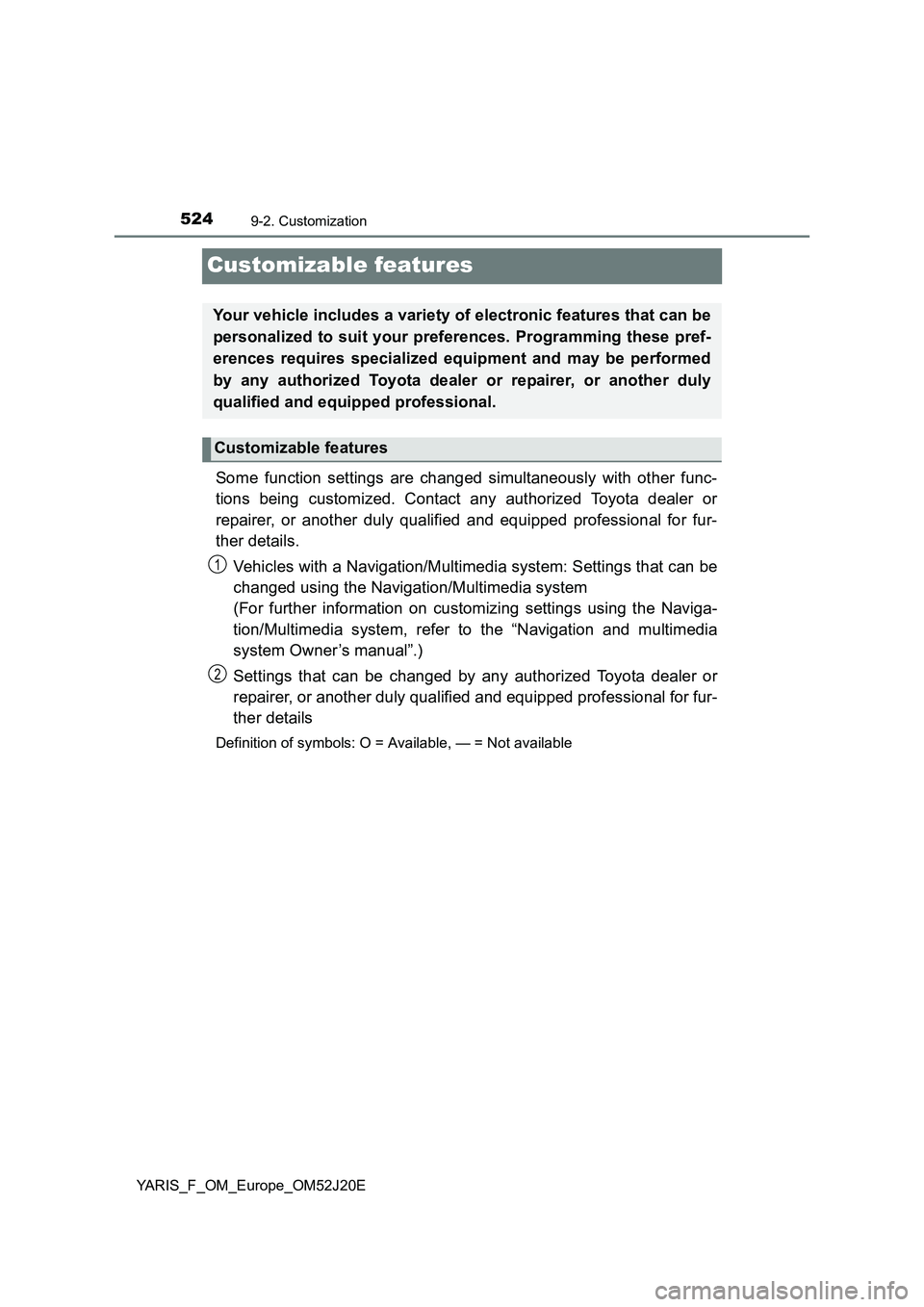

Customizable features
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
Vehicles with a Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
(For further information on customizing settings using the Naviga-
tion/Multimedia system, refer to the “Navigation and multimedia
system Owner’s manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details
Definition of symbols: O = Av ailable, — = Not available
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Customizable features
1
2

5259-2. Customization
9
Vehicle specifications
YARIS_F_OM_Europe_OM52J20E

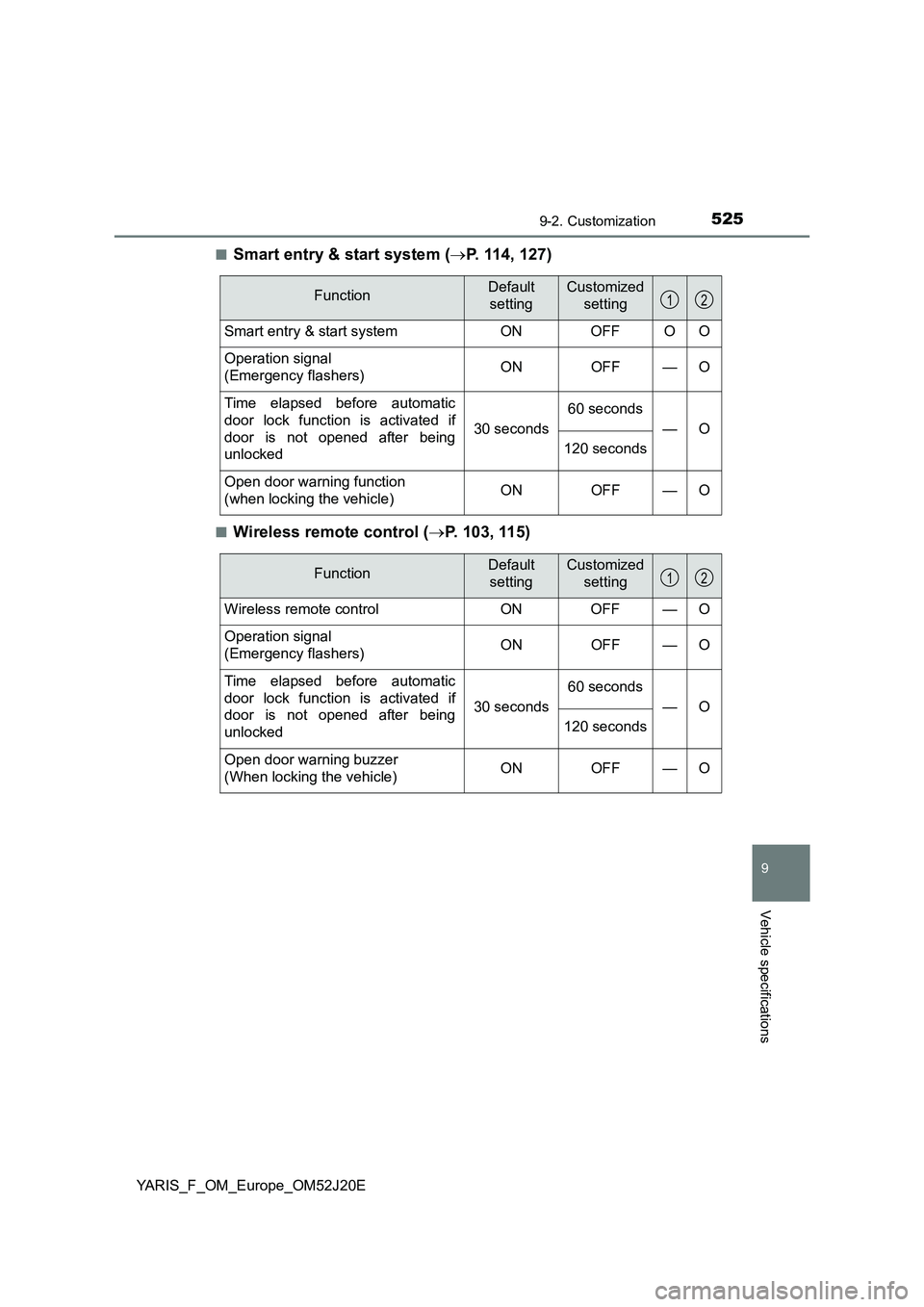

■Smart entry & start system ( P. 114, 127)
■Wireless remote control (P. 103, 115)
FunctionDefault
setting
Customized
setting
Smart entry & start system ON OFF O O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O
120 seconds
Open door warning function
(when locking the vehicle) ON OFF — O
12
FunctionDefault
setting
Customized
setting
Wireless remote control ON OFF — O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O
120 seconds
Open door warning buzzer
(When locking the vehicle) ON OFF — O
12

5269-2. Customization
YARIS_F_OM_Europe_OM52J20E

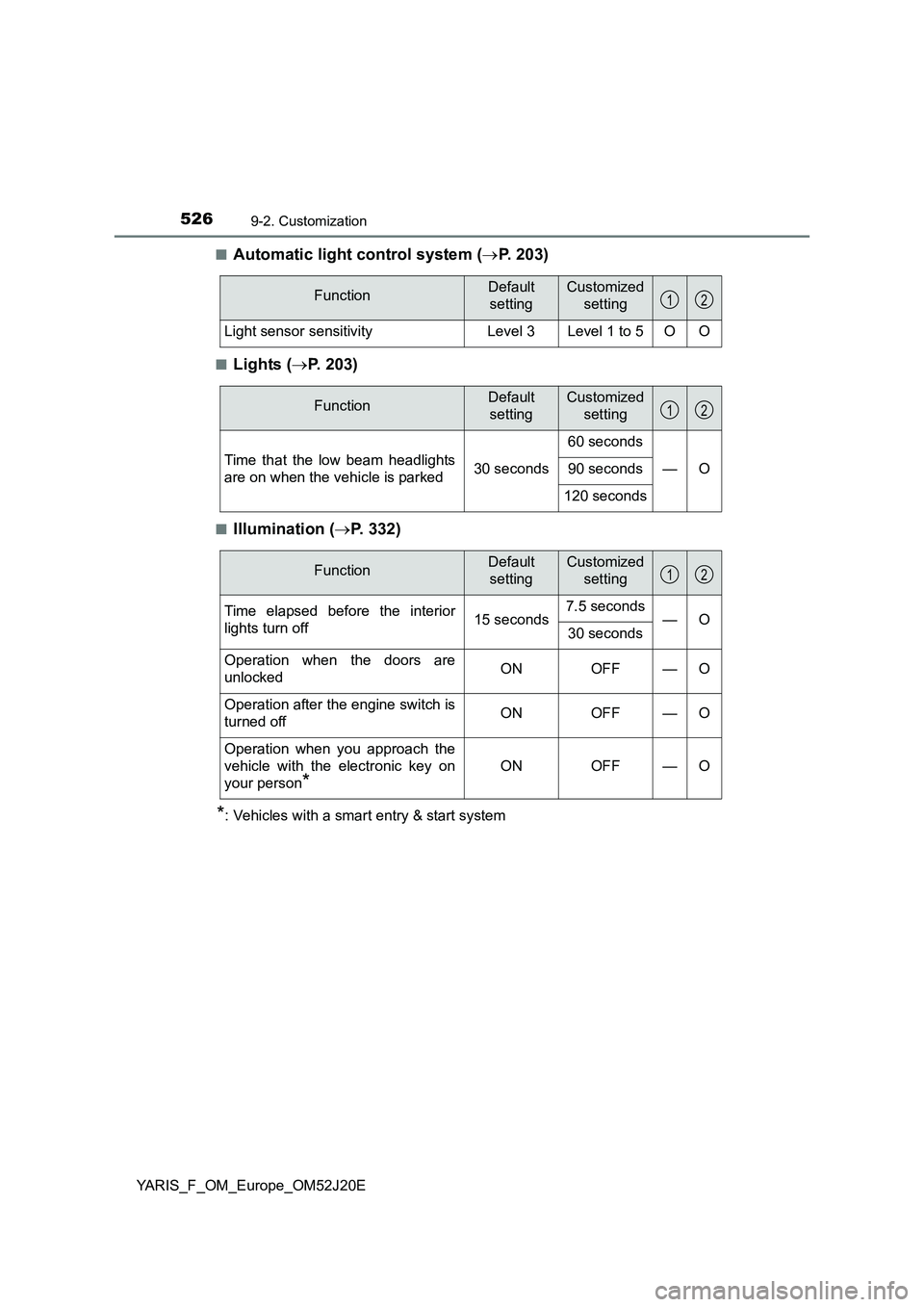

■Automatic light control system ( P. 203)
■Lights (P. 203)
■Illumination (P. 332)
*: Vehicles with a smart entry & start system
FunctionDefault
setting
Customized
setting
Light sensor sensitivity Level 3 Level 1 to 5 O O
12
FunctionDefault
setting
Customized
setting
Time that the low beam headlights
are on when the vehicle is parked30 seconds
60 seconds
—O90 seconds
120 seconds
12
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds7.5 seconds—O30 seconds
Operation when the doors are
unlocked ON OFF — O
Operation after the engine switch is
turned off ON OFF — O
Operation when you approach the
vehicle with the electronic key on
your person*
ON OFF — O
12

5279-2. Customization
9
Vehicle specifications
YARIS_F_OM_Europe_OM52J20E

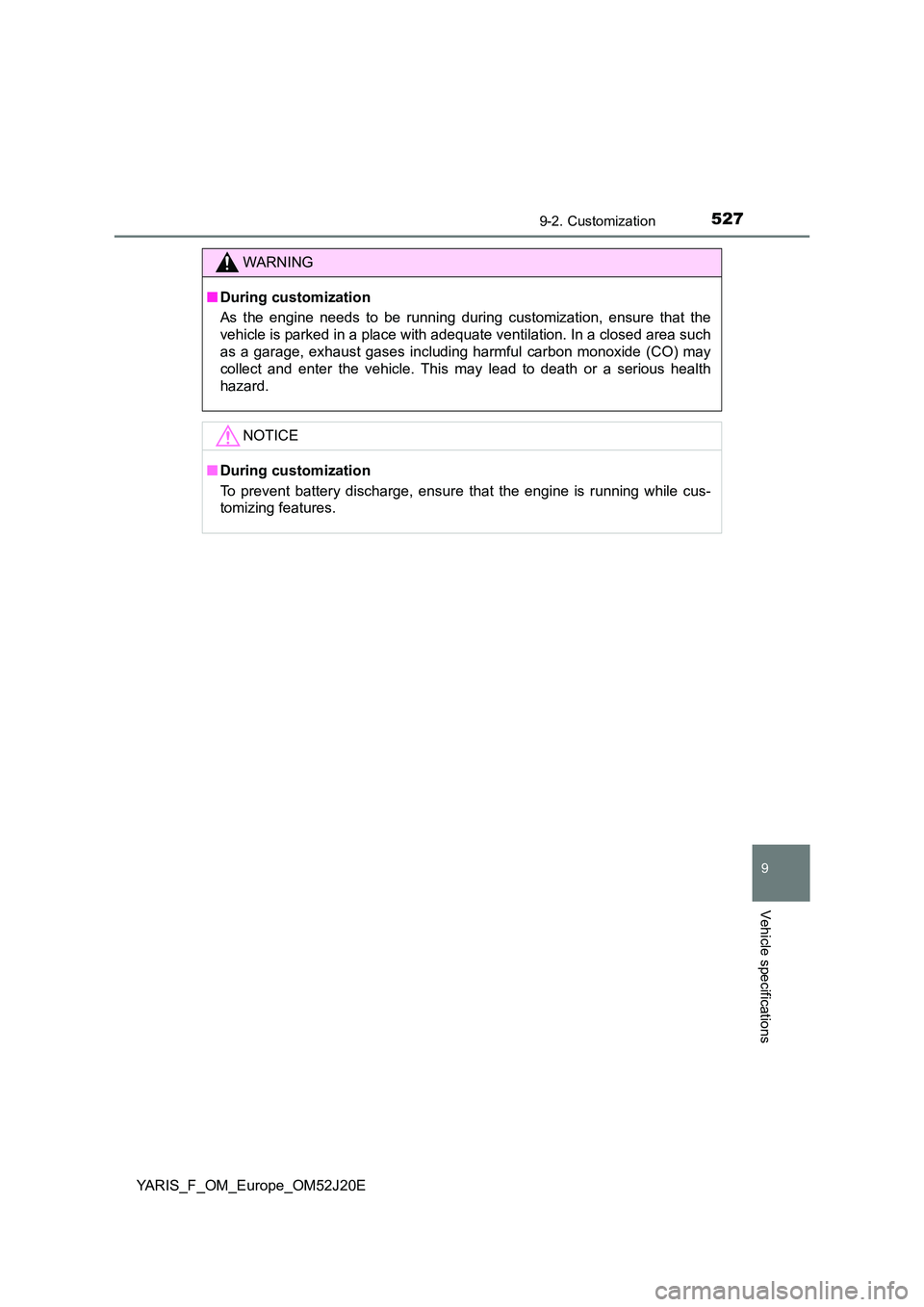

WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

5289-3. Items to initialize
YARIS_F_OM_Europe_OM52J20E

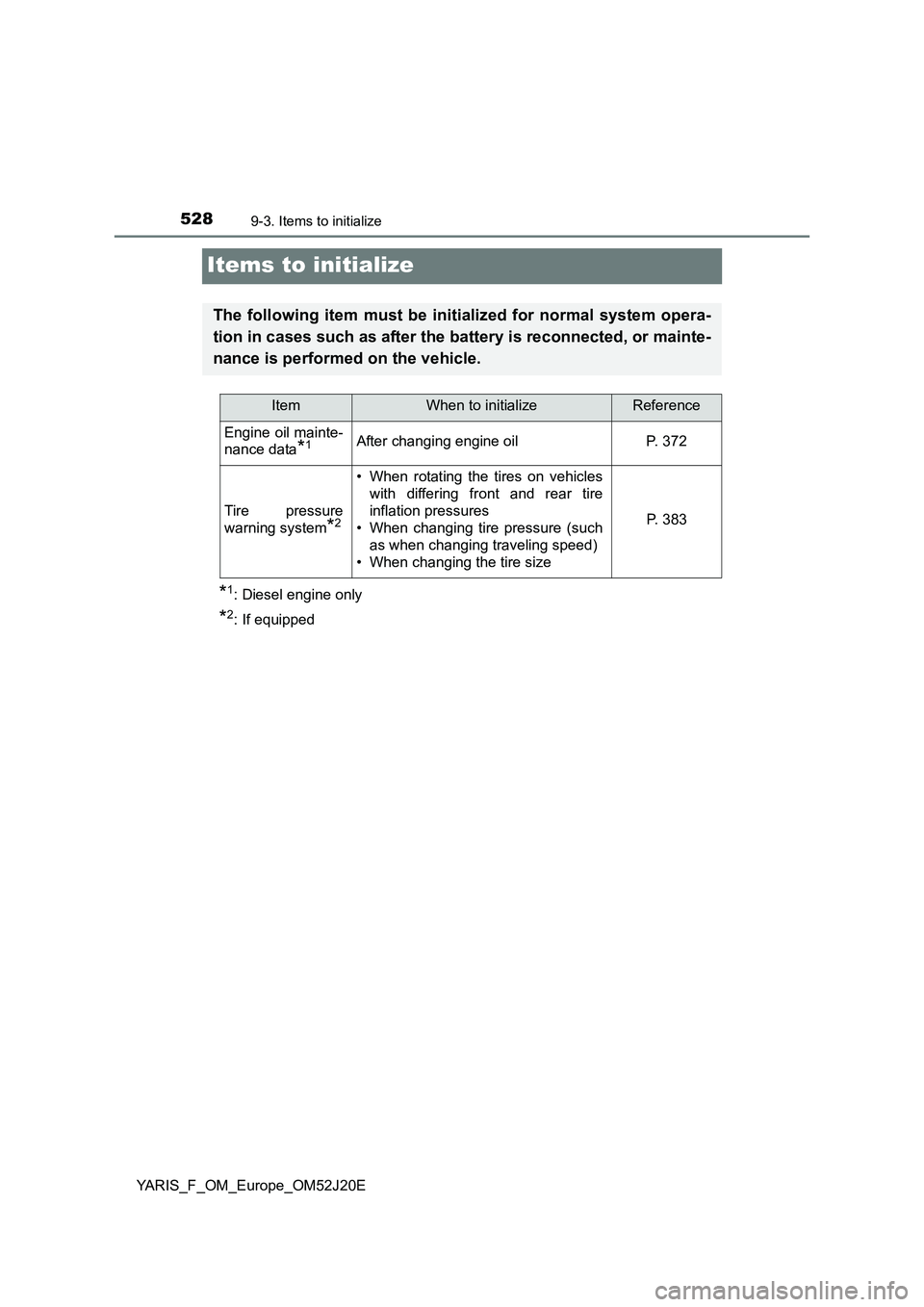

Items to initialize
*1: Diesel engine only
*2: If equipped
The following item must be initialized for normal system opera-
tion in cases such as after the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil mainte-
nance data*1After changing engine oil P. 372
Tire pressure
warning system*2
• When rotating the tires on vehicles
with differing front and rear tire
inflation pressures
• When changing tire pressure (such
as when changing traveling speed)
• When changing the tire size
P. 383

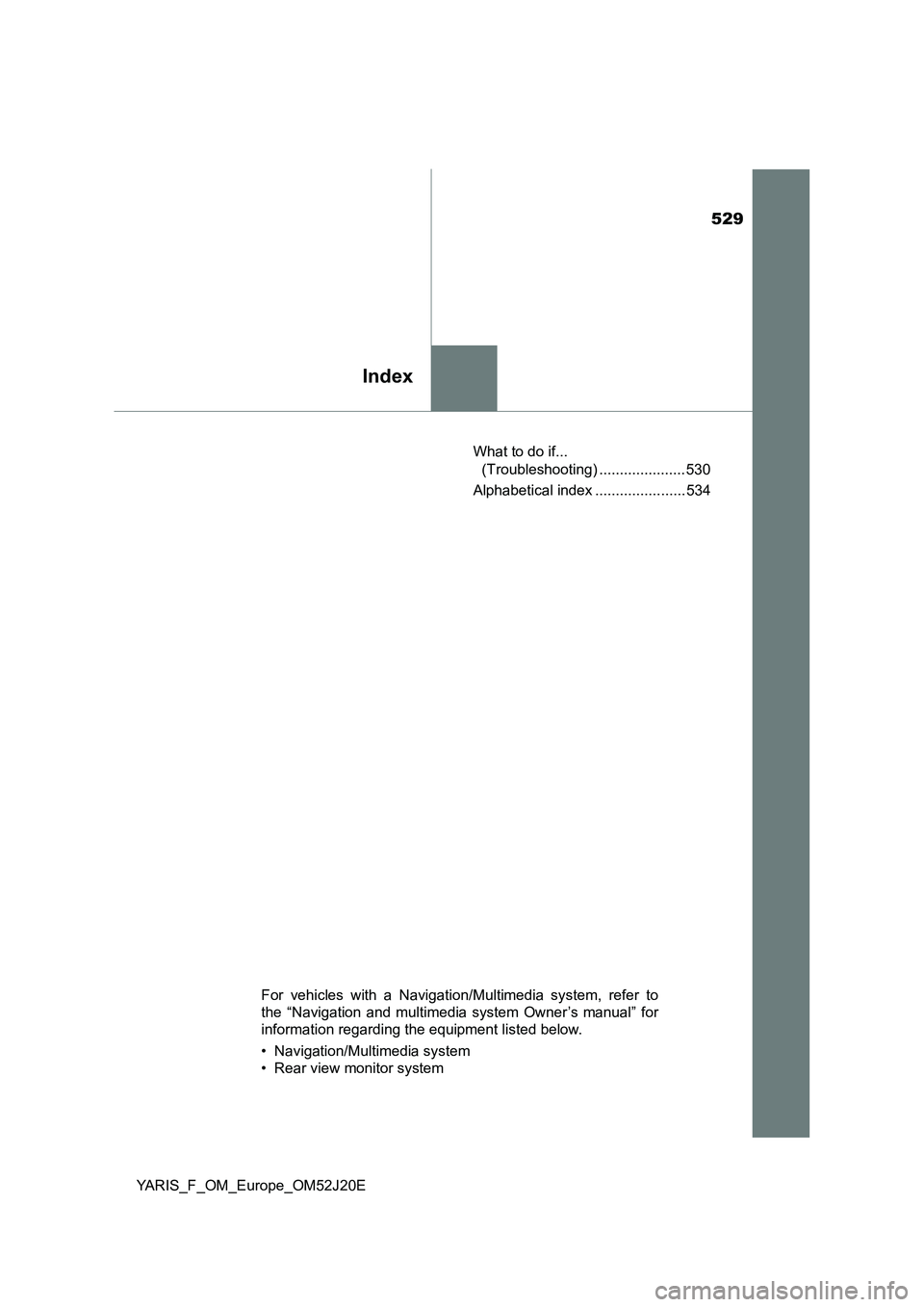

529
Index
YARIS_F_OM_Europe_OM52J20E
What to do if...
(Troubleshooting) ..................... 530
Alphabetical index ...................... 534
For vehicles with a Navigation/Multimedia system, refer to
the “Navigation and multimedia system Owner’s manual” for
information regarding the equipment listed below.
• Navigation/Multimedia system
• Rear view monitor system

530What to do if... (Troubleshooting)
YARIS_F_OM_Europe_OM52J20E

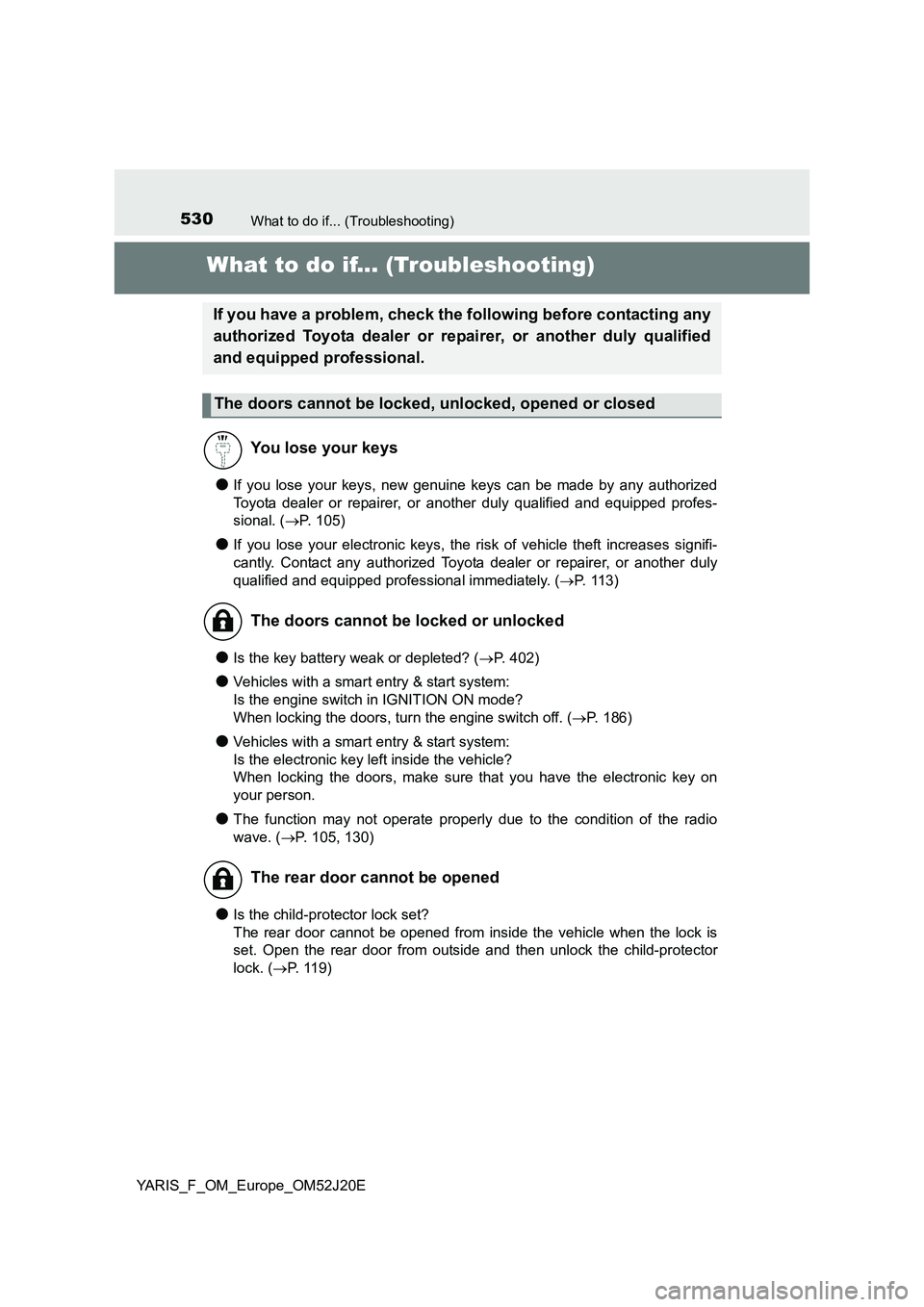

What to do if... (Troubleshooting)
●If you lose your keys, new genuine keys can be made by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. ( P. 105)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately. ( P. 113)
●Is the key battery weak or depleted? (P. 402)
●Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 186)
●Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( P. 105, 130)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 11 9 )
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
